Product Type	Built-in Induction Hob
Brand	Klarstein
Model	DualTone Flex
Dimensions (W x D x H)	590 x 520 x 56 mm
Power Supply	220-240 V ~ 50-60 Hz, 7200 W
Number of Cooking Zones	4 round zones + 2 Flex zones
Diameters of round zones	∅180 mm (each)
Dimensions of Flex zones	385 x 200 mm (each)
Maximum power per zone	Round zone: 1800 W, Flex zone: 3600 W (Boost)
Main functions	Flex Duo, Boost, Keep Warm, Pause, Timer, Child Lock
Safety	Automatic shut-off, residual heat indicator, pan detection, child safety
Surface material	Vitroceramic
Care and cleaning	Use specific induction hob cleaner, avoid abrasive sponges, scraper for stubborn residue
Installation	Built-in, requires ventilation, qualified electrician
Article code(s)	10046719, 10046720, 10046721, 10046722
Manufacturer	Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany

Frequently Asked Questions - DualTone Flex Klarstein

What types of pots can I use on my Klarstein DualTone Flex hob?

Use only induction-compatible cookware (magnetic base). Check with a magnet: if it sticks, the pot is suitable. Materials such as pure stainless steel, aluminum, copper, glass or ceramic without a magnetic base are not compatible.

How to activate the Flex Duo function?

Press the FLEX DUO button to combine two cooking zones into one large zone. You can then use a large rectangular or oval pan. The power is adjusted with the slider and the pot can be moved freely within the zone.

What does error code E7 on the display mean?

The E7 code indicates that the supply voltage is lower than the rated voltage. Check that the plug is properly connected and that the power supply is stable. If the problem persists, contact an electrician.

How to clean the vitroceramic surface without scratching it?

Use a special induction hob cleaner and a soft cloth or non-abrasive sponge. For stubborn residue (sugar, burnt food), use a suitable scraper holding the blade at 30°. Then wipe with a paper towel. Never use scouring powder or metal sponge.

How to lock the hob for child safety?

Press the Lock button (padlock) to activate the lock. The screen shows Lo. Only the ON/OFF and Lock keys remain active. To unlock, hold the Lock button until you hear a beep.

Can I use an aluminum pan?

No, pans made of pure aluminum without magnetic base are not compatible with induction. The hob will not detect them and will not heat. Use utensils with a magnetic base (steel, cast iron, etc.).

How to use the Boost function?

Select the desired cooking zone, then press the Boost button. The screen shows b and the zone operates at maximum power for up to 5 minutes. After this time, it returns to level 9 (or the previous setting).

What to do if a cooking zone does not heat up?

Check that the pot is induction-compatible and centered on the zone. If the indicator flashes, the pot is not detected. Make sure the bottom is clean and flat. If the problem persists, restart the appliance or consult the manual for error codes.

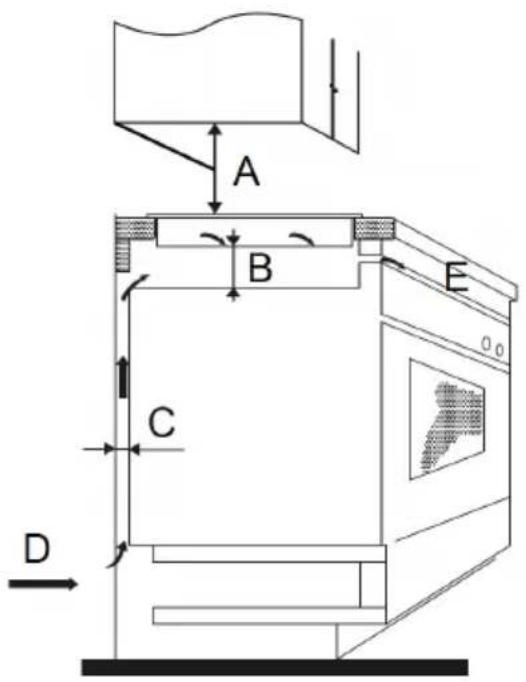

What is the minimum distance between the hob and furniture above?

The minimum safety distance between the hob surface and the cabinet above must be at least 760 mm. For the sides, allow at least 50 mm clearance for ventilation.

How to set the timer to turn off a zone automatically?

Select the cooking zone, then press + or - to set the cooking time (from 1 to 99 minutes). The display shows the remaining time. When the time is up, the zone turns off automatically. To cancel, press + and - simultaneously.

USER MANUAL DualTone Flex Klarstein

QR code image containing encoded data, no visible human-readable text

INHALT

Dual Tone Hybrid (10046719, 10046720)

2 1 3 4 5 Klarsten - 88 + ≧

1 ∅160 mm Max: 1600 W
2 ∅200 mm Max: 1800/2000 W
3 ∅180 mm Max: 1600/1800 W
4 ∅180 mm Max: 1600/1800 W
5 ∅385×200 mm Max: 3200/3600 W

Dual Tone Flex (10046721, 10046722)

2 4 5 6 1 3 KLARSTEN - 98 + → [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] - 98 + → [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]

1 ∅180 mm Max: 1600/1800 W
2 ∅180 mm Max: 1600/1800 W
3 ∅180 mm Max: 1600/1800 W
4 ∅180 mm Max: 1600/1800 W
5 385×200 mm Max: 3200/3600 W
6 385×200 mm Max: 3200/3600 W

BEDIENFELD

- 88 +

Diagram showing two hand-drawn symbols: a checkmark and a cross, likely indicating correct or incorrect conditions.

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

Three identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Four identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or flow directions.

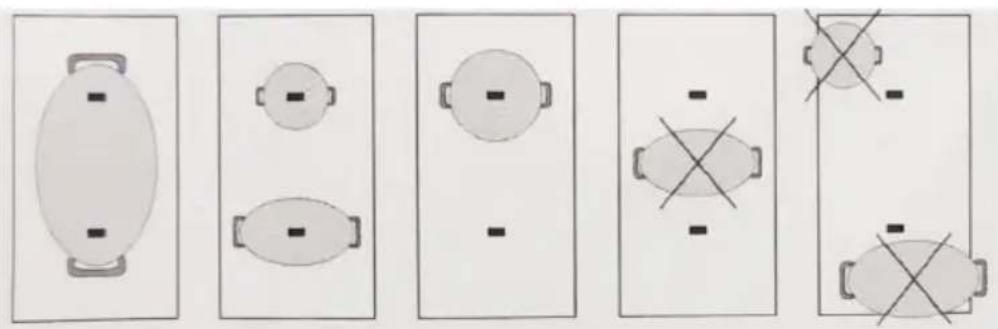

Six identical diagrams showing different shapes and symbols, possibly furniture or architectural elements, with no visible text or labels.

Pause

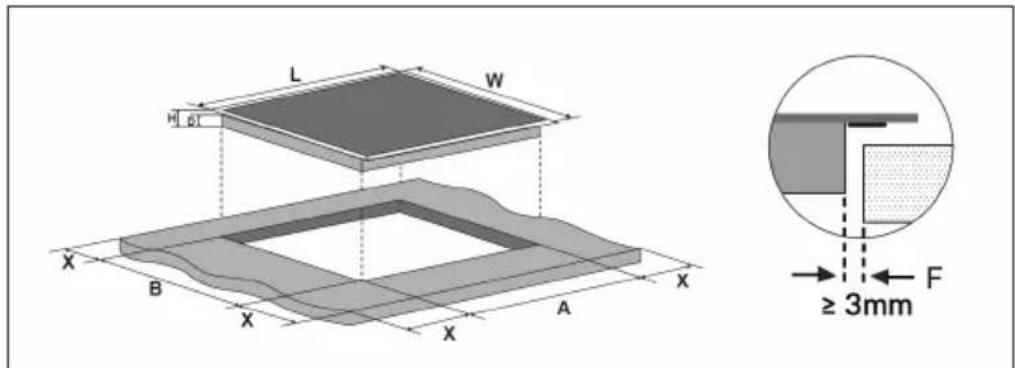

L W H X B X A X

≥ 3mm F

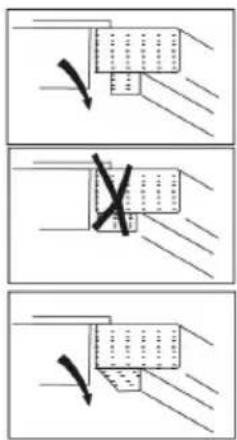

Diagram illustrating three mechanical or structural states with arrows indicating direction, including a cross symbol in the third state.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Großbritannien

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 32

Instructions on Use and Maintenance 33

Operating Principle 35

Product Overview 36

Control Panel 38

Operation 39

Cooking Guidelines 47

Installation 49

Care and Cleaning 53

Troubleshooting 55

Disposal Considerations 57

Manufacturer & Importer (UK) 57

TECHNICAL DATA

Item number 10046719,	10046720, 10046721, 10046722
Power supply 220-240 V ~ 50-60 Hz
Total output 7200 W

SAFETY INSTRUCTIONS

Electrical Shock Hazard

• Disconnect the device from the power supply before any maintenance or repairs are carried out on the device.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

CAUTION

Risk of injury! Panel edges are sharp. Failure to use caution could result in injury or cuts.

General Instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

Risk of electric shock! To reduce the risk of electric shock, switch off the appliance immediately if the surface (hob surface made of glass ceramic or similar material that protects live parts) is cracked.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• Never leave the appliance unattended while cooking, as cooking with oil or fat in particular can be dangerous and result in the outbreak of a fire. Never try to extinguish a grease fire with water! Instead, switch off the appliance and cover the flame with a fire blanket or a pot lid.

WARNING

Risk of fire! Do not store other items on the cooking surfaces, except pans and pots.

INSTRUCTIONS ON USE AND MAINTENANCE

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

CAUTION

Risk of burns! During use, accessible parts of this appliance will become hot enough to cause burns. Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.

• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on.
• Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

WARNING

Risk of injury! The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts.

General Instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
  • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).
• Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

• Do not leave children alone or unattended in the area where the appliance is in use.

• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• The appliance and its accessible parts become hot during use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.

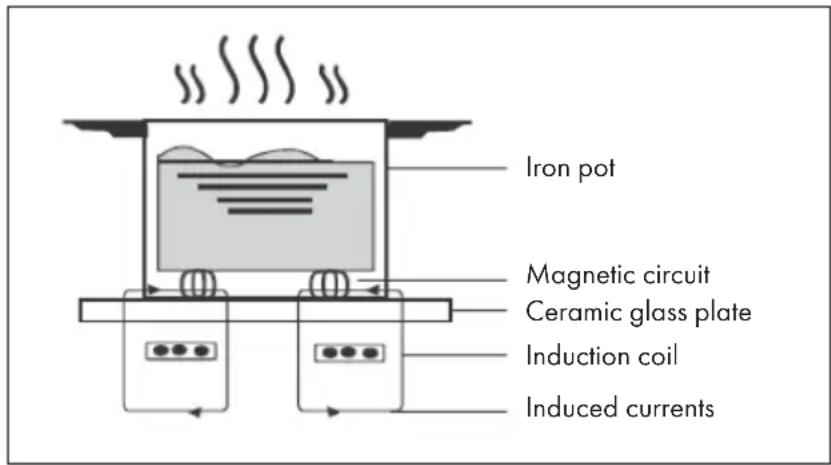

OPERATING PRINCIPLE

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Iron pot Magnetic circuit Ceramic glass plate Induction coil Induced currents

PRODUCT OVERVIEW

Dual Tone Hybrid (10046719, 10046720)

2 1 3 4 5 Klarsten - 88 + ≧

1 ∅160mm Max:1600 W
2 ∅200mm Max:1800/2000 W
3 ∅180mm Max:1600/1800 W
4 ∅180mm Max:1600/1800 W
5 ∅385×200mm Max:3200/3600 W

Dual Tone Flex (10046721, 10046722)

2 4 5 6 1 3 KLARSTEN - 98 + - 10000000000000000000000000000000000000000000000000000000000000000000

1 ∅180mm Max: 1600/1800 W
2 ∅180mm Max: 1600/1800 W
3 ∅180mm Max: 1600/1800 W
4 ∅180mm Max: 1600/1800 W
5 385×200mm Max: 3200/3600 W
6 385×200mm Max: 3200/3600 W

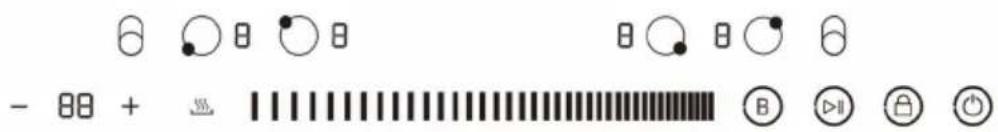

CONTROL PANEL

Button instruction

Symbol Name Operation
	ON/OFF To switch on or switch off the cooker. Under "Child lock" mode, only can switch off the cooker.
	Lock To turn on or turn off the "Child Lock"
	Cooking zone selection	They are used to select the corresponding heating zone. Touch the button to select the corresponding heating zone.
	FLEX DUO Button for activating FLEX DUO on the left/right
	PAUSE Button for pause function
	WARM) Button for heat preservation function
	INC/DEC Timer: Button for time setting
	Boost Button for "BOOST" mode(reach max. power)

OPERATION

Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand-drawn symbols: a checkmark and a cross, likely indicating correct or incorrect conditions.

Choosing the right Cookware

Note: Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

If you do not have a magnet:

Simple line drawing of a cooking pot with a U-shaped magnet (no text or symbols)

1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.

Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware. Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X marks, no text or symbols present

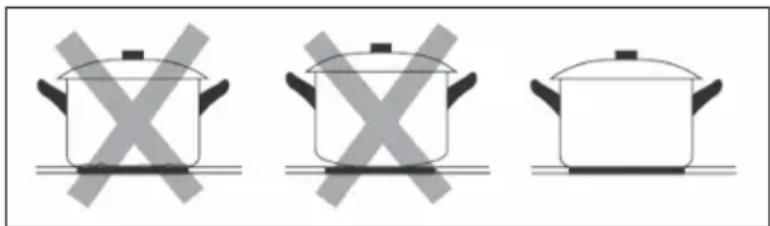

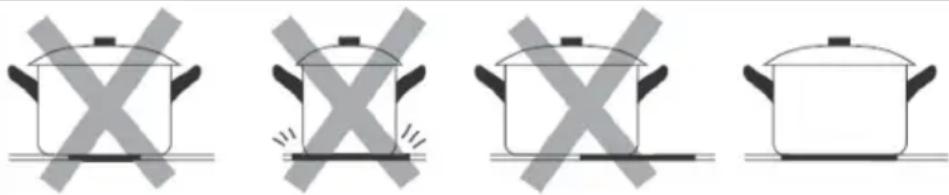

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

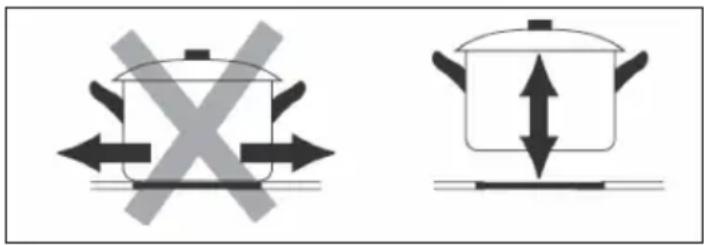

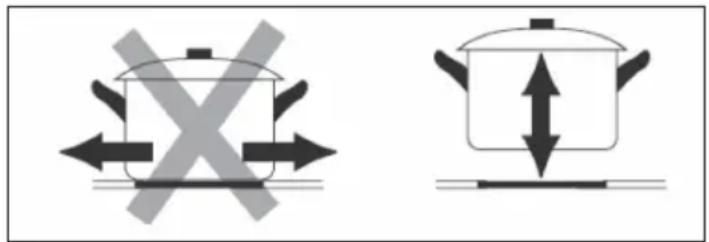

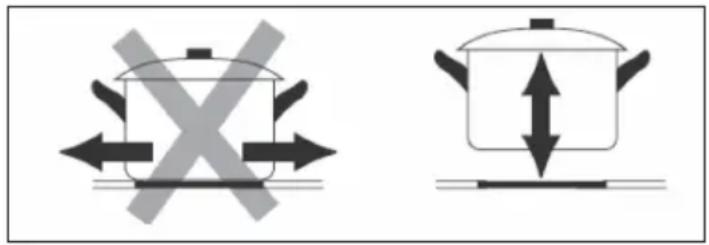

Two cooking pots with crossed arrows indicating opposing pressure, one with a cross symbol and the other with bidirectional arrows (no text or labels)

Always lift pans off the Induction hob - do not slide, or they may scratch the glass.

Pan Dimension

The cooking zones are, up to a limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

For model DualTone Hybrid (10046719, 10046720)

Cooking zone	Base diameter of induction cookware
	Minimum (mm) Minimum (mm)
160mm	140 160
200mm	160	200
180mm 140 180
FLEX 200 385× 200

For model DualTone Flex (10046721, 10046722)

Cooking zone	Base diameter of induction cookware
	Minimum (mm) Minimum (mm)
180 mm 120		180
Flex zone 200 385 × 200

Start cooking

Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show "-" or "--", indicating that the induction hob has entered the state of standby mode.
Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
When touch the heating zone selection button, display nearby will flash "0". The display will stop flashing within 5 seconds after no operation, and show the power level.
Control the power by slider touch control.When the heating power of any heating zone is "0", the cooker will automatically enter the standby state after 1 minute of no operation. You can change the power at any time during cooking.

If the display flashes alternately with the heat setting:

• you have not placed a pan on the correct cooking zone or,
  • the pan you are using is not suitable for induction cooking or,
• the pan is too small or not properly centered on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.

Turn off

Touch the selection button of the heating area that you want to close, and the digital display nearby will flash the current power level.
Turn off the heating zone by sliding down to "0".
Press the "ON/OFF" button to switch on or switch off the cooker.
Take care of the residual heat of crystal plate."H" means which heating zone is hot. When the surface cools to a safe temperature, it will disappear.It can also be used as an energy saving function. If you want to further heat the pot, use the heating zone with residual heat..

Boost function

Activate Boost
Press the cooking zone selection button to select the heating area.
When press "Boost", the hob will work by max power. And the digital display will flash "b".
Deactivate Boost
Press the area selection button to select the heating area which you can to control. And Press "Boost" again to cancel boost mode. The power will automatically return to the level before the "Boost" function is set.
Turn off the heating zone by sliding down to "0".The selected heating area will turn off and cancel the boost mode automatically.

The boost mode just can keep 5 minutes. After 5 minutes, the cooking zonereturns to its original setting.

If original heat setting equals "0", it will return to "9" level after 5 minutes.

Child lock function

• You can press the child lock button "Lock" to freeze other function, to avoid
• accident..(For example, a child accidentally turns on the heating zone)
• Under "Child lock" mode, only "On/Off" and "Loc"k button can work

Lock: Touch the "lock" control. The display will show "Lo".

Unlock: If the induction cooker is locked, touch and hold "Lock", the cooker will exit the locked state and you will hear a "beep".

You can always use the "on / off" button to turn off the induction cooker in an emergency, but in the next operation, you should first unlock the induction cooker.

FLEX function

You can use two cooking zones by selecting the "FLEX DUO" function and let them keep the same power by covering the whole surface with a large pan or partly with a round / oval pan. When the function is turn on and only one pan is used, the pan can be moved throughout the area. In this case, the slider can be used to control two cooker on the same side without difference.

It is very suitable for cooking with an oval or rectangular pan or with pan supports. If need to turn off this function, please press the "FLEX DUO" button.

Important: Place the pan in the center of the cooking area, so that it covers at least one reference point (as shown below).

Six identical diagrams showing different shapes and symbols, possibly furniture or architectural elements, with no visible text or labels.

Pause

Press the "pause" button in the working state, the cooker will enter the pause state, and the display will show "8" and "88" respectively. To cancel the pause function, press the "pause" button again, and the cooker will return to its previous working state. If there is no operation within 10 minutes in the pause state, the cooker will automatically turn off.

Keep warm function

Select the heating area, press the "keep warm" button, the heating area will enter the heat preservation cooking mode, and the display will show "8", the induction cooker will heat with low power to maintain the proper temperature of the pot. The power is not adjustable under this function.

Timer

You can set the timer to turn off one or more heating zones after the setting time.

In working state, select the heating zone which you want to set timer. (For example: heating zone 3)
Press "+" to increase the time, display will show and flash "10".
Press "-" to decrease and "+" increase the time.Press "-" or "+" one time, it will decrease or increase by 1 minute. Long press and hold the button, will decrease or increase 10 minutes every time.
Press the "-" and "+" button simultaneously will automatically cancel timer mode and display will show "00".
After setting the timer, the decimal point of the single digit display of the burner which is set timer will be light on. And the two digits display will show the minimum timing among all the timers.	36 6
When a heating zone is set a timer and the heating time reaches the set timer, the heating zone automatically sets the power level to 0, and the power output is turned off.

Default working time

Auto shutdown is the safety protection function of induction cooker. This occurs whenever you forget to switch off a cooking zone. The default shutdown times as below table:

Power level	1 2 3 4 5 6 7 8 9
Default working timer (hours)	8 4 4 4 2 2 2 2

The display will stop heating immediately when cookers are moved away, and auto turn off after 2 minutes.

If there are multiple heating areas heating at the same time, the default timing of the whole machine is the one with the longest default timing time.

Heat settings

Power level Suitability
1-2	• delicate warming for small amounts of food• melting chocolate, butter, and foods that burn quickly• gentle simmering• slow warming
3-4	• reheating• rapid simmering• cooking rice
5-6 • pancakes
7-8	• sauteing• cooking pasta
9	• stir-frying and searing• bringing soup to the boil• boiling water

COOKING GUIDELINES

WARNING

Take care when frying as the oil and fat heat up very quickly, particularly if you are using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85 °C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended. Searing steak

To cook juicy flavorsome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2-8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more “well done” it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.

3. Preheat the pan briefly and add two tablespoons of oil.

4. Cook any meat first, put it aside and keep warm.

5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Note: When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

INSTALLATION

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below.

Note: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3 mm.

L W H B X A X X ≥ 3mm F

Note: The dimensions given in the table are "mm".

Model	L	W	H	D	A	B	X
60 cm	590		520		56		52	560+50	480+50	min. 50

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state.

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A B C D E

Three-panel diagram illustrating a mechanical or structural modification process with checkmark indicators and cross marks.

Note: The dimensions given in the table are "mm".

A B C D E
760 min.	50 min. 20 A	r intake Air exit 5 mm

Before Installing the Hob

Make sure that:

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant and insulated material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
• The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

After Installing the Hob

Make sure that:

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Cautions

WARNING

Risk of injury! The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.

Please never conduct the operation by yourself.

• The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
• The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
• The wall and induced heating zone above the table surface shall withstand

heat.

• To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
• A steam cleaner is not to be used.

Connecting the Hob to the Mains Power Supply

WARNING Risk of injury!

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

• The domestic wiring system is suitable for the power drawn by the hob.
• The voltage corresponds to the value given in the rating plate
• The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire. The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75 °C at any point.

Note: Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician. If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.

• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3 mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

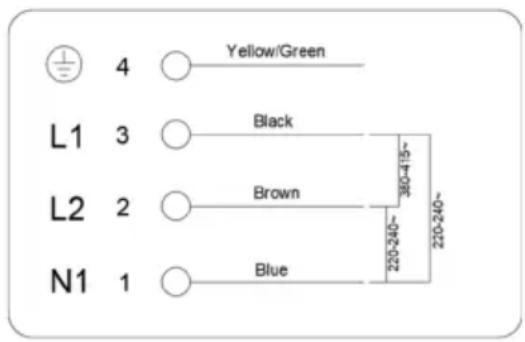

Yellow/Green L1 3 Black L2 2 Brown N1 1 Blue 220-240- 220-240-

Note: Always switch off the device and let it cool down before cleaning.

What? How? Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	When the power to the cooktop is switched off, there will be no “hot surface” indication but the cooking zone may still be hot! Take extreme care.Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass.	Remove the dirt with a carpet knife, razor blade or hob scraper suitable for Induction glass cooktops, but be careful not to burn yourself on the hot hob.1. Switch the power to the cooktop off.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for “Everyday soiling on glass” above.	Remove the stains and splashes immediately, as they are more difficult to remove once they have become cold.Attention: Risk of injury! As soon as the hob scraper’s safety cover is removed, the sharp blade sticks out. Handle it carefully so that you do not injure yourself. Always store the scraper with the safety cover on, out of the reach of children. Always store the scraper with the protective cover on, out of the reach of children.
Spillovers on the touch controls	Switch the power to the cooktop off.Soak up the spill.Wipe the touch control area with a clean damp sponge or cloth.Wipe the area completely dry with a paper towel.Turn the hotplate back on.	The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

TROUBLESHOOTING

Problem Possible causes	Possible solutions
LED does not light up when the device is plugged in.	No electricity in the socket.	Check that the plug is firmly fixed to the socket and that the socket is working.
	Failed to connect power board and display board	Check the connection.
	Power board damaged.	Replace the power board.
	Display board damaged.	Replace the display board.
Some buttons do not work, or LED display is not normal.	The display board is damaged.	Replace the display board.
The Cooking mode indicator comes on, but heating is not started.	High temperature of the hob	High temperature of the hob.
	Something wrong with the fan	Something wrong with the fan.
	Power board damaged Power board damaged.
During the operation, the heating stops suddenly and the display flashes “U”	Wrong pot type Use a suitable pan (refer to the manual).Pot detection circuit damage, replace the power board.
	The diameter of the bottom of the pot is small
	Pot overheated Wait for the temperature to return to normal.Press the “on / off” button to restart the device.
“U” is displayed in the heating area on the same side (such as the first and second areas)	Power board and display board connection failure	Check the connection
	The communication part of the display board is damaged	Replace the display board.
	Power board damaged Replace the power board.
Fan motor sounds abnormal	The fan motor is damaged	Replace fan.

Failure Display and Inspection

Error Code	Possible causes What to do
E7 Supply voltage is below the rated voltage.		Please inspect whether power supply is normal.Power on after the power supply is normal.
E8 Supply voltage is above the rated voltage
E3 The surface sensor high temperature		Wait for the temperature of ceramic plate return to normal.Touch “ON/OFF” button to restart unit.
E6 High temperature of IGBT.		Wait for the temperature of ceramic plate return to normal.Touch “ON/OFF” button to restart unit.Check whether the fan runs smoothly; if not, replace the fan.
E1 The surface sensor disconnection.		Check the connection or replace the ceramic plate temperature sensor.
E2 Surface sensor short circuit.
Eb Surface sensor failure.
E5 IGBT sensor short circuit. Replace the drive board.
E4 IGBT sensor open circuit.

WARNING: Risk of electric shock

The above is the common fault judgment and inspection.

Please do not disassemble the equipment by yourself, so as to avoid any danger and damage to the induction cooker.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram showing two hand-drawn checkmark and cross symbols on a line, likely indicating correct and incorrect states.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

Four identical cooking pots with crossed-out kitchen pan symbols, no text or labels present

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely illustrating a cooking or heating concept.

Six identical diagrams showing different shapes: a large oval, two small circles with cross marks, and three oval shapes with cross marks, arranged in a row (no text or symbols)

Pause

L W H X B X A X

≥ 3mm F

Diagram illustrating three mechanical or structural states with arrows indicating direction, including a cross symbol in the third state.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

Boîte postale 42

272 Kensington High Street

Londres, W8 6ND

Royaume-Uni

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Dual Tone Hybrid (10046719, 10046720)

2 1 4 5 3 Klarstven - 88 + ≧

1 ∅160mm Max:1600 W
2 ∅200mm Max: 1800/2000 W
3 ∅180mm Max: 1600/1800 W
4 ∅180mm Max: 1600/1800 W
5 ∅385×200mmMax: 3200/3600 W

Dual Tone Flex (10046721, 10046722)

2 4 5 6 1 3 KLARSTEN - 98 + → [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] - 98 + → [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]

1 ∅180mm Max: 1600/1800 W
2 ∅180mm Max: 1600/1800 W
3 ∅180mm Max: 1600/1800 W
4 ∅180mm Max: 1600/1800 W
5 385×200mm Max: 3200/3600 W
6 385×200mm Max: 3200/3600 W

PANNELLO DI CONTROLLO

Diagram showing two hand-drawn symbols: a checkmark and a cross, likely indicating correct or incorrect conditions.

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely illustrating a cooking or heating concept.

Six identical diagrams showing different shapes and symbols, possibly furniture or architectural elements, with no visible text or labels.

Pause

L W H X B X X A X

≥ 3mm F

Diagram illustrating three mechanical or structural states with arrows indicating direction, including a cross symbol in the third panel.

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

1 ∅160mm Máx:1600 W
2 ∅200mm Máx:1800/2000 W
3 ∅180mm Máx:1600/1800 W
4 ∅180mm Máx:1600/1800 W
5 ∅385×200mm Máx:3200/3600 W

Dual Tone Flex (10046721, 10046722)

2 4 5 6 1 3 KLARSTEIN - 98 + - 7 7 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

1 ∅180mm Máx:1600/1800 W
2 ∅180mm Máx:1600/1800 W
3 ∅180mm Máx: 1600/1800 W
4 ∅180mm Máx: 1600/1800 W
5 385×200mm Máx: 3200/3600 W
6 385×200mm Máx: 3200/3600 W

PANEL DE CONTROL

Diagram showing two hand-drawn symbols: a checkmark and a cross, likely indicating correct or incorrect conditions.

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

Three identical cooking pots with crossed-out X marks, shown in sequence on a flat surface (no text or symbols)

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely symbolizing heating or cooling.

Six identical diagrams showing different shapes and symbols, possibly furniture or architectural elements, with no visible text or labels.

Pausa

L W H X B X A X

≥ 3mm F

Diagram illustrating three mechanical or structural states with arrows indicating direction, including a cross symbol in the third panel.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

272 Kensington High Street

Londres, W8 6ND

Reino Unido

KLARSTEIN
