USER MANUAL FC-4DH-04208-I Vollrath

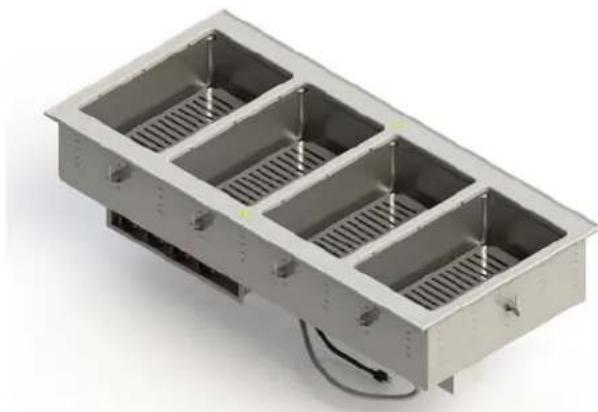

HotDrop-inswithDryWells

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment.readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmentrifrepairssareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageototheequipment:

• Thisequipmentmustbeinstalledbyaqualifiedperson.
• Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.

NOTICE: Do NOT modify thecordorplugonthedrop-in. Modifying any component may damage the drop-inorcause injury, and willvoidthewararranty. Seethespecificationsheeton Vollrath.comforelectricalspecifications.

• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
  -This equipment should only be used in a flat, level position
• Donotspraythecontrolsortheoutsideofequipmentwithliquidsor cleaningagents.
• Keep the equipment and powercord away from open flames, electric burners, excessive heat.
• Donotusefoodpansdeeperthan6"(15.2cm).
  -Notforusewithplasticpans.
• Donotoperateequipmentitifitisdamagedormalfunctioning.
• Donotoperatunattended
• Unplugandallowtheequipmenttocoolebeforecleaningormoving.
• Donotcleanthisequipmentwithsteelwool.

ItemNo. No.ofWells
FC-4DH-01120-I	One
FC-4DH-01208-I
FC-4DH-01120-T
FC-4DH-01208-T
FC-4DH-02120-I	Two
FC-4DH-02208-I
FC-4DH-02120-T
FC-4DH-02208-T
FC-4DH-03120-I	Three
FC-4DH-03208-I
FC-4DH-03120-T
FC-4DH-03208-T
FC-4DH-04208-I	Four
FC-4DH-04208-T
FC-4DH-05208-I	Five
FC-4DH-05208-T
FC-4DH-06208-I	Six
FC-4DH-06208-T

FUNCTIONANDPURPOSE

Thisdrop-inisintendedanddesignedtoholdcontainersoffoodat
properservingtemperatures.Hotfoodstationsarenotintendedor
designedtocookrawfoodortoreheatpreparedfood.Foodmustbe
preparedandplacedinfofoodstationsatproperservingtemperatures.
Thesequipmentisnotintendedforhousehold,industrialorlaboratory
use.

A THUMBSCREW.Securesthedrop-intothemountingsurface.
B TEMPERATURECONTROL. Used to setor adjust the temperature of the well. The larger the number the higher the temperature, the smaller the number the lower the temperature. The "0" position is off.
C POWERINDICATORLIGHT.Illuminateswhenthewellisinthe heatingmode.

警告	WARNING
	ElectricalShockHazard Keepwaterandotherliquidsfromenteringtheinsideofthe unit.Liquidinsidetheunitcouldcauseanelectricalshock.
Donotoverfillpansortrays.Liquidcouldcontacttheelectrical componentsandcauseashortcircuitoranelectricalshock.
警告	CAUTION
	BurnHazard Donottouchhotfood,liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Donotusefoodpansdeeperthan6' (15.2cm).

NOTICE: Donotuseplasticpans.

1. Plugelectricalpowercordintoaoutletthatmatchsterated voltageonthenameplate.
   2.Turnthe temperaturecontroltothemaximumheatsetting.Coverthe well(s).Preheatfor30minutes.
2. Place containers of hot food, above 140^(60^) , intopreheated equipment.
   4.Reduceheatsettingtoalevelthatwillmaintainasafeholding temperatureandmaintainfoodquality.

NOTICE: Monitor food temperature closely for foodsafety. The United States Public Health Service recommends that food be held at a minimum of 140^(60^) to help prevent bacteria growth.

1. Usegloves, mittsorpotholderstoprotechandswhenremoving hotfoodcontainers.

CLEANING

CAUTION

BurnHazard Hotsurfacedandfoodcanburnskin.Allowthehotsurfacedto coolbeforehandling.

Tomaintaintheappearanceandincreaseservice life, clean your equipment daily.

NOTICE: Donotusecausticcleaningchemicals, steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Remove hot food containers. Use gloves, mitts or holderstopechards
   2.Turnthetemperaturecontroltothe"0"setting.
   3.Unplugthedrop-in.
2. Allowthedrop-intocoolcompletely.
3. Removetheshieldfromthebottomofthewell.
   6.Handwashtheshieldinsoapywater.
   7.Drytheshield.
   8.Useadampclothspongedippedinsoapywatertocleanthe insideofthewellandtheoutsideofthecquipment.
4. Useadampclothspongeto thoroughlywipeoffthesoapywater.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Drop-indoesnotheattothe correcttemperature.	Loworincorrectvoltagetounit.	Verifythatvoltageratingonthedrop-inmatchesthesourcevoltage.If not,havealicensed发电lectricianinstallpropersourcevoltage.

Thispageintentionallyleftblank.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasersforsuchuses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcompletewarrantyinformation/productregistrationandnewproductannouncement,visitwww.vollrath.com.
