Product Type	Built-in electric bain-marie
Brand	Vollrath
Model	FC4DH02120I
Number of compartments	2
Primary use	Keeping Gastronorm pans warm
Power supply	Plug into a grounded outlet with rated voltage as per nameplate
Thermostat	Adjustable, with heating indicator light
Preparation before use	Preheat 30 minutes at maximum setting
Recommended holding temperature	At least 60°C (140°F) for hot foods
Compatible pans	Gastronorm, maximum depth 15.2 cm (6 inches)
Prohibited materials	Do not use plastic pans
Cleaning	Daily, with soapy water, do not use steel wool
Spare parts	Available at Vollrath.com
Warranty	Against defects in materials and workmanship (per Vollrath terms)

Frequently Asked Questions - FC4DH02120I Vollrath

How to install the Vollrath FC4DH02120I bain-marie?

Installation must be carried out by qualified personnel. The unit must be placed horizontally on a flat surface and built into the countertop. Plug it into a grounded outlet matching the rated voltage indicated on the nameplate.

Can I use plastic pans in this bain-marie?

No, never use plastic pans. Only metal Gastronorm pans are allowed, with a maximum depth of 15.2 cm (6 inches).

What should I do if the unit does not heat to the correct temperature?

Check that the power supply voltage matches that on the nameplate. If the problem persists, contact a qualified electrician or Vollrath technical services.

How to clean the bain-marie?

Unplug the unit and allow it to cool. Remove the bottom screen, wash it with soapy water. Clean the interior and exterior with a damp cloth and mild soap. Rinse thoroughly. Never use steel wool or caustic products.

Can I use an extension cord?

No, do not use an extension cord, power strip, or multi-outlet adapter. Plug the unit directly into a suitable wall outlet.

What is the preheating procedure?

Turn the thermostat to the maximum setting, cover the compartments, and let it preheat for 30 minutes before placing food.

What minimum temperature should I maintain for food?

Hot foods must be held at least 60°C (140°F) to prevent bacterial growth. Monitor the temperature regularly.

Where can I find spare parts for this model?

Spare parts are available on the Vollrath.com website. Contact technical services to obtain the part number and proof of purchase.

Is this unit suitable for domestic use?

No, this bain-marie is designed for professional use (catering). It is not intended for household, industrial, or laboratory use.

What should I do if liquid spills into the unit?

Immediately unplug the unit and let it dry completely. Liquid infiltration can cause electric shock or short circuit. Do not overfill pans.

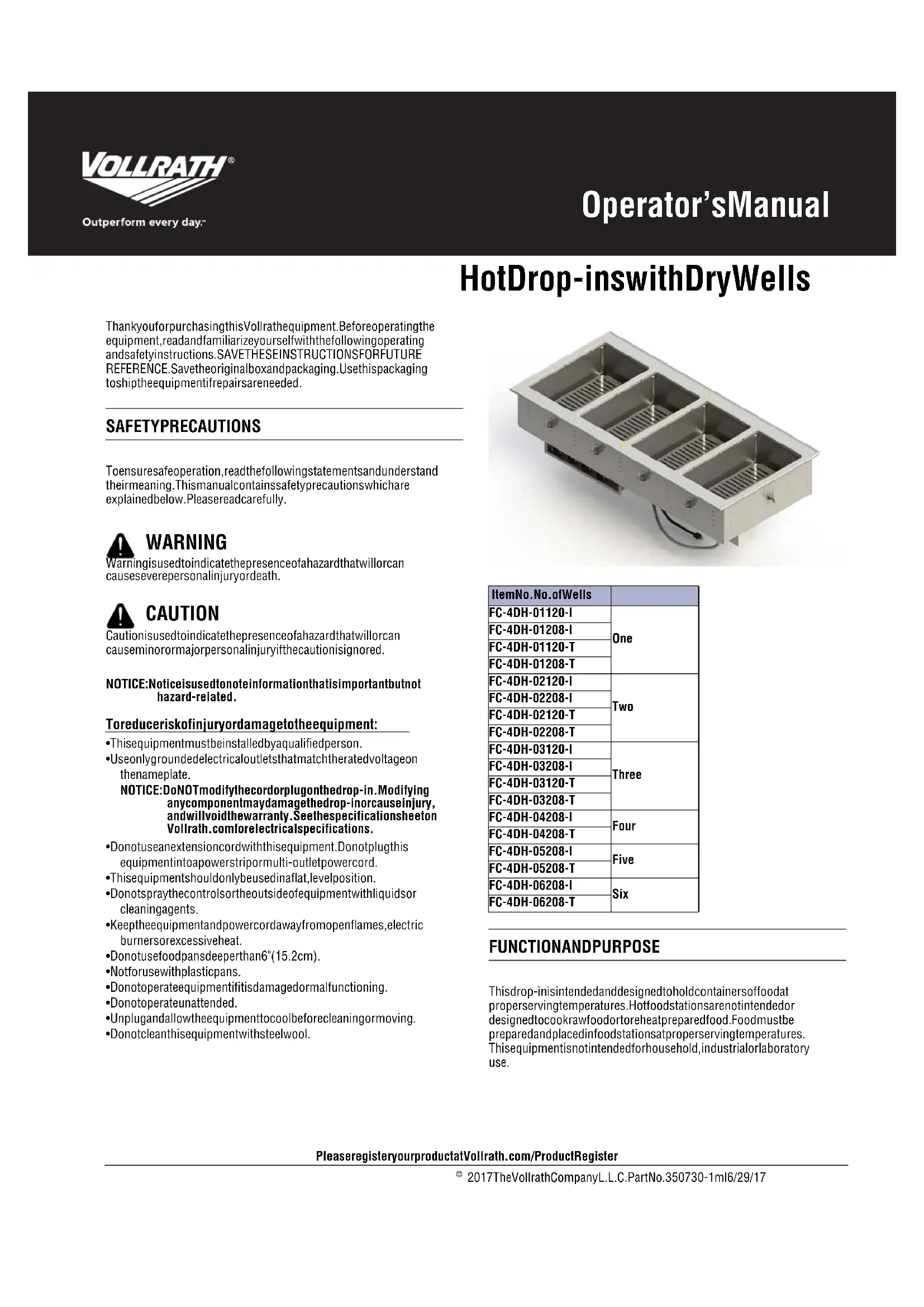

USER MANUAL FC4DH02120I Vollrath

HotDrop-inswithDryWells

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment.readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmentinfreepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageototheequipment:

Thisequipmentmustbeinstalledbyaqualifiedperson.
- Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.

NOTICE: Do NOT modify thecordorplugonthedrop-in. Modifying any component may damage the drop-inor cause injury, and will void the warranty. Seethespecifications sheet on Vollrath.comforelectricalspecifications.

• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
  -This equipment should only be used in a flat, level position
• Donotspraythecontrolsortheoutsideofequipmentwithliquidsor cleaningagents.
• Keep the equipment and powercord away from open flames, electric burners, excessive heat.
• Donotusefoodpansdeeperthan6"(15.2cm).
  -Notforusewithplasticpans.
• Donotoperateequipmentitifitisdamagedormalfunctioning.
• Donotoperatunattended
• Unplugandallowtheequipmenttocoolebeforecleaningormoving.
• Donotcleanthisequipmentwithsteelwool.

ItemNo. No.ofWells
FC-4DH-01120-I	One
FC-4DH-01208-I
FC-4DH-01120-T
FC-4DH-01208-T
FC-4DH-02120-I	Two
FC-4DH-02208-I
FC-4DH-02120-T
FC-4DH-02208-T
FC-4DH-03120-I	Three
FC-4DH-03208-I
FC-4DH-03120-T
FC-4DH-03208-T
FC-4DH-04208-I	Four
FC-4DH-04208-T
FC-4DH-05208-I	Five
FC-4DH-05208-T
FC-4DH-06208-I	Six
FC-4DH-06208-T

FUNCTIONANDPURPOSE

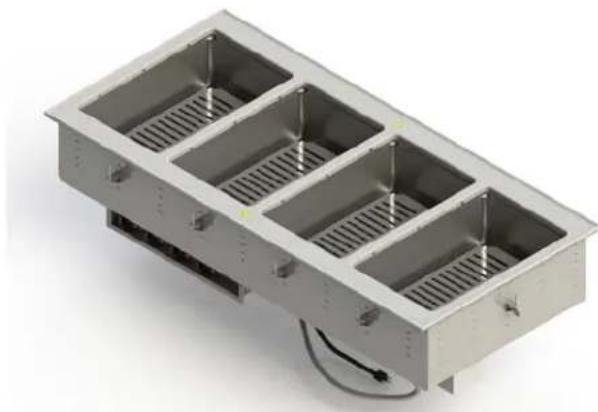

Thisdrop-inisintendedanddesignedtoholdcontainersoffoodat
properservingtemperatures.Hotfoodstationsarenotintendedor
designedtocookrawfoodortoreheatpreparedfood.Foodmustbe
preparedandplacedinfofoodstationsatproperservingtemperatures.
Thesequipmentisnotintendedforhousehold,industrialorlaboratory
use.

A THUMBSCREW.Securesthedrop-intothemountingsurface.
B TEMPERATURECONTROL. Used to setor adjust the temperature of the well. The larger the number the higher the temperature, the smaller the number the lower the temperature. The "0" position is off.
C POWERINDICATORLIGHT.Illuminateswhenthewellisinthe heatingmode.

警告	WARNING
	ElectricalShockHazard Keepwaterandotherliquidsfromenteringtheinsideofthe unit.Liquidinsidetheunitcouldcauseanelectricalshock.
Donotoverfillpansortrays.Liquidcouldcontacttheelectrical componentsandcauseashortcircuitoranelectricalshock.
警告	CAUTION
	BurnHazard Donottouchhotfood,liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Donotusefoodpansdeeperthan6' (15.2cm).

NOTICE: Donotuseplasticpans.

1. Plugelectricalpowercordintoaoutletthatmatchsterated voltageonthenameplate.
   2.Turnthetemperaturecontroltothemaximumheatsetting.Coverthe well(s).Preheatfor30minutes.
2. Place containers of hot food, above 140^(60^) , intopreheated equipment.
   4.Reduceheatsettingtoalevelthatwillmaintainasafeholding temperatureandmaintainfoodquality.

NOTICE: Monitor food temperature closely for foodsafety. The United States Public Health Service recommends that food be held at a minimum of 140^(60^) to help prevent bacteria growth.

1. Usegloves, mittsorpotholderstoprotechandswhenremoving hotfoodcontainers.

CLEANING

CAUTION

BurnHazard Hotsurfacedsandfoodcanburnskin.Allowthehotsurfacedost coolbeforehandling.

Tomaintaintheappearanceand increasetheservice life, clean your equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals, steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Remove hot food containers. Use gloves, mitts or holderstopechards
   2.Turnthetemperaturecontroltothe"0"setting.
   3.Unplugthedrop-in.
2. Allowthedrop-intocoolcompletely.
3. Removetheshieldfromthebottomofthewell.
   6.Handwashtheshieldinsoapywater.
   7.Drytheshield.
   8.Useadampclothspongedippedinsoapywatertocleanthe insideofthewellandtheoutsideofthecquipment.
4. Useadampclothspongeto thoroughlywipeoffthesapywater.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Drop-indoesnotheattothe correcttemperature.	Loworincorrectvoltagetounit.	Verifythatvoltageratingonthedrop-inmatchesthesourcevoltage.If not,havealicensed发电lectricianinstallpropersourcevoltage.

Thispageintentionallyleftblank.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchaseersforsuchuses.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.
