FC4DH06208T - Electric bain-marie Vollrath - Free user manual and instructions

Product type	Professional built-in electric bain-marie
Brand	Vollrath
Model	FC4DH06208T
Number of compartments	6
Use	Holding prepared foods hot (cooking not recommended)
Power supply	Rated voltage per nameplate, dedicated grounded outlet
Functions	Adjustable thermostat, power/heat indicator light
Pan compatibility	Gastronorm GN 1/1 pans up to 152 mm (6") deep, no plastic pans
Preheating	30 minutes at maximum setting before use
Service temperature	Minimum 60 °C (140 °F) for hot foods
Cleaning	Daily: remove pans, turn off, unplug, let cool, wash screens and interior with soapy water, rinse thoroughly
Maintenance	Do not use steel wool, caustic or descaling products
Safety	Do not immerse, prevent liquid infiltration, do not use unattended, unplug before maintenance
Installation	By qualified personnel, on a flat horizontal surface, do not use an extension cord
Spare parts	Available at Vollrath.com
Warranty	Limited, per Vollrath statement (professional use only)

Frequently Asked Questions - FC4DH06208T Vollrath

What is the maximum depth of Gastronorm pans to use?

The maximum depth is 6 inches (15.2 cm). Do not use deeper pans to avoid overflow or contact with electrical components.

Can I use plastic pans?

No, use only metal pans (Gastronorm). Plastic pans are not suitable and could melt or damage the unit.

How to properly preheat the bain-marie?

Plug in the unit, turn the thermostat to maximum, cover the compartments, and let preheat for 30 minutes.

What temperature should I maintain for hot foods?

Food must be held at a minimum temperature of 60 °C (140 °F) to prevent bacterial growth.

What to do if the unit does not heat to the correct temperature?

Check that the power supply voltage matches the rated voltage on the nameplate. If not, contact a qualified electrician.

How to clean the bain-marie?

Turn off the unit, unplug it, let it cool. Remove the screens and wash them with soapy water. Clean the interior and exterior with a damp cloth. Rinse thoroughly. Do not use steel wool or caustic products.

Can I repair the unit myself?

No. Never attempt to repair the unit or replace the power cord yourself. Contact Vollrath technical services for any repairs.

Where to find spare parts?

Spare parts are available on the Vollrath.com website.

What is the warranty on this unit?

The Vollrath warranty covers defects in materials and workmanship for professional use. It does not apply to domestic use. See www.vollrath.com for full details.

Can I use an extension cord?

No, never use an extension cord. Plug the unit directly into a suitable grounded outlet.

USER MANUAL FC4DH06208T Vollrath

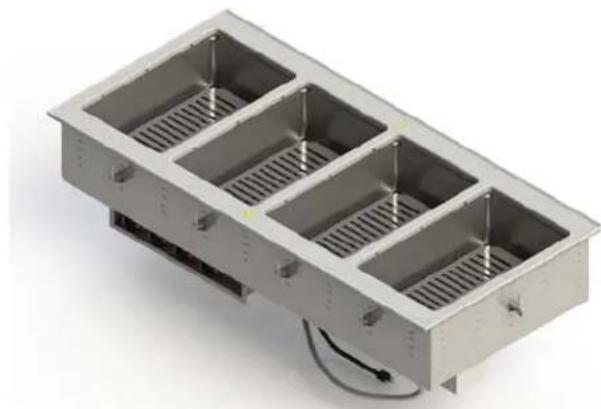

HotDrop-inswithDryWells

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment.readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshipthequipmentinfreepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcauseminorormajorpersonal Injuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageototheequipment:

• Thisequipmentmustbeinstalledbyaqualifiedperson.
• Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.

NOTICE: Do NOT modify thecordorplugonthedrop-in. Modifying any component may damage the drop-inor cause injury, and will voidthewarriage. Seethespecifications sheeton Vollrath.comforelectricalspecifications.

• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
  -Thisequipmentshouldonlybeusedinaflat,levelposition
• Donotspraythecontrolsortheoutsideofquipmentwithliquidsor cleaningagents.

• Keep the equipment and powercord away from open flames, electric burners, excessive heat.

• Donotusefoodpansdeeperthan6"(15.2cm).
  -Notforusewithplasticpans.

• Donotoperateequipmentitifitisdamagedormalfunctioning.
• Donotoperatunattended
• Unplugandallowtheequipmenttocoolebeforecleaningormoving.
• Donotcleanthisequipmentwithsteelwool.

ItemNo. No.ofWells
FC-4DH-01120-I	One
FC-4DH-01208-I
FC-4DH-01120-T
FC-4DH-01208-T
FC-4DH-02120-I	Two
FC-4DH-02208-I
FC-4DH-02120-T
FC-4DH-02208-T
FC-4DH-03120-I	Three
FC-4DH-03208-I
FC-4DH-03120-T
FC-4DH-03208-T
FC-4DH-04208-I	Four
FC-4DH-04208-T
FC-4DH-05208-I	Five
FC-4DH-05208-T
FC-4DH-06208-I	Six
FC-4DH-06208-T

FUNCTIONANDPURPOSE

Thisdrop-inisintendedanddesignedtoholdcontainersoffoodat proprieterservingtemperatures.Hotfoodstationsarenotintended for designedtocookrawfoodortoreheatpreparedfood.Foodmustbe preparedandplacedinfoodstationsatproperservingtemperatures. Thisequipmentisnotintendedforhousehold,industrialorlaboratory use.

A THUMBSCREW.Securesthedrop-intothemountingsurface.
B TEMPERATURECONTROL. Used to setor adjust the temperature of the well. The larger the number the higher the temperature, the smaller the number the lower the temperature. The "0" position is off.
C POWERINDICATORLIGHT.Illuminateswhenthewellisinthe heatingmode.

警告	WARNING
	ElectricalShockHazard Keepwaterandotherliquidsfromenteringtheinsideofthe unit.Liquidinsidetheunitcouldcauseanelectricalshock.
Donotoverfillpansortrays.Liquidcouldcontacttheelectrical componentsandcauseashortcircuitoranelectricalshock.
警告	CAUTION
	BurnHazard Donottouchhotfood,liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Donotusefoodpansdeeperthan6' (15.2cm).

NOTICE: Donutuseplasticpans.

1. Plugelectricalpowercordintoaoutletthatmatchsterated voltageonthenameplate.
   2.Turnthe temperaturecontroltothemaximumheatsetting.Coverthe well(s).Preheatfor30minutes.
2. Place containers of hot food, above 140^(60^) , intopreheated equipment.
   4.Reduceheatsettingtoalevelthatwillmaintainasafeholding temperatureandmaintainfoodquality.

NOTICE: Monitor food temperature closely for foodsafety. The United States Public Health Service recommends that food be held at a minimum of 140^(60^) to help prevent bacteria growth.

1. Usegloves, mittsorpotholderstoprotechandswhenremoving hotfoodcontainers.

CLEANING

CAUTION

BurnHazard Hotsurfacedsandfoodcanburnskin.Allowthehotsurfacedost coolbeforehandling.

Tomaintaintheappearanceandincreaseservice life, clean your equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals, steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Remove hot food containers. Use gloves, mitts or holderstopechards
   2.Turnthetemperaturecontroltothe"0"setting.
   3.Unplugthedrop-in.
2. Allowthedrop-intocoolcompletely.
3. Removetheshieldfromthebottomofthewell.
   6.Handwashtheshieldinsoapywater.
   7.Drytheshield.
   8.Useadampclothspongedippedinsoapywatertocleanthe insideofthewellandtheoutsideofthecquipment.
4. Useadampclothspongeto thoroughlywipeoffthesoapywater.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Drop-indoesnotheattothe correcttemperature.	Loworincorrectvoltagetounit.	Verifythatvoltageratingonthedrop-inmatchesthesourcevoltage.If not,havealicensed发电lectricianinstallpropersourcevoltage.

Thispageintentionallyleftblank.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchaseersforsuchuses.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.
