USER MANUAL MFS18200APK MIDEA

Line drawing of a standard office fan with a circular head and radial blades, mounted on a stand (no text or symbols)

CIRCULATION FAN

USER MANUAL

MFS18200APK

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference. Please take the appearance of the actual product as the standard.

LANGUAGES

EN English

DE German

IT Italian

FR France

SR Serbia

CZ Czech

SK Slovak

PL Polish

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

PRODUCT INSTALLATION 07

OPERATION INSTRUCTIONS 10

CLEANING AND MAINTENANCE 11

TROUBLESHOOTING 12

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 13

DISPOSAL AND RECYCLING 14

DATA PROTECTION NOTICE 15

WARRANTY / SERVICE 16

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

SAVE THESE INSTRUCTIONS

CAUTION

• Read Rules for Safe Operation and Instructions Carefully.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

• Keep electrical appliances out of reach from children or infirm persons. Do not let them use the appliances without supervision.

• Never insert fingers, pencils, or any other object through the grille when fan is running.
• Disconnect fan when moving from one location to another.
• Be sure fan is on a stable surface when operating to avoid overturning.
• DO NOT use fan in window, rain may create electrical hazard.
• Indoor use only.

WARNING

• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  • To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
• Indoor and household use only.
• When the fan was assembled, the rotor blade guard shall not be taken off anymore.
• Prior cleaning unplug the fan.
• The rotor guard shall not be dissembled/opened to clean the rotor blades.
• Wipe the fan enclosure and rotor blade guard with a slightly damp cloth.

SPECIFICATIONS

Product Model	MFS18200APK
Voltage	220-240V~
Frequency	50Hz
Power	33W
Noise	≤60dB
Current	400mA

EN

Description Symbol Value			Unit
Maximum fan flow rate	F	15,55	m^3/min
Fan power input	P	33,12	W
Service value	S_v	0,47	(m^3/min)W
Standby power consumption	P_SB	---	W
Off power consumption	P_OFF	0	W
Fan sound power level	L_WA	52,51	dB(A)
Maximum air velocity	C	4,55	meters/sec
Seasonal electricity consumption	Q	10,60	kWh/a
Measurement standard for service value	EN IEC 60879:2019

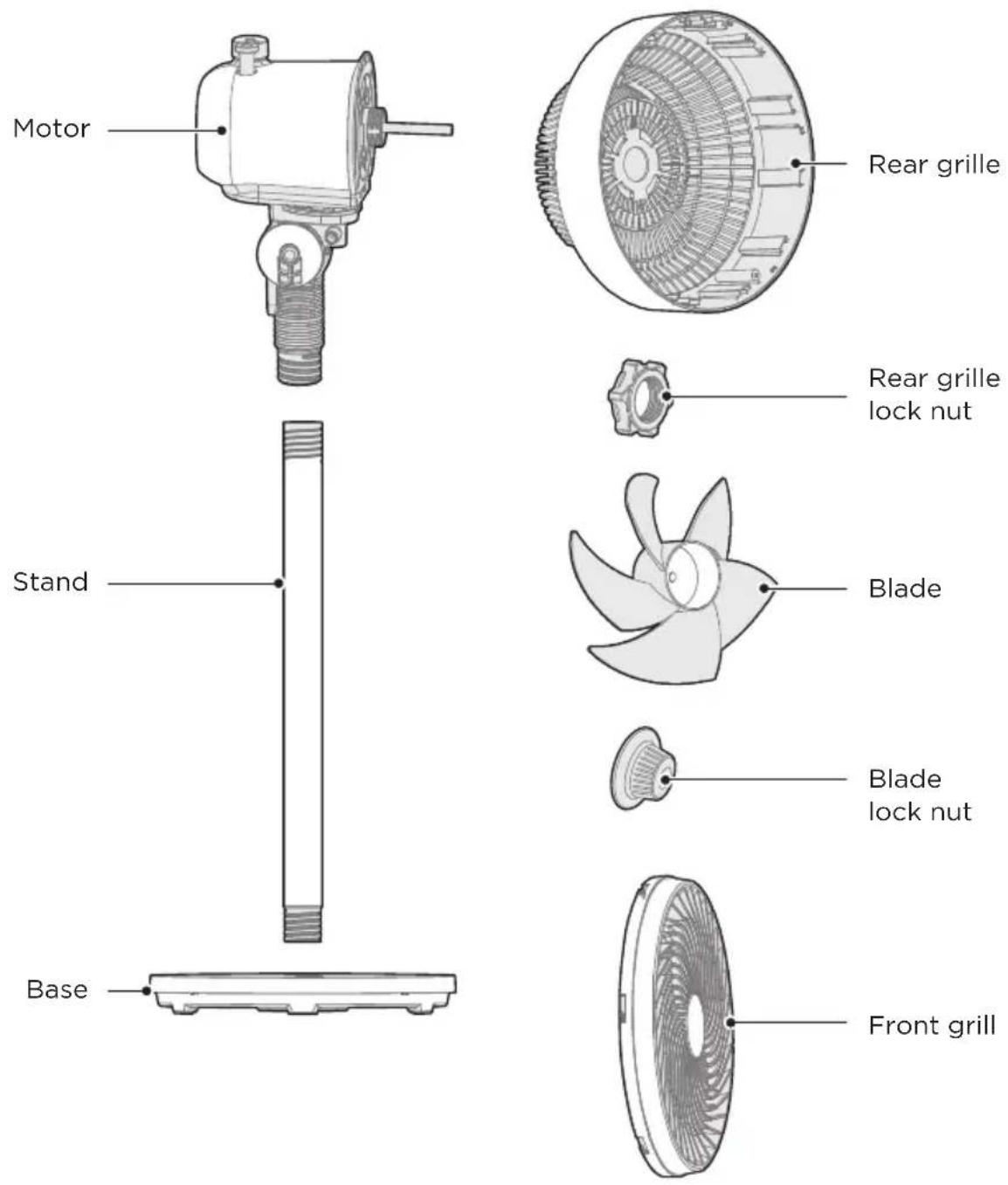

PRODUCT OVERVIEW

Component Name

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject. Remove parts from the component before performing installation.

PRODUCT INSTALLATION

Installation Procedures

1 Base and Stand Connection

1.1 Align the interface between the stand and the base, and then rotate clockwise to tighten it.

Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

EN

2 Stand and Motor Connection

2.1 Insert the connector under the motor house into the stand interface, and then rotate clockwise to tighten it.

Diagram of a drill bit with arrow indicating rotational motion (no text or symbols)

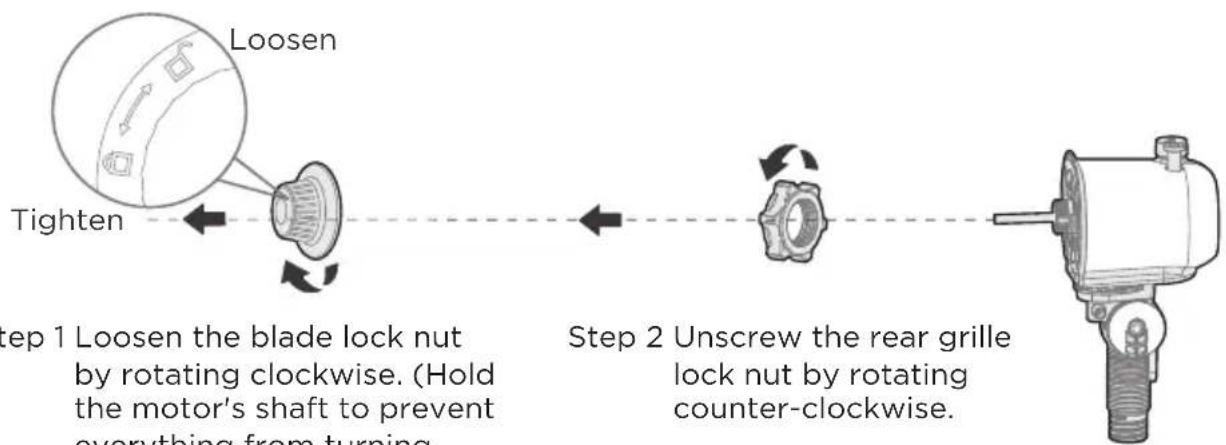

3 Rear Grille and Motor Connection

3.1 First, remove the blade lock nut and rear grille lock nut from the motor assembly.

Step 1 Loosen the blade lock nut by rotating clockwise. (Hold the motor's shaft to prevent everything from turning together)

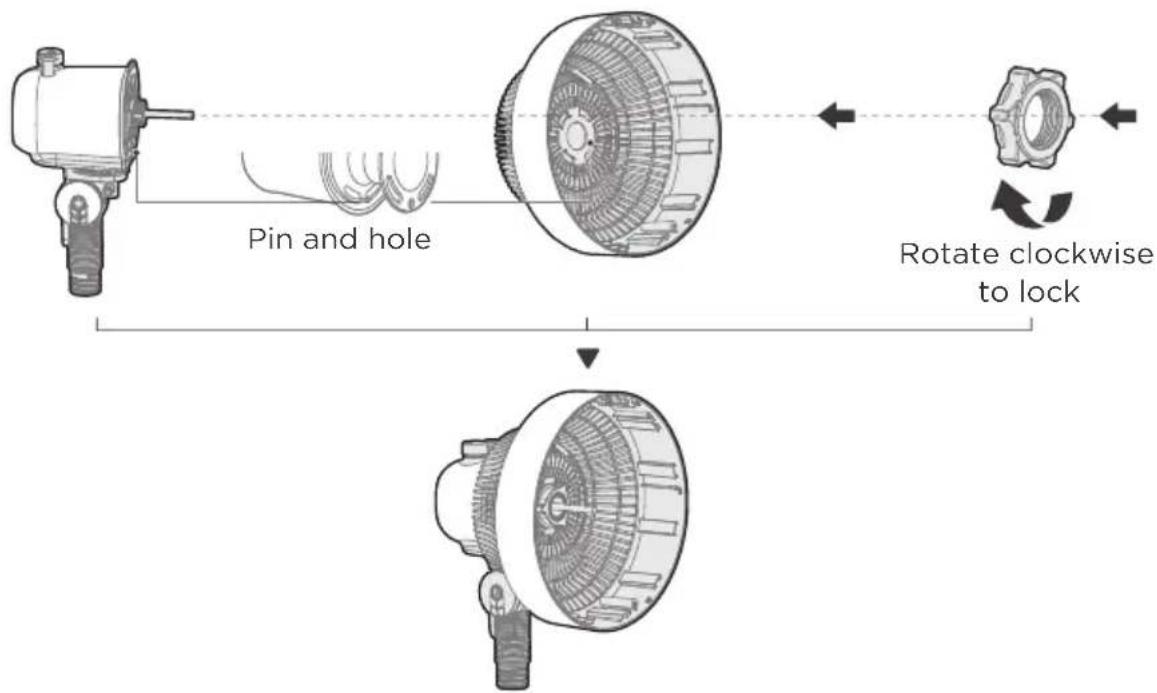

3.2 Place the rear grille against the motor housing and align the motor housing's pin and rear grille's hole.
3.3 Lock the rear grille by rotating the rear grille lock nut clockwise.

EN

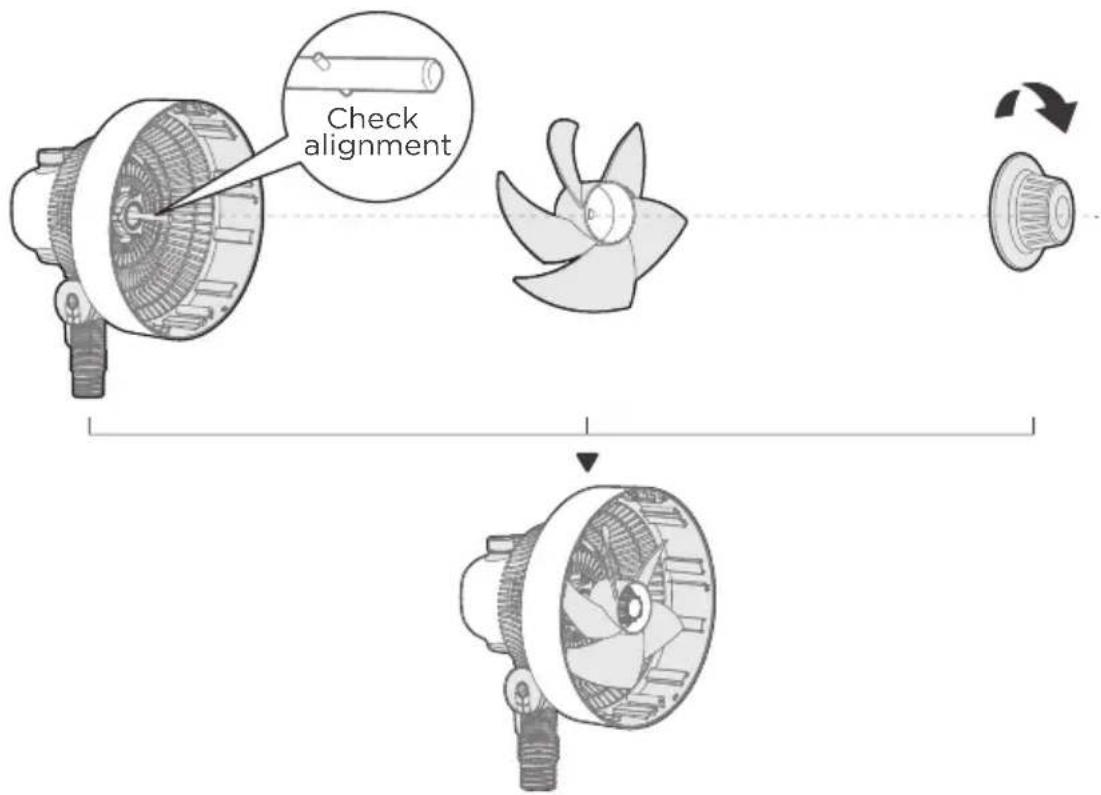

4 Blade Attachment

4.1 Place the blade through the motor's shaft while aligning the shaft's pegs with the blade's slots.

Check alignment

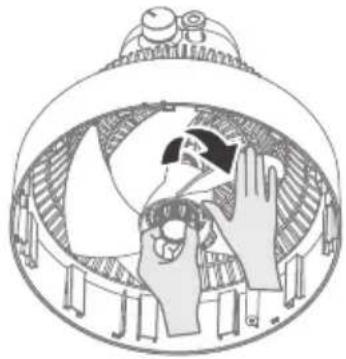

4.2 While holding the blade, screw the blade lock nut on by rotating it counterclockwise.

Illustration of a traditional Chinese celestial object with hands and a circular frame (no text or symbols)

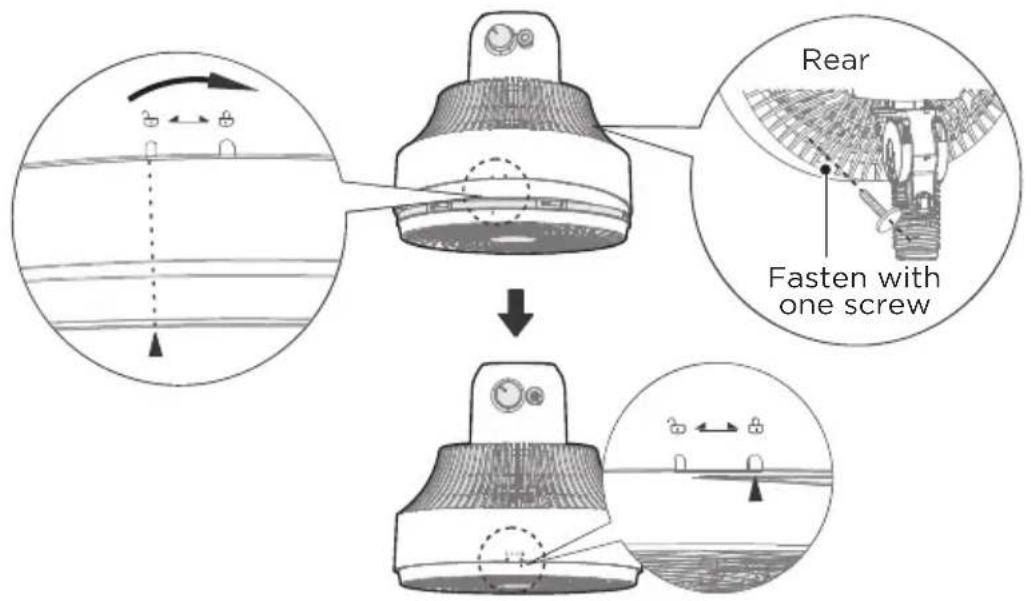

5 Front Grille Attachment

Align the front grille's arrow with the rear grille's 📋 and snap the front grille in place with both hands. Then rotate the front grille's arrow to the rear grille's 🔊, and fasten the screw.

Note: Two screws come in the package but only one is needed.

EN

Rear Fasten with one screw

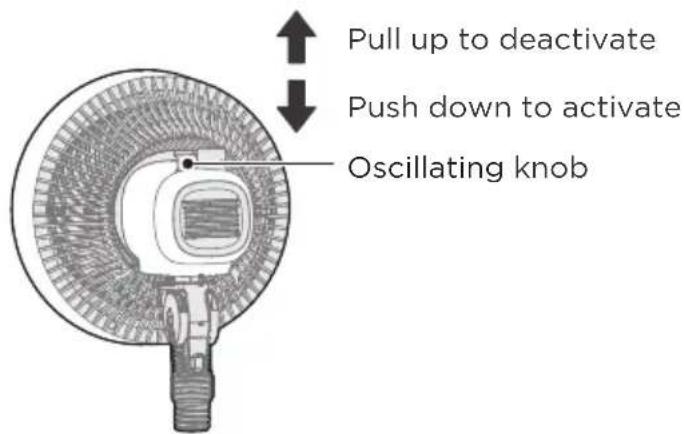

6 Oscillation control

To make the fan oscillate, push down on the oscillating knob located on the top of the motor housing. To stop the fan from oscillating, pull up the oscillating knob.

Pull up to deactivate Push down to activate Oscillating knob

OPERATION INSTRUCTIONS

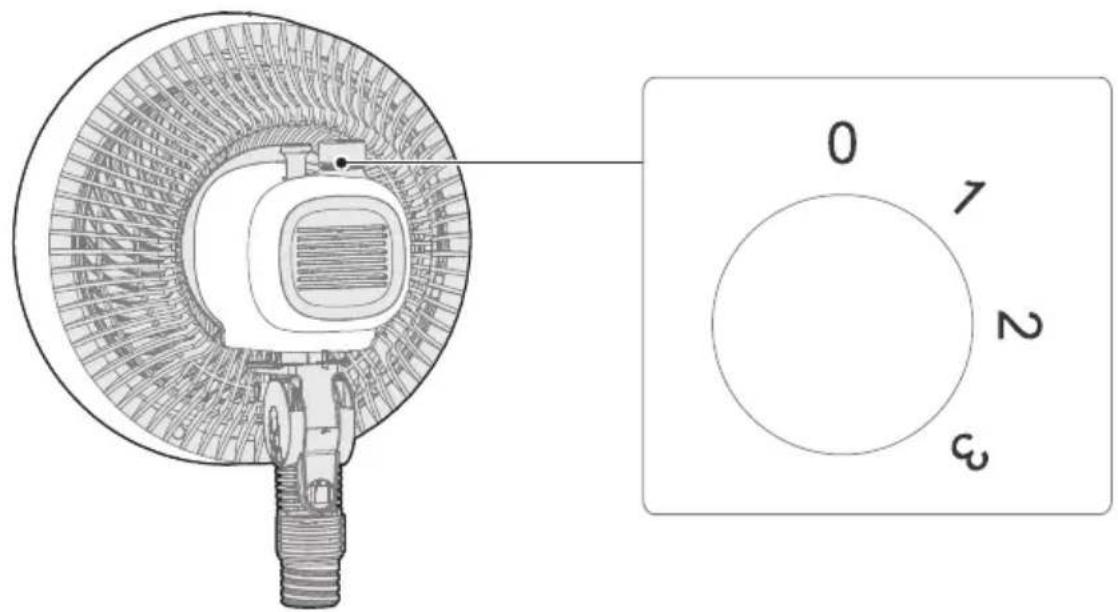

Instructions for Operation of Body

0 7 2 3

EN

	Function description
0	Choose this gear to stop the product.
1	Choose this gear to low speed.
2	Choose this gear to medium speed.
3	Choose this gear to high speed.

CLEANING AND MAINTENANCE

The fan requires minimal maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, unplug the fan power.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
   Please wipe the exterior parts with a soft cloth soaking a mild detergent.
3. Do not use any abrasive detergent or solvents to avoid scratching the surface.
4. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid entering into the motor housing or interior parts.
6. Be sure to unplug from the electrical supply source before cleaning.
7. Plastic parts should be cleaned with a soft cloth moisten with mild soap Thoroughly remove soapsuds with dry cloth.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

	Cause SolutionProblem
The machine does not work properly after installed	• The power cable is not plugged in or has poor contact.	Make sure the plug is properly inserted into the socket.
	• The switch on the body is not turned on.	Turn on the switch on the body.

EN

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no visible text or labels

EN

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

VIELEN DANK

Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Mechanical tool diagram showing a drill bit and rotating arrow (no text or symbols)

Illustration of two figures in a circular frame, one gesturing toward the other's hand (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Recycling symbol with four arrows forming a triangle (no text or labels)

DATENSCHUTZHINWEISE

Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Mechanical tool diagram showing a drill bit and rotating arrow (no text or symbols)

Illustration of two hands reaching toward a circular object with patterned background (no text or symbols)

Technical diagram of a fan or impeller with internal blades and central hub, showing no text or symbols.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

IT

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

VUE D'ENSEMBLE DU PRODUIT 06

INSTALLATION DU PRODUIT 07

INSTRUCTIONS SUR LE FONCTIONNEMENT 10

NETTOYAGE ET ENTRETIEN 11

DÉPANNAGE 12

MARQUES, DROITS D'AUTEUR ET MENTIONS LEGALES 13

ELIMINATION ET RECYCLAGE 14

AVIS SUR LA PROTECTION DES DONNEES 15

GARANTIE/SERVICE 16

CONSIGNES DE SECURITE

Usage prévu

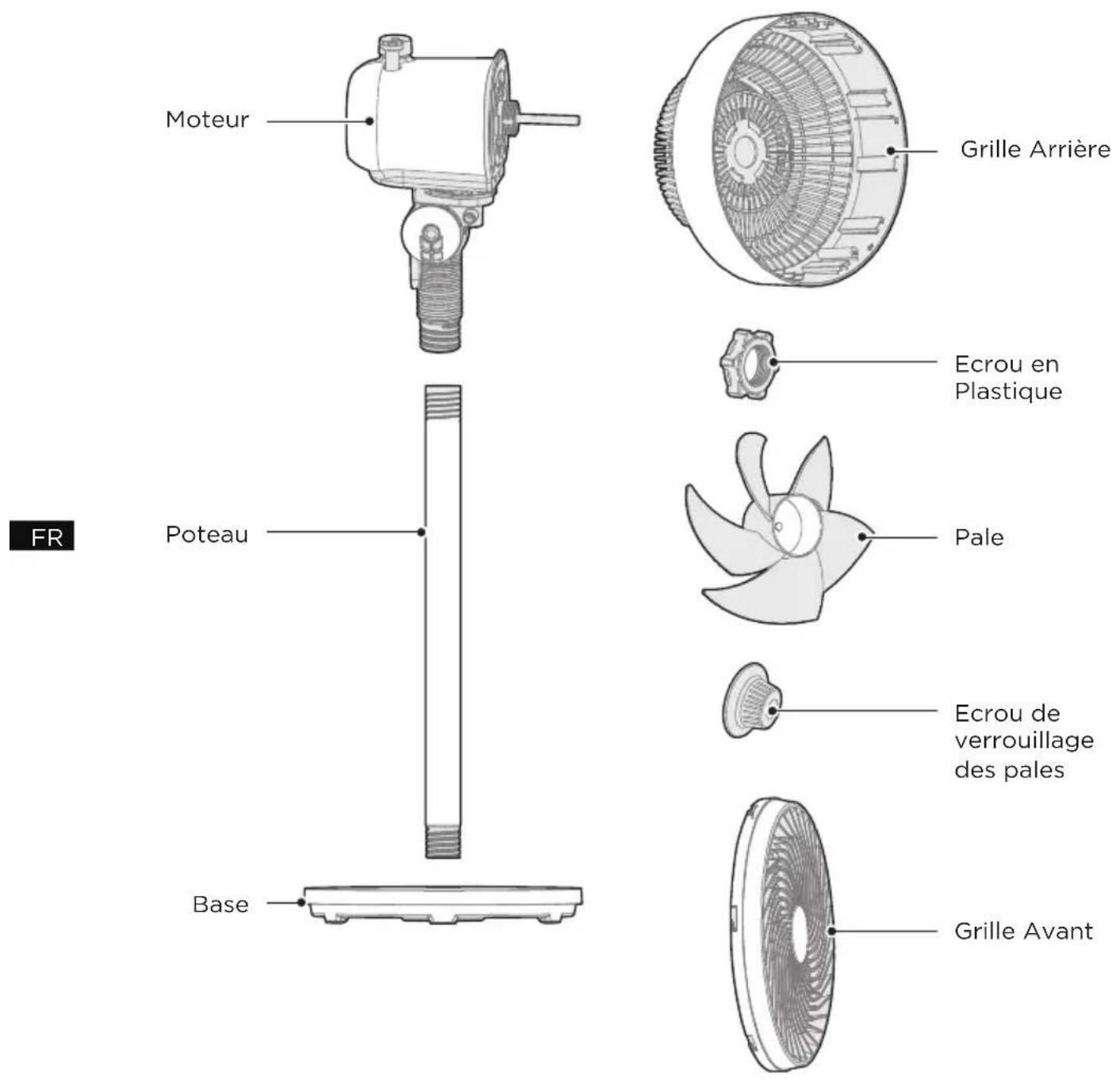

VUE D'ENSEMBLE DU PRODUIT

Noms des Composants

INSTALLATION DU PRODUIT

Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical tool with a rotating arrow indicating rotation (no text or symbols)

Illustration of a stylized celestial object with two hands reaching toward it, enclosed in a circular frame (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

FR

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

AVIS SUR LA PROTECTION DES DONNEES

BEZBEDNOSNA UPUTSTVA

Namena

Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

2 Povezivanje stalka i motora

2.1 Umetnite konektor ispod kućišta motora u interfejs stalka, a zatim ga okrenite u smeru kazaljke na satu da biste ga zategnuli.

SR

Diagram of a mechanical tool with a rotating arrow indicating rotation (no text or symbols)

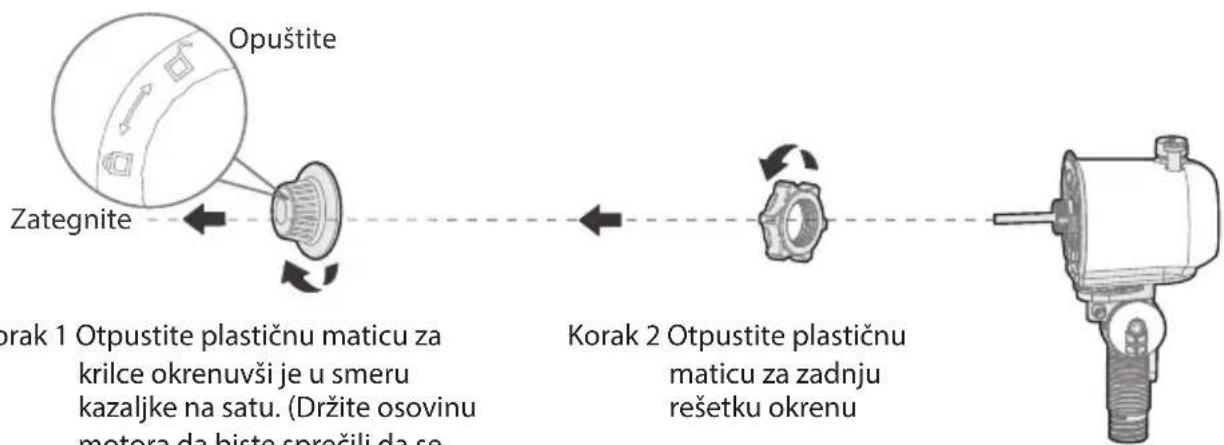

3 Povezivanje zadnje rešetke i motora
