USER MANUAL Vintage 3919 ARIETE

Line drawing of a microwave oven with front and interior compartments (no text or symbols)

Forno

Mini oven

Four

Backofen

Horno

Forno

Oven

Ovn

Φούρνος

Мини-печь

ДУХОВКА

Piekarnik

E F D C B A G H I 230 190 140 06 40 20 10 05 09

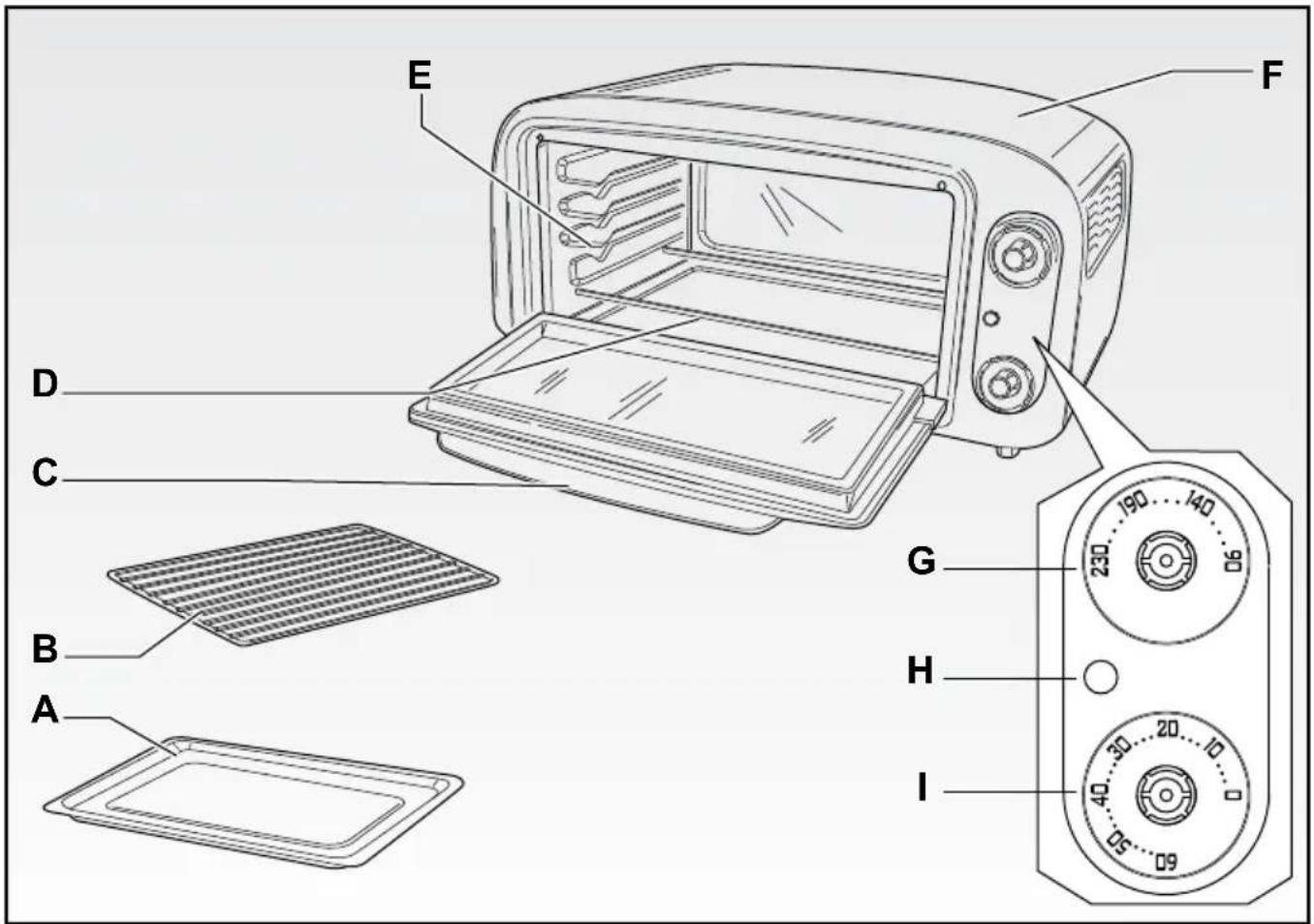

Fig. 1

Line drawing of a toaster oven with grating tray and side outlets (no text or symbols)

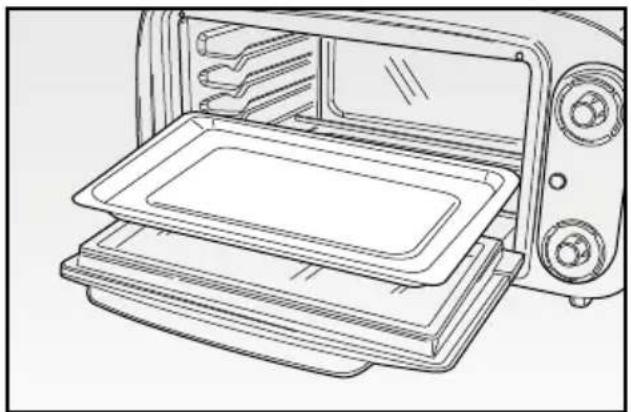

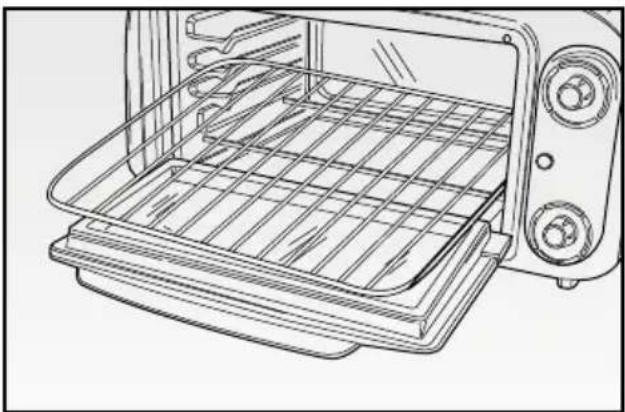

Fig. 2 Fig. 3

Line drawing of a toaster oven with open tray and grating (no text or symbols)

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

1. Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.
2. Never leave the appliance unattended when connected to the power supply; unplug it after every use.

3. Never place the appliance on or close to sources of heat.

4. Always place the appliance on a flat, level surface during use.

5. Place the oven on a work top or kitchen cabinet capable of withstanding a temperature of at least 90^ C and leave some room above it. Under no circumstances should it be slotted in or inserted into a unit.

6. Never leave the appliance exposed to the elements (rain, sun, etc....).

7. Make sure that the power cord does not come into contact with hot surfaces.

8. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 and supervised.

9. Children under age 8 should not be allowed to handle appliance and its power cord which must be kept out of their reach.

10. NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

11. ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

12. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

13. Remove all internal accessories, then wash and dry with care.

14. Do not transport the appliance while it is operating.

15. Do not cover the inside parts of the oven with aluminium foil as this could seriously damage thermostat operation.

16. During operation, the metal parts and glass become hot: only touch the door handle at this time.

17. Do not place anything on the door when it is open.

18. Do not place dish cloths or plates on the appliance.

19. Only use the appliance for cooking purposes.

20. Do not allow acid substances (lemon juice, vinegar, etc.) to remain on the appliance.

Acidic as lemon juice, tomato sauce, vinegar or similar, if leaved for long time, may harm the enamel, making it opaque.

1. To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull the power cord to unplug the appliance.
2. Never use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.
3. To prevent any risks, if the power cord is damaged, it must be replaced by the manufacturer, its Technical Assistance Service or a similarly qualified person.
4. This appliance is designed for HOME USE ONLY and may not be used for commercial or industrial purposes.
5. This appliance conforms to the directives 2006/95/EC and EMC 2004/108/EC, and to the regulations (EC) No. 1935/2004 of 27/10/2004 regarding material in contact with foods.
6. Any changes to this product that have not been expressly authorised by the manufacturer may lead to the user's guarantee being rendered null and void.
7. In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.
8. Packaging must never be left within the reach of children since it is potentially dangerous.
9. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

DO NOT THROW AWAY THESE INSTRUCTIONS

Power consumption in off mode: 0,0W

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Drip pan

B Grill

C Handle

D Heating elements

E Cooking levels

F Appliance body

G Thermostat dial

H Temperature light

I Power on and timer dial

USING FOR THE FIRST TIME

Carry out an "empty" cooking cycle so as to remove any smell and smoke from the protective coatings applied to metal parts:

• switch on the oven by rotating the timer dial (I) to 10 minutes and set the dial (G) on the highest temperature;
• leave the appliance to operate with the door open in a well-aired environment.

During this operation, it is usual for smoke to come off metal parts and side openings. After this operation, ventilate the room.

INSTRUCTIONS FOR USE

• Open the oven door by using the apposite handle (C).
• Prepare food to be cooked and position them on the grill (B) or inside the drip pan (A).
• Place the grill (B) with the previously prepared food into the oven at the required cooking level (E) (Fig. 2-3). When cooking foods on the grill (B), also insert the drip pan (A) at a lower level (E) than the grill (B) so as to collect any cooking fat. We recommend pouring two glasses of water in the drip pan (A) to prevent smoke, unpleasant odours and build up.
• Turn the dial (G) to set the required cooking temperature.
• Close the oven door by using the apposite handle (C).

WARNING: Place food at a minimum distance of 2 cm. from the top heating elements.

- Plug in appliance and select cooking time according to food to be prepared by means of the dial (I). At this stage, the oven starts cooking and the temperature light (H) switches on; it switches off when reaching the set temperature or if the dial (I) is manually reset to "0" position.

WARNING: Monitor food while cooking.

• At the end of the cooking time, the oven stops automatically, sending out an alarm.
• After each use, unplug the appliance and open the door. Remove the drip pan (A) or the grill (B) by using suitable oven gloves to prevent burns.

Indication of cooking/heating times

Type of food Temperature (°C) Time (min.)

Sandwich	200	6-8
Toast	230	5-7
Fish	200	12-15
Sausage	230	10-12
Hamburger	200	5-8
Chicken	200-230	30-40
Roast meat 200-230	40-50
Bread, pizza, focaccia bread 230	30-40
Roast potatoes	230	20-30
Baked pasta / Lasagna	200	20-30
Biscuits	170	10-15
Cake, Sweets. Tart	160-170	30-50

CLEANING

• Frequent cleaning prevents the formation of smoke and unpleasant odours during cooking.
• The drip pan (A) and the grill (B) can be washed in warm soapy water, or in the dishwasher, on the top shelf.
• Always wipe the outside clean with a damp sponge.
  Do not use abrasive products that can damage the paintwork.
• Never use products that might corrode aluminium (spray detergents) to clean the inside surfaces and never scrape the sides with sharp or pointed objects. Wipe with a damp sponge at the end of each use, when the oven has completely cooled.

IMPORTANT: All enamelled parts need to be washed with soapy water or other non-abrasive products.

- When there are grease spots or smoke exhalations, we recommend removing grease with a sponge soaked in hot soapy water.

IMPORTANT: Dry with a soft cloth. Acidic substances such as lemon juice, tomato purée, vinegar or similar can damage the enamel, making it lose shine.
