Product type	Tabletop oven
Brand	Ariete
Model	3921
Usage	Household use only
Cooking functions	Top baking (gratin), bottom baking, combined baking (full power)
Thermostat	Adjustable
Timer	Mechanical with automatic shut-off and sound signal
Temperature indicator light	Yes (lights up until temperature is reached)
Cooking levels	4
Included accessories	Rack, drip tray, crumb tray, extraction fork, handle
Body material	Metal with enameled parts
Cleaning rack and crumb tray	Dishwasher safe
Cleaning drip tray	Hand washing recommended (water and soap)
Cleaning external surfaces	Damp sponge, avoid abrasive products
Cleaning internal surfaces	Damp sponge after complete cooling
Child safety	Prohibited for children under 8 without supervision; cleaning by children over 8 under supervision
Compliance	Directive 2014/35/EU and EMC 2014/30/EU
Control type	Rotary knobs (function, thermostat, timer)
Door	With handle
Heating elements	Upper and lower
Accessory extraction	Fork provided
Precautions	Do not immerse the body; do not cover internal parts with aluminum; minimum distance of 2 cm from heating elements

Frequently Asked Questions - 3921 ARIETE

How to use the oven for the first time?

Run an empty cycle with the oven on full for 10 minutes, door open, in a well-ventilated area to eliminate protective odors and fumes.

What cooking functions are available?

Three functions: top baking (gratin), bottom baking, and combined baking (full power top and bottom).

How to set the timer?

Turn the timer knob (B) to the desired time. The oven stops automatically with a sound signal at the end of cooking. You can also stop it by turning the knob back to 0.

How to clean the drip tray?

It is recommended not to put it in the dishwasher to preserve the coating. Wash it with warm soapy water.

Can I put the rack in the dishwasher?

Yes, the rack (G) and the crumb tray (L) can be washed in the dishwasher.

What temperature for a meat roast?

For a 1 kg roast, set the thermostat between 200°C and 230°C for a cooking time of 60 to 80 minutes.

How long to bake cookies?

For cookies or small pastries (200 g), set to 170°C for 10 to 15 minutes.

What to do if the oven emits smoke during first use?

This is normal: the protective substances on the metals burn off. Ventilate the room and let the oven run empty as indicated in the manual.

Can I leave the oven unattended?

No, it is essential to monitor cooking and never leave the appliance plugged in unattended.

How to avoid damaging the enameled surfaces?

Avoid prolonged contact with acidic substances (lemon juice, vinegar, tomatoes). Clean with a damp sponge and a soft cloth, without abrasive products.

USER MANUAL 3921 ARIETE

Line drawing of a microwave oven with control knobs and a grater (no text or symbols)

Forno Mini oven Four Backofen

Technical diagram of a microwave oven with labeled parts including front panel, control knobs, and air grating.

Fig. 1

Line drawing of an open microwave oven with a tray holding small food items (no text or symbols)

Fig. 2

Line drawing of a toaster oven with grating and control panel (no text or symbols)

Fig. 3

Line drawing of a microwave oven with lid and control knobs (no text or symbols)

Fig. 4

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of the 1. mains electricity.

Never leave the appliance unattended when connected to the power supply; 2. unplug it after every use.

Never place the appliance on or close to sources of heat.3.

Always place the appliance on a flat, level surface during use.4.

Place the oven on a work top or kitchen cabinet capable of withstanding a 5. temperature of at least 90^ C and leave some room above it. Under no circumstances should it be slotted in or inserted into a unit.

Never leave the appliance exposed to the elements (rain, sun, etc....).6.

Make sure that the power cord does not come into contact with hot surfaces.7.

This appliance can be used by children aged from 8 years and above and persons 8. with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 and supervised.

1. Children under age 8 should not be allowed to handle appliance and its power cord which must be kept out of their reach.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER 10. OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS 11.

BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

1. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

2. Remove all internal accessories, then wash and dry with care.

3. Do not transport the appliance while it is operating.

4. Do not cover the inside parts of the oven with aluminium foil as this could seriously damage thermostat operation.

During operation, the metal parts and glass become hot: only touch the 16. door handle at this time.

Do not place anything on the door when it is open.17.

Do not place dish cloths or plates on the appliance.18.

Only use the appliance for cooking purposes.19.

Do not allow acid substances (lemon juice, vinegar, etc.) to remain on 20. the appliance.

Acidic as lemon juice, tomato sauce, vinegar or similar, if leaved for long time, may harm the enamel, making it opaque.

To unplug the appliance, grip the plug and remove it directly from the power 21. socket. Never pull the power cord to unplug the appliance.

Never use the appliance if the power cord or plug are damaged or if the appli-22. ance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

To prevent any risks, if the power cord is damaged, it must be replaced by the 23. manufacturer, its Technical Assistance Service or a similarly qualified person.

This appliance is designed for HOME USE ONLY and may not be used for com-24. mercial or industrial purposes.

This appliance complies with directives 2014/35/EU and EMC 2014/30/EU.25.

Any changes to this product that have not been expressly authorised by the 26. manufacturer may lead to the user's guarantee being rendered null and void.

In the event that you decide to dispose of the appliance, we advise you to make 27. it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.

Packaging must never be left within the reach of children since it is potentially 28. dangerous.

The appliance is not intended to be operated by means of an external timer or 29. separate remote-control system.

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Appliance body
B Power on and timer dial
C Thermostat dial
D Temperature light
E Function select dial
F Fork to remove grill and drip pan
G Grill
H Drip pan
I Handle
L Crumb tray
M Heating elements
N Cooking levels

USING FOR THE FIRST TIME

Carry out an "empty" cooking cycle so as to remove any smell and smoke from the protective coatings applied to metal parts:

• switch on the oven by turning the dial (E) to the symbol; set the temperature to the maximum and the timer to 10 minutes;
• leave the appliance to operate with the door open in a well-aired environment.

During this operation, it is usual for smoke to come off metal parts and side openings. After this operation, ventilate the room.

INSTRUCTIONS FOR USE

• Prepare the foods for cooking by placing them on the grill (G) or inside the drip pan (H).
• According to requirements, place the crumb tray (L) into the appliance underneath the lower heating element (Fig. 2).
• Plug the appliance into the mains power and use the function select dial (E) to select the type of cooking required:

□ top cooking (for gratin);

bottom cooking;

☐ cooking at full power (top and bottom at the same time).

• Turn the dial of the thermostat (C) and set the required cooking temperature.

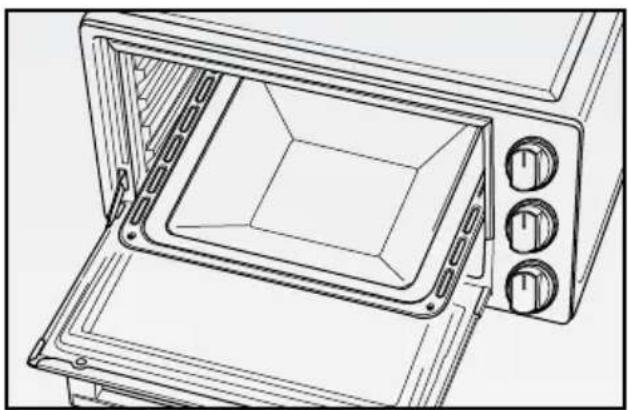

• Place the grill (G) with the previously prepared food into the oven at the required cooking level (N), by using the suitable fork (F) (Fig. 3). When cooking foods on the grill (G), also insert the drip pan (H) at a lower level (N) than the grill (G) so as to collect any cooking fat. We recommend pouring two glasses of water in the drip pan (H) to prevent smoke, unpleasant odours and build up. In case of food prepared in the drip pan (H), insert it into the oven first at the required cooking level (N) (Fig. 4).

IMPORTANT: Place foods at a minimum distance of 2 cm from the top heating element.

- Use the dial (B) to set the timer for the required cooking time.

At this stage, the oven starts cooking and the temperature light (D) switches on; it switches off when reaching the set temperature or if the dial (B) is manually reset to "0" position.

IMPORTANT: Keep an eye on the food while it is cooking.

• At the end of the cooking time, the oven stops automatically, sending out an alarm.
• Unplug the appliance, open the door and remove the grill (G) or the drip pan (H) using suitable oven gloves or the appropriate, supplied fork (F) to prevent scalding.

CLEANING

• Frequent cleaning prevents the formation of smoke and unpleasant odours during cooking.
• The grill (G) and the crumb tray (L) may be washed in warm water and soap or even put in the dishwasher. It is advisable NOT to put the drip pan (H) into the dishwasher as the coating could be damaged in the long term; just use water and soap.
• Always wipe the outside clean with a damp sponge. Do not use abrasive products that can damage the paintwork.
• Never use products that might corrode aluminium (spray detergents) to clean the inside surfaces and never scrape the sides with sharp or pointed objects. Wipe with a damp sponge at the end of each use, when the oven has completely cooled.

IMPORTANT: All enamelled parts need to be washed with soapy water or other non-abrasive products.

- When there are grease spots or smoke exhalations, we recommend removing grease with a sponge soaked in hot soapy water.

IMPORTANT: Dry with a soft cloth. Acidic substances such as lemon juice, tomato purée, vinegar or similar can damage the enamel, making it lose shine.

Recipes/quantities Degrees Times Funct.

Meat roasts (1 Kg) 200°-230° 60-80 min.

Roast fish (1 Kg) 190^-210^ 30-40 min.

Baked vegetables (500 g) 190°-210° 30-40 min.

Brochettes, sausage, chopped meats (500 g) 190°-210° 30-45 min.

Wrapped meat, vegetables and fish (500 g) 190°-210° 30-45 min.

Meat, vegetable, fish gratin (500 g)

Oven-baked pasta (1 Kg)

Bread, pizza and focaccia (500 g)

Cakes, pastries (500 g)

Biscuits, small pastries (200 g)

230° 20-30 min.

200° 20-30 min.

230° 20-35 min.

170^ - 180^ 25-40 min.

170° 10-15 min.
