3920 - Oven ARIETE - Free user manual and instructions

Product type	Table oven
Brand	Ariete
Model	3920
Category	Oven
Usage	Household
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W (estimated)
Dimensions (approx.)	40 x 30 x 20 cm
Weight (approx.)	5 kg
Capacity	20 liters (estimated)
Exterior material	Painted steel
Cooking functions	Convection cooking (rack and drip tray)
Temperature control	From 170 °C to 230 °C (depending on recipes)
Timer	Mechanical, automatic shut-off with audible signal
Temperature indicator	Lights up when heating, turns off at temperature
Safety	Automatic shut-off, insulated door, cool handle
Cleaning	Removable crumb tray, damp sponge, no abrasives
Included accessories	Sliding rack, drip tray
Color	White or black (not specified)
Warranty	2 years (standard)

Frequently Asked Questions - 3920 ARIETE

How to use the oven for the first time?

Run an empty cycle for 15 minutes at maximum temperature with the door open in a ventilated room to eliminate protective odors and fumes.

What to do if the oven emits smoke?

This is normal during the first use or after cleaning. Ventilate the room. If it persists, check that the crumb tray is clean.

How to clean the crumb tray?

After cooling, tilt the oven, open the tray by lifting it, clean with a damp sponge and put it back.

Why does the temperature indicator turn off?

It turns off when the set temperature is reached or if the timer is reset. This is normal.

Can I use aluminum foil in the oven?

No, never cover the internal parts with aluminum as it can damage the thermostat. Use it only to wrap food.

How to set the timer?

Turn the knob (D) to the desired time. The oven turns on and off automatically with a beep at the end of cooking.

What to do if the oven does not heat?

Check that the timer is set and the plug is connected. If the indicator does not light up, contact after-sales service.

How to clean the oven glass?

Use a damp sponge and a non-abrasive cleaner. Avoid scrapers to prevent scratching the surface.

Can I cook aluminum dishes?

Yes, but place them at least 2 cm from the upper heating elements to avoid any risk.

Where to find spare parts?

Contact the nearest Ariete Authorized After-Sales Service Center.

USER MANUAL 3920 ARIETE

Line drawing of a microwave oven with open lid and control knobs (no text or symbols)

Forno Mini oven Four Backofen

Technical diagram of a microwave oven with labeled parts including tray, fan, and control knobs

Fig. 1

Line drawing of a hand opening a microwave oven with food inside (no text or symbols)

Fig. 2 Fig. 3

Technical line drawing of a microwave oven with cooling fins and ventilation duct (no text or symbols)

Technical line drawing of a cabinet or enclosure with ventilation grilles and mounting fixtures (no text or symbols)

Fig. 4 Fig. 5

Technical line drawing of a mechanical assembly with no visible text or symbols

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of the 1. mains electricity.

Never leave the appliance unattended when connected to the power supply; 2. unplug it after every use.

Never place the appliance on or close to sources of heat.3.

Always place the appliance on a flat, level surface during use.4.

Place the oven on a work top or kitchen cabinet capable of withstanding a 5. temperature of at least 90^ C and leave some room above it. Under no circumstances should it be slotted in or inserted into a unit.

Never leave the appliance exposed to the elements (rain, sun, etc....).6.

Make sure that the power cord does not come into contact with hot surfaces.7.

This appliance can be used by children aged from 8 years and above and persons 8. with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 and supervised.

1. Children under age 8 should not be allowed to handle appliance and its power cord which must be kept out of their reach.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER 10. OR OTHER LIQUIDS: ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS 11.

BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

1. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

2. Remove all internal accessories, then wash and dry with care.

3. Do not transport the appliance while it is operating.

4. Do not cover the inside parts of the oven with aluminium foil as this could seriously damage thermostat operation.

During operation, the metal parts and glass become hot: only touch the 16. door handle at this time.

Do not place anything on the door when it is open.17.

Do not place dish cloths or plates on the appliance.18.

Only use the appliance for cooking purposes.19.

Do not allow acid substances (lemon juice, vinegar, etc.) to remain on 20. the appliance.

Acidic as lemon juice, tomato sauce, vinegar or similar, if leaved for long time, may harm the enamel, making it opaque.

To unplug the appliance, grip the plug and remove it directly from the power 21. socket. Never pull the power cord to unplug the appliance.

Never use the appliance if the power cord or plug are damaged or if the appli-22. ance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

To prevent any risks, if the power cord is damaged, it must be replaced by the 23. manufacturer, its Technical Assistance Service or a similarly qualified person.

This appliance is designed for HOME USE ONLY and may not be used for com-24. mercial or industrial purposes.

This appliance conforms to the 2014/35/EU and EMC 2014/30/EU directives.25.

Any changes to this product that have not been expressly authorised by the 26. manufacturer may lead to the user's guarantee being rendered null and void.

In the event that you decide to dispose of the appliance, we advise you to make 27. it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.

Packaging must never be left within the reach of children since it is potentially 28. dangerous.

The appliance is not intended to be operated by means of an external timer or 29. separate remote-control system.

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Appliance body
B Temperature selecting dial
C Temperature light
D Power on and timer dial
E Crumb tray door
F Drip pan
G Handle
H Sliding grill

USING FOR THE FIRST TIME

Carry out an "empty" cooking cycle so as to remove any smell and smoke from the protective coatings applied to metal parts:

• switch on the oven by rotating the timer dial (D) to 15 minutes and set the dial (G) on the highest temperature;
• leave the appliance to operate with the door open in a well-aired environment.

During this operation, it is usual for smoke to come off metal parts and side openings. After this operation, ventilate the room.

INSTRUCTIONS FOR USE

• Make sure the crumb door (E) is tightly closed.
• Open the oven door by using the apposite handle (G); the grill (H) will slide outwards automatically (Fig. 2).

• Prepare food to be cooked in an apposite container and position them on the grill (H) or inside the drip pan (F).
  In case of food prepared in the drip pan (F), insert it on the grill (H) (Fig. 3).

• Turn the dial (B) to set the required cooking temperature.

• Close the oven door by using the apposite handle (G); the grill (H) will slide inwards automatically (Fig. 2).

WARNING: Place food at a minimum distance of 2 cm. from the top heating elements.

- Plug in appliance and select cooking time according to food to be prepared by means of the dial (D). At this stage, the oven starts cooking and the temperature light (C) switches on; it switches off when reaching the set temperature or if the dial (D) is manually reset to "0" position.

WARNING: Monitor food while cooking.

• At the end of the cooking time, the oven stops automatically, sending out an alarm.
• After each use, unplug the appliance and open the door. The grill (H) will slide outwards automatically. Remove the drip pan (F) by using suitable oven gloves to prevent burns.

CLEANING

• Frequent cleaning prevents the formation of smoke and unpleasant odours during cooking.

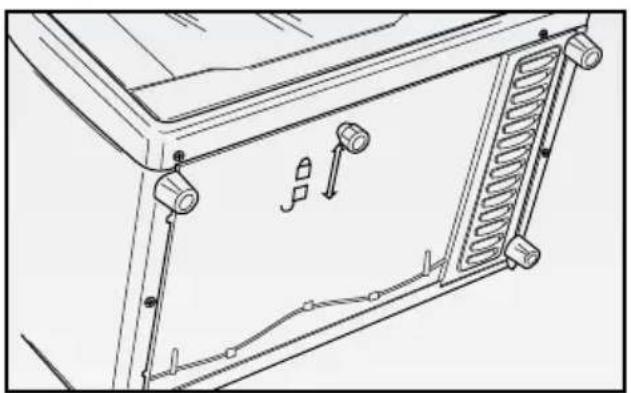

• The oven is equipped with a crumb tray door (E) to be cleaned after every use, once the oven has cooled down completely. Turn the appliance upside down and use the special knob (Fig. 4) to open the drawer, lifting it gently upwards (Fig. 5). Wipe clean with a damp sponge and remove any residues of food, crumbs, etc.
• The drip pan (F) and the grill (H) can be washed in warm soapy water or in the top rack of the dishwasher.
• Always wipe the outside clean with a damp sponge.
  Do not use abrasive products that can damage the paintwork.
• Never use products that might corrode aluminium (spray detergents) to clean the inside surfaces and never scrape the sides with sharp or pointed objects. Wipe with a damp sponge at the end of each use, when the oven has completely cooled.

IMPORTANT: All enamelled parts need to be washed with soapy water or other non-abrasive products.

- When there are grease spots or smoke exhalations, we recommend removing grease with a sponge soaked in hot soapy water.

IMPORTANT: Dry with a soft cloth. Acidic substances such as lemon juice, tomato purée, vinegar or similar can damage the enamel, making it lose shine.

Recipes/quantities Times Temp.

Meat roasts (500 g) 30-40 min. 200°-230°

Roast fish (500 g) 15-20 min. 190°-210°

Baked vegetables (250 g) 15-20 min. 190°-210°

Brochettes, sausage, chopped meats (250 g) 15-22 min. 190°-210°

Wrapped meat, vegetables and fish (250 g) 15-22 min. 190°-210°

Meat, vegetable, fish gratin (250 g) 10-15 min. 230°

Oven-baked pasta (500 g) 10-15 min. 200°

Bread, pizza and focaccia (250 g) 10-18 min. 230°

Cakes, pastries (250 g) 13-20 min. 170°-180°

Biscuits, small pastries (100 g) 5-7 min. 170°
