Bon Cuisine 971 - Oven ARIETE - Free user manual and instructions

Product Type	Electric Oven
Brand	Ariete
Model	Bon Cuisine 971
Dimensions (W x H x D)	45 cm x 35 cm x 30 cm
Weight	8 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1200 W
Capacity	20 liters
Cooking Functions	Bake, Grill, Defrost, Convection
Temperature Range	100°C - 250°C
Timer	Up to 120 minutes with automatic shut-off
Interior Light	Yes
Control Type	Knobs & Rotary
Cleaning	Wipe interior and exterior with a damp cloth; do not use abrasive cleaners
Safety Features	Automatic shut-off via timer, cool-touch handle, overheat protection
Accessories Included	Baking tray, wire rack, crumb tray
Spare Parts Availability	Yes, contact Ariete customer service or authorized dealers
Reparability	Serviceable by qualified technician; user-replaceable parts: glass door, heating elements
Warranty	2 years manufacturer warranty

Frequently Asked Questions - Bon Cuisine 971 ARIETE

How do I preheat the oven?

Turn the function knob to the desired mode (e.g., Bake) and set the temperature using the temperature knob. The oven will automatically preheat; the indicator light turns off when ready.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire shelf or blocking air circulation. Do not let foil touch the heating elements.

How do I clean the oven interior?

After the oven has cooled, wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The crumb tray can be removed and washed separately.

What does the defrost function do?

The defrost function uses low heat and fan to thaw frozen food quickly without cooking it. Place food on the wire rack and select defrost mode.

Why is the oven not heating?

Check that the power cord is plugged in and the timer is set. If still not heating, ensure the function knob is not at 0. If problem persists, contact service.

Can I bake two dishes at once?

Yes, you can use both the wire rack and baking tray simultaneously. For even cooking, place dishes on different levels and consider using convection mode.

How do I set the timer?

Turn the timer knob to the desired minutes (up to 120). The oven will turn off automatically when the timer reaches 0. For continuous operation, set to ON position.

Is the oven door glass safe to touch?

The outer door is cool-touch, but the inner glass becomes hot. Always use oven mitts when opening the door during or after cooking.

What should I do if the oven smokes?

Smoking may occur from food spills or initial use. Turn off the oven, let it cool, and clean the interior. If smoking persists, discontinue use and consult the manual.

Where can I find replacement parts?

Contact Ariete customer service or visit the official website. Authorized dealers may also stock parts like heating elements and glass doors.

USER MANUAL Bon Cuisine 971 ARIETE

bon cuisine 180

-Ariete

Fig. 1

Fig. 2

Fig. 3

Fig. 4

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

1. Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.
   Never leave the appliance unattended when connected to the power supply; unplug it after 2. every use.
   Never place the appliance on or close to sources of heat.3.
   Always place the appliance on a flat, level surface during use.4.
   Place the oven on a work top or kitchen cabinet capable of withstanding a temperature of at 5.
   least 90° C and leave some room above it. Under no circumstances should it be slotted in or inserted into a unit.
   Never leave the appliance exposed to the elements (rain, sun, etc....).6.
   Make sure that the power cord does not come into contact with hot surfaces.7.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. 9.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER 10.

LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING 11.

OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

1. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

Remove all internal accessories, then wash and dry with care.13.

Do not transport the appliance while it is operating.14.

1. Do not cover the inside parts of the oven with aluminium foil as this could seriously damage thermostat operation.

During operation, the metal parts and glass become hot: only touch the door handle at 16. this time.

1. Do not place anything on the door when it is open.

2. Do not place dish cloths or plates on the appliance.

3. Only use the appliance for cooking purposes.

4. Do not use the appliance close to walls or windows.

5. Do not allow acid substances (lemon juice, vinegar, etc.) to remain on the appliance.

Acidic as lemon juice, tomato sauce, vinegar or similar, if leaved for long time, may harm the enamel, making it opaque.

1. To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull the power cord to unplug the appliance.

2. Never use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

3. To prevent any risks, if the power cord is damaged, it must be replaced by the manufacturer, its

Technical Assistance Service or a similarly qualified person.

This appliance is designed for HOME USE ONLY and may not be used for commercial or 25. industrial purposes.

This appliance conforms to the 2006/95/EC and EMC 2004/108/EC directives.26.

1. Any changes to this product that have not been expressly authorised by the manufacturer may lead to the user's guarantee being rendered null and void.
2. In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.
3. Packaging must never be left within the reach of children since it is potentially dangerous.

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Handle
B Heating elements
C Grill
D Drip pan
E Cooking levels
F Appliance body
G Thermostat dial
H Function select dial

I On dial and timer

L On indicator light

M Fork to remove drip pan

USING FOR THE FIRST TIME

Carry out an "empty" cooking cycle so as to remove any smell and smoke from the protective coatings applied to metal parts:

• switch on the oven by turning the dial to the symbol ☐; set the temperature to the maximum and the timer to 15 minutes;
• leave the appliance to operate with the door open in a well-aired environment.

During this operation, it is usual for smoke to come off metal parts and side openings. After this operation, ventilate the room.

INSTRUCTIONS FOR USE

ATTENTION: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

- Prepare the foods for cooking by placing them on the grill (C) or inside the drip pan (D).

- Plug the appliance into the mains power and use the function select dial (H) to select the type of cooking required:

□ top cooking (for gratin);

bottom cooking;

☐ cooking at full power (top and bottom at the same time).

• Turn the dial of the thermostat (G) and set the required cooking temperature.
• Place the grill (C) or the drip pan (D) with the previously prepared foods inside the oven at the cooking level (E) required (Fig. 2).
  When cooking foods on the grill (C), also insert the drip pan (D) at a lower level (E) than the grill (C) so as to collect any cooking fat (Fig. 3). We recommend pouring two glasses of water in the drip pan (D) to prevent smoke, unpleasant odours and build up.

IMPORTANT: Place foods at a minimum distance of 2 cm from the top heating element.

- Use the dial (I) to set the timer for the required cooking time. At this point, the oven will commence cooking and the On indicator light (L) will switch on: it switches off when the set cooking time has stopped automatically or if the dial (I) is reset to "0".

IMPORTANT: Keep an eye on the food while it is cooking.

• At the end of the cooking time, the oven will switch off automatically.

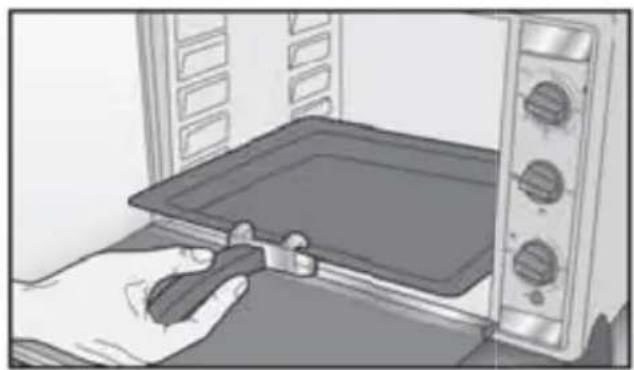

• Unplug the appliance from the mains power, open the door and to avoid the risk of burning yourself, remove the grill (C) or the drip pan (D) with special oven gloves for the grill or the special fork (M), provided, for the pan (Fig. 4).

CLEANING

ATTENTION: NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ATTENTION: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

• Frequent cleaning prevents the formation of smoke and unpleasant odours during cooking.
• The drip pan (D) and the grill (C) can be washed in warm soapy water or in the top rack of the dishwasher.
• Always wipe the outside clean with a damp sponge.
  Do not use abrasive products that can damage the paintwork.
• Never use products that might corrode aluminium (spray detergents) to clean the inside surfaces and never scrape the sides with sharp or pointed objects. Wipe with a damp sponge at the end of each use, when the oven has completely cooled.

IMPORTANT: All enamelled parts need to be washed with soapy water or other non-abrasive products.

- When there are grease spots or smoke exhalations, we recommend removing grease with a sponge soaked in hot soapy water.

IMPORTANT: Dry with a soft cloth. Acidic substances such as lemon juice, tomato purée, vinegar or similar can damage the enamel, making it lose shine.

Recipes/quantities Degrees Times Funct.

Meat roasts (1 Kg) 200°-230° 60-80 min.

Roast fish (1 Kg) 190°-210° 30-40 min.

Baked vegetables (500 g) 190°-210° 30-40 min.

Brochettes, sausage, chopped meats (500 g) 190°-210° 30-45 min.

Wrapped meat, vegetables and fish (500 g) 190°-210° 30-45 min.

Meat, vegetable, fish gratin (500 g) 230° 20-30 min.

Oven-baked pasta (1 Kg) 200° 20-30 min.

Bread, pizza and focaccia (500 g) 230° 20-35 min.

Cakes, pastries (500 g) 170°-180° 25-40 min.

Biscuits, small pastries (200 g) 170° 10-15 min.

INSTRUCTIONS IMPORTANTES

LIRE CES INSTRUCTIONS AVANT L'EMPLOI.

OOK ALS HET APPARAAT NIET IN WERKING STAAT MOET DE STEKKER UIT HET 11.

STOPCONTACT WORDEN GETROKKEN VOORDAT DE ONDERDELEN WORDEN VERWIJDERD OF GEMONTEERD OF VOORDAT HET APPARAAT WORDT GEREINIGD.

BESCHRIJVING VAN HET APPARAAT (Fig. 1)
