USER MANUAL HT-WEDGE-FT6W Hillvert

CE Warning ! OK Square Ground Symbol

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Top: black plastic lamp with a handlehead above; Bottom: close-up of a fishbowl with colorful aquatic plants and a glowing LED array (no text or symbols visible)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Fish Tank LED Lamp
Model	HT-WEDGE-FT6W	HT-WEDGE-FT12W	HT-WEDGE-FT18W	HT-WEDGE-FT25W	HT-WEDGE-FT30W
Energy efficiency class	A+	A	A	A	A
Energy use [kWh/1000h]	6	11	17	24	30
Supply voltage [V~]/ Frequency [Hz]	230/50
Rated power [W].	6	12	18	25	30
Safety class	II
IP code	IP20
Lamp dimensions (with legs sticking out) [Width x Depth x Height; mm]	320x125x53	410x125x53	610x125x53	913x125x53	1118x125x53
Permitted external aquarium width [mm]	310-490	400-590	595-780	895-1107	1115-1340
Weight [kg]	0.6	0.7	0.9	1.3	1.9
Type of LED diodes	2835 (White/Blue/Green/Red/Purple)
Number of LEDs	33	45	78	129	156
Amount of emitted light [lm]	420	840	1260	1750	2100
LED Service Life [h]	50000
Lamp power factor	0.5
Reaction time [ms]	<500
Ambient work temperature [°C]	~20-40
Ambient work humidity [%]	<90

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD

THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE Warning ! No Square No House

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Class II protection device with double insulation.

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to Fish Tank LED Lamp.

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.

d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
h) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the appliance in an explosive area, for example in the presence of flammable liquids, gases or dust. The appliance produces sparks that can ignite dust or fumes.
c) If you have any doubts as to whether the unit is working properly or if it is damaged, contact the manufacturer's service department.
d) Only the manufacturer's service department may repair the unit. Do not carry out repairs yourself!
e) In case of open flames or fire, use only dry powder or snow (CO₂) fire extinguishers to extinguish the live equipment.
f) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
g) Check the condition of the safety stickers regularly. Replace them if they are illegible.
h) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
i) Keep the packaging and small assembly parts out of the reach of children.
j) When using this unit together with other units, also follow the other instructions for use.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
d) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
c) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
d) Do not move, adjust or rotate the device in the course of work.
e) Clean the device regularly to prevent stubborn grime from accumulating.

f) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
g) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
h) Keep the device away from sources of fire and heat.
i) Do not cover the ventilation openings!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is designed to illuminate open tanks. It is equipped with appropriately selected diode colors ensuring proper light to the aquarium flora and fauna.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

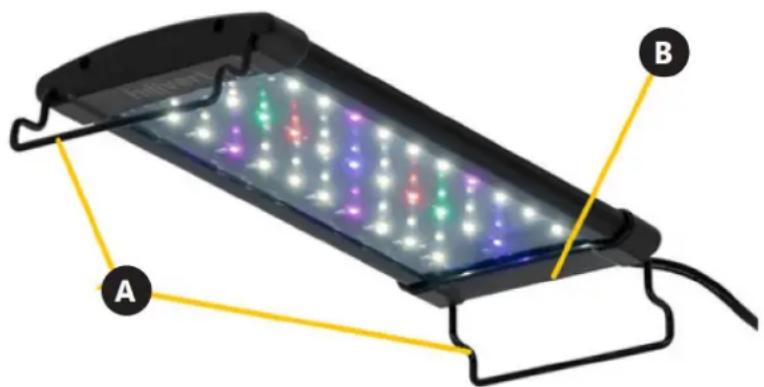

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

A. Mounting legs
B. ON/OFF and operating mode switch (on the side of the device - not visible in the picture)

3.2. Preparing for use

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 90%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a stable, fireproof surface and out of the reach of children and persons of impaired mental, sensory and intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE UNIT

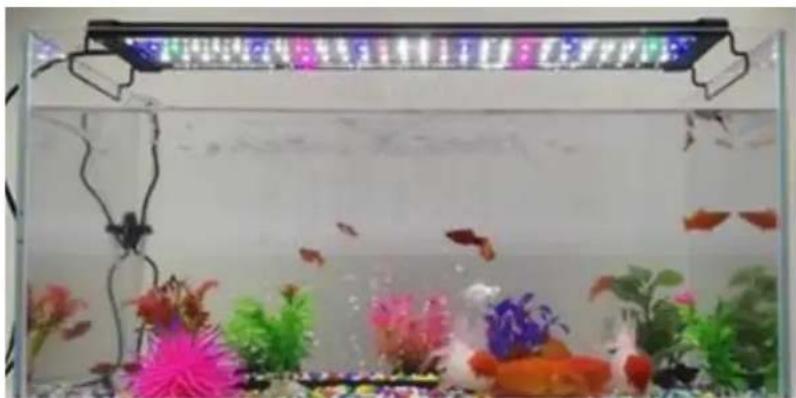

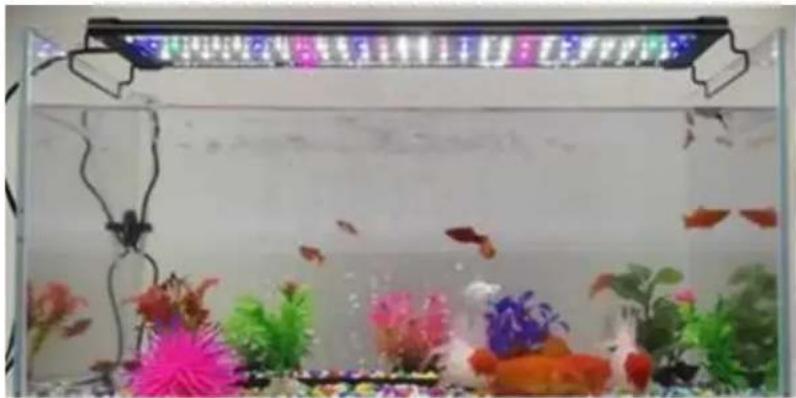

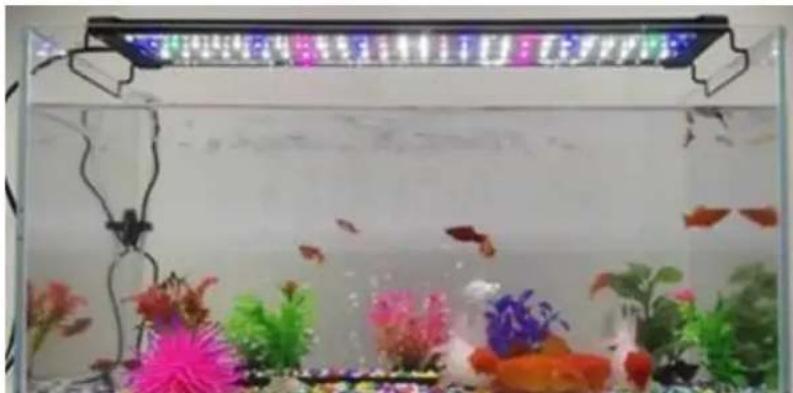

Install the device on an open aquarium - in order to adjust it to the given aquarium size, extend or slide the device's legs (see the two pictures below) so that the product, resting on the edges of the aquarium side walls, is well-fitted to them at the same time.

ATTENTION: The extendable legs are not equipped with stops; therefore, for safety reasons, they must be extended and adjusted before mounting the product on an aquarium! They can be connected to the power supply only after installation and adjustment of the product.

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

3.3. Working with the unit

After connecting to the proper power source, turn the device on using the switch (B) located on one of the device sides. You can also change the lighting mode using the same switch:

• Position " " - backlight off.
• Position "I" - intense blue light (apart from visual effects, it has a positive impact on the rooting and tillering of aquarium plants)
• Position "II" - mixed daylight (predominantly neutral white with accents of blue, violet, green, and red - in addition to visual effects, it impacts the mood and vitality of aquarium fauna)

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting, or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Do not spray the unit with a stream of water or immerse it in water.
d) Make sure that no water enters through the ventilation openings in the casing.
e) Clean the ventilation openings with a brush and compressed air.
f) Use a soft cloth for cleaning.
g) Do not use sharp and/or metal objects (e.g., a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
h) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.

DISPOSING OF USED DEVICES:

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.

Illustration of a fluorescent LED array with labeled components A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white handle, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols beyond labels)

Close-up of a black cylindrical object with a black strap and a white rectangular component attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

CE Warning ! WIRE

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols beyond labels)

Close-up of a black cylindrical object with a white rectangular extension and a black wire loop attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular component attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

APPARATETS PLACERING

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

CE Warning ! OK Square Hand icon

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular component attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and a vertical LED array (no visible text or symbols)

OBS! Varm overflate, fare for forbrenning!

Labeled diagram of a fluorescent LED array device with components A and B, showing color-coded LED lights (no text or symbols beyond labels)

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

CE Warning ! OK Square No

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

PLACERING AV APPARATEN

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

CE Warning ! OK Square No

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular component attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and floating fish, under a vertical LED array (no text or symbols visible)

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols beyond labels)

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

3.3. Práca s jednotkou

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular component attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and floating fish, under a vertical LED light (no text or symbols visible)

CE Warning ! OK Square Grain House

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

Close-up of a black cylindrical object with a black strap and a white rectangular component attached (no text or symbols visible)

A fishbowl with colorful aquatic plants and floating fish, under a vertical LED light (no text or symbols visible)

Labeled diagram of a fluorescent LED array device with two yellow components labeled A and B (no text or symbols on the device itself)

A. Montažne noge
B. ON/OFF i prekidač načina rada (sa strane uređaja - ne vidi se na slici)

3.2. Priprema za upotrebu

POZICIONIRANJE JEDINICE

Temperatura okoline ne smije prelaziti 40°C, a vlažnost zraka ne smije prelaziti 90%. Postavite jedinicu na način koji osigurava dobru cirkulaciju zraka. Održavajte minimalni razmak od 10 cm od bilo kojeg zida jedinice. Držite uređaj podalje od vrućih površina. Jedinicom uvijek upravljajte na stabilnoj, vatrootpornoj površini i izvan dohvata djece i osoba s oštećenim mentalnim, osjetilnim i intelektualnim funkcijama. Postavite jedinicu tako da se utikač može dohvatiti u bilo kojem trenutku. Uvjerite se da napajanje uređaja odgovara onom navedenom na identifikacijskoj pločici!

MONTAŽA JEDINICE

Instalirajte uređaj na otvoreni akvarij - kako biste ga prilagodili zadanoj veličini akvarija, produžite ili pomaknite nožice uređaja (pogledajte dvije slike ispod) tako da proizvod, naslonjen na rubove bočnih stijenki akvarija, dobro stoji. ugrađuju im se u isto vrijeme.

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and floating fish, under a vertical LED light (no text or symbols visible)

3.3. Rad s jedinicom

CE Warning ! OK Square Hand icon

Gaminys atitinka atitinkamus saugos standartus.

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols beyond labels)

Close-up of a black cylindrical object with a wavy line extending from its side, resembling a wire or connector (no text or symbols visible)

A fishbowl with colorful aquatic plants and a vertical LED array above (no visible text or symbols)

3.3. Darbas su jrenginiu

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols beyond labels)

Close-up of a black cylindrical object with a black strap and a white rectangular clip attached, no visible text or symbols.

A fishbowl with colorful aquatic plants and fish, no visible text or symbols

Labeled diagram of a fluorescent LED array device with components A and B, showing internal color coding (no text or symbols beyond labels)

A. Montažne noge
B. VKLOP/IZKLOP in stikalo za način delovanja (ob strani naprave - ni vidno na sliki)

Close-up of a black cylindrical object with a black strap and a white rectangular extension, no visible text or symbols.

A fishbowl with colorful aquatic plants and floating fish, under a vertical LED light (no text or symbols visible)

3.3. Delo z enoto

For the disposal of the device please consider and act according to the national and local rules and regulations.
