USER MANUAL 60-PRO F Vario SABO

Line drawing of a small agricultural tiller with visible blade, bushing, and engine components (no text or symbols)

Translation of the original instructions

Nederlands

Technical diagram of a tracked robot with numbered parts for identification

Technical diagram of a vehicle chassis with labeled parts 1 and 2, showing wheel positions and components.

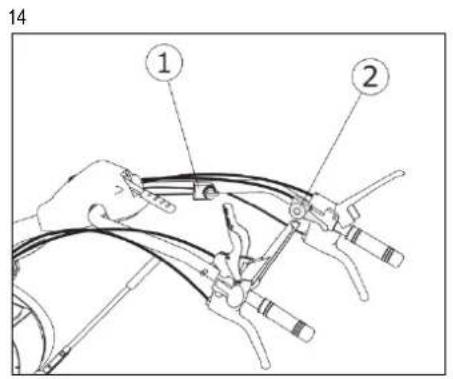

14 ① ②

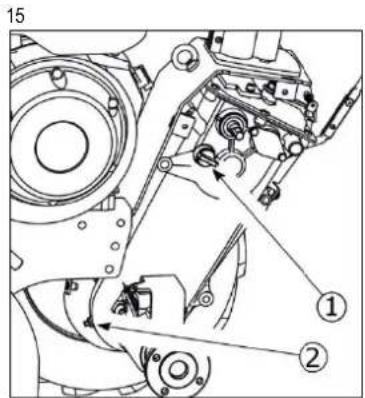

15 ① ②

Technical line drawing of a mechanical device with two wheels and a central component (no text or symbols)

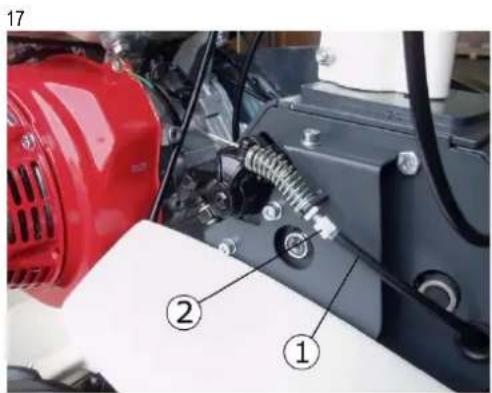

17 ② ①

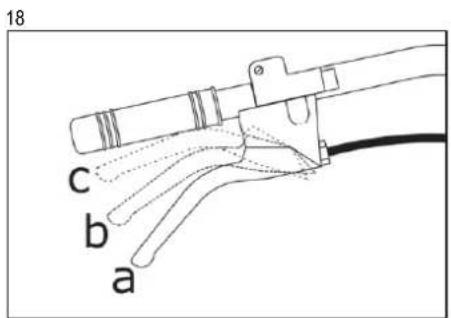

18 c b a

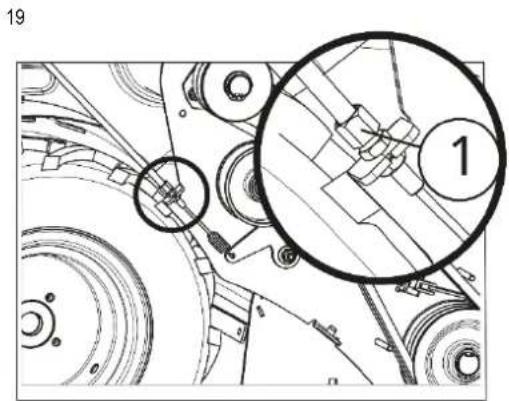

19 ①

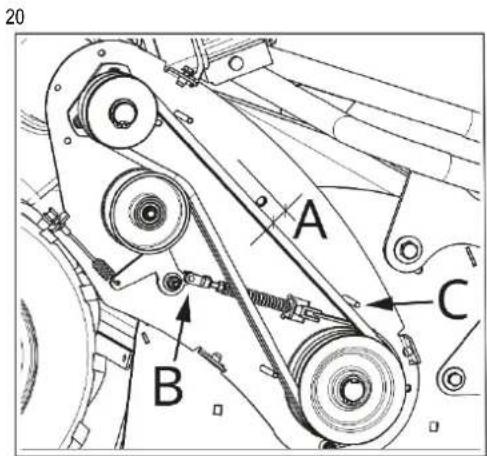

20 A B C

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23 - 36040 SOSSANO (V/I) Barbieri P.IVA 02402130245

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT

AVANT D'UTILISER LA MACHINE, VOUS DEVEZ AVOIR LU ATTENTIVEMENT LES INSTRUCTIONS DE CE MANUEL !

FR

1. Manipulation, transport et stockage 7

3.1. Manipulation....7

3.2. Transport....7

3.3. Stockage 7

Illustration of a person pushing a lawn mower with directional arrows labeled R and I (no text or symbols on the diagram itself)

Vitesse maximale :

60-PRO F VARIO :

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23 - 36040 SOSSANO (V/I) BARBIER P.IVA 02402130245

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT

YOU MUST READ THE INSTRUCTIONS IN THIS MANUAL CAREFULLY BEFORE USING THE MACHINE!

EN

1. Description and main features....4

1.1. Introduction....4

1.2. Information on the machine and intended use....4

1.3. Safety regulations .... 4

1.3.1. General information....4

1.3.2. Caution 4

1.3.3. Instructions 4

1.3.4. Machine and motor manuals....5

1.3.5. Pictograms 5

1.3.6. PPE: Personal protective equipment....5

1.3.7. Physical requirements....5

1.3.8. Noise development 5

1.3.9. Engine speed 5

1.3.10. Safety equipment 5

1.3.11. Commissioning the motor 6

1.3.12. Dimensions 6

1.3.13. Customer service 6

1.3.14. Machine parts....6

1.4. Data and technical features 6

1. Safety equipment 7

2.1. Instruction and safety pictograms....7

2.1.1. EC labelling 7

2.1.2. Identification of the motor....7

2.2. Description of the controls....7

1. Handling, transport and storage....7

3.1. Handling....7

3.2. Transport....7

3.3. Storage....7

1. Using the high grass mower 8

4.1. Functionality of the control elements 8

4.1.1. Working tool control lever 8

4.1.2. Throttle lever 8

4.1.3. Drive control lever 8

4.1.4. Lever for reverse gear....8

4.1.5. Stop switch 8

4.1.6. Lever for height adjustment of the guide bar 8

4.1.7. Lever for lateral rotation of the guide bar 8

4.1.8. Gear lever....8

4.1.9. Release lever left/right wheel 8

4.1.10. Setting the cutting height 8

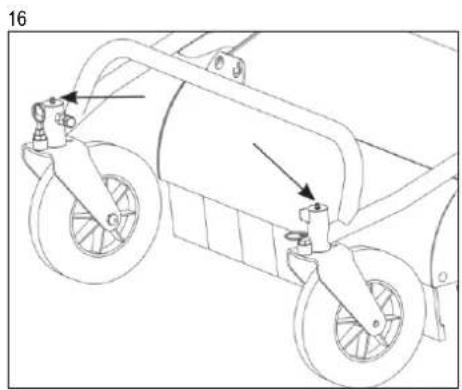

4.1.11. Locking the castor wheels....8

4.2. Commissioning the motor 9

4.3. Use of the machine 9

4.4. Stopping the engine 9

1. Maintenance....9

5.1. Engine 9

5.2. Gearbox housing....9

5.2.1. Run-in....9

5.2.2. Every 30 operating hours....10

5.2.3. Every 300 operating hours....10

1. Waste disposal....10

2. Guarantee 10

3. EC Declaration of Conformity 11

EN

1. DESCRIPTION AND MAIN FEATURES

1.1. INTRODUCTION

This manual contains instructions for use and maintenance as well as the technical data and safety instructions for the machine. The manual must be read carefully before using the machine.

In the event of a transfer or sale, the manual must be handed over together with the machine. If it is damaged or lost, you must request a copy from the manufacturer. The manual is an integral part of the machine.

The content of this manual corresponds to the latest technical information available at the time of printing. The manufacturer reserves the right to make changes at any time without prior notice. In this case, this manual does not lose its validity.

1.2. INFORMATION ON THE MACHINE AND INTENDED USE

The hand-guided, self-propelled, single-axle high grass mower for agricultural purposes is equipped with a front rotor with Y-blades.

These machines are used to cut grass in places where the grass does not need to be collected and where a mower with bulky accessories cannot reach; they are used in small areas, for mending work, in orchards, on the edges of ditches and on relatively sloping hillsides. The cut grass is shredded so that it decomposes quickly.

The machine consists of a load-bearing gearbox assembly on which an internal combustion engine is installed, which drives the front wheels and the engine. The rotor is equipped with blades that rotate around a horizontal axis.

The machine is controlled by an operator from the ground. He controls the movement via a handlebar (guide bar) on which most of the control elements are located.

The application and use of attachments not mentioned in this manual or not authorised by the manufacturer is expressly prohibited. The use of unauthorised attachments will invalidate the product warranty and endanger the safety of the user.

DANGER Any use other than that specified above is classified as improper and dangerous use.

Some of the devices described in this manual may not be present on your mower. This depends on the equipment of the machine and the country in which it was sold.

1.3. SAFETY REGULATIONS

This manual contains information and instructions for the safety of the operator. These instructions are differentiated by their severity using the following symbols.

DANGER Failure to comply with the instructions MAY RESULT IN DEATH OR SERIOUS INJURY.

ATTENTION Failure to comply with the instructions MAY RESULT IN SERIOUS INJURIES.

NOTE Failure to follow the instructions COULD lead to wear or breakage of machine components.

1.3.1. GENERAL INFORMATION

• Any machine that is not used in accordance with the instructions contained in this manual may be a potential source of danger.
• The machine must not be lifted or transported while the engine is running.
• You must learn how to switch off the machine quickly. You must familiarise yourself with the controls and learn how to use the machine properly.
  If the safety devices are defective, removed or deactivated, the machine must not be used. The manufacturer accepts no responsibility for accidents caused by tampering with the safety devices.
  The machine should not be used in the vicinity of other persons, especially children, or animals. Remember that the machine operator is responsible for any damage or injury caused to other persons or their property.
  Children under the age of 16 or inexperienced persons must not use the machine.
  The machine must not be used when idling if people or animals are in the vicinity.
• Check your work area and remove stones, sticks, any metal wires and any other objects that could cause knocks and cracks on the machine.
  The machine must be operated by a single operator who is responsible for safety in the danger zone, which extends over 30 metres around the machine.
• The machine may only be used in daylight or in good lighting conditions.
• Never bring your hands or feet near the working tools.
  The machine must not be left unattended when the engine is running.
• You must always work on slopes in safe and stable conditions. Do not work uphill or downhill, but always across the slope in the direction of the lowest gradient; be careful when changing direction.
• For stability reasons, do not work on slopes with an inclination of more than 25°.
  Do not store the machine in closed rooms when the tank is full; the vapours are a potential source of danger.
  The mower must always be kept free of grass and grease to avoid the risk of accidents.

1.3.2. CAUTION

Caution is always the best way to avoid accidents.

1.3.3. INSTRUCTIONS

The owner of the machine is responsible for any person using the machine. It is his duty to ensure that the machine is maintained and kept in full working order before it is handed over to the user (this is described in this manual). The machine may only be used by responsible and authorised persons who have previously been instructed in its use.

1.3.4. MACHINE AND MOTOR MANUALS

Each machine is supplied with an engine operating manual. You must read both manuals carefully before commissioning, using, maintaining, refuelling and carrying out other work on the machine.

1.3.5. PICTOGRAMS

You must read all pictograms on the machine and comply with the instructions they contain before starting up, operating, refuelling or carrying out maintenance work on the machine. Damaged or worn pictograms must be replaced immediately.

DANGER Maintain a safe distance when the machine is running. Risk of cuts to hands and feet. DANGER Risk of trapping hands. DANGER In particular read the manual before carrying out maintenance work. DANGER Danger from ejected objects. Wear protection. DANGER - Noise level The use of noise-cancelling headphones is recommended.

DANGER 9990625 ISO/CD 11684

1.3.6. PPE: PERSONAL PROTECTIVE EQUIPMENT

• Always wear sturdy work gloves when carrying out maintenance work and assembling tools.
• Never work barefoot or with sandals. Work preparation: Wear sturdy shoes and long trousers.
• Do not wear loose clothing that can get caught on moving parts.
• Long hair must be tied back.
• Wear eye protection.
• Wear a dust mask in dusty environments.

1.3.7. PHYSICAL REQUIREMENTS

The machine must not be used if you are not in a suitable physical and mental condition.

1.3.8. NOISE DEVELOPMENT

To avoid excessive noise generation, the motor should not be used at full speed. Use hearing protection.

1.3.9. ENGINE SPEED

The motor speed setting must not be changed.

1.3.10.SAFETY EQUIPMENT

The machine must not be used if the covers and protective devices are not in perfect condition (see chapter 2.).

EN

Once maintenance work has been completed, the covers must always be reassembled.
- Protective devices must never be tampered with.

1.3.11.COMMISSIONING THE MOTOR

• Refuelling must always be carried out in well-ventilated areas; smoking is prohibited during this process. The fuel is highly flammable and must therefore be stored in a suitable container for this purpose.
  Before starting the engine, you must release all control levers and keep your feet away from moving parts of the machine.
• Exhaust fumes are toxic: Never run the engine in a closed room.

1.3.12. DIMENSIONS

The dimensions of the machine are shown in figure 1.

1.3.13. CUSTOMER SERVICE

- Only use original spare parts. Non-original spare parts not only invalidate the warranty, but can also pose a risk and reduce the service life and performance of the machine. The following data must be provided when ordering spare parts:

• Serial number of the product;
• Code number of the required spare part;
• Quantity required.

1.3.14. MACHINE PARTS

See figure 2.

1) Guide bar
2) Switching unit
3) Motor
4) Rotor chamber
5) Rotor frame

1.4. DATA AND TECHNICAL FEATURES

MODEL	60-PRO F VARIO	75-PRO F VARIO
MOTOR	HONDA GX200	HONDA GX390
MOTOR TYPE	4-stroke petrol	4-stroke petrol
POWER	4.1 kW (5.6 hp)	8.2 kW (11.2 hp)
DISPLACEMENT	169 cm^3	389 cm^3
TANK	3,6 l	6,1 l
USE	1.35 l/h	2.7 l/h
ENGINE START	With self-winding pulling device
DRIVE UNIT	Disengagement and engagement via belts
GEARS	By means of gear wheels: 2 forward gears and 1 reverse gear
GUIDE BAR	Adjustable in height and sideways
WHEELS	Tyres with tread for agricultural use, dimensions: 16/6.50-8", pressure: 2.25 bar
NUMBER OF BLADES	32	40
WIDTH OF WORK	60 cm	75 cm
CUTTING HEIGHT	30 - 160 mm	30 - 160 mm
MASS	120 kg	160 kg
SOUND POWER LEVEL	97.4 dB	99.5 dB
- MEASUREMENT UNCERTAINTY	3 dB	0.8 dB
SOUND PRESSURE LEVEL	84.1 dB	87.8 dB
- MEASUREMENT UNCERTAINTY	3 dB
VIBRATION	11.95 m/s^2	6.29 m/s^2
- MEASUREMENT UNCERTAINTY	0.24 m/s^2	0.72 m/s^2

R I

Maximum speed:

60-PRO F VARIO:

Reverse: 1.19 km/h

Forward: 1.96 km/h / 3.35 km/h

75-PRO F VARIO:

Reverse: 1.51 km/h

Forward: 2.48 km/h / 4.24 km/h

2. SAFETY EQUIPMENT

The machine is equipped with the following accident prevention devices to ensure maximum operating safety for the operator:

• A device that immediately stops the movement of the machine as soon as the guide bar is released; the motor remains in operation (Fig. 3 (1)). The device is equipped with a lock to prevent accidental operation of the lever.
• A device that stops the movement of the tool within 5 seconds as soon as the corresponding control lever is released (Fig. 3 (2)). The device is equipped with a lock to prevent accidental operation of the lever.
• Front swing cover that reduces the possibility of objects being thrown away (Fig. 4 (1)).

Description for figure 4:

1. Swing protection
2. Rotor
3. Blades or flail-type cutting tools

ATTENTION

It is absolutely forbidden to remove or tamper with the safety devices.

2.1. INSTRUCTION AND SAFETY PICTOGRAMS

Figure 6 shows the stickers on the machine.

To prevent accidents, these stickers must always be clearly legible. Compliance with them serves your safety.

If these are damaged, they must be replaced with original spare parts from the manufacturer.

2.1.1. EC LABELLING

The machine bears the EC conformity marking (see figure 5).

2.1.2. IDENTIFICATION OF THE MOTOR

See the corresponding operating and maintenance manual.

2.2. DESCRIPTION OF THE CONTROLS

See figure 7.

1. Working tool control lever
2. Throttle lever
3. Drive control lever
4. Lever for reverse gear
5. Switch for motor stop
6. Lever for height adjustment of the guide bar
7. Lever for lateral rotation of the guide bar
8. Handwheel for setting the cutting height
9. Locking device for wheel rotation
10. Gear lever
11. Release lever left wheel
12. Locking device for the control lever movement
13. Release lever right wheel

3. HANDLING, TRANSPORT AND STORAGE

3.1. HANDLING

The machine must not be lifted or transported while the engine is running.

Before handling the machine, you must reassemble all protective devices that were previously removed for maintenance purposes.

3.2. TRANSPORT

DANGER

Special attention must be paid to safety during loading and unloading; this work may only be carried out by qualified personnel.

To transport the machine and its accessories, you must secure it to the means of transport using ropes or cables.

To lift the machine, you must use approved straps that are approved for a higher weight than the machine weight. The straps must be passed under the gearbox housing between the motor and the wheels (Fig. 8 and 9).

When transporting with another means of transport, ramps approved for the machine weight must be used.

3.3. STORAGE

Before storage, the entire machine should be carefully cleaned and all mechanical parts sufficiently lubricated to protect them from corrosion.

Before storing the machine for a longer period of time, you should take the following preparatory measures:

• Clean the machine carefully;
• To reduce the risk of accidents, the engine, silencer, battery seat and petrol storage area must be free of grass, leaves and excess grease;
• Allow the motor to cool down before storing the machine in a closed room;
• If possible, store the machine in an open space with a flat and solid surface;
• The machine must not be stored in a closed room if there is petrol in the tank and the vapours can reach open flames or sparks;
• If the fuel has to be removed from the tank, this may only be carried out outdoors;
  The machine must be parked in such a way that its stability is guaranteed; if necessary, use parts to block the wheels;
• Protect the machine with a cloth.

EN

4. USING THE HIGH GRASS MOWER

Some of the devices described in this manual may not be present on your mower. This depends on the equipment of the machine and the country in which it was sold.

DANGER

Before using the machine, you must have read the instructions in chapter "1.3. SAFETY INSTRUCTIONS" of this manual.

ATTENTION

Ensure that all components of the machine function properly during operation. We would like to point out that most problems and faults that can occur during use of the machine are caused by loosening of the fastening screws. Check the machine carefully before use.

• As a general running-in of all mechanical parts takes place in the first phase of the machine's life, it is essential that the machine checks are carried out very carefully.
  Before operating the machine, you must ensure that there are no people or animals in the vicinity.
• The machine must not be used if you are ill, tired or under the influence of medication, drugs or alcohol.
  Before using the machine, you must familiarise yourself with the controls and learn how to stop the motor quickly.
• The machine is only allowed to be operated by one person.

4.1. FUNCTIONALITY OF THE CONTROL ELEMENTS

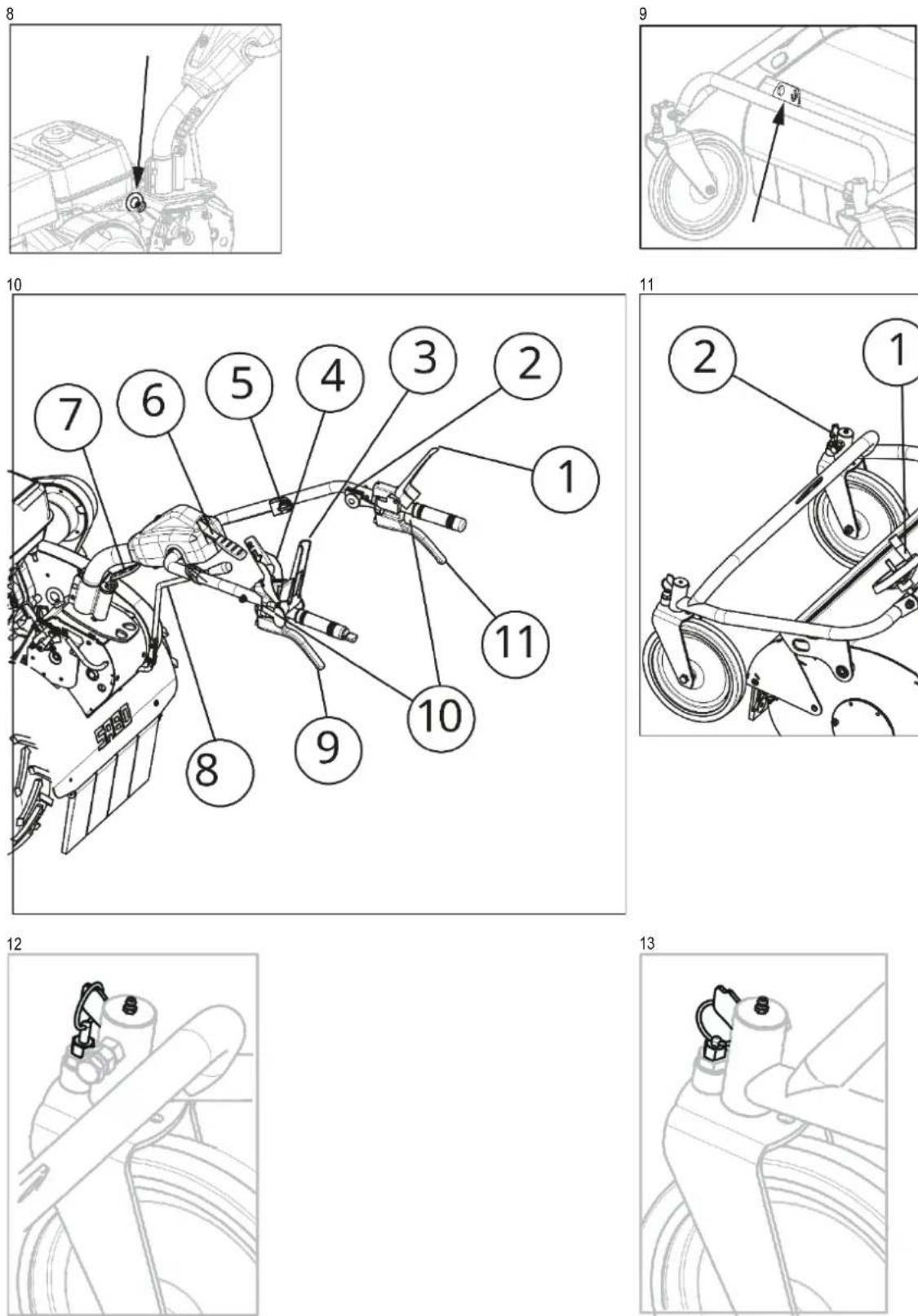

See figure 10.

4.1.1. WORKING TOOL CONTROL LEVER

Lever (1) not actuated (top): The rotor is stationary.

Lever (1) is actuated (bottom): The rotor (Fig. 4 (2)) starts to turn.

Press the locking device (10) to release the lever and slowly push the lever (1) downwards.

4.1.2. THROTTLE LEVER

Lever (2) not actuated (top): Min. number of revolutions of the motor.

Lever (2) actuated (bottom): Max. speed of the motor.

4.1.3. DRIVE CONTROL LEVER

Lever (3) not actuated (top): The machine stops.

Lever (3) is actuated (bottom): The machine moves.

Press the locking device (10) to release the lever and slowly push the lever (3) downwards. Increase the engine speed at the same time.

To reverse, you must press the lever (4) down together with the lever (3): Stop the machine by releasing the lever (3) and holding down the locking device (10) and pressing the levers (3) and (4) downwards.

4.1.5. STOP SWITCH

"ON" position: The motor can be switched on.

"OFF" position: The motor switches off. If the motor is switched off, it cannot be put into operation.

4.1.6. LEVER FOR HEIGHT ADJUSTMENT OF THE GUIDE BAR

If you keep the lever (6) pressed upwards, you can adjust the height of the guide bar.

4.1.7. LEVER FOR LATERAL ROTATION OF THE GUIDE BAR

You can unlock the steering column and turn it sideways by up to 25 degrees.

Lower the lever so that the pin lifts up and releases the steering column. Move the steering column to the desired position and lift the knob so that the pin can engage in the hole.

After each adjustment or rotation of the guide bar, you must ensure that all safety devices are working properly.

4.1.8. GEAR LEVER

You can use the gear lever to select between the two speeds and neutral (in the centre).

In reverse gear, the two gears have no influence on the speed, as this is fixed (see chapter 1.4).

To move the high grass mower in idle mode, keep the drive control lever (3) pressed down.

You can easily steer the high grass mower using the levers (9) and (11).

Lever released: Wheel is driven;

Lever actuated halfway: Freewheel, the movement is not transmitted;

Lever fully pulled: Wheel locked (braked); does not move;

Press the lever (9) or (11) as far as it will go (Fig. 18 pos. c) to change direction quickly and forcefully. To steer the machine more smoothly, move the levers (9) or (11) up to half the stroke (Fig. 18 pos. b) so that the drive wheel is released and the other wheel retains its freedom of movement.

You can set the cutting height from 30 mm to 160 mm using the handwheel (1) (Fig. 11).

4.1.11. LOCKING THE CASTOR WHEELS

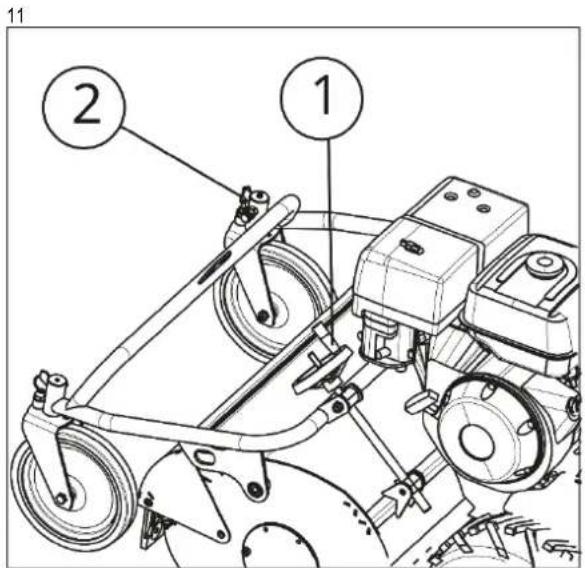

The two pins (2) (Fig. 11) can be used to turn the two front castor wheels freely or to lock them in a straight position in the direction of feed.

The locked position helps to maintain the working direction on inclined surfaces

Figure 12 shows the hooked ring, which allows the impeller to rotate freely.

Figure 13 shows the loosened ring, which blocks the impeller.

4.2. COMMISSIONING THE MOTOR

NOTE: Read the operating and maintenance manual for the motor accordingly.

a. Ensure that all control levers are free (see Fig. 10 (1) & (3)).

b. Open the fuel tap on the engine.

c. Set the start switch to "ON" (Fig. 10 (5)).

d. Accelerate slightly by carefully turning the throttle lever 1/4 turn (Fig. 10 (2)).

e. Set the starter lever of the engine to the desired position. See the engine operating and maintenance manual.

f. Take the starter handle of the engine in your hand and pull it vigorously. Once the engine has started, you must accompany the handle to the machine until the rope is fully wound up. See the engine operating and maintenance manual. If the engine still does not start after several attempts, you should check points b, c, d and e.

g. Return the motor starter lever to the driving position as soon as you notice that the motor starts to run irregularly or wants to switch off.

h. Move the throttle lever (2) to the minimum position and allow the engine to warm up.

To ensure proper lubrication of the petrol engine, do not work on slopes with a gradient of more than 25 degrees for a long period of time. See the engine manual.

The engine must not be left switched on indoors. The exhaust fumes are toxic!

DANGER

It is absolutely forbidden to remove and / or modify the safety devices of the machine.

4.3. USE OF THE MACHINE

- On slopes, always work in a transverse direction and not uphill and downhill;

- Always pay attention to your support points on the slopes;

- Extreme caution is required when changing direction on slopes;

- Do not work on very steep slopes.

As soon as you have reached the work area, you must take the following measures to bring the machine into an operational state:

- Refuelling must always be carried out in well-ventilated areas; smoking is prohibited during this process. The fuel is highly flammable and must therefore be stored in a suitable container for this purpose;

- Ensure that all nuts and bolts are properly tightened;

- Start the engine outdoors. The machine must not be lifted while the engine is starting;

- Set the cutting height as required.

DANGER

It is absolutely forbidden to use the machine on surfaces with gravel, stones or other hard and exposed objects that can be thrown around when the rotor is in operation.

Note: The levers (1) and (3) (see figure 10) also serve as an emergency stop; if you release the levers, the movement of the machine and the tool is stopped immediately (motor remains switched on).

DANGER

Always stop the engine before carrying out any maintenance or tool adjustment work.

4.4. STOPPING THE ENGINE

a. Set the motor to the lowest speed using the throttle lever (Fig. 14 (2)).
b. Set the start switch (1) to "OFF."
C. Close the fuel tap (if installed) if the machine will not be used for a longer period of time.

5. MAINTENANCE

• Only original spare parts may be used for maintenance and/or overhaul in order to ensure maximum product reliability.
• When ordering spare parts, you must always state the serial number of the machine and the code of the part to be replaced.
  Contact our customer service for extraordinary maintenance work if components that are not consumable parts need to be replaced or repaired. Consumable parts include, among others: Oil, filters, flail-type cutting tools, belts, etc.

5.1. ENGINE

The instructions in the relevant operating and maintenance manual must be followed.

The oil should be changed after the first 50 operating hours (Fig. 15):

a. Remove the left-hand wheel;
b. Remove the machine components until you reach the cover;
c. Pull out the oil refill cap (1);
d. Remove the drain cover (2) from the lower part of the gearbox housing and drain the oil; reassemble the cover (2) at the end;
e. Top up with 0.9 litres of new Eni Rotra MP SAE 80W-90 using a filler funnel with extension; the filler hole also serves as a level indicator.
f. Wait for the excess oil to drain and refit the cover (1).

EN

a. Check the oil level in the gearbox housing by loosening the screw (2) (Fig. 15). Top up with oil and allow the excess oil to drain out. Finally, reassemble the cover. NOTE: The oil check must be carried out when the engine is cold and on a level surface.
b. Lubricate the points indicated in Figure 16.
c. Check the gearbox and adjust if necessary:

- The cover (1) of the gearbox must not have any play (Fig. 17) when the lever (1) (Fig. 10) is moved. The bowden cable could elongate over time. Use the adjusting screw (2) to eliminate the resulting play.

ATTENTION

If you reduce the play too much during adjustment, the braking behaviour of the machine will be reduced.

• The cables of the levers (9) and (11) (Fig. 10) must be adjusted so that the levers themselves release the wheels at half stroke (Fig. 18 position b).
- The cable of the drive control lever (Fig. 10 (3)) must be adjusted using the adjusting screw if the machine has difficulty moving forwards. Loosen the adjusting device to restore the tension on the cable and lock the adjusting device using the lock nut;
• The cable of the working tool control lever (1) (Fig. 10) must be adjusted using the adjusting screw (1) (Fig. 19).
To obtain the correct tension, you must unhook the brake in position B (Fig. 20). Hold the lever (1) (Fig. 10) against the adjustment knob. Check by pressing with your finger that the belt allows a deflection of 10 mm (see Fig. 20 pos. A).
To reposition the brake rod, keep the lever (1) (Fig. 10) pressed against the guide bar. Hold the brake pad C (Fig. 20) tightly against the pulley with one hand. In this position, the hole in the fork (point B Fig. 20) must be level with the hole in the tension roller lever. If necessary, the alignment is carried out by loosening / tightening the fork on the threaded rod. Insert the clip pin and release the lever on the guide bar.

Change the oil in the gearbox according to the instructions in the "Run-in" section.

6. WASTE DISPOSAL

At the end of the technical and operational life of the machine, it must be rendered unusable, i.e. it can no longer be used for the purposes for which it was designed and built. In the event of disposal, you must comply with the applicable environmental protection regulations and take the machine to a local collection centre. For more information, contact the local authorities or the nearest collection centre.

SABO-Maschinenfabrik GmbH accepts no liability for damage to persons, animals or property caused by the reuse of individual parts of the machine for functions or assembly other than originally intended.

7. GUARANTEE

Only the enclosed, current SABO guarantee conditions apply.

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23 - 36040 SOSSANO (V/I) Barbieri P.IVA 02402130245

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT

U MOET DE INSTRUCTIES IN DEZE HANDLEIDING ZORGVULDIG LEZEN VOORDAT U HET APPARAAT GEBRUIKT!

NL

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23 - 36040 SOSSANO (V/I) BARBIER P.IVA 02402130245

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23-36040 SOSSANO (V/I) Barbieri P.IVA 02402130245 ELEBRERI SRL

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23 - 36040 SOSSANO (V/I) BARBIER P.IVA 02402130245

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT

ANTES DE UTILIZAR A MÁQUINA, É NECESSÁRIO LER ATENTAMENTE AS INSTRUÇÕES DO PRESENTE MANUAL!

PT

EC-Certificate of Conformity

CE

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

60-PRO F VARIO

Motor:

Honda GX200

Power:

4,1 kW

Mass:

120 Kg.

ID Number.:

xxxxSA712024xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

VIA SECCALEGNO 23-36040 SOSSANO (V/I) Barbieri P.IVA 02402130245 ELEBRERI SRL

Date:

14/02/2024

Division Director, Product Services Operations

Sehenthe

POWER PRODUCT

EC-Certificate of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer and issued on a voluntary basis according to the European Directive 2004/30/UE - 2006/42/CE

Holder of Certificate:

BARBIERI Srl - P.le Luigi Sturzo, 15 - 00144 Roma (RM) Italia having Production site in Via Seccalegno, 23 - 36040 Sossano (VI) Italia

Product:

Walk behind flail mower machine

Model:

75-PRO F VARIO

Motor:

Honda GX390

Power:

8,7 kW

Mass:

160 Kg.

ID Number.:

xxxxSA712224xxxxxx

Year of Production: 2024

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

MACHINERY DIRECTIVE (MD) 2006/42/EC

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU,

HARMONIZED NORM MOTOR MOWERS EN12733:2018

RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) Directive 2011/65/EU and amendm.

Tested according to:

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

(MD)EN 12733:2018 Agric. and forestry mach. - Motor mowers - Safety

(EMC)EN 2014/30/EU Agric. and forestry machinery - Electromagnetic compatibility

Date:

14/02/2024

Division Director, Product Services Operations

VIA SECCALEGNO 23-36040 BARBIERI SRL P.IVA 02402130245 E. RABRIERI (V/I)

Schenffle

POWER PRODUCT
