Product type	Self-propelled lawn mower
Brand	SABO
Model	JS63 Vario
Cutting width	63 cm
Cutting height	25 – 75 mm (central adjustment)
Engine type	4-stroke petrol
Power	3.5 kW (≈ 4.8 hp)
Fuel	Unleaded petrol (95 RON)
Fuel tank capacity	1.5 L
Starting	Manual recoil start
Drive	Self-propelled, variable speed (Vario)
Cutting system	Mulching, rear or side discharge, grass catcher
Catcher capacity	70 L
Weight	38 kg
Dimensions (L × W × H)	150 × 60 × 100 cm
Wheels	2 large rear drive wheels
Sound level	96 dB(A) (guaranteed)
Vibrations	≤ 2.5 m/s²
Safety	Engine stop when control bar is released
Maintenance and cleaning	Clean after use, oil change every 25 h
Spare parts and repairability	Blades, filters, spark plugs available on the market
Storage	Vertical position to save space

Frequently Asked Questions - JS63 Vario SABO

What type of engine oil should I use for the SABO JS63 Vario lawn mower?

Use a 4-stroke engine oil with viscosity SAE 30 or 10W-30, preferably API SJ quality or higher. Check the level before each use.

How do I adjust the cutting height on the JS63 Vario model?

The cutting height is adjusted centrally using a lever on the chassis. Turn it to select the desired position between 25 and 75 mm.

What should I do if the lawn mower does not start?

First check the fuel and oil levels. Make sure the control bar is pressed down. If the problem persists, clean the spark plug and air filter.

How do I clean the lawn mower after use?

Use a gentle water jet to clean the cutting deck and blades. Do not use a pressure washer. Dry metal parts to prevent rust.

Does the JS63 Vario lawn mower have a blade brake?

Yes, the JS63 Vario model is equipped with a blade brake that stops the blade within a few seconds when you release the control bar.

What is the recommended interval for sharpening the blades?

It is recommended to sharpen the blades at least once per season or after 25 hours of use. Regular sharpening ensures a clean cut and reduces fuel consumption.

Can I use the SABO JS63 Vario lawn mower for mulching?

Yes, the mower is equipped with a mulching kit. Simply close the rear discharge and use a special blade (supplied or optional) to finely chop the grass.

How do I drain the engine oil?

Place the mower on a level surface, remove the drain plug located under the engine, and let the oil drain into a container. Screw the plug back in and refill with new oil (SAE 30).

What is the warranty on the SABO JS63 Vario lawn mower?

SABO typically offers a 2-year warranty on parts and labor. Check with your dealer for exact terms.

How should I store the lawn mower in winter?

Drain the fuel tank, change the oil, clean the mower, and store it in a dry place away from frost. Remove the spark plug, pour a spoonful of oil into the cylinder, then reinstall the spark plug.

USER MANUAL JS63 Vario SABO

JS63 VARIO / JS63 VARIO C

DE Rasenmäher BETRIEBSANLEITUNG
FR Tondeuse à gazon LIVRET D'ENTRETIEN
EN Lawn mower OPERATOR'S MANUAL
NL Grasmaaier BEDIENINGSHANDLEIDING
ES Cortacésped MANUAL DEL OPERADOR
IT Tagliaerba MANUALE DELL'OPERATORE

SABO

SAU16203

A1 E1 B1
L1 T3 U3
V3 W3 Y1
DEF
GHM
OB4 C41.2[kg]
D4 R E4
F4 G4 W

DeutschOriginalbetriebsanleitung
FrançaisMode d'emploi d'origine
EnglishOriginal Instructions
NederlandsOriginele gebruiksaanwijzing
EspañolManual del operador original
ItalianoManuale d'uso originale

1 Einführung....2

Sicherheitshinweis!

2 Explanation of the rating plate affixed to the machine 2

3 Explanation of the pictograms....2

4 Explanation of the symbols....2

5 Proper use ....3

6 General Safety Guidelines for the hand-held rotary lawnmower (petrol) ...... 3

General safety instructions .... 3

Preparatory measures 3

Handling....4

Maintenance and storage 5

7 Description of components....5

8 Preparation....6

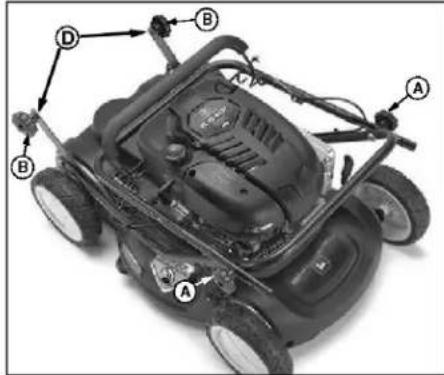

Opening out the handle (Illustration A1 + E1 + B1) 6

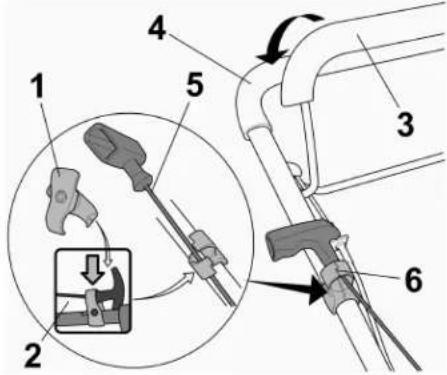

Handle starter assembly (Illustration L1)....6

To lock and unlock front wheels (JS63 VARIO C) (Illustration T3) 6

Adjusting the cutting height 6

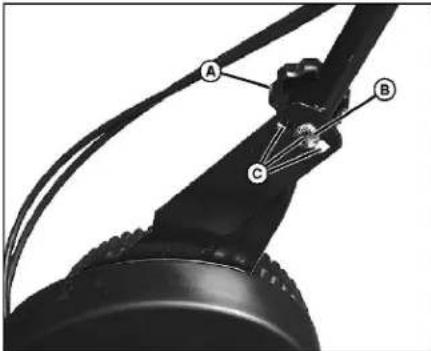

Adjusting handle height (Illustration W3) 6

9 Before using the lawnmower for the first time....6

Filling with oil (Illustration Y1)....7

Filling with fuel 7

10 Starting the engine (Illustration D + E)....7

11 Switching off the Engine 7

12 Emergency stopping (Illustration F)....7

13 Movement drive....7

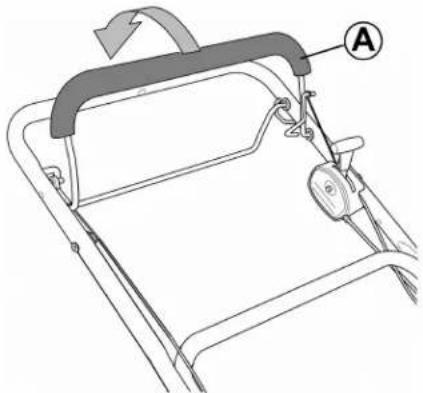

Operating the rear wheel drive (Illustration G) 7

Adjusting the speed (Illustration H) 7

14 Mowing 7

Mowing on slopes....7

Checking the oil level....8

Checking operating safety 8

Time restrictions 8

Tips on caring for your lawn 8

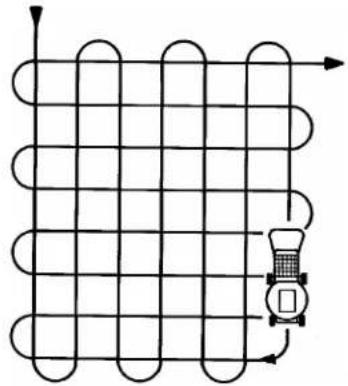

Mowing (Illustration M) 8

Mulching 8

What is understood by the term mulching? 8

How is the perfect grass blade cut achieved? 8

15 Service intervals....8

16 Care and servicing of your lawnmower 9

Cleaning (Illustration O)....9

Collapsing the handle (Illustration B4 + C4 + D4) 9

Transporting and securing the equipment....9

Maintenance of the blade 9

Sharpening and balancing the blade 9

Replacing the blade....9

Servicing the front wheels 9

Servicing the rear wheel drive (Illustration R) 9

Greasing the front wheel bearings (JS63 VARIO C) (Illustration E4) 9

Cleaning the front wheel locking pin (JS63 VARIO C) (Illustration F4 + G4) ..... 9

Servicing the drive 9

Storage of your lawnmower 10

17 Servicing the engine 10

Cleaning engine cooling fins 10

Oil change....10

Filling fuel tank....10

Cleaning and replacing the air filter (Illustration W) 10

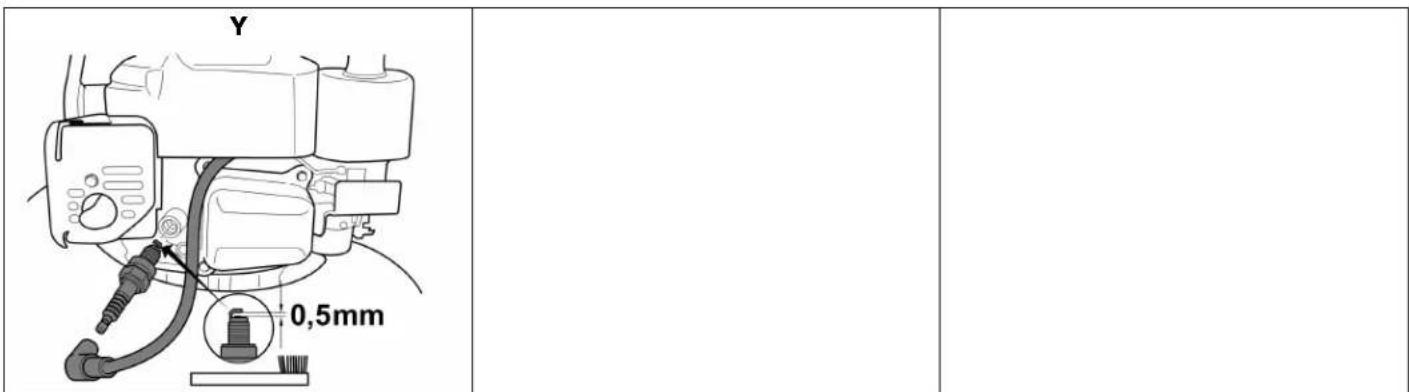

Checking the spark plug (Illustration Y) 10

Correct winter storage of the engine (or when not used for a long period of time) 10

18 Troubleshooting....11

19 Technical data....11

Engine....11

Mower 11

Sound power level 12

Sound pressure level 12

Vibrations....12

20 Original spare parts....12

Declaration of Conformity ...... see the back, after the last language

1 INTRODUCTION

Dear Garden Lover,

Where pride in a trim lawn is coupled with a love of gardening, gardeners really appreciate good gardening equipment. You have made an excellent choice in purchasing your new lawn mower. It combines the power of a major traditional brand with the innovations of modern high-tech. You will feel this when you are working with it and be very pleased with the wonderful result.

Yet before you start work on your lawn, here is some important information that you should always observe.

Before you start your mower for the first time, read this operation manual through carefully to familiarise yourself with the correct operation and maintenance of the machine and to avoid injury or damage to your lawn mower.

Use the lawn mower carefully. The pictograms on the equipment draw your attention to the most important precautionary measures.

The safety instructions in this operating manual are marked with symbols.

The meaning of the pictograms and symbols is explained in the following chapters.

The terms "left" and "right" always refer to the left and right-hand side of the equipment seen in the direction of movement.

Your mower will work reliably when the technical instructions are followed exactly. We would like to point out that any damage to the mower caused by operator faults is not covered by warranty / guarantee obligations.

We hope you enjoy cultivating your lawn.

2 EXPLANATION OF THE RATING PLATE AFFIXED TO THE MACHINE

1 Model
2 Product identification number
3 Rated input
4 Weight
5 Tested safety (depending on model)
6 Rated engine speed
7 Model year
8 CE conformity mark
9 Hand-operated lawn mower
10 Guaranteed sound power level
11 Serial number

These operating instructions apply for the following models:

JS63 VARIO (SA222019): Mulching mower with selective VARIO drive with speed control

JS63 VARIO C (SA222119): Mulching mower with selective VARIO drive with speed control and pivoting front wheels

See the rating plate for the correct model designation for your equipment and the serial number.

3 EXPLANATION OF THE PICTOGRAMS

Read and follow the operator's manual and safety instructions!

Risk caused by thrown elements when the motor is running – Observe the safety distance / Keep all persons outside the danger area!

Caution, sharp cutting blades. Keep hands and feet away from the blades! - Switch the motor off and disconnect the spark plug connector before performing any cleaning and maintenance work.

Engine STOP

Switch the drive on

Beware of hot surfaces - do not touch the engine and exhaust. Risk of burns!

Exhaust fumes are toxic - do not have the engine running in closed rooms. Risk of poisoning!

Petrol is highly inflammable - keep away from sparks and open flame, do not smoke. Fire hazard!

This appliance must not be disposed of as household waste. Send equipment, accessories and packaging for environmental recycling.

4 EXPLANATION OF THE SYMBOLS

WARNING

Always read and follow the operating instructions and general safety regulations carefully. Keep the operating instructions for reference purposes.
Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

WARNING

Keep all persons outside the danger area!
Contact with the rotating blade can cause severe injury.
Objects ejected at high speed can cause severe injury.
You must never mow the lawn if there are other persons nearby, especially children or animals.

WARNING

Petrol is highly inflammable and explosive.
Petrol or oil leaking out onto the hot engine are highly inflammable. Fire and explosions can cause severe injury and material damage.
Whilst the engine is running or if the machine is hot, the lid of the petrol tank must not be opened, nor may the tank be filled with more petrol.
When the engine is running, the dipstick must always be screwed in firmly.

WARNING

Petrol is highly inflammable and explosive. Fire and explosions can cause severe injury and material damage. No smoking and no naked flames while filling the tank.

WARNING

Watch out for sharp blades! Contact with the rotating blade can cause severe foot injuries.
Only start the engine when standing behind the mower.
Ensure that your feet do not get under the housing.

	WARNINGWatch out for sharp blades! Contact with the rotating blade can cause severe hand and foot injuries.When the engine is running, always observe the safety distance to the machine which is maintained by the handlebar.Ensure that your hands and feet do not get under the housing.
	WARNINGObjects thrown upwards can cause serious injuries.Before mowing areas covered in leaves in particular, remove all stones, sticks, wires, toys and other objects from the lawn.Never use the equipment with the protective devices damaged or missing.Missing or damaged safety and protective devices are a safety hazard for both you and other people.Before initial operation, check that the cutting blade screw is fastened, then examine the cutter bar for a tight fit, wear and damage every time you intend to use the mower. Have an authorised workshop replace a worn or damaged blade. Have an authorised workshop tighten the cutting blade screw.Before starting the engine, check whether the tools have been removed.
	WARNINGElectric shock can lead to serious injuries.Never move over live wires when the cutting tool is switched on.Before and during the mowing process, check the area for live wires and remove them if possible.If a live wire is damaged, switch off the equipment and disconnect the wire from the supply grid.
	CAUTIONThe engine and exhaust reach very high temperatures during operation. Danger of burns!Allow the machine to cool down for at least 15 minutes before starting any maintenance or cleaning work.Never operate the machine with a damaged or missing exhaust protection grill.
	CAUTIONIf the spark plug connector is not disconnected during work on the equipment, the engine may start up and this can result in serious injuries.Switch the engine off, pull the spark plug connector off and remove the ignition key, if present, before carrying out any maintenance and repair work. Never pull the plug connector off with the engine running.Risk of electric shock!Consult the operating instructions for respective cleaning or maintenance instructions.Insufficient equipment maintenance will lead to safety-related faults.
	WARNINGContact with the rotating cutting blade can lead to serious hand and foot injuries. Objects thrown upwards can cause serious injuries.Stop the engine and wait until the cutting tool comes to a standstill:- if the mower needs lifting or tilting e.g. for transport purposes;- when driving outside the lawn on paths or streets;- if the mower is left unsupervised for a short time;- before setting the cutting height;- before filling with fuel. Only fill with fuel when the engine is cold.
	CAUTIONContact with the sharp edges of the blade and other sharp edges of the machine can cause severe injury.Protective gloves must be worn at all times during maintenance and cleaning work.

5 PROPER USE

- The equipment is exclusively designed for mowing grass and lawn areas within the context of gardening and landscape care ("Proper use"). Any use going beyond this is considered not proper; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also

includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

• Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.
• The mower must not be used in particular for trimming bushes, hedges and shrubs, for cutting twining plants or greenery on roofs and in flower baskets or boxes, for extraction or blowing on pavements.
• The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee are considered null and void. Unauthorised modifications to this lawn mower exclude the manufacturer from liability for any damage resulting from these modifications.

6 GENERAL SAFETY GUIDELINES FOR THE HAND-HELD ROTARY LAWNMOWER (PETROL)

General safety instructions

Always read the operating instructions carefully for your own protection and to guarantee perfect function. Familiarise yourself with the operating elements and correct machine operation. Keep the operating instructions for reference purposes.

• Remember that the machine operator or user is responsible for accidents with other persons or their property.
  • These operating instructions belong to the machine and must be handed over to the new owner in the event of the machine being sold.
• Never allow children and persons under 16 years of age or other persons not familiar with the operating instructions to use the machine. Local regulations can specify the minimum age of the user.
• Explain the potential hazards and how to avoid accidents to all those who are to use the equipment. This equipment may only be used, serviced and repaired by persons who are familiar with it and have been informed about the hazards.
• This equipment is not intended to be used by persons with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety and have received instructions from this person as to how the equipment is used. This supervisor must decide in advance whether the person with limited physical, sensory or mental aptitude is suitable for this task.

Never use the mower while persons, particularly children, or animals are nearby.

• Keep your machine safely! Unused equipment should be kept in dry, closed rooms inaccessible to children.
• Machine safety and protective devices must not be manipulated or disabled.
• The laying of cables must not be manipulated, e.g. by removing cable clamps or attaching additional cable ties! The cables must lie against the outside of the bar in such a way that they are neither crushed nor overstretched when the bar is folded. A damaged cable may result in a technical defect of the equipment.

Preparatory measures

• When mowing, you must always wear a strong, closed, non-slip pair of shoes or safety shoes and long trousers. Avoid wearing loose clothing or clothing with cords or belts hanging down. Do not mow whilst you are barefooted or wearing sandals. Wear protective goggles to protect your eyes.
• Loud noises can lead to hearing impairments. Wear ear protection.

Before and during mowing, check the whole area the equipment is being used on and remove all stones, sticks, wires, toys and other objects which can be caught and catapulted out.

Before and during the mowing process, check the area for live wires and remove them if possible.

Never move over live wires when the cutting tool is switched on. Risk of electric shock!

If a live wire is damaged, switch off the equipment and disconnect the wire from the supply grid.

- If you also use a mowing robot for lawn care, the following safety instructions must be heeded with regard to the working area of the mowing robot:

– Before mowing on these areas, always check the range of the boundary wire.
- If the wires are laid in the ground they must be checked, no wires may be visible, with particular attention necessary at the charging station.

EN

• If the boundary wires are laid above ground they should be routed tight directly on the ground and not lie loose in the grass. The wires must be sufficiently fixed using boundary staples, see the operating manual.
• The boundary staples must not project, if this is the case push them firmly in place.
• Remove any residual wires before starting to mow.

In the cases described above, there is a risk of the wire being pulled in and wound up by the tool; this can lead to serious injury.

- Low-hanging branches and similar obstacles can injure the operator or interfere with the mowing operation. Before mowing, identify potential obstacles such as low-hanging branches, and trim back or remove those obstacles.

WARNING

• Petrol is highly inflammable and explosive.
• Fire and explosions can cause severe injury and material damage.
• Store petrol only in a suitable container, and out of the reach of children.
• Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling up.
• Only fill the tank in the open and when the engine is cold. No smoking and no naked flames while filling the tank.
• Fuel operated equipment, which is positioned on a load floor or a trailer, must not be refuelled from a filling pump, but must be refuelled by a fuel container.
• The petrol must be filled into the tank before starting the engine.
• Whilst the engine is running or if the machine is hot, the lid of the petrol tank must not be opened, nor may the tank be filled with more petrol.
• If petrol has overflowed, you must not attempt to start the engine. Instead, remove the machine from the area contaminated with petrol, and wipe the overflowed petrol off the engine. Avoid any attempt to start the engine until the petrol fumes have evaporated.
• For safety reasons, the petrol tank and the petrol container must be closed again carefully.

• If any damage has occurred, the petrol tank and the petrol tank lid must be exchanged.

• Before use, always carry out a visual inspection to see whether the cutting tool, attachment screws and the complete cutting unit are worn or damaged. To avoid unbalance, worn or damaged blades and attachment screws must be replaced by an authorised workshop.

• The condition of the pictograms must be checked every time the device is used. Worn or damaged pictograms must be replaced.

Handling

• The machine must not be operated in potentially explosive surroundings.
• The internal combustion engine must never be used in enclosed rooms in which dangerous exhaust fumes can build up - danger of poisoning.
• People with pacemakers must not touch any parts of the engine which might be live.
• Attention! Do not operate the unit in front of the extraction openings of air conditioning systems.
• Do not mow in bad weather when lightning could strike.
• Never remove the spark plug connector when the motor is running. Risk: Electric shock!
• Disconnect the spark plug connector only when the engine has cooled down. Danger of burns!
• Do not wear radio or music headphones. Safe service and operation requires your full attention.
• Only mow during daylight or if the lighting is good. Always push the machine at walking pace.
• Please adjust the driving speed depending on the person and the terrain. Increase speed gradually until you have reached a suitable driving speed, switch the motor drive off if necessary.
• Use care when approaching blind corners, shrubs, trees, or other obstacles that may obscure vision.

• Do not move too closely to holes, trenches and banks. The equipment can suddenly topple over when a wheel suddenly gives way over the edge of a trench or a bank or when an edge suddenly yields.

• Please be careful when mowing underneath playground equipment (e.g. swings). The equipment could get into an unsafe position. This may result in risk of injury.

• Do not operate the equipment when you are sick, tired or under the influence of alcohol, medicine or drugs.
• Avoid using the machine if possible on wet grass, in order to avoid the danger of slipping.
• Always make sure that you are standing securely whilst mowing slopes. Always mow at right angles to the slope, never mow straight up or down. Please be especially careful when you change direction when mowing on a slope.
• Do not mow excessively steep slopes! Mowing slopes always means additional risks. Your lawnmower is powerful enough to mow on slopes with a gradient of up to 46% (25° angle of slope). For safety reasons, however, we urgently recommend you do not exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes with a gradient in excess of 26% (15° angle of slope). Stability may be lost.
• Please be especially careful when turning the machine or pulling it towards yourself.
• If you walk backwards whilst using the machine, you can easily stumble so this should be avoided. Avoid unnatural body positions. Ensure that you are standing securely and keep your balance at all times.
• Always observe the safety distance to the machine which is maintained by the handlebar.
• In order to avoid the machine slipping when being carried, always hold the machine by the grip devices provided (carrying handle, housing, handlebar ends or transverse bar of the lower handlebar section). Do not grasp the machine by the ejection flap!
• Note the weight of the machine before lifting or carrying it (see technical data). Lifting heavy weights can lead to health problems.
• Never lift or carry the machine when the engine is running.
• Never use the machine with safety and protective devices damaged or missing. Missing or damaged safety and protective devices are a safety hazard for both you and other people.

Safety equipment includes (see chapter Component description):

- Motor stop safety control bar (1)

The lawn mower is equipped with a motor stop device. During operation and in the event of a hazard, the engine is switched off by releasing the motor stop bar.

The engine and the blade must come to a standstill within 3 seconds. After release, the bar must always return to the position shown in the "component description" diagram.

If this is not the case, it must be checked immediately by an authorised workshop.

Risk of injury!

If the blade run-on time is longer, stop using the equipment and take it to an authorised workshop.

Measuring run-on time

After the engine has been started, the blade rotates and a wind-like noise can be heard.

The run-on time corresponds to the duration of the wind-like noise after the engine has been stopped, it can be measured using a stopwatch.

The function of the safety control bar must never be put out of operation.

It is important to make sure that the safety control bar functions correctly. If this is not the case, have it repaired by an authorised specialist workshop.

Protective equipment includes (see chapter Component description):

– Housing, splash guard (12)

These protection units protect against injuries through objects that are thrown upwards.

The equipment must not be operated with a damaged housing or without correctly attached splash guard.

- Housing

This protection unit protects against injuries through contact with the rotating cutting blade bar.

The equipment must not be operated with a damaged housing. Please make sure that hands and feet are not placed underneath the housing.

– Belt drive covers (11), engine covers (5)

These protection units protect against injuries through moving parts.

The equipment must not be operated with damaged covers or without correctly attached covers.

– Exhaust protection grill (10)

The engine/exhaust becomes very hot. The protection grill protects the user against burns.

Do not operate the machine without the exhaust protection grill.

The safety devices must not be modified.

• Do not change the basic settings of the engine or operate the engine at excessive speed.
• During the starting process, do not switch on the drive if available.

When you start the machine, make sure that your feet are at a sufficiently safe distance away from the cutting blades.

When the engine is started, the machine must not be tilted on end, if necessary it must be tilted by pressing the guide bar down so that the cutting tool is pointing in the direction away from the user, but only as far as absolutely necessary. For as long as the equipment has not been lowered to the ground again, both your hands must be on the top part of the bar.

Do not start the engine when persons or animals are standing in front of the mower.

When using equipment with a side ejector, do not start the engine when you are standing in front of the ejector channel or other people/animals are located in the ejection area.

Never put your hands or feet near or under revolving parts. Always make sure that your hands or feet do not get under the housing. Always maintain a safe distance from the ejector opening.

Stop the engine by releasing the motor stop bar, disconnect the spark-plug connector, make sure that all moving parts have come to a complete standstill and the ignition key, if there is one, has been removed:

• if you intend to leave the machine;
  – before you inspect, clean or carry out work on the machine;
  – before unblocking jams or removing blockages in the ejection channel;
• if a foreign body has been encountered.

• when the machine starts to vibrate strangely.

• If a foreign object has been encountered or if the machine becomes blocked, e.g. by driving onto an obstacle, a specialist dealer must check whether parts of the machine have been damaged or deformed. Any necessary repairs must also be carried out by an authorized specialist workshop.

• If the machine starts to vibrate unusually heavily or to make unusual noises, please have it checked immediately by an authorised workshop. Heavy vibrations on your hands can damage your health. Please contact an authorised workshop immediately if heavy vibrations occur.

• WARNING

The noise and vibration levels shown in these operating instructions are the maximum levels for use of the machine.

The use of an unbalanced cutting element, the excessive speed of movement, or the absence of maintenance have a significant influence on noise emissions and vibrations. Consequently, it is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration.

Maintain the machine well, wear ear protection devices, and take breaks while working.

Adhere to the maintenance work listed in this operating manual and have the equipment checked and serviced regularly by an authorised workshop.

Stop the engine by releasing the motor stop bar, make sure that all moving parts have come to a complete standstill and the ignition key, if there is one, has been removed,

• if you have to lift or tilt the mower e.g. for transport purposes;
• when you need to transport the machine to and from the area to be mowed
• when driving off the lawn;
• if you have to leave the machine for a short time;
• when you wish to adjust the cutting height;
• before you fill it with fuel. Only refill when the engine is cold!

- If the engine is equipped with a petrol shut-off valve, this should be closed after mowing.

Maintenance and storage

- Insufficient equipment maintenance will lead to safety-related faults.

- Ensure that all screws have been tightened securely and that the machine is in a safe working condition.

Never store a machine which still contains petrol inside a building where petrol fumes may come into contact with naked flames or sparks or where they may ignite.

The engine and exhaust reach very high temperatures during operation. Allow the machine to cool down for at least 15 minutes before starting any maintenance or cleaning work.

- To avoid a fire hazard, keep the engine, muffler (exhaust) and fuel tank free of grass, leaves or escaping oil (grease). When tilting the machine upwards or placing it on its side, make sure no oil or petrol escapes. Fire hazard! Allow the engine to cool down before you store the machine in closed rooms. Do not store the machine near open flames or sources of fire such as boilers or heating systems.

Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced.

Changing, regrinding and balancing the cutting blade must be carried out by an authorised professional workshop.

A wrongly assembled cutting blade coupling can allow the cutting blade bar to get loose and cause severe injuries.

An improperly ground and imbalanced cutting blade can cause strong vibrations and damage the lawn mower.

- For reasons of safety, always replace worn or damaged parts.

Protective gloves must be worn at all times during maintenance and cleaning work.

- When handling operating fluids, such as engine oil and fuel, suitable protective equipment (e.g. suitable protective gloves) must be worn. The data sheets of the operating fluids must be observed.

Maintenance and cleaning work may only be carried out on level surfaces with the engine switched off and the spark plug connector disconnected. Regular maintenance is essential for safety and top performance.

• Never remove the spark plug connector when the motor is running! Risk: Electric shock.
• Disconnect the spark plug connector only when the engine has cooled down. Danger of burns!
• Make sure that the spark plug connector is firmly seated! Risk: Electric shock.
• If the tank has to be emptied, this should be done in the open, and with a cold engine. Take care to ensure that no fuel is spilt.

For reasons of warranty and safety, only genuine spare parts may be used. Non-equivalent spare parts can damage the machine and are a safety hazard.

7 DESCRIPTION OF COMPONENTS

1 Safety control bar for motor stop
2 Locking lever for front wheels (JS63 VARIO C)

EN

3 Drive control bar

4 Tank cap

5 Engine cover

6 Air filter

7 Front wheels (JS63 VARIO C)

8 Cutting height adjustment lever

9 Spark plug

10 Exhaust protection grid

11 Belt drive covers

12 Splash guard

13 Handlebar height adjustment

14 Oil refill neck with dipstick

15 Vario actuation lever

16 Starter cable handle

8 PREPARATION

The following unit parts are included in the package for mower assembly:

- Mower with pre-assembled handlebar

- Tool bag containing the following:

– Operating manual with Declaration of Conformity

– Guarantee conditions (depending on the model)

– Diverse attachment parts.

Should a part be missing, please contact your professional dealership.

NOTE

Always remove the spark plug connector before fitting the bar and the starter cable holder and unfolding the handlebar. Following assembly, at the latest before starting the engine, push the spark plug connector back in place.

Opening out the handle (Illustration A1 + E1 + B1)

IMPORTANT

Avoid damage! Prevent damage to mower control cables when assembling handle system. Do not kink or damage control cables. Control cables must be inside of handle and unrestricted before tightening hardware.

IMPORTANT

Make sure that the cables are not pinched, squeezed, twisted or overstretched when the handlebars are folded apart or collapsed! Always run the cables along the outside of the bar connection. A damaged cable may result in a technical defect of the equipment.

- Carefully remove mower from packaging.

• Loosen knurled nut (A) approximately 25 mm (1 in.) on each side of upper handle A1.
• Remove knurled nut (B) and carriage bolt (D) from each side A1.
  – Pull the folded-up Z-shaped handle apart and upwards.
• When upper and lower handles are aligned tighten the knurled nuts (A) on both sides by hand E1.
• Carefully pull the handle assembly rearward and align the lower handle hole with the desired height setting hole in bracket (C) B1. In this way, three different handle heights can be set.
• From outside pull the bolts (D) on both sides through the bracket and lower handle and screw tight with the knurled nut (B). Use the same opening in the bracket on both sides (C) B1.
• Fasten the Bowden cables to the lower part of the handle with the aid of cable ties from the tool bag.

CAUTION

When you activate the bar height adjustment, when loosening the grip nuts (B)

B1 and the fixing screws (D) between the bottom of the bar and the bracket it is possible that unintentional upsetting of the bar may occur. In addition, this may result in crushed points between the bar bottom and the bracket. This may result in a risk of injury!

Handle starter assembly (Illustration L1)

• Remove the starter cable holder (1) from the tool bag.
• Unscrew the nut until the two halves can be pushed over the bar.
• There is a sticker (2) on the top bar showing the position of the starter cable holder.

NOTE

For reasons of safety, the starter cable holder may only be fitted in the prescribed position.

• Push the motor stop safety control bar (3) onto the top part of the bar (4) and hold it tight, pull the starter cable (5) out and insert it into the starter cable holder.
• Fit the two halves (6) together, tighten the nut again. This prevents the starter cable popping out.

The starter cable holder must be fitted / aligned in such a way that the starter cable is freely accessible and does not rub against any other parts.

To lock and unlock front wheels (JS63 VARIO C)

(Illustration T3)

NOTE

Front wheels will not lock when mower is on an even surface. To lock front wheels, push the mower in the garden.

Lock front wheels by mowing on a slope or uneven surfaces, or by pulling mower backwards away from wall or out of narrow space.

• Push mower forward on an uneven surface.
  – Pull lever (A) backward to lock position (B).
• To unlock front wheels push lever (A) forward to unlock position (C).

Adjusting the cutting height

Safety instruction!

See table for explanation of symbols page 3

Adjusting front wheel height

JS63 VARIO

A height adjustment lever on left front wheel adjusts both front wheels.
- Move height adjustment lever to desired position.
JS63 VARIO C (Illustration U3)
- Move height adjustment lever on both front wheels to desired position.

Adjusting rear wheel height (Illustration V3)

A height adjustment lever on left rear wheel adjusts both rear wheels.
- Lift the mower at the lower handlebar slightly with one hand to take some weight off wheel.
- Move height adjustment lever to desired position with other hand.

NOTE

Adjust all levers to same height except for two lowest cutting heights (A and B on following chart). At two lowest cutting heights, raise rear lever one notch higher than front lever.

This setting optimises airflow during discharge and provides optimal cutting in the mulching process.

Begin with a higher setting, then adjust downward as desired, to avoid scalping lawn with too low a setting.

Key	Cutting Height Adjustments in mm
(A)	20 mm
(B)	33 mm
(C)	45 mm
(D)	59 mm
(E)	70 mm
(F)	85 mm
(G)	97 mm

Adjusting handle height (Illustration W3)

NOTE

Lower handle height can be independently adjusted to three positions.

• Remove knurled nut (A) and bolt (B) on each side of handle.
  – Pivot handle to the desired height (C).
• From inside pull the bolt (B) through the bracket and lower handle and screw tight with the knurled nut (A). Use the same opening in the bracket on both sides.

9 BEFORE USING THE LAWNMOWER FOR THE FIRST TIME

Safety instruction!

See table for explanation of symbols page 3

Check all screw connections and the spark plug connector for a tight fit. Tighten the screws if necessary! Attachment of the cutter bar must be checked in particular (refer here to the chapter "Cutter bar care").

The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries.

The lawn mower is equipped with a motor stop device.

Before using the equipment for the first time, make sure that the motor stop safety control bar is working perfectly. When the control bar is released, the motor and cutter bar must come to a standstill within three seconds.

After release, the bar must always return to the position shown in the "component description" diagram.

If this is not the case, it must be checked immediately by an authorised workshop.

Risk of injury!

If the blade run-on time is longer, stop using the equipment and take it to an authorised workshop.

Measuring run-on time

After the engine has been started, the blade rotates and a wind-like noise can be heard. The run-on time corresponds to the duration of the wind-like noise after the engine has been stopped, it can be measured using a stopwatch.

Machine safety and protective devices must not be manipulated or disabled!

Make sure that all protective devices have been attached properly and are not damaged.

Filling with oil (Illustration Y1)

Safety instruction!

See table for explanation of symbols page 3

IMPORTANT

Avoid damage! Engine is delivered without oil. You must add oil before running the engine.

Before starting the engine for the first time, use a funnel to fill motor oil (quantity and quality see technical data) having unscrewed the dipstick in this opening first.

Set the mower on level ground.

- Slowly fill oil through the filler neck. Do not overfill. After filling the oil, wait for about one minute and then check the oil level.

Insert the dipstick and screw it tight.

- Check oil level

Remove the dipstick. Use a clean cloth to wipe off the dipstick, then insert it again and screw tightly. Then pull the dipstick out again and read off the oil level. The oil must be at the full mark at the top (arrow). Replenish oil if necessary. The oil level must not be higher than the full mark, however.

Insert the dipstick again and tighten.

- After initial filling, remove the "NO OIL" sign from the top of the engine.

Filling with fuel

Safety instruction!

See table for explanation of symbols page 3

• Only fill the tank with fresh and clean unleaded standard petrol. Fuel with up to 10% ethanol is acceptable.
• Unscrew tank cap.
• Fill tank with fuel using a funnel up to max. lower edge of filling nozzle.
• Replace tank cap and screw tight.

10 STARTING THE ENGINE (ILLUSTRATION D + E)

Only start the engine when standing behind of the mower. Never stand on ejection side! Always place the mower on a level area which is not covered with high grass (if the grass is too high it will block the cutter bar start-up and make starting the mower more difficult). When the engine is started, the machine must not be tilted on end, if necessary it must be tilted by pressing the guide bar down so that the cutting tool is pointing in the direction away from the user, but only as far as absolutely necessary. As long as the mower has not been lowered to the ground again, both your hands must be on the top part of the bar.

CAUTION

Hold the starter cable handle firmly when starting. The handle may otherwise slip out of your hand. Risk of injury!

IMPORTANT

The motor only operates when the safety control bracket is pressed against the upper part of the handlebar. As soon as the safety control bracket is released,

this returns to its original position under spring force, the motor brake is actuated, and the motor and blade come to stop within three seconds.

• Push and hold the safety control bar (A) on the top tube D.
• Slowly pull the starter cable (C) until resistance is felt, then rapidly pull it out E, – the engine begins to run, slowly recoil the cable.

NOTE

This engine has a ReadyStart® system: This system has a temperature-controlled automatic choke. The engine runs with optimum power at maximum speed, which is required for a clean cutting pattern (engine speed = blade speed).

11 SWITCHING OFF THE ENGINE

- Release the safety control bracket.

12 EMERGENCY STOPPING (ILLUSTRATION F)

Release the safety control lever (A) and the drive switch bar (B).

• The mower will stop.
• The blade will stop.
• The engine will stop.

NOTE

Before every mowing job, make sure that the safety control bar for the engine brake and the engine drive control bar are working perfectly:

- when the safety control bar is released, the engine and cutter bar must come to a standstill within three seconds.

- when the engine drive control bar is released, the machine must come to a standstill immediately.

If this is not the case, please consult your nearest authorised workshop.

13 MOVEMENT DRIVE

Operating the rear wheel drive (Illustration G)

The rear wheel drive is switched on and off using the drive switch bar (B) on the upper handle when the engine is running:

• Press drive switch bar and hold = mower runs.
• Release drive switch bar = mower stops (0 position).

NOTE

Click the rear wheels if the mower thrusts forward when the engine is turned off.

Adjusting the speed (Illustration H)

IMPORTANT

The speed may only be adjusted when the engine is running in order to avoid damage!

The operating speed can be continuously adjusted using the operating lever of the variable speed switch.

- First, push the lever (1) downwards to unlatch and then adjust in both directions to set the speed you require (2). The lever automatically clicks back into the nearest new position.

• Position "hare" = fast (max. speed).
• Position "tortoise" = slow (min. speed).

NOTE

Mowing at high speed leads to poor cutting pattern or collection result. Always adapt the speed to the prevailing conditions. For longer grass sections, a slower moving speed should be selected.

14 MOWING

Safety instruction!

See table for explanation of symbols page 3

Mowing on slopes

NOTE

The mower can be used on banks and slopes with a gradient of up to 46% (25° angle). Any steeper slopes can lead to engine damage.

For safety reasons, however, we urgently recommend you do not exploit this

theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes with a gradient in excess of 26% (15° angle of slope). Stability may be lost!

Checking the oil level

Check oil level each time prior to mowing Y1. Never let the engine to run with too little or too much oil. Irreparable damages could occur.

Checking operating safety

The lawnmower is equipped with a motor stop device.

Before every mowing job, make sure that the motor stop safety control bar is working perfectly. When the control bar is released, the motor and cutter bar must come to a standstill within three seconds.

After release, the bar must always return to the position shown in the "component description" diagram.

If this is not the case, it must be checked immediately by an authorised workshop.

Risk of injury!

If the blade run-on time is longer, stop using the equipment and take it to an authorised workshop.

Measuring run-on time

After the engine has been started, the blade rotates and a wind-like noise can be heard. The run-on time corresponds to the duration of the wind-like noise after the engine has been stopped, it can be measured using a stopwatch.

Machine safety and protective devices must not be manipulated or disabled.

The perfect function of the motor drive control bar must also be checked before every mowing job. When the motor drive control bar is released, the machine must come to a standstill immediately. If this is not the case, it must be checked immediately by an authorised workshop.

Make sure that all protective devices have been attached properly and are not damaged.

To avoid risk, check the condition and firm attachment of the blade before every mowing job. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced. (Refer here to the chapter "Cutter blade care").

In addition, check blade coupling every 10 operating hours for wear and a tight fit. Also check equipment screws and nuts for a firm fit and tighten if necessary.

Make sure the spark plug connector is fitted tightly. Danger: Electric shock. Disconnect the spark plug connector only when the engine has cooled down. Danger of burns! If the mower mechanism becomes blocked e.g. by colliding with an obstacle, have an authorised workshop check whether any parts of the mower are damaged or deformed. Always have any necessary repairs done by an authorised workshop too.

If the machine starts to vibrate unusually heavily or to make unusual noises, please have it checked immediately by an authorised workshop.

Time restrictions

In Germany, the set hours for operating lawnmowers are regulated in the "32nd Ordinance implementing the Federal Emissions Protection Act (32nd BlmSch-V)".

In addition, there may be regional restrictions (e.g. to protect midday peace), which can be issued by the respective local authority.

Tips on caring for your lawn

Mowing (Illustration M)

WARNING

Remove any objects (stones, wood, branches, etc.) from the lawn before each cut; but still watch out for objects lying around during the mowing process.

Ask your dealer about lawn care instructions. Information and instructions about mowing can also be found on the manufacturer website.

Mulching

What is understood by the term mulching?

When mulching, the lawn is cut and the cut blades of grass are then, immediately thereafter, chopped several times to become even smaller using the special mulch blade. This mulch blade straightens the grass blades and cuts the blades into very short segments which are then distributed evenly over the lawn surface.

The grass blade segments can now dry and rot more quickly, thus facilitating the production of humus. This enables natural fertilisation of the soil and also protects against dehydration.

Gathering and removal of cuttings is no longer necessary. The mulch concept is thus environmentally-friendly and stimulates the ecology.

How is the perfect grass blade cut achieved?

The length of the grass to be cut should not exceed 10 cm when a mulching mower is used. A maximum of 1/3 of the grass height is cut in one working cycle. If a positive result is not achieved, mulching may have to be repeated.

Depending on the type of lawn and growth intensity, the grass should be mowed regularly. During the strong growing phase in particular, mulch-mowing needs to be done more frequently than traditional mowing with grass collection, since the one-third rule is hard to keep otherwise.

To achieve an optimum mulching result you should reduce the machine speed for mulching compared to traditional mowing to allow the grass to remain in the mowing blade longer and thus be cut several times.

The best cutting pattern and result are achieved on a dry lawn, since wet cut grass will stick together and clump quickly. These grass clumps will rot and mould, preventing the desired ecological cycle.

If the lawn has to be mowed in a very damp, wet state, the cut grass must be shorter i.e. the cutting height must be set 1-2 levels higher than with a dry lawn.

You will notice that if you follow these simple rules you will have a healthy lawn and can save on disposing of your grass cuttings.

15 SERVICE INTERVALS

IMPORTANT

Avoid damage! Under extreme or unusual conditions, shorter servicing intervals than the ones specified below may be necessary. If you establish any problems, please contact an authorised workshop.

Carry out routine servicing on the machine in line with the following servicing intervals.

Work must be carried out at the following servicing intervals in addition to the maintenance work listed in these operating instructions.

Before initial use

• Check the oil level Y1.
• Check all screw connections for a tight fit.
• Check the cutting blade screw and have an authorised workshop tighten it if necessary.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check whether the drive control bar is working properly (depending on the model).
• Check that all protective devices have been attached properly and are not damaged.

Before every operation

• Check the lawn area and remove any objects.
• Check the area of the boundary wires (if an automatic mower is being used for lawn care).
• Check the oil level Y1.
• Check the condition and firm fit of the blade, if necessary have an authorised workshop tighten the blade screw.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check whether the drive control bar is working properly (depending on the model).
• Check that all protective devices have been attached properly and are not damaged.

Every 10 operating hours

• Check all screw connections for a tight fit.
• Check the blade coupling regularly for wear and a tight fit.

After every operation

• Clean the mower.
• Check the blade for damage and wear.

Every 15-20 operating hours or annually

- Lubricate the wheel bearings.

Every 25 operating hours or once every year

- Clean the spark plug and adjust electrode distance Y.

- Have the drive shaft hub sleeves lubricated.

Every 50 operating hours or once every year

- Clean the air filter paper insert W.

- Clean the pre-filter W.

- Lubricate the front wheel bearings (JS63 VARIO C).

During annual servicing

- Have the air filter paper insert replaced W.

- Have the pre-filter replaced W

• Have the spark plug replaced Y.
• Clean the gearbox and the area under the belt cover.
• Check all throttle cables and adjust them if necessary.

16 CARE AND SERVICING OF YOUR LAWNMOWER

Regular care is the best way to guarantee a long service life and problem-free operation. Insufficient equipment maintenance will lead to safety-related faults!

Only use original spare parts because only those guarantee safety and quality!

Safety instruction!

See table for explanation of symbols

page 3

Cleaning (Illustration O)

IMPORTANT

Tilt the mower forwards for cleaning and maintenance work O (spark plug facing upwards). If it should become necessary to place the mower on its side, then place it on the exhaust side, never on the carburettor side, as otherwise start-up problems could occur. Secure the mower in its raised position!

NOTE

When tilting the mower upwards or placing it on its side, make sure no oil or petrol escapes. Fire hazard!

Remove dirt and residual grass directly after mowing. Use a brush or cloth for cleaning. Do not rotate the cutter bar, as otherwise motor oil is pumped into the carburettor/air filter and start-up difficulties can occur.

IMPORTANT

Never use high-pressure cleaners or a normal water jet to clean the drive area, engine parts (such as ignition system, carburettor etc.), seals and bearing points. Damage or expensive repairs can be the consequence of such action.

Collapsing the handle (Illustration B4 + C4 + D4)

• Take the starter cable handle out of the bracket.
• Release the handle nut (A) on each side by 25 mm (1 in.). Fold the top part of the bar (B) down carefully B4.
• Remove the handle nut (C) and the flat round screw (D) on both sides C4.
• Lower the bottom handlebar (E) forwards carefully. Lay the throttle cables along the inside of the lower bar. Do not jam, kink nor squeeze the throttle cables in the process D4.
• Attach the flat round screws and handle nuts to the bracket.

CAUTION

When the bar is moved for transport and storage purposes, the bar may fold over unintentionally during loosening of the handle nuts (A) B4 and following removal of the handle nuts (C) and flat round screws (D) C4. In addition, crushing spots can occur between the base and top of the bar and the housing. This may result in risk of injury.

IMPORTANT

Make sure that the cables are not pinched, squeezed, twisted or overstretched when the handlebars are folded apart or collapsed! Always run the cables along the outside of the bar connection. A damaged cable may result in a technical defect of the equipment.

Transporting and securing the equipment

• If the equipment has to be carried, hold it by the steel housing at the front and the wheel case at the back.
  Please take the weight of the machine into consideration before lifting it (see Technical Data). Lifting large weights can result in health problems. We recommend that two people should always lift or carry the equipment.
• Transport the unit upright on all 4 wheels to avoid fuel loss, damage to the equipment and personal injury.
• Park the means of transport on level ground so that the equipment cannot roll away before it is secured.
• Secure the equipment with approved load-securing devices (e.g. tie-down straps with clamping elements) on or inside the vehicle. Tie-down straps are belt bands made of synthetic fibres. Every tie-down strap is marked with a label. The label contains important details for application. The information on this label must be heeded when using the tie-down strap.
• For loaded goods that can roll, we recommend using direct strapping with four lashing straps. Secure the wheels of the equipment in such a way that it does not move during transportation.

NOTE

Do not tighten the belts too firmly. Fixing the equipment too firmly can cause damage.

Maintenance of the blade

A sharp blade guarantees optimum cutting performance. Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced.

Sharpening and balancing the blade

WARNING

The sharpening and balancing of the blade should be carried out only by an authorized specialist workshop. An improperly sharpened or unbalanced blade can cause severe vibrations, and damage the lawnmower.

Replacing the blade

WARNING

The cutting blade bar must always be replaced by an authorised workshop. A wrongly assembled cutting blade coupling or a blade screw that is tightened too tightly or too loosely can allow the cutting blade bar to become loose and cause severe injuries.

• Only use genuine cutter bars for replacement. Non-equivalent spare parts can damage the machine and are a safety hazard.
• Replacement cutting tool must be marked permanently with the name and/or company logo of the manufacturer or supplier and the part number.

Servicing the front wheels

Lubricate the wheel bearings once a year or every 15-20 operating hours.

- Use a socket wrench to loosen the hexagon nut, washer and wheels.

- After the bearings have been lubricated with roller bearing grease "KAJO-Longlife grease LZR 2", push the wheels back in place, replace the washer, fix the hexagon nut and tighten until the wheels can just about turn easily but without play.

Servicing the rear wheel drive (Illustration R)

Lubricate the wheel bearings once a year or every 15-20 operating hours.

• Pull the drive wheels off after loosening the nuts and removing the washer from the wheel axle.
• Remove any soiling and residual grease from the wheel cover, the free-wheeling pinion on the gear shaft and the drive pinion on the inside of the wheel.

NOTE

Do not remove the free wheel pinion from the gear shaft!

• Lubricate the pinion pair (free-wheeling pinion and drive pinion in the wheel) using the roller bearing grease "KAJO-Longlife grease LZR 2" all the way around so that the gaps between the teeth are filled completely.
• When putting the drive wheel in place make sure the pinions interlock, turn the wheel on the axle slightly to achieve this if necessary.
• Set the disc in place, fix using the hexagon nut and tighten to such an extent that the wheels can just about turn easily but without play.

Greasing the front wheel bearings (JS63 VARIO C) (Illustration E4)

• Grease the opening of the front wheel bearing (A) with multi-purpose grease.
• Repeat for other front wheel.

Cleaning the front wheel locking pin (JS63 VARIO C) (Illustration F4 + G4)

• Remove cover (A) on the front wheel.
  – Clean the dirt from around and on the pin and the spring (B).
• Attach the cover.

Servicing the drive

The

• Checking and adjusting of the drive throttle cable
• Cleaning of the drive fan belt and the area of the gearbox
• Adjustment, checking and exchange of the drive fan belt should only be carried out by a specialist workshop.

Storage of your lawnmower

• Repair all worn or damaged parts. Replace parts as necessary. Tighten loose attachment parts.
• Remove grass and accumulated material from the mower.
  – Clean the underside of the mower blade: remove grass and dirt.
  – Repair damaged spots on the metal surface in order to prevent corrosion.
  – Lubricate the lubricating points.
  – Prepare the motor for winter storage (or longer periods of non-use).

Always store the equipment in a clean state in a closed, dry room and inaccessible to children.

17 SERVICING THE ENGINE

Safety instruction!

See table for explanation of symbols

page 3

WARNING

Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors and windows open.

Move the machine to an outside area before starting the engine.

IMPORTANT

Tilt the engine and/or mower forwards for cleaning and maintenance work O (spark plug facing upwards). If it should become necessary to place the engine/mower on its side, then place it on the exhaust side, never on the carburettor side, as otherwise start-up problems could occur. Secure the mower in its raised position!

ATTENTION

When tilting or placing the mower on its side, ensure that no oil or fuel comes out of the machine. Fire hazard!

The regular implementation of the prescribed maintenance and care work are the prerequisite for a permanent and fault-free functionality of the motor and also the basic requirement for any guarantee claims.

The motor should be kept clean, particularly on the outside, and the silencer and cylinder area must always be kept free from foreign bodies (e.g. grass residue). The exhaust and motor reach very high temperatures when in use. Flammable foreign bodies such as foliage, grass etc. may catch fire.

Perfect cooling can also only ensured when cylinder ribs are always clean.

IMPORTANT

Never use a pressure cleaner or ordinary water jet to clean the motor. Damages or expensive repairs can be the consequence of such action.

Cleaning engine cooling fins

IMPORTANT

Avoid damage! Keep fins clean or engine may overheat.

• Park the mower on level surface and switch off engine.
• Let engine cool.
• Disconnect the spark plug cable.
  – Clean the fins with a brush or rag.

Oil change

Check the oil level before every use and replenish oil if necessary (see "Check oil level" and "Fill with oil", illustration Y1).

An oil change is not necessary. If you wish to change the oil, however, please follow the instructions below.

NOTE

For environmental reasons, we recommend that the oil change is performed by an authorised workshop.

Changing the oil

• Before the engine or the equipment is tilted to drain oil, empty the petrol tank and let the engine to run until it stops due to lack of fuel.
• Stop the engine and remove the spark plug connector.
  – Renew the oil as long as the engine is warm.

• To change the oil, remove the dipstick from the oil refill neck.

• Turn the mower on one side so that the spark plug side is facing upwards and the used oil can drain into a container.
  Do not drain used oil into the sewage system or soil; dispose of it according to the local regulations.

- Position the mower straight and fill brand-name oil into the spout (for quantity and quality, see technical data). Screw the dipstick in and check the oil level (see "Check oil level" and "Fill with oil", illustration Y1)! If the oil level is correct, insert the dipstick and tighten it.

Filling fuel tank

IMPORTANT

Avoid damage! Dirt and water in fuel can cause engine damage.

Clean dirt and debris from the fuel tank opening.

Use clean, fresh unleaded fuel.

Fill the fuel tank at the end of each day's operation to keep condensation out of the fuel tank.

• Switch off engine. If engine is hot let it cool several minutes before you add fuel.
• Remove grass clippings and other dirt from tank area.
• Remove fuel cap.
• Fill tank with fresh fuel only to bottom of filler pipe.
• Reinsert fuel cap.

Cleaning and replacing the air filter (Illustration W)

IMPORTANT

Never let the engine start or run whilst the air filter is removed.

• Loosen the nut (1) on the air filter cover (2) and remove the cover.
• Remove the pre-filter (3) and paper filter element (4).
  – Clean the paper filter element every 50 operating hours.
  Knock gently onto a smooth surface if soiled lightly. Replace if heavily soiled or damaged. Do not wash out paper filters, nor blow them out with compressed air or grease them.
  – Clean the pre-filter every 50 operating hours.
  Wash pre-filters in hot water with liquid detergent, rinse them out in clean water, press out excess water and allow to dry thoroughly in air. Do not lubricate the pre-filter with oil.
• Insert the dry pre-filter on the paper filter element and fit both in the air filter plate (5). Ensure that the air filter sits firmly in the plate.
• Put the cover (2) on the air filter and fasten it with the nut (1) on the air filter plate (5).

In the case of unfavourable operation conditions (severe formation of dust), cleaning is required after every mowing process. Replace the paper filter element and pre-filter annually or every 200 operation hours.

(Please see original spare parts and accessories for Order No. of filter element and prefilter)

Checking the spark plug (Illustration Y)

To check for wear, remove the spark plug connector and unscrew the spark plug. If the electrode is badly worn the spark plug must be replaced as a matter of course. (Order no. see original spare parts list and accessories).

Otherwise it is sufficient to clean the spark plug and set the electrode gap to 0.5 mm.

Screw the spark plug (pay attention to sealing ring) into the engine by hand and tighten using the socket wrench. Press on spark plug connector. Replace the spark plug annually.

Correct winter storage of the engine (or when not used for a long period of time)

– Empty the petrol tank or allow the engine to run until it stops due to lack of fuel.
- Switch off engine and disconnect spark plug cable.
- Drain off the oil while the engine is still warm. Fill with fresh oil (for quantity and type, see technical data).
– Clean grass and chaff from cylinder and cylinder head fins and around muffler.
- Always keep the machine in a clean condition in a closed, dry room out of reach of children.

18 TROUBLESHOOTING

Fault Possible cause Remedy
Engine does not start up	Control handle not turned down.	Press the control handle onto the upper part of the bar D.
	Fuel tank empty.	Fill up with clean and fresh fuel.
	Spark plug connector loose.	Push plug connector in place or have it checked by an authorised workshop.
	Spark plug defective or soiled or electrodes worn out.	Replace or clean spark plug, set electrode distance to 0.5 mm Y.
	Too much petrol feed to engine (spark plug wet).	Have it checked by an authorised workshop.
	Air filter soiled. Clean or replace the air filter insert W.
Engine power decreasing	Air filter soiled. Clean or replace the air filter insert W.
	Spark plug clogged with soot.	Have it checked by an authorised workshop.
	Fuel old or soiled Empty the petrol tank and fill with fresh petrol.
Engine runs irregularly	Air filter dirty. Clean or replace air filter insert W.
	Spark plug contaminated with soot.	Have it cleaned by an authorized dealer.
	Dirty engine cooling fins.	Clean engine cooling fins.
		Have it checked by an authorized dealer.
Extreme vibration		Have it checked by an authorized dealer
Drive speed cannot be regulated		Have it checked by an authorized dealer
Mower does not work	Pull drive control bar not pulled.	Pull drive control bar G.
		Have it checked by an authorised workshop.
The mower doesn't drive on a slope (Clutch slips)	The primary tension on the throttle cable spring is too low.	Get the drive throttle cable adjusted by a specialist workshop.
Unclean cut, lawn is yellow	Blade blunt. Have it sharpened and balanced by an authorized dealer.
	Cutting height too low. Adjust to higher cutting height U3 + V3.
	Engine speed too low. Have it checked by an authorized dealer.
	Mowing too fast. Adapt mowing speed, switch motor drive off if necessary.
	Insufficient overlapping of cuts when mowing.	Tall grass conditions may dictate that more overlapping of cuts is required.
	Lawn becomes matted. A lawn scarifier can remedy the problem considerably
The mulched grass does not look good: clumps, excessive cut material, coarse cut	Cutting blade blunt. Have it sharpened and balanced by an authorised workshop.
	Mulching rule ignored (cut max. 1/3 of grass height; the grass height to be cut must be less than 10 cm)	Set higher cutting height U3 + V3.

	Driving speed too high.	Adapt driving speed, switch motor drive off if necessary.
	Grass accumulation under the mower blade.	Set higher cutting height U3 + V3 .
	Insufficient overlap between mowing lanes.	If grass is long, the mowing lanes may need to overlap further.
	Grass is damp.	Set higher cutting height U3 + V3 .Allow the lawn to dry.
Ejection blocked	Engine speed too low. Have it checked by an authorized dealer.
	Cutting height too low for grass that is too high.	Adjust to higher cutting height U3 + V3 .
	Pushing mower too fast. Adapt mowing speed, switch motor drive off if necessary.
	Grass not dry.	Let grass dry.
Front wheels do not lock (JS63 VARIO C)	The front wheel locking lever is the unlocked setting.	Turn the front wheel locking lever back into a locked setting T3 .
	The mower is on an even surface.	Push the mower into the garden.
	Front wheel locking device pin is dirty.	Clean the pin in the front wheel casing F4 + G4 .
Mower turns downhill when cutting on slope (JS63 VARIO C)	Front wheels not locked.	Lock front wheels. T3 .
Mower does not move in straight line; mower follows bumps and ruts in ground (JS63 VARIO C)	Front wheels not locked.	Lock front wheels. T3 .
Front wheels drag when mower pulled backwards (JS63 VARIO C)	Front wheels not locked.	Lock front wheels. T3 .

In case of faults and defects which have not been listed here, please contact the nearest authorized dealer.

Repairs which require specialized knowledge should only be performed by a qualified expert. Your authorized dealer will naturally also be glad to help if you do not wish to perform the maintenance work described here yourself.

19 TECHNICAL DATA

Engine

Motor	B&S 4-stroke motor, 850E I/C
Capacity	190 cm3
Rotation speed	2800 min-1
Power of Device	3.2 kW
Electrode gap	0.5 mm
Fuel	Unleaded standard petrol, with max.10% ethanol
Tank capacity	approx. 1 litres
Lubricating oil	SAE 30, SAE 10W30, SAE 5W30 or similar brand name oil, minimum quality SF
Oil quantity	0.5 - 0.6 litres

Mower

Housing	Steel
Cutting width	530 mm

Cutting heights per axle, 7 x20 - 97 mm

Adjustable-height handlebar 3-way

Speed 2.5 – 5.2 km/h

Weight 37.5 kg (JS63 VARIO)40.5 kg (JS63 VARIO C)

Length 1650 mm (JS63 VARIO)1680 mm (JS63 VARIO C)

Width 570 mm

Height 945 mm

Wheels front/rear ∅ 210 mm / ∅ 210 mm

Bearing front Cup-and-cone bearing

Bearing rear Needle bearing

Sound power level

Guaranteed sound power level; measured according to 2000/14/EC

L_w3 = 96 dB(A)

Sound pressure level

Emission sound pressure level at operator's workplace; measured according to EN ISO 5395-2	L_pA = 80 dB(A)
Measuring inaccuracy; according to ISO 4871	1.5 dB

Vibrations

Vibrations on the lawnmower's handlebar; measured according to EN ISO 5395-2	a_HW = 3.6 m/s^2
Measuring inaccuracy; according EN 12096	1.8 m/s ^2

20 ORIGINAL SPARE PARTS

Roller bearing grease SAA11300
Spark plug M78543
Air filter insert MIU12718
Pre-filter MIU12719
Cutter bar	For safety reasons, the cutter bar must always be replaced by an authorised workshop.This workshop has the respective spare part numbers for the cutter bar available

1 Inleiding....2

Name and address of the person in the community authorized to compile the technical construction file:

Name and address of the person in the community authorized to compile the technical construction file:
