CP 139092 - Fan Orbegozo - Free user manual and instructions

Product type	Ceiling fan with LED light
Brand	Orbegozo
Model	CP 139092
Color	White (estimated)
Blade diameter	132 cm (estimated)
Number of blades	3 (estimated)
Minimum installation height	2.30 m
Power supply	220-240 V ~ 50 Hz
Net weight	6 kg (estimated)
Main functions	3 speeds, summer/winter rotation direction switch, LED light with color change, remote control
Lighting	Integrated LED, adjustable color (warm white, neutral white, cold white)
Remote control	Yes, with wall mount
Balancing kit included	Yes (3 counterweights)
Suspension rods supplied	1 x 100 mm, 1 x 200 mm
Mounting type	Ceiling (concrete or wood)
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Battery replacement	2 AAA batteries (not included)
Repairability	Spare parts available through Orbegozo after-sales service
Safety	Electrical installation according to standards, cut power before installation, do not use if cable damaged
Warranty	Legal warranty according to current legislation
Standards	Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU

Frequently Asked Questions - CP 139092 Orbegozo

How to change the light color?

Turn on the light with the remote, turn it off and turn it back on quickly until you get the desired color. Once the color is selected, wait at least 10 seconds before turning it off to avoid unintended changes.

How to reverse the blade rotation direction?

Use the remote to select summer (F) or winter (R) mode. In summer, the blades rotate in the normal direction to create a breeze. In winter, reverse rotation redistributes warm air from the ceiling to the room.

What to do if the fan wobbles?

Use the supplied balancing kit: attach the counterweights to the blades according to the instructions. Make sure all screws are tightened. A slight movement (a few centimeters) is normal.

What is the minimum installation height?

The blades must be at a distance greater than 2.30 m above the floor to ensure safety.

How to clean the fan?

Unplug the device. Clean with a soft dry cloth. Never use scouring pads, abrasives, or chemical cleaners. Avoid any condensation on electrical components.

What type of batteries does the remote use?

The remote operates with 2 AAA batteries (not included). Open the compartment, insert the batteries respecting polarity, then close.

Can I install the fan on a wooden ceiling?

Yes, fix the ceiling bracket using the 4 provided screws. For a concrete ceiling, drill 8 mm holes and use the plugs.

What to do if the remote stops working?

Check the batteries: replace if necessary. Ensure the receiver is properly connected. If the problem persists, contact technical support.

How to replace the LED bulb?

The LED lighting is integrated and not replaceable. In case of failure, contact Orbegozo after-sales service.

Where can I download the full manual?

Download the manual for free in PDF format from the website www.orbegozo.com by searching for the model CP 139092.

USER MANUAL CP 139092 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Scan this QR code in order to access to more information about this ceiling fan, including installation details. Or enter www.orbegozo.com and look for the model number in the website.

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance

must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

13. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

1. The method of disconnection from the mains supply must incorporate a switch or isolator with a minimum contact separation of 3 mm.on all poles.
2. Make sure that when the fan is fitted in the chosen position, there is no possibility of the rotating blades coming into contact with any object. Blades should be at least 2.30m from floor when fan is hung.
3. If you are installing more than one ceiling fan make sure that you do not mix fan blade sets, even though they are from the same ceiling fan model.
4. Before beginning, disconnect power by removing fuse or turning off circuit breaker.

5. Once fan installation is completed make sure that all connections are secure to prevent fan from falling.
   6.Fan must be turned off and stopped before reversing fan direction.

6. Check that the means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation. (Minimum 50Kg.).

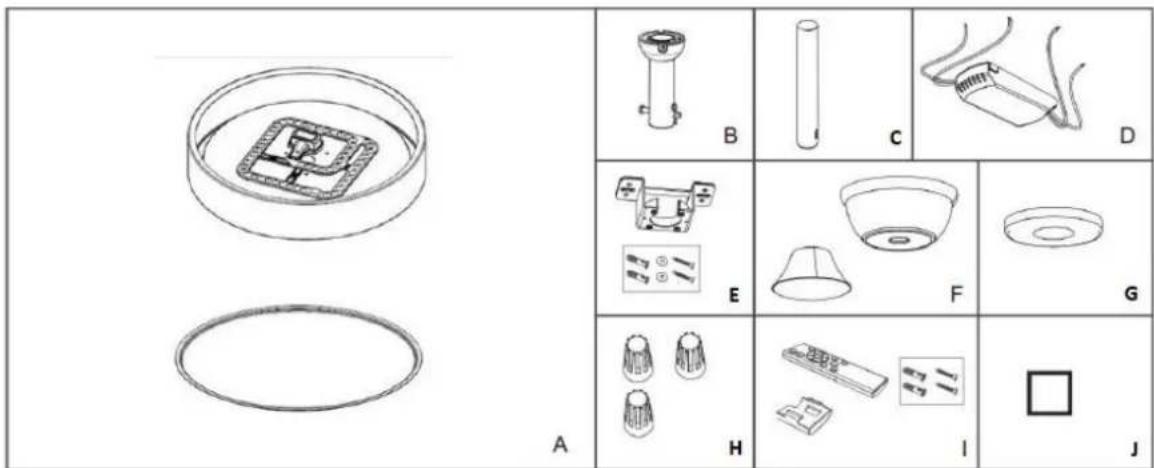

FAN COMPONENTS

A. Diffuser and LED light x 1
B. 100mm support bar × 1
C. 200mm support bar × 1
D. Receiver x 1
E. Ceiling bracket × 1 / mounting kit × 2

F. Coupling bowl and cover x 1
G. Cover plate x 1
H. Cable nut x 3
I. Remote control and wall mount x 1 / Mounting screw and anchor x 2
J. Counterweight for balancing in case of vibration x 3

ATTENTION

1. To avoid possible electrical shock, the main electrical supply to the house must be turned off before installation.
2. Pay attention to check whether the cables were in good condition before installation.
3. All wiring must be done according to national specifications.
4. All screws should be checked and re-tightened if necessary before operating the ceiling fan light.

INSTALLATION STEPS

For concrete ceilings, drill two 8mm holes and insert the screw. Align the bracket with the hole and then tighten the nut.

On wooden ceilings, secure the bracket using the 4 screws.

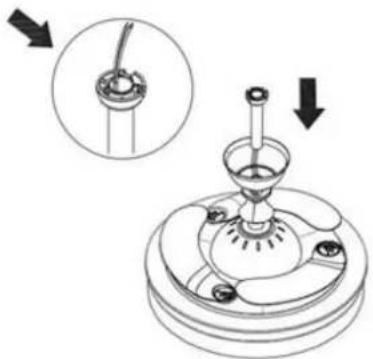

Remove the seat post pin and upper hemisphere

Slide the support bar through the gap in the bowl and coupling cover.

Pass the cables through the support bar.

Replace the support bar hemisphere.

Place the pin through the holes to secure the support bar to the fan body.

CAUTION: It is very important to ensure that the flange pin is correctly installed and secured. Improper pin fastening may cause the fan to fall.

Tighten the screws securely.

Carefully lift the fan and place the tilting support bar into the suspension bracket attached to the ceiling. Make sure the ball slot is properly aligned with the tab on the support bar.

WARNING

The fan should be hung with at least 230~cm of clearance from the floor to the blades.

Slide the remote receiver into the holder

Connect the remote control receiver by matching the wire colors, following the diagram in the next section of the manual.

Insert the screws and loosely tighten. Place the cup in place as shown and turn counter-clockwise. Be careful not to cut any wires when snapping the cup into place.

Tighten the screws.

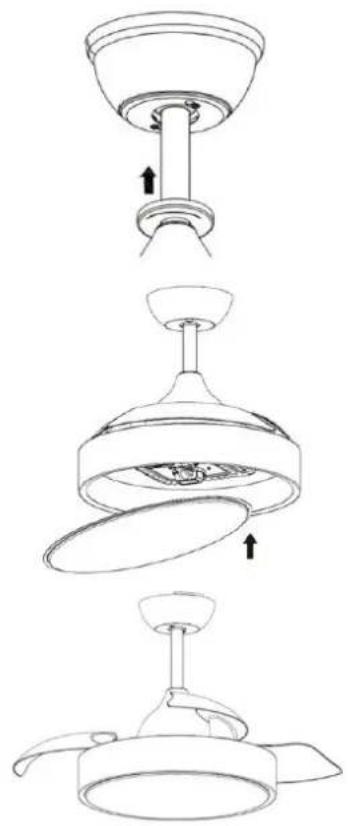

Lift the cover plate to cover the bowl screws.

Fit the diffuser onto the fan.

Installation complete.

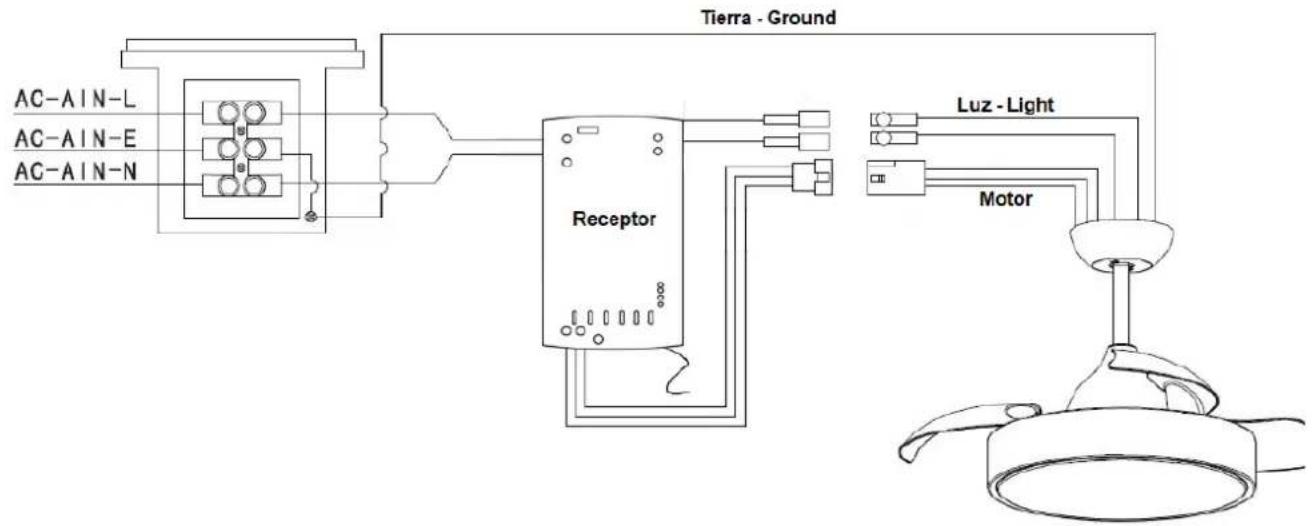

CONNECTION DIAGRAM

FAN BALANCING

Please note that all ceiling fans are not created equal, even within the same model!

Some may move more or less than others. Movement of a couple of centimeters is quite acceptable and does not result in the fan falling over.

Although all blades are weighted and grouped by weight, it is impossible to eliminate wobble completely. This should not be considered a problem. Ceiling fans tend to move during operation because they are generally not rigidly mounted.

BALANCING KIT

A balancing kit has been supplied to help reduce wobble. Please retain the kit as it may be useful if the fan wobbles in the future.

The kit includes instructions on how to use it.

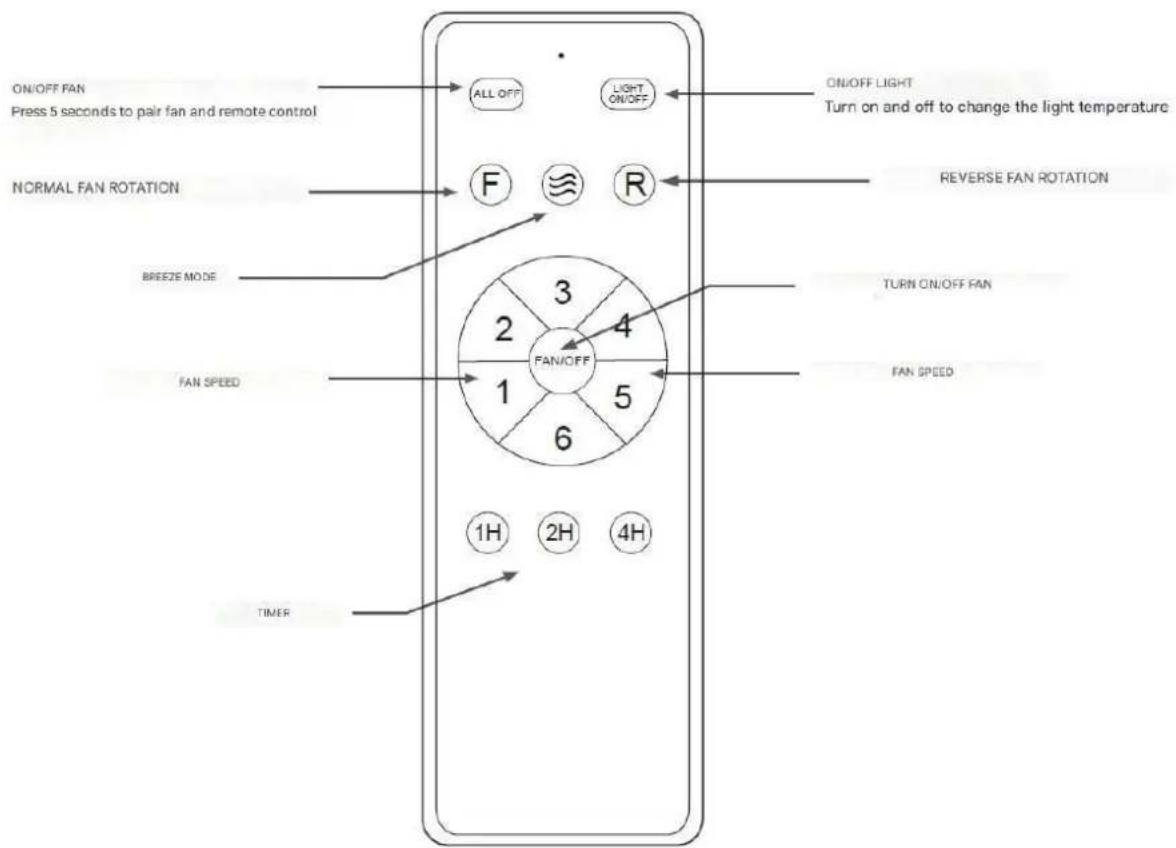

REMOTE CONTROL

In winter, select the reverse rotation of the "R" blades, since they will direct he air warm trapped near from the fan toward down throughout the room. When it is hot, select the normal rotation "F" and the blades will create a breeze that will be distributed by the room.

To select a light color follow these steps:

1. Turn on the light with the button on the remote control or with the wall switch.
2. Turn it off and on until it lights up the desired color.
3. Once you have selected the color, you must wait at least 10 seconds to turn the light back on once you turn it off.

NOTE: If you turn the light off and then on again within 10 seconds, the light color will change again.

MAINTENANCE AND CLEANING

• Change the battery by opening the battery compartment cover on the remote control, insert 2 AAA batteries and make sure the battery polarity matches the diagram on the compartment (Note: Battery is not included). Replace the battery compartment cover.
• Always make sure that the battery compartment is closed properly.
• Do not expose the remote control to direct sunlight
• Do not attempt to recharge exhausted batteries. Special rechargeable batteries are available, in which case this is clearly specified.
• Do not throw batteries into fire, there is a risk of explosion.
  Clean the fan with a soft, dry cloth. Never use scouring pads, abrasives or chemical cleaners. Avoid allowing condensation to come into contact with electrical components.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact

on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
