Product type	Ceiling fan with light
Brand	Orbegozo
Model	CP 61132
Blade diameter	132 cm (52 inches)
Weight	7 kg
Power supply	220-240 V ~ 50 Hz
Maximum bulb power	60 W (E14)
Number of speeds	3 (Fast, Medium, Low)
Reversible rotation direction	Yes (Summer/Winter)
Control type	Pull chain switch
Minimum distance to floor	2.30 m
Load capacity of mounting point	Minimum 50 kg
Blade material	Wood or composite (not specified)
Usage	Indoor
Protection rating	IP20 (estimated)
Maintenance	Clean with a soft dry cloth
Warranty	2 years (standard)
Certifications	Low Voltage Directive 2006/95/EC, EMC Directives 2004/108/EC
Package contents	Fan, blades, bulb not included, mounting kit, manual
Origin	Spain (Orbegozo brand)

Frequently Asked Questions - CP 61132 Orbegozo

How to install the Orbegozo CP 61132 ceiling fan?

Installation requires fixing the support plate to the ceiling, routing the cables, mounting the suspension rod and blades, then making the electrical connections. Make sure the mounting point supports at least 50 kg and the blades are more than 2.30 m from the floor. Refer to the manual for details.

How to change the fan speed?

Speed is adjusted with the pull chain switch. Starting from OFF, the first pull gives fast speed, the second medium speed, the third low speed, and the fourth turns the device off.

How to reverse the blade rotation direction?

Use the direction switch located on the housing. In summer, push the switch to create a breeze; in winter, pull it to bring down warm air accumulated at the ceiling. The fan must be turned off before changing direction.

What type of bulb to use?

Use an E14 bulb with a maximum power of 60 W. The bulb is not supplied with the fan.

How to replace the bulb?

Turn off the fan and isolate it from the circuit breaker. Allow the bulb to cool. Unscrew the old bulb counterclockwise, then screw in the new one clockwise until it is firmly in place. Restore power.

How to clean the fan?

Clean with a soft dry cloth. Never use abrasive or chemical products. Avoid moisture coming into contact with electrical components.

What to do in case of noise or vibration?

Check that all screws are tight, that the blades are not unbalanced, and that the fan is properly secured to the ceiling. If the problem persists, contact an authorized technical service.

Can the fan be used with a speed controller?

No, this fan is not designed to be used with an electronic speed controller. Use only the supplied pull chain switch.

What are the important safety instructions?

Do not use if the cord is damaged. Never immerse in water. Always unplug before cleaning. Do not let children play with the device. Installation must comply with current electrical standards.

Where to find the complete user manual?

The manual is available for free download in PDF format at notice-facile.com or can be requested by email at [e-mail].

USER MANUAL CP 61132 Orbegozo

Modern office ceiling fan with four blades and a central hub (no text or symbols visible)

CP 61132

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

Other specific safeguards

1. The method of disconnection from the mains supply must incorporate a switch or isolator with a minimum contact separation of 3 mm. on all poles.

2. Make sure that when the fan is fitted in the chosen position, there is no possibility of the rotating blades coming into contact with any object. Blades should be at least 2.30 m from floor when fan is hung.

3. If you are installing more than one ceiling fan make sure that you do not mix fan blade sets, even though they are from the same ceiling fan model.

4. Before beginning, disconnect power by removing fuse or turning off circuit breaker.

5. Once fan installation is completed make sure that all connections are secure to prevent fan from falling.

6. Fan must be turned off and stopped before reversing fan direction.

7. Check that the means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation. (Minimum 50Kg.).

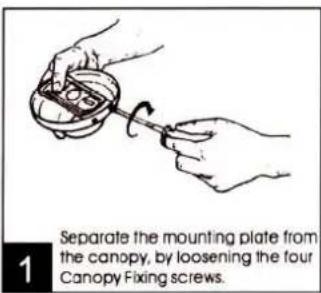

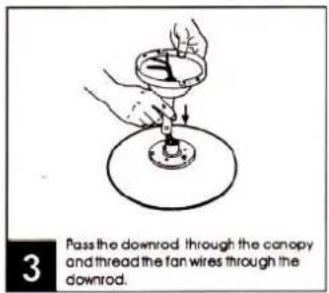

FAN INSTALLATION ILLUSTRATION

OPERATING YOUR FAN

- TURN ELECTRICITY ON AT THE CIRCUIT BREAKER OR FUSE BOX.

To turn the fan ON and OFF:

- Start from the OFF position: Pull the On/Off Switch Chain until the fan shuts OFF.

- Sequence of pulls from the OFF position: First pull – High speed Third pull - Low speed Second pull – Medium speed Fourth pull - OFF

- Direction Switch controls air movement:

In cold weather: Push switch UP for the blades to move the warm air trapped near the ceiling.

In hot weather: Push switch DOWN for the blades to create a breeze and circulate the air.

Note: Before using the Direction Switch, turn the fan OFF to prevent injury to yourself and damage to the motor. Keep the switch in either UP or DOWN position.

MAINTENANCE

HOW TO REPLACE A LIGHT BULB

1. Switch the device off (preferably, turn it off at the circuit breaker) and leave to cool. (Take care: light bulbs can get very hot when in use.)
2. Remove the bulb by holding it firmly and turning it anti-clockwise.
3. Take a new bulb and put it carefully into its holder. Screw it in clockwise.
4. Put the power supply on again and switch on.

Important: The bulbs for this fan must be E14 / 60W.

CLEANING

Clean with a soft, dry cloth. Never use scouring pads, abrasive or chemical cleaners. Do not allow condensation to come in contact with the electrical components.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for

information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
