USER MANUAL HYBRID-470LED-FC AFX

Technical line drawing of a mechanical device with no visible text or symbols

View the product on our website and download the multilanguage manual

Illustrations - p. 2-3

DMX channels - p. 4-6

GB - User Manual - p. 7

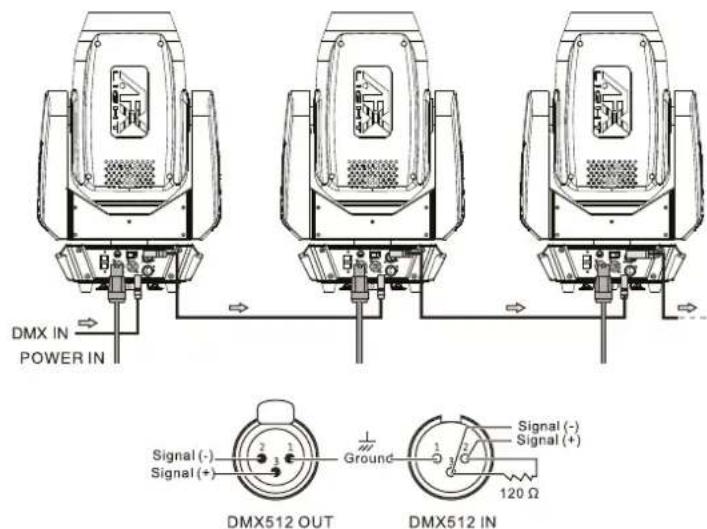

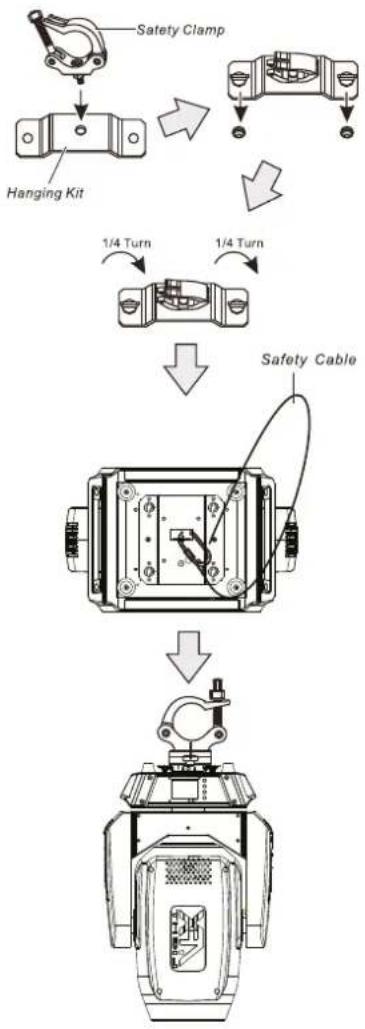

INSTALLATION DIAGRAM (FIG. 3) FIXTURE LINKING (FIG. 4)

DMX IN POWER IN Signal (-) Signal (+) Ground Signal (-) Signal (+) 120 Ω DMX512 OUT DMX512 IN

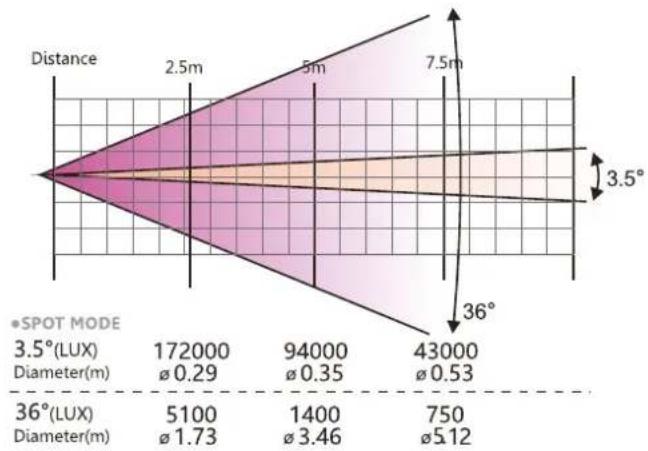

PHOTOMETRIC DIAGRAMS (FIG. 5)

GOBO & COLOUR WHEEL

Collection of abstract circular and dot patterns in various colors, no text or symbols present

CMY + CTO WHEEL

CMY+CTO Wheel

0%	Cyan	100%
0%	Magenta	100%
0%	Yellow	100%
0%	CTO	100%

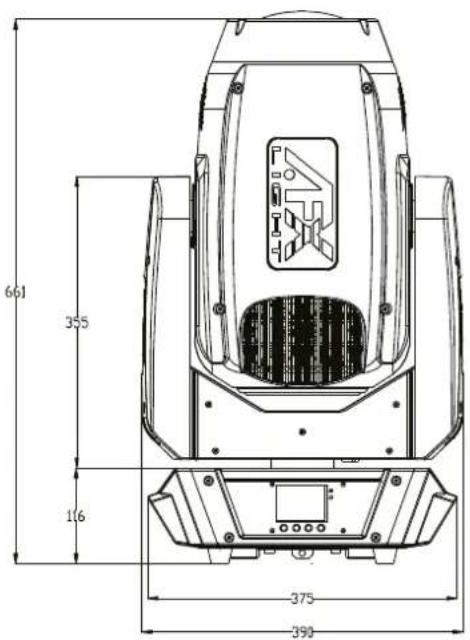

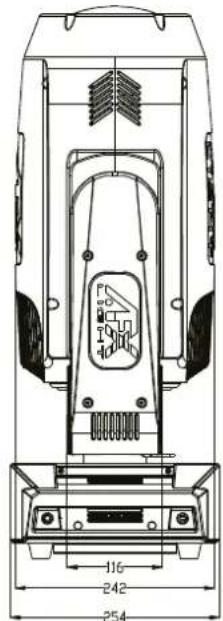

DIMENSIONS

661 355 116 375 390

WWW.AFX-LIGHT.COM

116 242 254

EN

Mode/Channel		Value	Function
23CH	21CH
1	1		Pan
		0..255	PAN Movement
2			Pan-fine
		0..255	Fine control of Pan movement
3	2		Tilt
		0..255	TiltMovement
4			Tile-fine
		0..255	Fine control of Tilt movement
5	3		Color wheel
		0..19	Open/ white
		20..39	Color1
		40..59	Color2
		60..79	Color3
		80..99	Color4
		100..127	Color5
		128..189	Forwards rainbow effect from fast to slow
		190-193	Colorrotation stop
		194..255	Backwards rainbow effect from slow to fast
5	3		Color wheel (Mode 2)
		0..9	Open/ white
		10..19	White+ Color1
		20..29	Color1
		30..39	Color1 + Color2
		40..49	Color2
		50..59	Color2 + Color3
		60..69	Color3
		70..79	Color3 + Color4
		80..89	Color4
		90..99	Color4 + Color5
		100..109	Color5
		110..127	Color5 + White
		128..189	Forwards rainbow effect from fast to slow
		190-193	Colorrotation stop
		194..255	Backwards rainbow effect from slow to fast
6	4		Gobo wheel 1
		0..9	Open
		10..19	gobo1
		20..29	gobo2
		30..39	gobo3
		40..49	gobo4
		50..59	gobo5
		60..69	gobo6
		70..79	gobo7
		80..99	Gobo1 shakeslowto fast
		100..119	Gobo2 shakeslowto fast
		120..139	Gobo3 shakeslowto fast
		140..159	Gobo4 shakeslowto fast
		160..179	Gobo5 shakeslowto fast
		180..199	Gobo6 shakeslowto fast
		200..219	Gobo7 shakeslowto fast
		220..255	Rot. gobo wheel cont. rotation slow to fast

7	5		Gobo 1 rotation
		0..127	Goboindexing
		128..189	Forwards gobo rotation from fast to slow
		190..193	Goborotation stop
		194..255	Backwards gobo rotation from slow to fast
8	6		Gobo wheel 2
		0..9	Hole with spot
		10..19	Gobo1
		20..29	Gobo2
		30..39	Gobo3
		40..49	Gobo4
		50..59	Gobo5
		60..69	Gobo6
		70..79	Gobo7
		80..89	Gobo8
		90..99	Gobo9
		100..109	Gobo10
		110..119	Gobo11
		120..129	Gobo1 shakeslowto fast
		130..139	Gobo2 shakeslowto fast
		140..149	Gobo3 shakeslowto fast
		150..159	Gobo4 shakeslowto fast
		160..169	Gobo5 shakeslowto fast
		170..179	Gobo6 shakeslowto fast
		180..189	Gobo7 shakeslowto fast
		190..199	Gobo8 shakeslowto fast
		200..209	Gobo9 shakeslowto fast
		210..219	Gobo10 shakeslowto fast
		220..229	Gobo11 shakeslowto fast
		230..255	Gobowheel rotation from slow to fast
9	7		Shutter
		0..31	Shutter closed
		32..63	shutter open
		64..95	Strobe effect slow to fast
		96..127	shutter open
		128..159	Pulse-effect in sequences slow to fast
		160..191	shutter open
		192..223	Random strobe effect slow to fast
		224..255	shutter open
10	8		Dimmer
		0..255	Dimmer 0%...100%

11	9		Cyan
		0..255	Cyan 0%...100%
12	10		Magenta
		0..255	Magenta 0%...100%
13	11		Yellow
		0..255	Yellow 0%...100%
14	12		CTO
		0..255	Configure To Order 0%...100%
15	13		Focus
		0..255	In(near) to out(far)
16	14		Zoom
		0..255	In(near) to out(far)
17	15		Prism1
		0..5	PrismOFF
		6..255	Prism1 ON
18	16		Prism2
		0..127	PrismOFF
		128..255	Prism2 ON
19	17		Rotating Prism
		0..127	Prism rotation stop
		128..189	Forwards rotation from fast to slow
		190..193	Prismrotation stop
		194..255	Backwards rotation from slow to fast
20	18		Iris
		0..191	Max. diameter to Min.diameter
		192..223	Pulse opening fast to slow
		224..255	Pulse closing slow to fast
21	19		Frost
		0..199	Frost OFF
		200..255	Frost ON
22	20		Speed pan/tile
		0..225	maxto minspeed
		226..235	blackout by movement
		236..245	blackout by all wheel changing
		246..255	nofunction
23	21		Specialfunction
		0..19	No function
		20..29	No function
		30..39	No function
		40..79	No function
		80..84	All Motor reset
		85..87	Scan motor reset
		88..90	Colors motor reset
		91..93	Gobo motor reset
		94..96	No function
		97..99	Other motor reset
		100..119	Internal program 1
		120..139	Internal program 2
		140..159	Internal program 3
		160..179	Internal program 4
		180..199	Internal program 5
		200..219	Internal program 6
		220..239	Internal program 7
		240..255	Internal Sound program 1
23	21	140..159	Internal program 3
		160..179	Internal program 4
		180..199	Internal program 5
		200..219	Internal program 6
		220..239	Internal program 7
		240 255	Internal Sound program 1

USER MANUAL

UNPACKING INSTRUCTIONS

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the freight company immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. Keep the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

CONTENTS OF THE CARTON

• 1 x LED light effect
• 2x omega clamps
• 1x Powercon cable
• 1x DMX lead
• 1x User Manual

EXPLANATION OF SYMBOLS ON THE SILKSCREEN

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

UK CA The unit complies with UK standards

For indoor use only

Minimum distance between the appliance and other objects

Don't stare into the light beam

IMPORTANT NOTE: Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

Please read this manual carefully before operating this product.

SAFETY RECOMMENDATIONS

• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the bottom of the fixture.
• The appliance is part of class I and must exclusively connected to an earthed mains outlet.
• This product is intended for indoor use only!
• To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• The minimum distance luminaire from that part of the luminaire or lamp to the lighted object is 0.5m.
• The max. ambient temperature (Ta) is 40^ . Don't operate the fixture at higher temperatures.
• The surface temperature of the unit may reach up to 85°C. DO NOT TOUCH the housing bare-hand during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or servicing.

• DO NOT OPEN the unit within 5 minutes after switching off.

• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.

• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!
• The product is for decorative purposes only and not suitable as a household room illumination.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• The lenses, housing or ultraviolet filter must be replaced if they are visibly damaged.
• The light source of this device is not replaceable. If it is defective, the entire unit must be discarded.

DISCONNECT DEVICE

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

FEATURES

• 1x 470W white LED lamp
  • 23/21 DMX channels USITT DMX-512
• 1 rotating gobo wheel with 2 rotating glass gobos, 5 metal gobos + Open, with speed adjustment, stream effect, dithering effect, left/right rotation and gobo indexing
  • 1 static gobo wheel with 11 gobos + Open
  • 1 colour wheel with 5 colours + Open
  • Gobo overlay (gobo morphing)
• Frost filter
• Totem mode
• DMX, master-slave, sound activated or auto operation (9 built-in programs)
  • Electric focus from 2.5 – 15m
  • Linear motorized zoom with 3-36° spot angle
• Smooth electronic linear zoom 10^0 - 60^0
• Fast and smooth linear IRIS system
• Aperture effect: 5% - 100% smooth adjustment of the focal length
• Linear CMY + CTO
  • 25x/sec shutter/strobe with speed control
  • 0-100% linear LED dimmer
  • 4- and 8-facet prism
• Preset variable/random strobe and dimming pulse effect
• 2.4" TFT LCD touch display (320 x 240px) with 4 buttons
• Improved optics and flat beam field
• Variable direction rainbow effect with speed adjustment
• Fan cooling system with constant temperature readout and management function
  • Powercon IN/OUT connectors
  • 3-pin XLR IN/OUT connectors
  • RJ45 IN/OUT connectors for ArtNet
  • IP20 protection rating
• 2x 1 / 4 turn fastening Omega clamps
• Safety attachment point

FUSE REPLACEMENT

Disconnect the power cord before replacing a fuse and always replace with the same type fuse.

With a screwdriver wedge the fuse holder out of its housing.

Remove the damaged fuse from its holder and replace with exactly the same type of fuse.

Insert the fuse holder back in its place and reconnect power.

Warning: If after replacing the fuse you continue to blow fuses, STOP using the unit. Contact customer support for further instructions. Continuing to use the unit may cause serious damage.

CONTROL CONNECTION (FIG. 4)

Connect the provided XLR cable to the 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple moving heads together through serial linking. The cable needed should be 2-core, screened cable with XLR input and output connectors. Please refer to diagram 4.

DMX512 CONNECTION WITH DMX TERMINATOR

For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX termiantor. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminaotr is simply an XLR plug with a resistor connected between pins 2 and 3 which is then plugged into the output XLR socket of the last fixture in the chain. Please refer to diagram 4.

INSTALLATION (FIG.3)

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit's weight.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety rope. Never stand directly below the device when mounting, removing or servicing the fixture. This fixture may be mounted in any position provided there is adequate room for ventilation.

The LED moving head provides a unique mounting bracket assembly that integrates the bottom of the base, the included 'omega bracket' and the safety cable rigging point in one unit (see illustration 3). When mounting this fixture on a truss, be sure to use an appropriate clamp with the included omega bracket using a M10 screw fitted through the center hole of the 'omega bracket'. As an added safety measure, be sure to attach at least one properly rated safety cable to the fixture using one of the safety cable rigging points integrated in the base assembly.

POWER LINK

Connect an IEC cable from the POWER OUT connector of the 1st unit to the POWER IN connector of the second unit, etc.

CONTROL PANEL (FIG. 2)

To access the main menu press the MENU button. Press the UP or DOWN buttons until you reach function you wish to change. When you reach the function you wish to change, press the ENTER button. When a function is selected, use the UP or DOWN buttons to change the function settings. Once your changes are made, press the ENTER button.

Tip: Press UP & DOWN buttons at the same time for 3 seconds. The display will reverse.

ARTNET FUNCTION

Art-Net uses a network protocol that greatly extends the use of DMX, simplifies cabling by using RJ45 Ethernet cables and the possibility of using existing networks, HUBs and WIFI.

Art-Net theoretically allows the use of up to 32,768 universes, offering a huge range of possibilities.

Connect an RJ45 cable to the RJ45 connectors on the rear panel, and the other end to your network.

FUNCTION MENU

MENU DESCRIPTION
DMX Mode	DMX address A001-AXXX DMX address setting
	Channel Mode	23CH 22 channel mode
		21CH 20 channel mode
	Auto run	Internal pro-gram 1-9	Master/Alone Auto mode
	Music run	Internal pro-gram 1-9	Master/Alone Sound controlled mode
Option	Reset Default Yes/No Reset to default values
	Ethernet Function	ArtNet to DMXDevice IP addr:Host IP Addr:Universe:Share signal:	(On/Off)xxx.xxx.xxx.xxxxxx.xxx.xxx.xxx0-255(On/Off)	Connect ArtNet to DMXSetting Device IP addressSetting Host IP addressSetting the Universe Send ArtNetsignal to DMX
	Pan/Tilt	Reverse Pan (on/off) Reverse Pan
		Reverse Tilt (on/off) Reverse Tilt
		Select Pan 630/540/360 Select Pan
		Select Tilt 270/180/90 Select Tilt
	UI Set	Mic sensitivity 0-99% Mic sensitivity
		OFF signal mode (On/Off)		Off at original status and ON atreset status if no DMX signal
		HalfColor Wheel (On/Off)		Half Colour (default OFF)
		Fast Scan (ON/OFF)		Default: ON
		Totem mode OFF/CEN./R/L		Restricts pan & tilt motion
Information	Temperature	XXXoC/Fo		Current temperature
	Software version	V1.0-V9.9		Software version
Manu	Reset	Total resetPan/Tilt resetColour resetGobo resetOther Resets		Reset AllReset Pan/TiltReset ColourReset goboReset the others
	Channel	PAN=XXX...		Manual channel control
ADV(Advanced)(Access code0888)	Calibration	PAN=XXX...		Calibration

MAINTENANCE AND CLEANING

DANGER! DISCONNECT FROM THE MAINS BEFORE STARTING ANY MAINTENANCE WORK

It is essential that the fixture is kept clean and that no dust, dirt or smoke fluid residues are allowed to build up on or in the fixture. Failure to do so will significantly reduce the luminaire's light output. Regular cleaning will not only ensure maximum light output but will also give the fixture a long and reliable life. A soft, lint-free cloth moistened with any good glass cleaning fluid is recommended. Never use alcohol or solvents!

The front lens should be cleaned weekly as smoke fluid tends to build up and reduce light output very quickly. The cooling fans should be cleaned monthly.

The inside of the fixture should be cleaned at least once a year with a vacuum cleaner or blower. Use a soft brush and vacuum cleaner to remove dust and dirt from the fans and cooling vents.

IMPORTANT! Check the air filters regularly and clean them before they become clogged!

Clean two air filters located in the fixture covers and two in the fixture base. Use a vacuum cleaner, compressed air or you can wash them and put them back dry.

After replacing the air filters, reset the elapsed time counter in the Information menu (Information -> Air filters -> Elapsed time).

SPECIFICATIONS

Power supply 100-240V\~50/60Hz

Power Consumption....550W

Light Source 1 x 470W white LED lamp, 8000K

Gobo size....external: 22.9mm; internal: 18mm

Operating noise....55dB

Pan 630° / 540° /360°

Tilt....270° / 180° / 90°

Weight 24.7kg

Dimensions 388 x 254 x 661 mm

MANUEL D'UTILISATION

DÉBALLAGE

DISPOSITIF DE COUPURE

REPLACEMENT DU FUSIBLE

INSTALLATION (FIG. 3)

Consommation....550W

Source lumineuse....1 LED blanche de 470W, 8000K

Dim. Des gobos.... ext.: 22.9mm ; int.: 18mm

INSTALLATIE (AFB. 3)

View the product on our website and download the manual

Follow us on Instagram

QR code with Instagram logo in the center, likely linking to a digital resource or website.

AFXLIGHTPRO

Any problem or question?
Join us on facebook

Assembled in PRC

Designed by LOTRONIC S.A.

Rue F. Englert 17·Bt 2

B-1480 TUBIZE

CE

UK CA

[Non-Text]

FR
