USER MANUAL LZR3000RGB-IP-FC AFX
F - MANUEL D'UTILISATION - P. 8
This laser complies with the international standards EN60825-1:2014. It is meant exclusively for professional use.
Its installation and use should only be carried out by a skilled technician who is aware of the specific dangers of lasers.
REMINDER OF SAFETY INSTRUCTIONS
Lasers of class 3 and 4 are for outdoor use only.
Inside the public area, any laser shooting towards the audience is strictly forbidden except if a safety area of 5m radius is marked around the area to which the audience cannot get access.
The area called "public area" is defined by the space of 3m above the area occupied by the audience and a width of 2.5m around this area. The public area must be clearly identified by signs on the ground.
The laser unit must be installed out of reach of the audience and at a minimum of 3m above the ground where the audience is present or protected by a safety perimeter of 5m radius.
The laser unit must be installed in such a way that it can't be moved under the effect of disruptions such as crowd movements, vibrations or gusts of wind.
The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).
An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.
UK CA The unit complies with UK standards
Minimum distance between the appliance and other objects
Don't stare into the beam

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

SAFETY INSTRUCTIONS
This unit contains high power laser devices internally. Do not open the laser housing, due to potential exposure to unsafe levels of laser radiation. The laser power levels accessible if the unit is opened, can cause instant blindness, skin burns and fires.
- Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
- Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
- Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
• This unit must be earthed. - Make sure there are no flammable materials close to the unit while operating.
- The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
- Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
-
Secure fixture to fastening device using a safety chain.
-
Maximum ambient temperature (Ta) is 104^ F ( 40^ C). Do not operate the fixture at temperatures higher than this.
- In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance centre. Always use the same type of spare parts.
- Don't connect the device to a dimmer pack.
- Make sure the power cord is never crimped or damaged.
- Never disconnect the power cord by pulling or tugging on the cord.
- Don't expose your eyes to the light source while it is on.
DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
LASER EMISSION DATA
| LZR1000RGB-IP-FCLZR3000RGB-IP-FCLZR5000RGB-IP-FC | |||
| Laser Classification Class 3B | 4 | 4 | |
| Laser Power Red 300mW | 700mW 1000mW | ||
| Laser Power green 200mW | 800mW 1000mW | ||
| Laser Power blue 600mW | 1500mW 3000mW | ||
| Green Laser Medium DPSS 532nm | DPSS 525nm DPSS 525nm | ||
| Red Laser Medium LD GaAIAs 638nm,typical | LD GaAIAS 638nm typical | LD GaAIAS 638nm typical | |
| Blue Laser Medium | LD InGaN 445nm, typical | LD InGaN 445nm typical | LD InGaN 445nm typical |
| Beam Diameter | <3mm at aperture | ||
| Divergence(each beam) | <1.3 mrad | ||
| Divergence(total light) | <1.3mrad | ||
| Scanning | High speed scanner 25kpps | ||
| Max. AEL laser radiation | R638 : 281.5mW | R632,7mW | R907.7mW |
| G532 : 172.2mW | G710,2mW | G825.2mW | |
| B445 : 480.4mW | B1180,3mW | B2580.3mW | |
As measured under IEC measurement conditions for classification.
Specifications
Mains Input: 100-240V\~50/60Hz, total 30W
Fuse: 250V 2A slow blow (20mm glass)
Menu mode: ......Auto, music, DMX512, Master/slave, ILDA, IRC
Laser Safety Standard: EN60825-1:2014
Condition Temperature: 10^ C\~ 40^ C
DMX channels....6 / 34 channels
Dimensions 185 x 132 x 110mm
Weight: 3.5kg
INSTALLATION
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support a weight of 10 times of the unit's weight. Also always use a safety cable that can hold 12 times the weight of the unit when installing the fixture. Do not install the unit upside down. The heater with the fan must be installed downwards.
DMX512
- Install the units in a suitable position (laying or appending).
- Use standard XLR microphone cable to link the units together via the XLR connector on the rear panel. For longer cable runs we suggest a terminator at the last fixture.
- Assign a DMX address to each the unit.
- Turn on all units. They will start resetting and then begin to work.
- Use a DMX console to control your units.

Description
- Built-in performance programs, AUTO, SOUND
- DMX mode
- Master/Slave
- ILDA DB25 mode

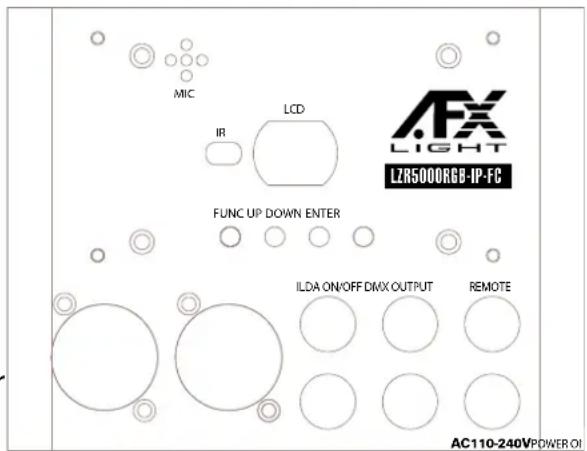

CONTROLS & FUNCTIONS
FUNC Mode/Function: Set the operating mode of laser.
ENTER: Confirms all settings or changes of LED control panel.
UP / DOWN: Changes the operating mode, parameter or DMX address.
Function overview:
[FUNCTION] key:
At every short press on the FUNC button, following actions are active :
- INDR - DMX (6-CH simplified DMX mode) + you can set the DMX address via the UP/DOWN buttons and confirm with ENTER
- DMX (34-CH advanced DMX mode) + you can set the DMX address via the UP/DOWN buttons and confirm with ENTER
- INDR SE (1 - 2 - 3) = 3 AUTO or sound-controlled mode. The ENTER button toggles between these 2 modes (SND is displayed)
The SE 1 sequence (beam/tunnels, waves mode) - SE 2 (animation 1) - SE 3 is accessible via the sub-menu.
To access the sub menu, keep the FUNC button pressed for at least 3 seconds. SET is displayed on the bottom right side of the display. You are now in the setting menu.
Select the sequence by selecting SE and press ENTER.
This sub-menu also allows the following configuration (not recommended for beginners!):
- Configure motors X & Y via dr - X and dr - Y
- Invert motors (SWAP XY)
- Set the projection size (X-SIZE with values from 0 to 100 and Y-SIZE with values from 0 to 100)
- Activate/deactivate the remote control (REMOTE - ON/OFF)
To leave the menu, keep FUNC pressed.
Overview of playback modes:
There are multiple playback modes:
• Built-in Master mode: divided into three small playback modes.
1: mixed playback: Drawing scenes from each sequence in taking turn playback (can be set by setting the function).
2: Sequence playback: only play a sequence. (This mode is temporary and will not be saved)
3: Scene playback: only plays one scene. (This mode is temporary and will not be saved)
- Slave mode: divided into the following two slave modes:
1: DMX slave mode: All slaves follow the master in the DMX line.
2: ILDA slave mode: The salves accept ILDA signal control from the Master or laser console.
- DMX playback mode:
1: Easy DMX mode: 6 channels
Note: Simple DMX mode takes the built-in scenes of the laser directly without any further settings.
| CHANNEL DMX value DESCRIPTION | ||
| CH 1On/off power | 0 OFF | |
| 1-255 ON | ||
| CH2auto/sound | 0-127 AUTO | |
| 128-255 SOUND CONTROLLED | ||
| CH3Gallery Menu(scenes) | 0-15 1 gallery (0) | |
| 16-31 2 gallery (16) | ||
| 32-239 3 gallery (32) | ||
| 240-255 40 gallery (240) | ||
| CH4Scenes | 0-255 Each value corresponds to a pattern. If the value exceeds the number of patterns, the system will display the pattern with the largest number | |
| CH5Colors | 0-31 RGB | |
| 32-63 red | ||
| 64-95 yellow | ||
| 96-127 green | ||
| 128-159 blueviolet | ||
| 160-191 blue | ||
| 191-223 purple | ||
| 224-255 white | ||
| CH6Speed regulation | 0-255 The higher the value, the higher the speed and vice versa | |
2: Professional DMX mode: 34 channels
Order 1: Professional DMX mode is only for experienced lighting engineers, who are professional in DMX control, as well as the laser pattern scanning principle. If this is not your case, pls use simple 6-channel DMX mode.
Order 2: DQF6 (the Bluetooth number) is a double-pattern laser system, and two patterns can be scanned at the same time. The following description is distinguished by pattern A and pattern B. For ease of view, the following points are shown in Table 1 and Table 2 respectively at the end of the manual.
- ILDA console mode: ILDA signal input, output ILDA effect.
Effects library: Each effect library is stored as a sequence on the motherboard, they are:
- Geometric sequence (Gypsophalange filter);
- Wedding theme sequence;
- Christmas theme sequence;
- Beam sequence (no filter);
- Geometric sequence (Galaxy Nebula);
- 3D sequence (3D filter);
- Point circle sequence (dot circle filter);
- Long virtual point sequence (long virtual point filter);
LED display instruction:
{INTR}{DMX}{APP}{SET}{SND}{SEL} for status identification.
- {INTR} Indicates that the fixture is using the built-in effect. When the status flag is lit (INTR) alone, it is the built-in effect play mode.
- {DMX} indicates that the fixture is controlled by the DMX signal. The status flag is only bright (DMX) for the standard DMX control mode
- {INTR} {DMX} is a simple DMX mode that calls the built-in scenario via DMX signals.
- {SET} indicates that the fixture is in the system setup state.
- {SND} indicates that the motion of the pattern is controlled by the sound when the fixture is in the built-in mode.
- {SEL} In the set state, the indicator is lit to indicate that the current setting option is enabled.
{INTR} the state of the digital display section
- {AL} indicates the mix mode in the built-in mode (the scene play is extracted from each sequence).
- {P ####} Indicates the scene playback mode when the built-in mode is displayed. The displayed value is the scene number.
- {SE ##} indicates the sequence playback mode when the built-in mode is displayed, and the displayed value is the sequence number.
{DMX} the digital display part state.
{INTR} + {DMX} the digital display part state.
- {A ####} Indicates the DMX address code for the fixture.
{SET} the digital display part state.
- {SE ##} Indicates whether the digital display sequence is selected when the mixed mode of the built-in mode is used.
(Note: {SEL} status flag indicates whether the sequence is selected.)
- {DR- ||} indicates the X mirror setting.
- DR - = represents the Y mirror setting.
- {DR- = ||} represents XY offset.
- {y ####} denotes the Y projection amplitude (Note: same as above).
- {rOFF} Indicates whether or not the remote control function is turned off.
- {x ####} represents the X projection amplitude, the digital part is the full scale percentage value (Note: {SEL} can be adjusted through the button on the board).
The virtual remote control of the mobile phone APP is the same as that described in the previous section.
Extinguished: After a few hours of inactivity, the digital part of the display will go out (Note: some models do not have this function)
REMOTE CONTROL
Please operate the remote control within a distance of 6m and 30° between the remote and the appliance. Aim the remote at the sensor. Remove all obstacles between the remote and the sensor. The remote control might not work properly if the sensor is exposed to strong sunshine.
If the remote control doesn't work properly, please check the batteries.
Installing the Batteries IN THE REMOTE CONTROL
- Place the remote face down on a flat surface.
- Push the compartment cover into the direction of the arrow.
- Slide the battery compartment open.
- Remove the old battery and install the new one (CR2032) with the plus (+) symbol facing up.
- Gently slide the battery compartment closed. It locks automatically.
RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations..
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.
ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.
WARNING: Do not swallow the battery. Danger of chemical burns. Keep new and old batteries out of the reach of children.
If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.
If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.
Remote Control
• [INTR] key: Enter the built-in mix mode.
• [DMX] key: Professional DMX mode.
• [E-DMX] key: easy DMX mode.
• [1-9] key: number buttons from 1 to 9
- In the built-in mix mode, press the [1-9] button to enter the scene playback mode. The number entered is the scene
- When the built-in sequence is played, press the [1-9] button to select the scene number.
- In DMX mode or E-DMX mode, press the number button to set the address code.
- In the setting mode, you can select the projection range when setting the projection angle.
• [+][-] key:
- In the scene playback mode, press this key to adjust the scene number.
- Press this key to adjust the serial number in the sequence play mode.
- In DMX or E-DMX mode, press this key to adjust the address code.
- When setting mode, press this key to adjust the setting item.
- [SET] key:
- When the system is not in the set state, press 5 times to enter the system setting state.
- When the system is in the setting state, press this key to exit the system setting state.
- [RGB] key:
- Press this key to toggle the pattern colour. When the colour is changed, the display will temporarily display the currently set colour.
-
This setting is temporary, and the system will return to the colour state (CLR) after switch off.
-
[SEQ] key: Press this key to enter the sequence playback in built-in mode.
• [B-Out] key: Press this key to turn off the laser beam. -
[Sound] key:
-
In the built-in mode, press this key to enable or disable the voice-control.
- When setting a mixed sequence, you can enable or disable a sequence.
- You can enable or disable the mirror when setting the graphic X mirror, the graphic Y mirror, and the XY for the graphic.
- You can enable or disable the remote control when setting the remote control function.
- [ENTER] key: When entering a number that is lower than 100, press this key to speed up the digital input.

IMPORTANT NOTE: Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
MANUEL D'UTILISATION
LASER A USAGE EXCLUSIVEMENT PROFESSIONNEL
Any problems or questions?
Join us on facebook

Follow us on Instagram

AFXLIGHTPRO
View the products on our website

LZR1000RGB-IP-FC

LZR3000RGB-IP-FC

LZR5000RGB-IP-FC

Assembled in PRC • Designed by LOTRONIC S.A. • Rue F. Englert 17 • Bt 2 • B - 1480 Tubize
