USER MANUAL RBP350 SCHEPPACH

Exterior view of a portable vacuum cleaner with adjustable arm and control lever (no text or symbols visible)

https://www.scheppach.com/dalservice scheppach

Made in P.R.C.

DE	RegenfasspumpeOriginalbetriebsanleitung	5
GB	Rain barrel pumpTranslation of original instruction manual	16
FR	Pompe pour collecteur d'eau de pluieTraduction des instructions d'origine	25
IT	Pompa a pioggia con barileLa traduzione dal manuale di istruzioni originale	34
NL	Regenton pompVertaling van de originele gebruikshandleiding	43
ES	Bomba de recogida de lluviaTraducción del manual de instrucciones original	52
PT	Pompa do deszczówkiTradução do manual de operação original	61
CZ	Sudové čerpadlo na dešťovou voduPřeklad originálního návodu k obsluze	70
SK	Čerpadlo do nádrže na dažďovú voduPreklad originálneho návodu na obsluhu	78
HU	EsővízszivattyúEredeti használati utasítás fordítása	87
PL	Pompa do deszczówkiTłumaczenie oryginalnej instrukcji obsługi	96
HR	Pumpa za bačvu s kišnicomPrijevod originalnog priručnika za uporabu	105
SI	Črpalka za deževnicoPrevod originalnih navodil za uporabo	113

EE	VihmatünnipumpOriginaalkäitusjuhendi tõlge	121
LT	Lietaus statinės siurblysOriginalios naudojimo instrukcijos vertimas	129
LV	Sūknis lietus ūdens tvertneiOriginālās lietošanas instrukcijas tulkojums	137
SE	Pump för regnvattentunnaÖversättning av original-bruksanvisning	146
FI	SadevesipumppuKäännös alkuperäisestä käyttöohjeesta	154
DK	RegntøndepumpeOversættelse fra den oprindelige betjeningsvejledning	162
NO	RegntønnpumpeOversettelse av den originale brukerveiledningen	170
BG	Помпа за дъждовна водаПревод на оригиналното ръководство за експлоатация	178
GR	Αντλία δεξαμενής βρόχινου νερούΜετάφραση του πρωτοτύπου των οδηγιών χρήσης	187
RO	Pompă pentru rezervoare de apă de ploaieTraducere din manualul de exploatare original	197
RS	Pumpa za sakupljanje kišnicePrevod originalnog uputstva za upotrebu	206
TR	Yağmur bidonu pompasıOrijinal kullanım talimati çevirisi	215

1

1 2 3 4 5 6 7 8 9

2

White spray gun with black handle and attached hose, labeled 'A' (no text or symbols on device body)

Two identical cylindrical objects with black caps and a horizontal line labeled 'C' between them (no text or symbols on the objects themselves)

E D F

3 C H B 4 A

4 D G E G C G C

5 6 7

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanationavns must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning - Read the operating manual to reduce the risk of injury.
	Maximum water temperature
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction.... 18
2. Product description (Fig. 1)....18
3. Scope of delivery (Fig. 2)....18
4. Proper use 18
5. General safety instructions.... 19
6. Residual risks 20
7. Technical data....20
8. Unpacking....20
9. Layout 21
10. Start-up....21
11. Electrical connection 22
12. Cleaning....22
13. Storage 22
14. Maintenance 22
15. Disposal and recycling....23
16. Troubleshooting 24
17. Declaration of conformity 225

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
  • Non-compliance with the operating manual
• Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

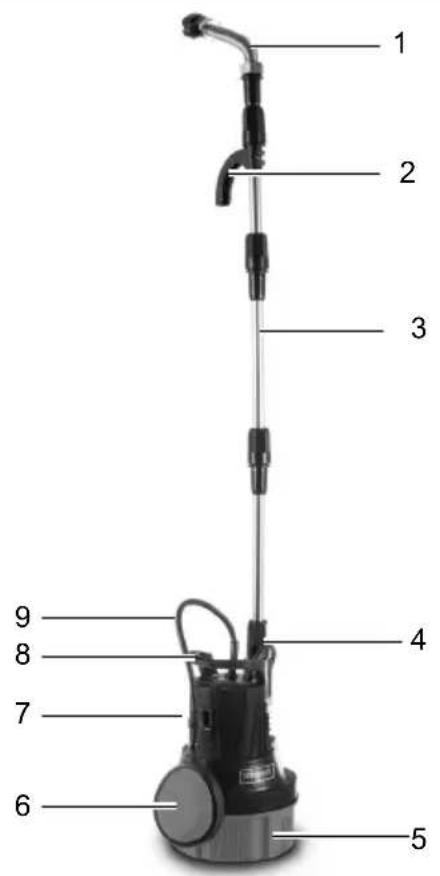

2. Product description (Fig. 1)

1. Flexible connection
2. Hanging hook
3. Aluminium pipe connection
4. Pressure connection
5. Base plate (suction)
6. Float switch
7. Float switch clip
8. Carrying handle
9. Mains cable

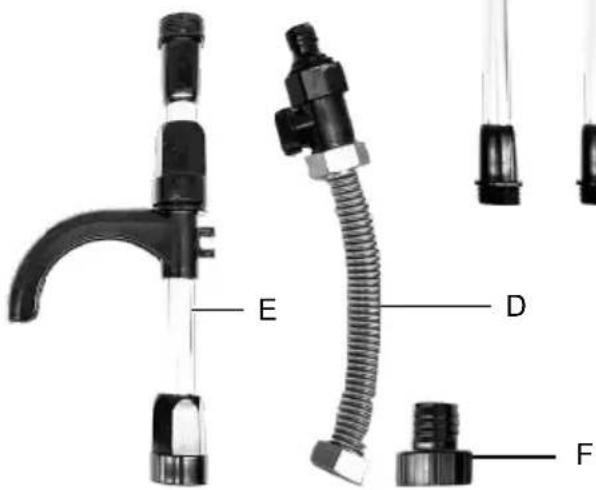

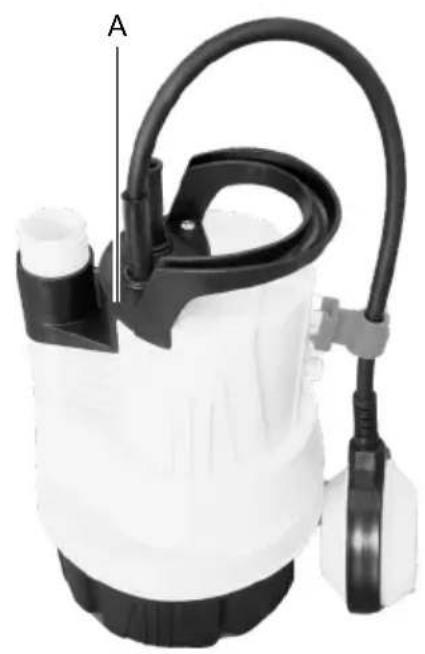

3. Scope of delivery (Fig. 2)

Item Quantity Designation

A 1x Rain barrel pump
B 1x G 3/4" threaded connection
C 2x Aluminium pipe connection
D 1x Flexible connection
E 1x Hanging hook
F 1x 1" connection adapter
G 3x Sealing ring
H 1x Seal, white

4. Proper use

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this. An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual. Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers. The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The device is intended primarily for pumping water out of rainwater barrels.

The device is not intended for:

- Pumping liquids with a temperature >35^ .

• Drinking water supply or for pumping foodstuffs.
• Pumping salt water.
• Pumping explosive, flammable, aggressive or hazardous substances and faeces, commercial or industrial use. Continuous circulation (pond).

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. General safety instructions

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this electric tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term “electric tool” used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

General safety instructions

• This device is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this device is to be used. Children should not be left unattended, to ensure they do not play with the device.
• Persons who are unfamiliar with the operating manual may not operate the device. Persons under 16 years of age are not permitted to operate the device.
• If persons are in the water, the device must not be operated.
  • Take appropriate measures to keep children away from the device while it is running.
• Dispose of the packaging material properly.
• Do not use the device in the vicinity of flammable fluids or gases. There is a risk of fire or explosion if disregarded.

- The pumping of aggressive, abrasive (scouring), corrosive, flammable (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted.

- Store the device in a dry place and out of reach of children.

- The temperature of the pumped liquid shall not exceed 35°C.

- Do not work with a damaged, incomplete or modified device without the manufacturer's consent. Before commissioning, have a specialist check that the required electrical protective measures are in place.

- Supervise the device during operation in order to detect automatic shutdown or dry-running of the pump in good time. Check the function of the float switch regularly (see chapter "Commissioning"). Failure to do so will invalidate warranty and liability claims.

- Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the device regularly for proper functioning.

- Please note that lubricants are used in the device, which may cause damage or contamination due to leakage. Do not use the pump in garden ponds with fish or valuable plants. If lubricants leak out, they may contaminate the liquid.

- Do not use the cable or hose to carry or fastened the device.

- Protect the device from frost and dry-running.

- Only use original accessories and do not make any modifications to the device.

- Please read the information on "Cleaning, maintenance, storage" in the operating manual. All other measures, in particular opening the device, must be carried out by a qualified electrician. In the event of repair, always contact our service centre.

Electrical safety instructions

- The mains plug must remain freely accessible when operating the device.

- Before you put your new pump into operation, have it professionally checked:

• Earthing, connection of the neutral line and residual current circuit breaker must comply with the safety regulations of the power supply companies and function properly.
• Protect the electrical plug connections from moisture.

• If there is a risk of flooding, fit the plug connections in the flood-proof area.

• Ensure that the mains voltage corresponds to the specifications on the type plate.

• Carry out the electrical installation in accordance with national regulations.
• Only connect the device to a mains socket with a residual current device (RCD) with a rated leakage current of no more than 30 mA; fuse at least 6 amps.
• Before each use, check the device, cables and connectors for damage. Defective cables must not be repaired but replaced with a new ones. Have damage to your device repaired by a specialist.
• If the connection cable of this unit is damaged, it must be replaced by the manufacturer or their service department or a similar qualified person in order to avoid hazards.
• Do not use the cable to pull the plug out of the outlet.
• Protect the cable from heat, oil and sharp edges.
• Do not carry or fasten the device by the cable.
• Use only extension cables that are splash-proof and intended for outdoor use. Always unroll a cable drum completely before use. Check the cable for damage.
• Disconnect the mains plug from the socket before carrying out any work on the device, as well as during breaks in work and when not in use.
• Mains connection cables shall not have a smaller cross-section than rubber hose lines with the designation H05RN-F. The cable length must be 10 m. The conductor core cross-section of the extension cable must be at least 1.5 mm ^2 .

Lubricants are used inside the pump which may contaminate the liquids flowing out of the device if the device is operated improperly or damaged.

⚠ Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
- Keep your hands away from the working area when the machine is in operation.

7. Technical data

Device L x W x H 180 x 165 x 270 mm

Mains power connection 230 V~ / 50 Hz
Rated input 350 W
Delivery rate max. 5500 l/h
Delivery height max. 11 m
Max. pump pressure 1.1 bar
Water temperature max. 35°C
Protection category IPX8
Max. particle size	1 - 3 mm
Weight	3.8 kg

Subject to technical changes!

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the device by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

- When ordering please provide our article number as well as type and year of manufacture for your device.

⚠ WARNING!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Layout

⚠ Warning!

Always remove the mains plug before carrying out adjustments on the device.

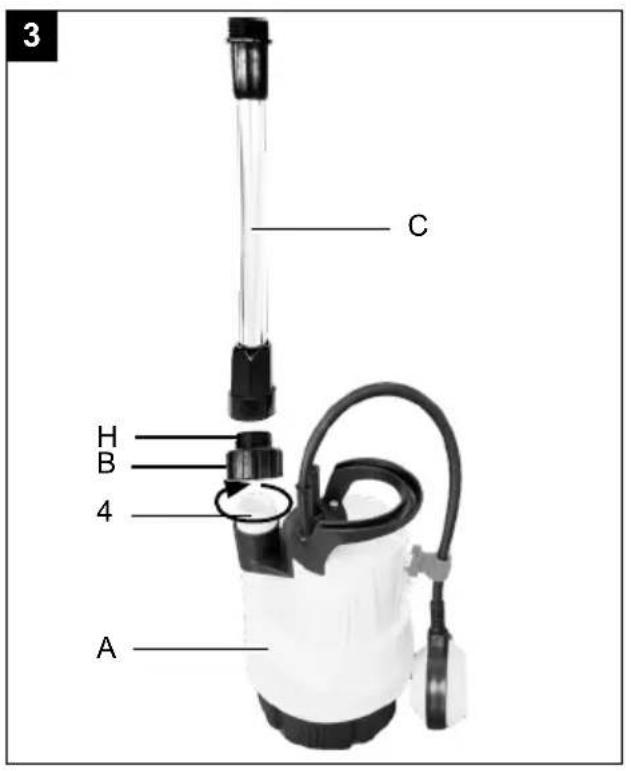

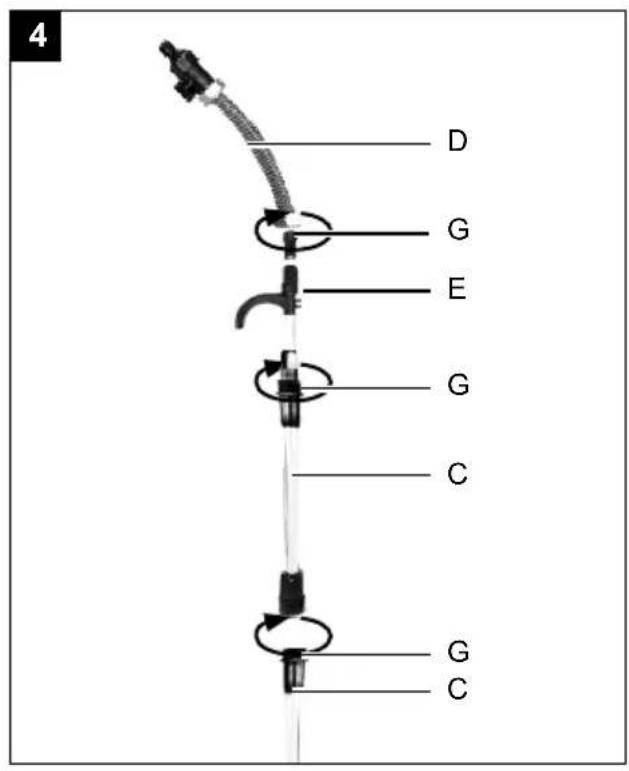

Fitting the aluminium pipe connection (Fig. 3 + 4)

1. Screw the threaded connection G 3/4" (B) onto the pressure connection (4). (Fig.3)
2. Screw the first aluminium pipe connection (C) with seal (G) onto the threaded connection G 3/4" (B). (Fig.3)
3. Now attach the second aluminium pipe connection (C) with the seal (G) to the first. (Fig.4)
4. Screw the hook (E) with the seal (G) onto the second aluminium pipe connection (C). (Fig.4)
5. Finally, connect the flexible connector (D) and the white seal (H) to the hook (E). (Fig.4)

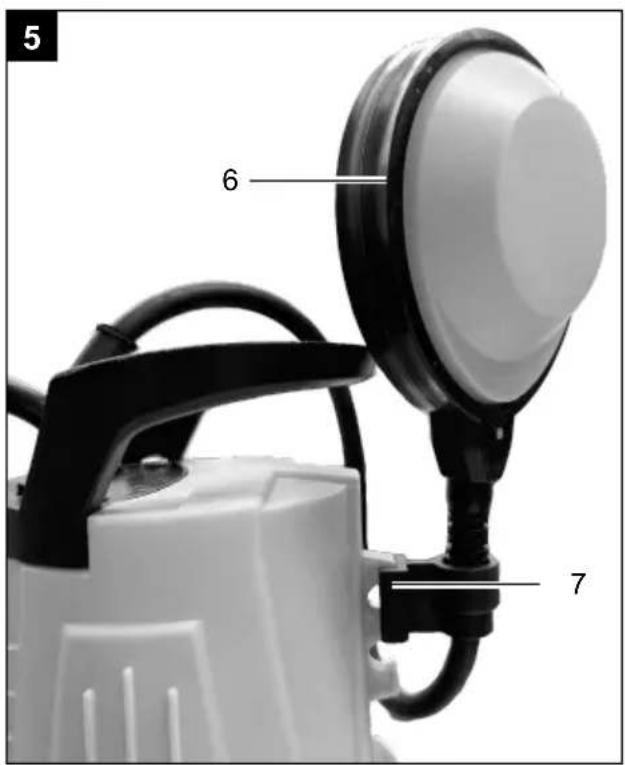

Fitting the float switch (Fig. 1 + 5)

• The float switch (6) can be latched into place (Fig. 5) or freely suspended (Fig. 1). The freely suspended float switch (6) (Fig. 1) is used to prevent the pump from running dry and to prevent possible damage. The latched in float switch (6) (Fig. 5) allows pumping down to the height of the pump base.
  Attention! Always keep an eye on the pump when the float switch (6) is latched into place so that you can switch it off before it runs dry.
• To hang the float switch (6) upright in the clip (7) to fasten it in place.
• Check that the pump is standing stably on the shaft floor or is securely suspended.
• Check that the hose has been properly attached.
• Ensure that the pump does not run dry (Attention! Set float switch correctly!).
• Make sure that the electrical connection is 230 V \~ / 50 Hz.
• Check the proper condition of the mains socket and that it has an appropriate fuse (min. 6A). Insert the mains plug into the mains socket and the pump is ready for operation.

- Make sure that moisture or water cannot reach the mains power connection. There is a danger of electric shock.

10. Start-up

ATTENTION!

Always make sure the device is fully assembled before commissioning!

Attaching the pump to a rainwater barrel

The pump is suspended in the rainwater barrel by means of the hanging hook (1).

Switching on the pump

⚠ Attention!

The pump starts if the float switch is floating or is latched on as soon as the pump is connected to the mains!

Check the function of the float switch

• The float switch (6) must be positioned in such a way that the switching point height "On" and the switching point height "Off" can be reached easily and with little effort.
• Check this by placing the pump in a container filled with water and carefully lifting the float switch (6) by hand and then lowering it again. In doing so, you can see whether the pump switches on or off. Also make sure that the distance between the float switch and the float switch clip (7) is not too small. If the distance is too small, proper functioning is not guaranteed.
• When adjusting, make sure that the float switch (6) does not touch the floor before the pump is switched off. Attention! Danger of dry-running and damage to the device.

Alternative use

You can convert the rain barrel pump into a submersible pump in just a few steps.

• Remove the complete aluminium pipe connection (3).
• Remove the threaded connection G 3/4" (B) from the pressure connection (4).
• Now screw the 1" connection adapter (F) onto the pressure connection (4).
• Now you can connect 1" hoses directly to the pump as usual.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fixed or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H05RN-F.

The printing of the type designation on the connection cable is mandatory.

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

12. Cleaning

Attention!

Disconnect the mains plug before carrying out any cleaning work.

General cleaning tasks

• Non-stationary installed devices: Clean the pump with clean water after each use.

• Stationary installed devices: Check the function of the float switch (4) regularly (at least every three months).
• Remove lint and fibrous particles that may have become trapped in the pump housing with a water jet.
• Regularly remove sludge from the base plate (6) (every 3 months at the latest) and clean the shaft walls.
• Clean the float switch (4) of deposits with clean water.
• If you have not used the pump for a longer period of time, it must be cleaned thoroughly after the last use and before its next use. Otherwise, start-up problems may occur due to deposits and residues.

Cleaning the filter

In order to protect the device and the pump impeller from coarse contamination, there is an additional filter in the suction strainer. Please proceed as follows to clean the filter:

1. You can remove the cover with the help of a screw-driver.
2. Remove the filter and wash it under running water.
3. Then put the filter back into the suction strainer and put the cover on.

13. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30 °C. Keep the tool in its original packaging. Cover the tool to protect it from dust or moisture. Store the operating manual with the tool.

14. Maintenance

Only carry out maintenance, cleaning and adjustment work when the mains plug is pulled out.

The pump is largely maintenance-free. However, for a long service life, we recommend regular checking and care.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Motor data - type plate

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Seals

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards).

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

16. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Pump does not start	No mains voltage	Check mains voltage
	Float switch (6) does not switch	Move float switch (6) to higher position
Pump does not deliver	Pump performance reduced due to heavily contaminated and abrasive water impurities	Clean pump
Pump does not switch off	Float switch (6) cannot sink	Position the pump correctly on the bottom of the shaft
Inadequate pump delivery	Pump performance reduced due to heavily contaminated and abrasive water impurities	Clean pump
Pump switches off after short running time	Motor protection switches off the pump due to excessive water contamination	Pull out mains plug and clean pump and shaft
	Water temperature too high, motor protection switches off the device	Observe the maximum water temperature of 35°C!

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašo novo napravo.

Napotek:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Exploded view diagram of a washing machine with numbered parts and labeled parts in Chinese

EU Declaration of Conformity

hereby declares the following conformity under the EU Directive and standards for the following article

Noise: measured L WA = xx dB; guaranteed L WA = xx dB

2014/30/EU

2011/65/EU*

Annex V

Annex VI

2006/42/EG

Annex IV

Notified Body:

Notified Body No.:

Certificate No.:

2016/1628/EU

Emission. No:

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1;

EN 60335-1:2012+A11+A13+A1+A14+A2; EN 60335-2-41:2003+A1+2; EN 62233:2008; EN ISO 12100:2010

The object of the declaration described above fulfils the regulations Parliament and Council from 8th June 2011, on the restriction of th and electronic equipment.

Subject to change without notice

Documents registrar: David Rümpelein

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1; EN 60335-1:2012+A11+A13+A1+A14+A2; EN 60335-2-41:2003+A1+2; EN 62233:2008; EN ISO 12100:2010

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: David Rümpelein

Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

Standard references:

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1; EN 60335-1:2012+A11+A13+A1+A14+A2; EN 60335-2-41:2003+A1+2; EN 62233:2008; EN ISO 12100:2010

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: David Rümpelein Günzburger Str. 69, D-89335 Ichenhausen

EU Declaration of Conformity

AB uygunluk beyanı

CE

Scheppach GmbH, Günzburger Str. 69, D-89335 Ichenhausen

DE	erklärt folgende Konformität gemäß EU-Richtlinien und Normen für den Artikel	RO	declară următoarea conformitate corespunzător directivelor și normelor UE pentru articolul
GB	hereby declares the following conformity under the EU Directive and standards for the following article	GR	đenlăvvi tnu akolouh Σuμρόφωση σύμφωνα με tnu Oδn-γία EE kai ta πρότιπa για to προϊόν
BG	декларира съответното съответствие съгласно Дирек-тива на EC и норми за артикул	TR	Burada açıklanan ürünün geleçli yönetmeliklere ve standart-lara uygun oldugunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.
RS	potvrđuje sledeću usklađenost prema smernicama EZ i normama za artikal

2000/14/EG_2005/88/EG Noise: measured LWA = xx dB; guaranteed LWA = xx dB Annex V Annex VI

2016/1628/EU Emission. No:

Standard references:

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1; EN 61000-3-3:2013+A1;

EN 60335-1:2012+A11+A13+A1+A14+A2; EN 60335-2-41:2003+A1+2; EN 62233:2008; EN ISO 12100:2010

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: David Rümpelein Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer is rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
