USER MANUAL SFB 80 A3 SILVERCREST

PDF ONLINE www.lidl-service.com

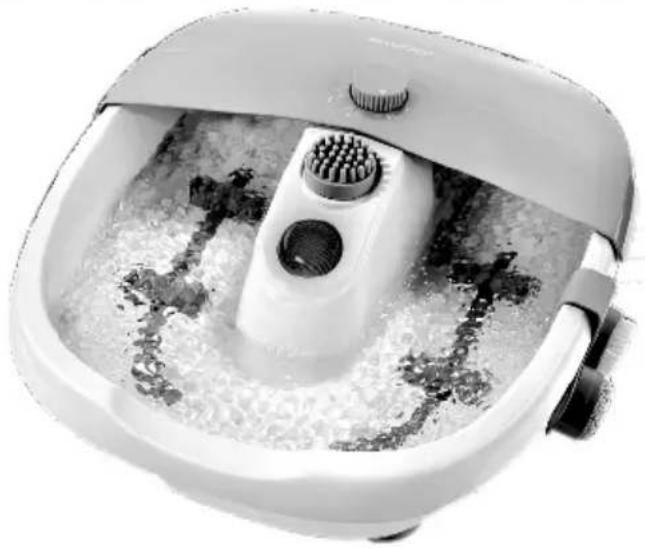

White square foot massage device with water flowing, no visible text or symbols

FUßSPRUDELBAD/FOOT SPA/BAIN DE PIEDS THALASSO SFB 80 A3

DE AT CH

FUßSPRUDELBAD

Bedienungsanleitung

GB IE

FOOT SPA

User manual

FR BE

BAIN DE PIEDS THALASSO

Mode d'emploi

NL BE

VOETENBAD

Gebruiksaanwijzing

PL

URZĄDZENIE DO MASAŻU STÓP

Instrukcja obstugi

CZ

MASÁŽNÍ PŘÍSTROJ NA NOHY

Návod na obsluhu

SK

VÍRIVKA NA NOHY

Návod na obsluhu

ES

HIDROMASAJE PARA PIES

GB/IE User manual Page 14

Warnings and symbols used Page 15

Introduction Page 15

Intended use.... Page 15

Scope of delivery.... Page 16

Description of parts Page 16

Technical data Page 16

Safety instructions.... Page 16

Before first use Page 19

Preparation Page 19

Operation Page 19

Switching the product on/off....Page 19

Choosing a mode Page 19

Using the product without pedicure attachment.... Page 19

Using the product with pedicure attachment....Page 19

After use.... Page 20

Cleaning and care Page 20

Storage Page 20

Disposal Page 20

Warranty Page 21

Warranty claim procedure.... Page 21

Service Page 21

Warnings and symbols usedThe following warnings are used in the user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
		Hz	Hertz (supply frequency)
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.	W	Watts
			Symbol for a Protection Class II product
	NOTE: This symbol in combination with “Note” provides additional useful information.	CE	CE mark indicates conformity with relevant EU directives applicable for this product.
[40A8]	Safety information Instructions for use

FOOT SPA

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for relaxing, caring for and refreshing tired feet.
The product is designed for household use; it is not suitable for medical or commercial use.
The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Foot spa
1 Massager (pedicure attachment)
1 Callus remover (pedicure attachment)
1 Brush (pedicure attachment)
1 Pedicure attachments storage
1 Short manual

● Description of parts

Before reading, refer to the illustrations and familiarize yourself with all the functions of the product.

Figure A

1	Function button
2	Splash guard
3	Massager (pedicure attachment)
4	Pedicure attachment adapter
5	Pedicure attachments storage
6	Callus remover (pedicure attachment)
7	Brush (pedicure attachment)
8	Water container
9	MAX marking
10	ON/OFF indication light

Figure B

11	○ (Off)
12	≈ SunshineVibration massage
13
	Bubble bath while keeping the water warm
14	≈ SunshineVibration massage and bubble bath while keeping the water warm
15	Massage rollers
16	Pouring spout

Figure C

17	Locking clips
18	Cord storage with holder for power plug
19	Supply cord with power plug

- Technical data

Rated voltage: 220-240 V\~, 50-60 Hz

Rated power: 80 W

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOUR- SELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUC- TIONS FOR USE! WHEN PASS- ING THIS PRODUCT ON TO OTHERS, PLEASE ALSO IN- CLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with limitations

⚠ WARNING! DANGER OF DEATH AND ACCI DENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the product.
■ Cleaning and user maintenance shall not be performed by children unless supervised.

Electrical safety

⚠ WARNING! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

⚠ WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the electric components of the product under running water.

⚠ WARNING! Risk of electric shock! If water leaks from the product, do not use the product any longer.

⚠ WARNING! Risk of injury! Turn off the product and disconnect it from the power supply before cleaning and when the product is not in use.

WARNING! Risk of electric shock! Do not use the product if it is damaged.

Disconnect the product from the power supply and contact your retailer in the event of damage.

If liquid gets into the product's electrical components or the product falls into the water, immediately disconnect the plug. Do not use the product any longer.

Before connecting the product to the power supply, check that the voltage rating corresponds with the power supply details shown on the product's rating label.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not operate the product with wet hands. Do not touch the function button or the power plug with wet hands.

No action is needed from users to shift the product between 50 and 60 Hz. The product adapts itself for both 50 and 60 Hz. Fi

Health

■ This product is not a medical device.

⚠️ DANGER! Risk of injury!

■ Only use the product on an even, stable, heat-resistant, clean, non-slippery and dry floor.

■ Never stand up with your feet inside the product.

⚠ WARNING! Do not use this product and consult your doctors if you suffer from any of the following conditions:

• Skin inflammations
• Wounds/swelling of the feet
• Skin reddening
• Diabetes
• Eczema/psoriasis
• Heart disease

CAUTION! The product's surface becomes hot during operation. Persons insensitive to heat must be careful when using the product.

⚠️ ATTENTION! Risk of product damage! Do not add any additives, like oil, to the water container. After the water has evaporated, these additives may burn and damage the product.

Fire/burn hazard and heat

⚠️ DANGER! Risk of fire!

Never leave the product unattended while it is plugged in.

■ Never select the keep warm function if there is no water inside the water container.

Before first use

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".
4. Before first use, clean all parts of the product as described in the chapter "Cleaning and care".

● Preparation

⚠️ ATTENTION! Risk of product damage! Do not fill in water at a temperature exceeding 42 °C. Always check the water temperature before placing your feet inside or switching on the product.

■ Do not fill water above the

MAX marking 9.

Do not splash water on the function button 1, the ON/OFF indication light 10 or the base of the product.

Do not remove the massage rollers 15 or splash guard 2, except when cleaning the product (see "Cleaning and care").

NOTES:

☐ Only use clean water. Do not add any soap, bath salts or any other substances to the water container 8.
☐ Do not operate the product without having filled in water first.
Before and after each use: Clean the product (see "Cleaning and care").

1. Fill the water container 8 up to MAX 9 with water in the desired temperature.
2. Place the product on an even, stable, heat-resistant, clean, non-slippery and dry floor.
3. Connect the supply cord with power plug 19 to a suitable socket outlet.

Operation

- Switching the product on/off

☐ Switching the product on: Set the function button 1 to an operation mode (see "Choosing a mode"). The ON/OFF indication light 10 switches on to confirm that the product is operating (Fig. A).
□ Switching the product off: Set the function button 1 to 0 11. The ON/OFF indication light 10 switches off.

- Choosing a mode

☐ Set the function button 1 to the icons corresponding to the desired mode (Fig. B).

Mode	Function button	Function
Mode 1 12		Vibration massage
Mode 2 13		Bubble bath*
Mode 3 14		Vibration massage and bubble bath*
* While keeping the water warm

● Using the product without pedicure attachment

□Move your feet back and forth on the massage rollers 15 for a reflex zone massage.
☐ The recommended operation time is 15 minutes.

● Using the product with pedicure attachment

☐ The product includes 3 pedicure attachments:

Pedicure attachment	Function
Massager 3	Massage
Callus remover 6	Removing hardened skin
Brush 7	Massage

1. Place the desired pedicure attachment 3 6 7 onto the pedicure attachment adapter 4.

2. Place the remaining 2 pedicure attachments onto the 2 slots on the pedicure attachments storage 5.

3. Rub your foot with gentle pressure on the pedicure attachment placed on the pedicure attachment adapter 4.

☐ You may vary the application area on your foot by changing the position of your foot on the pedicure attachment.

After use

1. Switch the product off (see "Switching the product on/off").

2. Disconnect the supply cord with power plug 19 from the power outlet.

3. Empty the water container 8: Pour the water through the pouring spout 16 into a large sink, bathtub or shower.

● Cleaning and care

⚠ WARNING! Risk of electric shock!

Before cleaning the product: Always disconnect the supply cord with power plug 19 from the wall outlet. Never let the electrical components of the product get in contact with water!

⚠️ ATTENTION! Risk of product damage! Do not splash water on the function button 1, the ON/OFF indication light 10 or the base of the product.

NOTE: Clean the product after each use to avoid the accumulation of water, grease and other residues.

1. Removing the massage rollers 15: Pull the massage rollers 15 upwards carefully.

2. Removing the splash guard 2: Undo the locking clips 17 (Fig. C). Pull the splash guard 2 upwards carefully.

Part Cleaning		method
Outer surface (foot spa)		Wipe down with a slightly moist cloth.
Callus remover	6*
Splash guard	2	Rinse with clean water.
Massager	3*
Pedicure attachment storage	5
Brush	7*
Water container	8
Massage rollers	15
* Pedicure attachment

□ After cleaning, dry all parts thoroughly.

Storage

- Store the product in the original packaging when it is not in use.

■ Store the product in a dry, secure location away from children.

☐ Fix the supply cord with power plug 19 on the cord storage with holder for power plug 18 (Fig. C).

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

FR ÉLÉMENTS D'EMBALLAGE + NOTICE FR Cet appareil et ses accessoires se recyclent À DÉPOSER IN MAGASIN À DÉPOSER IN DICHE TIERE OU

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 435989_2304) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE
