Product Type	TV Stand with Wall Mount
Brand	ErgoAV
Model	ERTSL2-01B
Maximum Supported Weight	44.9 kg (99 lb)
VESA Compatibility	100x100 mm to 600x400 mm
Main Material	Tempered glass (base) and steel (column and plates)
Swivel Function	Yes, via included swivel component
Adjustable Height	Yes, 3 mounting positions for the TV plate
Safety Straps Included	Yes, 2 straps for wall attachment
Wall Mount Type	Wood, wooden studs or concrete/concrete blocks
Required Tools	Phillips screwdriver, tape measure, stud finder, drill (depending on wall type)
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Repairability	Spare parts available on request: contact customer service
Warranty	Contact customer service for terms
Customer Service	Phone [phone], email [e-mail]

Frequently Asked Questions - ERTSL2-01B ErgoAV

What is the maximum weight supported by the ErgoAV ERTSL2-01B TV stand?

The maximum supported weight is 44.9 kg (99 lb). Do not exceed this limit to avoid any risk of damage or injury.

What are the compatible VESA dimensions?

The mount accepts VESA standards from 100x100 mm to 600x400 mm (WxH).

Is the TV stand delivered with safety straps?

Yes, two safety straps are provided to secure the TV to the wall. Follow steps 6A, 6B, or 6C depending on the wall type.

Can I install the mount on drywall?

No, the mount must not be installed on drywall alone. It requires a wooden stud, a wooden table, or a solid concrete/concrete block wall.

How to choose the correct screw length to attach the brackets to the TV?

Select the appropriate screw from the provided M4, M6, or M8 sizes. The screw must be long enough to engage the threads for at least 5 turns, without being too long so as not to damage the TV.

Is the TV stand height adjustable?

Yes, the TV plate can be mounted on one of the three positions of the support pillar to adjust the TV height.

What to do if I don't understand the assembly instructions?

Contact technical support at [phone] or by email at [e-mail] for assistance.

What tools are needed for installation?

You will need a Phillips screwdriver, a tape measure, a stud finder, a drill (for concrete), and a hammer drill (for concrete). Tools are not included.

Can the TV stand swivel?

Yes, the TV plate can be swiveled manually using the included swivel component.

How to clean the TV stand?

Use a soft, dry cloth to dust. Avoid abrasive or liquid products that could damage the glass or steel.

USER MANUAL ERTSL2-01B ErgoAV

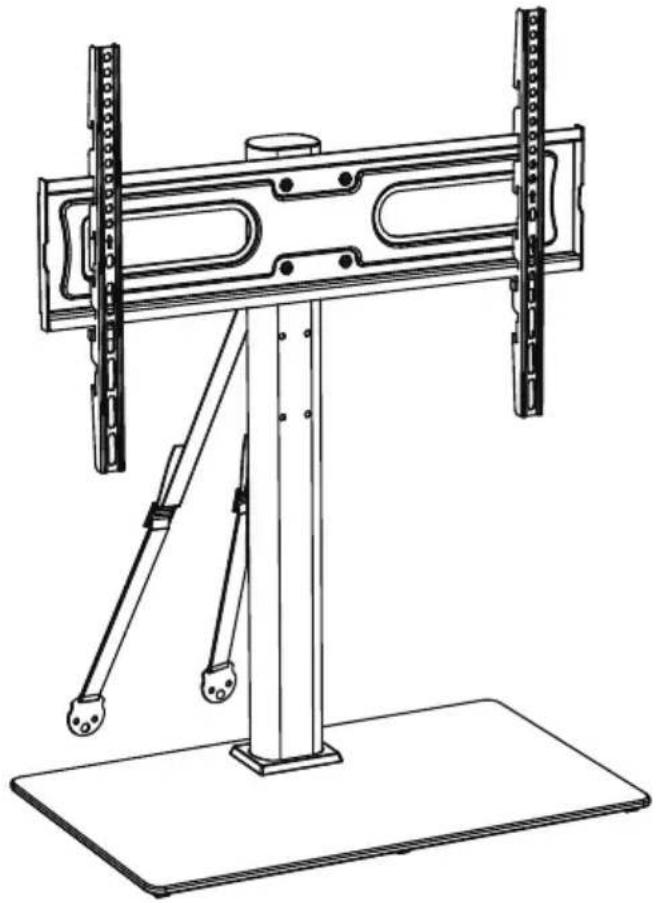

Table Top TV Stand Instruction Manual

V1.0

English pages: 02-16 French pages: 17-30 Spanish pages: 31-46

Model: ERTSL2-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

adress: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.

Please carefully read all instructions before attempting assembly. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].

Before getting starting, let's make sure this mount is perfect for you!

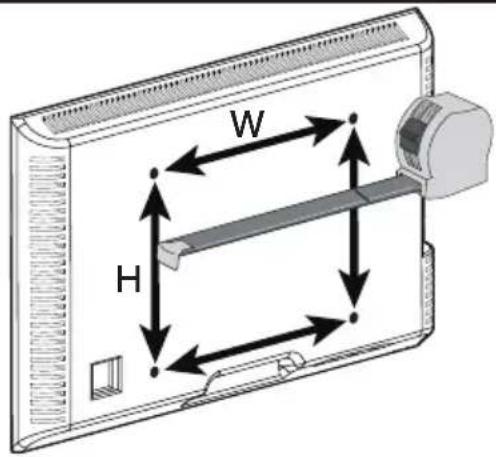

Measure Your TV VESA Pattern:

Minimum: 100 × 100 mm/4 × 4 in (WxH)

Maximum: 600 × 400mm / 24 × 16 in (WxH)

If your TV is not between the minimum and maximum measurements, do not use this product.

If your TV weighs more than 99 lbs, do not use this product.

99 lbs/ 44.9 kg

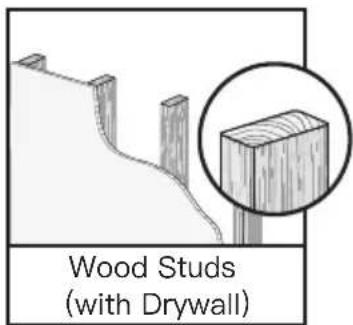

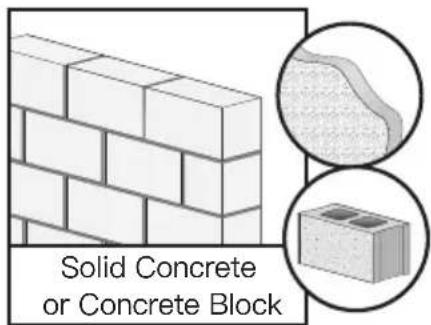

For safety strap installations, you will need to verify your wall construction.

DO NOT install into drywall alone.

If this mount is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

Tools Needed (Not Included)

For TV stand assembly

Tape Measure

Phillips
Screwdriver

For safety strap installation into wood table/furniture and wood stud applications

Tape

Measure Pencil

AwlStud Finder

Drill
1/8 in (3mm)
Wood Drill Bit

Phillips
Screwdriver

For safety straps installation into concrete wall

Tape
Measure

Pencil

Drill

5/16 in (8mm)
Concrete Drill Bit Hammer

Phillips
Screwdriver

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail].

• Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

(N) x2
TV Bracket

(B1) x4
M4/M5
Washer

(B2) x4
M6/M8
Washer

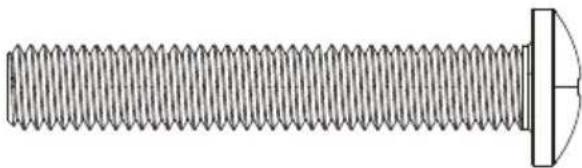

Bolts and spacers are shown in actual size.

(C1) x4 M4x12mm

Bolt

(C2) x4 M4x30mm

Bolt

(D1) x4 M6x15mm

Bolt

(D2) x4 M6x35mm

Bolt

(E1) × 4

M8x15mm Bolt

(E2) × 4

M8x35mm

Bolt

(E3) x4

M8x50mm

Bolt

(F1) x8

L2.5mm

Spacer

(F2) x4

L10mm

Spacer

(F3) x4

L22mm

Spacer

Step 1 Secure the TV Brackets [N] to TV

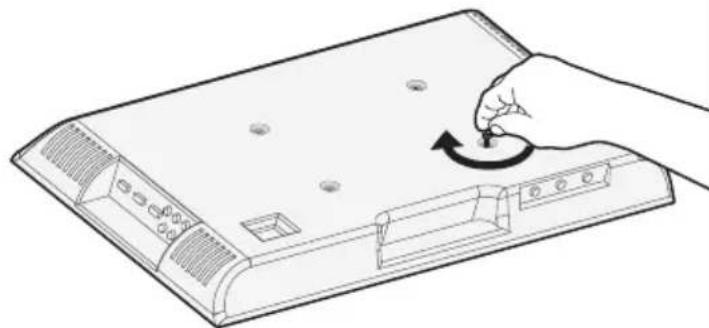

Select TV Bolts

Only one bolt size fits your TV.

OR

OR

M6 M8M4

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Too Short Correct Too Long

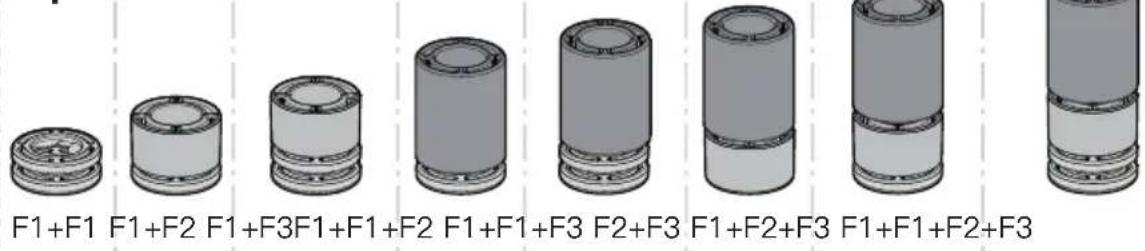

Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

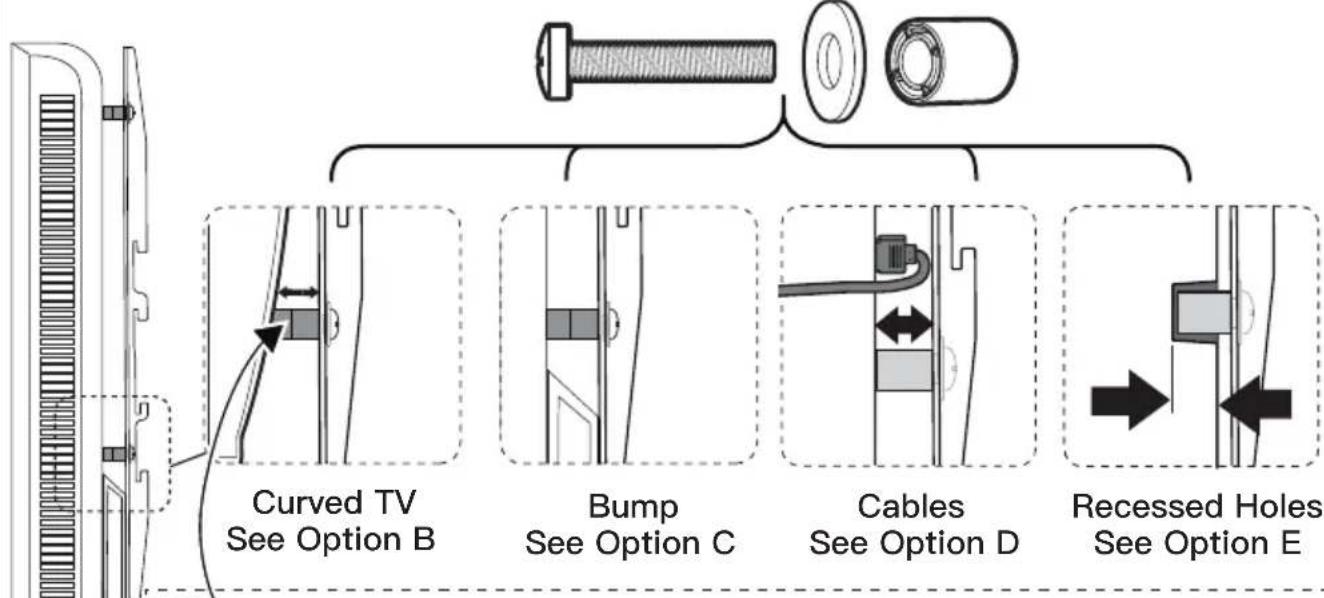

Parts Needed if You Have a TV as Shown Below

Spacers

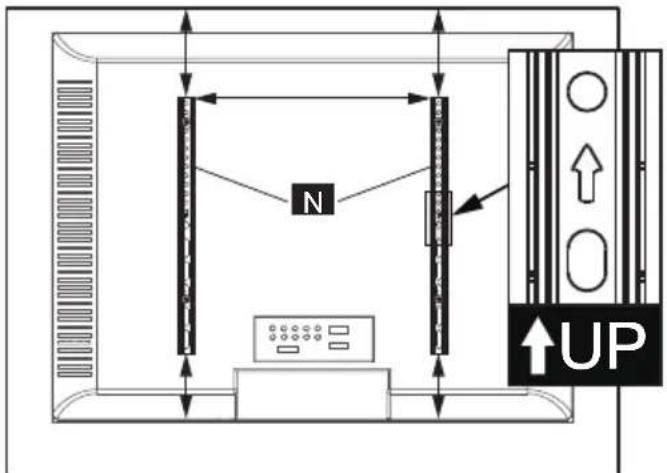

When attaching the TV brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV and are equally centered on the back of the TV.

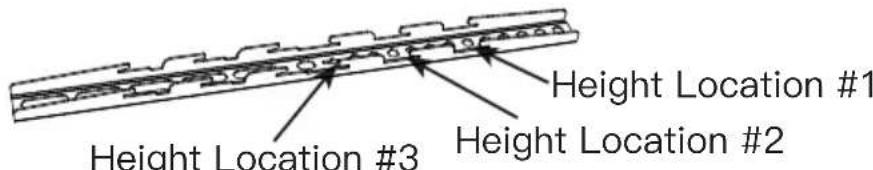

TV Brackets have "three height locations", which determines the height position of your TV while attaching your TV on the stand in Step 5 on page 11. You can choose the proper height.

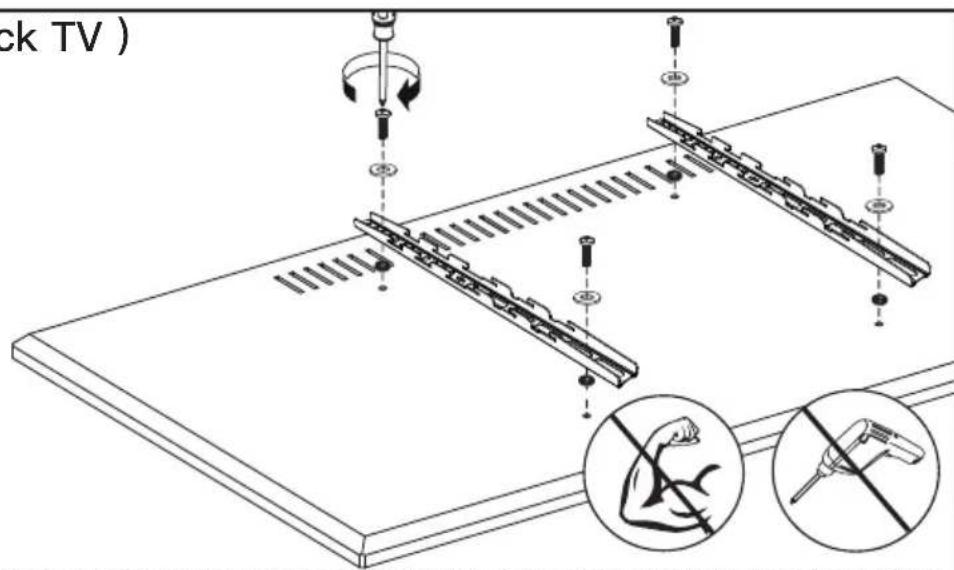

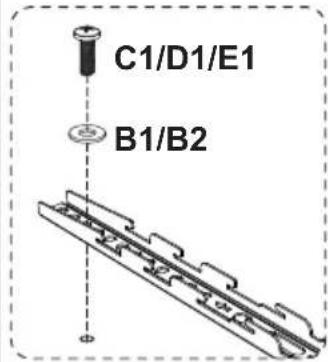

Option A (For Flat Back TV)

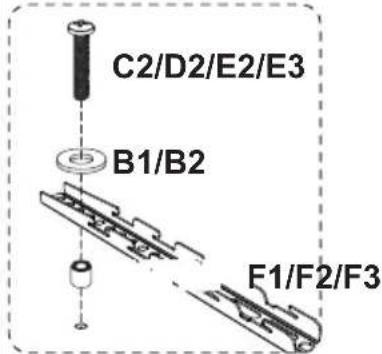

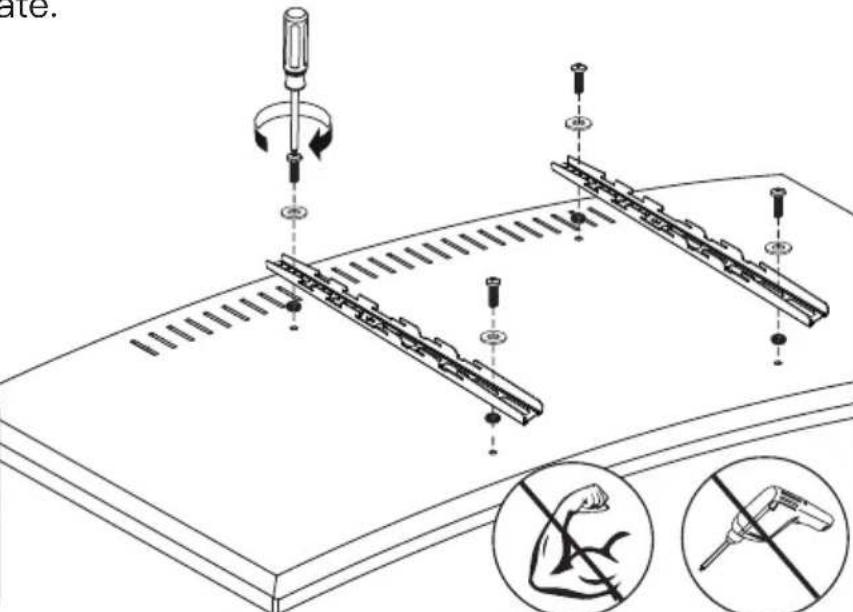

Option B (For Curved Back TV)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

Refer back to Spacer Instructions on Page 05, If needed

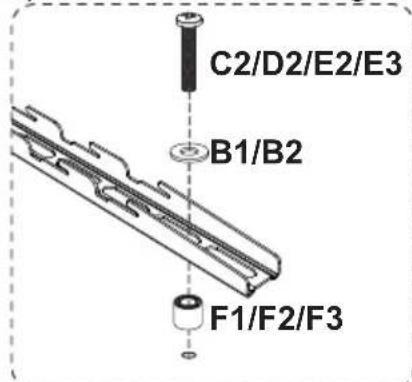

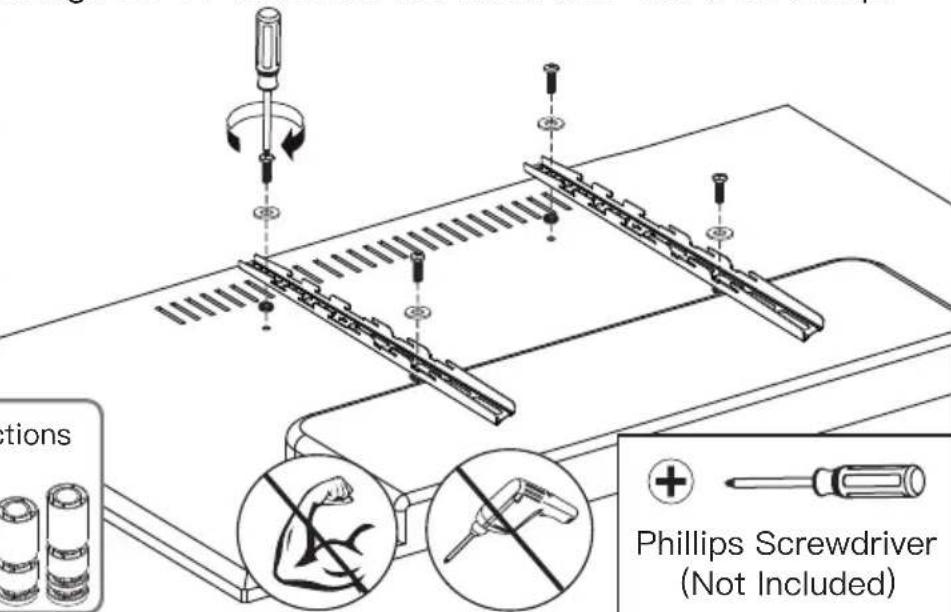

Option C (For TV with A "Bump")

Spacers must be large enough so TV bracekts are flush (NO GAP) on bump.

Refer back to Spacer Instructions on Page 05, If needed

• Phillips Screwdriver (Not Included)

Option D (for TV with Cable Interference)

For cable interference, use spacers [F1], [F2] and [F3] to create extra space between the TV and TV brackets.

Phillips Screwdriver (Not Included)

Refer back to Spacer Instructions on Page 05, If needed

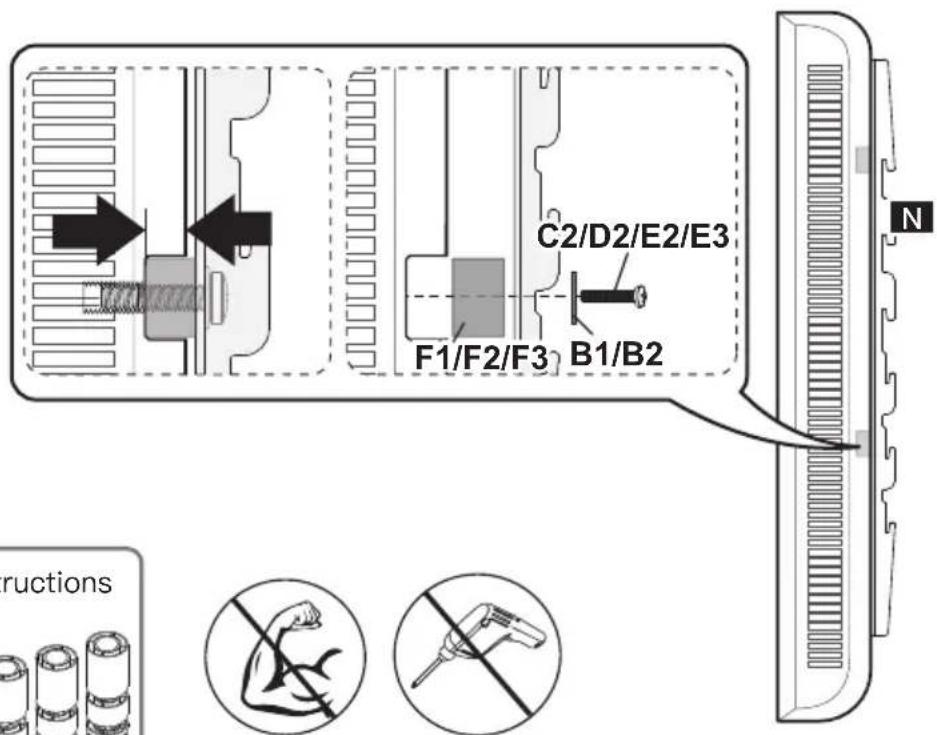

Option E (For Recessed Holes)

The spacer need to fill in the recessed holes on the basis of the TV so that the TV brackets are as close to the TV as possible.

Refer back to Spacer Instructions on Page 05, If needed

Supplied Parts and Hardware for Step 2

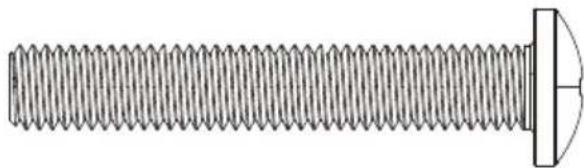

This bolt is shown in actual size.

(L) x3 M6x25mm Bolt

(W) x6 Foot Pad

(R) x1 Reinforcement Plate

(Y) x1 Trim Ring

(P) x1 Support Pillar

(O) x1 Tempered Glass Base

(V) x1
5/32 in (4mm)
Allen Key

Step 2 Assemble the Base

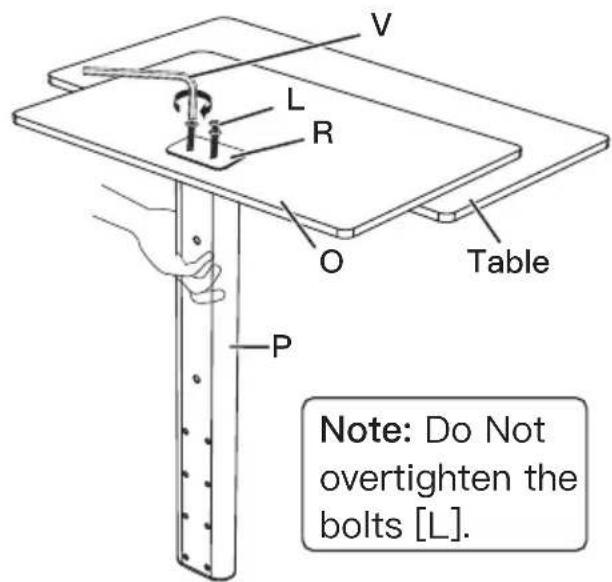

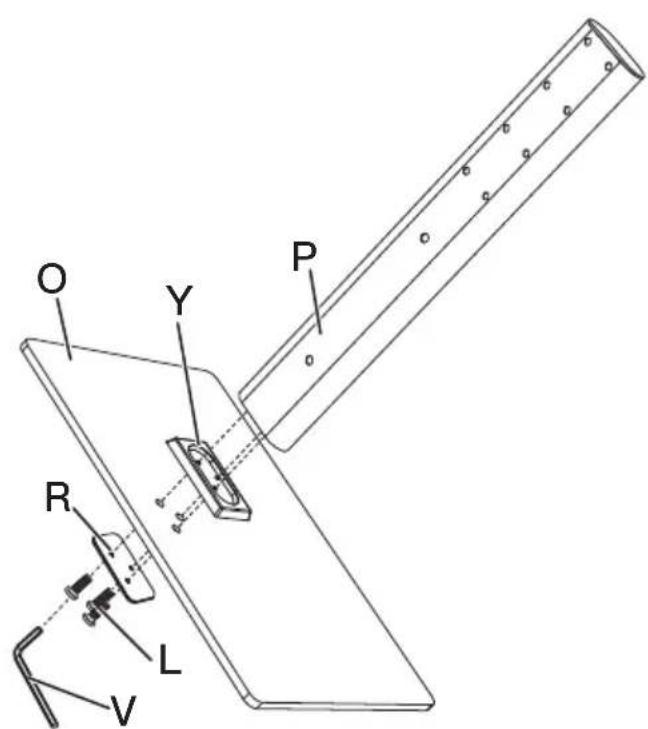

Step 2-1 Connect the support pillar [P] to tempered glass base [O]

Note: Do Not overtighten the bolts [L].

When assembling the support pillar [P], ensure the side of the reinforcing plate [R] with paper is facing the glass base [O].

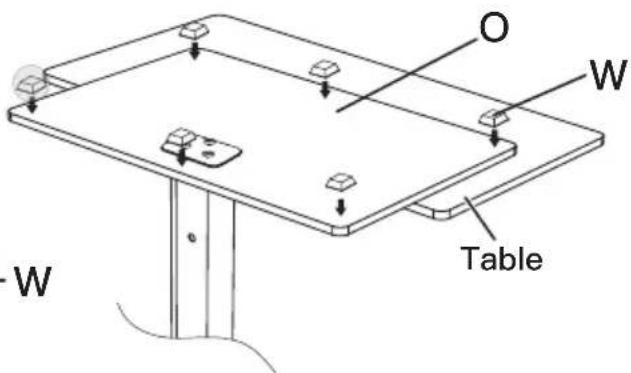

Step 2-2

Place foot pads [W] to the painted side of the tempered glass base [O] in the corners

Supplied Parts and Hardware for Step 3

This bolt is shown in actual size.

(S) x4
M6x50mm
Bolt

(T)×4
M6x8mm
Bolt

(M) × 1
TV Plate

(A) x1
Swivel Component

(V) × 1
5/32 in (4mm)
Allen Key

(X) x2
Safety Strap

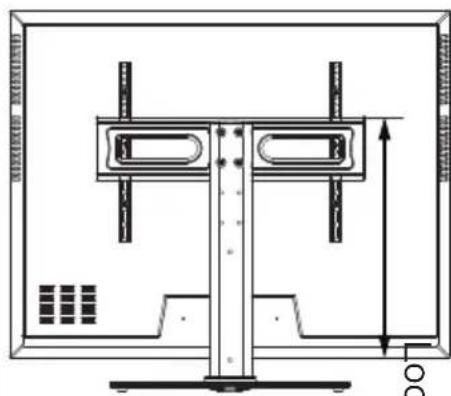

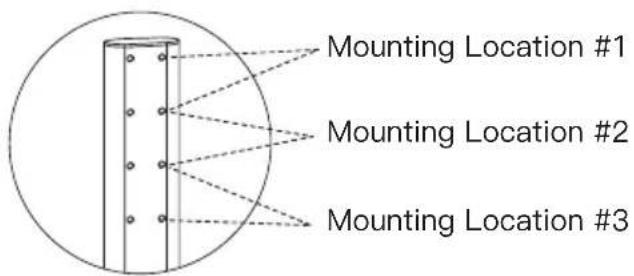

Step 3 Connect the TV Plate [M] to Support Pillar [P]

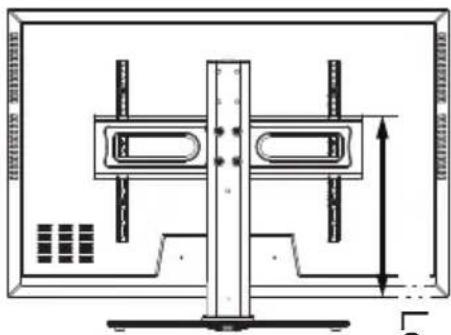

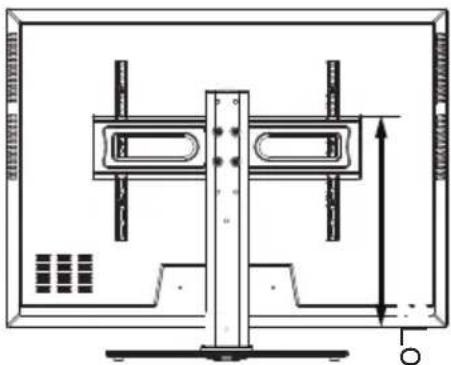

Note: Before attaching the TV Mounting Plate to the pillar, measure the distance from the upper hook on the TV Bracket to the bottom of the TV. Then refer to chart below for the recommended mounting location. To add an additional "2" of space between your TV and the base, use the lower hooks located on the TV Brackets. We always recommend using the lowest possible attachment location for the safest assembly.

Distance from the hooks on the TV Brackets to the bottom of the TV

Recommended TV Mounting Plate Location

20 1/8" to 23 1/2"

Location #1

16 3/4" to 20 1/8"

Location #2

Less Than 16 3/4"

Location #3

You may need assistance with this step

Supplied Part for Step 4
(K) x2 Wire Clip

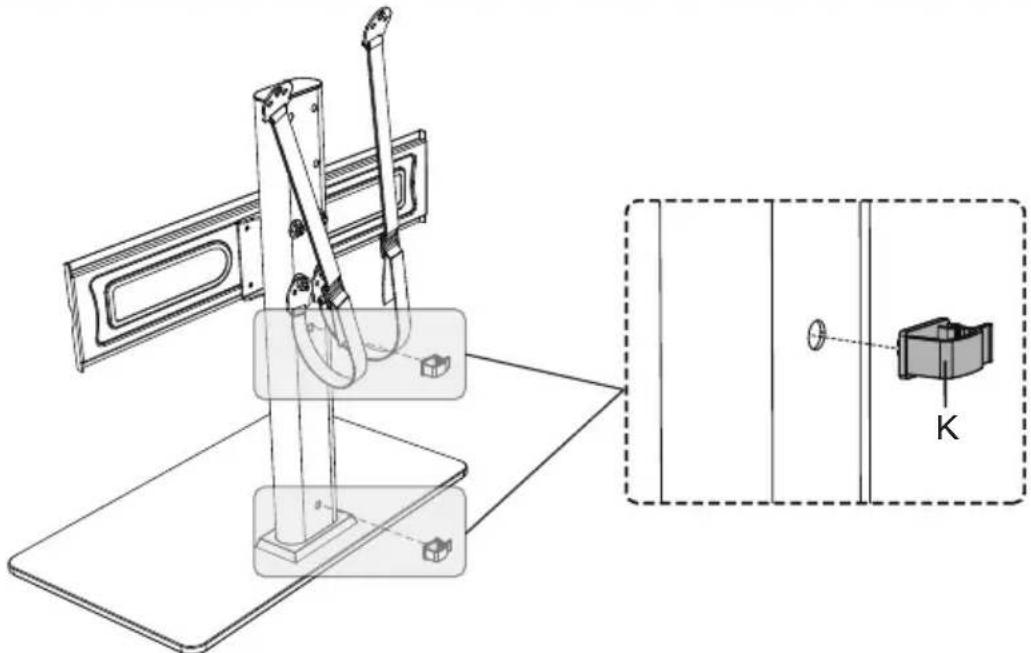

Step 4 Secure the Wire Clips [K] to Support Pillar [P]

Supplied Part for Step 5

(K1) x2

Safety Lock

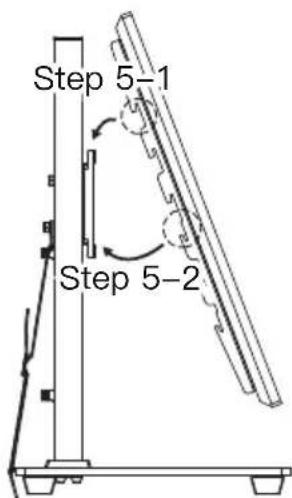

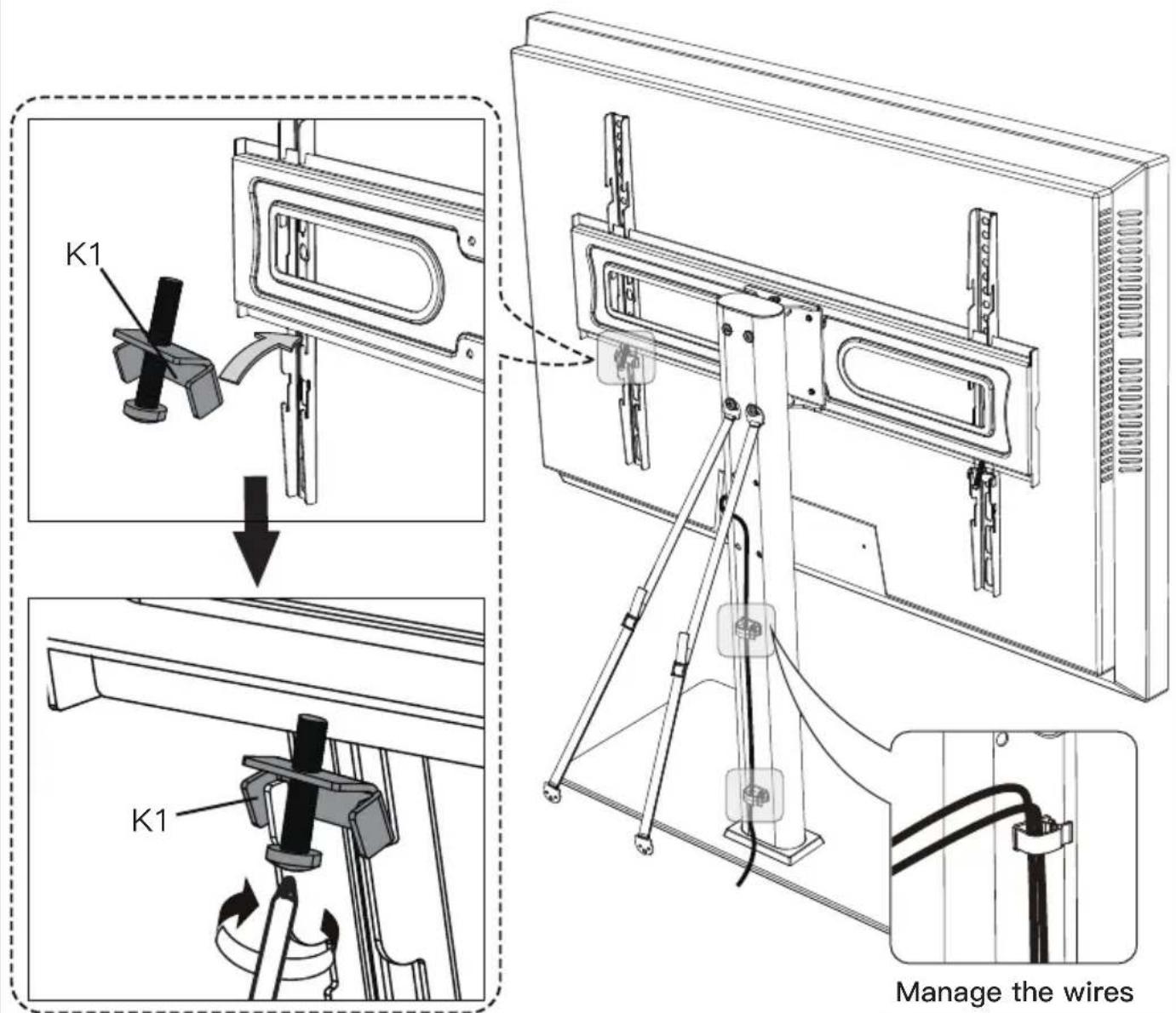

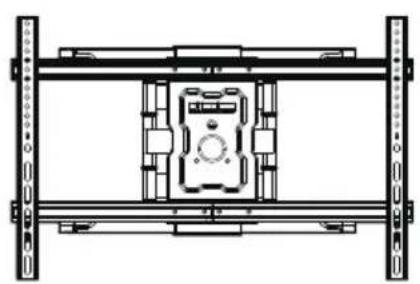

Step 5 Attach TV to the TV Plate [M] and Manage the Wires

We recommend always having a second person to help during this step. TV can be heavy and awkward to place on the stand. It is best to have 2 people lift the TV from the sides so they can see the attachment points.

Smaller TV's use the upper hooks

Larger TV's use the lower hooks

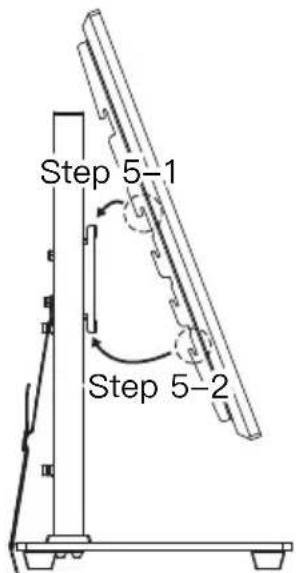

Step 5-1 Hang the TV with brackets to the TV plate.

Step 5-2 Push the bottom of the TV to TV plate.

Note: Attached TV Brackets to the TV Mounting plate on the lowest placement that allows for TV to fit.

OR

Step 5-3 Insert the safety locks [K1] into the upward facing hooks at the midway to lower part of the TV bracket. Please note this is where the lower part of the TV bracket meets the TV plate. Then tighten the bolts of the safety lock [K1] until the bolts touch the TV plate.

Note: Make sure the bolt is tighten behind the TV mounting plate.

Phillips Screwdriver (Not Included)

Supplied Hardware for Step 6A

For wooden table furniture/wood stud installation.

Screw M5X25mm Screw M5X60mm M5 Washer(BK)

Secure The Safety Straps With TV Stand Against The Wall

Note: For the safest possible installation, we recommend using the included safety straps. By doing so, you will greatly reduce the possibility of a TV Tip Over.

For wooden table furniture installation, follow STEP 6A.

For wood stud installation, follow STEP 6B.

For solid concrete or concrete block installation, follow STEP 6C.

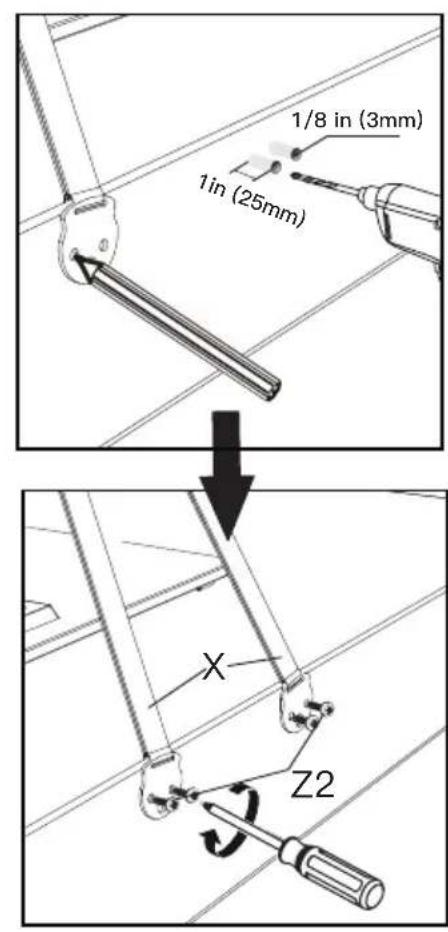

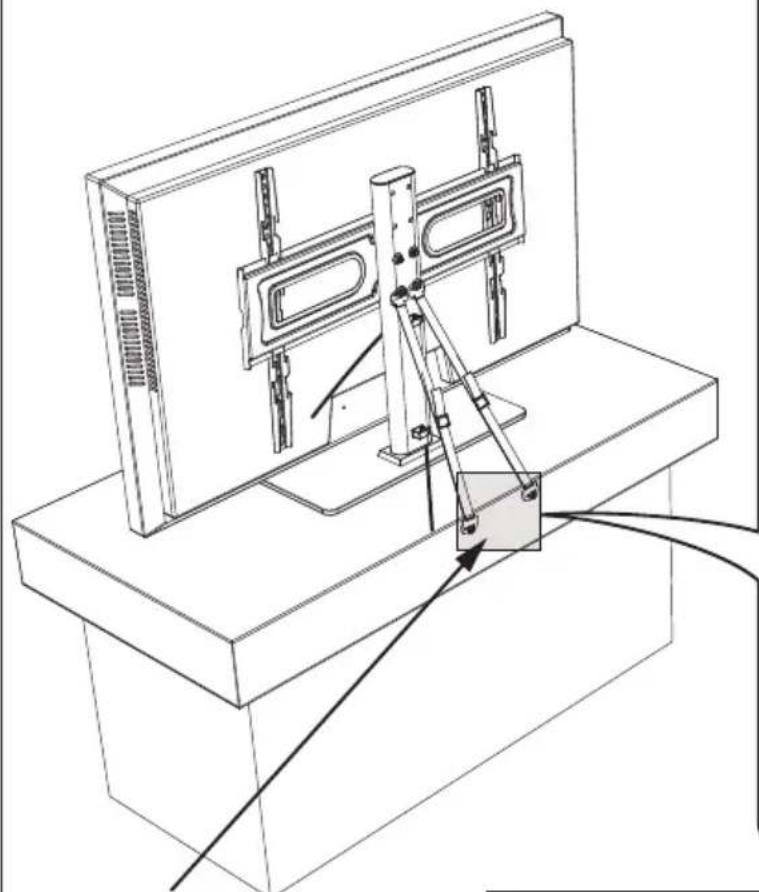

Step 6A

For Wooden Table Furniture Installation

DO NOT USE ANCHOR [Z4] FOR THIS STEP!

Note: It is necessary to predrill a pilot hole to avoid splitting the wood. Being careful not to damage your furniture.

Caution: The mounting surface must be thicker than 1 in (25mm).

It is recommended that the safety straps be mounted at least 12" apart.

Pencil (Not Included)

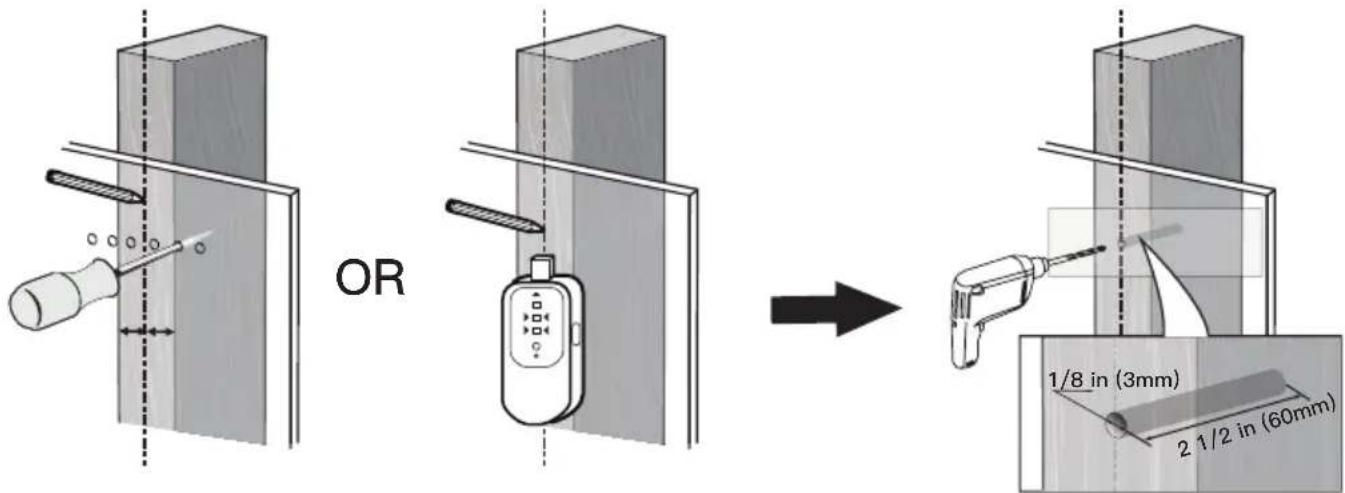

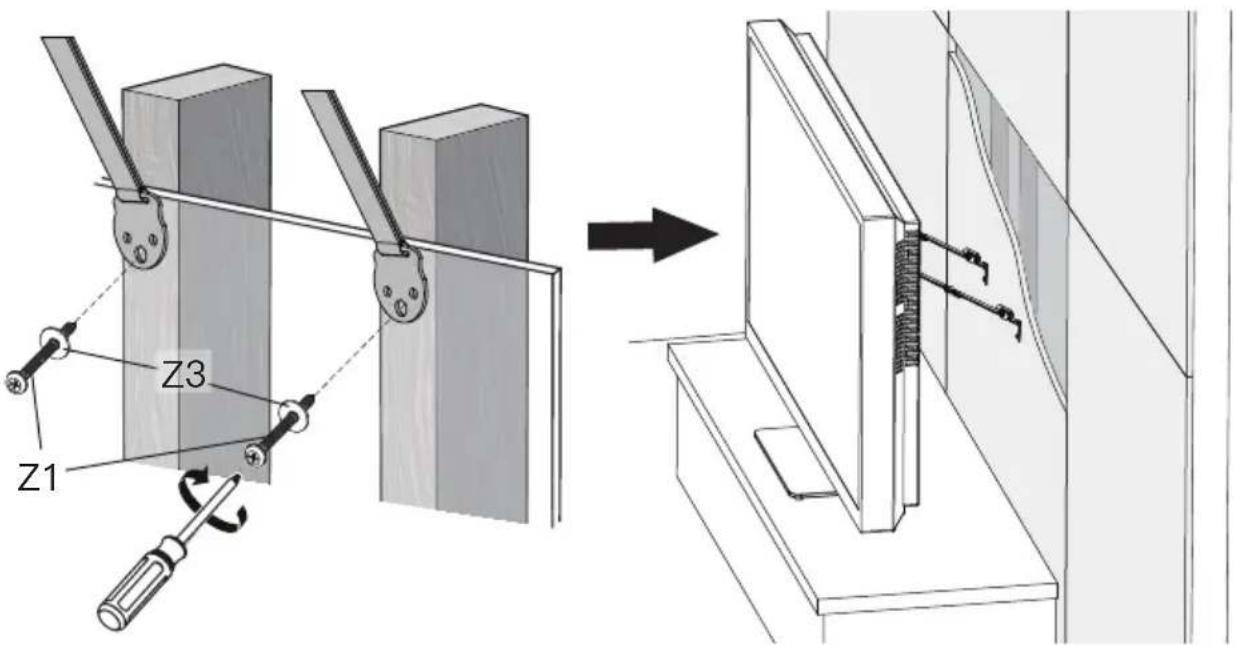

Step 6B

For Wooden Stud Installation

DO NOT USE ANCHOR [Z4] FOR THIS STEP!
- Any material covering the wall must not exceed 5/8 in (16mm) .
- Nominal wood stud size: common 2 × 4 in (51 × 102 ~mm) minimum 1 12 × 3 12 in (38 × 89 ~mm) .
- Stud center must be verified by using an awl or stud finder.

Pencil (Not Included)

Awl (Not Included)

Stud Finder (Not Included)

1/8 in (3mm) Wood Drill Bit

Note: Each strap must be mounted to a separate stud.

Phillips Screwdriver (Not Included)

Supplied Hardware for Step 6C
Screw M5X60mm M5 Washer(BK) Z1 x2 Z3 x2 Z4 x2
Step 6C For Solid Concrete or Concrete Block Installation
● Must use wall anchor [Z4] for this step. ● Any material covering the wall must not exceed 5/8 in (16 mm). ● Minimum solid concrete thickness: 203 mm (8 in). ● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in). ● Never drill into the mortar between blocks.
12 in (305mm)
5/16 in (8mm) 2 9/16 in (65mm)
Z4
Hammer (Not Included)	5/16 in (8mm) Concrete Drill Bit
Z3 Z1

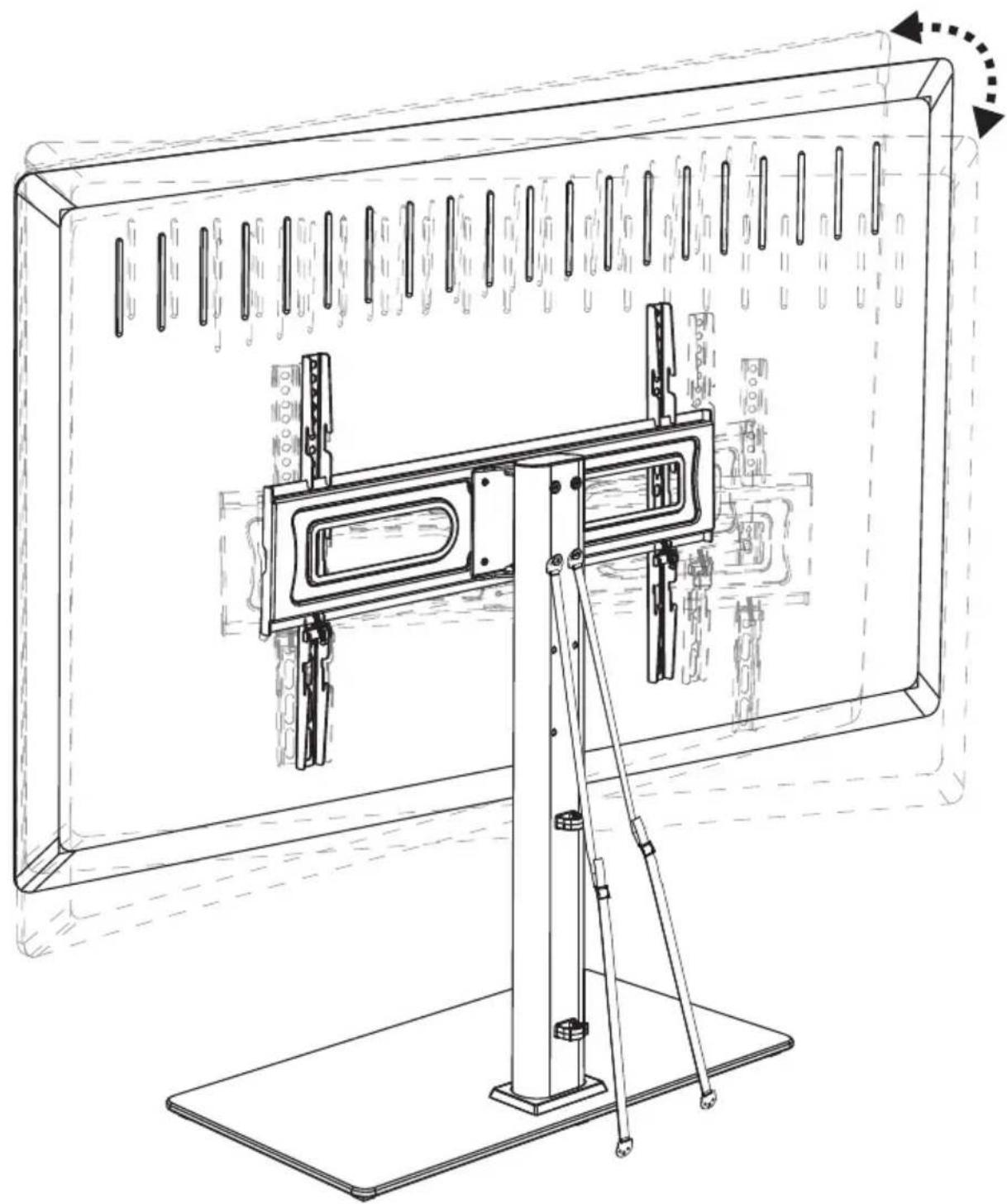

Step 7 Swivel Adjustment

If necessary, the TV plate or TV can be swivelled manually.

CONSIGNES DE SECURITE IMPORTANTES

(C1) x4
M4x12mm
Boulon

(C2) x4 M4x30mm Boulon

(D1) x4 M6x15mm Boulon

(D2) x4 M6x35mm Boulon

(E1) x4 M8x15mm Boulon

(E2) x4 M8x35mm Boulon

(E3) x4 M8x50mm Boulon

(F1) x8 L2.5mm Entretoises

(F2) x4 L10mm Entretoises

(F3) x4 L22mm Entretoises

Trop court Correct Trop long

(L) x3 M6x25mm Boulon

(W) x6 Coussinets Bas

(P) x1 Pilier support

(R) x1 Plaque de renforcement

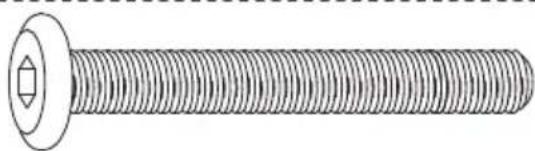

(S) x4
M6x50mm
Boulon

(T)×4
M6x8mm
Boulon

(V) x1
5/32 pouce (4mm)
cle allen

(N) x2
Placa de television

(B1) x4 M4/M5 Arandela

(B2) x4 M6/M8 Arandela

(L) x3 M6x25mm Perno

(M) x1
Placa de
television

(A) x1
componente
giratorio

(V) × 1
5/32 pulg (4mm)
Llave Allen

At ErgoAV, we strive to provide the highest valued products.

We want to support your purchase.

If you have questions, concerns,

or feedback please let us know!

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

[e-mail]

TV Mounts

Speaker Stands

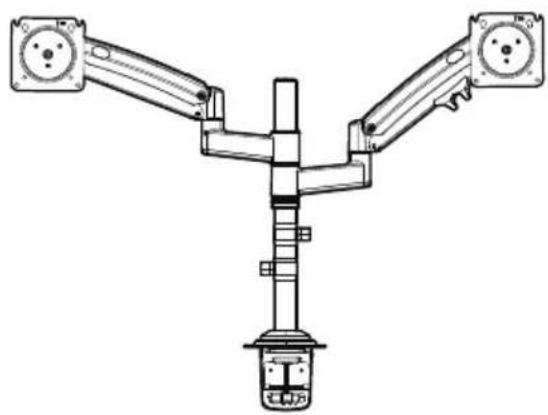

Computer Monitor Mounts
