USER MANUAL ERTSL1-01B ErgoAV

Table Top TV Stand Instruction Manual

V1.0

English pages: 02–15 French pages: 16–29 Spanish pages: 30–43

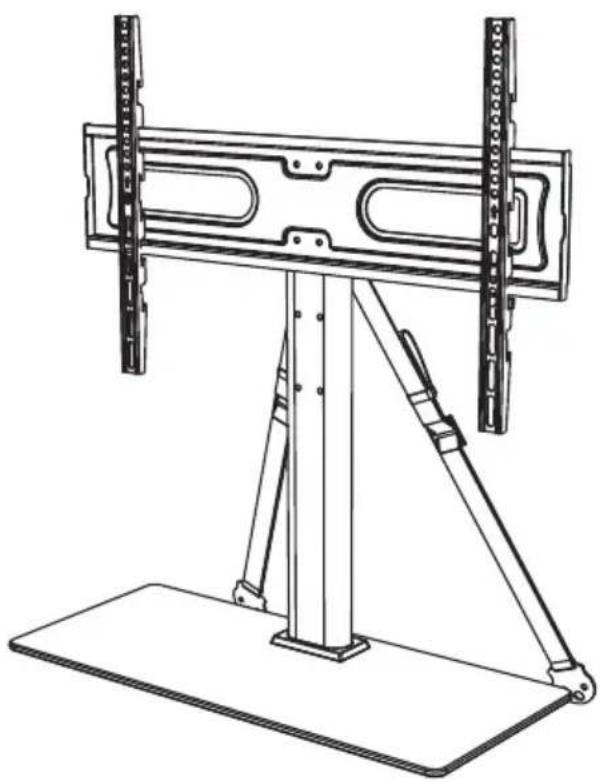

Technical line drawing of a mechanical support device with vertical supports and mounting base (no text or symbols)

Model: ERTSL1-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

adress: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.

Please carefully read all instructions before attempting assembly. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].

Before getting starting, let's make sure this mount is perfect for you!

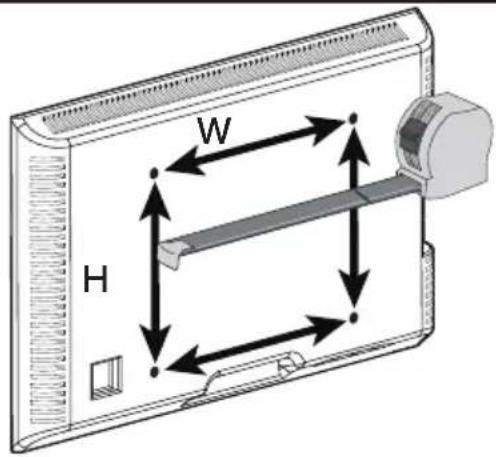

Measure Your TV VESA Pattern:

Minimum: 100x100mm/4x4 in (WxH)

Maximum: 600x400mm/23.6x15.7 in (WxH)

If your TV is not between the minimum and maximum measurements, do not use this product.

W H

If your TV weighs more than 99 lbs, Do not use this product.

99lbs/ 44.9kg

For safety strap installations you will need to verify your wall construction

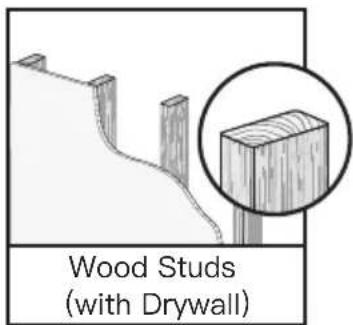

Wood Studs (with Drywall)

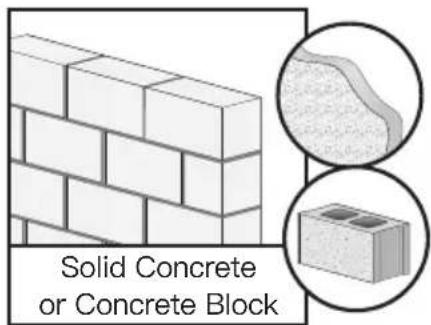

Solid Concrete or Concrete Block

DO NOT install into drywall alone.

If this mount is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

Tools Needed (Not Included)

For TV Stand assembly

Tape Measure

Phillips Screwdriver

For safety strap installatcon into wood table/furniture and wood stud applications

Tape Measure Pencil

AwlStud Finder

Drill

Phillips Screwdriver

For safety straps installation into concrete wall

Tape Measure

Pencil

Drill

5/16 in (8mm) Concrete Drill Bit Hammer

Phillips Screwdriver

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail].

- Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

Technical line drawing of a mechanical component with multiple slots and grooves (no text or symbols)

(N) x2 TV Bracket

(B1) x4
M4/M5
Washer

(B2) x4
M6/M8
Washer

Bolts and Spacers are shown in actual size.

(C1) x4

M4x12mm Bolt

(D1) x4

M6x15mm Bolt

(E1) x4
M8x15mm Bolt

(C2) x4

M4x30mm Bolt

Technical line drawing of a threaded screw with a flat head and a semicircular end (no text or symbols)

(D2) x4

M6x35mm Bolt

Technical line drawing of a threaded bolt with a flanged end (no text or symbols)

(E2) x4
M8x35mm Bolt

Technical line drawing of a threaded bolt with a flanged end (no text or symbols)

(E3) x4
M8x50mm Bolt

(F1) x8
L2.5mm
Spacer

Pure technical line drawing of a cylindrical mechanical component with internal channels (no text or symbols)

(F2) x4
L10mm
Spacer

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

(F3) x4
L22mm
Spacer

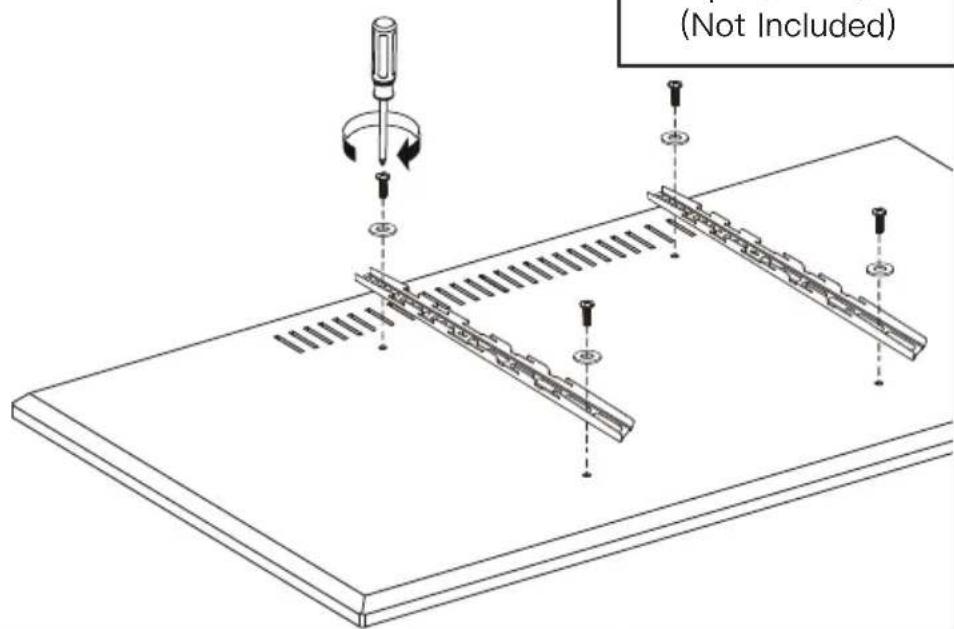

Step 1 Secure the TV Brackets [N] to the TV

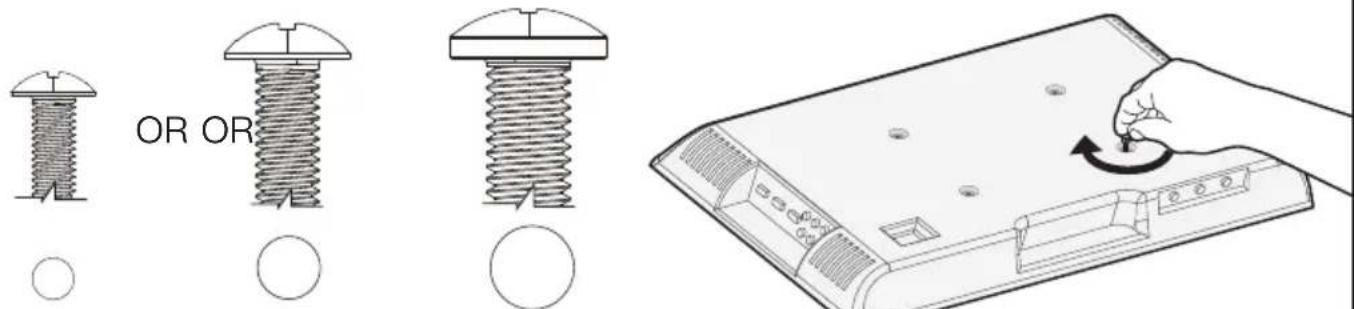

Select TV Bolts

Only one bolt size fits your TV.

OR OR

M6 M8M4

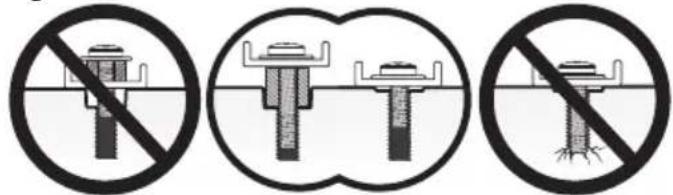

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Three circular diagrams showing no-protection symbols for a mechanical or electrical component, with different fill patterns.

Too Short Correct Too Long

Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

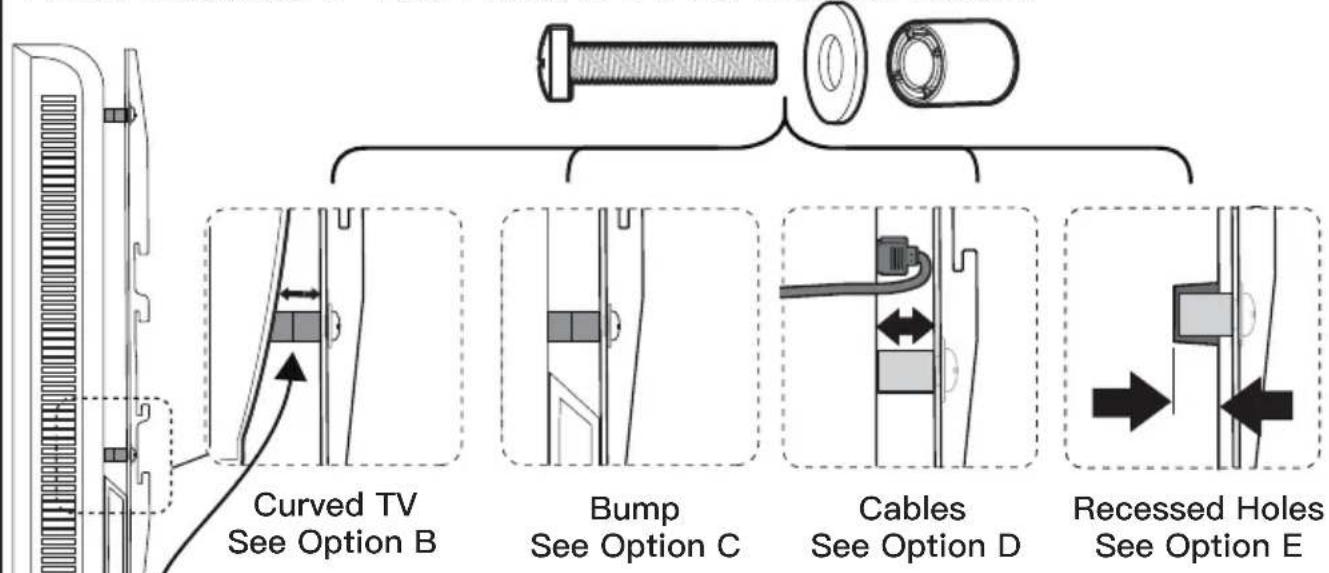

Parts Needed if You Have a TV as Shown Below

Curved TV See Option B Bump See Option C Cables See Option D Recessed Holes See Option E

Spacers

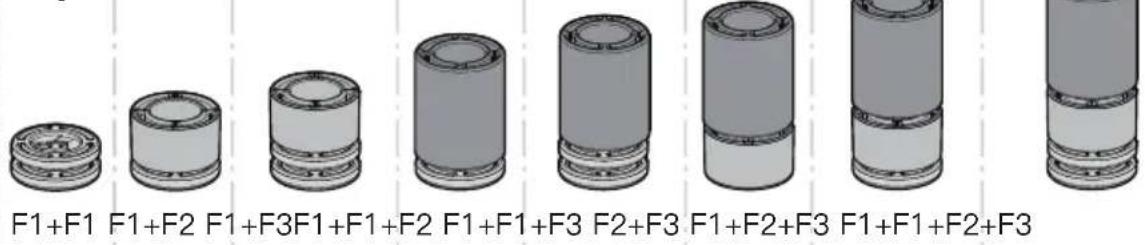

F1+F1 F1+F2 F1+F3 F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

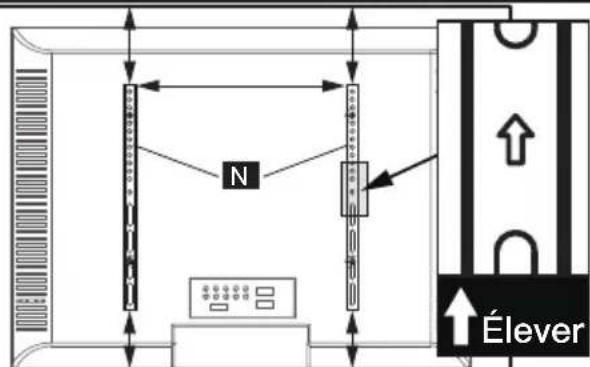

N ↑UP

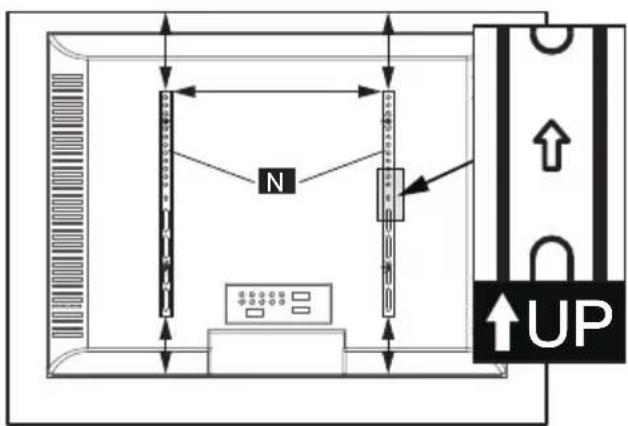

When attaching the TV Brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV and are equally centered on the back of the TV.

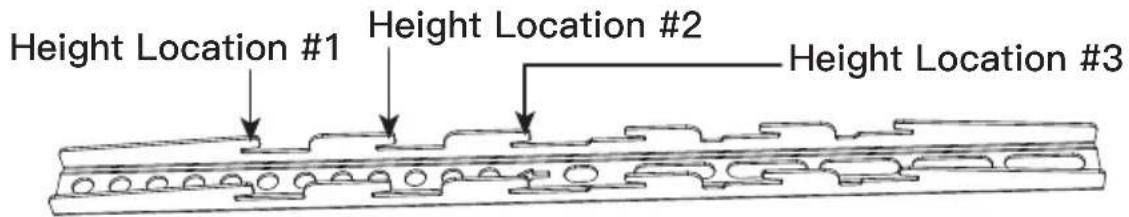

TV Brackets have “three height locations”, which determines the height position of your TV while attaching your TV on the stand in Step 5 on page 12. You can choose the proper height.

Height Location #1 Height Location #2 Height Location #3

Option A (For Flat Back TV)

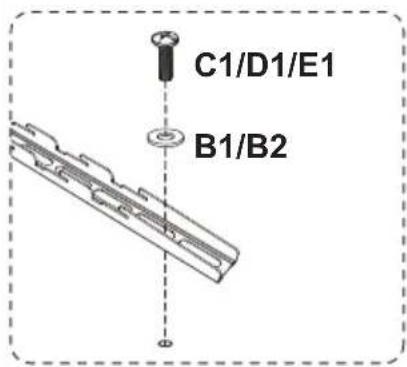

C1/D1/E1 B1/B2

(Not Included)

Phillips Screwdriver (Not Included)

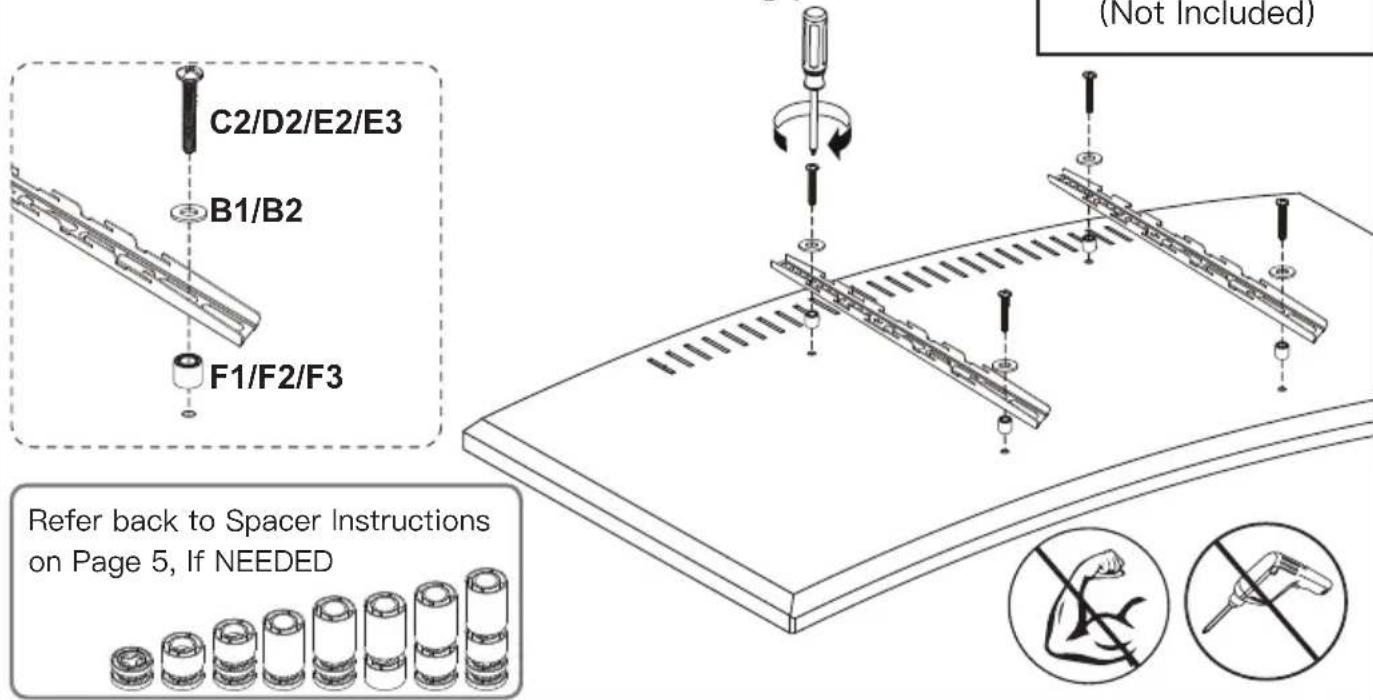

Option B (For Curved Back TV)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 B1/B2 F1/F2/F3 (Not Included) Refer back to Spacer Instructions on Page 5, If NEEDED

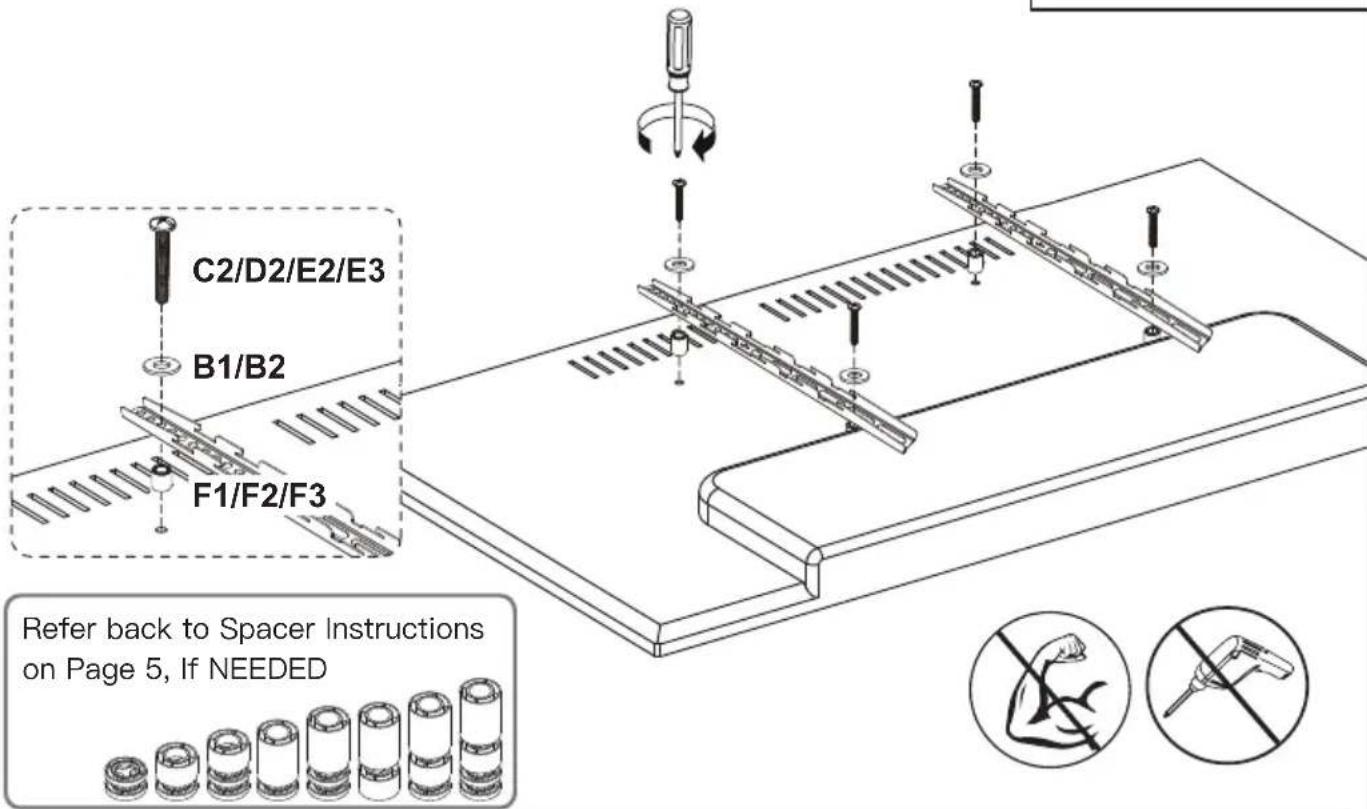

Option C (For TV with A "Bump")

Spacers must be large enough so TV bracekts are flush (NO GAP) on bump.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 B1/B2 F1/F2/F3 Refer back to Spacer Instructions on Page 5, If NEEDED

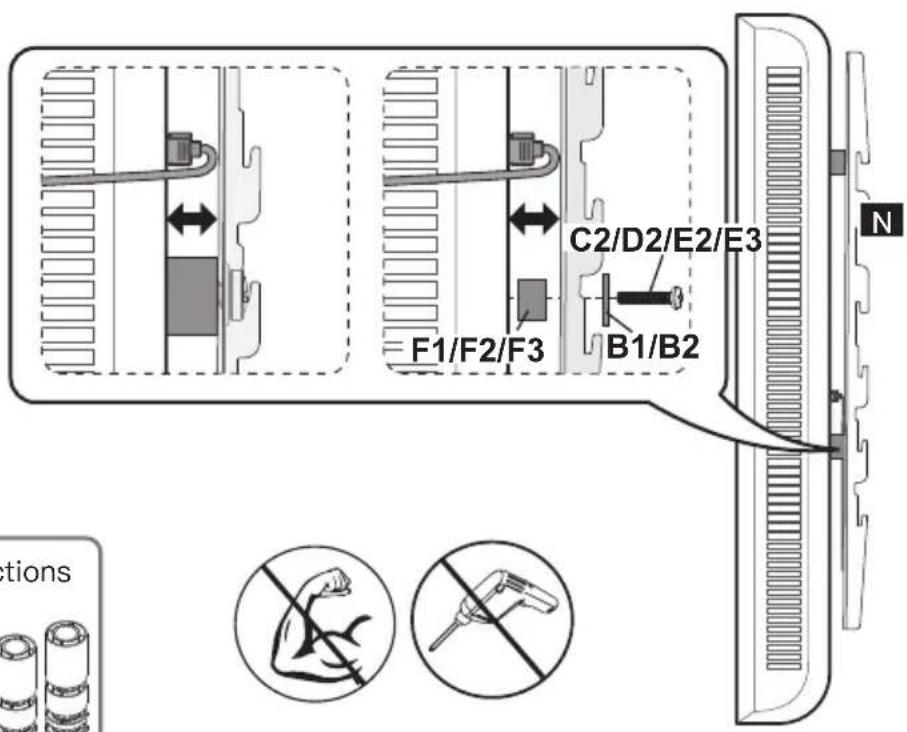

Option D (for TV with Cable Interference)

For cable interference, use spacers [F1], [F2] and [F3] to create extra space between the TV and TV brackets.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 F1/F2/F3 B1/B2 N Tctions

Refer back to Spacer Instructions on Page 5, If NEEDED

Illustration of cylindrical mechanical components arranged in rows (no text or symbols)

Two crossed-out safety symbols: one with a flexing arm crossed out, another with a tool inserted.

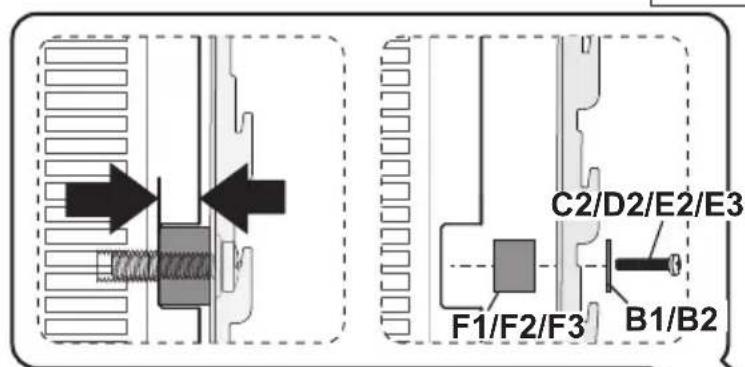

Option E (For Recessed Holes)

The spacer need to fill in the recessed holes on the basis of the TV so that the TV brackets are as close to the TV as possible.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 F1/F2/F3 B1/B2

Refer back to Spacer Instructions on Page 5, If NEEDED

Illustration of cylindrical mechanical components arranged in a row (no text or symbols)

Supplied Parts and Hardware for Step 2

This bolt is shown in actual size.

Technical line drawing of a bolt with a flanged head and threaded shaft (no text or symbols)

(L) × 3

M6x25mm Bolt

(W) x6

Foot Pad

(R) x1

Reinforcement Plate

(Y) ×1

Trim Ring

(P) x1

Support Pillar

(0) × 1

Tempered

Glass Base

(V) ×1

5/32 in (4mm)

Allen Key

Step 2 Assemble the Base

Step 2-1

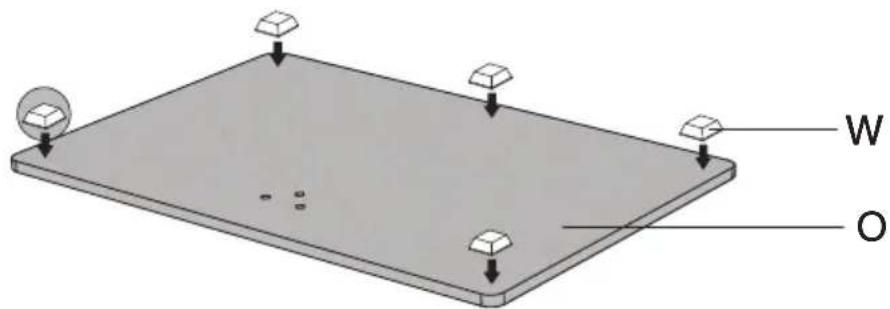

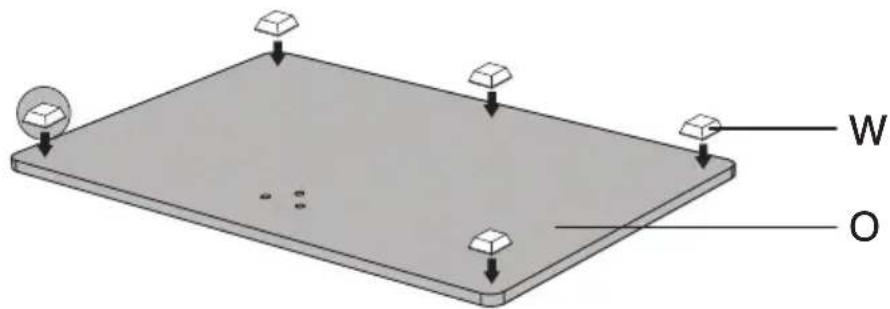

Place foot pads [W] to the painted side of the tempered glass base [O] in the corners.

Simple 3D icon of a boat with an arrow indicating direction (no text or symbols)

W O

Step 2-2

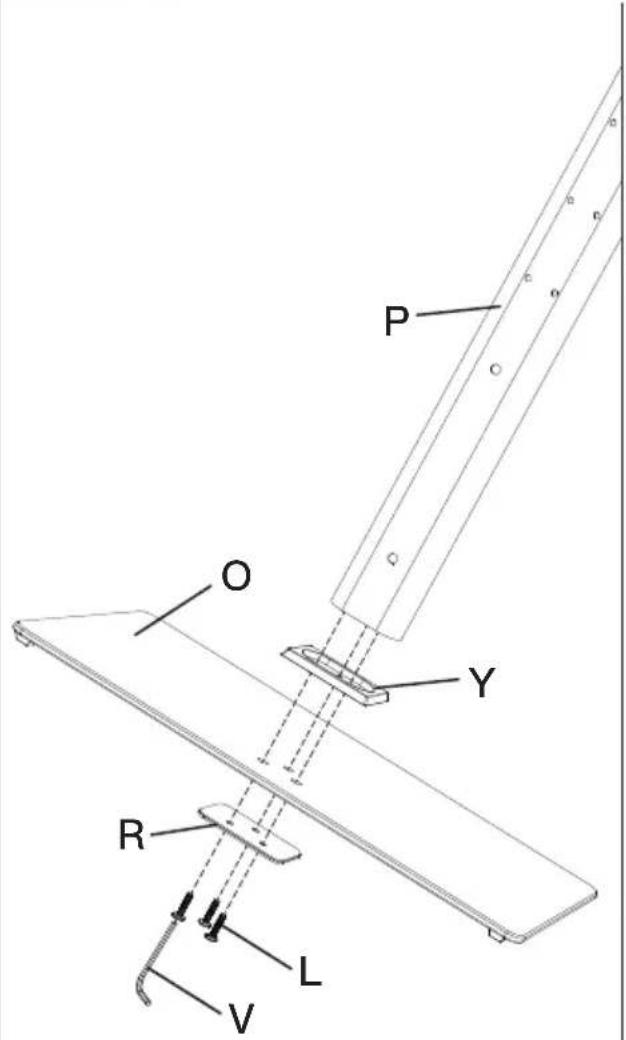

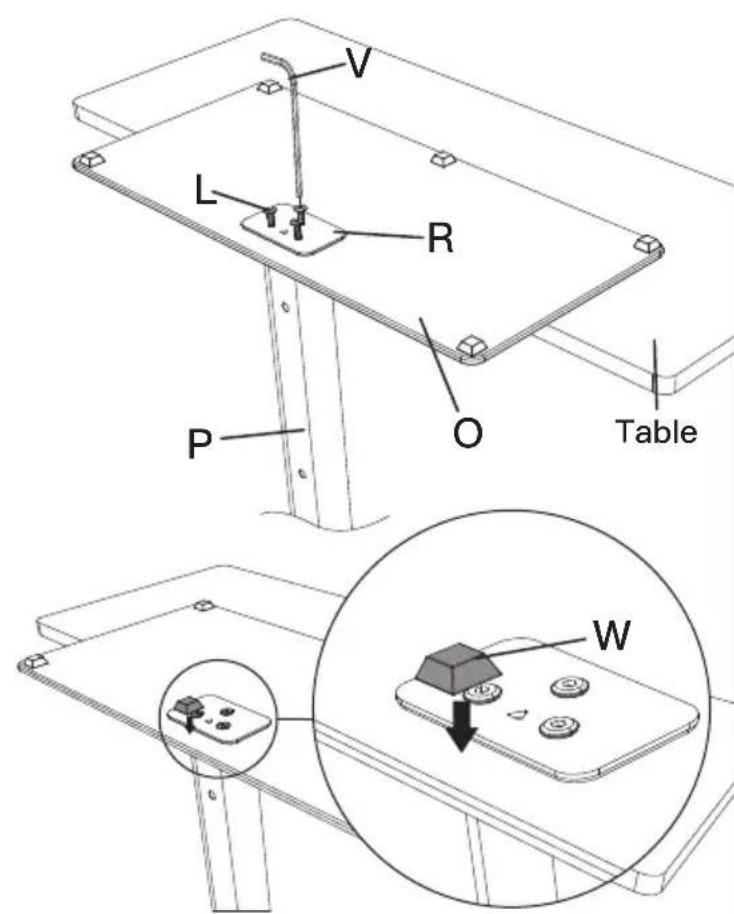

Connect the support pillar [P] to tempered glass base [O]

P O Y R L V

V L R P O Table W

When assembling the pillar, ensure the side of the reinforcing plate [R] with paper is facing the glass base [O]. Do Not overtighten the bolts [L].

Supplied Parts and Hardware for Step 3

Pure mechanical diagram of a shaft with flanges and central housing (no text or symbols)

(X) x2
Safety Strap

Technical line drawing of a rectangular mechanical component with two internal oval cutouts (no text or symbols)

(M) ×1
TV Plate

(T) x4
D6.5 Washer

This bolt is shown in actual size.

Technical line drawing of a mechanical screw with threaded end (no text or symbols)

(S) x4

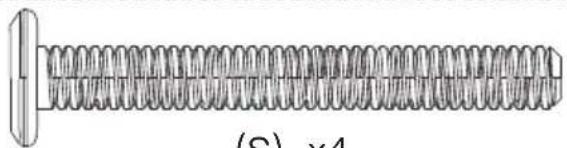

M6x50mm Bolt

(Q) x4
M6 Nut

(V) x1
5/32 in (4mm)
Allen Key

(V) x1
3/8 in (10mm)
Wrench

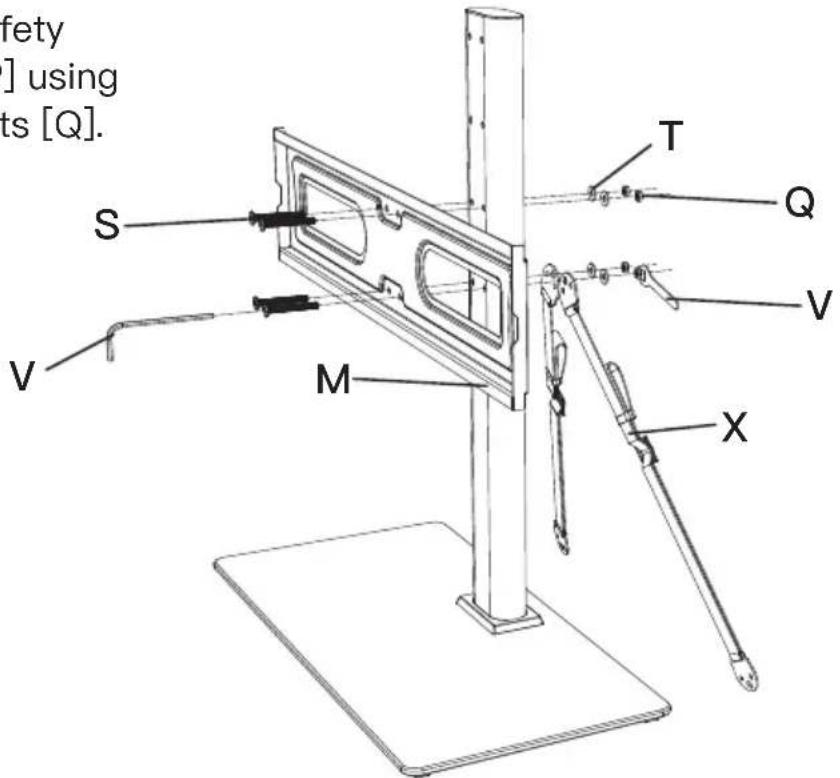

Step 3 Connect the TV Plate [M] to Support Pillar [P]

Note: Before attaching the TV Mounting Plate to the pillar, measure the distance from the upper hook on the TV Bracket to the bottom of the TV. Then refer to chart below for the recommended mounting location. To add an additional 2" of space between your TV and the base, use the lower hooks located on the TV Brackets. We always recommend using the lowest possible attachment location for the safest assembly.

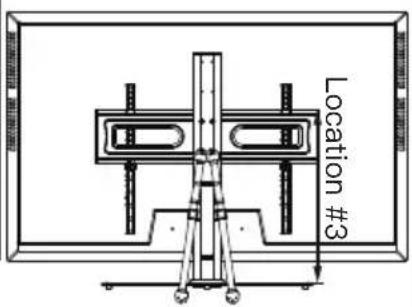

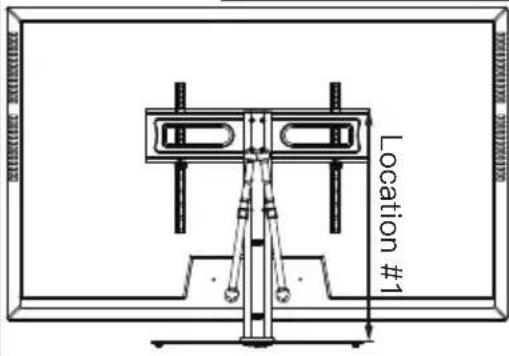

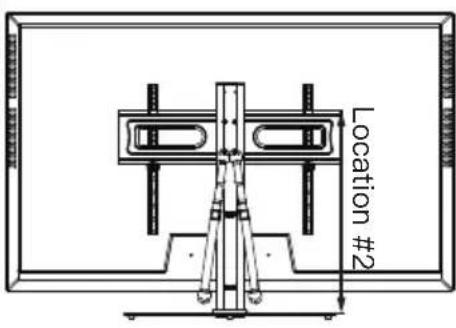

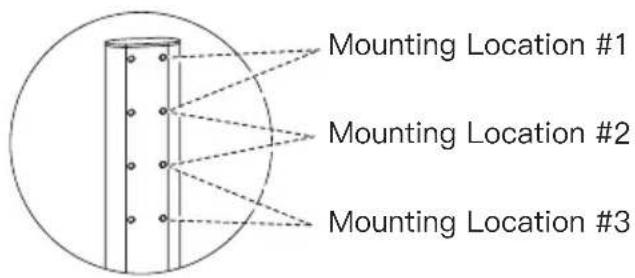

Mounting Location #1 Mounting Location #2 Mounting Location #3

Distance from the hooks on the TV Brackets to the bottom of the TV	Recommended TV Mounting Plate Location
20 1/8” to 23 1/2”	Location #1
16 3/4” to 20 1/8”	Location #2
Less Than 16 3/4”	Location #3

Location #1

Location #2

Location #3

Connect TV plate [M] and safety straps [X] to support pillar [P] using bolts [S], washers [T] and nuts [Q].

fety ] using ts [Q]. S T Q V M X

Supplied Part for Step 4

Line drawing of a mechanical component or housing (no text or symbols)

(K) x2

Wire Clip

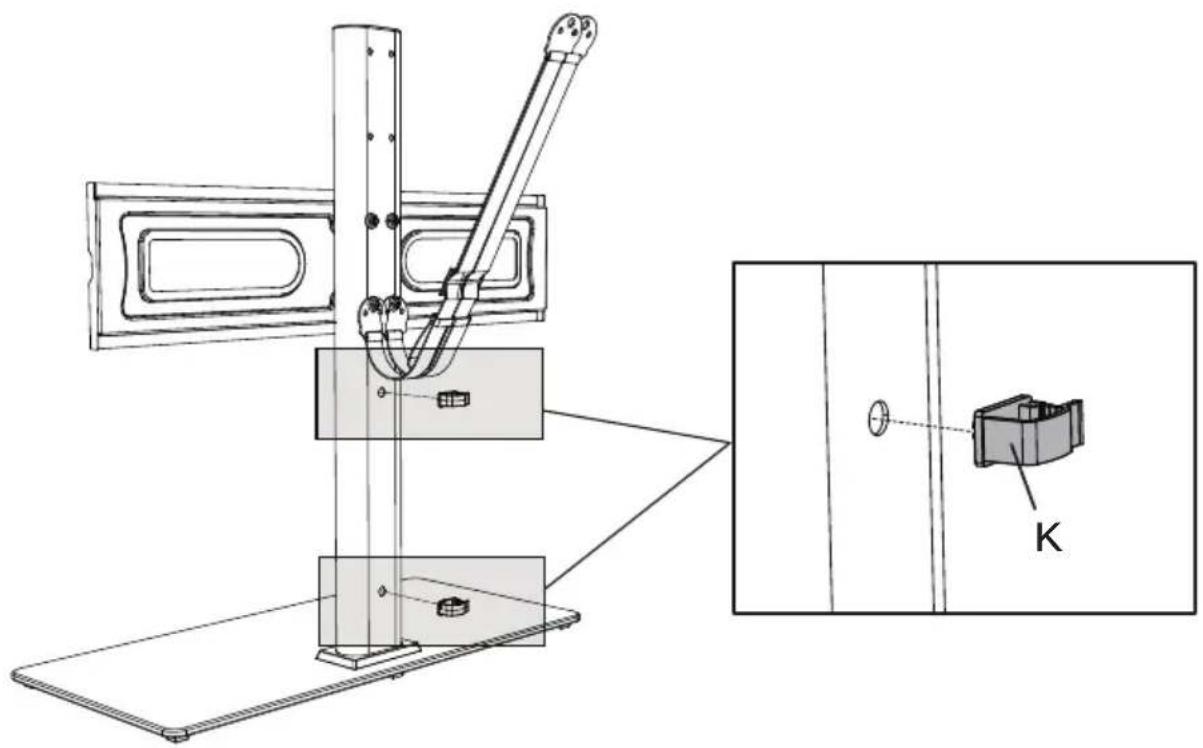

Step 4 Secure the Wire Clips [K] to Support Pillar [P]

Technical line drawing of a mechanical device with a bracket and mounting base, showing internal components and an inset view labeled 'K' (no text or symbols beyond labels)

Supplied Part and Hardware for Step 5–3

Technical line drawing of a bolt and nut assembly (no text or symbols)

(K1) x2

Safety Lock

Step 5 Attach TV to the TV Plate [M] and Manage the Wires

Two stylized human figures shaking hands in a handshake (no text or symbols)

We recommend always having a second person to help during this step. TV can be heavy and awkward to place on the stand. It is best to have 2 people lift the TV from the sides so they can see the attachment points.

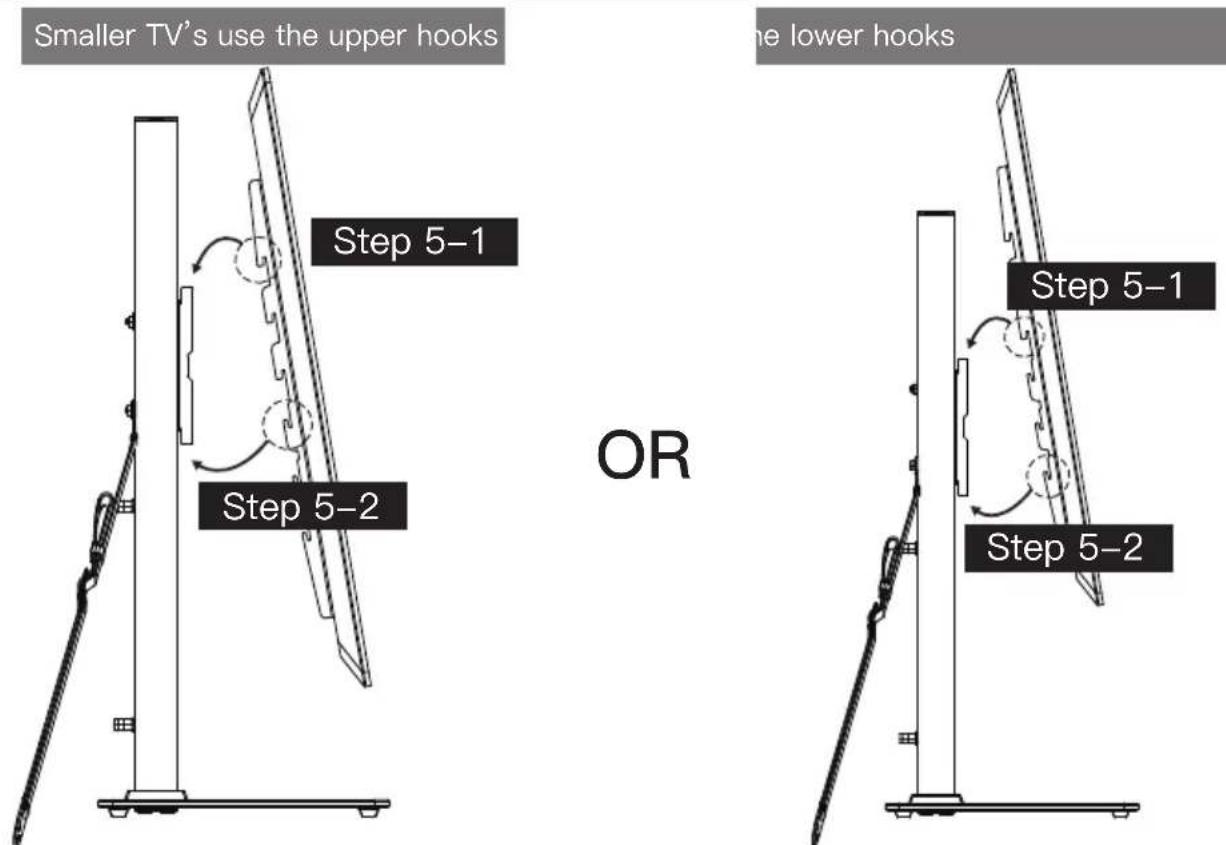

Step 5-1 Hang the TV with brackets to the TV plate.

Step 5-2 Push the bottom of the TV to TV plate.

Note: Attached TV Brackets to the TV Mounting plate on the lowest placement that allows for TV to fit.

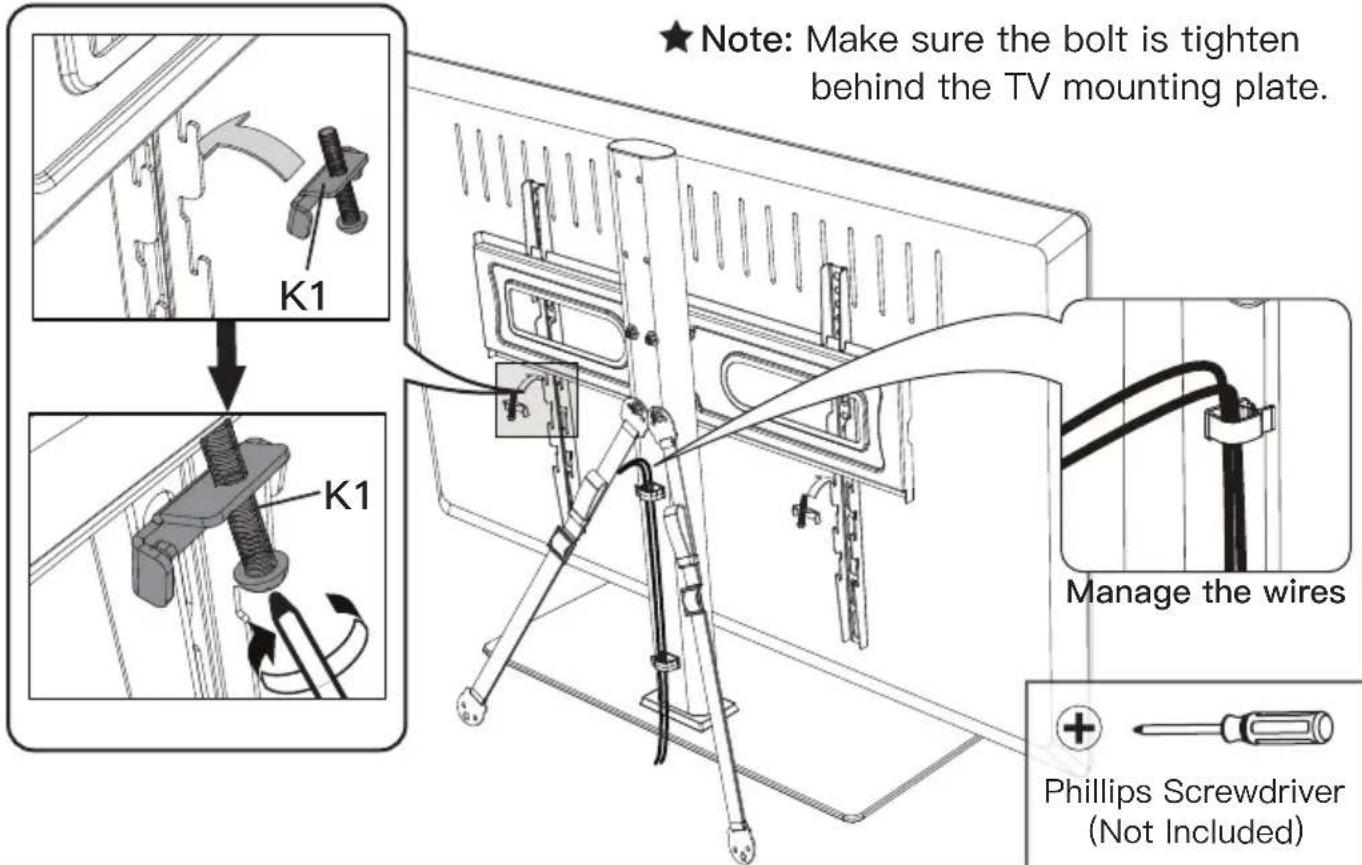

Step 5-3 Insert the safety locks [K1] into the upward facing hooks at the midway to lower part of the TV bracket. Please note this is where the lower part of the TV bracket meets the TV plate. Then tighten the bolts of the safety lock [K1] until the bolts touch the TV plate.

Note: Make sure the bolt is tighten behind the TV mounting plate. K1 K1 Manage the wires Philips Screwdriver (Not Included)

Note: Make sure the bolt is tighten behind the TV mounting plate.

Supplied Hardware for Step 6A

For wooden table furniture/wood stud installation.

Screw M5X60mm

Z1 x2

Screw M5X25mm

Z2 x4

M5 Washer(BK)

Z3 x2

Secure The Safety Straps With TV Stand Against The Wall

Note: For the safest possible installation, we recommend using the included safety straps. By doing so, you will greatly reduce the possibility of a TV Tip Over.

Three technical diagrams showing 3D block arrangements, a cross-section of a wooden grain, and a blank rectangular layout (no text or symbols)

For wooden table furniture installation, follow STEP 6A

For wood stud installation, follow STEP 6B

For solid concrete or concrete blocy installation, follow STEP 6C

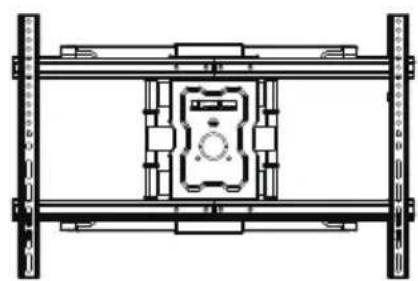

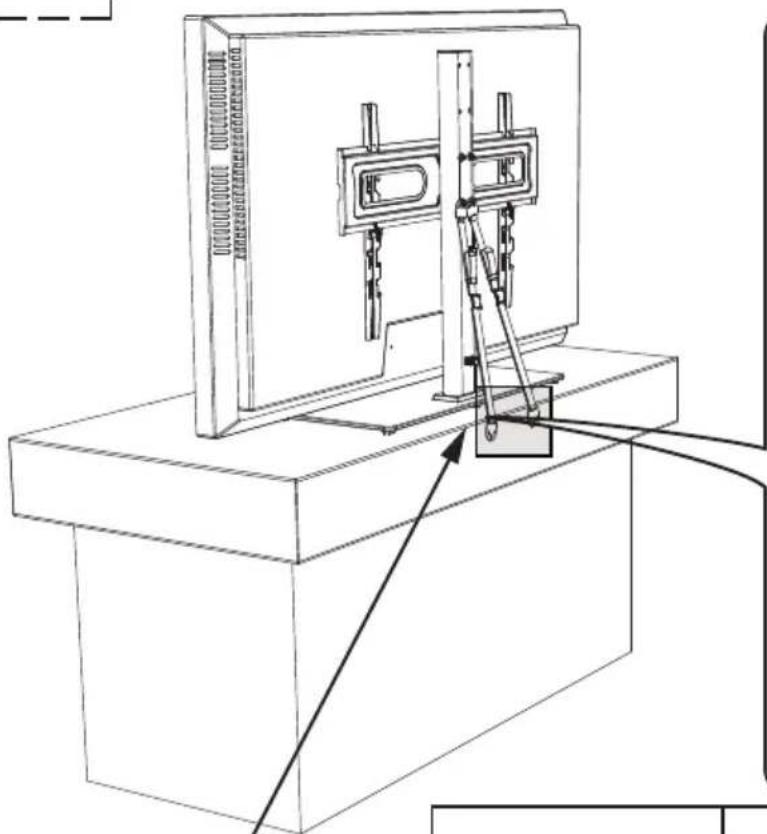

Step 6A For Wooden Table furniture Installation

● DO NOT USE ANCHOR [Z4] FOR THIS STEP!

Note: It is necessary to predrill a pilot hole to avoid splitting the wood. Being careful not to damage your furniture.

Caution: The mounting surface must be thicker than 1 in. (25mm).

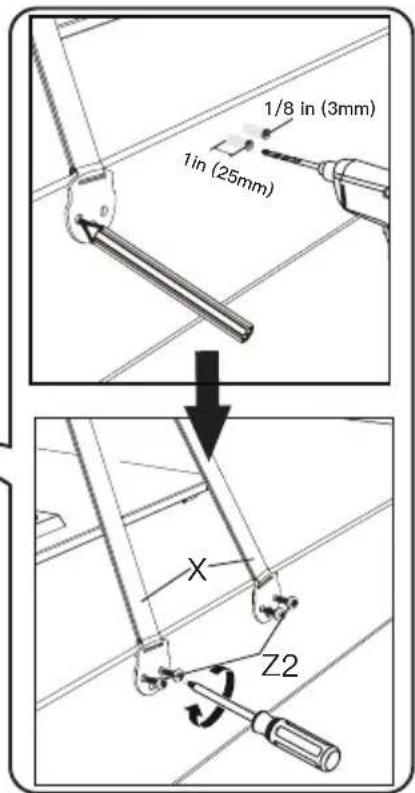

Technical line drawing of a mechanical testing setup with a control panel and base (no text or symbols)

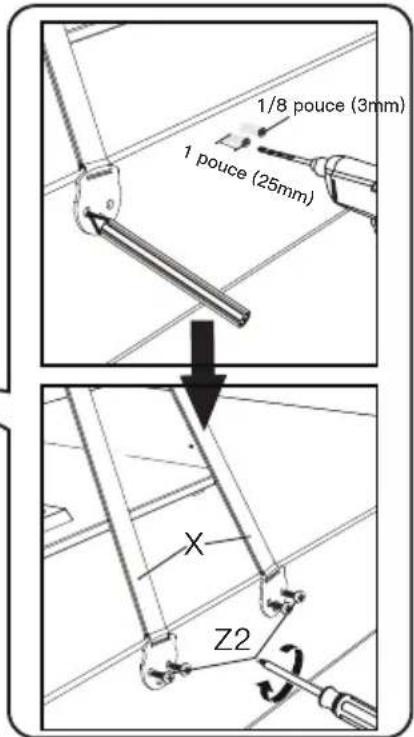

1/8 in (3mm) 1in (25mm) X Z2

It is recommended that the safety straps be mounted at least 12" apart.

Pencil (Not Included)

Phillips Screwdriver (Not Included)

1 in (25mm) 1/8 in (3mm)

For Wooden Stud Installation

● DO NOT USE ANCHOR [Z4] FOR THIS STEP!

● Any material covering the wall must not exceed 5/8 in (16 mm)

- Nominal wood stud size: common 2 x 4 in (51 x 102 mm) minimum 1 12 × 3 12 in (38 x 89 mm)

● Stud center must be verified by using an awl or stod finder

OR

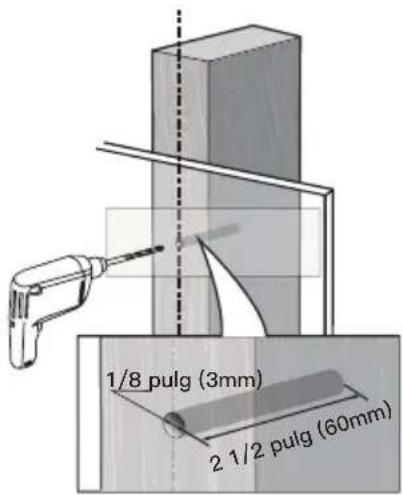

1/8 in (3mm)

2 1/2 in (60mm)

Pencil (Not Included)

Awl (Not Included)

Stud Finder (Not Included)

1/8 in (3mm) Wood Drill Bit

Z3

Z1

Note: Each strap must be mounted to a separate stud.

Phillips Screwdriver (Not Included)

Supplied Hardware for Step 6C

Screw M5X60mm M5 Washer(BK)

Wall Anchor 8x50mm

Z1 x2

Z3 x2

Z4 x2

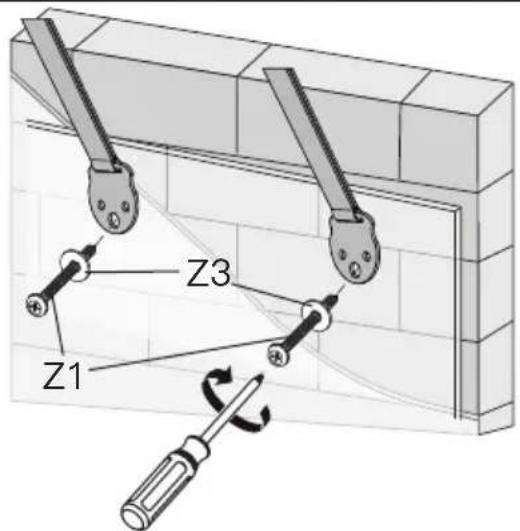

Step 6C For Solid Concrete or Concrete Block Installation

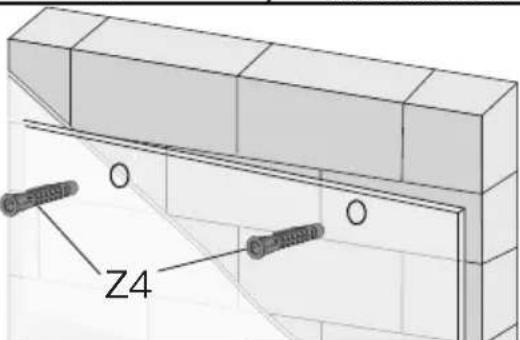

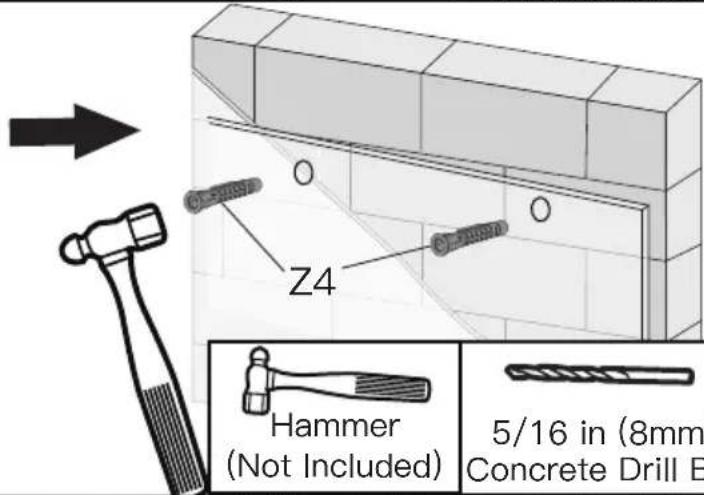

● Most with must weth must use wall anchor [Z4] for this step.
● Any material covering the wall must not exceed 5/8 in (16 mm).

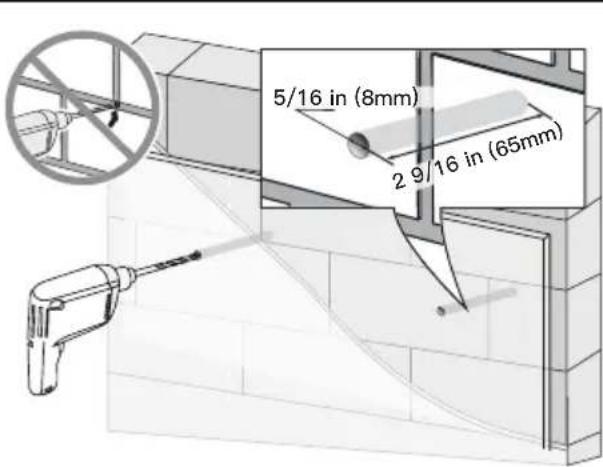

● Minimum solid concrete thickness: 203 mm (8 in).
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in).
● Never drill into the mortar between blocks.

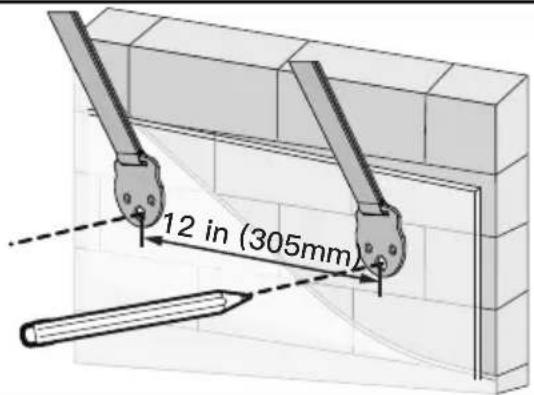

12 in (305mm)

Pencil (Not Included)

5/16 in (8mm) 29/16 in (65mm)

Z4 Hammer (Not Included) 5/16 in (8mm Concrete Drill B

Hammer (Not Included)

5/16 in (8mm) Concrete Drill Bit

Z1 Z3

Phillips Screwdriver (Not Included)

Phillips Screwdriver (Not Included)

CONSIGNES DE SECURITE IMPORTANTES

Minimum : 100x100mm/4x4 pouce (LxH)

Maximum : 600x400mm/23,7x15,7 pouce (LxH)

Technical line drawing of a mechanical component with evenly spaced slots and grooves (no text or symbols)

(N) x2 Support TV

(B1) x4
M4/M5
rondelle

(B2) x4
M6/M8
rondelle

M4x12mm boulon

(D1) x4

M6x15mm boulon

(E1) x4
M8x15mm boulon

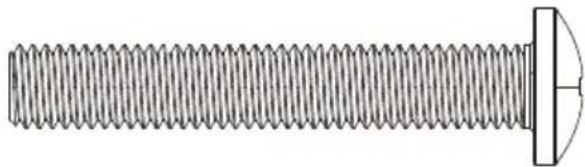

(C2) x4

M4x30mm boulon

Technical illustration of a threaded bolt with a flanged end and a semicircular head (no text or symbols)

(D2) x4

M6x35mm boulon

Technical line drawing of a threaded bolt with a flanged end (no text or symbols)

(E2) x4
M8x35mm boulon

Technical line drawing of a threaded bolt with a flanged end (no text or symbols)

(E3) x4
M8x50mm boulon

(F1) x8
L2.5mm
Entretoise

Pure technical line drawing of a cylindrical mechanical component with internal channels (no text or symbols)

(F2) x4
L10mm
Entretoise

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

(F3) x4
L22mm
Entretoise

Three circular diagrams showing no protection symbols for a mechanical device, with different mechanical configurations.

Trop court correct trop long

Sequence of cylindrical mechanical components with no visible text or symbols

F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

N Élever

(non inclus)

tournevis Phillips (non inclus)

Illustration of stacked cylindrical components arranged in a row (no text or symbols)

Option E (Pour les trous inversés)

Illustration of a row of cylindrical mechanical components (no text or symbols)

Technical line drawing of a bolt with threaded shaft and flange (no text or symbols)

(L) x3 M6x25mm boulon

(W) x6 Pied de lit

(R) x1 plaque de renfort

(Y) x1 anneau de garniture

(P) x1 Pilier de support

(V) x1 5/32 pouce (4mm) clé Allen

Simple 3D icon of a boat with an arrow indicating direction (no text or symbols)

W O

Diagram of a vertical cylindrical object with internal dashed lines indicating light rays, enclosed in a circle (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

(K) x2

Pince à fil

Technical line drawing of a mechanical device with a close-up inset showing a component labeled 'K' (no text or symbols present)

Technical line drawing of a bolt and nut assembly (no text or symbols)

(K1) x2

Verrou de sécurité

Étape 5

Two stylized human figures shaking hands, no text or symbols present

Three technical diagrams showing 3D block arrangements: top view, cross-section with wooden blocks, and brick layout (no text or symbols)

Technical line drawing of a mechanical testing setup with a monitor and clamp device (no text or symbols)

1/8 pouce (3mm) 1 pouce (25mm) X Z2

Poinçon (non inclus)

Technical line drawing of a mechanical assembly with a spring-loaded component and an arrow indicating direction (no text or symbols)

Ancrage mural 8x50mm

Z1 x2

Z3 x2

Z4 x2

Étape 6C

5/16 pouce (8mm) 29/16 pouce (65mm)

Z4

marteau (non inclus)

Technical line drawing of a mechanical assembly with no visible text or symbols

tournevis Phillips (non inclus)

Technical line drawing of a mechanical component with slots and brackets (no text or symbols)

(N) x2
Soporte de televisor

(B1) x4
M4/M5
arandela

(B2) x4
M6/M8
arandela

Technical line drawing of a threaded bolt with a flanged end and central pin (no text or symbols)

(D2) x4

M6x35mm perno

Technical line drawing of a threaded bolt with a flanged end (no text or symbols)

(E2) x4
M8x35mm perno

Technical line drawing of a threaded bolt with a flanged end (no text or symbols)

(E3) x4
M8x50mm perno

(F1) x8
L2.5mm
Espaciadore

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

(F2) x4
L10mm
Espaciadore

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

(F3) x4
L22mm
Espaciadore

Line drawing of a hand pressing down on a flatboard-mounted device with a circular arrow indicating rotation (no text or symbols)

Prohibition sign with a crossed-out mechanical component (no text or symbols)

Diagram of two mechanical components with no visible text or symbols

Prohibition sign with crossed-out tool and pipe diagram, indicating no protection or resistance

Illustration of eight cylindrical mechanical components arranged in a row (no text or symbols)

Two circular signs with crossed-out and unbroken symbols, indicating prohibited or invalid actions.

Technical line drawing of a bolt with threaded shaft and flange (no text or symbols)

(L) ×3

M6x25mm perno

(W) ×6

Simple 3D icon of a boat with an arrow indicating direction (no text or symbols)

W O

Paso 2-2

Conecte el pilar de soporte [P] a la base de vidrio templado [O].

P O Y R L V

V L R P O Table W

Pure mechanical diagram of a lever or fulcrum with two flanges and central hub (no text or symbols)

(X) x2

correa de seguridad

Technical line drawing of a rectangular mechanical component with two internal oval cavities (no text or symbols)

(M) x1 placa de televisor

(T) x4 D6.5 arandela

Technical line drawing of a mechanical screw with threaded end (no text or symbols)

(S) x4 M6x50mm perno

(Q) x4 M6 tuerca

(V) x1 5/32 pulg (4mm) llave Allen

(V) x1 3/8 pulg (10mm) llave Allen

Paso 3 Conecte la placa del televisor [M] al pilar de soporte [P]

Diagram of a cylindrical object with internal dashed lines radiating outward, enclosed in a circle (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

(K) x2 Clip de cable

Paso 4 Fije los clips de cable [K] al pilar de soporte [P]

Technical line drawing of a mechanical device with a close-up inset showing a component labeled 'K' (no text or symbols present)

Technical line drawing of a bolt and nut assembly (no text or symbols)

Silhouette of two people shaking hands, symbolizing agreement or partnership (no text or symbols)

Three technical diagrams showing different views of a wooden block structure (top, front, side) with no text or symbols.

Paso 6A For Wooden Table furniture Installation

Technical diagram showing a mechanical component with a black X symbol indicating a defect or failure.

● ¡NO UTILICE EL ANCLA [Z4] EN ESTE PASO!

Diagram of a mechanical assembly with a tool inserted into a block, showing alignment and cutting (no text or symbols)

O

Diagram of a mobile phone mounted on a door panel, showing hand positioning and no text or symbols

1/8 pulg (3mm) 2 1/2 pulg (60mm)

Technical line drawing of a mechanical assembly with a component inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

At ErgoAV, we strive to provide the highest valued products.

We want to support your purchase.

If you have questions, concerns,

or feedback please let us know!

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

[e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

TV Mounts

Simple line drawing of a vertical cylindrical object with base and wheels (no text or symbols)

Speaker Stands

Technical line drawing of a Y-shaped mechanical assembly with two arms and a central shaft (no text or symbols)

Computer Monitor Mounts
