USER MANUAL ERTSM1-01B ErgoAV

Table Top TV Stand Instruction Manual

V1.0(C)

English pages: 02–15

French pages:16–29 Spanish pages: 30–42

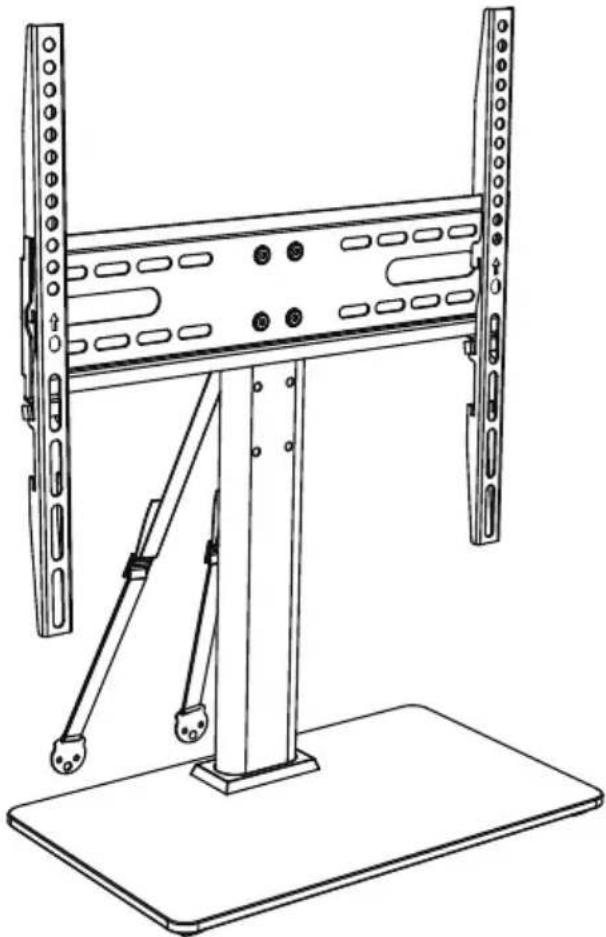

Technical line drawing of a mechanical device with vertical supports and mounting base (no text or symbols)

Model: ERTSM1-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

adress: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.

Please carefully read all instructions before attempting assembly. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].

Before getting starting, let's make sure this mount is perfect for you!

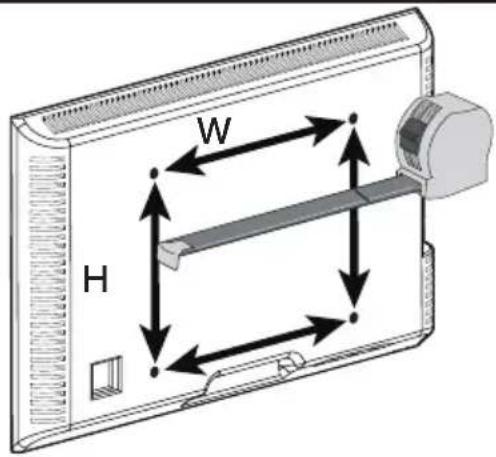

Measure Your TV VESA Pattern:

Minimum: 100x100mm/4x4 in (WxH)

Maximum: 400x400mm/15.7x15.7 in (WxH)

If your TV is not between the minimum and maximum measurements, do not use this product.

If your TV weighs more than 88 lbs, do not use this product.

W H

88lbs/ 39.9kg

For safety strap installations, you will need to verify your wall construction.

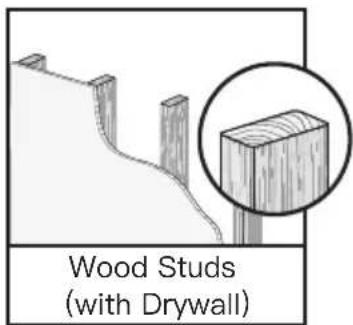

Wood Studs (with Drywall)

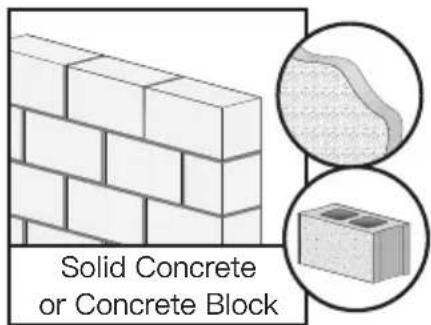

Solid Concrete or Concrete Block

DO NOT install into drywall alone.

If this mount is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

Tools Needed (Not Included)

For TV stand assembly

Tape Measure

Phillips Screwdriver

For safety strap installatcon into wood table/furniture and wood stud applications

Tape Measure Pencil

AwlStud Finder

Drill

Phillips Screwdriver

For safety straps installation into concrete wall

Tape Measure

Pencil

Drill

5/16 in (8mm) Concrete Drill Bit Hammer

Phillips Screwdriver

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail].

- Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

Line drawing of a mechanical component with slots and brackets (no text or symbols)

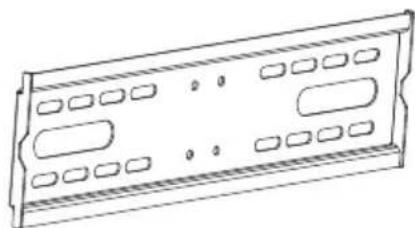

(N) x2 TV Bracket

(B1) x4 M4/M5 Washer

(B2) x4 M6/M8 Washer

Bolts and spacers are shown in actual size.

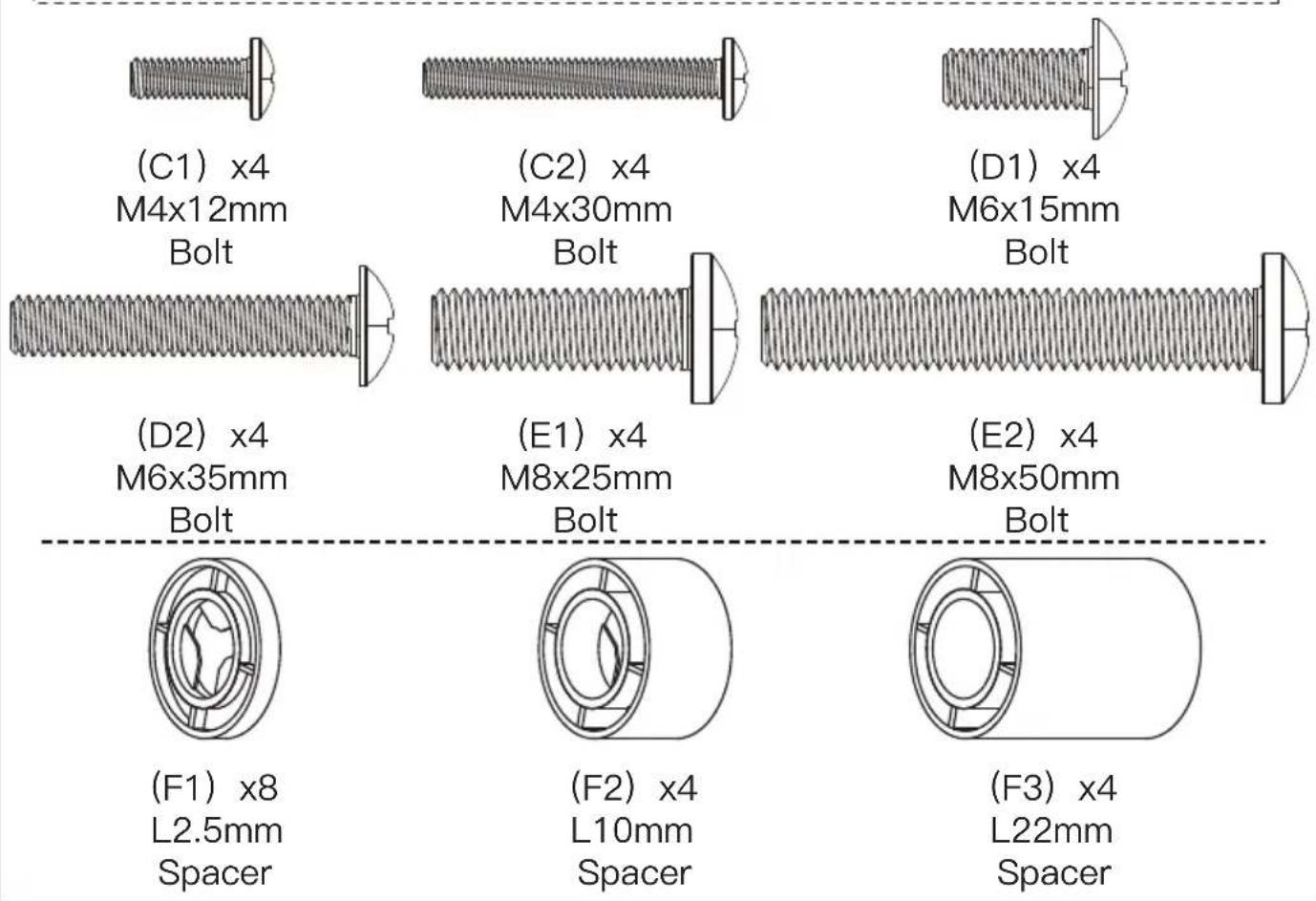

(C1) x4 M4x12mm Bolt (C2) x4 M4x30mm Bolt (D1) x4 M6x15mm Bolt (D2) x4 M6x35mm Bolt (E1) x4 M8x25mm Bolt (E2) x4 M8x50mm Bolt (F1) x8 L2.5mm Spacer (F2) x4 L10mm Spacer (F3) x4 L22mm Spacer

Step 1 Secure the TV Brackets [N] to TV

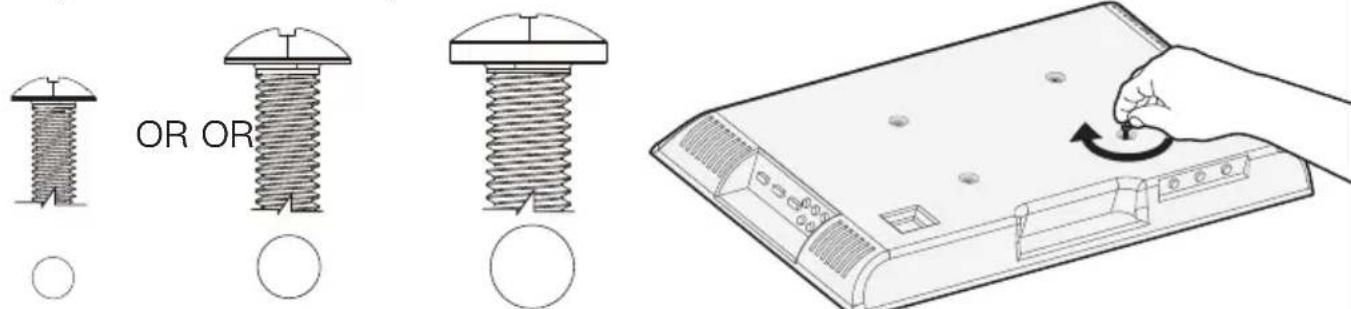

Select TV Bolts.

Only one bolt size fits your TV.

OR OR

M6 M8M4

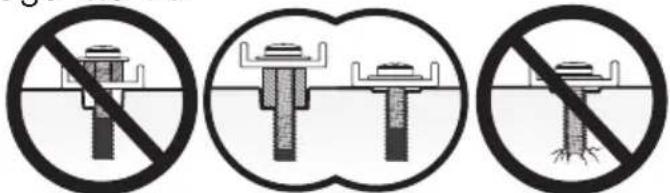

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Three circular diagrams showing no-protection symbols for mechanical components, likely illustrating safety or resistance measures.

Too Short Correct Too Long

Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

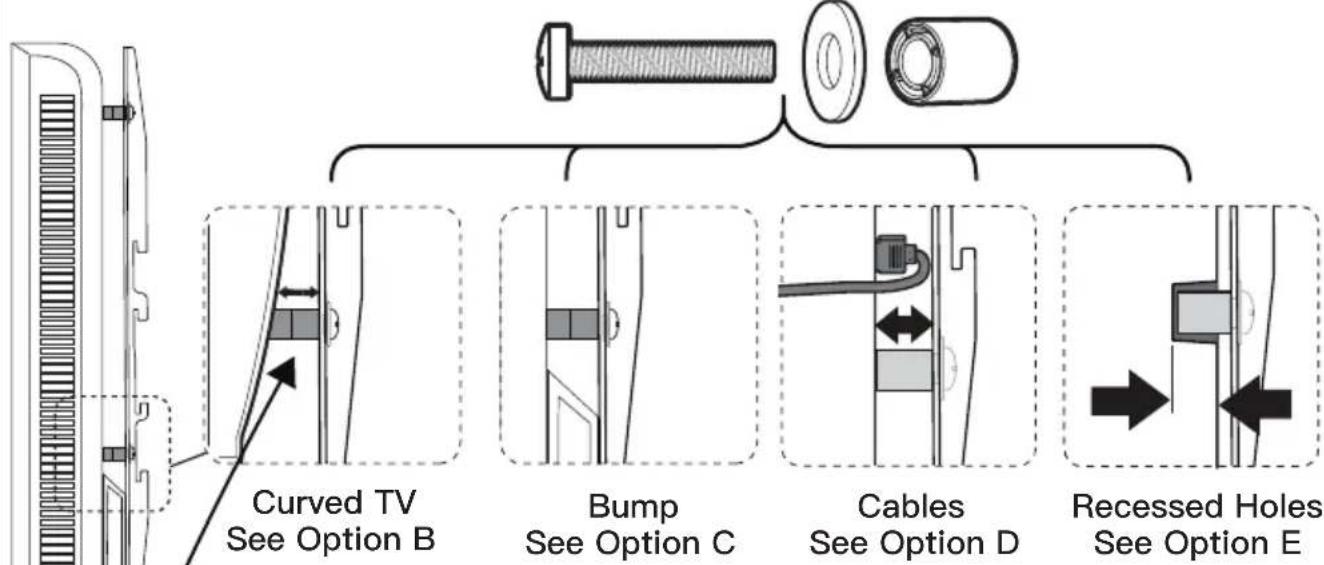

Parts Needed if You Have a TV as Shown Below

Curved TV See Option B Bump See Option C Cables See Option D Recessed Holes See Option E

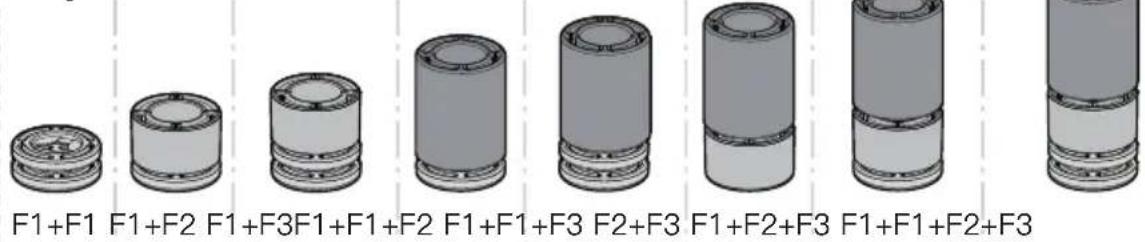

Spacers

F1+F1 F1+F2 F1+F3 F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

N UP ↑ UP

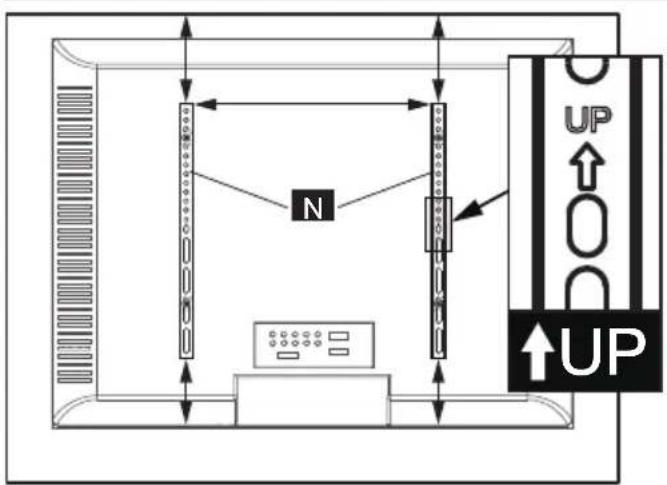

When attaching the TV brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV and are equally centered on the back of the TV.

TV Brackets have “two height locations”, which determines the height position of your TV while attaching your TV on the stand in Step 5 on page 12. You can choose the proper height.

Technical line drawing of a mechanical component with circular features and directional arrows (no text or symbols)

Height Location #1

Height Location #2

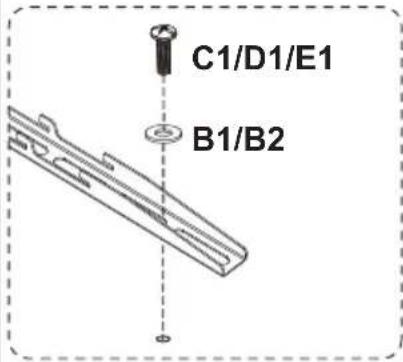

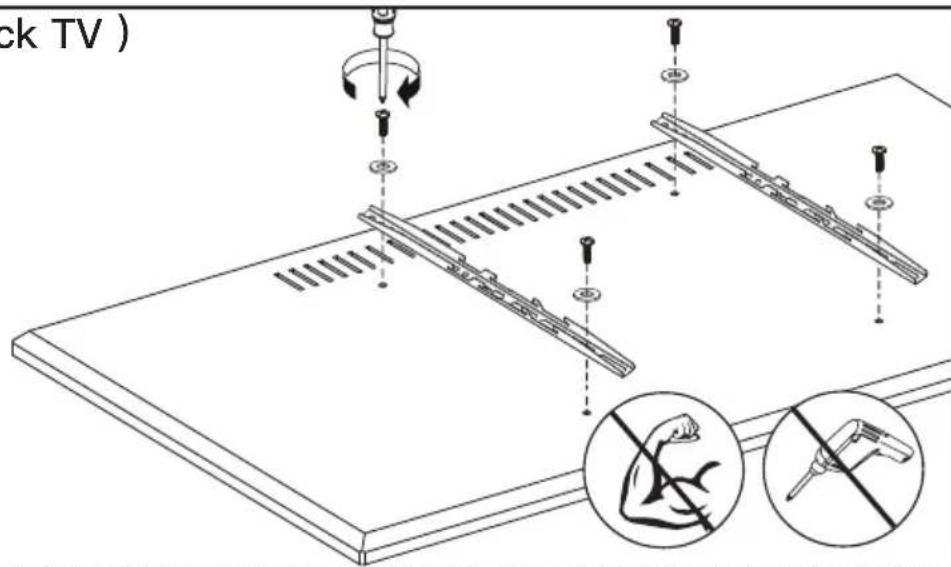

Option A (For Flat Back TV)

C1/D1/E1 B1/B2

ck TV)

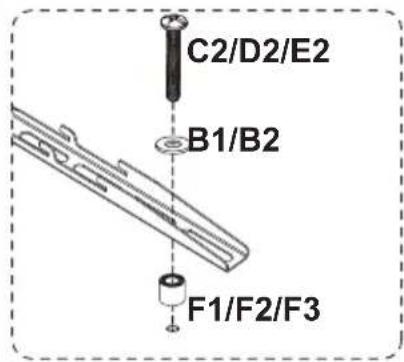

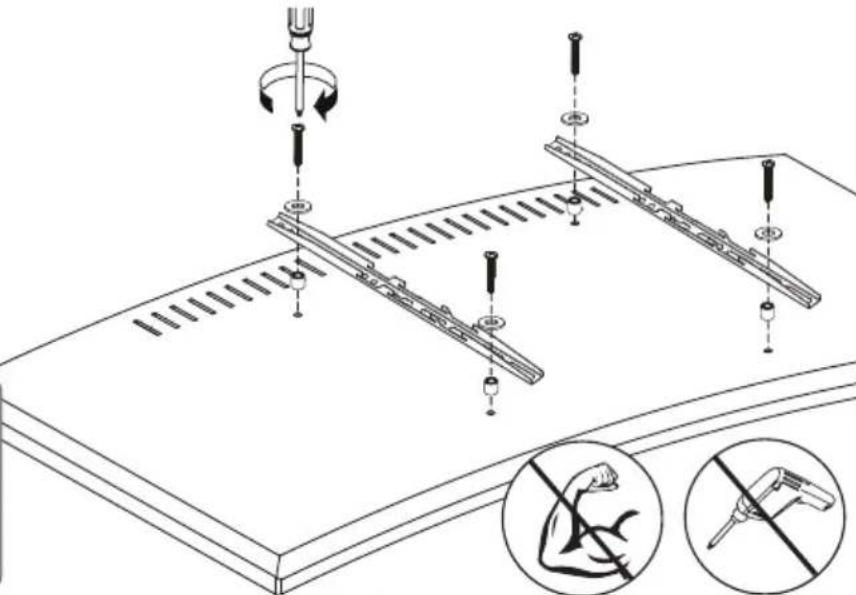

Option B (For Curved Back TV)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

C2/D2/E2 B1/B2 F1/F2/F3

Refer back to Spacer Instructions on Page 5, If needed

age 6, if needed

Technical diagram illustrating a mechanical assembly with tool positioning and safety symbols for disassembly or repair.

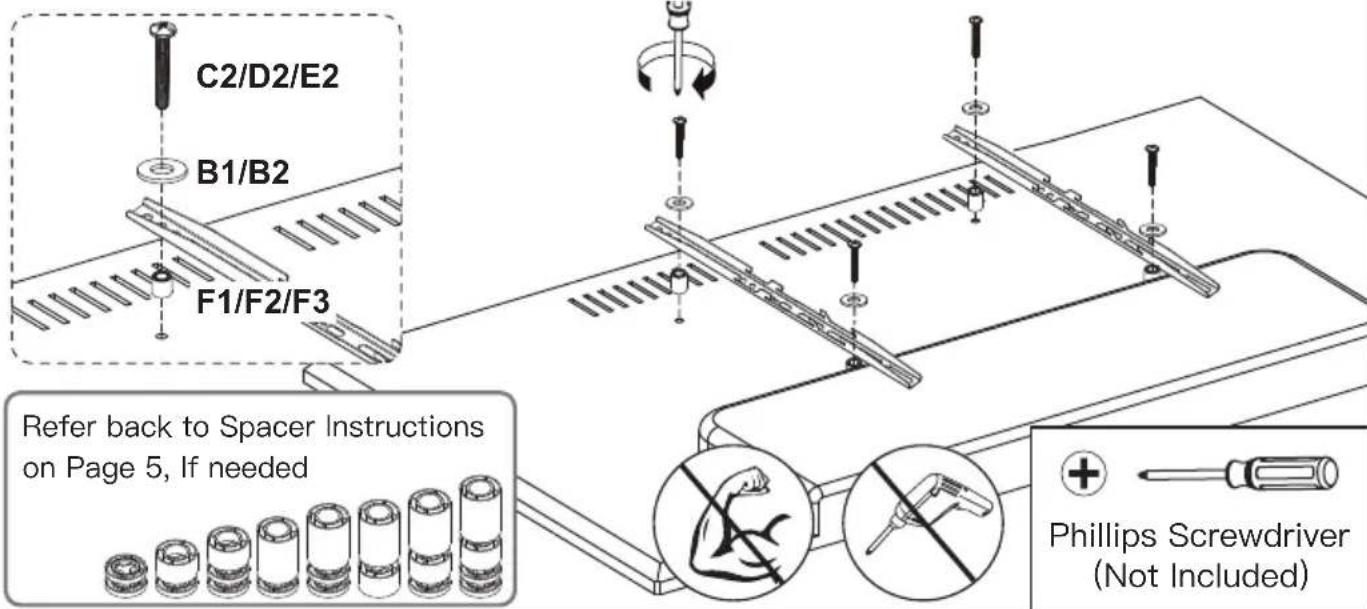

Option C (For TV with A "Bump")

Spacers must be large enough so TV bracekts are flush (NO GAP) on bump.

C2/D2/E2 B1/B2 F1/F2/F3 Refer back to Spacer Instructions on Page 5, If needed Phillips Screwdriver (Not Included)

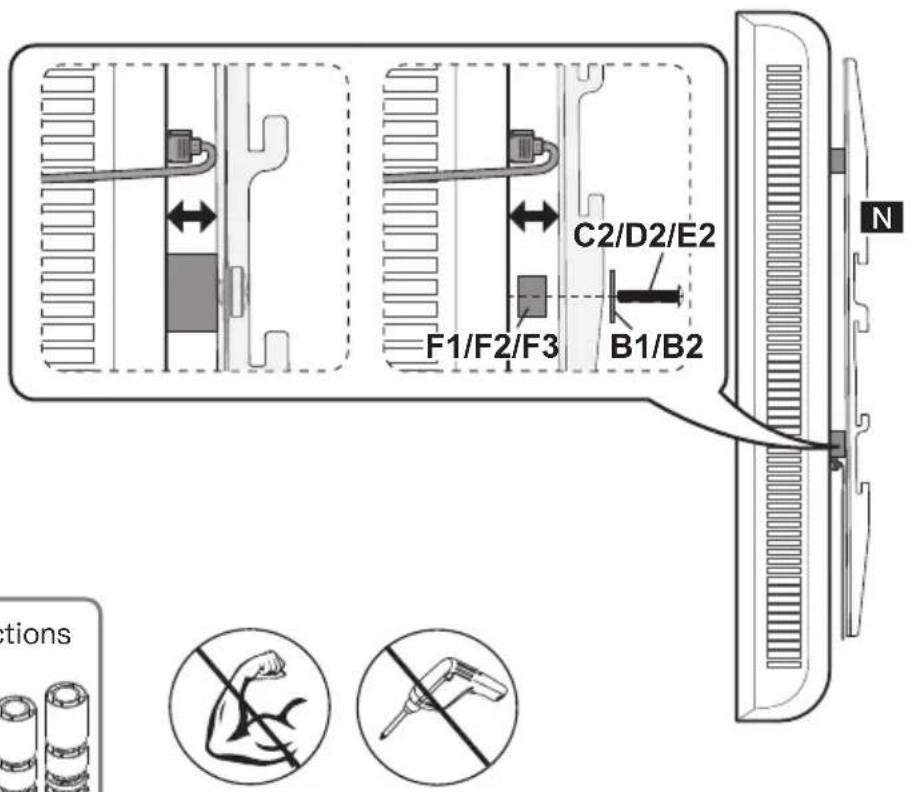

Option D (for TV with Cable Interference)

For cable interference, use spacers [F1], [F2] and [F3] to create extra space between the TV and TV brackets

Phillips Screwdriver (Not Included)

C2/D2/E2 F1/F2/F3 B1/B2 N tions

Refer back to Spacer Instructions on Page 5, If needed

ge 3, if needed

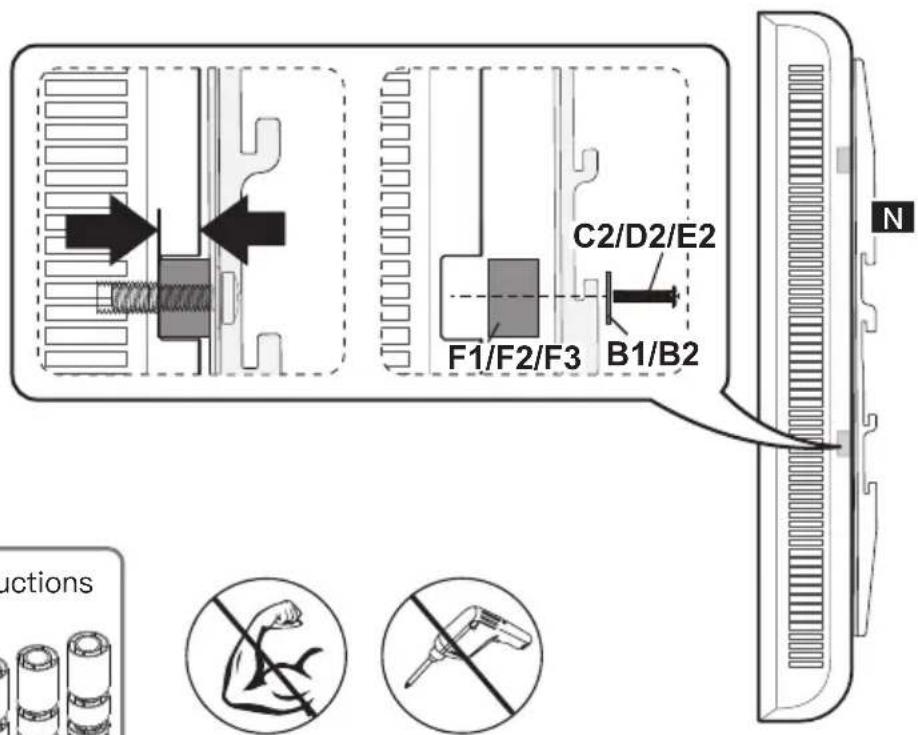

Option E (For Recessed Holes)

The spacer need to fill in the recessed holes on the basis of the TV so that the TV brackets are as close to the TV as possible.

C2/D2/E2 F1/F2/F3 B1/B2 N Auctions

Refer back to Spacer Instructions on Page 5, If needed

age 3, if needed

Supplied Parts and Hardware for Step 2

This bolt is shown in actual size.

Line drawing of a screw with a central hole and threaded shaft (no text or symbols)

(L) x3 M6x25mm Bolt

(W) x4 Foot Pad

(P) x1 Support Pillar

(R) x1 Reinforcement Plate

(O) x1 Tempered Glass Base

(Y) x1 Trim Ring

(V) x1 5/32in (4mm) Allen Key

Step 2 Assemble the Base

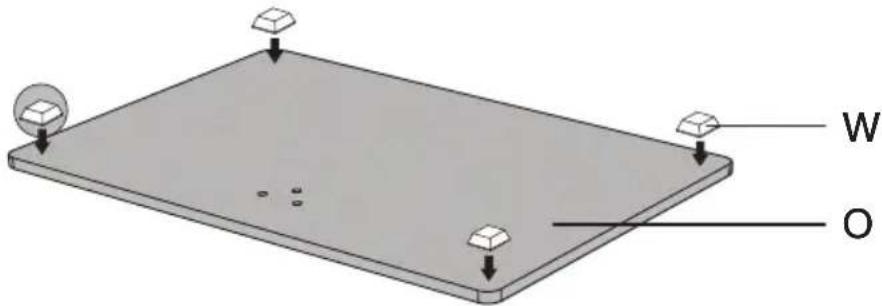

Step 2-1

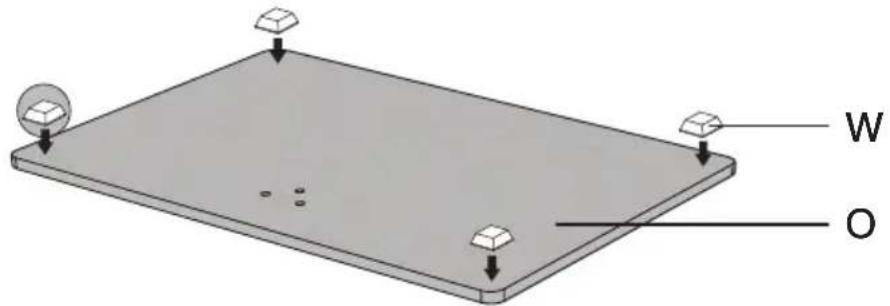

Place foot pads [W] to the painted side of the tempered glass base [O] in the corners.

Simple icon of a boat with an arrow indicating direction (no text or symbols)

3D diagram of a rectangular plate with labeled points O and W, showing internal features and arrows indicating direction (no text or symbols beyond labels)

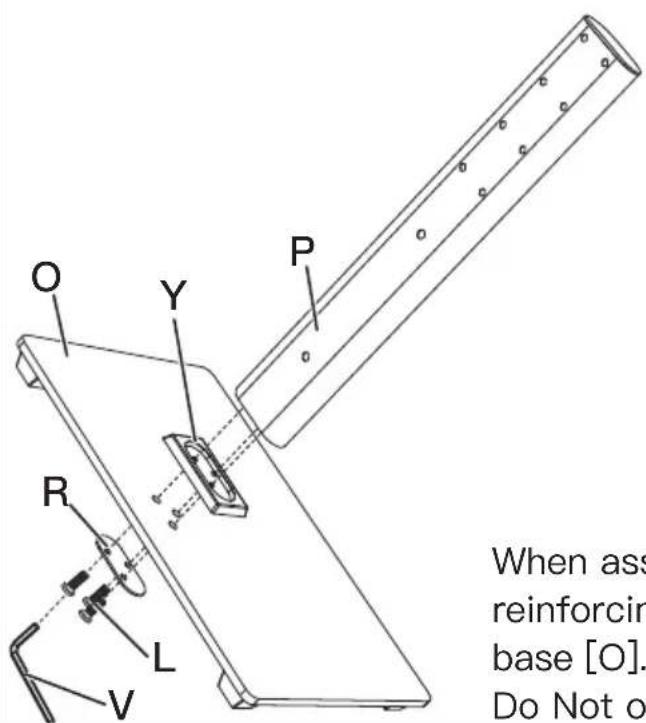

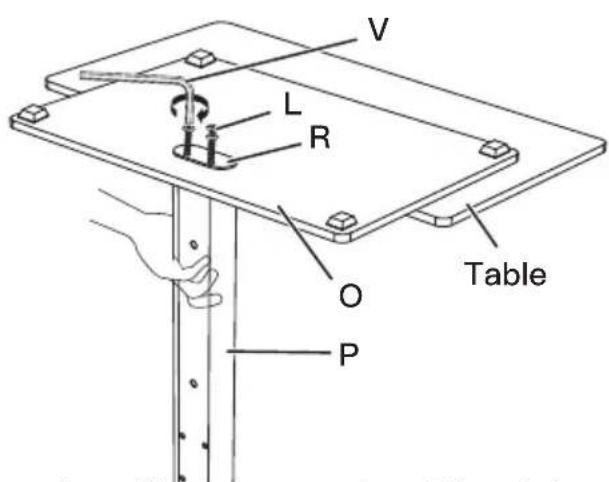

Step 2-2

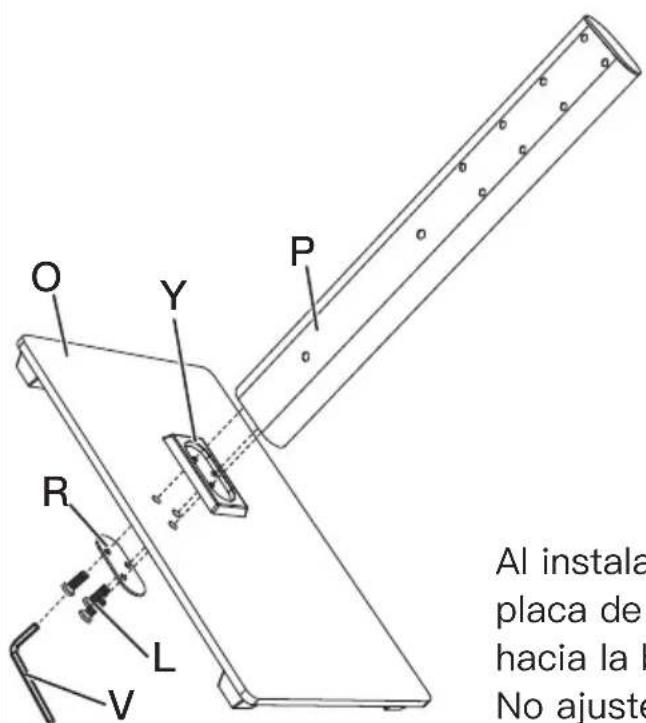

Connect the support pillar [P] to tempered glass base [O].

When ass reinforcing base [O]. Do Not o

V L R O P Table

When assembling the pillar, ensure the side of the reinforcing plate [R] with paper is facing the glass base [O].

Do Not overtighten the bolts [L].

Supplied Parts and Hardware for Step 3

Pure mechanical diagram of a lever or fulcrum with two flanges and a central rectangular block (no text or symbols)

(X) x2

Safety Strap

This bolt is shown in actual size.

Illustration of a threaded screw with a hexagonal bolt head (no text or symbols)

(S) x4 M6x40mm Bolt

Technical line drawing of a rectangular metal enclosure with multiple recessed compartments (no text or symbols)

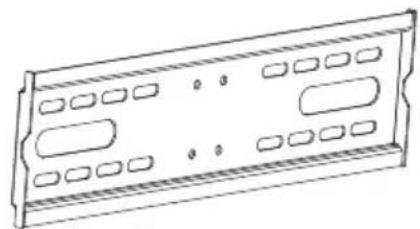

(M) ×1

TV Plate

(Q) x4

M6 Nut

(V) ×1

5/32in (4mm)

Allen Key

(V) ×1

7/16 in (11mm)

Wrench

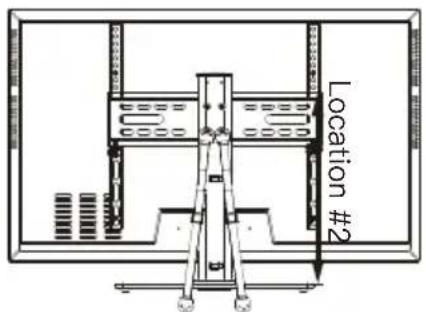

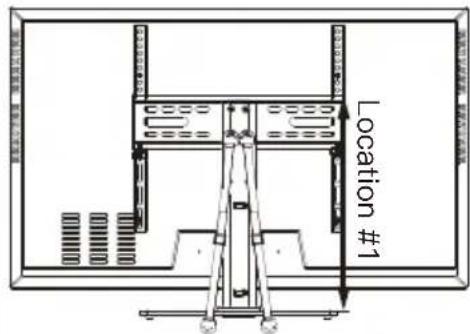

Step 3 Connect the TV Plate [M] to Support Pillar [P]

Note: Before attaching the TV Mounting Plate to the pillar, measure the distance from the upper hook on the TV Bracket to the bottom of the TV. Then refer to chart below for the recommended mounting location. To add an additional 2" of space between your TV and the base, use the lower hooks located on the TV Brackets. We always recommend using the lowest possible attachment location for the safest assembly.

Diagram of a vertical cylindrical object with internal dashed lines indicating light rays (no text or symbols)

Mounting Location #1

Mounting Location #2

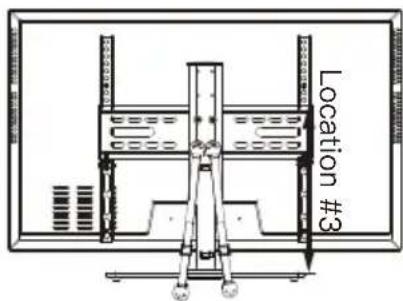

Mounting Location #3

Distance from the hooks on the TV Brackets to the bottom of the TV	Recommended TV Mounting Plate Location
13 1/4” to 15 1/4”	Location #1
11 1/4” to 13 1/4”	Location #2
Less Than 11 1/4”	Location #3

Location #1

Location #2

Location #3

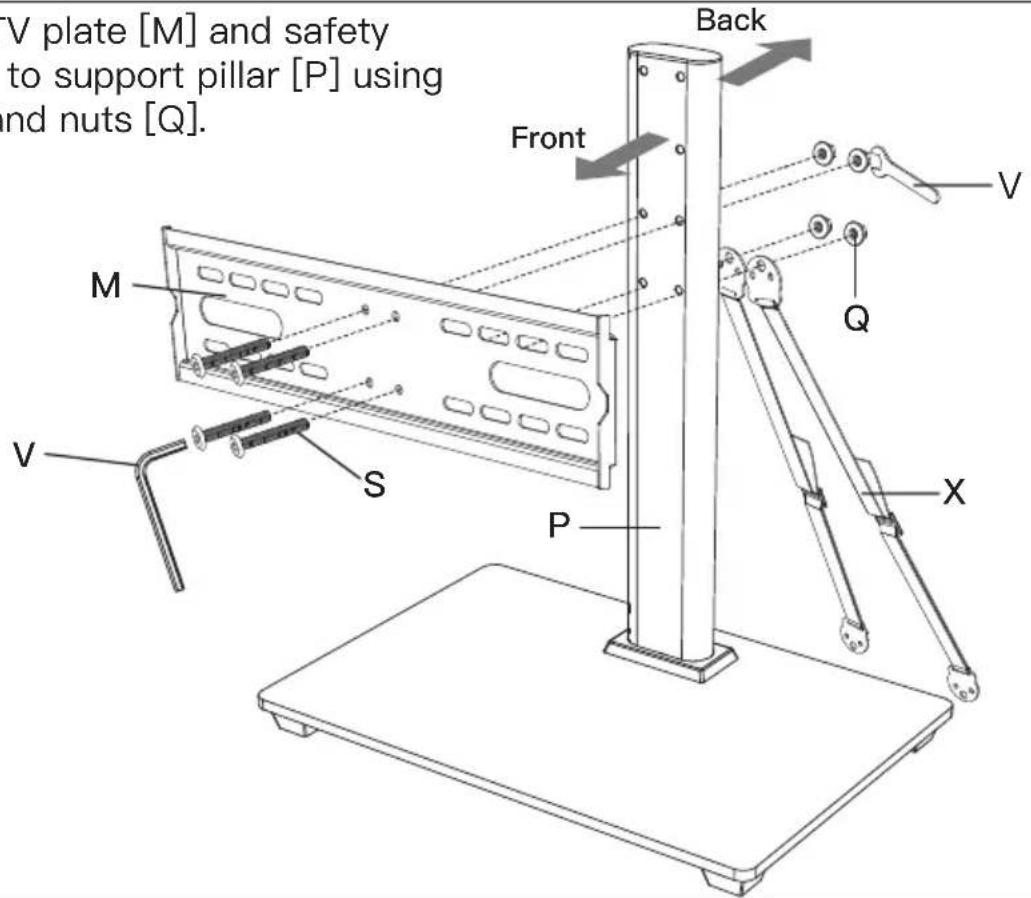

Connect TV plate [M] and safety straps [X] to support pillar [P] using bolts [S] and nuts [Q].

V plate [M] and safety to support pillar [P] using and nuts [Q]. Back Front M V Q X S P

Supplied Part for Step 4

Line drawing of a mechanical component or housing (no text or symbols)

(K) x2
Wire Clip

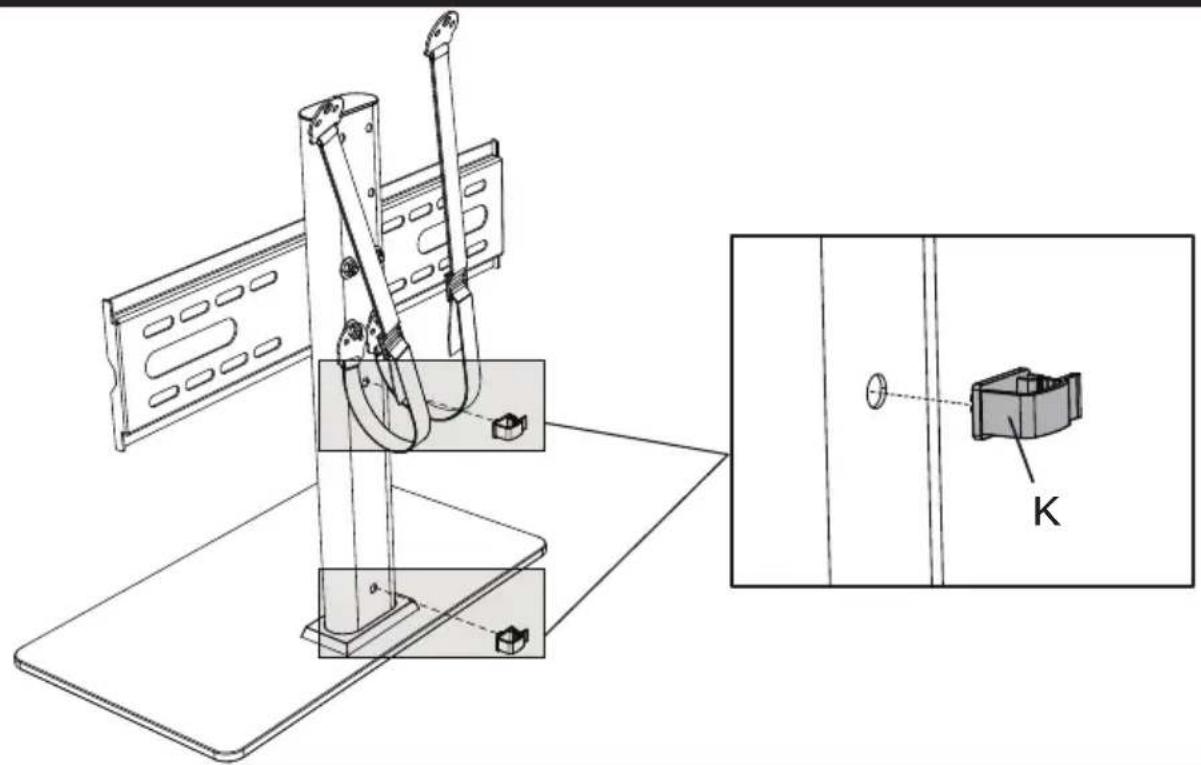

Step 4 Secure the Wire Clips [K] to Support Pillar [P]

Technical line drawing of a mechanical device with a close-up inset showing a component labeled 'K' (no text or symbols present)

Supplied Part and Hardware for Step 5–3

Technical line drawing of a bolt and nut assembly (no text or symbols)

(K1) x2 Safety Lock

Step 5 Attach TV to the TV Plate [M] and Manage the Wires

Two stylized human figures shaking hands, no text or symbols present

We recommend always having a second person to help during this step. TV can be heavy and awkward to place on the stand. It is best to have 2 people lift the TV from the sides so they can see the attachment points.

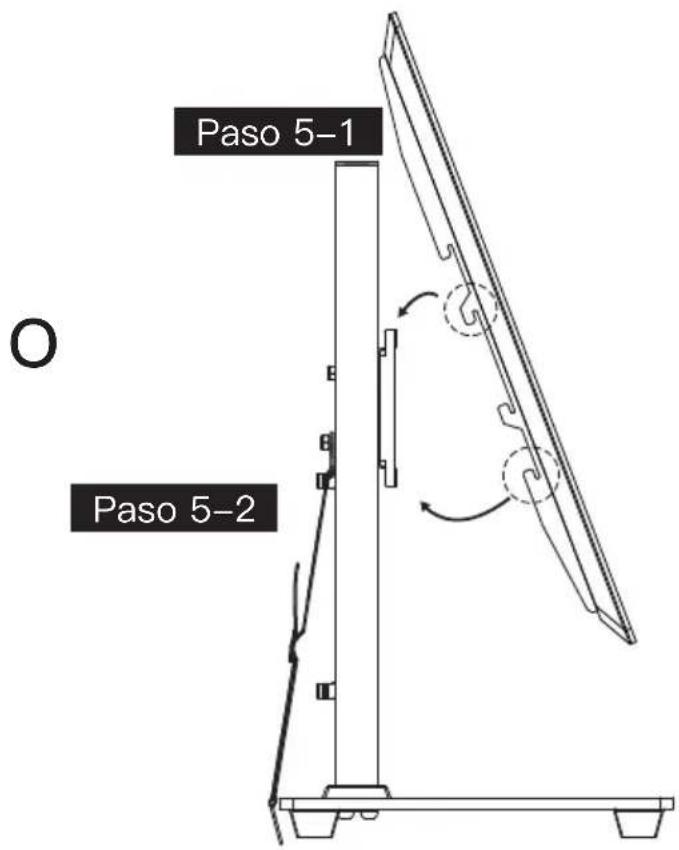

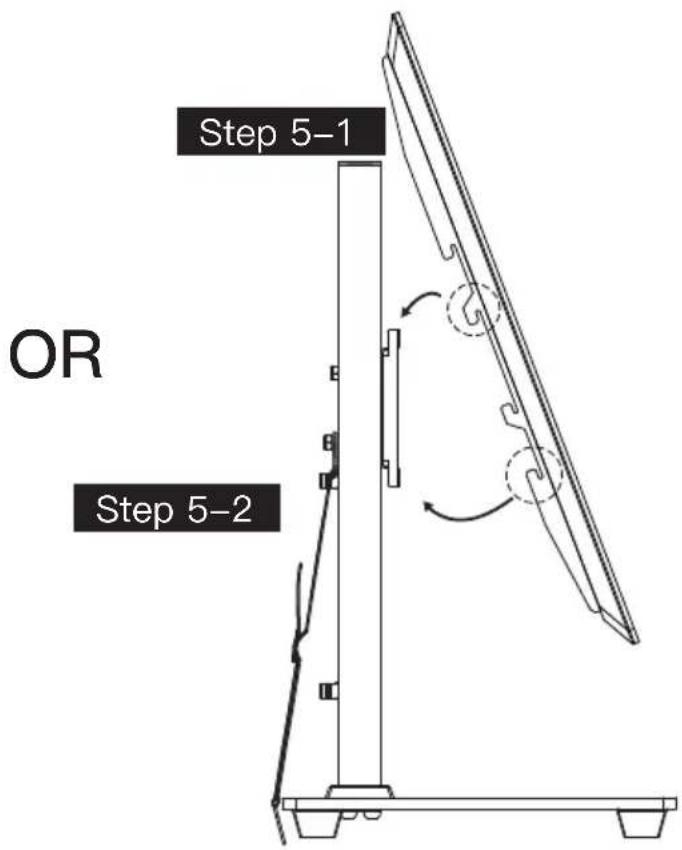

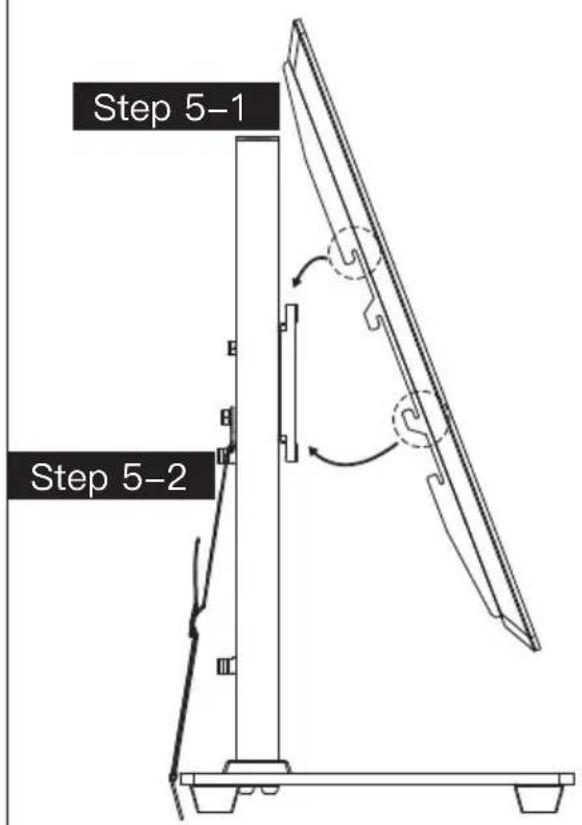

Step 5-1 Hang the TV with brackets to the TV plate.

Step 5-2 Push the bottom of the TV to TV plate.

Smaller TV's use the upper hooks

e lower hooks

Step 5-1 Step 5-2

Step 5-1 OR Step 5-2

Note: Attached TV Brackets to the TV Mounting plate on the lowest placement that allows for TV to fit.

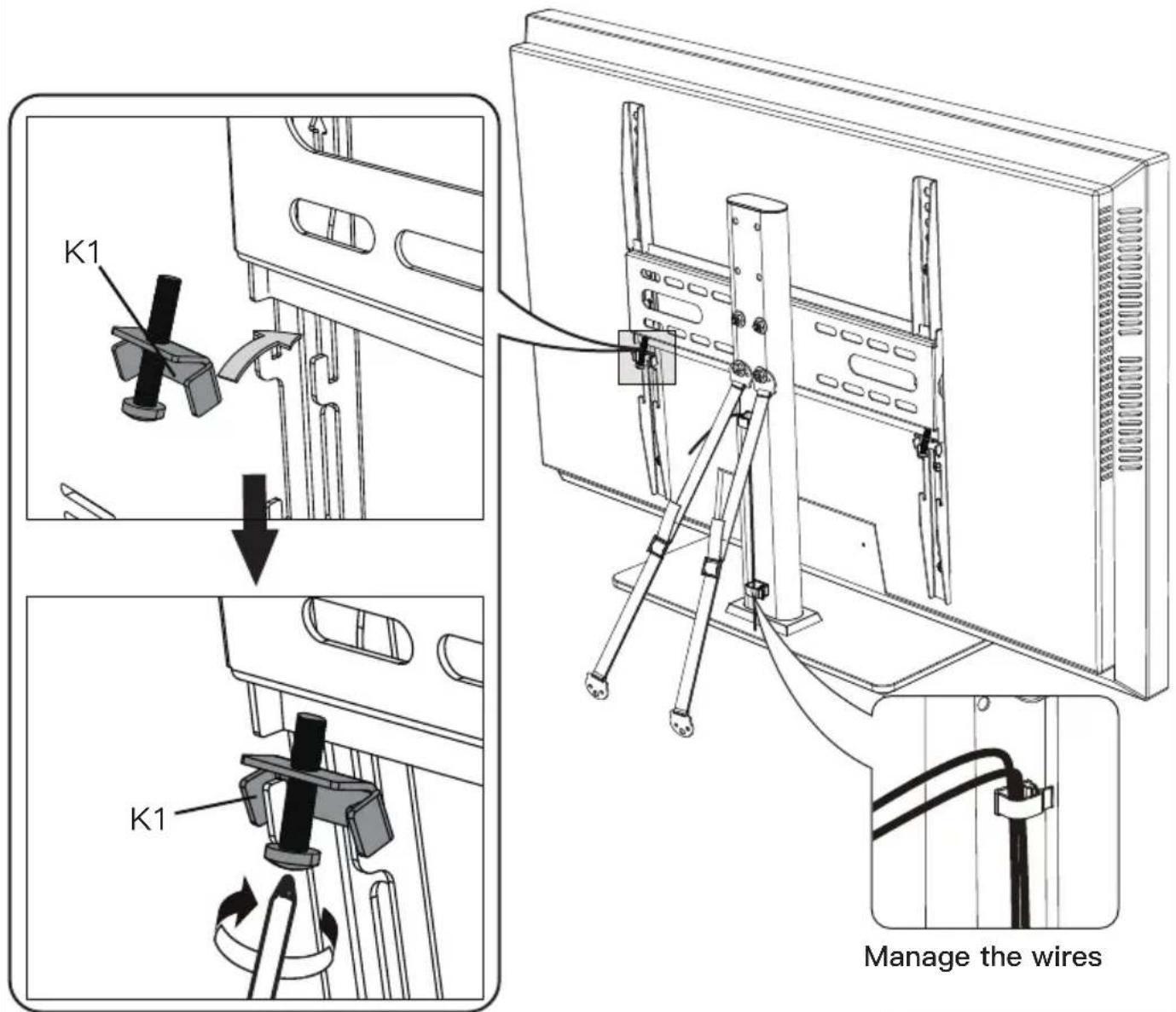

Step 5-3 Insert the safety locks [K1] into the upward facing hooks at the midway to lower part of the TV bracket. Please note this is where the lower part of the TV bracket meets the TV plate. Then tighten the bolts of the safety lock [K1] until the bolts touch the TV plate.

K1 K1 Manage the wires

Note: Make sure the bolt is tighten behind the TV mounting plate.

Phillips Screwdriver (Not Included)

Supplied Hardware for Step 6A

For wooden table furniture/wood stud installation.

Screw M5X25mm Screw M5X60mm M5 Washer(BK)

Z1 x2

Z2 x4

Z3 x2

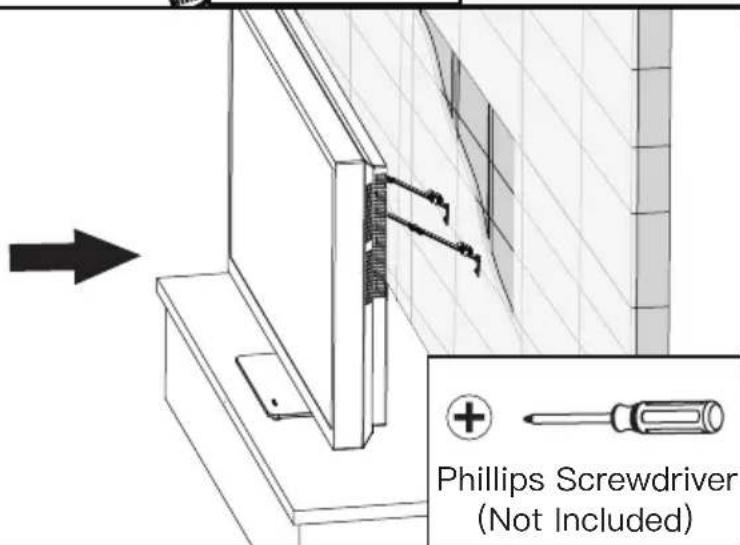

Secure The Safety Straps With TV Stand Against The Wall

Note: For the safest possible installation, we recommend using the included safety straps. By doing so, you will greatly reduce the possibility of a TV Tip Over.

Three technical diagrams showing 3D and 2D views of a rectangular block with a lid, alongside a blank grid (no text or symbols)

For wooden table furniture installation, follow STEP 6A.

For wood stud installation, follow STEP 6B.

For solid concrete or concrete block installation, follow STEP 6C.

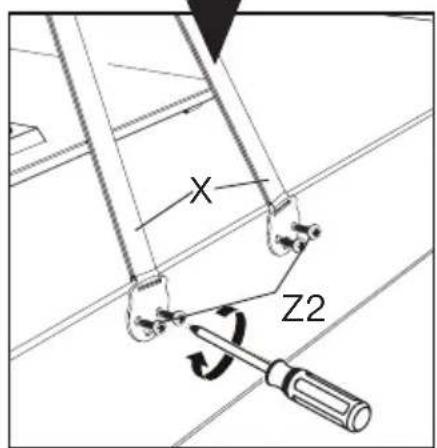

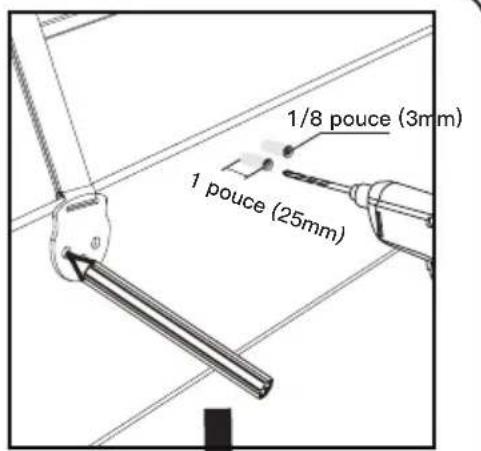

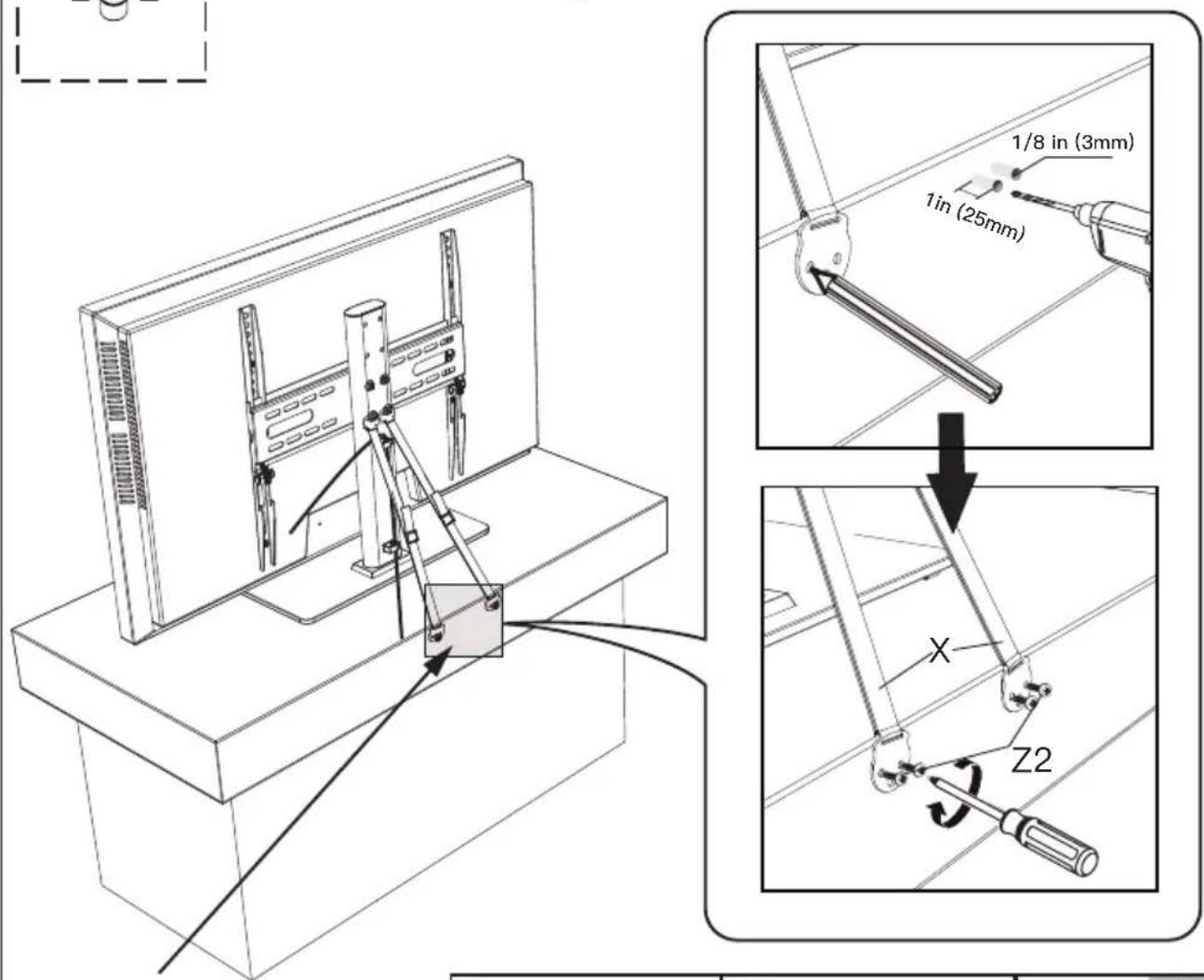

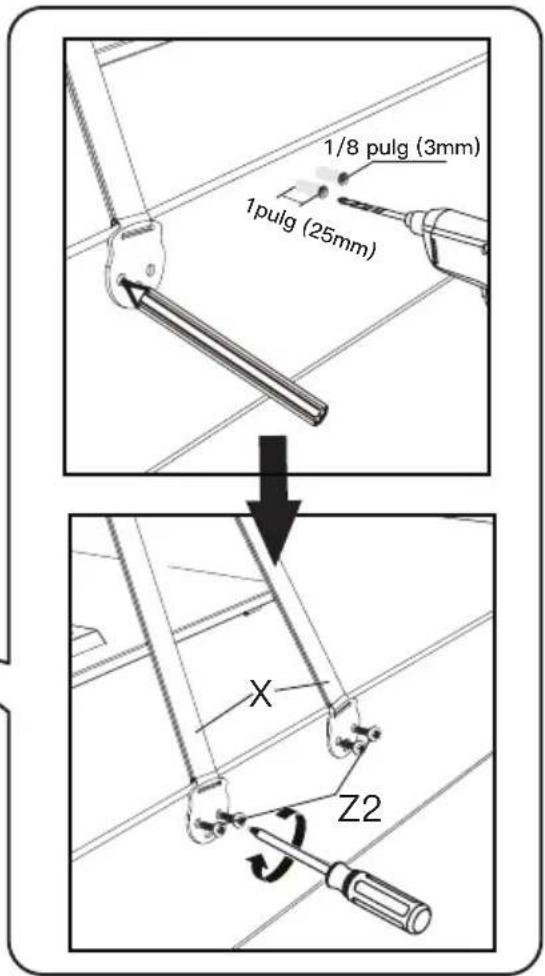

Step 6A

For Wooden Table furniture Installation

Warning symbol with a cross and minus sign inside a mechanical component, enclosed in a dashed border.

● DO NOT USE ANCHOR [Z4] FOR THIS STEP!

Note: It is necessary to predrill a pilot hole to avoid splitting the wood. Being careful not to damage your furniture.

Caution: The mounting surface must be thicker than 1 in. (25mm).

1/8 in (3mm) 1in (25mm) X Z2

It is recommended that the safety straps be mounted at least 12" apart.

Pencil(Not Included)

Phillips Screwdriver(Not Included)

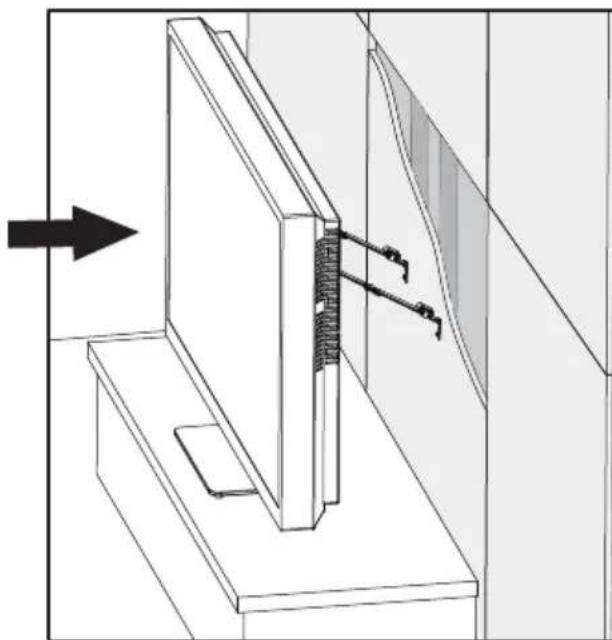

Step 6B

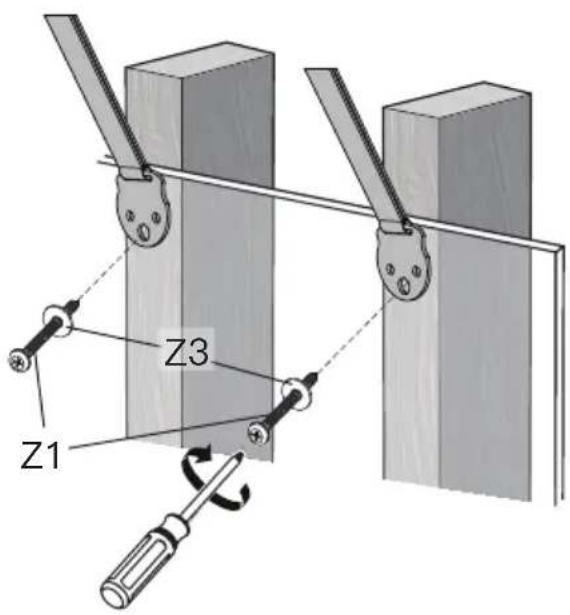

For Wooden Stud Installation

● DO NOT USE ANCHOR [Z4] FOR THIS STEP!
● Any material covering the wall must not exceed 5/8 in (16 mm).
- Nominal wood stud size: common 2 x 4 in (51 x 102 mm) minimum 1 12 x 3 12 in (38 x 89 mm).

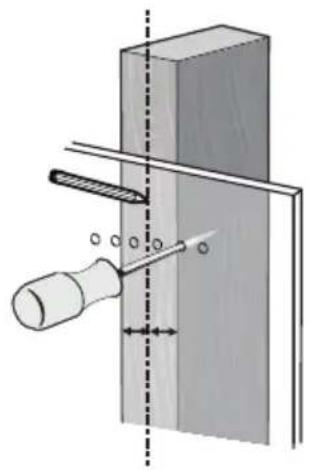

● Stud center must be verified by using an awl or stud finder.

Diagram of a mechanical assembly with a tool and screwdriver inserted into a wooden block (no text or symbols)

OR

Illustration of a mobile phone connected to a wall-mounted door panel (no text or symbols visible)

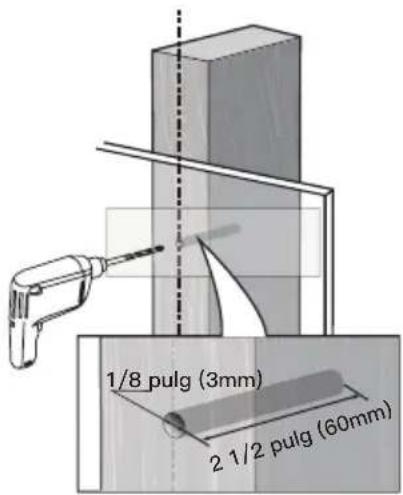

1/8 in (3mm) 2 1/2 in (60mm)

Pencil (Not Included)

Awl (Not Included)

Stud Finder (Not Included)

1/8 in (3mm) Wood Drill Bit

Z1 Z3

Technical diagram of a mechanical assembly with a component inserted into a housing (no text or symbols visible)

Note: Each strap must be mounted to a separate stud.

Phillips Screwdriver (Not Included)

Supplied Hardware for Step 6C

Screw M5X60mm M5 Washer(BK)

Wall Anchor 8x50mm

Z1 x2

Z3 x2

Z4 x2

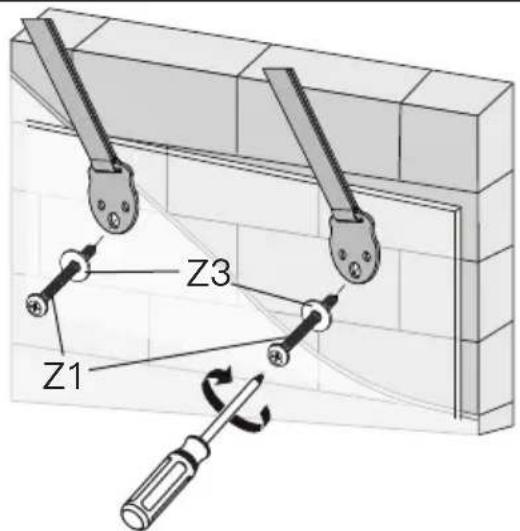

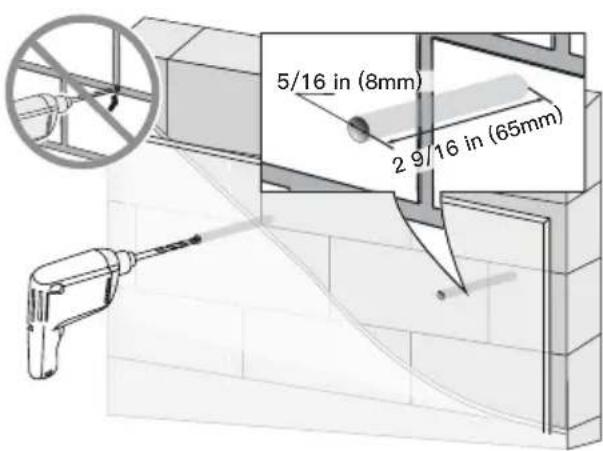

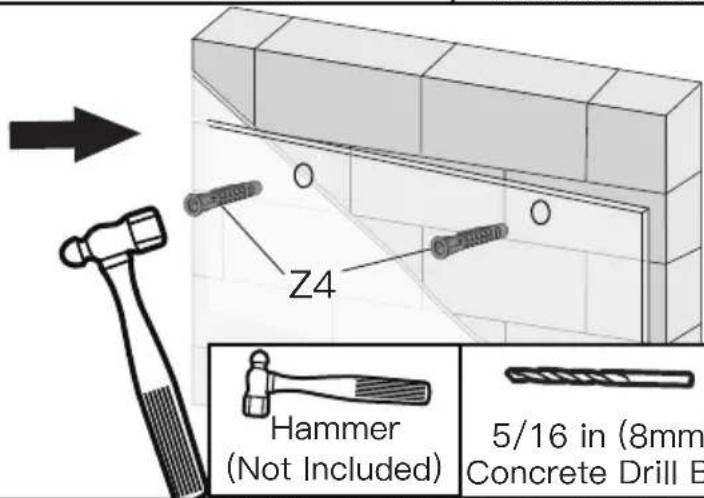

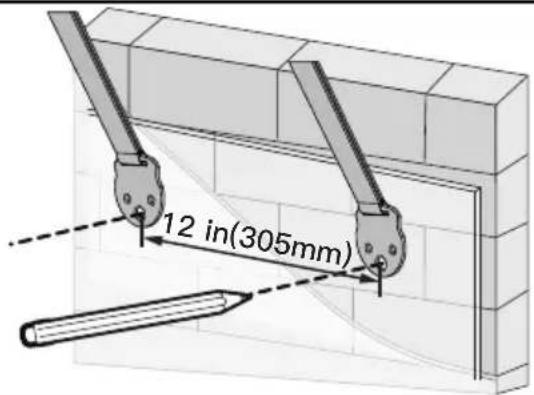

Step 6C For Solid Concrete or Concrete Block Installation

● Must use wall anchor [Z4] for this step.
● Any material covering the wall must not exceed 5/8 in (16 mm).
● Minimum solid concrete thickness: 203 mm (8 in).
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in).
● Never drill into the mortar between blocks.

12 in(305mm)

Pencil (Not Included)

5/16 in (8mm) 2 9/16 in (65mm)

Z4 Hammer (Not Included) 5/16 in (8mm Concrete Drill B

Hammer (Not Included)

5/16 in (8mm) Concrete Drill Bit

Z1 Z3

Phillips Screwdriver (Not Included)

Phillips Screwdriver (Not Included)

CONSIGNES DE SECURITE IMPORTANTES

Minimum : 100x100mm/4x4 pouce (LxH)

Maximum : 400x400mm/15,7x15,7 pouce (LxH)

Technical line drawing of a mechanical component with grooves and slots (no text or symbols)

(N) x2 Support TV

(B1) x4
M4/M5
rondelle

(B2) x4
M6/M8
rondelle

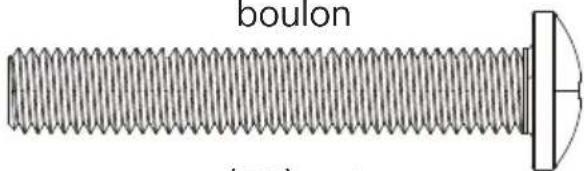

Close-up of a threaded bolt with a flanged end and a small circular mark (no text or symbols)

(D2) x4
M6x35mm
boulon

(C2) x4

M4x30mm
boulon

boulon (70) 2014

(E1) x4
M8x25mm
boulon

(D1) x4

M6x15mm
boulon

boulon (m)

(E2) x4
M8x50mm
boulon

(F1) x8
L2.5mm
Entretoise

Pure technical line drawing of a cylindrical mechanical component with internal channels (no text or symbols)

(F2) x4
L10mm
Entretoise

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

(F3) x4
L22mm
Entretoise

Diagram of two mechanical components with no visible text or symbols

Prohibition sign with crossed-out construction structure and Chinese symbol

Trop court correct trop long

Illustration of cylindrical mechanical components arranged in ascending rows (no text or symbols)

Technical diagram showing mechanical assembly with tool and component alignment, including a magnified inset of a hand holding a tool.

Illustration of cylindrical mechanical components arranged in a row (no text or symbols)

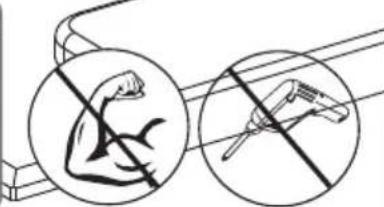

Two circular diagrams showing a flexing muscle and a walking stick crossed out, no text or symbols present.

tournevis Phillips (non inclus)

Illustration of eight cylindrical mechanical components arranged in a row (no text or symbols)

Two circular signs with crossed-out symbols: one showing a flexing muscle, the other showing a medical device.

Option E (Pour les trous inversés)

Illustration of eight cylindrical mechanical components arranged in a row (no text or symbols)

Two circular signs with pictograms: one showing a flexed arm crossed out, the other showing a nail being inserted.

Technical line drawing of a screw with a central hole (no text or symbols)

(L) x3 M6x25mm boulon

(W) x4 Pied de lit

(R) x1 plaque de renfort

(Y) x1 anneau de garniture

(P) x1 Pilier de support

(V) x1 5/32 pouce (4mm) clé Allen

Simple icon of a boat with an arrow indicating direction (no text or symbols)

3D diagram of a rectangular plate with labeled points O and W, showing directional arrows (no text or symbols beyond labels)

Étape 2-2

V L R O P Table

Pure mechanical diagram of a lever or fulcrum with two flanges and a central square component (no text or symbols)

(X) x2

sangle de sécurité

Technical line drawing of a threaded bolt with a flange and central hole (no text or symbols)

Technical line drawing of a rectangular metal plate with cutouts and mounting holes (no text or symbols)

(M) ×1

plaque TV

(Q) × 4

M6 écrou

(V) ×1

5/32 pouce

(4mm) Clé Allen

(V) ×1

7/16 pouce

(11mm) Clé

Étape 3 raccordement de la plaque TV [M] au pilier de support [P].

Diagram of a vertical structure with dashed lines extending outward from its ends, enclosed in a circle (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

(K) x2
Pince à fil

Technical line drawing of a mechanical assembly with a magnified inset showing a component labeled 'K' (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

(K1) x2

Verrou de sécurité

Étape 5

Technical line drawing of a mechanical assembly with a monitor and support structure (no text or symbols)

1/8 pouce (3mm) 1 pouce (25mm)

X Z2

poinçon (non inclus)

Technical diagram of a mechanical assembly with a component inserted into a housing (no text or symbols visible)

Ancrage mural 8x50mm

Z1 x2

Z3 x2

Z4 x2

Étape 6C

5/16 pouce (8mm) 2 9/16 pouce (65mm)

Z4 marteau (non inclus) Foret à béton d 8 mm (5/16pouc)

tournevis Phillips (non inclus)

Line drawing of a mechanical component with slots and brackets (no text or symbols)

(N) x2
Soporte de televisor

(B1) x4
M4/M5
arandela

(B2) x4
M6/M8
arandela

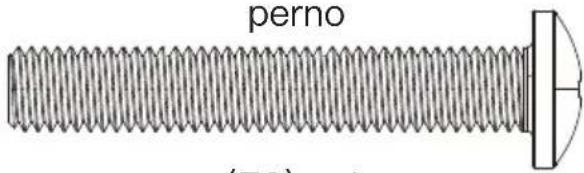

Close-up of a metallic screw with threaded shaft and mounting bracket (no text or symbols)

(D2) x4

M6x35mm

perno

(C2) x4

M4x30mm

perno

perno (7.1) 4

(E1) x4

M8x25mm

perno

(D1) x4

M6x15mm

perno

perno (7-8)

(E2) x4

M8x50mm

perno

(F1) x8

L2.5mm

Espaciadore

Pure technical line drawing of a cylindrical mechanical component with internal channels (no text or symbols)

(F2) x4

L10mm

Espaciadore

Pure technical line drawing of a cylindrical mechanical part with flanges (no text or symbols)

(F3) x4

L22mm

Espaciadore

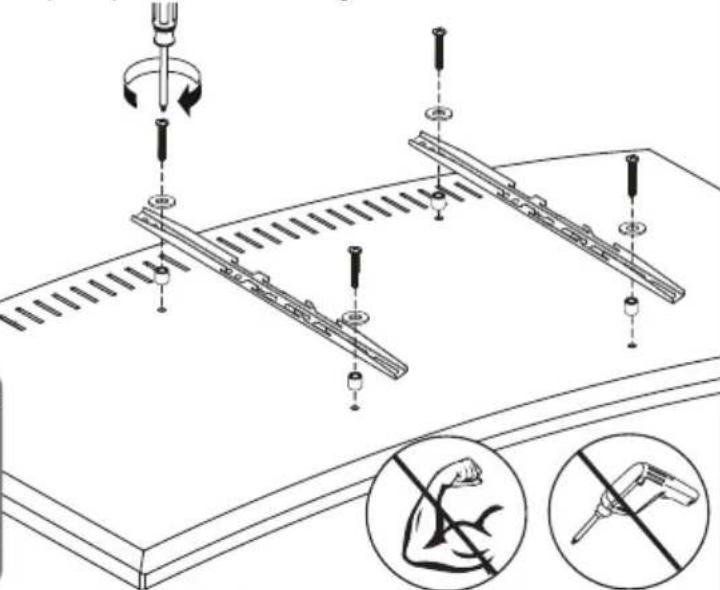

Line drawing of a hand pressing down on a flatboard device with a circular arrow indicating rotation (no text or symbols)

M6 M8M4

Prohibition sign with a crossed-out robot silhouette and diagonal line, indicating no protection or disinfection.

Diagram of two mechanical components with no visible text or symbols

Prohibition sign with a crossed-out robot and circuit lines, indicating no protection or resistance.

N UP ↑ O O Arriba

Illustration of cylindrical mechanical components arranged in ascending rows (no text or symbols)

Illustration of cylindrical mechanical components arranged in ascending rows (no text or symbols)

Line drawing of a screw with a central hole (no text or symbols)

(L) x3 M6x25mm perno

Simple icon of a boat with an arrow indicating direction, enclosed in a circular frame (no text or symbols)

3D diagram of a rectangular plate with labeled points O and W, showing internal features and arrows indicating direction (no text or symbols beyond labels)

Paso 2-2

Conecte el pilar de soporte [P] a la base de vidrio templado [O].

V L R O P Mesa

Pure mechanical diagram of a lever or fulcrum with two flanges and a central square component (no text or symbols)

(X) x2

correa de seguridad

Technical line drawing of a threaded bolt with a flange and central hole (no text or symbols)

(S) x4 M6x40mm perno

Technical line drawing of a rectangular electronic component with slots and mounting holes (no text or symbols)

(M) ×1

placa de televisor

(Q) x4

M6 tuerca

(V) ×1

5/32 pulg (4mm)

llave Allen

(V) ×1

7/16 pulg (11mm)

Llave inglesa

Paso 3 Conecte la placa del televisor [M] al pilar de soporte [P]

Diagram of a cylindrical object with internal holes and dashed lines extending outward, enclosed in a circle (no text or symbols)

Line drawing of a mechanical component or housing (no text or symbols)

(K) x2
Clip de cable

Paso 4 Fije los clips de cable [K] al pilar de soporte [P]

Technical line drawing of a mechanical device with a close-up inset showing a component labeled 'K' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

(K1) x2

Two stylized human figures shaking hands in a handshake (no text or symbols)

Paso 5-1 Paso 5-2

Paso 5-1 O Paso 5-2

Pure mechanical component symbol with X mark, no text or labels present

● ¡NO UTILICE EL ANCLA [Z4] EN ESTE PASO!

Technical line drawing of a mechanical assembly with a monitor and support structure (no text or symbols)

1/8 pulg (3mm) 1pulg (25mm) X Z2

Diagram of a mechanical assembly with a tool inserted into a block, showing alignment and cutting (no text or symbols)

O

Diagram of a door lock mechanism with a handheld device and vertical line indicating alignment (no text or symbols)

1/8 pulg (3mm) 2 1/2 pulg (60mm)

Technical line drawing of a mechanical assembly with a component inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

At ErgoAV, we strive to provide the highest valued products.

We want to support your purchase.

If you have questions, concerns,

or feedback please let us know!

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

[e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

TV Mounts

Simple line drawing of a vertical cylindrical object with base and wheels (no text or symbols)

Speaker Stands

Technical line drawing of a Y-shaped mechanical assembly with two arms and a central shaft (no text or symbols)

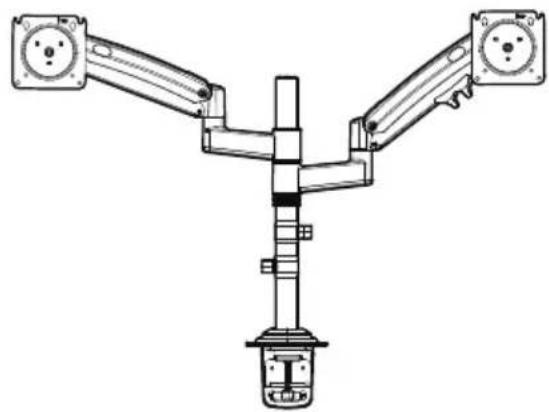

Computer Monitor Mounts

9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

WWW.ERGOAV.COM
