USER MANUAL ERTSS2-01B ErgoAV

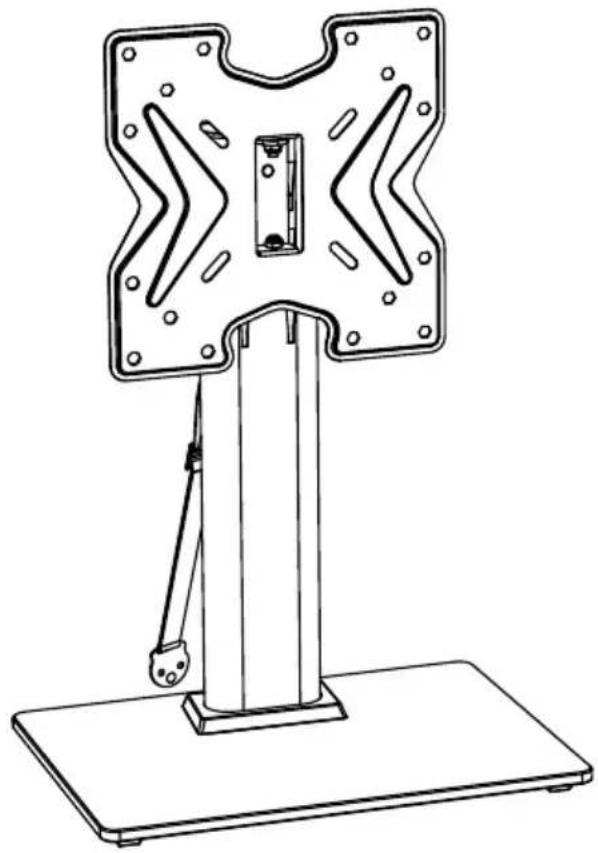

Table Top TV Stand Instruction Manual

V1.0

English pages: 02-15 French pages: 16-29 Spanish pages: 30-43

Model: ERTSS2-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

adress: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.

Please carefully read all instructions before attempting assembly. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].

Before getting starting, let's make sure this mount is perfect for you!

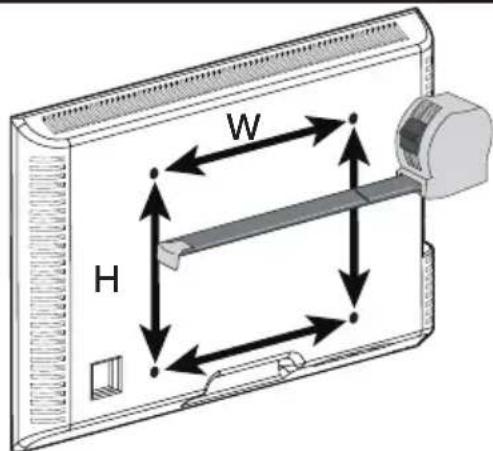

Measure Your TV VESA Pattern:

Minimum: 75 × 75 mm/3 × 3 in (WxH)

Maximum: 200 × 200mm / 8 × 8 in (WxH)

If your TV is not between the minimum and maximum measurements, do not use this product.

If your TV weighs more than 44 lbs, do not use this product.

44 lbs/ 19.96 kg

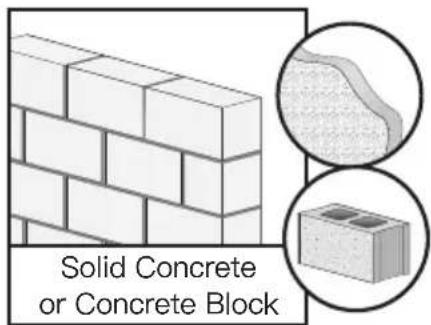

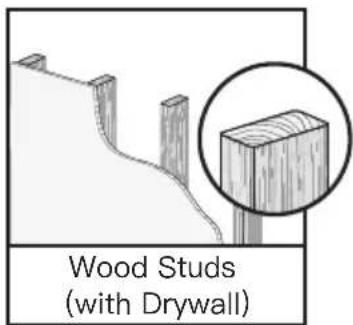

For safety strap installations, you will need to verify your wall construction.

DO NOT install into drywall alone.

If this TV stand is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

Tools Needed (Not Included)

For TV stand assembly

Tape Measure

Phillips
Screwdriver

For safety strap installation into wood table/furniture and wood stud applications

Tape

Measure Pencil

AwlStud Finder

Drill
1/8 in (3mm)
Wood Drill Bit

Phillips
Screwdriver

For safety straps installation into concrete wall

Tape
Measure

Pencil

Drill

5/16 in (8mm)

Concrete Drill Bit Hammer

Phillips
Screwdriver

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail].

• Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

(N) × 1
TV Plate

(B1) x4
M4/M5
Washer

(B2) x4
M6/M8
Washer

Bolts and spacers are shown in actual size.

(C1) x4
M4x12mm
Bolt

(C2) x4 M4x30mm Bolt

(D) x4 M5x25mm Bolt

(E1) x4 M6x15mm Bolt

(E2) x4 M6x35mm Bolt

(F1) x4 M8x15mm Bolt

(F2) x4 M8x35mm Bolt

(G1) x4 L2.5mm Spacer

(G2) x8 L10mm Spacer

Step 1 Secure the TV Brackets [N] to the TV

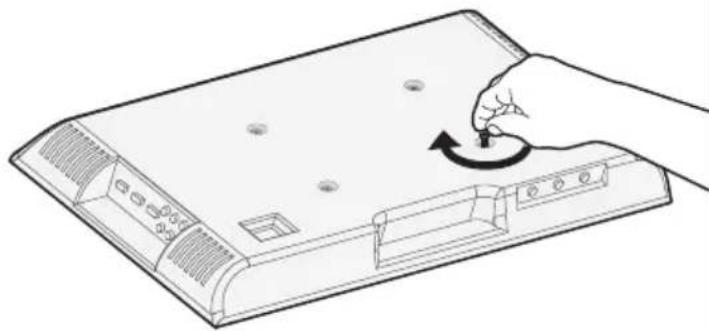

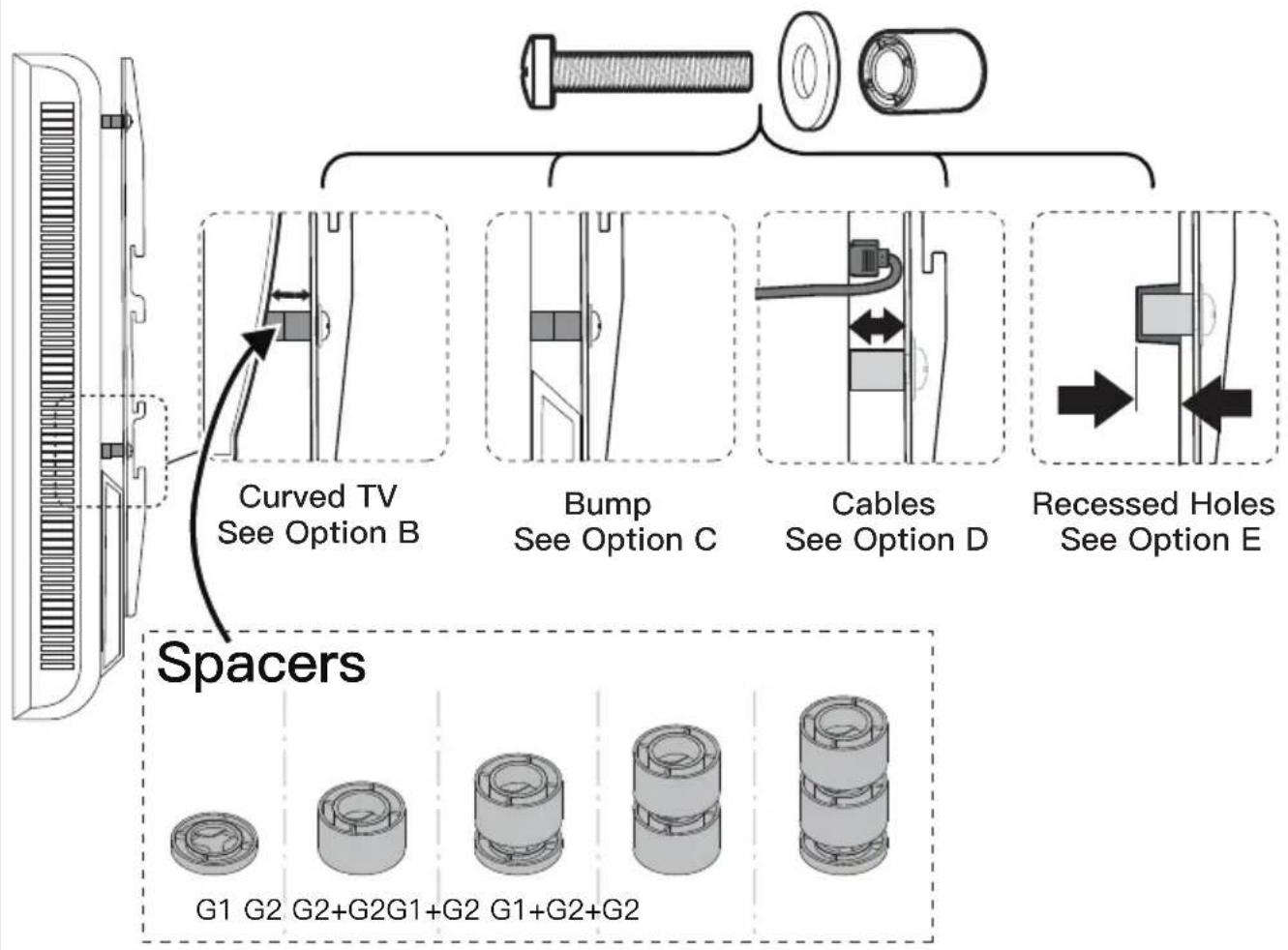

Select TV Bolts.

Only one bolt size fits your TV.

M6M5 M8M4

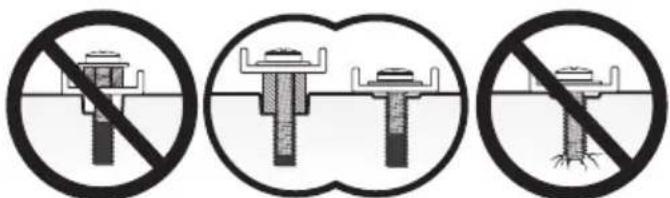

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Too Short Correct Too Long

Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

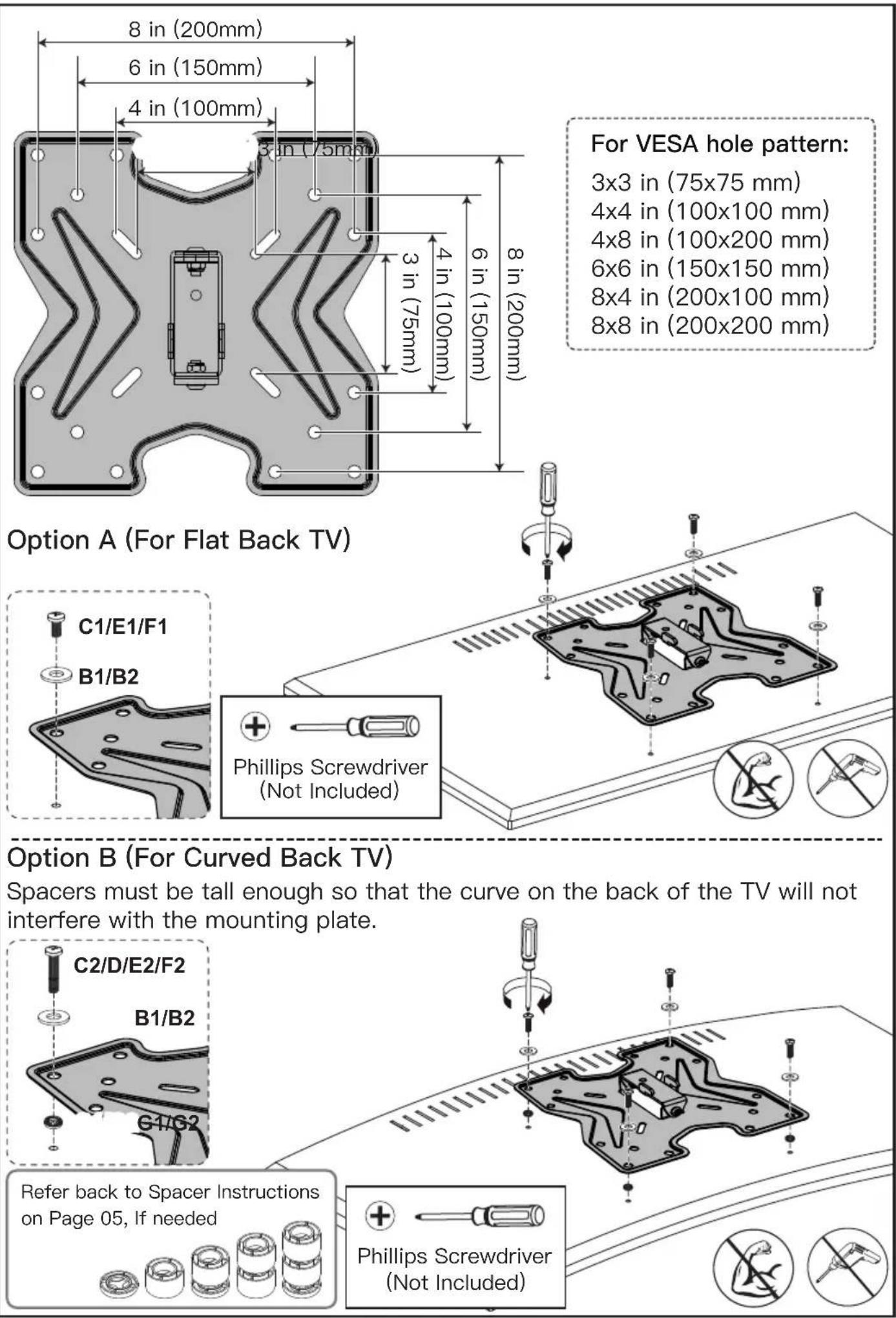

Parts Needed if You Have a TV as Shown Below

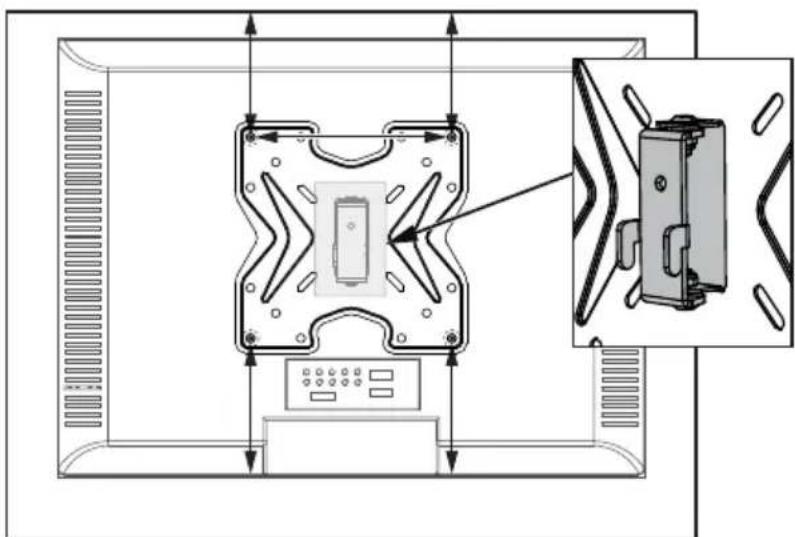

When attaching the TV Plate to the back of the TV, ensure the hooks are pointing to the bottom of the TV and are equally centered on the back of the TV.

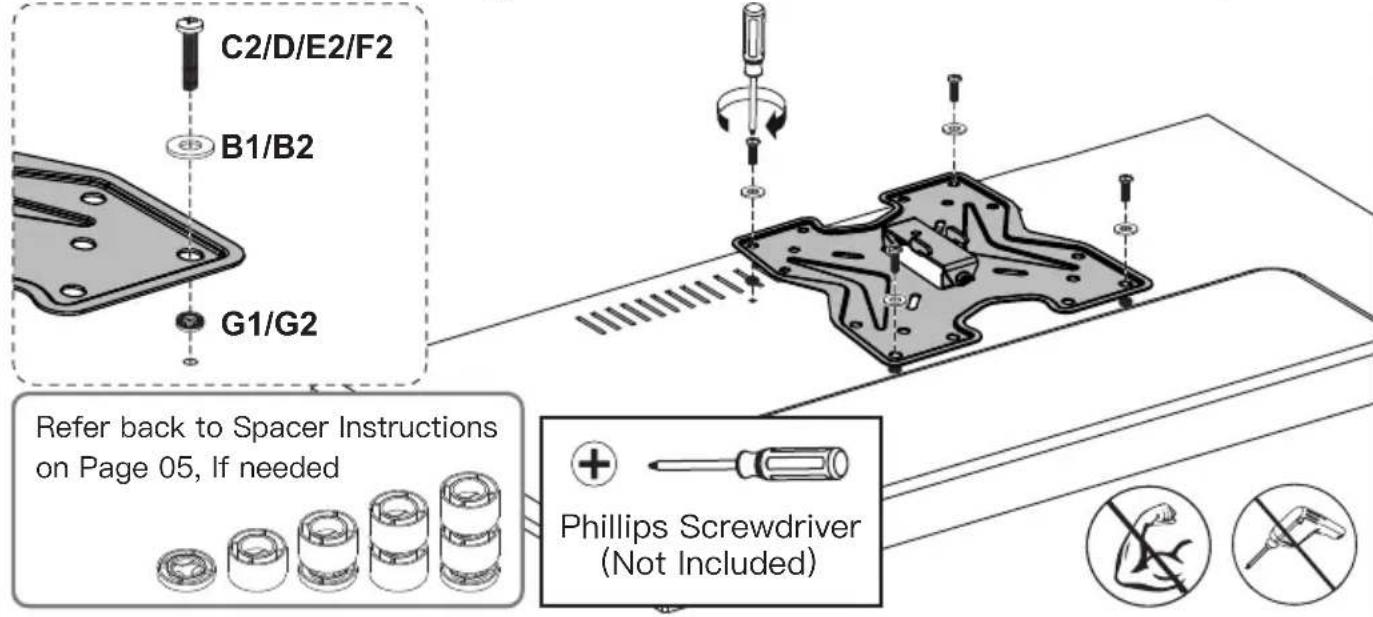

Option C (For TV with A "Bump")

Spacers must be large enough so TV Plate are flush (NO GAP) on bump.

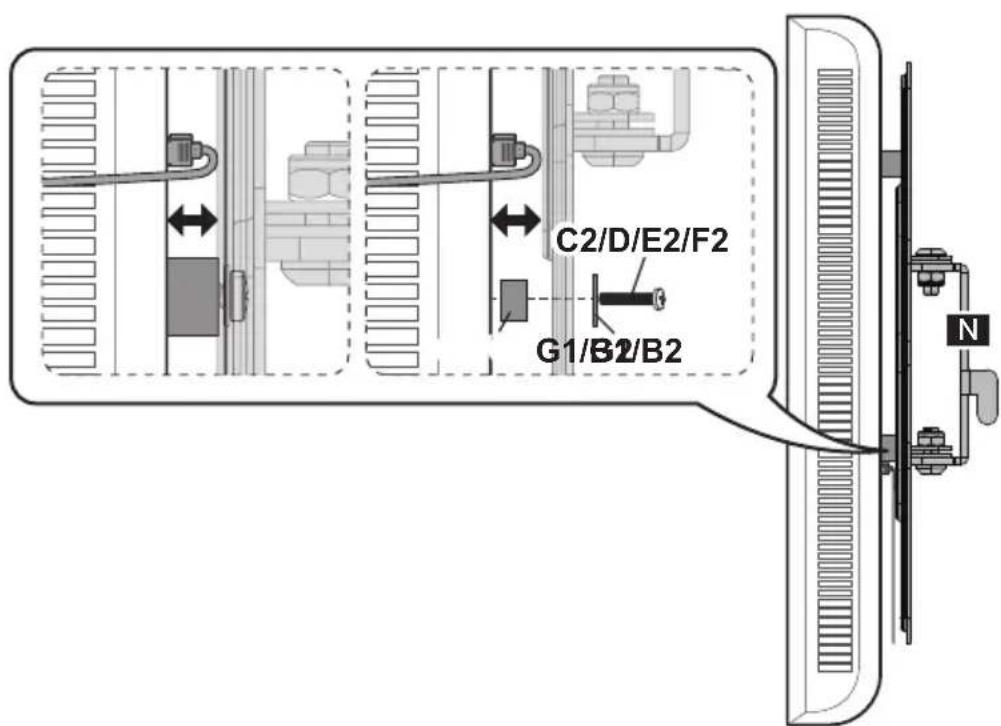

Option D (for TV with Cable Interference)

For cable interference, use spacers [G1] and [G2] to create extra space between the TV and TV brackets.

Refer back to Spacer Instructions on Page 05, If needed

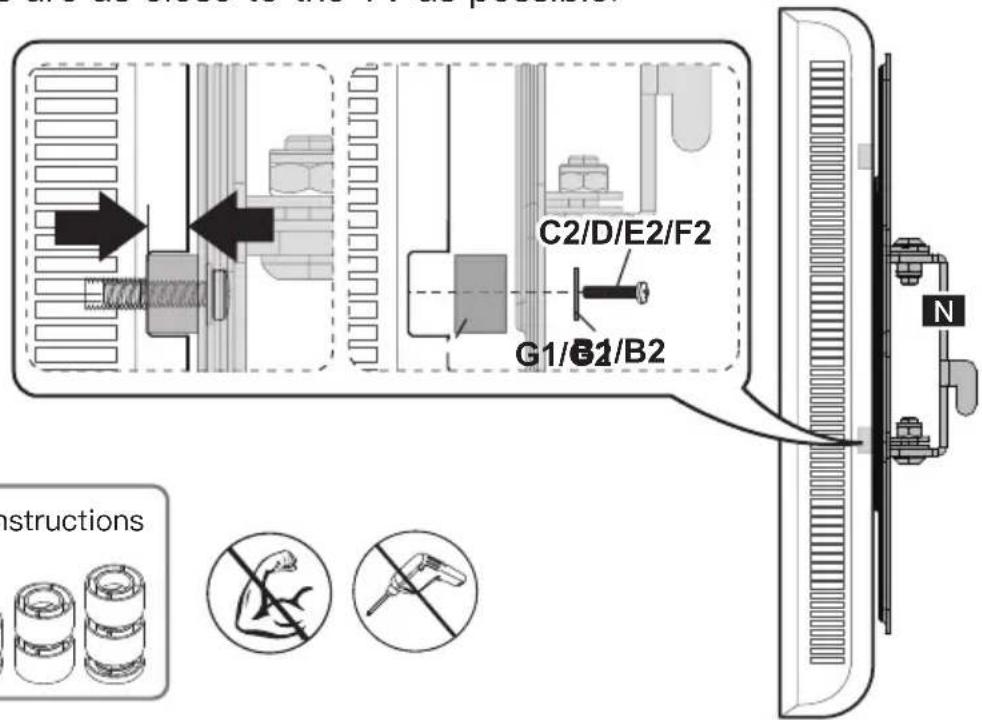

Option E (For Recessed Holes)

The spacer need to fill in the recessed holes on the basis of the TV so that the TV brackets are as close to the TV as possible.

Refer back to Spacer Instructions on Page 05, If needed

Supplied Parts and Hardware for Step 2

This bolt is shown in actual size.

(A) x3 M6x25mm Bolt

(W) x4 Foot Pad

(P) x1 Support Pillar

(R) x1 Reinforcement Plate

(O) x1 Tempered Glass Base

(Y) x1 Trim Ring

(V1) x1 5/32 in (4mm) Small Allen Key

Step 2 Assemble the Base

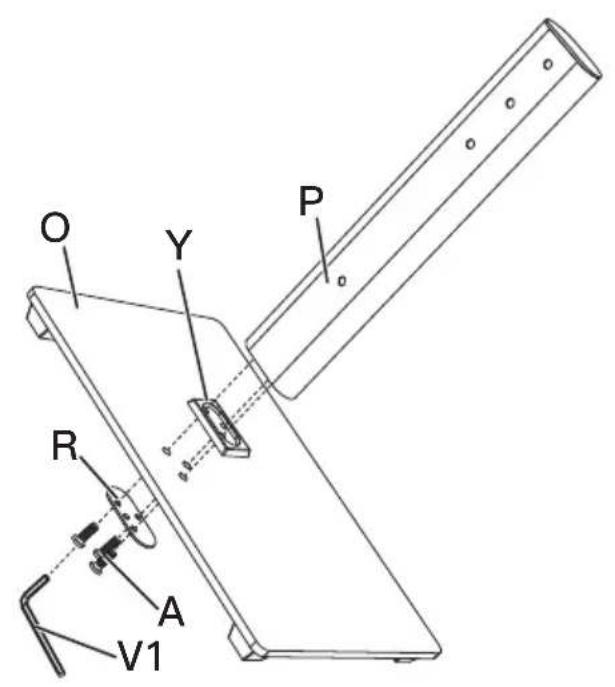

Step 2-1

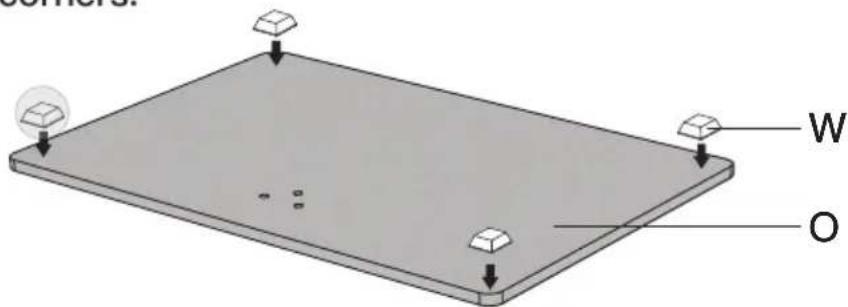

Place foot pads [W] to the painted side of the tempered glass base [O] in the corners.

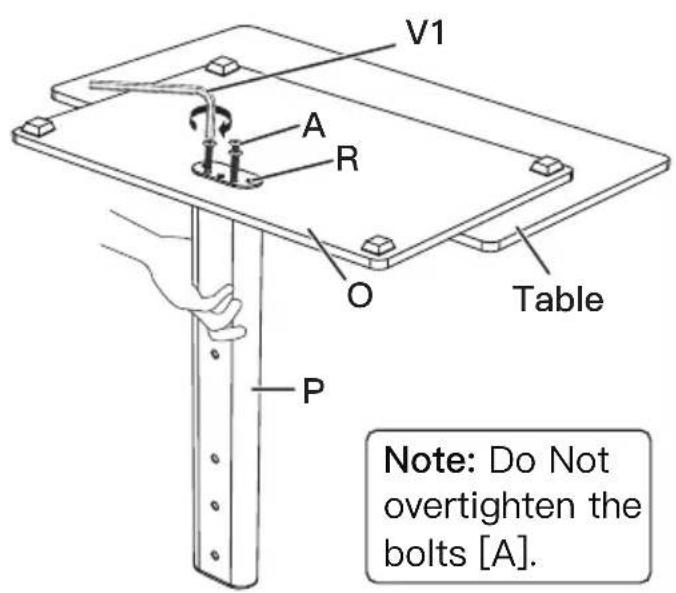

Connect the support pillar [P] to tempered glass base [O].

Step 2-2

Note: Do Not overtighten the bolts [A].
When assembling the support pillar [P], ensure the side of the reinforcing plate [R] with paper is facing the glass base [O].

Supplied Parts and Hardware for Step 3

This bolt is shown in actual size.

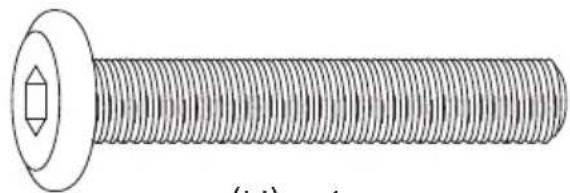

(H) x1 M8x40mm Bolt

(F) x1 Washer

(V2) x1 13/64 in (5mm) Large Allen Key

(X) x2 Safety Strap

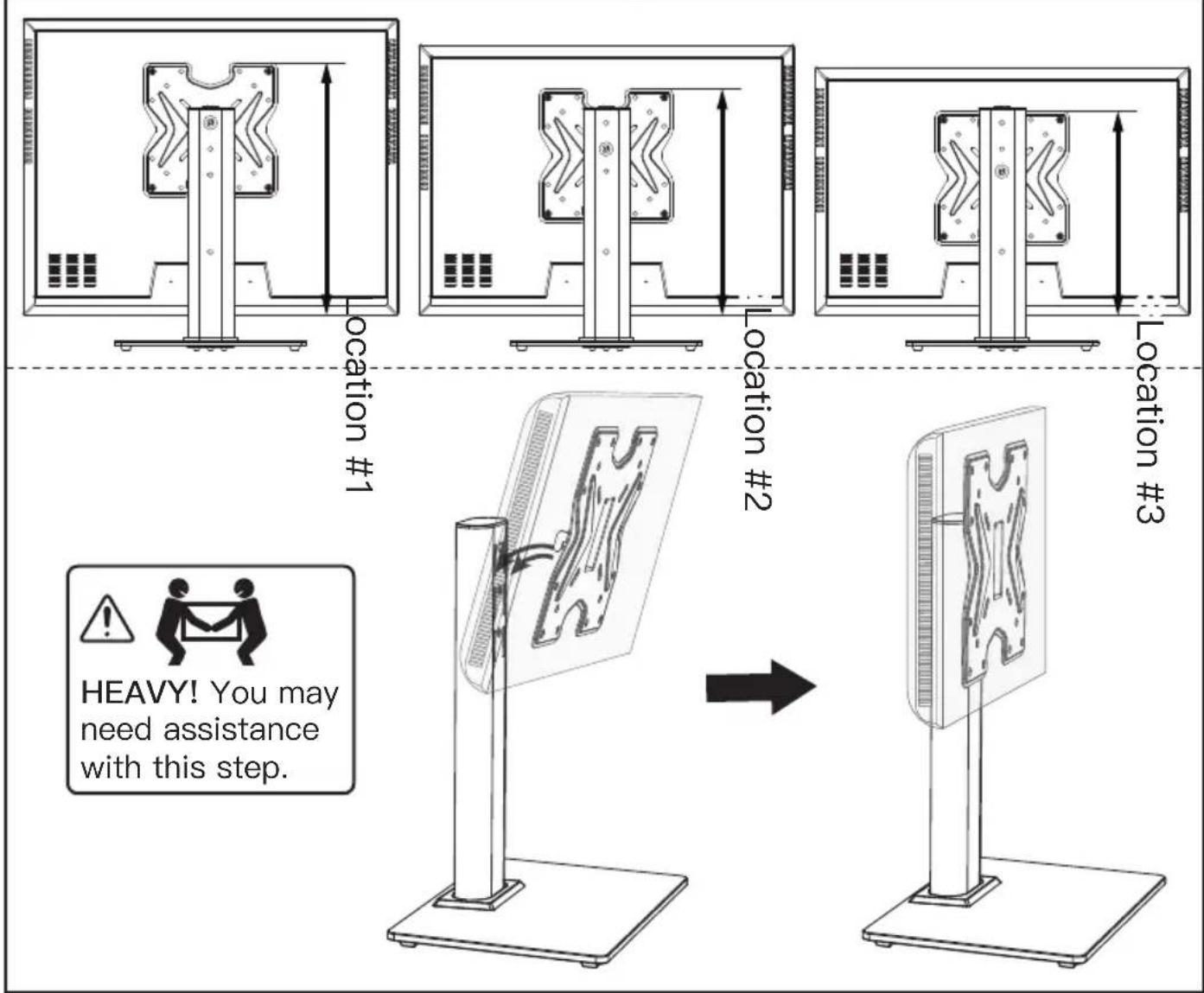

Step 3 Connect the TV Plate [M] to Support Pillar [P]

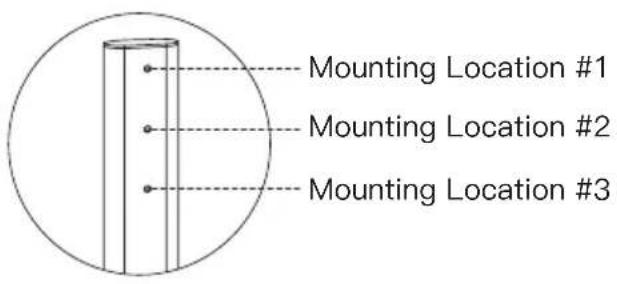

Note: Before attaching the TV Mounting Plate to the pillar, measure the distance from the upper hook on the TV Bracket to the bottom of the TV. Then refer to chart below for the recommended mounting location. To add an additional "2" of space between your TV and the base, use the lower hooks located on the TV Brackets. We always recommend using the lowest possible attachment location for the safest assembly.

Distance from the hooks on the TV Brackets to the bottom of the TV	Recommended TV Mounting Plate Location
9 3/4” to 11 1/2”	Location #1
8” to 9 3/4”	Location #2
Less Than 8”	Location #3

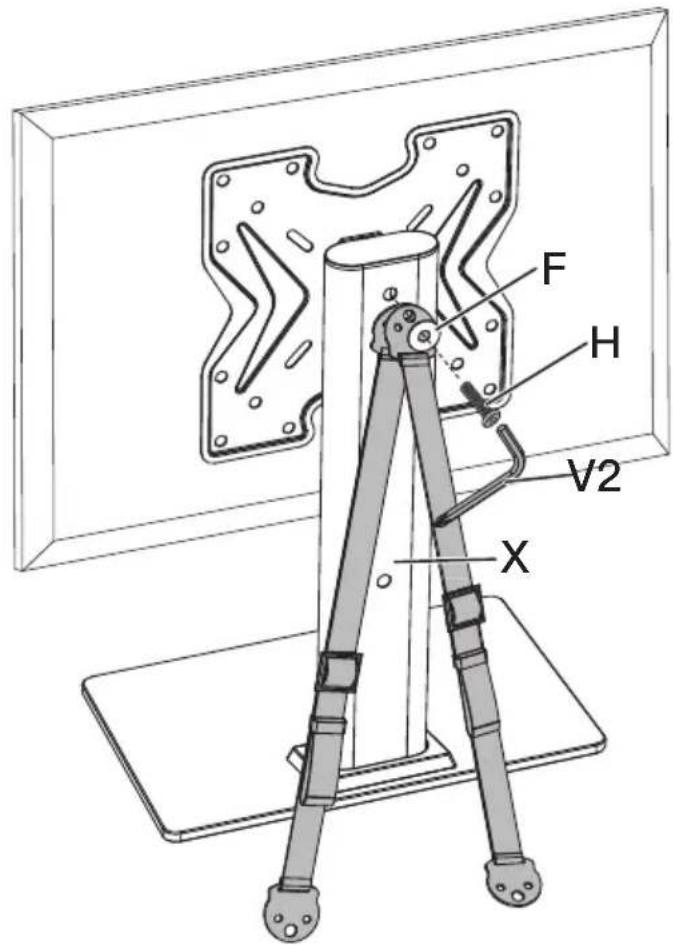

Connect TV plate [N] to support pillar [P] using bolt [H], washer [F], Allen Key [V2].

Supplied Part for Step 4

(K) x1

Wire Clip

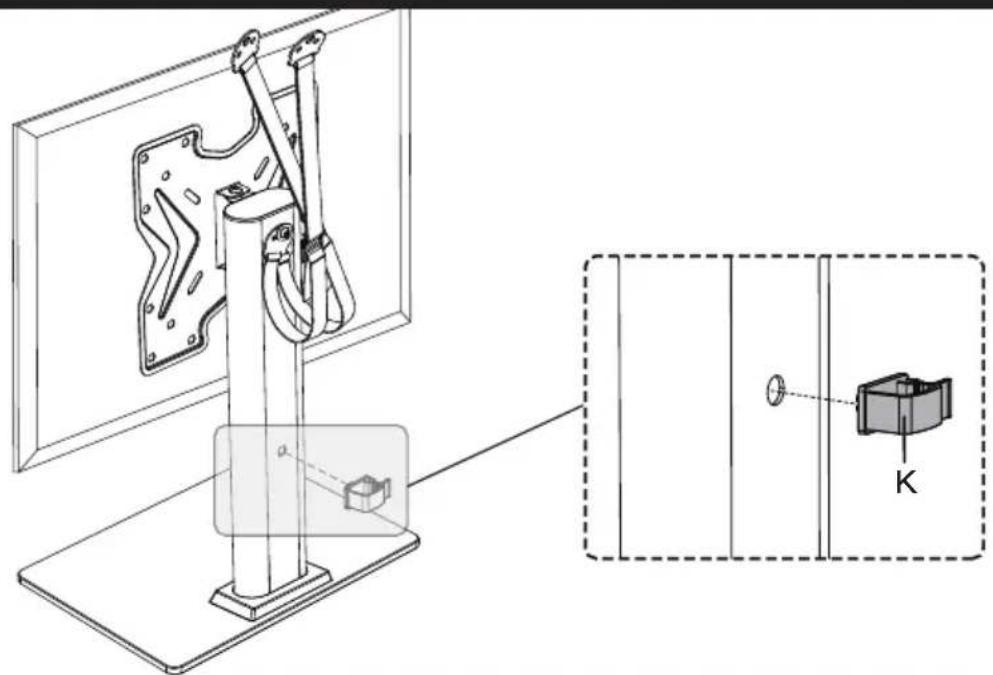

Step 4 Secure the Wire Clips [K] to Support Pillar [P]

Supplied Hardware for Step 5A

For wooden table furniture/wood stud installation.

Z1 X2

Screw M5X25mm Screw M5X60mm M5 Washer(BK)

Z2 x4

Z3 X2

Secure The Safety Straps With TV Stand Against The Wall

Note: For the safest possible installation, we recommend using the included safety straps. By doing so, you will greatly reduce the possibility of a TV Tip Over.

For wooden table furniture installation, follow STEP 5A.

For wood stud installation, follow STEP 5B.

For solid concrete or concrete block installation, follow STEP 5C.

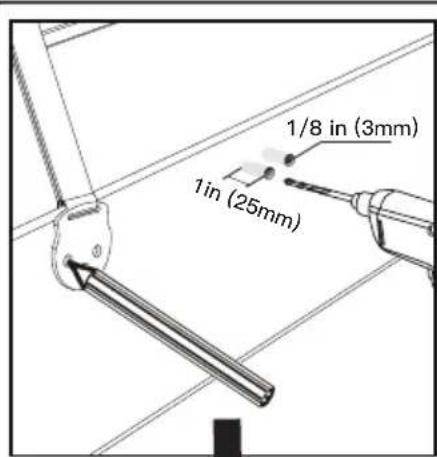

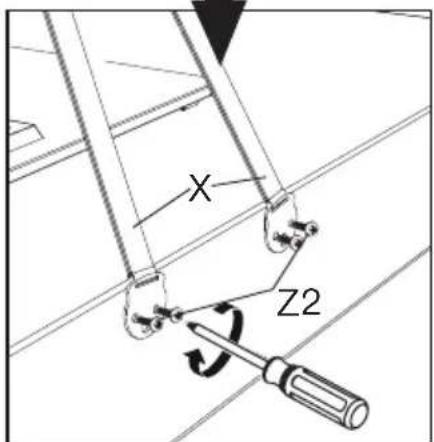

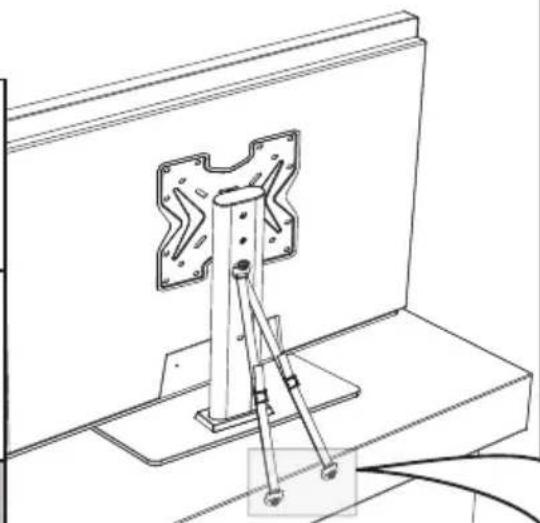

Step 5A

For Wooden Table Furniture Installation

DO NOT USE ANCHOR [Z2] FOR THIS STEP!

Note: It is necessary to predrill a pilot hole to avoid splitting the wood. Being careful not to damage your furniture.

Caution: The mounting surface must be thicker than 1 in (25mm).

Pencil

(Not Included)

Phillips Screwdriver (Not Included)

1 in (25mm)

1/8 in (3mm)

It is recommended that the safety straps be mounted at least 12" apart.

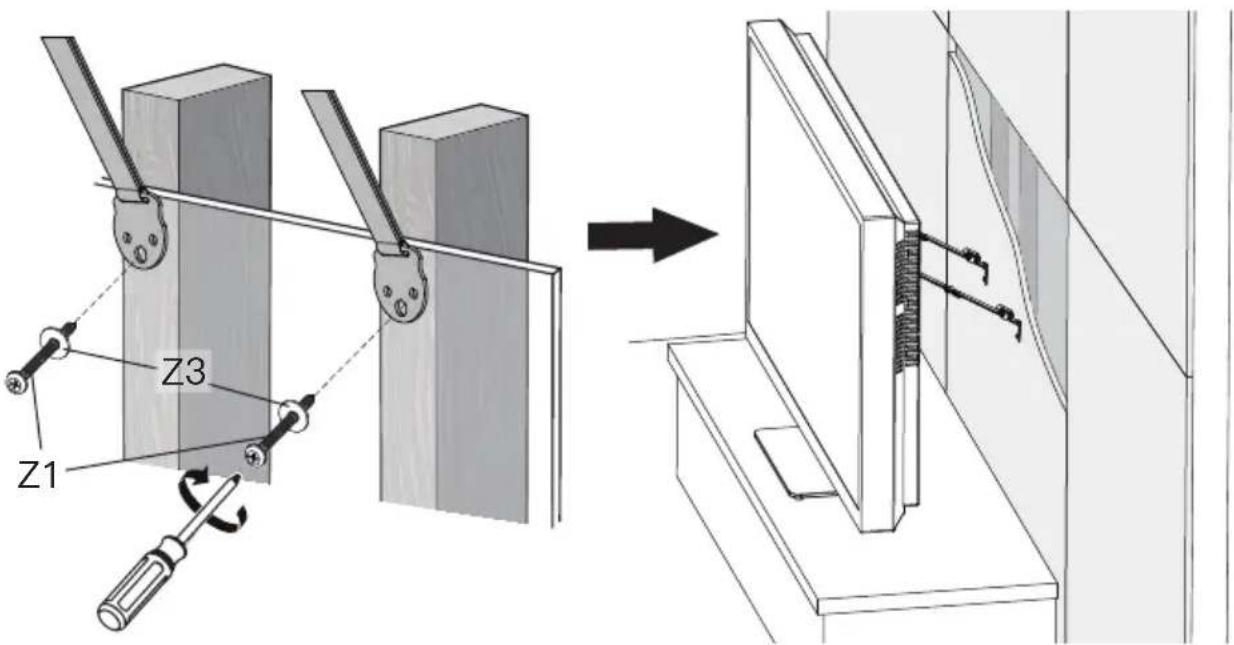

Step 5B

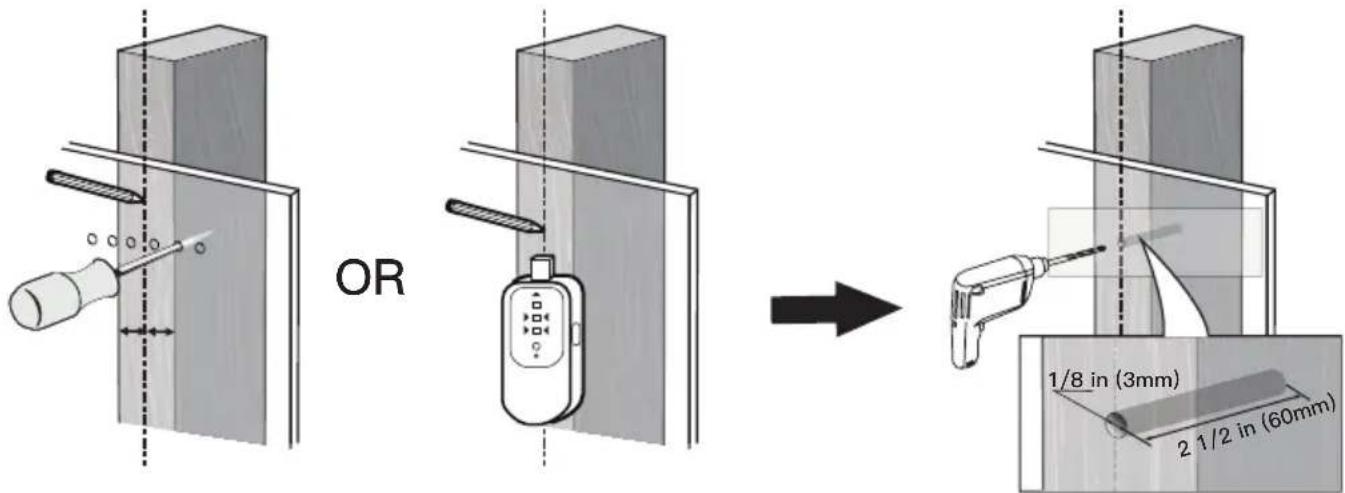

For Wooden Stud Installation

DO NOT USE ANCHOR [Z2] FOR THIS STEP!
- Any material covering the wall must not exceed 5/8 in (16mm) .
- Nominal wood stud size: common 2 × 4 in (51 × 102 ~mm) minimum 1 12 × 3 12 in (38 × 89 ~mm) .
- Stud center must be verified by using an awl or stud finder.

Pencil (Not Included)

Awl (Not Included)

Stud Finder (Not Included)

1/8 in (3mm) Wood Drill Bit

Note: Each strap must be mounted to a separate stud.

Phillips Screwdriver (Not Included)

Supplied Hardware for Step 5C
Screw M5X60mm M5 Washer(BK) Z1 x2 Z3 x2 Z4 x2
Step 5C For Solid Concrete or Concrete Block Installation
● Must use wall anchor [Z4] for this step. ● Any material covering the wall must not exceed 5/8 in (16 mm). ● Minimum solid concrete thickness: 203 mm (8 in). ● Minimum concrete block size: 8 x 8 x 16 in (203 x 203 x 406 mm). ● Never drill into the mortar between blocks.
12 in (305mm)Pencil (Not Included)
5/16 in (8mm) 2 9/16 in (65mm) Z3 Z4 Hammer (Not Included)	5/16 in (8mm) Concrete Drill Bit
Z1 Z3 Z4 + —— Phillips Screwdriver (Not Included)

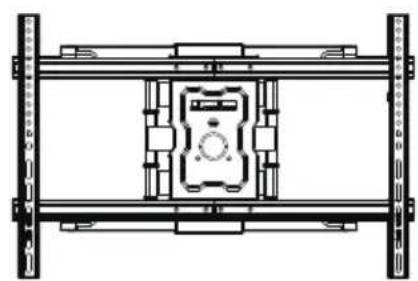

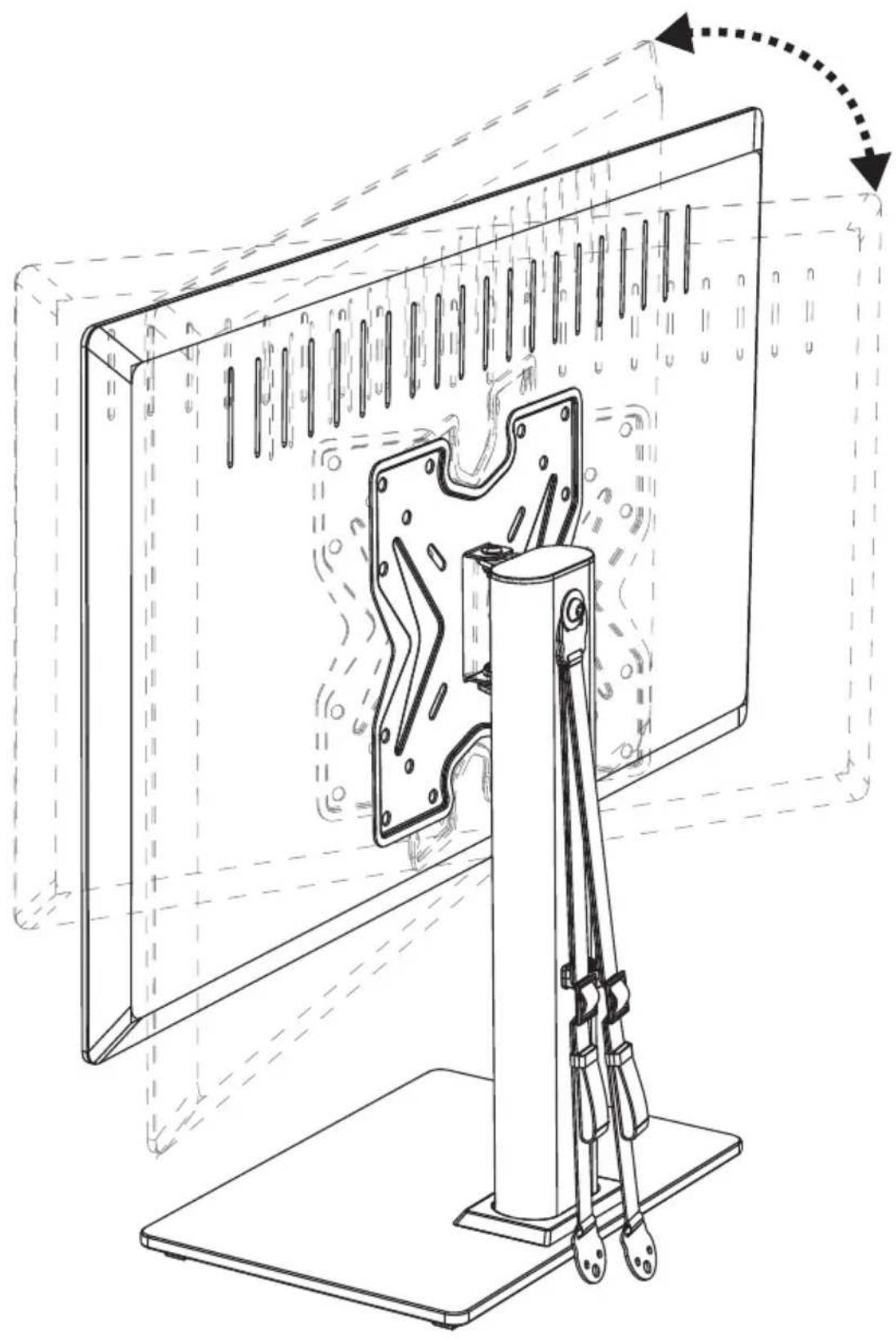

Step 6 Swivel Adjustment

If necessary, the TV plate or TV can be swivelled manually.
