PDF online www.lidl-service.com PARKSIDEDRUCKLUFT-RATSCHENSCHRAUBER PDRS 6.3 A1
DE AT CH
DRUCKLUFT- RATSCHENSCHRAUBER
Operation and Safety Notes Translation of original operation manual
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
GB Operation and Safety Notes Page 41


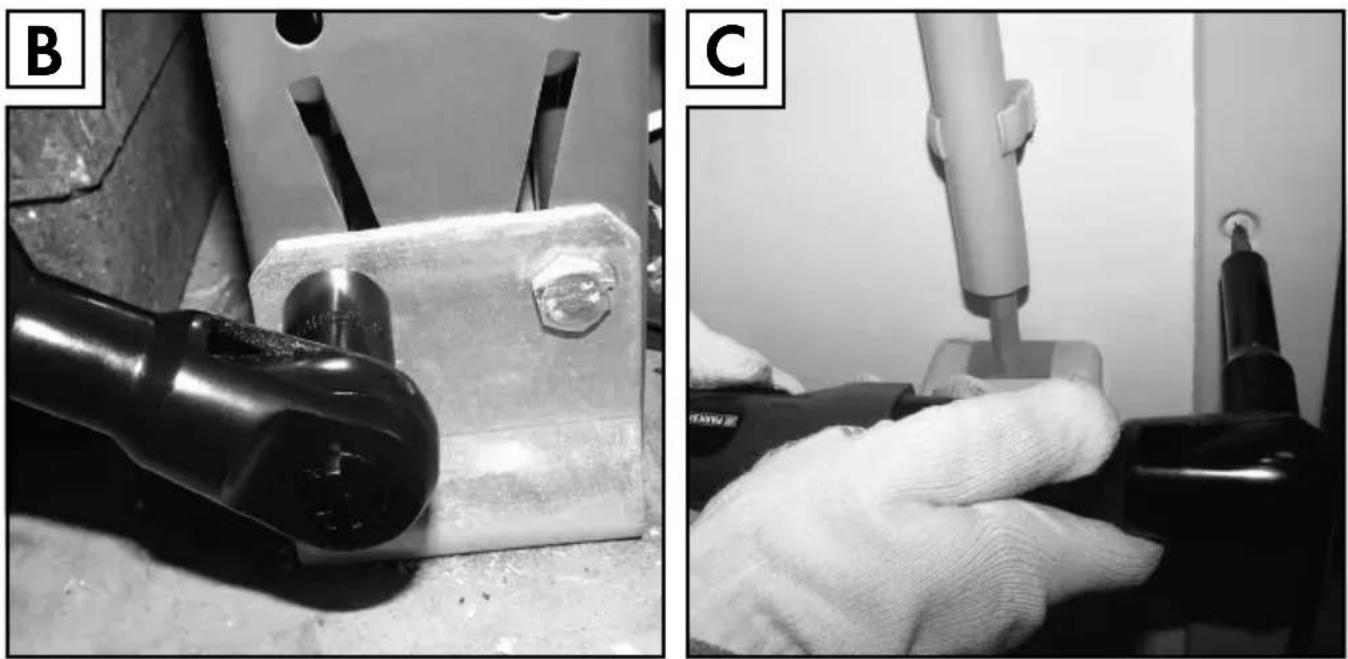

Two black-and-white photos showing mechanical components: (B) a tool on a metal bracket, and (C) a hand holding a white cloth near a device.WARNING! GEFAHR DURCH
service.at@cmc-creative.de
Telefon: +49 (0) 6894 9989751
RATSCHENSCHRAUBER PDRS 6.3 A1
Directive relative aux machines
Directive CE 2006/42/CE
service.ch@cmc-creative.de
Telefono: +49 (0) 6894 9989752
Intended use....Page 42
Features Page 42
Technical Data Page 43
Scope of delivery....Page 43
General safety rules....Page 43
Projectile hazards....Page 45
Entanglement hazards....Page 45
Operating hazards Page 45
Repetitive motions hazards......Page 46
Accessory hazards....Page 46
Workplace hazards......Page 46
Dust and fume hazards......Page 46
Noise hazards....Page 47
Vibration hazards....Page 47
Additional safety instructions for pneumatic power tools......Page 47
Start-up Page 48
After initial use ......Page 48
Maintenance......Page 48
Cleaning and Care....Page 48
Information about warranty and service processing......Page 48
Warranty terms Page 48
Extent of warranty....Page 49
Processing of warranty claims....Page 49
Environmental instructions and disposal information......Page 49
Declaration of Conformity Page 50
| The following pictograms are used in these operating instructions / on the equipment: | |||
 | Please read the operating instructions! |  | Never use hydrogen, oxygen, carbon dioxide or other bottled gases as an energy source. |
 | Note |  | Wear ear protection, dust mask, safety glasses and protective gloves. |
 | Observe the warning and safety instructions! |  | Compressed air hose |
 | Caution! Explosion hazard! |  | Dispose of packaging and device in an environmentally-friendly way! |
| Oil daily | |||
Pneumatic ratchet set PDRS 6.3 A1
- Introduction
Congratulations!
You have chosen high-quality device by our company. Familiarise yourself
with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Initial operation of this tool must be performed by trained personnel.
KEEP OUT OF THE REACH OF CHILDREN!
Intended use
The ratcheting screwdriver is a handy, compressed-air powered device for use by handymen and at garages. It is suitable for securing and removing screw connections in the automotive area (tyre installation, etc.) as well as the agricultural area. Please note the torque specifications when tightening screws and nuts. If necessary, use a torque wrench. The socket attachment is quick and easy to change. Compressed air is connected with a plug nipple and quick connector. Only use the product as described and for the indicated purpose. Keep these instructions in a safe place.
When passing this product on to others, please also include all the documents. Any use other than the intended is prohibited and potentially dangerous. Damages resulting from noncompliance or misuse are not covered by the warranty and are not included in the manufacturer's liability. This device has been designed for household use and may not be used for commercial or industrial purposes.
Features
Check that all the items are present and that the device is in perfect condition immediately after unpacking. Do not use
the device if it is defective.

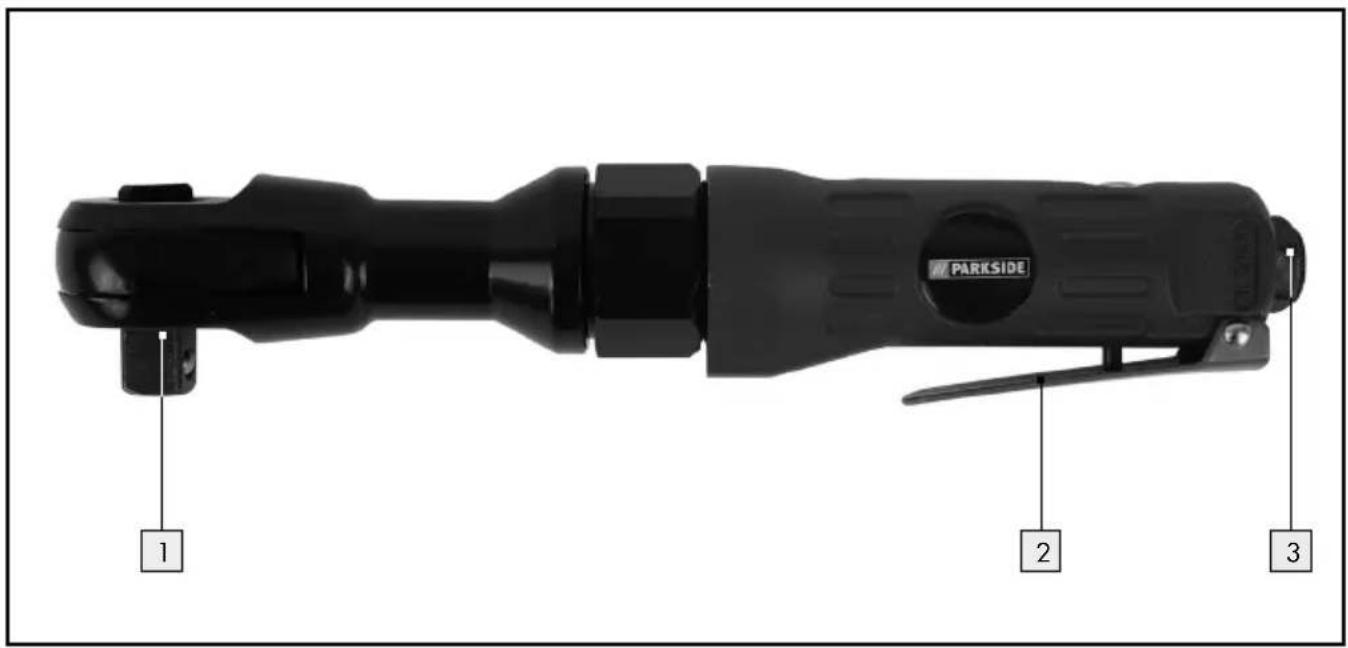

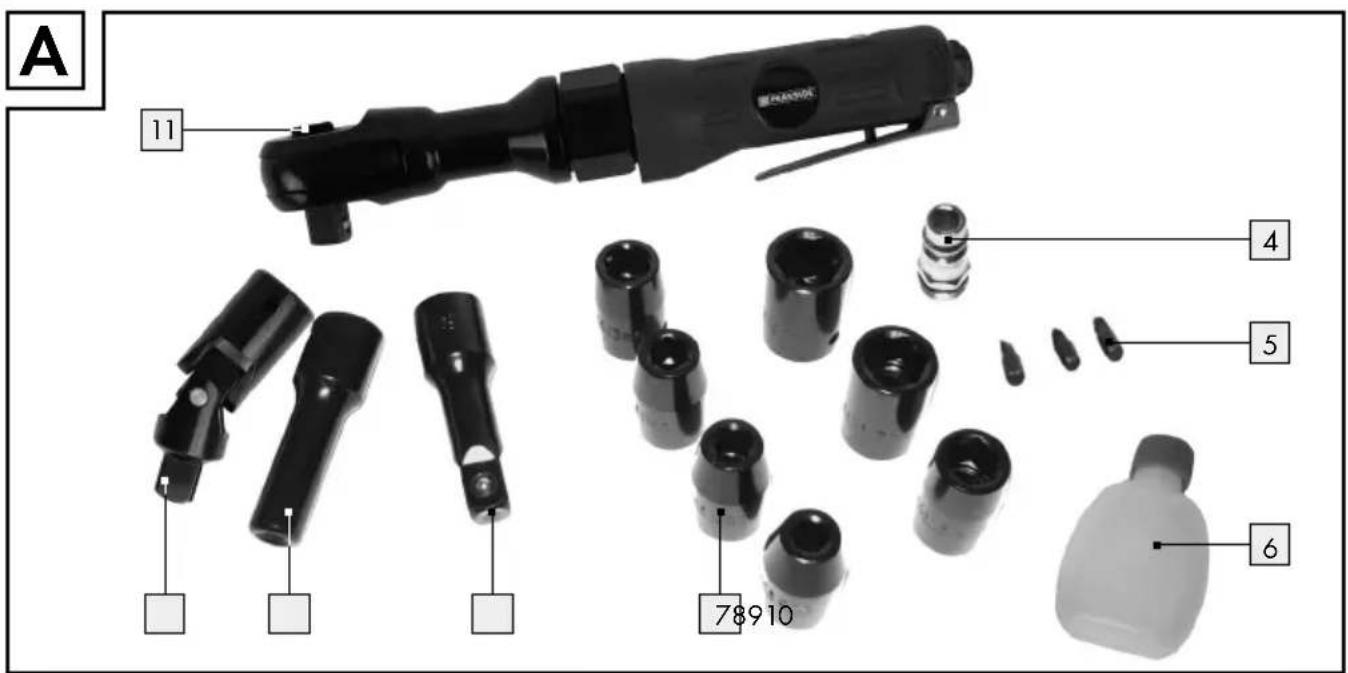

1 Ratchet head
2 Trigger
3 Compressed air connection
4 Plug nipple for compressed air supply
5 Bits
6 Oil reservoir
7 Socket key
8 Extension
9 Bit holder
10 U-joint
11 Pivot bolt
- Technical Data
Max. torque: 61 Nm
Operating pressure: 6.3 bar
Speed: 160 min
-1
Weight: 1120g
Noise and vibration
Noise ratings were determined according to EN 15744. Vibration ratings were determined according to ISO 28927-2.
Vibration
(per EN 28927-2): 2.63 m/s ^2
Uncertainty K: 1.5 m/s ^2
Noise level L_pA : 91.9 dB(A)
Uncertainty K_pA : 3 dB
Sound power level L_WA : 102.9 dB(A)
Uncertainty K_WA : 3 dB
L_pC,peak = 105.3 dB(A)
Uncertainty K = 3 dB
- Scope of delivery
1 Air ratchet set
1 Plug nipple with gasket
7 Socket key (10, 11, 13, 14, 15, 17, 19 mm)
1 Extension
3 Bits (PH 2.3, SL 5.5)
1 U-joint
1 Bit holder
1 Oil reservoir
1 Carrying case
1 Instructions for use
General safety rules
Note: When used in the following text, the terms „compressed air unit“ or „device“ refer to the compressed air unit specified in these instructions for use.
WARNING! Basic safety measures must be followed when using compressed air units to eliminate the risk of fire, electric shock and personal injury. Be sure to read and follow the notices within these
operating instructions prior to using the equipment and store them in a safe location.
The manufacturer assumes no liability for damages or personal injury resulting from failure to follow these operating instructions.
Persons (including children) who lack the knowledge or experience to use the tool or whose physical, sensory or intellectual capacities are limited must never be allowed to use the tool without supervision or instruction by a person responsible for their safety.
■ Ensure children do not play with the device.
WARNING! RISK OF INJURY! Before performing maintenance tasks, disconnect the compressed air supply.
EXPLOSION HAZARD! Never use petrol or other flammable liquids to clean the air tool! Sparks could
ignite residual vapours inside the compressed air unit resulting in the compressed air unit exploding. Do not use the device in explosive environments with flammable liquids, gasses or dust. Never work on materials which are or could potentially be highly flammable or explosive.
■ Only use the equipment in areas of application for which it was designed!
Do not overburden the device.
Never use hydrogen, oxygen, carbon dioxide or other bottled gasses to power this tool as doing so may result in an explosion and thus may cause severe injuries.
- Regularly maintain and clean the device as specified (see chapters „Maintenance“ and „Cleaning and care“).
- Inspect the device for any damage before use. Always make sure that the device is in perfect condition each time before use.
■ Always be attentive! Unexpected movement of the device may cause hazards.
Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the compressed air unit in unforeseen circumstances.
Do not use any device if its switch is defective. A device that can no longer be switched on and off is dangerous and must be repaired.
Store the device out of the reach of children when it is not in use. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Compressed air units are dangerous when they are used by inexperienced people.
- Maintain the device carefully. Check that moving device parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before using the device. Many accidents have their origins in poorly maintained devices.
■ Switch the device off if you do not use it anymore.
Always wear personal protective equipment and safety glasses. Wearing personal protective equipment such as dust mask, non-slip safety shoes, safety helmet or ear protectors, depending on the type of air tool and its application, reduces the risk of injuries.
Check the connections and supply lines. All maintenance devices, couplings and hoses must be equipped to meet the pressure and air amounts specified in the device specific values. Pressure that is too low influences the functioning of the device; pressure that is too high can cause damage to property and personal injury.
- Protect hoses from kinks, constrictions, solvents and sharp edges. Keep hoses away from heat, oil and rotating parts.
■ Make sure that the hose clamps are always tightly fastened. If the hose clamps are not tightly fastened or are damaged, the air could escape uncontrollably.
- eplace damaged hoses immediately. A damaged supply line may result in the air hose flapping about and may result in injuries.
If the power cable of the appliance is damaged, it has to be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards.
Do not use the device when tired or under the influence of drugs, alcohol or medications. One
moment of carelessness when using the device may result in serious injuries.
Do not directly inhale the exhaust air. Keep eyes away from exhaust air. Exhaust air from the air tool may contain water, oil, metal particles or contaminants from inside the compressor. This may damage your health.
WORFUG! WHEN PUT-
TING THE TOOL DOWN! Always put down the device so it does not come into contact with the trigger. This could potentially result in accidental activation of the device, which again could result in hazards.
Only use suitable accessories. These may be purchased from the manufacturer. Using non-OEM accessories may result in hazards.
Only use filtered and regulated compressed air. Dust, caustic vapours and / or moisture may damage the motor of the compressed air tool.
The hose must be designed for pressures of at least 6.3 bar or 125 PSI, but at least 150 % of the maximum pressure generated in the system.
The tool and supply line must be equipped with a hose coupling to completely release pressure when disconnecting the coupling hose.
■ DANGER! Avoid contact with live lines. This device is not insulated against electric shock.
WARNING! RISK OF INJURY! High working pressures can give rise to recoil forces that under certain conditions can result in danger from continuous loading.
If you are inexperienced in the use of this type of device, you should seek training on how to handle it safely.
■ WDANGER! OF STAB
WOUNDS! Do not treat an injection as a simple cut. A high pressure jet may inject toxins into the body and cause serious injuries. If the spray is injected into the skin, seek medical help immediately.
Do not modify this device in any way without the manufacturer's approval.
Only use the compressed air unit with the specified pressure (6.3 bar).
■ Disconnect the compressed air unit from the air supply after each use and when not in use.
Do not use the compressed air unit if it is not air tight or in need of repair.
■ Never connect the compressed air unit to an air hose with pressure exceeding 6.3 bar.
- Keep your working area clean and well lit. Untidy or poorly lit working areas can result in accidents. Doing so will allow you better control of the device, particularly under unforeseen circumstances.
A WARNING: the device repaired by qualified specialist personnel using OEM spare parts. This will maintain the safety of the device.
- Keep children and other persons away from the device during use. Distractions can cause you to lose control of the device.
Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
Put down trigger and device in the event of unexpected compressor failure.
If possible, use a condensate trap or regularly drain the hoses and pipes of condensate (water) before and whilst using compressed air units.
ATTENTION! An undersized compressed air system may minimise the efficiency of your device.
For multiple hazards, read and understand the safety instructions before installing, operating, repairing, maintaining, changing accessories on, or working near the assembly power tool for threaded fasteners. Failure to do so can result in serious bodily injury.
Only qualified and trained operators should install, adjust or use the assembly power tool for threaded fasteners.
Do not modify this assembly power tool for threaded fasteners. Modifications can reduce the effectiveness of safety measures and increase the risks to the operator.
Do not discard the safety instructions; give them to the operator.
Do not use the assembly power tool for threaded fasteners if it has been damaged.
Tools shall be inspected periodically to verify that the ratings and markings required by this
part of ISO 11148 are legibly marked on the tool. The user shall contact the manufacturer to obtain replacement marking labels when necessary.
- Projectile hazards
Failure of the workpiece, of accessories or even of the inserted tool itself can generate high-velocity projectiles.
Always wear impact-resistant eye protection during the operation of the assembly power tool for threaded fasteners. The grade of protection required should be assessed for each use.
■ Ensure that the workpiece is securely fixed.
- Entanglement hazards
■ Entanglement hazards can result in choking, scalping and / or lacerations if loose clothing, personal jewellery, neckware, hair or gloves are not kept away from the tool and accessories.
Gloves can become entangled with the rotating drive, causing severed or broken fingers.
Rotating drive sockets and drive extensions can easily entangle rubber-coated or metal-reinforced gloves.
Do not wear loose-fitting gloves or gloves with cut or frayed fingers.
■ Never hold the drive, socket or drive extension.
- Keep hands away from rotating drives.
- Operating hazards
The use of the tool can expose the operator's hands to hazards including crushing, impacts, cuts and abrasions and heat. Wear suitable gloves to protect hands.
Operators and maintenance personnel shall be physically able to handle the bulk, weight and power of the tool.
Hold the tool correctly; be ready to counteract normal or sudden movements and have both hands available.
- Maintain a balanced body position and secure footing.
n dases where the means to absorb the reaction torque are requested, it is recommended to use a suspension arm whenever possible. If that is not possible, side handles are recommended for straightcase and pistol-grip tools. Reaction bars are recommended for angle nutrunners. In any case, it is recommended to use a means to absorb the reaction torque above 4 Nm for straight tools, above 10 Nm for pistol-grip tools, and above 60 Nm for angle nutrunners.
■ Release the start-and-stop device in the case of an interruption of the energy supply.
Use only lubricants recommended by the manufacturer.
Fingers can be crushed in open-ended crow-foot nutrunners.
Do not use in confined spaces and beware of crushing hands between tool and workpiece, especially when unscrewing.
• Repetitive motions hazards
When using a power tool for, the operator can experience discomfort in the hands, arms, shoulders, neck, or other parts of the body.
While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture while maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue.
If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should consult a qualified health professional.
- Accessory hazards
- Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or accessory.
Do not touch sockets or accessories during impacting, as this increases the risk of cuts, burns or vibration injuries.
Use only sizes and types of accessories and consumables that are recommended by the assembly power tool for threaded fasteners manufacturer; do not use other types or sizes of accessories and consumables.
Use only impact-wrench-rated sockets in good condition, as poor condition or hand sockets and accessories used with impact wrenches can shatter and become a projectile.
• Workplace hazards
Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by the use of the tool and also of trip hazards caused by the air line or hydraulic hose.
Proceed with care in unfamiliar surroundings. Hidden hazards, such as electricity or other utility lines, can exist.
The assembly power tool for threaded fasteners is not intended for use in potentially explosive atmospheres and is not insulated against coming into contact with electric power.
■ Make sure there are no electrical cables, gas pipes, etc., that can cause a hazard if damaged by use of the tool.
- Dust and fume hazards
Dust and fumes generated when using assembly power tools for threaded fasteners can cause ill health (for example cancer, birth defects, asthma and / or dermatitis); risk assessment and implementation of appropriate controls for these hazards are essential.
Risk assessment should include dust created by the use of the tool and the potential for disturbing existing dust.
■ Direct the exhaust so as to minimize disturbance of dust in a dust-filled environment.
Where dust or fumes are created, the priority shall be to control them at the point of emission.
All integral features or accessories for the collection, extraction or suppression of airborne dust or fumes should be correctly used and maintained in accordance with the manufacturer's instructions.
■ Use respiratory protection.
Noise hazards
Exposure to high noise levels can cause permanent, disabling hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in the ears). Therefore a risk assessment and implementation of appropriate controls for these hazards are essential.
Appropriate controls to reduce the risk may include actions such as damping materials to prevent workpieces from "ringing".
■ Use hearing protection.
Operate and maintain the assembly power tool for threaded fasteners as recommended in the instructions handbook, to prevent an unnecessary increase in noise levels.
If the assembly power tool for threaded fasteners has a silencer, always ensure it is in place and in good working order when the assembly power tool for threaded fasteners is operating.
Select, maintain and replace the consumable / inserted tool as recommended in the instructions handbook, to prevent an unnecessary increase in noise.
• Vibration hazards
■ Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms.
■ ekp the hands away from the nutrunner sockets.
■ Wear warm clothing when working in cold conditions and keep your hands warm and dry.
If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, stop using the assembly power tool for threaded fasteners, tell your employer and consult a physician.
Operate and maintain the assembly power tool for threaded fasteners as recommended in the instructions handbook, to prevent an unnecessary increase in vibration levels.
Do not use worn or ill-fitting sockets or extensions, as this is likely to cause a substantial increase in vibration.
Select, maintain and replace the consumable / inserted tool as recommended in the instructions handbook, to prevent an unnecessary increase in vibration levels.
Sleeve fittings should be used where practicable.
■ Support the weight of the tool in a stand, tensioner or balancer, if possible.
Hold the tool with a light but safe grip, taking account of the required hand reaction forces, because the risk from vibration is generally greater when the grip force is higher.
Additional safety instructions for pneumatic power tools
Air under pressure can cause severe injury:
- always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs;
- never direct air at yourself or anyone else.
Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings.
■ Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings.
Cold air shall be directed away from the hands.
- Cold air shall be directed away from the hands.
Do not use quick-disconnect couplings at tool inlet for impact and air-hydraulic impulse wrenches. Use hardened steel (or material with comparable shock resistance) threaded hose fittings.
- Cold air shall be directed away from the hands. - Do not use quick-disconnect couplings at tool inlet for impact and air-hydraulic impulse wrenches. Use hardened steel (or material with comparable shock resistance) threaded hose fittings.
Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure.
Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure.
Do not exceed the maximum air pressure stated on the tool.
For torque-control and continuous-rotation tools, the air pressure has a safety critical effect on
- Do not exceed the maximum air pressure stated on the tool. - For torque-control and continuous-rotation tools, the air pressure has a safety critical effect on
... / Start-up / After initial use / Maintenance / Cleaning ... / Information about ...
performance. Therefore, requirements for length and diameter of the hose shall be specified.
Never carry an air tool by the hose.
- Start-up (see Fig. B / C)
Screw the included plug nipples into the air connection after first wrapping the thread with 2-3 layers of sealing tape (not included).
☐ Attach the required plug-in attachment to the square intake (7 - 11 see Fig. A).
Set the correct direction of rotation on the pivot bolt 11:
R = counterclockwise / remove screw, F = clockwise / tighten screw.
☐ Attach the plug-in attachment to the screw head.
□ Activate the trigger.
Note: the connection to the compressed air source is established through a flexible air hose with quick connector.
The ratcheting screwdriver will perform best when used with an LW 10 mm air hose.
- After initial use
Once the task has been finished the equipment must be disconnect from the compressed air supply 3.
- Maintenance
Following the maintenance information specified here will ensure a long service life for the product and trouble-free operation. Your ratchet screwdriver working properly for a long time requires daily lubrication.
You may choose from the following options:
With an oil-fog lubricator
A complete maintenance unit includes an oil-fog lubricator and is attached to the compressor.
Manually
Add 3-5 drops of speciality tool oil to the compressed air connection before every use. If the compressed air tool is not being used for several days, add 5-10 drops of oil to the compressed air connection before switching it on.
□ Always store your compressed air tools in dry rooms.
- Cleaning and Care
■ Never clean with liquids such as petrol, solvents or water.
Do not allow liquids to enter the tool.
☐ Only clean the tool with a dry cloth.
● Information about warranty and service processing
Creative Marketing Consulting GmbH warranty
Dear customer,
the warranty for this device is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product.
Your statutory rights are not limited in any way by our warranty detailed below.
Warranty terms
The warranty period begins on the date of purchase. Please retain the original receipt safely. This document is required as your proof of purchase.
Should this device show any fault in materials or manufacture within three years from date of purchase, it will be repaired or replaced – at our choice – by us free of charge. This warranty is conditional on the defective device and the proof of purchase (receipt) being presented within the three year warranty period, and that there is a brief written description of the nature of the defect and of the date it arose.
If the defect is covered by our warranty, we will return the repaired device or replacement thereof. A
repair or exchange of the device does not extend a new warranty period.
- Extent of warranty
The appliance has been manufactured to strict quality guidelines and meticulously examined before delivery.
The warranty applies to faults in material or manufacture. This warranty does not apply to product parts subject to normal wear and tear and which can therefore be considered as wear items, or to damage to fragile parts, e.g. switches, storage batteries or glass parts.
This warranty becomes void if the device has been damaged or improperly used or maintained. All instructions provided in the operating instructions must be followed strictly to constitute proper use of the product. Purposes and practices which the operating instructions warn of or advise against must be avoided without fail.
This product is intended for private, non-commercial use only. Any incorrect or improper use of the device, use of force and changes not performed by our authorized service branch will void the warranty.
- Processing of warranty claims
Please follow the instructions below to ensure quick processing of your claim:
When inquiring about your product please have your receipt and product number (e.g. IAN) ready as your proof of purchase.
The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left) or the decal at the back or bottom.
In the event of malfunctions or other defects, please first contact the service department below by phone or e-mail.
A product recorded as defective, along with the proof of purchase (sales receipt) and a description of the defect and when it occurred, can then be returned free of charge to you to the service address provided.
Note:
Visit www.lidl-service.com to download this and many other manuals, product videos and software.
How to contact us:
GB
Name: C. M. C. GmbH
Website:www.cmc-creative.de
E-mail:service.gb@cmc-creative.de
Phone:0-808-189-0652
(standard German landline rates apply)
Fax: 0-808-189-0652
Registered office: Germany
IAN 285196
Please note that the following address is not a service address.
Please first contact the service point named above.
Address:
C. M. C. GmbH
Katharina-Loth-Str. 15
66386 St. Ingbert
Germany
●Environmentalinstructions and disposal information
Don't waste, recycle!
Device, accessories and packaging should be recycled in an environmentally friendly manner.
Do not dispose of the air tool with your household waste, or throw into fire or water. If possible, non-operational equipment should be recycled. Contact your local retailer for information.
● Declaration of Conformity CE
We,
C. M. C. GmbH
Responsible for documentation: Marc Uhle
Katharina-Loth-Str. 15
66386 St. Ingbert
declare in our sole responsibility that the product
Pneumatic ratchet set
Item number: 2047
Year of manufacture: 2017 / 34
IAN: 285196
Model: PARKSIDE PNEUMATIC RATCHET
SET PDRS 6.3 A1
meets the basic safety requirements of European Directives
Machinery Directive
EC Directive 2006/42/EC
and its amendments.
The conformity assessment is based on the following harmonised standards:
