USER MANUAL Handheld Garment Steamer Xiaomi

xiaomi Handheld Garment Steamer

User Manual · 01

Read this manual carefully before use, and retain it for future reference.

Safety Instructions

This garment steamer is intended for household use only. Make sure to observe the following safety precautions to reduce the risks of errors, electric shocks, injuries, fires, deaths, and damage to equipment or property.

Do not leave the garment steamer unattended when it is connected to power.

Warnings

Restrictions on use

• Do not use the garment steamer if the power plug that is plugged into the electrical outlet is loose, or if the power cord or plug is damaged or becomes hot. Otherwise, it may cause burns, electric shocks, or fire due to short circuits.
• Do not insert or remove the power plug with wet hands to avoid electric shocks and injuries.
• Do not use the garment steamer if the power cord is tied together; otherwise, it may cause electric shocks or fire due to short circuits.
• Do not damage, modify, forcefully bend, pull, twist, or squeeze the power cord, nor place heavy objects on top of it; otherwise, it may cause electric shocks or fire due to short circuits.
• Avoid dropping the garment steamer or subjecting it to strong impacts. Do not use the garment steamer if it experiences a fall that results in visible damage or leakage. Otherwise, it may lead to electric shocks or fire due to short circuits.
• Do not use the garment steamer if the ironing plate gets damaged, or it may cause the clothing to be worn or scratched.
• Do not add hot water, detergent, perfume, starch, or other chemicals to the water tank to avoid deforming the water tank, potentially causing explosions or fire due to short circuits.

• Do not use the garment steamer with wet hands to prevent electric shocks or fire due to short circuits.

• During use, the ironing plate and the plastic components around it are relatively hot. Do not touch them with your hands to prevent burns and scalds.

• Do not aim the ironing plate at people or animals during use, as it will release high-temperature steam. Maintain a safe distance between the garment steamer and children, infants, and animals during use to prevent steam scalds.
• Do not block the steam outlets or insert foreign objects into them to avoid burns, scalds, electric shocks, or fire due to short circuits.
• While ironing, do not let the ironing plate rest on the surface of the clothes for an extended period.
• Do not immerse the garment steamer in water.
• Do not touch any remaining water droplets that may flow out of the garment steamer's pipeline after steam ironing to prevent burns and scalds.
• Do not wrap the power cord around the garment steamer when storing it; otherwise, the power cord may break, resulting in electric shocks or fire due to short circuits.
• Do not store the garment steamer within the reach of children and infants. This garment steamer is not a toy. Keep children away from it during use to avoid electric shocks and injuries.
• Do not repair, disassemble, or modify this garment steamer on your own to avoid fire or injuries due to malfunctions. If repairs are needed, contact the after-sales service team.

Cautions

Precautions

• Always unplug the garment steamer by pulling the power plug rather than the cord. Otherwise, the power cord may break, causing burns, electric shocks, or fire due to short circuits.
• Ensure the power plug is completely plugged into a 220–240 V\~electrical outlet. Do not overload the electrical outlet or circuit to avoid electric shocks or fire due to short circuits.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Always unplug the garment steamer when adding water, cleaning it, and turning it off.
• Before using the garment steamer, ensure the cover of the water tank is secured in place to prevent electric shocks or damage to the garment steamer.
• If the garment steamer does not generate steam, fails to heat up, has a large amount of water overflowing, gives off smoke, emits a burning smell, or experiences other malfunctions or errors, stop using it immediately. Then disconnect it from power and contact the after-sales service team. Such situations may cause electric shocks, injuries, or fire due to short circuits.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

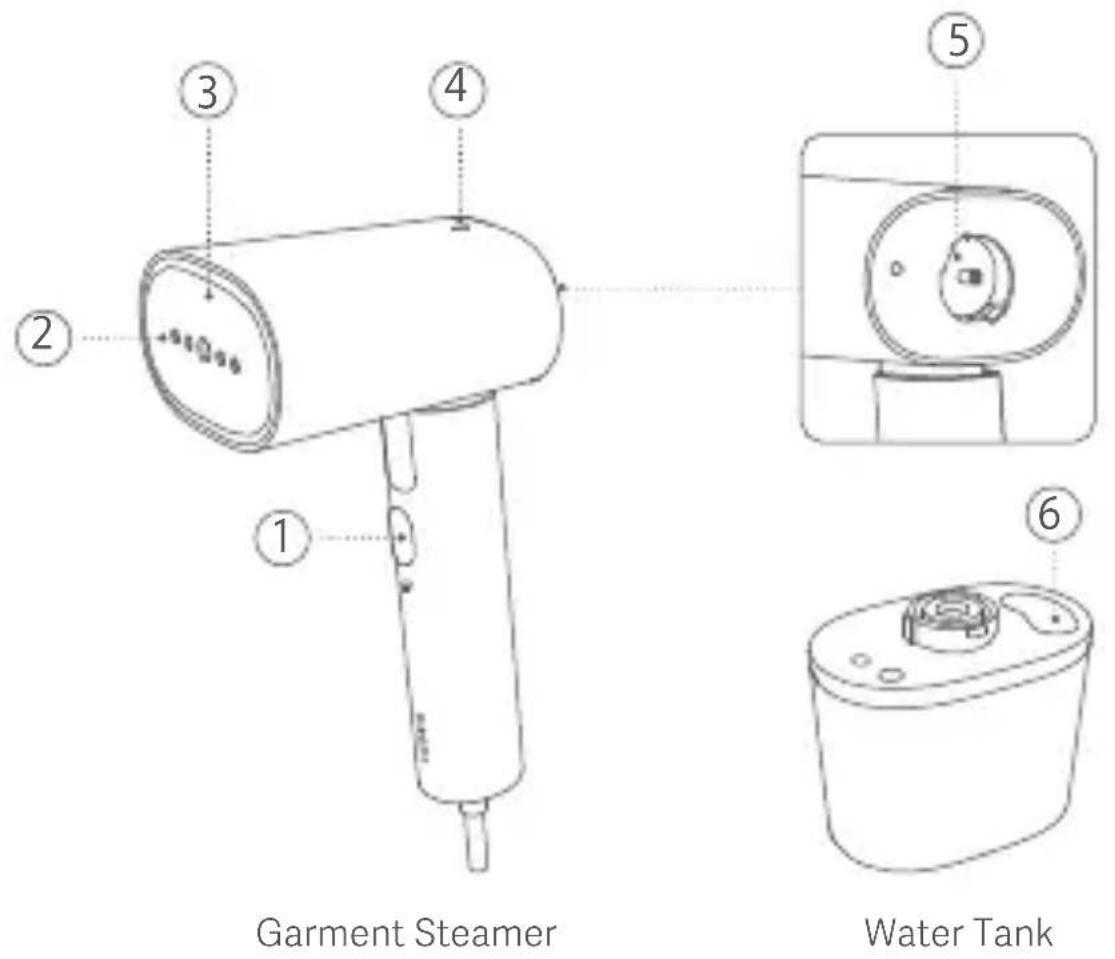

Product Overview

This garment steamer uses double evaporation technology to iron various materials such as cotton, linen, and nylon. The soft steam cares for clothes, maintains their form, and can smooth out stubborn creases with ease.

Garment Steamer Water Tank

① Steam Button
④ Indicator
⑥ Water Tank Cover

② Steam Outlet
⑤ Water Tank Installation Port

③ Ironing Plate

③ Ironing Plate

Indicator Status Description

Indicator Status	Garment Steamer Status
Blinking White	Heating
White	Heating completed

How to Use

Notes:

• Do not iron leather materials. For wool or synthetic fibers, iron on the reverse side to prevent shiny marks. For silk materials, place a soft cloth or towel between the garment steamer and the fabric to avoid direct contact between the ironing plate and the silk; otherwise, it could cause damage to the silk.
• It is recommended to allow the garment steamer to spray steam into the air for a few seconds before each ironing process to remove any residual scale inside.
• The dry and wet ironing modes can function separately.
• It is normal to hear the sound of water pumping during use.
• When the garment steamer is heating up after being turned on, or after the wet ironing process is completed, a small amount of steam may be sprayed out due to the residual water in the internal pipeline. This is normal.

Filling the tank with water

Open the water tank cover and add purified water to the tank. After filling, close the water tank cover tightly.

Simple line drawing of a cylindrical container with two circular compartments and a droplet above it (no text or symbols)

Open the water tank cover

Notes:

• To prolong the service life of the garment steamer, it is recommended to use purified water to prevent the build-up of scale and the spray of white powder.
• Ensure the water tank cover is tightly closed to avoid water overflow; otherwise, it may cause electric shocks or damage to the garment steamer.

- Operating the garment steamer with an empty or improperly installed water tank will cause the noise of water pumping to become louder during use.

Installing/removing the water tank

• Install the water tank onto the installation port at the rear of the garment steamer, and rotate the tank clockwise until it is secured in place.
- Rotate the water tank counterclockwise to remove it.

Simple line drawing of a mechanical component with curved arrows indicating motion (no text or symbols)

Rotate the water tank clockwise to install it

Simple line drawing of a rotating object with a curved arrow indicating rotation (no text or symbols)

Rotate the water tank counterclockwise to remove it

Turning on

After installing the water tank, plug the power cord into an electrical outlet that meets the garment steamer's requirements to turn it on.

Pure electrical circuit lines without any symbols

Heating

• When the garment steamer is turned on, it will start to heat up, during which the indicator will blink white. When heating is complete, the indicator will remain white, indicating the garment steamer is ready for use.
• If the temperature drops during use, the garment steamer will reheat, and the indicator will blink white again, during which the steamer can be used normally.

Warning: When the garment steamer is heating up after being turned on, do not press the steam button to prevent scalding from the hot spray.

Dry ironing mode

• When the heating is complete, the garment steamer can be used to iron clothes without pressing the steam button.
• Dry ironing mode is ideal for wrinkle removal and shaping for dry clothes, as well as for drying damp clothes.

Simple line drawing of a mechanical component or tool (no text or symbols)

Wet ironing mode

When the heating is complete, press and hold the steam button, then the garment steamer will emit steam and be ready for steaming.

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Notes:

• Do not touch the ironing plate after turning on the garment steamer to prevent burns and scalds.
• While ironing, do not let the ironing plate rest on the surface of the clothes for an extended period.
• Do not turn on the garment steamer when it is unattended.

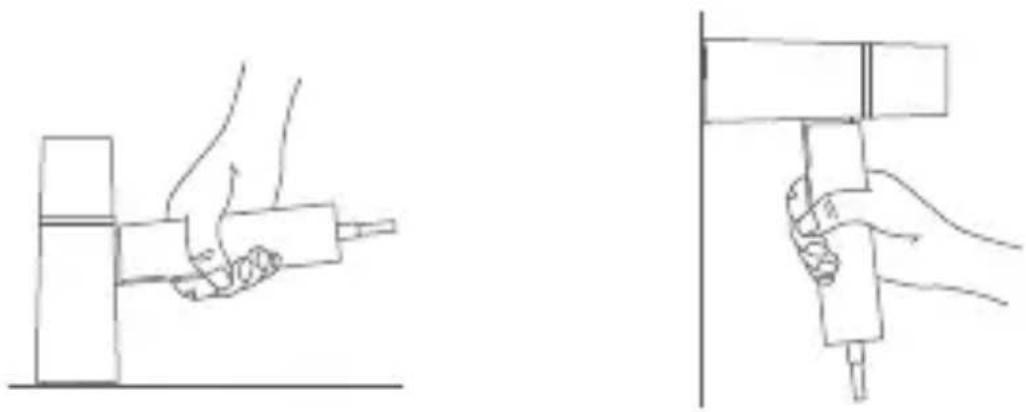

Horizontal/Vertical ironing modes

The garment steamer can emit steam in both horizontal and vertical ironing modes by pressing and holding the steam button.

Two technical line drawings showing hands operating a tool and a mechanical component (no text or symbols)

Horizontal ironing mode Vertical ironing mode

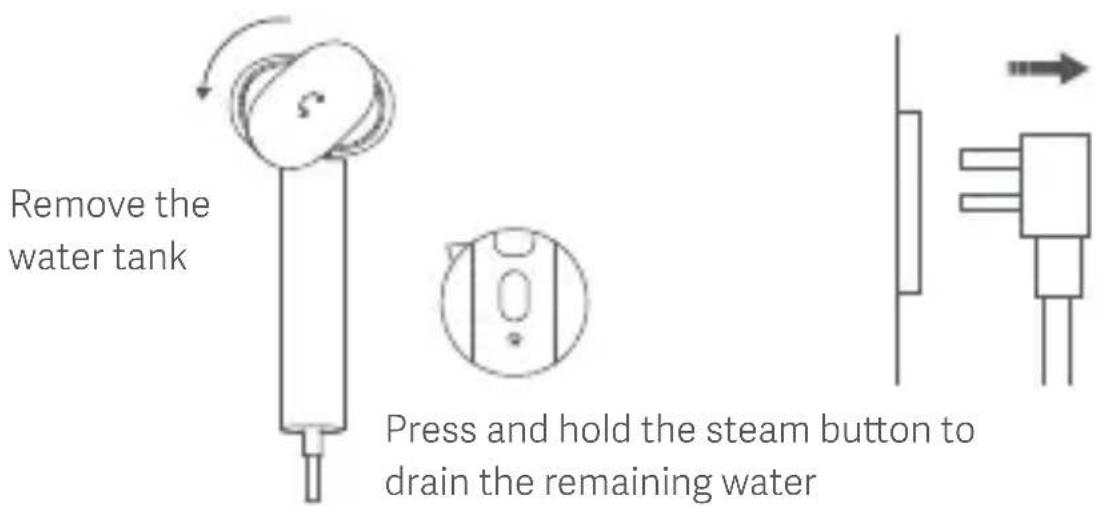

Turning off

After ironing, remove the water tank and empty the remaining water. Continue to heat the garment steamer and press and hold the steam button until no more steam is emitted. Then release the steam button and unplug the steamer.

Remove the water tank Press and hold the steam button to drain the remaining water

Storing after cooling

After turning off the garment steamer, wait for about an hour to cool it down before storing it. The handle can be folded for storage.

Simple line drawing of a mechanical assembly with two components and directional arrows indicating rotation (no text or symbols)

Notes:

- To pause the ironing process or cool the garment steamer down after use, place the steamer at an appropriate angle on a flat surface as illustrated. The ironing plate and the plastic components around it are relatively hot. Do not touch them with your hands to prevent burns and scalds.

Line drawing of a handheld electronic device with a circular head and handle (no text or symbols)

Line drawing of a handheld device with a cylindrical body and a rectangular shaft (no text or symbols)

• Do not store the garment steamer before cooling it down completely to avoid damage.
• Do not store the power cord when it is twisted; otherwise, the power cord may break, leading to burns, electric shocks, or fire due to short circuits.

Care & Maintenance

- It is recommended to regularly rinse the water tank with water and ensure it dries completely to avoid the build-up of scale.

Simple line drawing of a cylindrical container with a lid and water droplet above it (no text or symbols)

Remove the water tank, open its cover, and rinse the interior and exterior of the tank with fresh water.

Simple line drawing of a cylindrical container with a lid and side ports (no text or symbols)

Leave the water tank to dry in a cool place.

Note: Do not clean the water tank with detergent or fill it with hot water to avoid deforming the tank.

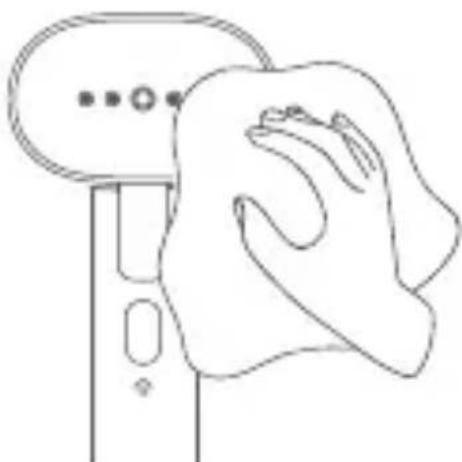

- Once the garment steamer has completely cooled down after use, it is recommended to wipe the ironing plate with a soft damp cloth to ensure the steam outlets are clean, scale-free, and unblocked.

Line drawing of a hand cleaning a cloth on a handheld device (no text or symbols)

Wipe clean with a soft damp cloth

Caution: Ensure that the garment steamer is disconnected from power and has completely cooled down before care and maintenance.

Troubleshooting

Errors Possible Causes Solutions
The indicator does not light up.	The garment steamer is disconnected from power.	Connect the garment steamer to power.
	The electrical outlet is loose.	Replace the electrical outlet.
	An internal error occurs.	Contact the after-sales service team.
No steam is generated.	The garment steamer is disconnected from power.	Connect the garment steamer to power.
	The steam button is not pressed and held.	Press and hold the steam button.
	No water is added to the water tank.	Fill the tank with water.
The water tank leaks.	The water tank cover is not properly closed.	Close the water tank cover properly.
	The seal ring ages.	Contact the after-sales service team.
The garment steamer makes strange noises while working.	The water pump is working.	This is normal.
	The water tank has no water.	Fill the water tank with water.
	The water tank is not installed properly.	Install the water tank properly.
The ironing plate sprays water.	The garment steamer is not fully heated.	Use after the heating is complete.

Caution: If the error persists after trying the above solutions, please contact the after-sales service team.

Specifications

Name	Xiaomi Handheld Garment Steamer
Model	MJGTJ02LF
Rated Voltage	220–240 V~
Rated Frequency	50–60 Hz
Rated Power 1300 W
Net Weight	770 g
Item Dimensions	172.5 × 92 × 237 mm (unfolded),243 × 92 × 108 mm (folded)

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Europe-EU Declaration of Conformity

CE

We, Ningbo Lofans Home Appliance Co., Ltd., hereby declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html

The product does not have a standby mode or other equivalent state in terms of energy efficiency requirements or power management function, the power consumption of the product is likely to be higher than other products meeting these functional requirements.

WEEE Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Manufactured for: Xiaomi Communications Co., Ltd.

Manufactured by: Ningbo Lofans Home Appliance Co., Ltd.

(a Mi Ecosystem company)

Address: Room 22-3, Langmu Building, Baisha Road, Cixi City, Zhejiang, China

For further information, please go to www.mi.com

For detailed e-manual, please go to www.mi.com/global/service/userguide

User Manual Version: V1.2
