USER MANUAL SS-21440 Sogo

Line drawing of a standard open fan with radial blades and base (no text or symbols)

COOL WAVE®

Caution: please read and preserve these important instructions

ÍNDICE

1. Symbol definitions P.11

2. Safety instructions for the user P.11

I. General precautions during the use of electrical equipment P.11

II. Restrictions on use to avoid personal injury P.12

III. Product use restrictions due to poor condition or breakdown

IV. Restrictions on use when used with children and elders P.14

V. IMPORTANT WARNING P.15

VI. Instructions to follow when using the device P.15

1. Technical information P.17

2. Parts of the fan P.17

3. Instructions for assembly and use P.17

4. Cleaning and maintenance P.18

5. (ERP) Technical specifications P.55

6. Declaration of conformity P.57

7. Responsibility of disposal, details of the manufacturer and after-sales service P.58

ÍNDICE

Exploded view diagram of a fan assembly with numbered parts for identification

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical or optical system with concentric circular components and directional arrows (no text or symbols)

Mx315 korn grille 12-Cip on nor grille

Secure the 4 measuring class on the grite

Four sequential diagrams showing a mechanical device with a base, top view, and bottom view (no text or symbols)

Simple line drawing of a cylindrical object with a pointed tip and circular base (no text or symbols)

Oscilación:

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1

2

GENERAL PRECAUTIONS

3

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. GENERAL PRECAUTIONS instructions for the user

I. General precautions during the use of electrical equipment

Do not use the appliance for any other purpose than described in this manual.

Do not use or store the appliance outdoors.

- Always place the appliance on to the flat and even surface.

• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

II. Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

- Cleaning and user maintenance shall not be made by children without supervision.

• Children shall not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep the appliance and its cord out of reach of children less than 8 years.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance.

V. ⚠️ IMPORTANT WARNING

- To avoid a circuit overload when using this product, do not operate another high-watt-age product on the same electrical circuit.

- A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using the device

• Do not insert foreign things to air outlets and inlets, in order to avoid damage.
• Do not cover the air vent / Grille.
• Clean the appearance with a lightly damp cloth. Do not use any type of detergents or solutions. Do not rinse the appliance.
• Do not make air outlets and inlets near the wall or curtain.
• Do not knock or shake the body when using, otherwise it may cause stop automatically.
  • Always disconnect fan when moving from one location to another.
• If the fan is to be stored for an extended period of time or not used regularly, replace it in the original packaging (or similar) and store it in a dry and clean place. Before using again, check if the unit is clean and dry if the fan blades rotate freely.
• Make sure to switch off the fan and remove the plug from wall outlet, before removing protective grill for cleaning purpose.

4. Technical information

Model No Voltage Frequency Power
SS-21440 220-240V 50Hz 45W

5. Parts of the fan

1. Protective cover
2. Front grille
3. Fan blade retaining nut
4. fan blade
5. Grille ring
6. Rear grille nut
7. Rear grille
8. Motor shaft
9. Motor housing
10. Oscillation knob
11. Pivot screw
12. Control Panel
13. Base plate
14. Power cord

Exploded view diagram of a fan assembly with numbered parts for identification

6. Instructions for assembly and use

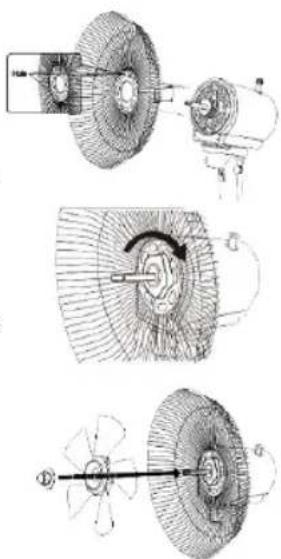

Grille & Blade Assembly (#1 - #9):

• Set the rear grille (#7) to the motor housing (#9) with the handle facing up.
• Secure together by screwing the plastic nut (#6) clockwise onto the motor housing (#9).
• Install the fan blade (#4) on the motor shaft (#8) with the cutouts on the blade fitted to the motor shaft.
• Screw the plastic spinner (#3) on the motor shaft (#8) to hold the fan blade (#4) in place by rotating counterclockwise.
• Install the front grille (#2) onto the rear grille (#7). Be sure the clasps and hooks on the grilles are aligned.
• Fasten it firmly with 4 clips available around the grille and tighten up the screw given on the bottom of the fan grilles.
  • Pass the power cord through the base plate.
• Insert the motor assemble on to the base plate.
• Twist it clockwise to lock.
• Insert the power cable into the base plate catch at the rear of base plate.

Technical line drawings of three mechanical components with cross-sectional views (no text or symbols)

Mount Iron grill to Clip on not grill Second Fig.4 heavening edge on the grill

Four line drawings showing a mechanical device with a base, top, side, and bottom view (no text or symbols)

Operating instructions

On/ Off switch and speed control

0 – To turn on and off the fan

1- Fan operates at the low speed
2- Fan operates at the medium speed
3- Fan operates at the high speed

This fan has 3 functions which will allow you to better customize your preferred air comfort as well as improve the air circulation in the room:

Simple line drawing of a cylindrical object with a stem and circular base (no text or symbols)

Oscillation:

To activate the oscillation function for widespread breeze distribution, simply press the oscillation knob (#10) down located on top of the fan's motor house. To turn off the oscillation function for a targeted breeze setting, pull the oscillation knob up. Controlling the oscillation can be done while the fan is operating.

Tilt:

To tilt the fan head so that the breeze is targeted at an angle, steady the motor housing of the fan with one hand and grip the fan head with another, carefully tilt the head of the fan until it reaches the desired angle. This position will hold. Be careful as to not tilt the head back further than it is intended to go, doing so will damage the unit.

7. Cleaning & maintenance

Cleaning & maintenance

1. Always disconnect the cord from the electrical outlet when cleaning your fan.
2. Light accumulated dust may be removed by using a soft cloth to wipe away the dust at the back grille of the fan.
3. Wipe the exterior surfaces of the fan occasionally with a damp cloth (not dripping wet) and dry thoroughly with a soft dry cloth before operating the fan.
4. Do not use harsh cleaners or materials to clean this unit, doing so will cause damages to it.

Storage

1. Follow cleaning instructions 1-4 above. Make sure to disassemble and clean fan before storing.
2. Retain the original packaging to store your fan.
3. Always store in a dry place.
4. Never store while still plugged in.
5. Never wrap cord tightly around the fan or put any stress on the cord where it enters the fan as it could cause the cord to fray or break.

1. IMPORTANT:

Exploded view diagram of a mechanical device with numbered parts for identification

MOUNT KENT GRWEL 10-Crip on Rear grisle Second End 4 steaming edge on the grisle

Four sequential diagrams showing a mechanical or architectural component with arrows indicating motion, no text or symbols present.

Simple line drawing of a cylindrical object with a flanged top and base, no text or symbols present.

Oscillation :

Technical diagram of a fan assembly with numbered parts for identification

Technical line drawings of mechanical components, showing exploded and assembled views (no text or symbols)

MxH's korn grls=14Cip on nor grls

Secure the 4 taining class on the grate

Four sequential diagrams showing a mechanical device with base, top, side, and bottom views (no text or symbols)

Line drawing of a cylindrical object with a flanged top and base, no text or symbols present

Oscilação:

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Technical diagram of a mechanical assembly with gears and housing (no visible text or labels)

Diagram of a mechanical or optical system with concentric circular components and directional arrows (no text or symbols)

Mount Iron glove on a Clip on near grite Second the 4 hexaneing tiles on the grate

Four sequential diagrams showing a mechanical device with arrows indicating motion, labeled 'Bottom View' (no text or symbols on diagrams)

Gebrauchsanleitung

Simple line drawing of a cylindrical object with a flanged top and base (no text or symbols)

Oszillation:

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Technical line drawing of a mechanical assembly with gears and a motor (no text or symbols)

Diagram of a mechanical or optical system with concentric circular components and directional arrows (no text or symbols)

Mount korn gill to Clip on nor gill Second for 4 heavening clips on the gill

Four line drawings showing different mechanical or electrical components, including a knob, bulb, and curved wires, with no visible text or symbols.

Simple line drawing of a cylindrical object with a flanged top and base, no text or symbols present.

Oscillazione:

Directive 2009/125/EC

Directive 2009/125/EC

Description Symbol Value Unit
Alimentation / Fonte de energia		220 – 240V~ 50Hz
Puissance / Potência		45W
Classe / Class		II
Débit du ventilateur / Caudal do ventilador		F	41,72	m3/min
Puissance d'entrée du ventilateur / Entrada de energia do ventilador		P	39.57	W
Valeur du service / Valor do serviço		SV	1.05	(m3/min) /W
Consommation électrique en veille / Consumo de energia em espera		P_SB	-	W
Consommation d'électricité utilisée / Consumo de eletricidade em uso		Q	16	kWh/a
Niveau de puissance acoustique du ventilateur / Nível de potência sonora do ventilador		L WA	53	dB(A)
Vitesse de l'air / Velocidade do ar		C	2.45	Meters/sec
Norme de mesure pour voler du service /Padrão de medição para sair do serviço		IEC 60879:1986 (corr. 1992)
Détails du contact /Detalhes do contato	SANYSAN APPLIANCES S.L.C/BARCAS 2°, 2A , 46002, VALENCIA, SPAIN

ITA / ALE

Directive 2009/125/EC

Description Symbol Value Unit
Alimentazione / Stromversorgung		220 – 240V~ 50Hz
Potere / Potenz		45W
Classe / Klasse II
Portata del ventilatore / Lüfterdurchfluss		F m3/min	41,72
Potenza assorbita dal ventilatore / Lüfterleistungseingang		P	39.57	W
Valore del servicio / Servicewert		SV (m3/min)	1/05
Consumo energético in standby / Standby-Stromverbrauch		PSB	-	W
Consumo di elettricità in uso / Stromverbrauch im Einsatz		Q kWh/a	16
Livello di potenza sonora del ventilatore / Lüfter-Schallleistungspegel		L WA dB(A)	53
Velocità dell'aria / Luftgeschwindigkeit C Meters/sec			2.45
Standard di misura per volare dal servicio / Messstandard, um vom Dienst zu fliegen		IEC 60879:1986 (corr. 1992)
Detalles de contacto /Contact details	SANYSAN APPLIANCES S.L.C/BARCAS 2°, 2A , 46002, VALENCIA, SPAIN

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in China. After-sales service: [e-mail] / 0034 902 222 161
