Product Type	Ceiling fan with LED lighting
Brand	Sogo
Model	SS-21825
Power supply voltage	220-240 V~ 50-60 Hz
Power	55 W
Number of speeds	6
Reversible function (summer/winter)	Yes
Natural mode	Yes
Remote control	Yes
Off timer	1h, 2h, 4h
LED lighting	Yes, 3 color temperatures: 3000K, 4000K, 6000K
Minimum installation height	2.3 m from floor
Minimum distance from wall	0.76 m
Use	Indoor only
Maintenance	Soft dry cloth, clean at least once a year
Installation	By a certified electrician mandatory
Compliance	Directives 2014/35/EU, 2014/30/EU, 2015/863/EU, 2009/125/EC
After-sales service	www.sogosat.com / 0034 902 222 161
Included parts	Motor, blades, remote control, balancing kit, hardware

Frequently Asked Questions - SS-21825 Sogo

How to install the SS-21825 fan?

Installation must be carried out by a certified electrician. Make sure to turn off the main power before starting. Attach the mounting plate to the ceiling, assemble the blades, connect the electrical cables according to the provided diagram, then fix the LED kit and the lampshade. Refer to the manual for detailed steps.

What is the minimum installation height?

The fan must be installed at least 2.3 meters from the floor (from the bottom of the fan) and 0.76 meters from any wall or obstacle.

How to use the reversible function?

Use the remote control: press the "F" button for summer mode (counterclockwise rotation) and "R" for winter mode (clockwise rotation). This helps redistribute heat in winter and reduce energy consumption.

How to set the timer?

On the remote control, press the 1h, 2h, or 4h buttons to program the automatic shut-off of the fan after the selected duration. Press again to reset the timer.

How to clean the fan?

Before cleaning, turn off the fan and disconnect the power. Use a soft dry cloth to remove dust. Never use water or detergent. Clean at least once a year.

What to do if the remote control does not work?

Check the remote control batteries. Make sure the receiver is correctly connected in the mounting plate. If the problem persists, contact after-sales service.

How to change the light color temperature?

Press the LIGHT ON/OFF button on the remote control. Each press changes the temperature: first 3000K (warm white), then 4000K (neutral white), then 6000K (cool white). An additional press turns off the light.

Can the fan be used in winter?

Yes, thanks to the reversible function. In winter mode (clockwise rotation), the fan pushes the warm air accumulated at the ceiling downwards, improving comfort and reducing heating costs.

What are the safety precautions?

Do not use with a solid-state speed control. Do not bend the blade holders. Do not insert objects into the moving blades. Ensure that the installation respects the minimum heights and distances. Always cut off the power before maintenance.

Where to find after-sales service?

Contact Sogo after-sales service via the website www.sogosat.com or by phone at 0034 902 222 161. You can also contact the store where you purchased the product.

USER MANUAL SS-21825 Sogo

White SOGO airship with three blades and a circular head, displayed against a plain background (no text or symbols on the fan or background)

VENTILADOR DE TECHO DE 52"

CEILING FAN 52"

VENTILATEUR DE PLAFOND 52"

VENTILADOR DE TETO 52"

DECKENVENTILATOR 52"

VENTILATORE DA SOFFITTO 52"

Caution: please read and preserve these important instructions

INSTRUCCIONES DE USO

IMPORTANT SAFETY INSTRUCTIONS

• This instruction manual can also be downloaded from our web page www.sogo.es
• WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.
• Use this fan only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons. This will also void your warranty.
• Connect to a main power supplier of 220-240V\~ 50-60 Hz only.
• Indoor use only.
• Under our warranty terms, this ceiling fan must be correctly installed by a licensed electrician. Improperly installed ceiling fans can be dangerous and expensive to repair, it will also void your warranty.
• Before installing the fan, make sure you have turned off the main electricity supply. Do not turn it back on until the fan is fully installed and ready to use.
• To protect against electric shock: do not immerse unit or cord in water or spray with liquids.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand

the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Turn the fan OFF when not in use and before disassembling or cleaning. Fully assemble the fan before switching on again.
- The use of attachments not recommended by the manufacturer may be hazardous.
- Do not operate if the fan housing is damaged.
- If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- If the fan is not working properly, contact a qualified technician for examination and repair. Never attempt to dismantle the fan yourself.

WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device, or rheostat. Do not separate the reverse switch until the fan has come to a complete stop.

Do not insert anything into the fan blades while they are rotating.

WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as “flanges”) during assembly or after installation. Do not insert objects in the path of the blades.

To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan. Do not use water or

detergent when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.

NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

WARNING:

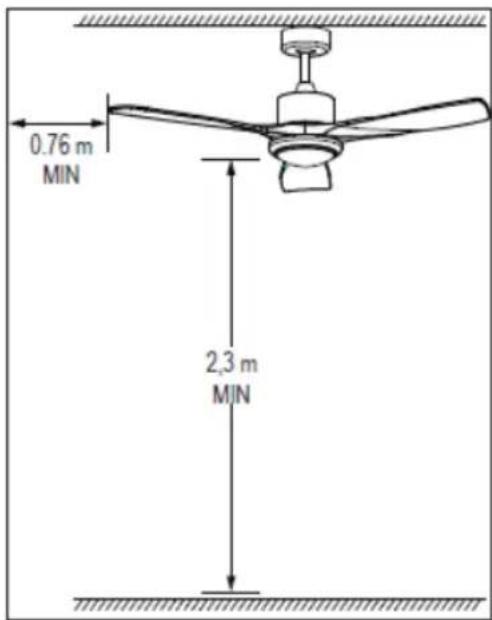

Equipment must be installed at the height of at least 2,3 meters from the floor (2,3 meters means from the floor to the bottom of the fan), 0.76m from wall or obstruction. Since the installation of the equipment sets, the power of the network must be done through flexible cable plug or by pole switch with contact opening distance not less than 3 mm.

PRODUCT DESCRIPTION

Upper canopy Support plate Support rod
Lower canopy Motor LED light kit
Blades Lamp shade Top cover
Blades connection Remote control
	A: Screws and washers for securing the blades (fixed on the motor housing).B: Screws for concrete ceilingC: Screws and washers for wood joist ceilingD: Blance kit

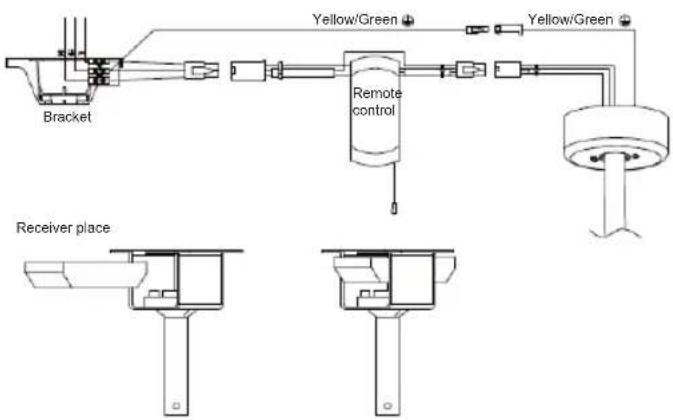

REMOTE CONTROL CNNECTION

WARNING: To avoid personal injury or damage, be sure to turn off the power to the main fuse box before wiring.

ASSEMBLING

Make sure you have all the components before beginning installation. To prevent damage, attach the motor to the support rod on a soft surface or use the polystyrene contained in the package.

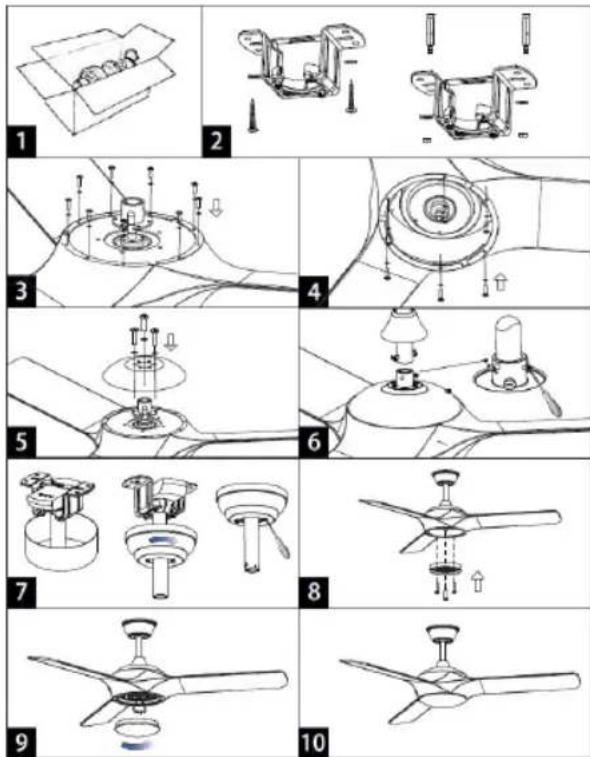

1. Open the carton box and take out the fan. (Fig.1)

2. Assemble the support plate on the ceiling using two or more screw anchors and appropriate washers Attention the provided screws are for wood joist and concrete ceiling. (Fig.2)

3. Screw the blade on the blade plate according to the screw hole. (Fig.3)

4. Tighten the blade connection according the blade hole. (Fig. 4)

5. Tighten the motor cover on the top motor hanger. (Fig. 5)

6. Insert the support rod through the upper cap and lower cap.

7. Insert the electric cables coming out from the motor through the support rod and connect them to the screw terminal placed on the top of support rod.

8. Fix the support rod to the motor using the pin and pins nut. (Fig.6)

9. Hang the fan on the hook on the support plate and connect the electrical cable coming from the ceiling to the screw terminal placed on the top of support rod make sure the receiver must be insert into support plate (see Remote control connection).

10. Slide upwards the upper cap and fix it with the screw. (Fig.7)

11. Slide downwards the lower cap it must be supported by the motor Fix it with the screw. (Fig.7)

12. Remove the screws from connect plate of the motor please organize all the wires carefully into connect plate.

13. Assemble and align the holes on the back of LED light to the three screws on the connect plate of motor. (Fig.8)

14. Then tighten the three screws on the LED plate connect the connector together with the motor wire please make sure the light kit can be moved after tighten the screws. (Fig.8)

15. Place the lamp shade on the fan. (Fig.9)

INSTRUCTIONS FOR USE

The ceiling fan is provided with a remote control. To turn on the ceiling fan select the desired speed and the fan will turn on with the selected speed:

To turn Off the product push the button ALL OFF

To turn Off the light push the button LIGHT ON/OFF

To turn Off the fan push the button FAN OFF

1 Speed 1
2 Speed 2
3 Speed 3
4 Speed 4
5 Speed 5
6 Speed 6

F for select Forward, R for Reverse, \~ for nature mode

LIGHT: To turn On the light push the button "LIGHT ON/OFF".

There are three levels of light intensity. When you press it once the light will switch on at intensity level 1 (3000K), pressing it again will change it to intensity level 2

(4000K), press it for the third time for maximum light intensity (6000K) and press it once more to switch off the light. Light can also be turned on while the fan is off.

TIMER: Off timer can be set using any of three options on the remote control 1h, 2h and 4h. If the timer has been set before, pressing any of the timer button again will reset the timer from the beginning.

REVERSIBLE BLADES MOVEMENT OPERATION:

This fan has a reversible function for the fan blades movement for use in the winter season. The normal fan function direction is always in anti clockwise direction where as the reversible function is in clockwise direction.

The reversible function can be operated through the remote control buttons. On the remote control there are 2 buttons marked as "F" and "R", in which "F" is for normal fan function and "R" is for reversible function. When you need to change from the fan function to reversible function, then just press the "R" button and the fan automatically will be in reversible function mode.

Note: Using the reversible function of the fan not only makes your room warmer, but also helps you to reduce the energy use and lowering the electricity bill.

CLEANING AND MAINTAINENCE

Cleaning:

1. Before cleaning, turn the unit off, cut off the power supply from electrical outlet and wait for the unit to cool down.
2. To clean the unit, use a soft cloth to wipe off any dust.
3. Do not try to open the unit without a licensed electrician. Improperly installed the unit can be dangerous.
4. Clean the unit at least once a year.

Maintenance:

1. Have your product repaired by a licensed electrician
2. This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by licensed electricians using original spare parts, otherwise this may result in considerable danger to the user.
3. Please contact the store which you bought the product for after sale services if any.

TECHNICAL INFORMATION

Model: SS-21825

Voltage / Frequency: 220-240V\~ 50-60Hz

Output Power: 55W

CONSIGNES DE SÉCURITÉ IMPORTANTES

MODE D'EMPLOI

INSTRUÇÕES DE USO

GEBRAUCHSANWEISUNG

ISTRUZIONI PER L'USO

Directive 2009/125/EC

Directive 2009/125/EC

Description Symbol Value Unit
Alimentation / Fonte de energia	220-240V~ 50-60Hz
Puissance / Potência	55W
Classe / Class	I
Débit du ventilateur / Caudal do ventilador	F m3/min	197.6
Puissance d'entrée du ventilateur / Entrada de energia do ventilador	P	35.5	W
Valeur du service / Valor do serviço	SV (m3/min)	5.56
Consommation électrique en veille / Consumo de energia em espera	P_SB	0.45	W
Hors consommation d'énergie / Consumo de energia desligada	P_off	0	W
Niveau de puissance acoustique du ventilateur / Nível de potência sonora do ventilador	L WA	47	dB(A)
Vitesse de l'air / Velocidade do ar	c	2.1	meters/sec
Consommation d'électricité utilisée / Consumo de eletricidade em uso	Q	11.3	kWh/a
Norme de mesure pour voler du service /Padrão de medição para sair do serviço	IEC 60879:1986 /corr.1992)

ITA / ALE

Directive 2009/125/EC

Description Symbol Value Unit
Alimentazione / Stromversorgung 220-240V~ 50-60Hz
Potere / Potenz 55W
Clase / Klasse I
Portata del ventilatore / Lüfterdurchfluss F m3/min		197.6
Potenza assorbita dal ventilatore / Lüfterleistungseingang P W		35.5
Valore del servicio / Servicewert SV (m3/		5.56	min)/W
Consumo energético in standby / Standby-Stromverbrauch P	SB	0.45	W
Consumo energetico spento / Stromverbrauch ausschalten P	off	0	W
Livello di potenza sonora del ventilatore / Lüfter-Schalleistungspegel	L WA dB(A)	47
Velocità dell'aria / Luftgeschwindigkeit	c	2.1	meters/sec
Consumo di elettricità in uso / Stromverbrauch im Einsatz	Q	11.3	kWh/a
Standard di misura per volare dal servicio / Messstandard, um vom Dienst zu fliegen	IEC 60879:1986 /corr.1992)

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
