USER MANUAL SparkleWall LED96 BeamZ

Black fabric with glowing green and blue light spots against a dark background (no text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS

ENGLISH

Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

INSTALLATION

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

POWERSUPPLY

On the label on the backside of the controller is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The controller must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Content:

• Sparkle wall LED curtain (3x2mtr. 151.200 and 151.201 / 2x1mtr. 151.202)
• Sparkle wall LED Remote controller
• Sparkle wall LED Controller
• Power Cable
• Manual
• Reusable Zip Ties (50pcs 151.200 and 151.201 / 30 pcs 151.202)
• Carry bag
• Spare part LED's

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

INSTALLATION

The LED curtain must be installed by a professional. Never block any escape routes with the LED curtain! Connect the LED curtains data cable with the "LED CURTAIN" socket of the controller. Attach the LED curtain to a truss.

The Sparklewall LED curtains are made of high brightness LEDs, and fire retardant cloth. The control system is designed for friendly operation. The Sparklewall LED curtains can be produced for various ways of installation, and can be connected one to another easily and freely.

The Sparklewall LED has a lot effects: strobe, dimming, all LED on and off, flash, sound active etc.

CONTROLLER

MENU ▲ ▼ ENTER

MENU

Use to access the menu or return a previous menu option.

UP

Navigates upwards through the menu list and increases the value when in a function.

DOWN

Navigates downwards through the menu list and decreases the value when in a function.

ENTER

Used to select and store the current menu or confirm the current function value or option within a menu

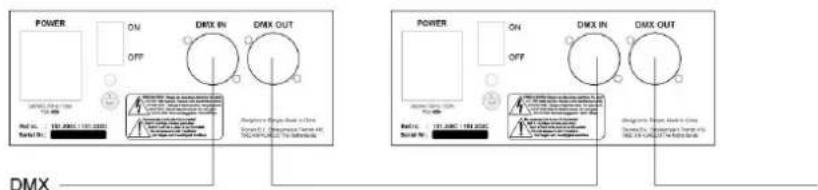

DMX-512 CONNECTION

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.

POWER ON OFF DMX IN DMX OUT DMX Power ON OFF DMX IN DMX OUT DMX Power ON OFF DMX IN DMX OUT DMX Power ON OFF DMX IN DMX OUT

At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.

DMX ADDRESSING

The controller of this LED curtain use 8 DMX channels. To ensure that the control signals are properly directed to each device, the device requires addressing. This is to be adjusted for every single device by changing the DMX starting address via the control board.

The DMX starting address is defined as the first channel from which the device will respond to the controller. Please make sure that you do not have any overlapping DMX channels in order to control each device correctly and independently. If several units are defined on one DMX address, they will work synchronously.

DMX SETTING

Channel	Function	Value	Description
1	Master Dimmer	000-255	Dimming 0-100%
2	LED Red or 1/4 cool white	000-255	Dimming 0-100%
3	LED Green or 1/4 cool white	000-255	Dimming 0-100%
4	LED Blue or 1/4 cool white	000-255	Dimming 0-100%
5	LED White or 1/4 cool white	000-255	Dimming 0-100%
6	Strobe	000-003	No strobe
		004-255	Strobe (slow-fast)
7	Mode	000-050	Manual control CH1-6
		051-200	Auto mode
		201-255	Sound mode
8	Speed	000-255	Auto mode speed

REMOTE CONTROLL

1 2 3 4 5 6 7 8 9 10 11 12

Button function:

1. 151.200/151.202 Red LED (on /off), 151.201 ¼ Cool white (on/off)
2. 151.200/151.202 Green LED (on/off), 151.201 ¼ Cool white (on/off)
3. 151.200/151.202 Blue LED (on/off), 151.201 ¼ Cool white (on/off)
4. 151.200/151.202 White LED (on/off), 151.201 ¼ Cool white (on/off)
5. Sound control
6. Strobe (keys 9+10 for speed up/down)
7. Fade (keys 9+10 for speed up/down)
8. Auto mode (keys 9+10 for speed up/down)
9. Up (speed)
10. Down (speed)
11. Enter/Confirm
12. DMX512 control

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

REPLACING THE LEDS

Compared to incandescent lamps, LEDs have a very long life and usually no replacement is required. However, just in case there is a defect, a few spare LED modules are supplied.

1. Separate the cable connection between the LED curtain and the controller.
2. Open the zip fastener at the side of the LED curtain; the connections of the LED modules will be accessible.
3. Before disconnecting the plugs from the defective module, note the polarity (small marks “+” and “-” on the PCB). If necessary, remove the retaining adhesive at the connectors in order to disconnect the plugs.
4. Connect the spare module using the same polarity.
5. From the front of the cloth, pull the black plastic ring around the LED from the PCB of the defective module and remove the module.
6. Insert the LED of the spare module from the rear through the hole in the cloth and, from the front, insert a black plastic ring through the cloth so that the two pins will engage in the corresponding holes provided on the PCB.
7. After replacing the necessary modules, close the zip fastener again.

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
- The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every month. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified worker!

NEDERLANDS

ORANGE MOUNT CONTROLS

- Limpie las ópticas externas al menos cada mes. Limpie los elementos ópticos internos al menos cada 30/60 días.leaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

REPLACEMENT DU FUSIBLE

REEMPLACEMENT DES LEDS

Display	Description
r.xxx	Led Red, choose value between 000 until 255
g.xxx	Led Green, choose value between 000 until 255
b.xxx	Led Blue, choose value between 000 until 255
u.xxx	Led White, choose value between 000 until 255
F.xxx	Flash, choose value between 000 until 255
d.xxx	DMX address, choose channel 001 until 512
IR.xx	Remote control On/Off
P.xxx	Auto program, choose value between 000 until 255
L.xxx	Fade program, choose value between 000 until 255
E.xxx	Flash program, choose value between 000 until 255
SOUd	Sound program

TECHNICAL SPECIFICATION / TECNISCHE SPECIFICATIE / TECHNISCHE DA / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Rated voltage : AC240V / 50Hz

Rated power : 30W

LED : 151.200 96pcs RGBW / 151.201 96pcs Cool white / 151.202 36pcs RGBW

Fuse : 2A

DMX Channel : 8 Channels

Function : DMX, Auto and Sound active

Weight (per unit) : 151.200 4.6kg /151.201 4.5kg / 151.202 3.3 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Design and product specifications are subject to change without prior notice.

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice..
