USER MANUAL NEREID740 BeamZ

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION 4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

RDM CONTROL....5

CLEANING 5

PROTECTION CLASS IP65 5

MAINTENANCE....6

TROUBLE SHOOTING 6

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 7

UITPAKKEN 8

AANSLUITSPANNING 8

RIGGING 8

DMX BEDIENING....9

RDM BEDIENING....9

REINIGEN 9

BESCHERMINGSKLASSE IP65 9

ONDERHOUD....10

PROBLEMEN OPLOSSEN 10

DEUTSCH

KLASA OCHRONY IP65 26

KONSERWACJA 27

ROZWIAZYWANIE PROBLEMÓW 27

TECHNICAL DETAILS

CONTROL MENU....28

DMX CHANNELS 31

23 CHANNELS 31

34 CHANNELS 32

51 CHANNELS....33

SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
• Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

• If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5 mm². The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

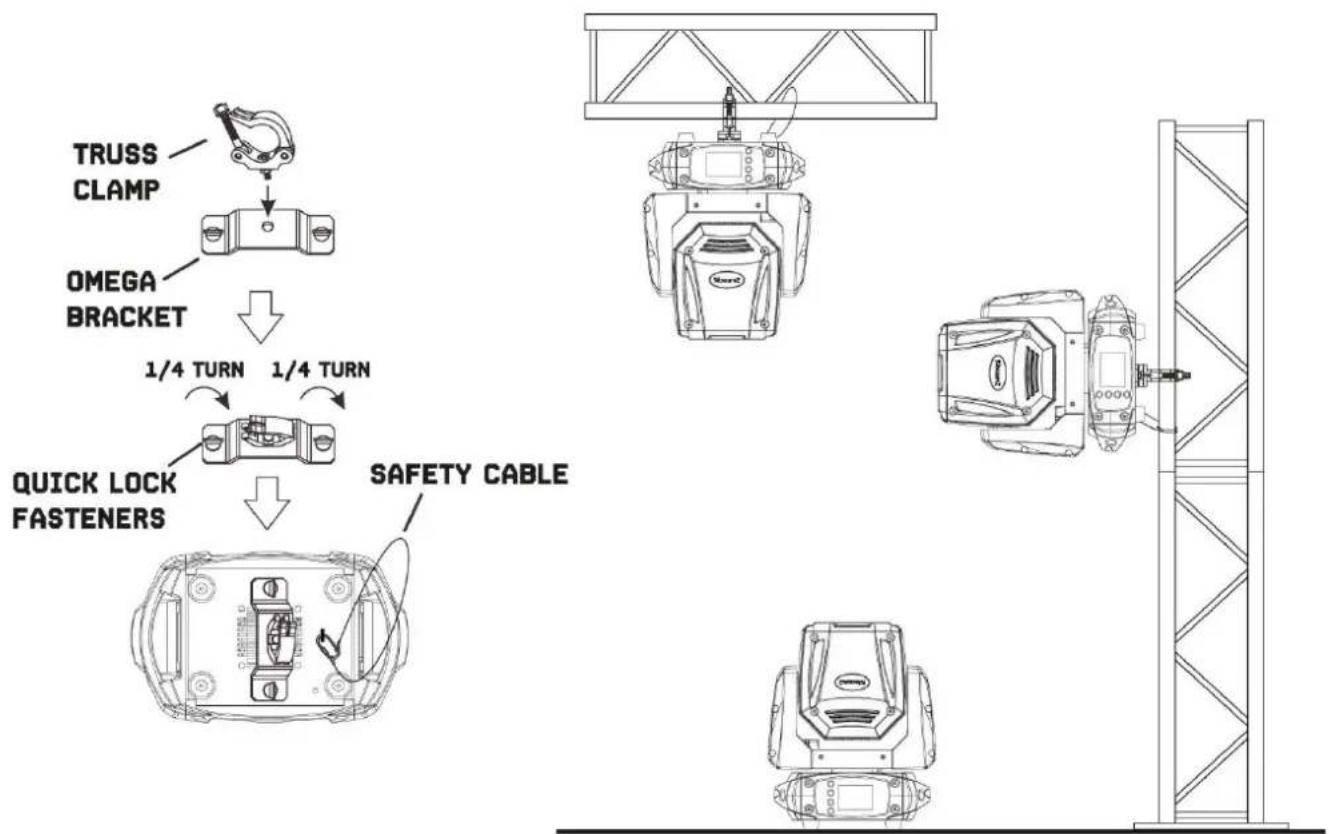

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!


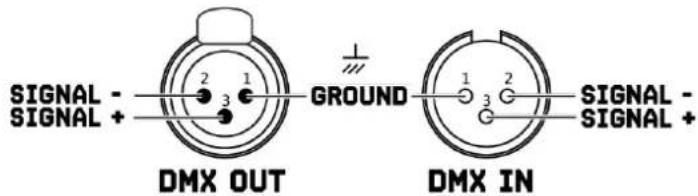

DMX512 CONTROL

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

SIGNAL - SIGNAL + DMX OUT GROUND DMX IN SIGNAL - SIGNAL + 1 2 3

1 2 3 120 OHM TERMINATOR

RDM CONTROL

This unit can communicate using RDM (Remote Device Management) via DMX512. RDM is a bi-directional communication protocol for use in DMX512 control systems, it is the open standard for DMX512 configuration and status monitoring.

The RDM protocol allows data packets to be inserted into a DMX512 line without affecting the existing non-RDM equipment. The system allows a controller or special RDM controller to send and receive commands from specific fixtures.

The RDM function allows you, for example to remotely set the DMX start address of your fixtures. This is especially useful when the fixture is installed in an inaccessible location. Each unit has an RDM UID (unique identification number).

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

PROTECTION CLASS IP65

Units with protection class IP65 are dust-tight and completely protected against contact (first code number). They are also protected against splash water from any angle (second code digit). That is why this unit can also be used out- doors. Events units are generally only designed for temporary use however (event lighting) and not for permanent use outdoors. The specified protection class does not make a statement about the weather resistance of the units (resistance to changing ambient conditions as well as against the effects of sunlight and UV rays). The seals and screw connections of the units must be checked regularly to ensure a fault-free operation.

MAINTENANCE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

- Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.

- Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.

- Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.

- Check the mechanically moving parts, these must not show any signs of wear or fatigue.

- Check the electrical power and signal cables, they must not show any damage or fatigue.

- Do not use solvents, abrasives or other aggressive products to clean the unit.

- Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.

- Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

BESCHERMINGSKLASSE IP65

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	PAN	000-255	Pan movement 540°
2	PAN FINE	000-255	Pan fine-tuning
3	TILT	000-255	Tilt movement 270°
4	TILT FINE	000-255	Tilt fine-tuning
5	PAN, TILT SPEED	000-255	From slow to fast
6	ZOOM	000-255	Zoom control
7	ZOOM ROTATION	000-127	0-135 Degrees
	USED IN COMBINATION WITH 6CH,7CH	128-188	Rotate clockwise from fast to slow
		189-194	0 degree
		195-255	Counterclockwise rotation from slow to fast
8	TOTAL DIMMING	000-255	0-100% Linear dimmer
9	STROBE	000-009	No Function
		010-254	Strobe from slow to fast
		255	No Function
10	RED	000-255	Red 0-100% brightness adjustment
11	GREEN	000-255	Green 0-100% brightness adjustment
12	BLUE	000-255	Blue 0-100% brightness adjustment
13	WHITE	000-255	White 0-100% brightness adjustment
14	COLOR TEMPERATURE	000-004	No Function
		005-255	Color temperature high to low
15	COLOR MACRO	000-008	No Function
		009-255	Every 3 DMX values are a dynamic effect
16	STATIC EFFECTS	000-004	No Function
		005-109	Static static Effects, every 5 DMX values are a static effect
		110-114	No Function
		115-204	Static effects, every 5 DMX values are a static effect
		205-215	Static auto effect, from fast to slow
		216-228	Stop
		229-239	Auto effect ,from slow to fast
		240-255	Dynamic effects, from fast to slow
17	DYNAMIC EFFECT	000-004	No Function
	USED IN COMBINATION WITH 19CH,20CH,21CH,22CH	005-012	Dynamic effect 1
		013-020	Dynamic effect 2
		021-244	Every 3 DMX values are a dynamic effect
		245-255	No Function
18		000-127	Dynamic effect speed, clockwise from slow to fast
		128-254	Dynamic effect speed, counterclockwise from fast to slow
	DYNAMIC EFFECT	255	Stop
19	BACKGROUND COLOR	000-255	1-100% Background red brightness adjustment
20	BACKGROUND COLOR GREEN	000-255	1-100% Background green brightness adjustment
21	BACKGROUND COLOR	000-255	1-100% Background blue brightness adjustment
22	BACKGROUND COLOR WHITE	000-255	1-100% Background white brightness adjustment
	RESET	000-255	No FunctionReset time is 5 seconds

34 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	RED	000-255	Red 0-100% brightness adjustment
2	RED FINE TUNING	000-255	Red fine tuning
3	GREEN	000-255	Green 0-100% brightness adjustment
4	GREEN FINE TUNING	000-255	Green fine tuning
5	BLUE	000-255	Blue 0-100% brightness adjustment
	BLUE FINE TUNING	000-255	Blue fine tuning
7	WHITE	000-255	White 0-100% brightness adjustment
8	WHITE FINE TUNING	000-255	White fine tuning
9	COLOR TEMPERATURE	000 -004	No Function
		005 -255	Color temperature high to low
10	COLOR MACRO	000-008	No Function
		009-255	Every 3 DMX values are a dynamic effect
11	STROBE	000-009	No Function
		010- 254	Strobe from slow to fast
		255	No Function
12	TOTAL DIMMING	000-255	0-100% Linear dimmer
13	TOTAL DIMMING FINE	000-255	Dimmer fine adjustment
14	PAN	000-255	Pan movement 540°
15	PAN FINE	000-255	Pan fine-tuning
16	TILT	000-255	Tilt movement 270°
17	TILT FINE	000-255	Tilt fine-tuning
18	PAN, TILT SPEED	000-255	From slow to fast
19	RESET	000-127	No Function
		128-255	Reset time is 5 seconds
20	ZOOM	000-255	Zoom control
21	ZOOM ROTATIONUSED IN COMBINATION WITH20CH,21CH	000-127	0-135 Degrees
		128-190	Rotate clockwise from fast to slow
		191-192	0 degree
		193-255	Counterclockwise rotation from slow to fast
22	LED DYNAMIC EFFECTSELECTION	000-244	No Function
		245-255	Select the shape and use it in combination with12CH,23CH,24CH,25CH,26CH,27CH,28CH,29CH,30CH,31CH,32CH,33CH,34CH
23	LED DYNAMIC EFFECT SPEED	000-255	Shape speed control, used in combination with 12ch, 29ch,30ch
24	LED DYNAMIC EFFECTFOREGROUND GRADIENTTIME	000-255	Shape closed, used in combination with 12ch, 29ch, 30ch
25	LED DYNAMIC EFFECT FOREGROUND RED BRIGHTNESS	000-255	Red shape, used in combination with 12ch, 29ch, 30ch
26	LED DYNAMIC EFFECT FOREGROUND GREEN BRIGHTNESS	000-255	Green shape, used in combination with 12ch, 29ch, 30ch
27	LED DYNAMIC EFFECT FOREGROUND BLUE BRIGHTNESS	000-255	Blue shape, used in combination with 12ch, 29ch, 30ch
28	LED DYNAMIC EFFECT FOREGROUND WHITE BRIGHTNESS	000-255	White shape, used in combination with 12ch, 29ch, 30ch
29	LED DYNAMIC EFFECT FOREGROUND TOTAL BRIGHTNESS	000-255	Shape dimmer 0-100%
30	LED DYNAMIC EFFECT BACKGROUND TOTAL BRIGHTNESS	000-255	Background color controlled by channels 1-8Background dimmer 0-100%
31	SHAPE OFFSET	000-253	No Function
		254-255	Fixed position effect, used in combination with 12ch, 22ch, 29ch, 30ch
32	BACKGROUND STROBE	000-003	No Function
		004-255	Foreground color control, used in combination with 12ch, 22ch, 23ch, 24ch, 25ch, 26ch, 27ch, 28ch, 29ch
33	BACKGROUND STROBE	000-003	No effect
		004-255	Background strobe color control, combined with 12ch, 22ch, 23ch, 24ch, 25ch, 26ch, 27ch, 28ch, 30ch, 34ch
34	BACKGROUND COLOR SELECTION	000-255	Background color selection, combined with 22ch, 30ch

51 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	PAN	000-255	Pan movement 540°
2	PAN FINE	000-255	Pan fine-tuning
3	TILT	000-255	Tilt movement 270°
4	TILT FINE	000-255	Tilt fine-tuning
5	PAN, TILT SPEED	000-255	From slow to fast
6	ZOOM	000-255	Zoom control
7	ZOOM ROTATIONUSED IN COMBINATION WITH6CH,7CH	000-127	0-135 Degrees
		128-188	Rotate clockwise from fast to slow
		189-194	0 degree
		195-255	Counterclockwise rotation from slow to fast
8	TOTAL DIMMING	000-255	0-100% Linear dimmer
9	STROBE	000 -009	No Function
		010 -254	Strobe from slow to fast
		255	No Function
10	RED	000-255	Red 0-100% brightness adjustment
11	GREEN	000-255	Green 0-100% brightness adjustment
12	BLUE	000-255	Blue 0-100% brightness adjustment
13	WHITE	000-255	White 0-100% brightness adjustment
14	COLOR TEMPERATURE	000-004	No Function
		005-255	Color temperature high to low
15	COLOR MACRO	000-008	No Function
		009-255	Every 3 DMX values are a dynamic effect
16	STATIC EFFECTS	000-004	No Function
		005-109	Static static effects, every 5 DMX values are a static effect
		110-114	No Function
		115-204	Static effects, every 5 DMX values are a static effect
		205-215	Static auto effect, from fast to slow
		216-228	Stop
		229-239	Auto effect, from slow to fast
		240-255	Dynamic effects, from fast to slow
17	DYNAMIC EFFECTUSED IN COMBINATION WITH19CH,20CH,21CH,22CH	000-004	No Function
		005-012	Dynamic effect 1
		013-020	Dynamic effect 2
		021-244	Every 3 DMX values are a dynamic effect
		245-255	No Function
18	DYNAMIC EFFECT SPEED	000-127	Dynamic effect speed, clockwise from slow to fast
		128-254	Dynamic effect speed, counterclockwise from fast to slow
		255	Stop
19	BACKGROUND COLOR RED	000-255	1-100% Background red brightness adjustment
20	BACKGROUND COLOR GREEN	000-255	1-100% Background green brightness adjustment
21	BACKGROUND COLOR BLUE	000-255	1-100% Background blue brightness adjustment
22	BACKGROUND COLOR WHITE	000-255	1-100% Background white brightness adjustment
23	RESET	000-255	No Function
			Reset time is 5 seconds
24	RED DIMMER 1	000-255	LED1 Red Dimmer
25	GREEN DIMMER 1	000-255	LED1 Green Dimmer
26	BLUE DIMMER 1	000-255	LED1 Blue Dimmer
27	WHITE DIMMER 1	000-255	LED1 White Dimmer
...	......	......	......
...	......	......	......
48	RED DIMMER 7	000-255	LED7 Red Dimmer
49	GREEN DIMMER 7	000-255	LED7 Green Dimmer
50	BLUE DIMMER 7	000-255	LED7 Blue Dimmer
51	WHITE DIMMER 7	000-255	LED7 White Dimmer

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
