USER MANUAL VKET3800.0 Küppersbusch

Four white circles arranged in a 2x2 grid on a black background (no text or symbols)

VKET3800.0

Küppersbusch

Please read the users and installation instructions carefully before installation of the appliance and before starting to use it.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Installation, connection and function :

These operating and installation instructions must be discussed with the users and then handed over to them. It must be then given to the user.

• Connection to the mains, maintenance and repair of the appliance must only be done by a duly authorized and qualified expert in accordance with the applicable safety regulations. Work which has been improperly carried out endangers the safety of the user!
• The appliance has been designed for a mains supply of 220-240 V / 50 Hz.
• The technical connection data can be found on the rating label of the appliance.
• All maintenance and repair work should only be carried out by a qualified gas fitter trained by the manufacturer. Always ensure to disconnect the appliance from the energy supply when repairs are being carried out. Work which has been improperly carried out endangers the safety of the user!
• Wall units must be at least 650 mm above the grilling surface. Please take note of the instructions of the respective manufacturer of the cooker hood.

Operation :

- This appliance is not meant to be used by persons (including children) with physical, sensory or mental disabilities, or by persons with insufficient experience of and/or knowledge about its proper use, unless supervised by a person responsible for their safety or following a responsible person's instructions.

GB 1 / SAFETY INSTRUCTIONS

• Children should be supervised to ensure that they do not play with this appliance.
• WARNING: If the surface is cracked, disconnect the appliance from the power supply in order to rule out the risk of electric shock.
• The appliances must not be cleaned with a steam cleaner.
• Do not switch the appliance on until the installing fitter has explained the appliance to you.
• In addition you should carefully read the information in these operating and installation instructions. Here you will find important notes concerning safety and how to use the appliance. You should remember that any damage due to improper operation does not fall within the scope of the guarantee.
• Please keep this manual in a safe place.
• In the event of damage to the glass ceramic frame, such as cracks, chipping or breakage, switch off the appliance immediately.
• Do not store temperature-sensitive or combustible substances (e.g. aerosol cans, cleaning agents) underneath the hob. There is a risk of explosion due to the heated surface.
• The appliance is designed solely for the preparation of food in the home.
• Food may only be prepared directly on the grilling surface.
• Never use the appliance to heat a room.
• The surface of the grilling surface becomes hot when in operation. Always keep children away!
  • Overheated fats and oils may spontaneously ignite. Ensure that fats or oils do not become too hot. Never extinguish ignited fats and oils with water!
• Keep the surface of the appliance clear - never use it as a storage surface!
• Do not lay connection cables from electrical appliances on the grilling surface.

GB 1 / SAFETY INSTRUCTIONS

- Use a spatula to turn food. It is possible to use a knife to cut on top of the grilling surface, but this is not recommended, as it is likely to blunt the blade of the knife and scratch the surface. Do not use ceramic knives to cut on the grilling surface.

- Never hit the grilling surface with the spatula or the point of the knife, as this could dent the grilling surface.

- You may require additional ventilation for the appliance in cases of long and intensive use, e.g. opening a window, or switching the ventilation mechanism on the appliance to a higher level.

- Allow the appliance to cool down after use and clean it thoroughly to prevent any food remaining on the surface from encrusting.

- Do not use a steam cleaning or water jet device to clean the appliance, as this could cause a short circuit.

- The grilling surface will show signs of wear over time. This, however, does not affect the quality of the appliance's performance.

- Only original fittings produced by the manufacturer may be used in order to ensure safe operation of this hob.

Initial Cleaning and Start-Up :

Please heed the instructions in the chapter "MAINTENANCE" (pg. 25).

Before heating up the oven for the first time:

- Clean the appliance with a damp cloth and then wipe the surfaces dry. This will prevent any dirt that may be on the hob from getting burning on.

• Heat up the appliance for a few minutes to 250°C.

- Any odour or steam will disappear quickly and do not indicate an incorrect connection or fault in the appliance.

GB 2 / INSTALLATION INSTRUCTIONS

The appliance must be connected by an approved engineer in accordance with the regulations in force.

The installer is responsible for the good operation of the appliance. He must explain its operation to the user, with the aid of this manual.

The plug must be accessible after installation.

If the supply lead is damaged, it must be replaced by an equivalent lead (H07RNF 3x1,5mm ^2 ) available from the after-sales department.

It is also necessary to provide a bipolar cut-off device in your power supply circuit, where the opening of the contacts is more than 3 mm.

A 16-ampere fuse is necessary.

Your teppan yaki uses 2.500 watts. It is therefore absolutely necessary for your electric wiring system to be able to supply that power without danger.

Your teppan yaki MUST be connected to earth.

Cooking with the teppan yakki necessarily involves the emission of fumes. This factor will have to be taken into account when choosing the place where your teppan yaki is to be fitted.

IT IS ABSOLUTELY IMPERATIVE TO LEAVE A SPACE OF AT LEAST 5 CM BETWEEN THE BOTTOM OF THE TEPPAN YAKI AND THE FIRST SHELF OF THE KITCHEN UNIT. DO NOT STORE INFLAMMABLE GOODS IN THE SPACE BELOW THIS APPLIANCE.

WARNING : If the teppan yaki malfunctions in any way, unplug the appliance or remove the fuse corresponding to the sector where the teppan yaki is hooked up.

GB 2 / INSTALLATION INSTRUCTIONS

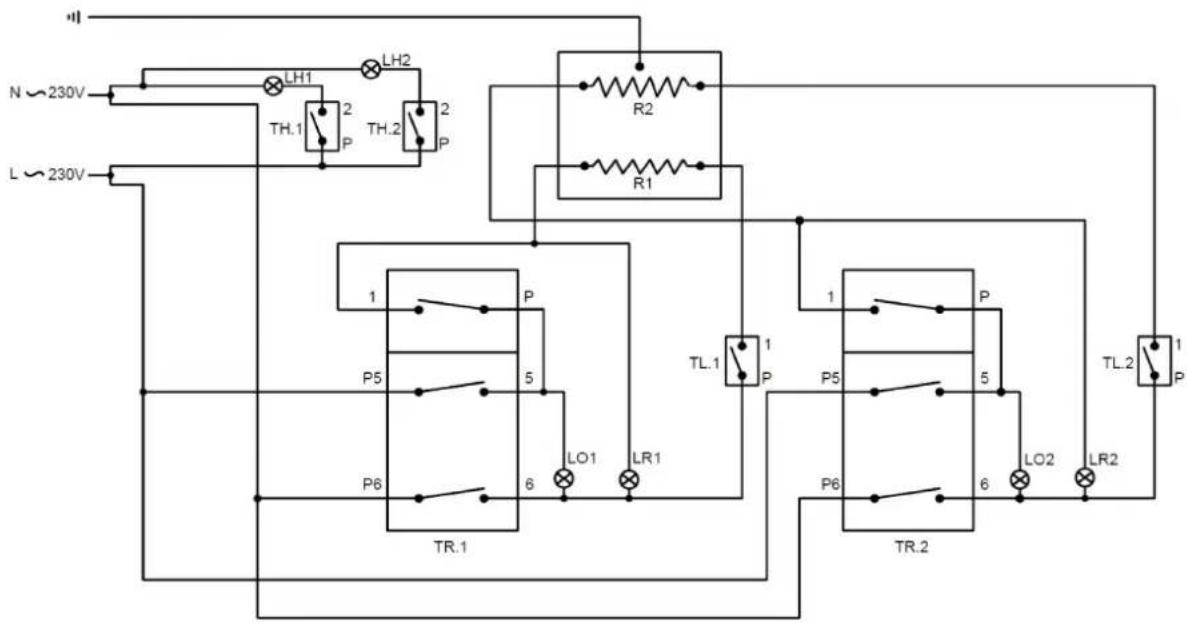

Electrical connection :

TR.1 : Command thermostat (50-250°C) for front zone

R1 : Heating element (1250 W) for front zone

TH.1 : Residual heat warning thermostat (50°C) for front zone

TL.1 : Security thermostat (290°C) for front zone

LO1 : ON/OFF warning light for front zone

LR1 : Heating warning light for front zone

LH1 : Residual heat warning light for front zone

TR.2 : Command thermostat (50-250°C) for rear zone

R2 : Heating element (1250 W) for rear zone

TH.2 : Residual heat warning thermostat (50°C) for rear zone

TL.2 : Security thermostat (290°C) for rear zone

LO2 : ON/OFF warning light for rear zone

LR2 : Heating warning light for rear zone

LH2 : Residual heat warning light for rear zone

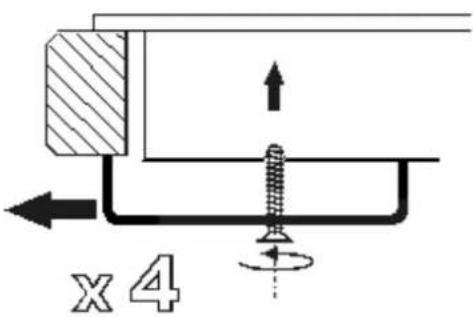

GB 3 / FITTING

This teppan yaki is built into a work surface or kitchen unit by simply cutting a hole the corresponding shape.

Any support may be suitable: brickwork, timber, metal, granite, laminate, etc.

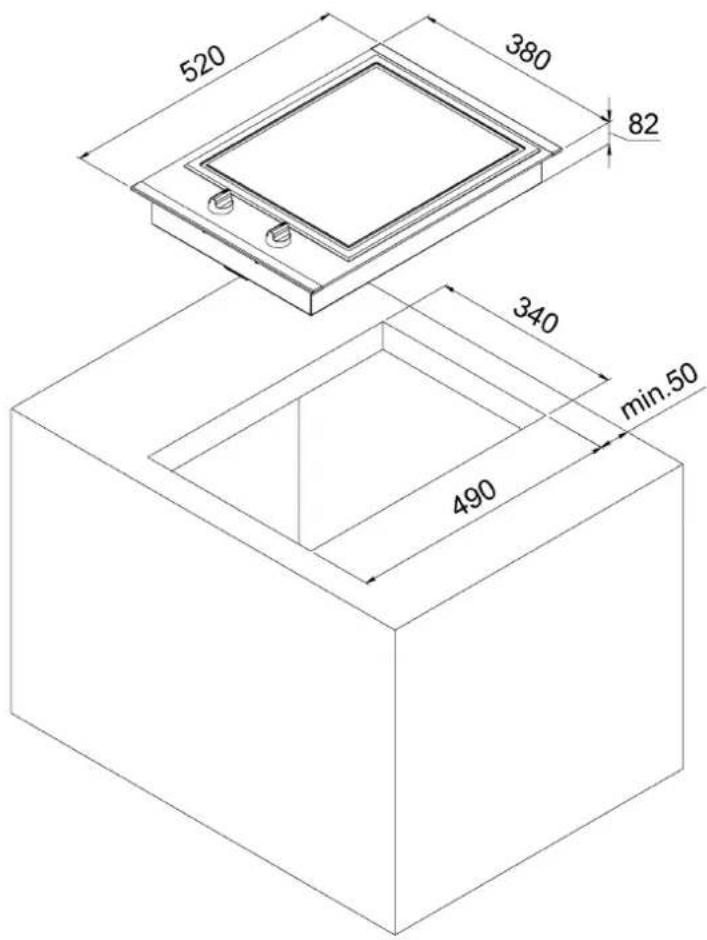

Dimensions of appliance: 520 x 380 mm

Dimensions of hole cut in work surface: 490 x 340 mm

520 380 82 340 min.50 490

x 4

GB 4 / PUTTING INTO SERVICE

• Special precautions:

Never leave the appliance in operation without supervision.

This teppan yaki complies with the EN 60335-2-6 standard with regard to the heating of cabinets.

• The controls :

The grilling surface is divided into two front and rear grill zones. These grill zones can be used separately or simultaneously. Each grill zone has its own control knob. The symbols next to the knobs indicate which grill zone that particular knob controls.

The cooking temperatures are displayed around the control knobs. The following symbol is also beside the control knob :

Keep warm function (approx. 50°C)

Set the desired cooking temperature by turning the switch.

The warning lights give you information on the operation of the appliance.

	This warning light shows when the appliance is ON.
	This warming light turns off when the selected temperature is reached.
	This warming light enables you to check the residual heat of the cooking panel.

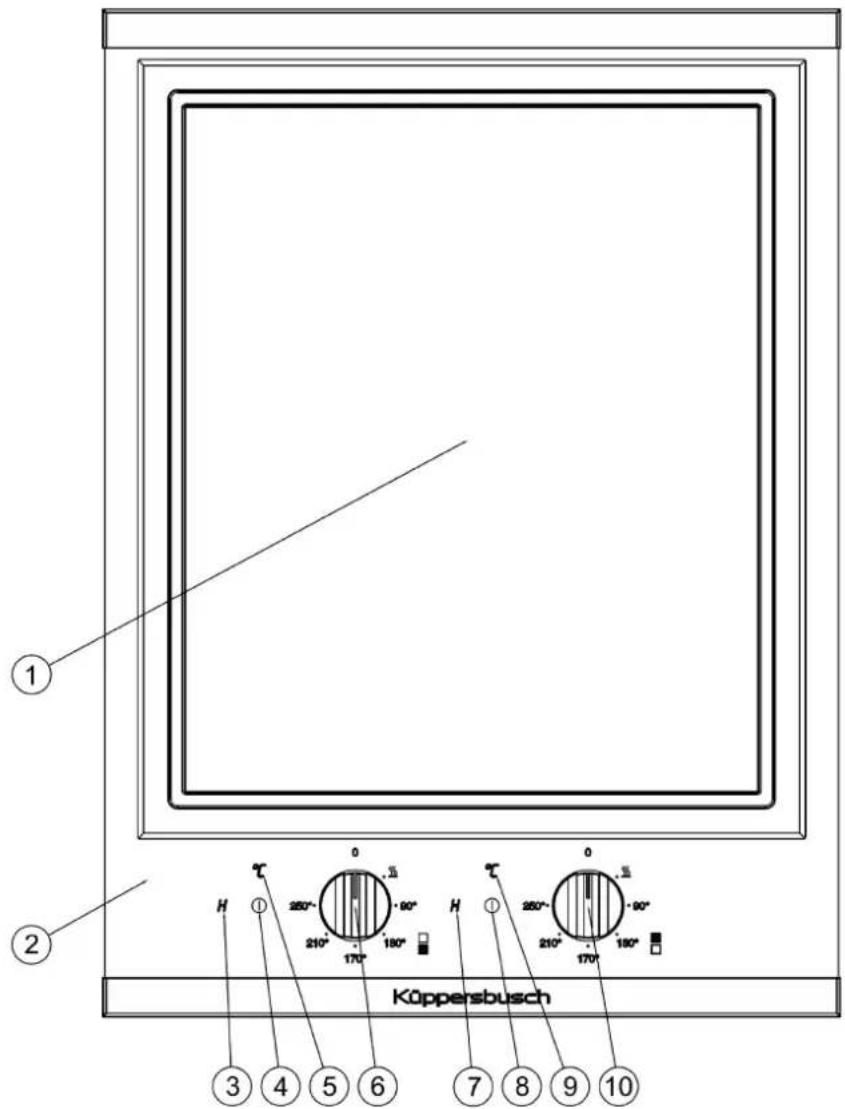

• The appliance :

Köppensbusch

1 stainless steel cooking plate
2 glass dashboard
3 residual heat warning light Hor front zone
4 ON/OFF warning light for front zone
5 Heating warning light °for front zone
6 thermostate knob for front zone
7 residual heat warning light Hor rear zone
8 ON/OFF warning light for rear zone
9 Heating warning light for rear zone
10 thermostate knob for rear zone

GB 5 / SOME HINTS

Before any utilization, preheat for 5 minutes.

Do not place the food on the grilling surface until the heating-up indicator has gone off.

When placing the food on the grilling surface, bear in mind that the grill zone is hotter in the centre than at the edge. If the food items you are cooking have different cooking times, place the food that has a shorter cooking time towards the edge of the zone.

The position of the knob is indicative, according to the type of food to be cooked. It may vary in relation to the quantity used, and the personal taste of the consumer.

Thermostat position	Preparation	Cooking time	Observations
	Dish-warmer	-	Place the plate onto the appliance
210°	Toasted bread	6 Min.	3 min. on each side
180°	Caramelised pineapple slices, brochettes of fruit	9 Min.	Turn every 3 min.
180°	Half-tomatoes, mushrooms, onion slices	25 Min.	Turn every 3-4min.
170°	Fresh salmon steaks, trout, sole, scampi	8 – 10 Min.	4 – 5 min. on each side
180°	Sausages	15 Min.	Turn every 2 min.
180°	Brochettes of meat	12 – 15 Min.	Turn every 3 min.
180° Rare	beef 10 Min.		4 – 5 min. on each side
180°	Well-done beef	10 – 12 Min.	Turn every 4 min.

GB 5 / SOME HINTS

The teppan yaki can also be used to provide an "large hob" for simmering.

Use a general purpose pot that is the same size as the cooking surface.

• Depending on the amount being cooked, the simmering will stabilise between the 90^ and 130^ positions.
• Cover the pot to maintain the moisture; remove it to reduce moisture.

This type of application is ideal to prepare:

• beef stew
• carbonnades
• blanquette
• stewed rabbit in beer
• beef tongue...

Each time after use, ensure that the control knobs are returned to position 0.

GB 6 / MAINTENANCE

- Cooking panel:

- appliance must be warm +/-65°.

- scrape off any solid residue with the help of a spatula or scraper.

- moisten the cooking surface with vinegar and cold water.

- rub the cooking surface with the help of a scouring sponge and a bit of soap.

- sponge down and rinse with the help of the same scouring sponge.

- once the surface is clean, dry with a paper towel.

• Glass motherboard:

Clean it regularly with a damp cloth on which you may spray a little of a product intended for glass-cleaning.

Do not clean the equipment with a pressure or steam cleaner, since you risk creating a short-circuit!
