USER MANUAL U3DUAL4KDP i-TEC

Black USB device with two ports and a coiled cable, no visible text or symbols

User guide • Gebrauchsanweisung • Mode d'emploi Manual de instrucciones • Manuale • Uživatelská príručka Instrukcje obsługi • Užívatel'ská príručka • Vartotojo vadovas Handleiding

P/N: U3DUAL4KDP

EN Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

Declaration of Conformity.... 46–47

FCC....48

QR code image containing encoded data, no visible human-readable text

INTRODUCTION

Thank You for purchasing i-tec USB 3.0 A/C Dual Display Port Adapter, which allows you to easily connect up to two monitors, TVs or projectors with Display Port interface to a laptop, tablet, PC or smartphone with USB-A, USB-C or Thunderbolt 3 interface. Max. resolution for two DP monitors is 4K@60Hz, for one DP monitor is 5K@60Hz.

PACKAGE CONTENTS

• i-tec USB 3.0 A/C Dual Display Port Adapter with cable (27 cm)
  • USB 3.0 to USB-C Adapter
• User Guide

SPECIFICATIONS

• 1x USB 3.0 connector, transfer speed up to 5 Gbps
- Graphic interface: 2x Display Port (spec. 1.2):

• max. resolution 4096x2160@60Hz when connecting one or two monitors

• max. resolution 5120x2880@60Hz when connecting one monitor (connection with monitor is realized through two DP cables)

• Mode: Mirror, Extend and Primary display
  • Supported colours 16 / 32 bit

• Power supply from USB-A, USB-C or Thunderbolt 3 bus, no need for external power adapter; max. 15W
• Chipset: DI6950
• OS: Win 7 32/64bit, Win 8 32/64bit, Win 8.1 32/64bit, Win 10 32/64bit, macOS X 10.10 and higher, Android, Chrome OS, Ubuntu. Requires USB-A, USB-C or Thunderbolt 3 bus. Use the enclosed USB 3.0 to USB-C adapter to connect to USB-C or Thunderbolt 3 port. Thunderbolt 3 interface requires Windows 10 32/64bit, macOS X, Chrome OS (Google) with Intel Broadwell Processor and R51 and higher
  • Product dimensions: 80 x 60 x 15 mm
• Product weight: 75 g

SYSTEM REQUIEMENTS

Operating system: Win 7 32/64bit, Win 8 32/64bit, Win 8.1 32/64bit, Win 10 32/64bit, macOS X 10.10 and higher, Android, Chrome OS, Ubuntu

For ordinary work on multiple monitors

• Processor: Intel Core i5 2+GHz / AMD Trinity or better
• RAM: 4GB
• Graphics processor: Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce 5xxM or better
  • USB 2.0 port / we recommend USB 3.0

For video playback

• Procesor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better
• RAM: 8GB
• Graphics processor: Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM or better
  • USB 3.0, USB-C or Thunderbolt 3 port

For Ultra HD 4K video playback the computer must be able to decode the video using its primary graphics processor. Low end laptops can be able to playback the video but the quality might be less than ideal (video interruption, screen tearing).

For Ultra HD 5K video playback the computer must be able to decode this video using its primary graphic processor (supports 5K).

Black USB device with connected cables and labeled ports (no text or symbols beyond labels)

ADAPTER DESCRIPTION

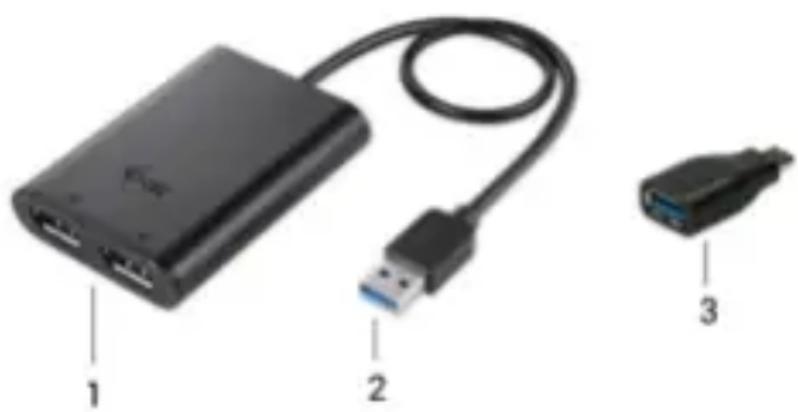

1. 2x Display Port Port – for connecting Display Port monitors
2. Integrated cable with USB 3.0 connector – for connecting the adapter to laptop, tablet, PC or smartphone through USB-A port.
3. USB 3.0 to USB-C adapter – for connecting adapter to laptop, tablet, PC or smartphone through USB-C or Thunderbolt 3 port.

DRIVER INSTALLATION

Do not connect the adapter to your laptop, PC, tablet or smartphone before installing the drivers. Drivers need to be installed prior to first use. Make sure that you have updated BIOS and newest drivers for your device before the installation.

You can download drivers for the adapter from our website www.i-tec.cz/en on the page for this product in the „Download“ tab. Then you just need to confirm automatic installation.

For Android, Chrome OS and Ubuntu use the drivers from the DisplayLink chipset manufacturer. You can download them here: http://www.displaylink.com/downloads or on our website www.i-tec.cz/en on page for this product in the „Download“ tab.

You can connect the adapter directly, when using Windows 10. The drivers will be installed automatically from the system, when connected to the internet.

CONNECTING DISPLAY PORT MONITOR

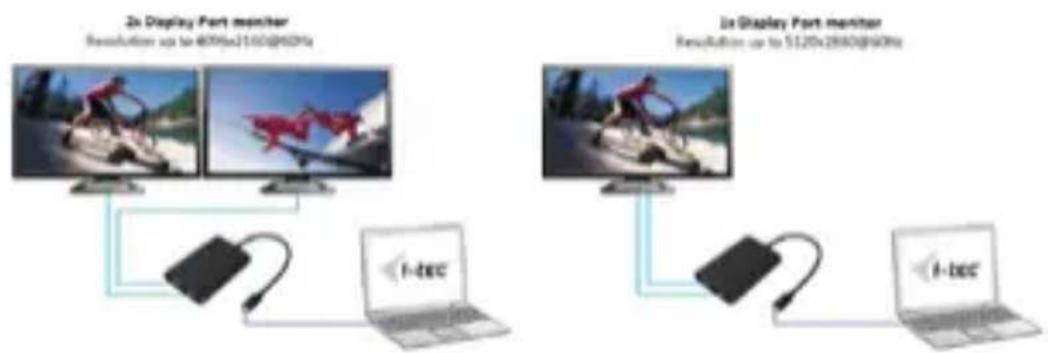

The adapter is equipped with 2x 4K@60Hz Display Port for connecting one or two external monitors or a projector with Display Port interface. Advanced plasma and LCD monitors and TVs can be used as an imaging equipment. Graphics chip that is „the heart“ of the adapter supports up to 5K (Ultra HD) resolution 5120x2880@60Hz when using only one monitor (connected with two DP cables). Use only high-quality Display Port cables for connecting the monitor to the adapter. During the additional monitor installation, the screen of the laptop Mac, tablet or PC can flicker, but this is normal.

Quick Start EN

Most problems with the adapter and connected devices can be solved by disconnecting the adapters USB 3.0 cable from the USB 3.0 port of your laptop, tablet, PC or smartphone and reconnecting it after approximately 10s.

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – you will prevent it from slipping and falling to the ground
• Keep the manual safe for possible future use.

In cooperation with the service department:

• Verify functionality after falling on the ground or in the water.
• Verify functionality when cover is broken.
• Claim the warranty if device doesn't work in accordance with the user manual

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en on the "FAQ" tab of this product.

EINLEITUNG

Diagram of a black USB device with labeled ports and connectors (no text or symbols beyond labels)

TREIBERINSTALLATION

Diagram of a black USB device with labeled ports and connectors (no text or symbols beyond labels)

INSTALLATION DES PILOTES

INSTRUCTIONS DE SÛRETÉ

Diagram of a black USB device with labeled ports and connectors (no text or symbols beyond labels)

Diagram of a USB device with labeled ports and connectors (no text or symbols beyond labels)

Black USB device with two ports and a cable, shown alongside a separate black connector (no text or symbols visible)

2x Display Port monitor Resolution up to 4098x2160@60Hz 2x Display Port monitor Resolution up to 5120x2680@60Hz

Black USB device with two ports and a cable, shown alongside a separate black connector labeled 1, 2, and 3 (no text or symbols on the device body)

Black USB device with two ports and a cable, shown alongside a separate black connector (no text or symbols visible)

INŠTALÁCIA OVLÁDAČOV

2x Display Port monitor Resolution up to 40MHz/2160@60Hz 3x Display Port monitor Resolution up to 5120x2880@60Hz

Black USB device with labeled ports and connectors (no text or symbols beyond labels)

Diagram of a black USB device with labeled ports and connectors (no text or symbols beyond labels)

INSTALLATIE VAN DE STUURPROGRAMMA'S

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This wil benefit the environment for all. (European Union only)
