USER MANUAL D9 Max Gen 2 DREAME

Robot Vacuum and Mop

User Manual

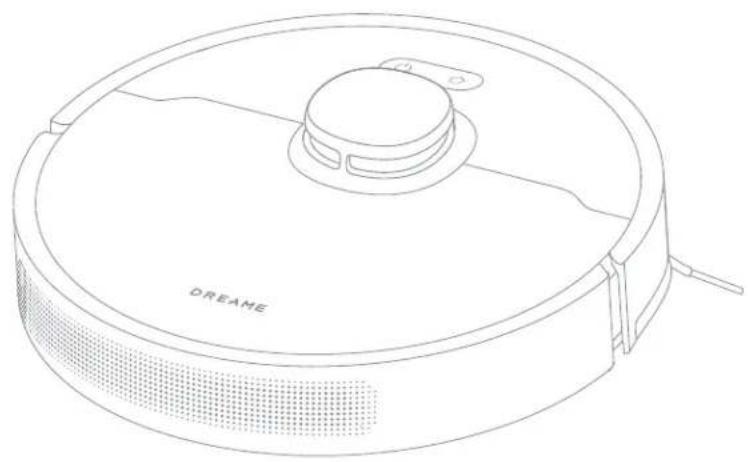

Line drawing of a DREAM robotic vacuum cleaner (no text or symbols on the device itself)

The illustrations in this manual are for reference only. Please refer to the actual product.

DREAME

Contents

EN User Manual....1
DE Benutzerhandbuch 22
FR Manuel d'utilisation....45
IT Manuale utente 67
ES Manual de usuario 89
PL Instrukcja obstugi 111
NL Gebruikershandleiding 134
NO Bruksanvisning....156
SV Användarmanual....178
HE 200
AR دَلَيلِ الْإِسْتَخْدَامٌ 223

Contents

TR Kullanıcı Kılavuzu 244
vì Hóng dǎn sù dìng....266
TH คู่มือผู้ใช้ 288
ID Panduan Pengguna 310
RU Руководство пользователя....332
K0 사용 설명서 355
JA 取扱説明書....376
ZH-HK 用户手冊 397
FI Käyttöohjeet....419
DA Brugermanual....440
PT Manual do utilizador 461
MS Manual Pengguna....482
кк Пайдаланушы нускаулығы 503
UZ Foydalanuvchi uchun qo'llanma....524
UA Посібник користувача....545

Safety Information

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference.

Usage Restrictions

· This product should not be used by children younger than 8 years old nor persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be performed by children without supervision.
- Children shall not play with this product. Ensure children and pets are kept at a safe distance from the robot while it is operating.
· This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
- If the power cord becomes damaged or broken, stop using it immediately and contact after-sales service.
- Do not use the robot in an area suspended above ground level without a protective barrier.
- Do not place the robot upside down. Do not use the LDS cover, robot cover, or bumper as a handle for the robot.
- Use the robot in environments with an ambient temperature above 0°C and below 40°C. Make sure there is no liquid or sticky substance on the floor.
- Pick up any cables from the floor before using the robot to prevent it from dragging them while cleaning.
- Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.
- To prevent damage or harm from dragging, clear any loose objects from the floor, and remove cables or power cords on the cleaning path before operating the appliance.

Safety Information

Usage Restrictions

• Keep hair, fingers, and other body parts away from the suction opening of the robot.
• Keep the brush cleaning tool out of reach of children.
• Do not place children, pets, or any item on top of the robot regardless of whether it is stationary or moving.
• Do not use the robot to clean any burning objects. Do not use the robot to pick up flammable or combustible liquids, corrosive gases, or undiluted acids or solvents.
• Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects such as stones, large pieces of paper or any item that may clog the appliance.
• Make sure the robot is turned off and the charging dock is unplugged before cleaning or performing maintenance.
• Do not use a wet cloth to wipe or any liquid to rinse the robot and charging dock. Washable parts must be dried completely before installing and using them.
• Make sure the robot is turned off when being transported and kept in its original packaging if possible.
• Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arise from improper use of this product.

Batteries and Charging

• Do not use any third-party battery, power cord, or charging dock. Use only with RCSO supply unit.
• Do not attempt to disassemble, repair, or modify the battery or charging dock on your own.

Safety Information

Batteries and Charging

- Do not place the charging dock near a heat source.

- Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.

- Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.

- If the robot will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-discharging the battery.

· This product contains batteries that can only be replaced by qualified technicians or after-sales service.

Laser Safety Information

- The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact with it during use.

CLASS 1 LASER PRODUCT

CONSUMER LASER PRODUCT

EN 50689:2021

For indoor use only

Read operator's manual

Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLD34GA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs

Product Overview

Package Contents

Simple line drawing of a circular device with a central hub and two side handles (no text or symbols)

Robot

Other Accessories

Side Brush Power Cord

Cleaning Tool (pre-installed)

Isometric line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Charging Dock

Water Tank

Mop Pad (pre-installed)

User Manual

Product Overview

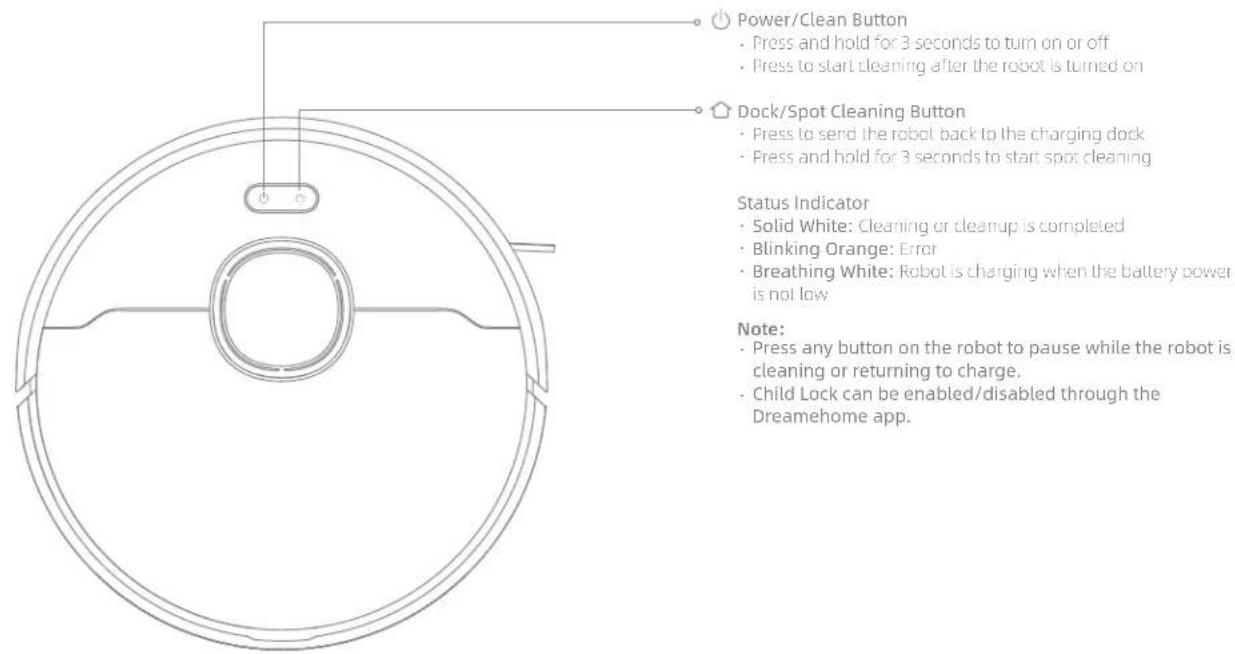

Robot

Power/Clean Button • Press and hold for 3 seconds to turn on or off • Press to start cleaning after the robot is turned on Dock/Spot Cleaning Button • Press to send the robot back to the charging dock • Press and hold for 3 seconds to start spot cleaning Status Indicator • Solid White: Cleaning or cleanup is completed • Blinking Orange: Error • Breathing White: Robot is charging when the battery power is not low Note: • Press any button on the robot to pause while the robot is cleaning or returning to charge. • Child Lock can be enabled/disabled through the Dreamehome app.

Product Overview

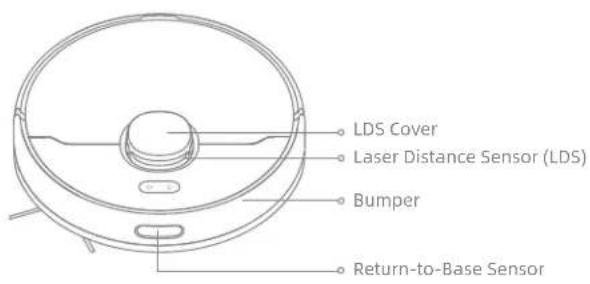

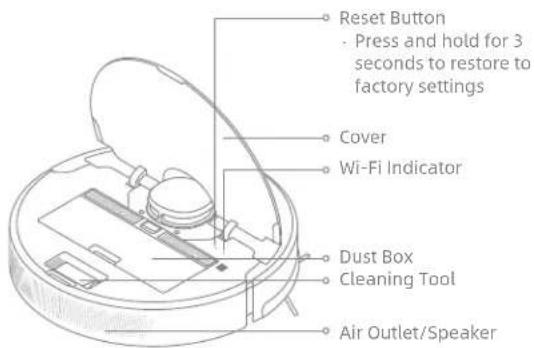

Robot and Sensors

LDS Cover Laser Distance Sensor (LDS) Bumper Return-to-Base Sensor

Reset Button - Press and hold for 3 seconds to restore to factory settings Cover Wi-Fi Indicator Dust Box Cleaning Tool Air Outlet/Speaker

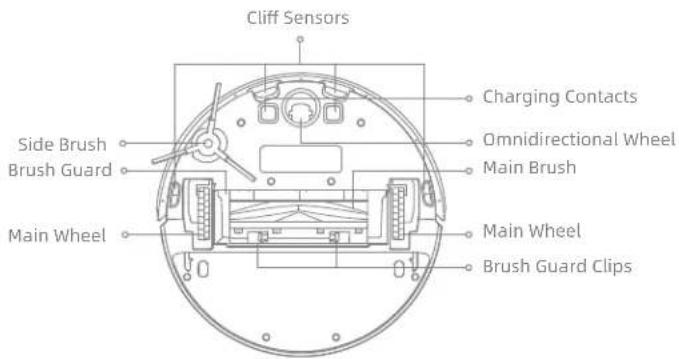

Cliff Sensors Charging Contacts Side Brush Brush Guard Omnidirectional Wheel Main Brush Main Wheel Brush Guard Clips

Dust Box

Dust Box Clip Dust Box Cover Dust Box Cover Clip Filter Clip Filter

Product Overview

Mopping Module

Water Tank

Water Inlet Water Tank Stopper Water Tank Release Clips

Charging Dock

Signaling Area Charging Contacts Power Port

Mop Pad

Mop Pad Attachment Area

Preparing Your Home

Illustration of a medical device with a teddy bear, tablet, mouse, and cross symbol (no text or labels)

Before cleaning, please move away unstable, fragile, valuable or dangerous items, and clean up cables, cloths, toys, hard objects and sharp objects on the ground to avoid being entangled, scratched or knocked over by the robot and causing losses.

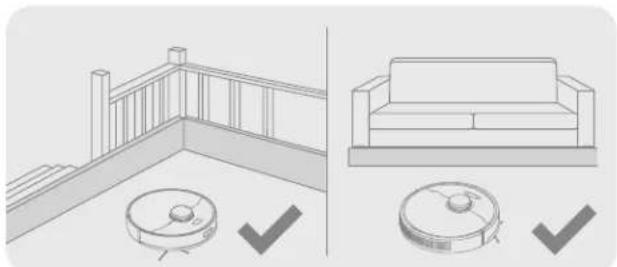

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure secure and smooth operation of the robot.

Line drawing of a simple dining room layout with a table, chairs, a fan, and door (no text or symbols)

Open the door of the room to be cleaned, and put the furniture in its proper place to leave more space.

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

To prevent the robot from not recognizing areas that need to be cleaned, do not stand in front of the robot, or in a threshold, hallway, or narrow places.

Note:

- When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.

Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be scratched.

Before Use

1. Place the Charging Dock and Connect to an Electrical Outlet

Place the charging dock on level ground against the wall. Insert the power cord into the charging dock and plug it into the socket.

Place the charging dock in a location that is as open as possible with a good Wi-Fi signal.

Note:

• Remove any objects that are closer than 1.5 m from the front and 0.5 m from either side of the charging dock.
• Do not place the charging clock in an area with direct sunlight or where other objects might block the signal, as this may hinder the robot from returning to the charging dock.

2. Remove the Protections

Diagram of a circular device with a central knob and two directional arrows indicating rotation or movement (no text or symbols)

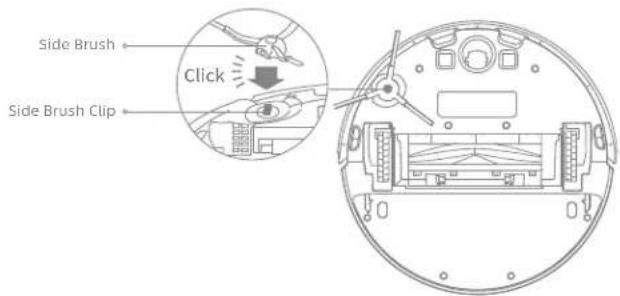

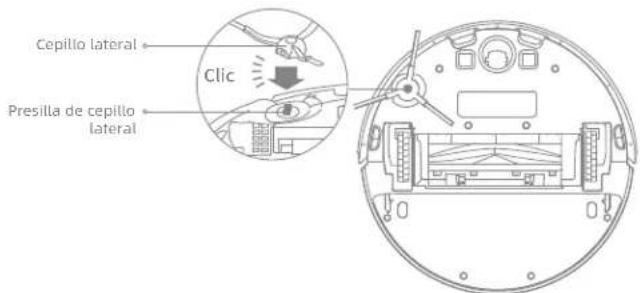

3. Install the Side Brush

Side Brush Click Side Brush Clip

Note: Install the side brush until it clicks into place.

4. Charge the Robot

When placing the robot, align the charging contacts at the bottom of the robot with the charging contacts of the charging dock, and the robot will automatically turn on and start charging.

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Note: It is recommended to fully charge your robot before first time use.

Connecting with Dreamehome App

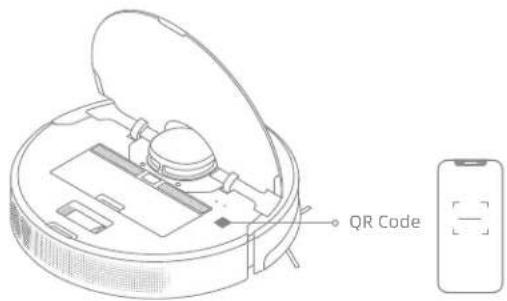

1. Download the Dreamehome App

Scan the QR code on the robot, or search "Dreamehome" in the app store to download and install the app.

QR Code

Note:

• Only 2.4 GHz Wi-Fi is supported.
• Due to upgrades in the app software, the actual operations may differ from the directions in this manual. Please follow the instructions based on the current app version.

2. Add Device

Open the Dreamhome app, tap "+in the upper right corner, and scan the same QR code on the robot again to add the device. Please follow the prompts to finish the Wi-Fi connection.

Technical line drawing of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

Wi-Fi Indicator

• Blinking slowly: To be connected
• Blinking quickly: Connecting
• On: Connected

Note: If you want to reset Wi-Fi, repeat step 2 and then follow the prompts to finish the Wi-Fi connection.

How to Use

Turn On/Off

Press and hold the button (for 3 seconds to turn on the robot. The power indicator should be illuminated. Place the robot onto the charging dock, the robot should turn on automatically and begin charging. To turn off the robot, move the robot away from the dock and press and hold the button for 3 seconds.

Fast Mapping

After configuring the network for the first time, follow the instructions in the app to quickly create a map. The robot will start mapping without cleaning. When the robot returns to the charging dock, the mapping process has been completed and the map will be saved automatically.

Start Cleaning

Press the button to start cleaning after the robot is turned on. Then, the robot will accurately map out a route, methodically clean along the edges and walls, then finish by cleaning each room in an S-shaped pattern to ensure a thorough job.

Note: It is recommended that the robot set out from the charging dock before cleaning. Do not move the charging dock while the robot is cleaning. This ensures that the robot returns to charging dock smoothly.

Pause/Sleep

When the robot is running, press any button to pause it.

If the robot is paused for more than 10 minutes, it automatically enters sleep mode. All indicators on the robot will turn off. Press any button on the robot, or use the app to wake up the robot.

Note: If the robot is paused and placed onto the charging dock, the current cleaning task will end.

Auto Resume Cleaning

If the battery is too low, the robot will automatically return to the charging dock to charge. After charging to the appropriate battery level, it will resume unfinished cleaning tasks.

Note: To use this function, please open it in the App.

Do Not Disturb (DND) Mode

When the robot is set to Do Not Disturb (DND) mode, the robot will be prevented from resuming cleaning and the power indicator will turn off. DND mode is disabled by default at the factory. You can use the app to enable DND mode or modify the DND period. The DND period is 22:00-8:00 by default.

Note:

- The scheduled cleaning tasks will be performed as usual during the DND period. - The robot will resume cleanup where it left off after the DND period expires.

Spot Cleaning

When the robot is on standby, press and hold the button for 3 seconds to enable the spot cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 × 1.5 meters around it and returns to its starting point once the spot cleaning is completed.

Robot Restarting

If the robot stops responding or cannot be turned off, press and hold the button (for 10 seconds to forcefully turn it off. Then, press and hold the button for 3 seconds to turn the robot on.

How to Use

Use Mopping Function

It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve a better cleaning effect.

1. Dampen the mop pad and wring out excess water. Install the mop pad as shown in the diagram.

①

②

③

1. Fill the tank with water.

Diagram of a showerhead with water spray and faucet, showing showerhead and showerarm (no text or symbols)

Note:

• Do not use detergent or disinfectant.
- Do not fill the water tank with hot water as this may cause the water tank to warp.

1. Align the mopping module as indicated by the arrow, then slide it into the back of the robot until it clicks into place. Press the button ☐ or use Dreamehome app to start cleaning.

Click Click

Note:

• It is not recommended to use the mopping function on carpets.

• Use the app to adjust the water flow as required.

• When the robot finishes a cleaning task and returns to the charging dock, remove the mopping module and wash the mop pad in time. To remove the water tank, slide the two release clips on the side of it to take it out.

Line drawing of a mechanical component with an inset close-up view (no text or symbols)

Note: When the robot is charging or not in use, remove the mopping module, pour out all the remaining water in the water tank, and clean the mop pad to prevent mildew or odors.

Routine Maintenance

Parts

To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.

Part	Maintenance Frequency	Replacement Period
Mop pad After each use Every 3 to 6 months
Main brush	Once every 2 weeks	Every 6 to 12 months
Dust box's filter		Every 3 to 6 months
Side brush
Charging dock's signaling area	Once every month /
Charging dock's charging contacts
Omnidirectional wheel
Laser Distance Sensor (LDS)
Robot's charging contacts

Part	Maintenance Frequency	Replacement Period
Bumper	Once every month /
Bottom of the robot
Cliff sensors
Return-to-Base Sensor
Water tank	Clean it as needed /
Dust box

Note: The replacement frequency will depend on your usage of the robot. If an exception occurs due to special circumstances, the parts should be replaced.

Routine Maintenance

Dust Box Filter

1. Open the robot's cover and press the clip to remove the dust box.

Technical line drawing of a robotic vacuum cleaner with internal components and mounting bracket (no text or symbols)

1. Open the dust box cover and empty the dust box as shown in the diagram.

Line drawing of a container with granular material being poured into a plastic bag (no text or symbols)

1. Remove the filter and tap its basket gently.

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols present)

Note: Do not attempt to clean the filter with a brush, a finger or sharp objects to prevent damage.

1. Rinse the dust box and filter with clean water and dry them completely before reinstalling.

Diagram showing a water tap being placed on a device, with sunlight and a grid of components nearby (no text or symbols)

Note:

• Rinse the dust box and filter with clean water only. Do not use any detergent.
• Use the dust box and filter only when they are completely dry.

Routine Maintenance

Mopping Module

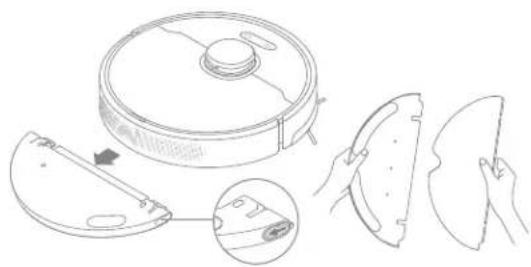

1. Slide the two release clips on the side of the water tank, remove the mopping module, and pull the mop pad off the mopping module.

Line drawing of a robotic vacuum cleaner with open lid and internal components, plus close-up views of the lid (no text or symbols)

1. Pour out the water in the tank. Clean the tank with water only and leave it to air dry before reinstalling.

Note: Do not directly expose the water tank to sunlight.

1. Clean the mop pad with water only and leave it to air dry before reinstalling.

Two simple line drawings of household water sources: a faucet with liquid and a bowl with water droplets (no text or symbols)

Note: Remove the mop pad from the mopping module before cleaning it, and make sure dirty water does not flow back into the water outlet to avoid clogging.

1. If slow water flow occurs, or the water volume is not well-distributed, clean the air hole in the cover of the water tank.

Line drawing of a hand holding a pen and a small object on a curved line (no text or symbols)

Routine Maintenance

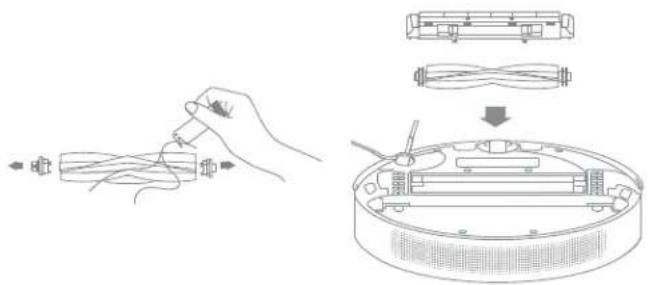

Main Brush

1. Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

Diagram of a robotic arm with a handle and gear, showing a close-up view of the arm joint (no text or symbols present)

1. Pull out the brush covers at both ends of the brush as shown in the diagram. Use the provided cleaning tool to remove any hair tangled in the brush. Reinstall the brush covers on both ends of the brush, and then reinstall the brush. Press on the brush guard to lock it in place.

Technical diagram showing a hand holding a cable with a switch, before and after assembly of a device with internal components.

Side Brush

Remove and clean the side brush.

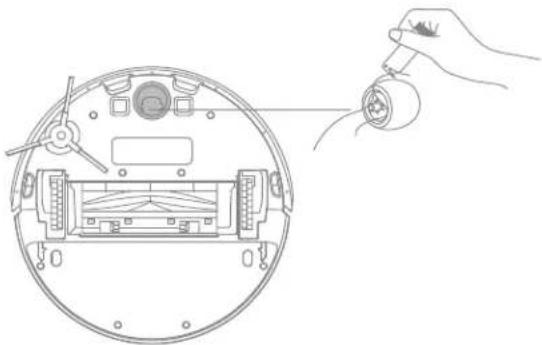

Omnidirectional Wheel

Line drawing of a device interior with a hand inserting a plug into the outer casing (no text or symbols)

Note:

• Use a tool such as a small screwdriver to separate the axle and tire of the omnidirectional wheel. Do not use excessive force.
• Rinse the omnidirectional wheel under the running water and put it back after drying it completely.

Routine Maintenance

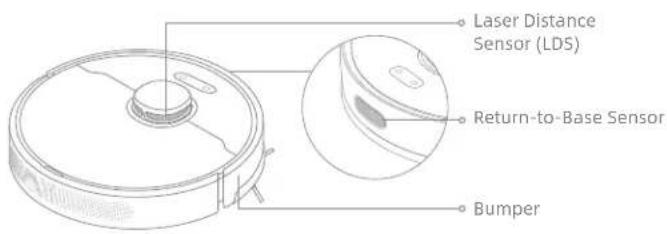

Robot Sensors

Wipe robot sensors by using a soft and dry cloth, as shown in the below figure:

Laser Distance Sensor (LDS) Return-to-Base Sensor Bumper

Cliff Sensors

Note: A wet cloth can damage sensitive elements within the robot and the charging dock. Please use a dry cloth for cleaning.

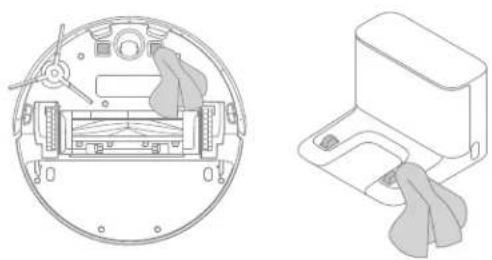

Charging Contacts and Signaling Area

Clean the charging contacts and the signaling area with a soft and dry cloth.

Technical line drawing of a circular device with internal components and a separate view of a rectangular device with a cloth (no text or symbols)

Battery

The robot contains a high-performance lithium-ion battery pack. Make sure that the battery remains well-charged for daily use to maintain optimal battery performance. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damages from over-discharging, charge the robot at least once every three months.

Troubleshooting

Problem Solution
Robot does not turn on.	The battery is low. Recharge the robot on the charging dock, then try again.The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature between 32 °F (0 °C) and 104 °F (40 °C).
Robot does not recharge.	The charging dock is not receiving power. Please confirm that both ends of the power cord are plugged in correctly. Poor contact. Clean charging contacts of the charging dock and robot.
Robot does not return to charging dock.	There are too many obstructions around the charging dock. Place the charging dock in a more open area.Please clean the dock's signaling area.
Robot is malfunctioning. Turn off the robot and then reactivate it.
Robot is making a strange noise.	A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot and remove any debris.
Robot no longer cleans efficiently or leaves dust behind.	The dust box is full. Please clean it.The filter is blocked. Please clean it.A foreign object is caught in the main brush. Please clean it.

Troubleshooting

Problem Solution
Robot cannot connect to Wi-Fi.	There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Dreamehome app, then try reconnecting.Location permission is not open. Please ensure the location permission on the Dreamehome app is enabled.Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.The username or password of Wi-Fi is incorrect. Please enter the correct username and password.
Robot does not perform scheduled cleaning.	The robot has low battery. Scheduled cleaning will not start unless the robot has at least 15% battery left.
Does leaving the robot on the charging dock consume power if it is already fully charged?	Leaving the robot on the charging dock after it's fully charged consumes very little electricity and helps maintain optimal battery performance.
No water comes out of the water tank, or only a little bit comes out.	Check whether there is water inside the water tank.Clean the mop pad if it becomes dirty.Make sure the mop pad is installed correctly according to the User Manual.Clean the air hole on the water tank stopper.
Robot doesn't resume cleaning after charging.	Make sure the robot is not set to Do Not Disturb mode (DND), which will prevent it from resuming cleaning.The robot does not resume cleaning when it is manually recharged or placed onto the charging dock.
Robot doesn't return to charging dock after being moved.	Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot is too far from the charging dock, it might not be able to automatically return on its own, in which case you need to manually place the robot onto the charging dock.

For more support, contact us via https://global.dreametech.com

Specifications

Robot Charging Dock

Model RLD34GA
Charging Time Approx. 6 hours
Rated Voltage 14.4 V	---
Rated Power 75 W
Operation Frequency 2400-2483.5 MHz
Maximum Output Power < 20 dBm

Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user.

Model RCS0
Rated Input 100-240 V	50/60 Hz 0.5-A
Rated Output 19.8 V	== 1 A

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility.

• the battery must be removed from the appliance before it is scrapped;
• the appliance must be disconnected from the supply mains when removing the battery;
• the battery is to be disposed of safely.

CAUTION:

Before removing the battery, disconnect the power and run out the battery as much as possible.

Unneeded batteries should be discarded at an appropriate recycling facility.

Do not expose to high temperature environment to avoid risks of explosion.

Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.

Removal Guide:

1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Sicherheitshinweise

Simple line drawing of a circular device with a central hub and two side handles (no text or symbols)

Roboter

Isometric line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Ladestation

Wasserbehälter

Illustration of various household items including a teddy bear, keyboard, mouse, and crossed-out cross symbol (no text or labels)

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Line drawing of a simple dining room layout with a table, chairs, a fan, and door (no text or symbols)

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

Diagram of a circular device with directional arrows indicating rotation or movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

WLAN-Anzeige

Diagram of a showerhead with water spray and faucet, showing no text or symbols

Hinweis:

Line drawing of a curved mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with internal components and mounting bracket (no text or symbols)

Line drawing of a container with granular material inside and an open lid above it (no text or symbols)

Technical line drawing of a mechanical component with a close-up view showing a hand holding a tool (no text or symbols present)

Diagram illustrating a water treatment process with a faucet, pipe, and air conditioner unit being processed.

Hinweis:

Line drawing of a robotic vacuum cleaner with open lid and internal components, shown in three views (front, side, top) without any text or symbols.

Two technical illustrations of a showerhead and its corresponding safety goggles, showing different lighting or water conditions (no text or symbols present)

Line drawing of a hand holding a pen or wire with a small object inside, no text or symbols present

Regelmäßige Wartung

Hauptbürste

Technical diagram showing a robotic device with labeled components and an inset close-up of the handle mechanism.

Diagram of a device interior with a hand holding a connector, showing internal components and wiring (no text or symbols)

Hinweis:

Technical line drawing of a circular device with internal components and a separate view of a rectangular device with a cloth (no text or symbols)

Akku

Simple line drawing of a circular device with a central hub and two side handles (no text or symbols)

Robot

Isometric line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Station de recharge

Réservoir d'eau

Technical line drawing of a circular mechanical component with a central hub and mounting points (no text or symbols)

Illustration of various household items including a teddy bear, keyboard, mouse, phone, and crossed-out cross symbol (no text or labels)

Line drawing of a simple dining room layout with a fan, table, chairs, and door (no text or symbols)

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

Diagram of a circular device with directional arrows indicating rotation or movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

Indicateur Wi-Fi

Diagram of a showerhead with water spray and faucet (no text or symbols)

Remarque :

Cliquez Cliquez

Remarque :

Line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with internal components and mounting base (no text or symbols)

Line drawing of a container with granular material being poured into a plastic bag (no text or symbols)

Line drawing of a device with a handle and a magnified view showing internal components (no text or symbols)

Diagram showing a water tap being processed into a device with sunlight (no text or symbols)

Remarque :

Line drawing of a robotic vacuum cleaner with open lid and internal components, shown in three views (front, side, top) without any text or symbols.

Two simple line drawings of household items: a faucet with liquid and a bowl with water droplets (no text or symbols)

Line drawing of a hand holding a pen and a small object on a curved line (no text or symbols)

Diagram of a robotic vacuum cleaner with a close-up inset showing the handle and blade (no text or symbols)

Technical diagram showing a hand using a tool to adjust internal components, with an inset close-up of the component being inserted into a circular housing.

Brosse latérale

Diagram of a device interior with a hand holding a connector, showing internal components and wiring (no text or symbols)

Remarque :

Technical line drawing of a circular device with internal components and a separate 3D model of a toilet (no text or symbols)

Batterie

Simple line drawing of a circular object with a central hole and two horizontal lines, resembling a mechanical or electrical component (no text or symbols)

Robot

Isometric line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Illustration of various household items including a teddy bear, keyboard, mouse, phone, and crossed-out cross symbol (no text or labels)

Line drawing of a simple dining room layout with a fan, table, chairs, and door (no text or symbols)

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

Diagram of a circular device with a central knob and two directional arrows indicating rotation or movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical line drawing of a circular robotic vacuum cleaner with open lid and internal components (no text or symbols)

Line drawing of a showerhead with water spray and faucet (no text or symbols)

Nota:

Clic Clic

Nota:

Line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with internal components and mounting base (no text or symbols)

Line drawing of a container with granular material inside and an open lid pouring liquid into it (no text or symbols)

Technical line drawing of a mechanical component with a close-up view showing internal structure and a hand holding a tool (no text or symbols)

Diagram showing a water tap being processed into a device with a sun icon (no text or symbols)

Nota:

Line drawing of a robotic vacuum cleaner with open lid and internal components, showing hand holding part (no text or symbols)

Two simple line drawings of household items: a faucet with liquid and a pair of spray bottles (no text or symbols)

Line drawing of a hand holding a pen and a small object on a curved line (no text or symbols)

Diagram of a robotic vacuum cleaner with a close-up inset showing hand positioning (no text or symbols)

Technical diagram showing a hand using a tool to adjust cable components into a circular device with internal components.

Spazzola laterale

Diagram of a device interior with a hand holding a connector, showing internal components and wiring (no text or symbols)

Nota:

Technical line drawing of a circular device with internal components and a separate view of a rectangular device with a cloth (no text or symbols)

Batteria

Simple line drawing of a circular device with a central hub and two side handles (no text or symbols)

Robot

Line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Estación de carga

Depósito de agua

Mopa (preinstalada)

Manual de Usuario

Technical line drawing of a circular mechanical component with central bore and mounting holes (no text or symbols)

Illustration of various household items including a teddy bear, keyboard, mouse, phone, and crossed-out cross symbol (no text or labels)

Line drawing of a simple dining room layout with a fan, table, chairs, and door (no text or symbols)

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

Diagram of a circular device with a central knob and directional arrows indicating rotation or movement (no text or symbols)

3. Instalar el cepillo lateral

Cepillo lateral Clic Presilla de cepillo lateral

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical line drawing of a circular robotic vacuum cleaner with internal components (no text or symbols)

Indicador Wi-Fi

Line drawing of a curved surface with water spray and a faucet (no text or symbols)

Nota:

Clic Clic

Nota:

Line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with internal components and mounting base (no text or symbols)

Line drawing of a container with granular material inside and an open lid pouring liquid into it (no text or symbols)

Technical line drawing of a mechanical component with a hand holding a tool, showing assembly and disassembly (no text or symbols)

Diagram showing a water tap being placed on a device, then to open a solar panel with sun (no text or symbols)

Nota:

Line drawing of a robotic vacuum cleaner with open lid and internal components, plus close-up views of the blade (no text or symbols)

Two simple line drawings of household items: a faucet with liquid and a bowl with water droplets (no text or symbols)

Line drawing of a hand holding a pen and a small object on a curved line (no text or symbols)

Technical diagram showing a robotic device with labeled components and an inset close-up of the handle mechanism.

Technical diagram showing a hand holding a cable with directional arrows and a close-up of the device's internal components.

Cepillo lateral

Diagram of a device interior with a hand holding a connector, showing internal components and wiring (no text or symbols)

Nota:

Technical line drawing of a circular device with internal components and a separate view of a rectangular device with a cloth (no text or symbols)

Batería

Simple line drawing of a circular object with a central hole and two horizontal lines, resembling a mechanical or electrical component (no text or symbols)

Robot

Isometric line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Stacja ładowania

Zbiornik na wodę

Illustration of various household items including a teddy bear, keyboard, mouse, phone, and crossed-out cross symbol (no text or labels)

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Line drawing of a simple dining room layout with a table, chairs, a fan, and door (no text or symbols)

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

Diagram of a circular mechanical component with directional arrows indicating rotation or movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical line drawing of a circular robotic vacuum cleaner with internal components (no text or symbols)

Wskaźnik Wi-Fi

Line drawing of a showerhead with water spray and faucet (no text or symbols)

Uwaga:

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

Line drawing of a container with granular material inside and an open lid above it (no text or symbols)

Technical line drawing of a mechanical component with a close-up view showing internal structure and a hand holding a tool (no text or symbols)

Diagram showing a water tap being processed into a device with sunlight (no text or symbols)

Uwaga:

Line drawing of a robotic vacuum cleaner with open lid and internal components, plus close-up views of the blade (no text or symbols)

Two simple line drawings of household items: a faucet with liquid and a bowl with water droplets (no text or symbols)

Line drawing of a hand holding a pen and a small object on a curved line (no text or symbols)

Diagram of a robotic arm with a handle and gear, showing internal components and a close-up view of the arm (no text or symbols present)

Technical diagram showing a hand holding a cable with fasteners, before and after assembly of a device with a switch.

Szczotka boczna

Diagram of a device interior with a hand inserting a plug into a circular housing (no text or symbols)

Uwaga:

Technical line drawing of a circular device with internal components and a separate view of a rectangular device with a cloth (no text or symbols)

Akumulator

KLASSE 1 LASERPRODUCT

LASERPRODUCT VOOR CONSUMENTEN

EN 50689:2021

Simple line drawing of a circular object with a central hole and two horizontal lines, resembling a mechanical or electrical component (no text or symbols)

Robot

Andere accessoires

Zijborstel Netsnoer

Isometric line drawing of a 3D rectangular bracket with mounting holes (no text or symbols)

Oplaadstation

Watertank

Illustration of various household items including a teddy bear, keyboard, mouse, phone, and crossed-out cross symbol (no text or labels)

Line drawing of a simple dining room layout with a fan, table, chairs, and door (no text or symbols)

Illustration showing a robotic vacuum cleaner placed on a balcony versus a single refrigerator with a vacuum cleaner (no text or symbols present)

Interior hallway with a person standing near a vacuum cleaner and a cross symbol (no text or labels)

Diagram of a circular device with directional arrows indicating rotation or movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached electrical outlet (no text or symbols)

Technical line drawing of a circular robotic vacuum cleaner with internal components (no text or symbols)

Wifi-indicator

Line drawing of a faucet with water spray and handle (no text or symbols)

Opmerking:

Technical line drawing of a curved mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

Line drawing of a container with granular material inside and an open lid above it (no text or symbols)

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols present)

Diagram illustrating the process of a water supply system with pipe, water outlet, and sunlight exposure

Opmerking:

Line drawing of a robotic vacuum cleaner with open lid and internal components, plus close-up views of the blade (no text or symbols)

Two simple line drawings of household items: a faucet with liquid and a pair of spray bottles (no text or symbols)

Line drawing of a hand holding a pen and a small object on a curved line (no text or symbols)

Diagram of a robotic vacuum cleaner with a close-up inset showing hand positioning (no text or symbols)

Technical diagram showing a hand holding wires connected to a device, with an inset close-up of the component being inserted into a circular housing.

Zijborstel

Diagram of a device interior with a hand inserting a plug into a housing (no text or symbols)

Opmerking:

Technical line drawing of a circular device with internal components and a separate view of a rectangular device with a cloth (no text or symbols)

Batterij
