SS-3865 - Hair Straightener Sogo - Free user manual and instructions

USER MANUAL SS-3865 Sogo

Black SO50 iron curling iron with digital display and no visible text or symbols on the device itself.

PLANCHA DE PELO PROFESIONAL PROFESSIONAL HAIR STRAIGHTENER LISSEUR DE CHEVEUX PROFESSIONNEL ALISADOR DE CABELO PROFISSIONAL RADDRIZZATORE DEI CAPELLI PROFESSIONALE PROFESSIONELLE HAARGLÄTTER

Caution: please read and preserve these important instructions This manual can be downloaded from our website, www.sogo.es in the following languages: SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN

ref. SS-3865

CE RoHS 2015-03-17

ÍNDICE

1. Important Note P. 15

2. Symbol definitions P. 15

3. Safety instructions for the user P. 15

I. General precautions during the use of electrical equipment P. 15

II. Restrictions on use to avoid personal injury P. 16

III. Product use restrictions due to poor condition or breakdown P. 18

IV. Restrictions on use when used with children and elders P. 19

V. IMPORTANT WARNING P. 19

VI. Instructions to follow when using the device P. 20

1. Technical specifications P. 22

2. Parts description P. 22

3. Instructions for use P. 22

4. Cleaning and maintenance P. 23

5. Declaration of conformity P. 64

6. Responsibility for disposal, details of the manufacturer and after-sales service P. 65

ÍNDICE

• For quick and professional hair straightening experience
  • Aluminium plates with ceramic and tourmaline coating
• Ultra-fast PTC heating element: to provide instant heat with even distribution
• 'Floating' Tourmaline Plates for smooth use and perfect straightening experience
  • Led light digital display
• 5 temperatures settings: 150^ , 170^ , 190^ , 210^ , 230^
  • 60Min Auto power o function
  • Temperature lock for user safety
  • 2.5-metre long and 360° swivel power cord
• Hanging loop
• Plate size 100x24mm

FRA

No sign depicting a prohibition symbol for water release, featuring a showerhead above a container (no text present)

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1 2

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the

appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

II. ⚠️Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- To avoid electric shock, make sure your hands are dry before plugging or unplugging.

- Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.

- While using the appliance, make sure that the power cord must not be caught or crushed.

- Do not let the motor unit, cord or plug get wet to protect aga-

inst risk of electric shock.

III.

Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep the appliance and its cord out of reach of children less than 8 years.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. IMPORTANT WARNING

• To avoid a circuit overload

when using this product, do not operate another high-wattage product on the same electrical circuit.

• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using the device

• The straightener becomes VERY HOT while in use. Take care to avoid contact between the surface of the plates and the skin, particularly around the ears, face and neck. DO NOT exceed the recommended application times as it might cause burning of hair or singing.
• Do not leave the hair straightener on non-heat resistant surfaces or near flammable materials whilst the straightener is in use or cooling down.
• Do not cover and allow the straightener to cool fully (e.g.,30

mins) before storing. Do not wind the cable tightly around the straightener.

• Do not use the straightener on artificial hair, wigs or pet hair.
• Trip hazard beware of trailing cables when in use and while in storage.
• Cord entanglement hazard. The cable of the appliance can give rise to risks of entanglement, strangulation or tripping if not placed correctly. Please make sure that the electric cable is positioned safely.
• ALWAYS use the hinge lock to keep the heating plates closed together while the appliance is left to heat up or cool down, this is especially important if there are children in the household. An open unattended straightener can fall and latch onto a child's arm causing serious burns.
• Do not touch the shaded areas when in use or right after use since they will be very hot. Doing so may cause serious burn.

KEEP AWAY FROM WATER

Prohibition sign showing a showerhead falling from a pool, no text present

4. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency
100-240V 40-45W	50 – 60Hz

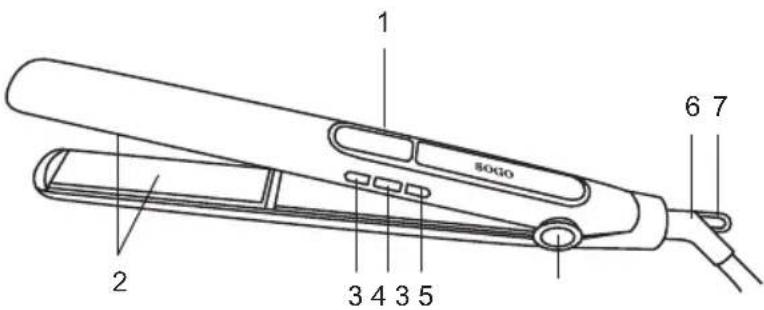

5. PARTS DESCRIPTION

1 SOGO 2 3 4 3 5 6 7

1. Digital display with led light

2. Plates with ceramic and tourmaline coating

3. +/- temperature control buttons

4. On/Off button

5. Shaft

6. 360° swivel power cord

7. Hanging loop

6. INSTRUCCIONES DE USO

The straightener is suitable for use on dry hair. For best results wash, comb, dry and use heat protection products before straightening the hair.

WARNING: Do not use any hair treatment product prior to straightening other than heat protection products which clearly state they can be used before straightening with a hair straightener. Be careful when using heat protection product before hair straightening process. Use them as instructed by the manufacturer and make sure not to make your hair too sticky, otherwise it could cling to the heating plates causing burning or pulling of the hair.

• Make sure your hands are dry, while using the hair straightener. Fully unwind the cable and plug in the straightener to the mains supply. (Straightener arms are pressed together).
• Place the straightener onto a dry and flat heat resistant surface.
• Press the Power button and keep it pressed for few seconds until the hair straightener turned on.
• There are 5 temperature settings (150°C, 170°C, 190°C, 210°C and 230°C) available in this hair straightener, after turning on the hair straightener all the temperature settings start flashing on the digital display.
• We can select any of the temperature settings (mentioned above) with the help of (+ and -) buttons. In case if we don't select any temperature setting, straightener starts heating with 150°C as default temperature setting.
• Once we select the temperature, selected temperature appears in the digital display and start flashing and appliance starts heating up. When the unit reached to the max. temperature, the indicator will stop flashing and the straightener will be ready for use. It will take the straightener approximately 1 minute to reach the Max temperature (230°C).
• Button Lock: All functional buttons will be locked after the button

idle for 5 seconds. Press the On/Off switch button for few seconds and all the buttons will be unlocked.

• In order to straighten the hair, select a section of hair to be straightened and place the hair in between the ceramic coated plates as close to the root as possible, without touching scalp. To prevent damage to the hair do not repeat straightening process on the same section of hair more than once.
• Close the ceramic coated plates firmly together and slide the straightener down the length of the hair in a single motion taking not more than 5 seconds from root to tip to prevent overheating / scorching the hair.
• Release the section of hair and repeat on the next section, straightening the lower sections of hair before the top ones.
• The hair straightener can be turned off any time by pressing and holding the On/Off button (for approx. 3 seconds) or removing the power cable from the mains.

Notes:

• The heat-up time from room temperature to 150°C is approx. 40 seconds.
• The straightener will switch off automatically after one hour. To reactivate, press and hold the On/Off button again.

Styling tips

• To minimize heat damage to the hair, try to do the setting with lower temperatures, moving onto the higher temperature settings, if hair straightening is not satisfactory.
• For best results make sure that the section of hair (to be straightening) should not be more than 5cm wide and 1cm thick.
• For extra protection, use heat protection products before straightening.

Tourmaline Coating Technology

With adding up tourmaline coating technology to this hair dryer model we have brought a professional hair care taker to your home.

By using tourmaline technology of this hair dryer model, not only you get smooth and shiny hair but also it helps to seal the moisture into the hair. Keep your hairs healthy and protect your hair against high level of heat.

7. CLEANING AND MAINTENANCE

Turn the appliance off, unplug it from the wall outlet and wait until the plates cool down before carrying out any cleaning activity. Once the straightener has cooled completely, wipe it with a dry cloth. Do not use chemical cleaners. Some residuals may remain trapped within the plates. In this case, wipe them with a cloth dampened with alcohol. If the cord becomes twisted, untwist prior to use. Store the appliance in a dry place. Do not scratch the surface of ceramic coating plates with sharp objects or wipe with coarse materials. Do not use this styler with strong chemicals, like perm lotion. The ceramic coating may peel off after a long period of use. However, it would not affect the styler function of this iron.

1. IMPORTANT :

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text)

4. SPÉCIFICATIONS TECHNIQUES

Prohibition sign showing a showerhead falling from a pool, no text present

4. ESPECIFICAÇÕES TÉCNICAS

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text)

4. TECHNISCHE DATEN

Prohibition sign showing a showerhead falling from a pool, enclosed in a circle (no text or symbols)

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC. Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical. Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com
[e-mail] / 0034 902 222 161
