SS-3715 - Hair straighteners Sogo - Free user manual and instructions

Product type	Hair straightening brush (straightener)
Brand	Sogo
Model	SS-3715
Power supply	AC 110-240V
Power	30W
Frequency	50-60 Hz
Temperature ranges	100°C, 120°C, 140°C, 160°C, 180°C, 200°C
Number of temperature settings	6
Display	LED digital screen
Integrated mirror	Yes
Automatic shut-off	Yes, after 60 minutes of inactivity
Plate coating	Ceramic
Heating type	Ceramic PTC heating element
Functions	On/off button, temperature adjustment (+/-)
Hanging loop	Yes
Care and cleaning	Clean with a soft dry cloth; do not immerse
Safety	Automatic shut-off, do not use near water, keep out of reach of children
After-sales service	www.sogosat.com / [e-mail] / 0034 902 222 161
Manufacturer	SOGO
Importer	Sanysan Appliances S.L., C/ Barcas 2, 2, 46002 Valencia, Spain
Country of manufacture	China

Frequently Asked Questions - SS-3715 Sogo

How to turn the Sogo SS-3715 straightener on and off?

To turn on, press the power button (B). The LED screen lights up and the default temperature of 200°C is displayed. To turn off, press the same button again. The device also turns off automatically after 60 minutes of inactivity.

What temperatures are available on this straightener?

The straightener offers 6 temperature settings: 100°C, 120°C, 140°C, 160°C, 180°C and 200°C. Use the +/- buttons (D) to select the temperature suitable for your hair type.

How long does it take for the straightener to heat up?

Thanks to the ultra-fast ceramic PTC heating element, the straightener heats up in seconds and is ready to use almost instantly.

How to clean the Sogo SS-3715 straightener?

Unplug the device and let it cool completely. Clean it with a soft dry cloth. A slightly damp cloth can be used carefully. Never immerse the device in water.

Does the device have automatic shut-off?

Yes, the straightener is equipped with an automatic shut-off function of 60 minutes. If the device is not used during this period, it turns off automatically for safety reasons.

Can I use the straightener on wet hair?

No, the straightener should only be used on clean, dry hair. Do not use it on wet hair or with hair products (gels, creams, etc.) to avoid damaging the hair.

Is there an integrated mirror on the straightener?

Yes, the Sogo SS-3715 straightener is equipped with a built-in mirror (F) to make styling easier. You can see yourself while straightening.

What to do if the device stops heating?

First check that the device is properly plugged in and the power outlet works. If the LED screen does not light up, try resetting by unplugging then plugging back in. If the problem persists, contact after-sales service via www.sogosat.com.

How to adjust the temperature on the straightener?

Use the +/- buttons (D) located on the device. The LED screen (C) displays the selected temperature. You can choose among 6 levels from 100°C to 200°C.

Is it suitable for all hair types?

Thanks to the 6 temperature settings, the straightener is suitable for different hair types. Low temperatures (100-140°C) are suitable for fine or damaged hair, while high temperatures (160-200°C) are suitable for thick or hard-to-straighten hair.

USER MANUAL SS-3715 Sogo

HAIR STRAIGHTENING BRUSH

Caution: please read and preserve these important instructions

This manual can be downloaded from our website, www.sogo.es in the following languages.

SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

INDEX

1. Important Note P. 11
2. Symbol definitions P. 11
3. Safety instructions for the user P. 11

I. General precautions during the use of electrical equipment P. 11 II. Restrictions on use to avoid personal injury P. 12 III. Product use restrictions due to poor condition or breakdown P. 13 IV. Restrictions on use when used with children and elders P. 13 V. IMPORTANT WARNING P. 14 VI. Instructions to follow when using the device P. 14

1. Technical specifications P. 17
2. Parts description P. 17
3. Instructions for use P. 17
4. Cleaning and maintenance P. 18
5. Declaration of conformity P. 54
6. Responsibility for disposal, details of the manufacturer and after-sales service P. 55

INDEX

CAUTION - THIS PRODUCT MAY BURN EYES. FOR HOUSEHOLD USE ONLY.

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. Symbol definitions

1

1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance. • Always remove the plug from the power socket

when the appliance is not in use. Do not leave the appliance unattended when switched on.

• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

II. ⚠️! Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself. • To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on

damp floors or when the atmosphere is humid, there is a risk of electric shock.

• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️ Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case the cord is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ⚠️ Restrictions on use when used with children and elders

Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. ⚠️ IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️! Instructions to follow when using the device

- This appliance works with high temperature,

therefore during the use always hold it by the handle and use extreme caution.

• Do not use the hair straightener inside a bathroom, shower, sauna, etc.
• Never use hairspray with the hair straightener on ionization.
• Keep away the small objects or mini particles away from the hair straightener, to prevent to be sucked in through the protection grid.
• Do not leave the device exposed to the weather (rain, sun, frost...)
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, “unplug it” immediately. Do not reach into the water.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Attachments may be hot during use. Allow them to cool before handling.
• Do not place appliance on any surface while it is operating.
• This hair straightener, if it can be fitted on the wall, should be fitted away and out of reach of persons who are taking a bath or

washing themselves.

- When the hair straightener is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair straightener is switched off: For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

• Danger! Risk of electrocution! Make sure that no objects such as hair clips or hair pins are inserted into the appliance. These can cause a short circuit.
• WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

READ ALL INSTRUCTIONS BEFORE USING KEEP AWAY FROM WATER

KEEP AWAY FROM CHILDREN.

CAUTION-THIS PRODUCT CAN BURN EYES HOUSEHOLD USE ONLY

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
AC110-240V 30W 50	-60Hz

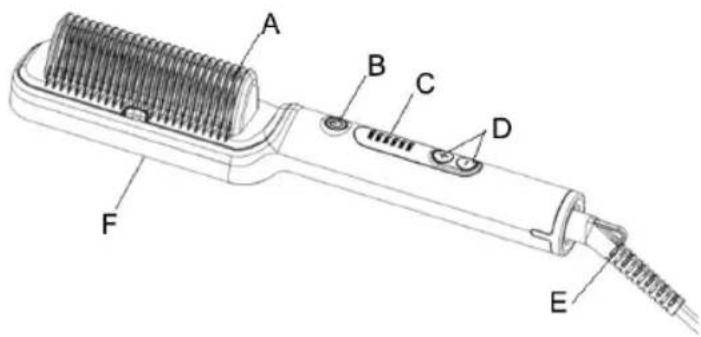

5. PARTS DESCRIPTION

A. Ceramic coated plate B. Power button C. LED display D. Temperature control buttons E. Hanging loop F. Mirror incorporated

6. INSTRUCTIONS FOR USE

Before Use: Comb through the hair with a normal brush, so that it becomes smooth and tangle-free.

IMPORTANT: Only use on CLEAN and DRY hair! Do not use on hair extensions. Do not use with hair products (gels, creams, etc.).

• Plug the appliance into a wall outlet and make sure the voltage of the wall outlet is the same as the product voltage.
• Turn on the appliance with the power button, and the LED display will illuminate with a default temperature of 200°C and the hair brush will start heating up.

- Press the "+/-" buttons to select the desired temperature.

Note: You can choose the temperature setting among 6 settings: 100°C, 120°C, 140°C, 160°C, 180°C, 200°C.

*Surface temperatures of the appliance may vary from what is listed on the display.

How to use the hair straightener:

1. Separate a section of hair to be straightened.
2. Place the appliance close to the roots of the selected hair.
3. Hold the hair firmly and brush down from root to tip.
4. Repeat steps 1-3 for each section of hair until the desired area is straightened. Allow the hair to cool down before applying styling product. After use, press the "On/Off" button to turn "off", then unplug the appliance.

Note: wait until the appliance is completely cooled down before handling or storing.

NOTE: Use the product slowly and carefully to avoid contact with skin or scalp. Always take care when using your free hand near the appliance.

AUTO SHUT OFF:

The appliance has an automatic shut off feature for safety purposes. If the appliance is not used for more than 60 minutes continuously, it will automatically switch "Off". To use it again, simply press the "On/Off" button to turn "On" the appliance.

7. CLEANING AND MAINTENANCE

CLEANING:

Never run the appliance under water or submerge it in water.

Unplug the appliance and allow it to cool down before cleaning.

Clean the appliance with a soft, dry cloth to wipe away residue or dust. A lightly damp cloth may be used with caution.

STORAGE:

Keep the appliance in a cool and dry place after every single use.

Please be sure the appliance is cooled down completely before storage.

Keep out of reach of children.

Do not jerk or strain the cord at plug connections.

This hair straightener model is maintenance free.

There is no need for lubrication or cleaning liquids.

Always keep the appliance clean to ensure proper operation.

To avoid overheating, make sure the hair intakes are not blocked or clogged.

Store this appliance in a safe, cool, and dry place.

Keep it out of reach of children.

If the hair straightener stops working for any reason, turn it off and let it cool for a few minutes before turning it on again.

FEATURES OF HAIR STRAIGHTENING BRUSH

Professional and Fast Hair Straightening Brush: This hair straightening brush offers a quick and professional hair straightening experience from the comfort of your home. Achieve salon-quality results without the need to visit a salon.

Ultra-Fast PTC Ceramic Heating Element: Featuring an advanced ultra-fast PTC heating element, this brush heats up instantly and ensures even heat distribution across its surface. This means you can start straightening your hair within seconds, without wasting too much time.

LED Digital Display with Temperature Indicator and Built-In Mirror: The brush is equipped with an LED digital display that clearly shows the selected temperature, allowing you to adjust the heat according to your preferences and hair type. Additionally, it features a built-in mirror that simplifies the straightening process and enables you to see yourself while styling.

Simple ON/OFF Button for Easy Operation: Operation is effortless with the ON/OFF button, making it simple to turn the brush on and off with just a single touch.

6 Temperature Settings: Choose from six different temperature settings ranging from 100°C to 200°C. This wide range of options allows you to choose the heat setting to suit your specific hair type and desired straightening style.

Quickly Heated Brush: With its rapid heating capability, this brush will be ready for use in no time. You won't have to wait long to achieve professional-looking results.

60-Minute Auto Power-Off Function: For safety and peace of mind, the brush includes a 60-minute auto power-off function. If you ever forget to turn it off, you can rest assured that it will automatically shut down after a set time, preventing overheating and conserving energy.

1. IMPORTANT:

KEEP OUT OF REACH OF CHILDREN.

WARNING - THIS PRODUCT CAN BURN THE EYES. FOR HOUSEHOLD USE ONLY.

4. TECHNICAL SPECIFICATIONS

KEEP OUT OF REACH OF CHILDREN.

CAUTION - THIS PRODUCT CAN BURN THE EYES. FOR HOUSEHOLD USE ONLY.

4. TECHNICAL SPECIFICATIONS

KEEP OUT OF REACH OF CHILDREN.

CAUTION - THIS PRODUCT CAN BURN THE EYES. FOR HOUSEHOLD USE ONLY.

4. TECHNICAL DATA

KEEP OUT OF REACH OF CHILDREN.

CAUTION: THIS PRODUCT CAN BURN THE EYES. FOR HOUSEHOLD USE ONLY.

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical and electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic product stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards. Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain. Product manufactured in CHINA. After-sales service: www.sogosat.com, [e-mail] / 0034 902 222 161
