Product Type	Multi-capsule espresso coffee machine
Brand	Sogo
Model	SS-7650
Voltage	220-240 V
Frequency	50-60 Hz
Power	1400 W
Standby consumption	< 0.5 W
Automatic shut-off	After 9 minutes of inactivity
Water tank capacity	Approximately 1 L (estimate)
Capsule compatibility	Nespresso®, Dolce Gusto®, ground coffee, pods
Included adapters	For Nespresso®, Dolce Gusto®, ground coffee, pods
Hot/cold mode	Yes, selectable by button
Descaling	Recommended every 300-400 coffees or 1-2 months
Care and cleaning	Unplug before cleaning, clean removable parts with soapy water
Safety	Automatic shut-off, overheat protection, grounding
After-sales service	Email: [e-mail], Tel: [phone]
Origin	Made in China, imported by Sanysan Appliances S.L. (Spain)

Frequently Asked Questions - SS-7650 Sogo

How to turn on the SS-7650 coffee machine?

Plug in the appliance and press the On/Off button. The indicators flash during heating (about 30 seconds). When the hot button lights up solid red and the start button lights up solid white, the machine is ready.

How to prepare a coffee with a Nespresso capsule?

Open the locking handle, insert the Nespresso adapter, place a capsule, close. Place a cup under the spout, select the volume with the selection button, then press the brew button. The extraction stops automatically.

Can I use ground coffee with this machine?

Yes, use the ground coffee adapter. Add about 8 g of ground coffee using the measuring spoon, then close the handle. Proceed as for a capsule.

Why is the coffee not hot enough?

Possible causes: cold cups, limescale buildup, cold machine. Solution: preheat the cups, descale the machine, or run a little hot water before preparing the coffee.

How to clean the coffee machine?

Always unplug the appliance. Clean the exterior with a soft dry cloth. Wash the removable parts (drip tray, tank, adapters) with warm soapy water, rinse and dry. Never put them in the dishwasher.

How to descale the machine?

Fill the tank with a descaling solution (follow the product instructions). Place a container under the spout, press the brew buttons to dispense two cups. Let it sit for 15-20 minutes, then rinse by running the entire tank of clean water twice.

What to do if the locking handle does not close?

Make sure the adapter is correctly inserted into its housing. Push it firmly until it is properly in place, then close the handle.

How to use cold mode?

Press the hot/cold mode button to switch to cold mode (the water will not be heated). You can also hold the button for 3 seconds when the machine is off. Note: the first coffees may still be lukewarm while the machine cools down.

The machine does not turn on, what to do?

Check that the cord is properly plugged in and the outlet works. Make sure the water tank is correctly placed and contains enough water. If the problem persists, contact after-sales service.

How to reduce energy consumption?

The machine automatically goes into standby after 9 minutes of inactivity (consumption < 0.5 W). To wake it up, press any button.

USER MANUAL SS-7650 Sogo

Download your manual

Download your manual

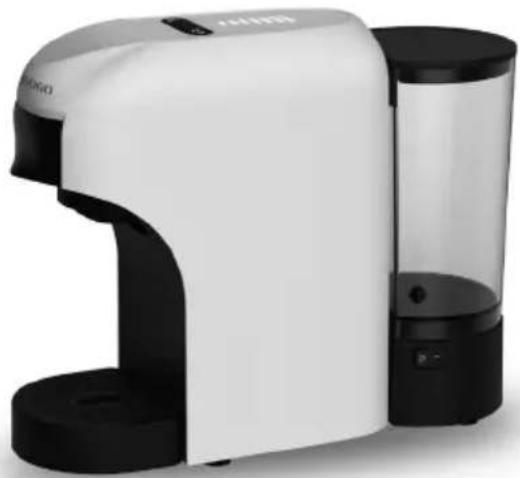

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

ESPRESSO COFFEE MAKER 4 in 1

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

5. INSTRUCTIONS FOR USE

START-UP

6. HOW TO PREPARE AN ESPRESSO COFFEE

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors. Always place the appliance on a flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments;
• farm houses; by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.
• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage, or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. If the cord is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• In case of appliance malfunction or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children should be supervised to ensure that they do not play with the appliance. Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

Instructions to follow when using the appliance

• The appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• Be careful not to get burned by the steam.
• Do not touch the hot surface of the appliance (such as the steam wand and the brewing filter while in use). Use handles or knobs.
• Do not let the coffee maker operate without water.
• Do not remove the metal funnel when the appliance is brewing coffee or when steam and hot water escape from the metal funnel. Ensure to release the pressure in the water tank before removing the metal funnel.
• Relieve pressure through the steam wand before removing the tank cover or metal funnel.
• WARNING: The filling aperture must not be opened during use. • WARNING: Potential injury from misuse.

WARNING: High risk of burns! Do not touch the hot parts of the coffee maker.

• The coffee maker shall not be placed in a closed cabinet.
• Do not touch or move the coffee maker while it is in use.
• Never use the coffee maker in environments with high temperature, high magnetic fields, or humidity. Do not place the coffee maker on or near hot surfaces, fire, or other electrical appliances, such as

on top of a refrigerator, to avoid damage.

• When the appliance indicates a problem, never operate it. Do not place foreign objects into the brewer.
• Never use detergent or hot water to clean the brewing components, to avoid the moving parts lacking lubricant and becoming distorted due to high temperatures.
• To avoid circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which come in contact with food.

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Power
AC 220-240V 50-60Hz 1400W

Power consumption in off mode: <0.3 W

Power consumption in standby mode: < 0.5 W

Time after which the product goes into off mode: 9 min.

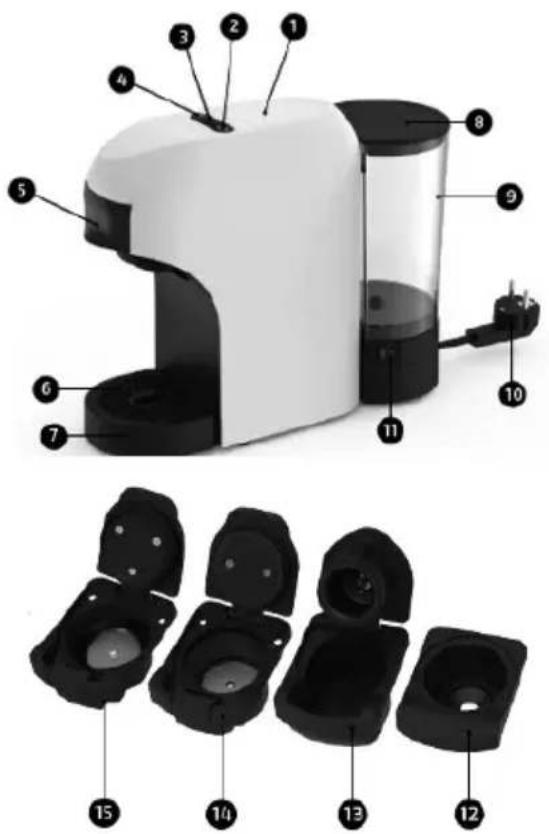

4. PARTS DESCRIPTION

1. Volume light
2. Start/Stop Button
3. Hot /cold mode Button
4. Volume selector Button
5. Locking handle
6. Drip grid (removable)
7. Drip tray (removable)
8. Water tank cover
9. Water tank
10. Power cord
11. Switch on/off

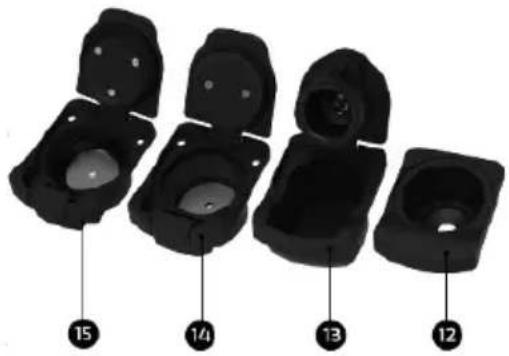

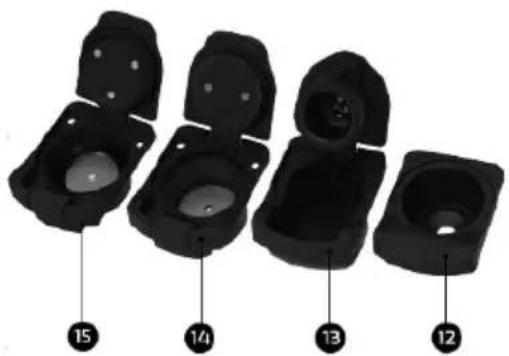

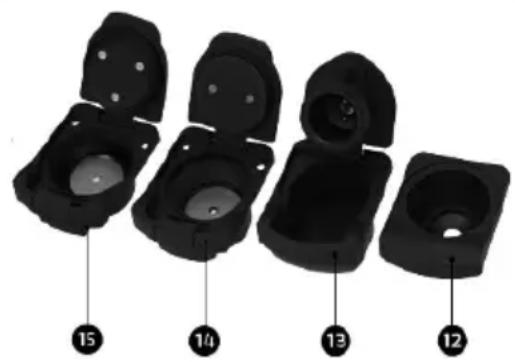

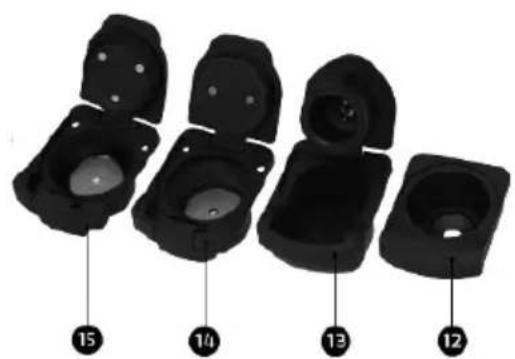

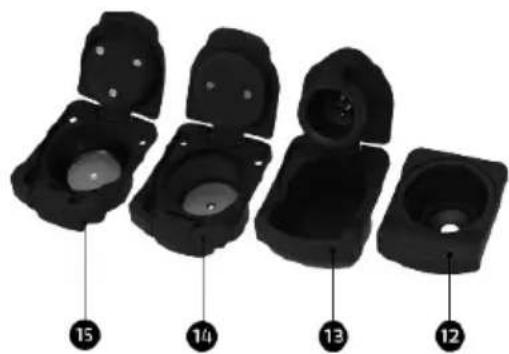

12. Dolce Gusto®* capsule holder
13. Nespresso®* capsule holder
14. Coffee ground holder
15. E.S.E Pod holder

5. INSTRUCTIONS FOR USE

STARTING UP

Before using for the first time

Caution: Improper handling of electrical equipment is dangerous and can be lethal. Please pay attention to the safety precautions in this manual, in particular the following:

• Danger of scalding: beware of hot water! - Do not operate the machine with an empty water tank or water is less than MINIMUM level. - Do not open the locking handle when the machine is brewing. • Always pull the power plug out before cleaning the machine. - Only use the machine in a dry room. - Thoroughly rinse out the water tank with fresh water before using for the first time. Clean the Capsule coffee machine using a damp cloth only.

Tip:

Keep the packaging for transporting the machine (e.g. for removals, servicing, etc.).

Note:

You may find a little water remaining in the machine. In order to ensure that this machine works perfectly, it was tested with water before leaving the factory.

How to use

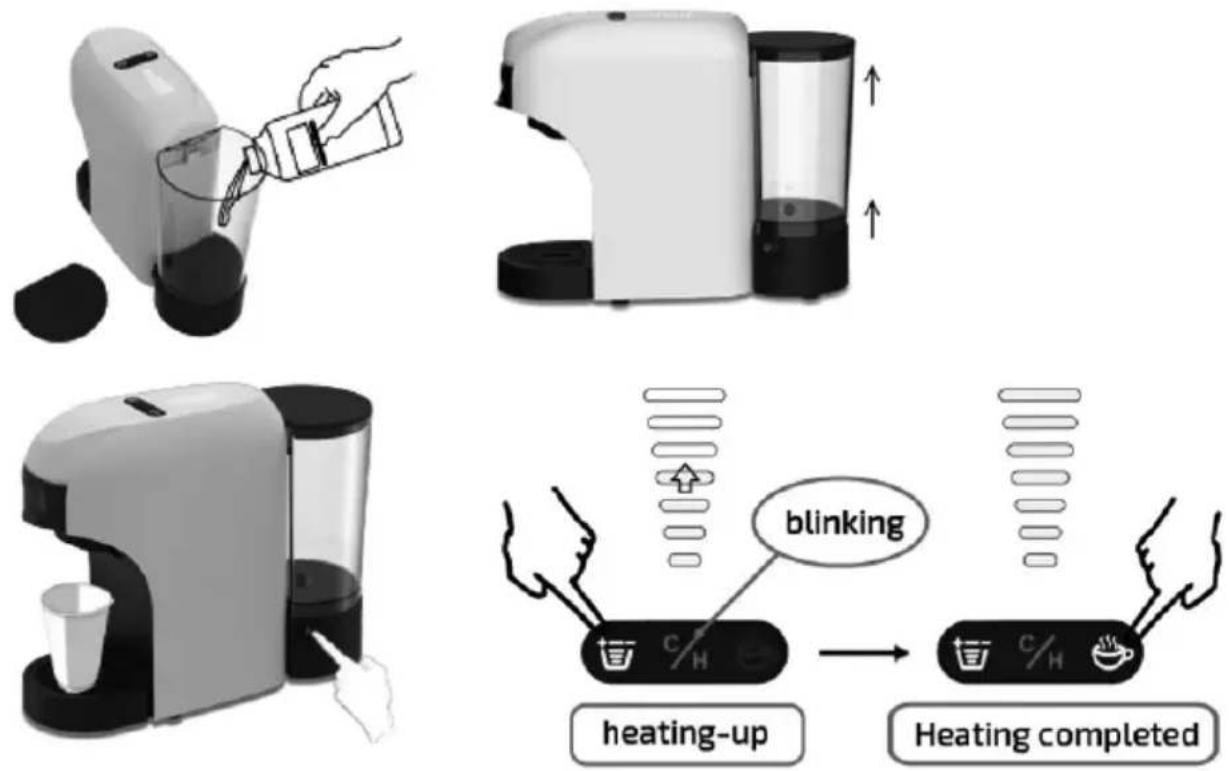

Starting the machine:

1. Place the coffee machine on a flat and stable surface, far from water and heat sources. Do not connect the machine to the mains supply.
2. Lift and remove the water tank cover, then the water tank itself (as picture 1).
3. Rinse off the tank.
4. Fill the water tank up to the MAX level indicated (as picture 2), using only fresh drinking water. Place the tank back to its position, then close by using the tank cover.

Note: Hot water and other liquids can damage the tank and the machine. Do not operate the machine without water: make sure that there is enough water in the tank.

1. Plug in the power cord into the power outlet.
2. Press ON-OFF button to turn the coffee machine on (as picture 3).

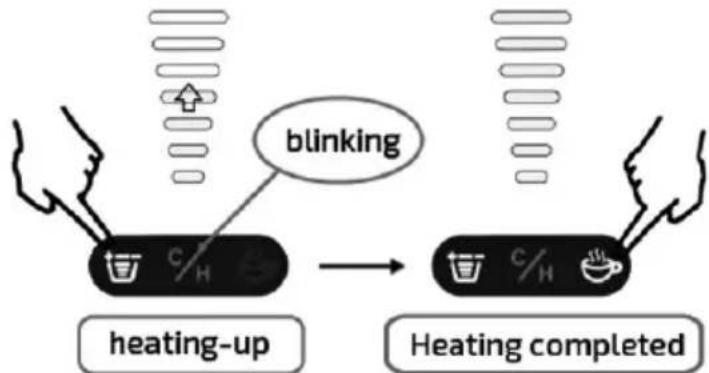

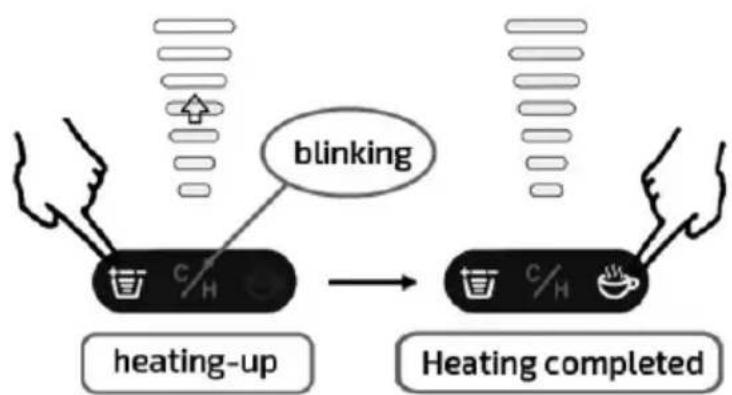

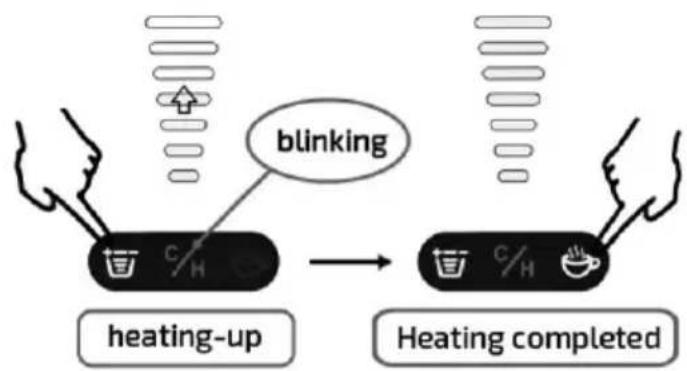

3. By pressing any button, the coffee machine starts the water heating cycle (as shown in picture 4). The "Hot mode button" begins blinking in a light red color. (Heating-up takes about 30 seconds.) The brewing buttons start blinking in white.
4. The machine will be ready for use when the "Hot mode button" lights up to a steady red light and the "start button" lights up to a steady white light.
5. For the first time, run the coffee machine with a full water tank, without using any coffee powder or coffee capsule.

STAND-BY MODE

To ensure energy conservation, this coffee machine automatically enters stand-by mode after 9 minutes of not being used. The machine can be reactivated by pressing any button.

COFFEE DISPENSING

Make sure that the brewing buttons light up to a steady white light. Do not insert fingers or any object into the capsule holder. Only compatible capsules must be introduced into the capsule holders. Single-dose capsules are prepared to dispense a single coffee/one time. Do not use the capsules more than once. Inserting two or more capsules at a time can cause the machine to malfunction. For coffee powder, please use the measuring spoon to measure the quantity to add into the ground coffee adaptor. Maximum quantity is about 8g.

Note: Please make sure that there is no remaining coffee powder on the inner edge of the adaptor.

Having remaining coffee powder may prevent the lid from closing properly and can cause malfunction in the machine.

Note: If the power supply is interrupted during the coffee supply cycle, restore the power supply and restart the coffee supply procedure.

If during the coffee brewing cycle the water tank lacks water, press the brewing button to stop the machine, then fill the water tank up to the Max level indicated and press the brewing buttons again.

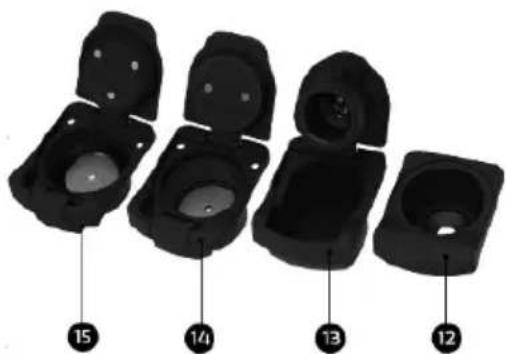

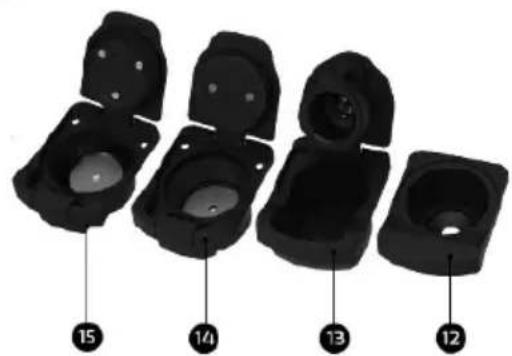

Coffee preparation by using various adapters and filters

Tips: The machine has different adaptors for different capsules, as detailed below.

1. Adaptor for NESPRESSO®, STARBUCKS® by NESPRESSO®, LAVAZZA & L'OR® capsules.
2. For NESCAFÉ DOLCE GUSTO® capsules.
3. For ground coffee, tea, infusions.
4. Coffee pods.

6. HOW TO PREPARE AN ESPRESSO COFFEE

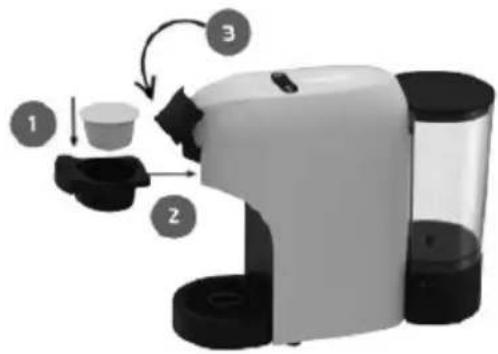

1) Place the cup under the coffee dispenser for a classic espresso. 2) Please note that you can remove the drip tray to use cups of different sizes for a long coffee.

4) Open the locking handle and place the capsule holder in its position.

3) Grab the Nespresso capsule holder.

5) Insert the capsule in the capsule holder.

6) Close the locking handle. 7) Place the cup under the coffee dispenser for a classic espresso.

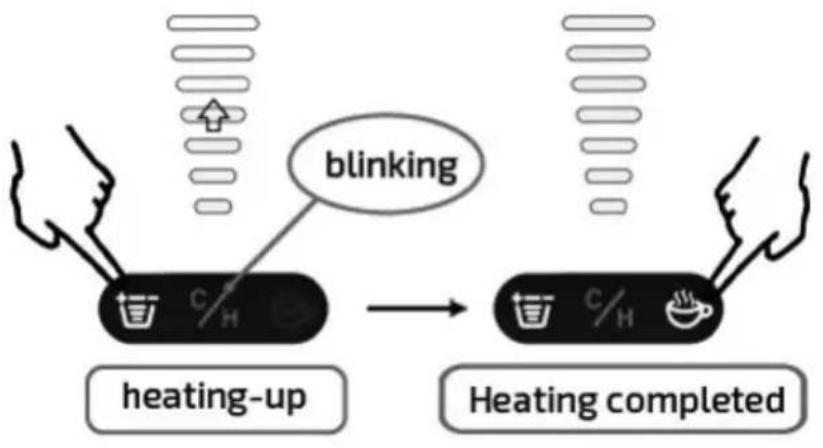

8) The indicator light starts blinking while the machine is heating up for approximately 50 seconds. Afterwards, the indicator lights become steady white, and this is the time when the machine is ready to be used. To select coffee quantity, use the volume selector button or set the volume display in accordance with the number of bars visible on the coffee machine. You can select quantity by selecting the number of bars as per your choice. Press the brewing button; coffee preparation starts and coffee starts flowing through the capsule adaptor. Once coffee stops flowing from the adaptor, it means the coffee preparation has been done. Extraction can be stopped at any time manually by pressing the brewing button.

9) When the machine stops brewing, open the locking handle, pull out the capsule adaptor, and remove the used capsule. Dispose of the capsule properly.

10) Rinse both sides of the capsule holder with water and dry. Insert the capsule holder into the machine. Enjoy your beverage.

How to Prepare Dulce Gusto coffee?

Following the same procedure as detailed above, we can also prepare Dulce Gusto coffee. Note: To prepare Dulce Gusto coffee, you need to select the Dulce Gusto capsule adaptor. Use only original Dulce Gusto coffee capsules.

How to prepare coffee with the help of coffee pods?

Following the same procedure as detailed above, we can also prepare coffee from coffee pods. Note: To prepare coffee from coffee pods, you need to select the corresponding adaptor.

How to prepare coffee with coffee powder?

Following the same procedure as detailed above, we can also prepare coffee using coffee powder. Note: To prepare coffee from coffee powder, you need to select the coffee powder adaptor. Make sure to insert the correct measurement of coffee into the holder. Use the coffee measurement spoon to measure the correct amount of coffee powder. For the adaptor of this coffee machine, the correct amount is 8 grams.

HOT / COLD MODE:

This coffee maker allows you to prepare and enjoy both hot and cold coffee. With the help of the Hot / Cold mode button, you can switch at any time and prepare the coffee as per your requirement. Please note that Hot coffee mode is the default mode of coffee preparation, and if you need to change to Cold mode, please follow the process mentioned below.

COLD MODE

1. Press the Hot / Cold mode button to choose the Hot or Cold mode.

Or, when the coffee maker is switched off, you can directly press the Hot / Cold mode button for 3 seconds and it will enter Cold mode.

Note: Please note that in Cold mode, the machine does not heat up and uses room temperature water or cold water, whichever you use.

When transitioning from hot water mode to cold water mode, "cold water" does not come out immediately, because the inside of the machine is hot and it slowly cools down to room temperature. So, it is possible that the next 1 or 2 coffee extractions may be hot or warm, as the coffee maker takes some time to cool down. Please wait until the coffee machine cools down, and for better results, use cold water.

Decalcification / Maintenance

Drinking water varies according to region. The lime particles in hard drinking water are deposited as residues in the machine and can block the piping and cause damage to it. To prevent this, make sure to decalcify the machine at the very least after making 300 to 400 cups of coffee, or in any case if the output falls significantly, after one or two months. Decalcification must be done correctly to prevent damage. So, it is essential to follow these instructions.

DESCALING

1. Remove and empty the water tank.
2. Refill the tank with a descaling solution and water as specified on the package of the descaling product. Refill the tank.
3. Power the machine on and place a suitable container under the spout.
4. Press the brewing buttons and then supply two cups (approx. 150ml each) of water.
5. Allow the descaling solution to work for about 15-20 minutes.
6. Switch on the machine by pressing the brewing buttons, then proceed as described in the steps.
7. Repeat the steps described in point until the water tank is completely empty.
8. Remove the tank and rinse it with fresh drinking water. Fill it completely.
9. Switch the machine on by pressing the brewing buttons. Place a suitable container under the dispenser. Press the brewing buttons, then supply the full content of the tank.
10. When the water finishes, refill the tank and repeat the process again.

This is the time when the descaling process finishes.

7. MAINTENANCE AND CLEANING

Do not forget to remove the plug from the socket before cleaning the appliance.

Wipe the outside with a soft dry cloth when the coffee machine is wet; never use metal polish. The removable items should be washed in hot soapy water. Rinse them before fixing. Detach the metal funnel by turning it anticlockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water. Never use a dishwasher to clean any parts from the machine. Put the coffee maker in a dry and not very hot place.

ENERGY SAVING MODE

The machine enters energy saving mode automatically once the machine is idle for 9 minutes. To bring back the machine in working condition, press any button and appliance will start to warm up with blinking lights.

1. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
No coffee is brewed The water tank is empty Fill the water in water tank
The coffee is not hot enough	1. Cold coffee mugs2. Scale build up in the machine3. Cold machine	1. Preheat coffee mugs2. Descale3. Brew hot water prior to brew coffee
Water on the table	1. Water tank is leaking2. Drip tray is full of water	1. Check if water tank has been placed properly2. Empty the drip tray
Locking handle doesn’t close The adaptor is not placed well		Push the adaptor into correct position

NESPRESSO®, NESCAFÉ® DOLCE GUSTO®, STARBUCKS® by NESPRESSO®, LAVAZZA®, L'OR®, are registered trademarks/brands of their rightful owners. We or our products do not have any affiliation or association with or any endorsement from the owners of these trademarks/brands.

IMPORTANT:

STAND-BY MODE

STAND-BY MODE

STAND-BY MODE

5) Insert the capsule into the capsule holder.

6) Close the locking handle. 7) Place the cup under the coffee dispenser to get a classic espresso.

STAND-BY MODE

6) Close the locking handle. 7) Place the cup under the coffee dispenser for a classic espresso.

How to prepare Dulce Gusto coffee?

1. Insert the capsule into the capsule holder.

How to prepare Dulce Gusto coffee?

Note: Keep in mind that in cold mode, the machine does not heat up and uses room temperature/cold water, whichever you use.

STANDBY MODE

5) Insert the capsule into the capsule holder.

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
