USER MANUAL SS-21705 Sogo

This instruction manual can also be downloaded from our web page www.sogo.es

POINTS FOR ATTENTION

Before using, please read this user manual carefully and keep it for future reference.

WARNING

1. To avoid electric shock and fire, do not allow water, liquid or any flammable detergent to get into or to clean the product.
2. Do not spray insecticide, perfume or other flammable spray around the product.
3. Before connect the power supply, please check whether the voltage of the product is consistent with the local power supply voltage.
4. This product cannot replace normal ventilation, daily dust collection or oil pumping when cooking.
5. Ensure the product is used and kept in a well-ventilated area.
6. Leave at least 30cm of space on the back and sides of the product, and at least 50cm of space above the product when using.
7. Ensure both the filter and its cover are properly installed before using.
8. 'Do not insert finger or other things into the air outlet/inlet to prevent physical damage or trouble.
9. Please do not pull out the silicone rubber

Control Panel

Purification Button

Dehumidification Button

Mode Button

Time Button

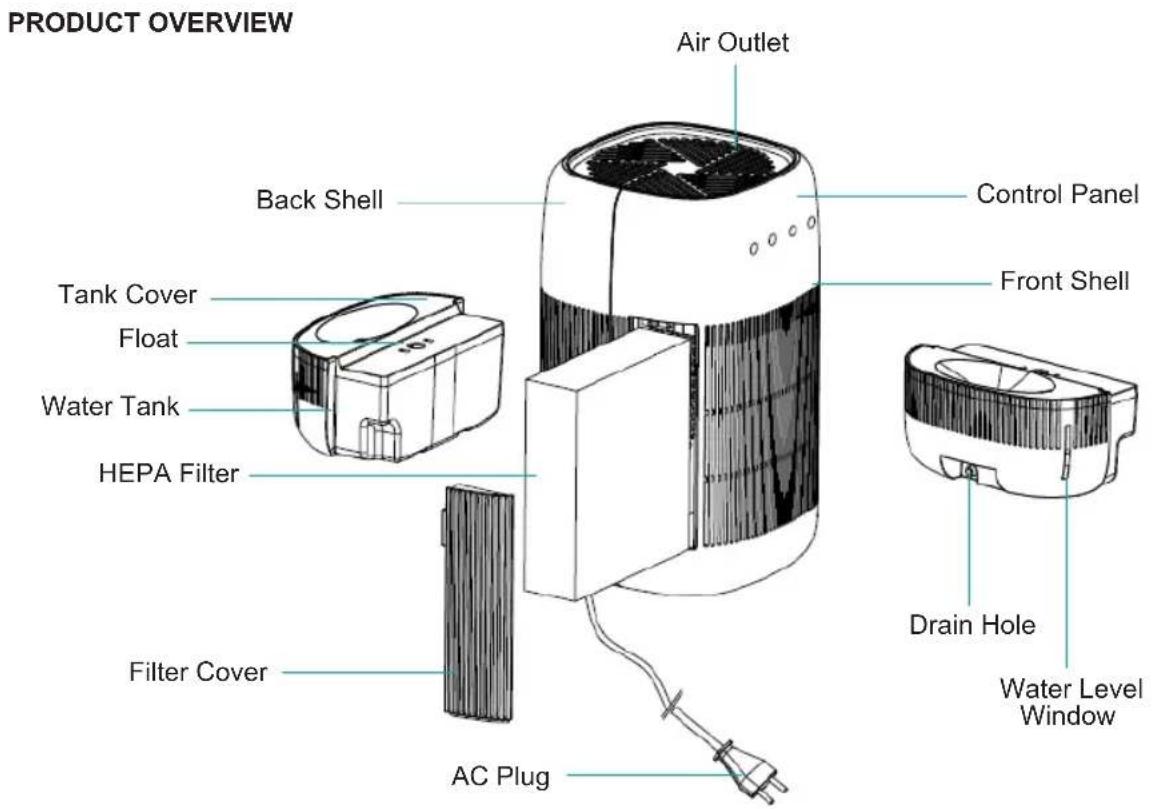

INSTALLATION FILTER

1. Pull and lift the filter cover on the front shell.
2. Remove the filter.
3. Remove the packaging of the new filter.
4. Insert the new filter into the machine.
5. Put the filter cover back to the machine: Lock the bottom of the filter cover in the bottom of the front shell(C). Then push the cover toward the body of machine(C).
6. After replacing the filter, please turn on the machine and press the purification button for seven seconds to reset.

NOTICE

• After the machine runs 2200 hours, the power indicator light keeps flashing in orange color to indicate the filter is needed replacing a new one. Please use SOGO original filter and do not use any other filters.
• Before replacing the filter, be sure to turn off the machine and unplug it from the power socket.
• Ensure the handle of the filter is one the outside.

SPECIFICATIONS

Model No. SS-21705
Size 193*193*332mm
Net Weight 2.7KG
Input 100-240V~ 50/60Hz
Power 45W
Volume 1L
Working Capacity 700ml/d (30°C 80%RH)
Noise <45dB
Applicable Ambient Temperature 5	50°C
Coverage Area <20m	2

FUNCTION INSTRUCTION

Purification dehumidifier combines with functions of dehumidification and purification, providing three working modes for users to enjoy fresh air and suitable humidity in the meanwhile.

I. Water Full Instruction

(1) When the water tank is full, dehumidifier indicator will flash in Red color and the machine will stop operation
(2) Put the water tank back to the machine after pouring the water to restart.

II. Reminder For Replacing Filter Instruction

(1) When the machine detects that the filter runs out, the air purifier indicator will change to yellow and keep flashing.
(2) Press the purification button for 7 seconds to reset after replacing a new filter.

III. Low-temperature Dehumidification

The running temperature for the machine is 5^ to 50^ , when the temperature is above 5^ , the machine will continue to work

IV. Button Instruction

When the machine is connected to the power supply, the buzzer will ring for one time, all indicator light will light for one time and then go out, and the machine will enter the standby state. The buzzer will ring with every touch of any button.

1. Purification Button

(1) Press the button, the purification indicator will turn on, the machine will start working with air purification.
(2) Press it again, the machine will power-off.

2. Dehumidification Button

(1) Press this button when the machine is turn on, the machine will dehumidify with purification function.
(2) Press again, turn off the dehumidification function and its indicator light, the purification function and its indicator will keep operating.

3.ModeButton

(1) Press the button to set modes when the function of purification turns on.
(2) This button can be set three modes circularly: high-grade, low-grade and mid-grade. The corresponding indicator will turn on after setting.

4. Time Button

(1) When the machine is working, touch the timer button to set 2 / 4 / 8 hours and its corresponding indicator light will be on and keep green.
(2) The machine will stop when the time is up.

Air Purifier

Dehumidifier

Mode button

Time Button

METHODS OF POURING WATER

1. The water tank has maximum capacity of 1000m1 with 700~ml per day working capacity.
2. The machine will auto-off when the water tank is full, the indicator light will turn on.
3. Please turn off the machine when water tank is full, pull out the water tank, and then put it on a horizontal place. Opening the water tank cover with upright direction and pour the water.
4. Please reset the water tank and restart the machine after pouring the water.
5. Do not move or destroy the water tank float, otherwise the machine will not work or cause any other unnecessary breakdowns.
6. The water tank can be connected with the hose to drain water when pulling out the silicone rubber drain stopper and plug the hose into the drain hole.
   Notice: Please open the tank cover according to the photo, then pour the water.

MAINTENANCE

Cleaning & Storage

1. Ensure the machine is unplugged before maintenance.
2. After opening the water tank cover, use soft cloth with neutral cleanser to clean the water tank.
3. Use soft cloth with neutral cleanser to clean away any dust or debris form the surface of the unit and air inlet/outlet.
4. Do not clean the filter with a vacuum cleaner or wash it directly, just put the filter under the sun to sterilize regularly.
5. If you do not use the machine for a long time, ensure the water tank is clean and the machine is completely dry out, put on the dust cover bag and place it in a cool and well-ventilated place.

Notice: Please don't drop any water into the machine when clean the air outlet

FAQ

SITUATION REASON
No working • Is it plugged	• Is the home leakage switch or fuse cut off? • Is the water full?
Poor performance (less water in the tank)	• Is the filter blocked? • Is the door opened? • Is there any obstacle blocking the air inlet/outlet? • Is there any other equipment releasing steam indoor? • Is the indoor temperature too low? (the dehumidification capacity will be weaken in a low temperature and humidity environment)
The air volume becomes smaller	• Is the filter too dirty so that it blocks the air to enter inside? • Is the air inlet/outlet of the machine blocked by something?
Significant noise • Is there	• Is the machine tilted?
Leakage • Is the machine	• Is there any water in the tank when moving the machine? • Is the floating ball in the water tank fall off? • Is the drain hose plugged in the right place. • Is the silicone rubber drain stopper plugged the drain hole.

Notice: If the above FAQ cannot solve your problems and need maintenance, please contact the supplier or after sales service center. Please do not disassemble the machine to maintain by yourself.

Before using, please read this user manual carefully and keep it for future references.

AVISO

Before using, please read this user manual carefully and keep it for future references.

WARNING

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).
