SS-17770 - Power bank Sogo - Free user manual and instructions

Product Type	Portable battery with wireless charging
Brand	Sogo
Model	SS-17770
Battery capacity	5000 mAh
Battery technology	Lithium-ion (Li-ion)
Type-C Input	5V 2.4A, 9V 2A, 12V 1.5A
Type-C Output	5V 2.4A, 9V 2.22A, 12V 1.67A
USB-A Output	5V 3A, 9V 2A, 12V 1.5A
Maximum power	22.5 W
Wireless charging	15 W (Qi)
LED indicator	Power bank charge status and phone charging
Power button	Yes
Phone stand	Built-in for wireless charging
Protections	Overheating, overcharge, short circuit
Maintenance	Keep dry, avoid dust, extreme heat and cold
Cleaning	With a soft dry cloth, without chemicals
Safety	Do not immerse, do not open, keep out of reach of children
Spare parts	Built-in battery not user-replaceable
General information	CE compliant, recycling according to local regulations

Frequently Asked Questions - SS-17770 Sogo

How to charge the portable battery?

Connect the provided Type-C cable to the input port (marked Type C Input) and connect the other end to a mains charger. The battery charges via 5V/2.4A, 9V/2A or 12V/1.5A.

Can I charge multiple devices at the same time?

Yes, the Power Bank can charge one device via the USB-A port, another via the Type-C port and a third by wireless charging, simultaneously (total power limited to 22.5W).

How long does it take to fully charge the portable battery?

The charging time depends on the charger used. With a 5V/2A charger, it takes about 2h30. With a 9V/2A charger, about 1h15.

Does wireless charging work with all smartphones?

Wireless charging is compatible with smartphones supporting the Qi standard. Non-Qi devices or those with a thick case may not work. Place the phone in the center of the wireless charging pad.

What does the LED indicator mean?

The LED indicator shows the charge level of the Power Bank. While charging a device, a green light turns on to indicate that charging is in progress.

Can I use the Power Bank while it is charging?

Yes, the Power Bank supports pass-through, meaning you can charge the battery while charging a device. However, this may slow down the battery charging.

What to do if the portable battery does not charge?

Check that the cable and charger are in good condition. Make sure the input port is free of dust. If the problem persists, contact customer service via www.sogosat.com.

How to clean the portable battery?

Use a soft dry cloth. Do not use alcohol, ammonia, or abrasive products. Avoid any liquid contact with the ports.

Can I take this Power Bank on a plane?

Yes, portable batteries of 5000 mAh are generally allowed in cabin. Check your airline's restrictions regarding lithium-ion batteries.

What to do in case of overheating?

Immediately stop using the Power Bank and let it cool down in a well-ventilated place away from sunlight. If overheating persists, contact customer service.

USER MANUAL SS-17770 Sogo

• PORTABLE CHARGER • POWER BANK • CHARGEUR PORTABLE • CARREGADOR PORTÁTIL • TRAGBARES LADEGERÄT • CARICATORE PORTATILE • PRENOSNA NABÍJEČKA

• BÆRBAR OPLADER • PRENOSNI POLNILEC • PRIJENOSNI PUNJAČ • PRZENOŚNA ŁADOWARKA • INCARCATOR PORTABIL • ПАВЕРБАНК • CARREGADOR PORTÀTIL

Download your manual Téléchargez votre manuel Baixe seu manual Laden Sie Ihr Handbuch herunter Scarica il tuo manuale Stáhněte si manuál

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. • This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

1. Never immerse the device or the charging cable in water or any other liquid. In the event of the power bank falling in water, take it to an authorized service agent for check before reusing.
2. Do not place or operate the device on or near hot surfaces (e.g., stove plates) or open flames.
3. In case of hardware problems, do not attempt to repair the product yourself; take it to an authorized service agent for check before reusing.
4. Never use accessories that are not recommended by the manufacturer.
5. The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock, or irreparable damage to the product.
6. Do not use the device for any other purpose than described in this manual.
7. Do not leave the device charging longer than recommended by the manufacturer, as this may damage the battery or the device itself.
8. Do not attempt to repair, modify, or disassemble the product yourself. This product does not contain any user-serviceable components.
9. Do not clean the product with alcohol, ammonia-based cleaners, or abrasive cleaners.
10. Do not attempt to replace the product battery; it is built-in and not user-replaceable.
11. Keep the product away from the reach of children, and do not allow them to use the product unsupervised.
12. Children should be supervised to ensure that they do not play with the appliance.
13. Cleaning and user maintenance shall not be performed by children.
14. Do not use this product in wet environments such as the bathroom.
15. Keep out of reach of children.

II. Precautions while using this device

1. When charging the power bank, it will generate heat.
2. Make sure to charge the power bank in a well-ventilated area, away from any heat, direct sunlight, water, or other liquids.
3. To prevent injury, please do not use the power bank if it gets wet or if there is visible structural damage to the power bank.
4. Do not use when hands are wet.
5. Make sure that the ports on the power bank are free from dust or dirt, as it may affect the power bank's ability to charge devices correctly.
6. Do not use the power bank for anything other than specified on the packaging.
7. Do not charge under pillows, blankets, or direct sunlight as it may overheat the power bank and cause it to rupture, ignite, or even explode if the temperature gets too hot.
8. Do not store the power bank in a car during warm/hot weather.
9. Never open the casing to the power bank as the contents may be dangerous if ruptured.
10. Li-ion batteries have safety features that protect this device from abuse, if they are damaged, they can

ignite or explode.

1. Make sure to charge the power bank separately from your device as it may shorten the power bank's battery life.
2. Do not use products at high temperatures, where flammable gas is available, e.g., near gas stations.
3. Dispose of the product and the product's battery in accordance with local laws and regulations.

Technical Specifications:

• Capacity: 5000mAh
• Type-C Input: 5V==2.4A, 9V==2A, 12V==1.5A.
• Type-C Output: 5V==2.4A, 9V==2.22A, 12V==1.67A. • USB Output: 5V=3A, 9V=2A, 12V=1.5A • Max Power: 22.5W
• Wireless Output: 15W. • 1*5000mAh 706074.

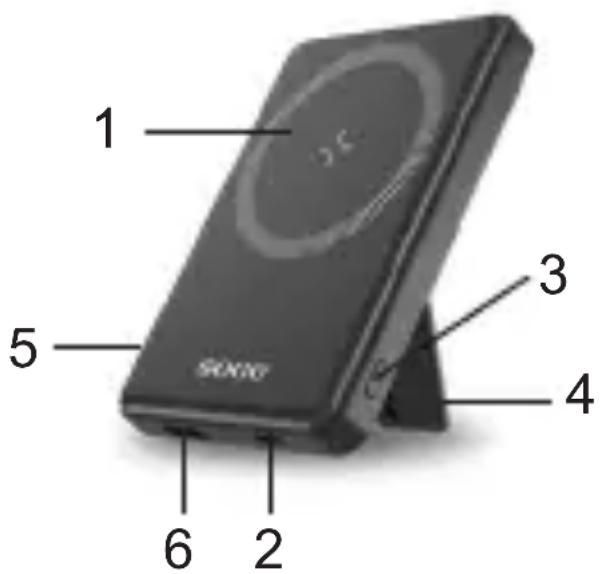

Parts / Functional Areas:

1- Wireless Charging Pad. 2- Type C Input / Output. 3- Power Key. 4- Holder. 5- LED indicator. 6- USB-A Output.

1- Place your phone on this pad for wireless magnetic charging. The output of this wireless magnetic charging is 15 W. 2- This port is provided for the input or output power supply through Type-C. To charge the Power Bank, insert the power supply input into this port. And when you want to charge your mobile phone through the power bank,

connect your phone through this Type-C port.

3- To charge your phone from the power bank, press this key after connecting your phone to the power bank. After a few seconds, the phone will show the battery level and one green light will light up on the LED indicator. 4- This holder is provided so that you can use your phone while it is charging on the wireless charging pad on the power bank. 5- The LED indicator indicates the charging level of the power bank and also indicates when the mobile phone is being charged from the power bank. 6- The USB-A output slot is provided to charge your phone via a USB cable suitable for your phone.

Care and Maintenance:

1. Keep this product dry. Rain, humidity, and other types of liquids or moisture that contain minerals will corrode electronic circuits. If the product does get wet, turn it off completely and dry it.
2. Do not store this product in a dusty environment.
3. Do not store this product in a hot environment. Hot conditions can damage the battery, cause internal melting and warping, and shorten the life of the battery.
4. Do not store this product in a cold environment. Moisture can form when the device goes from cold to warm, which can damage the internal circuit board.
5. Do not drop, shake, or use this product in a rough manner. Doing so can damage the internal components.
6. Do not use harsh chemicals to clean this product.
7. Do not paint the product. Doing so may prevent the external components from working properly.
8. If the product does not work properly, please contact after-sales support.

1. IMPORTANT NOTICE:

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DECLARATION OF CONFORMITY

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical, electronic equipment and battery-operated units must be recycled in a proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centers or specialized bins which you can find in any nearby big supermarkets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
