SS-17775 - Power bank Sogo - Free user manual and instructions

Product Type	Portable Battery (Power Bank)
Brand	Sogo
Model	SS-17775
Battery Capacity	10000 mAh
Type-C Input	5V==3A, 9V==2A, 12V==1.5A
Type-C Output	5V==3A, 9V==2.22A, 12V==1.67A, SSCP 10V==2.25A
USB-A Output	5V==3A, 9V==2A, 12V==1.5A, SSCP 10V==2.25A
Wireless Output (Magnetic Charging)	15 W
Maximum Total Power	22.5 W
Integrated Cable Length	14 cm
Charge Indicator	LED
Main Functions	Wired charging (USB-A, Type-C) and wireless (magnetic charging 15W), power button, LED indicator
Material	Not specified
Maintenance	Keep dry, do not use harsh chemicals, do not paint
Safety	Do not immerse, do not expose to heat, do not repair yourself, keep out of reach of children
Spare parts / repairability	Built-in battery not user-replaceable, no repairable components
Compliance	EMC Directive 2014/30/EU, WEEE 2015/863/EU, Ecodesign 2009/125/EC
Importer	Sanysan Appliances S.L, C/ Barcas 2, 2, 46002 Valencia, Spain
After-sales service	www.sogosat.com / [e-mail] / 0034 902 222 161

Frequently Asked Questions - SS-17775 Sogo

What is the capacity of the Sogo SS-17775 portable battery?

The portable battery has a capacity of 10000 mAh, allowing you to recharge a smartphone multiple times.

How to recharge the portable battery?

Use the Type-C port with a suitable charger (5V/3A, 9V/2A or 12V/1.5A). The integrated cable can also be used for recharging if you connect it to a power source.

Can I use wireless charging?

Yes, place your compatible phone on the magnetic charging pad for wireless charging at 15 W.

How to start charging a device?

Connect your device via the integrated cable or a USB cable, then press the power button. Charging will start automatically after a few seconds.

What to do if the portable battery no longer charges?

Check that the ports are clean and dry. Try another cable or charger. If the problem persists, contact after-sales service (www.sogosat.com).

Is it dangerous to leave the portable battery charging overnight?

It is not recommended to leave the device charging beyond the recommended time to avoid overheating or battery deterioration.

Can I charge multiple devices at the same time?

Yes, you can simultaneously use the USB-A output, the Type-C output, and the wireless charging, but the total power is limited to 22.5 W.

How to interpret the LED indicators?

The LEDs indicate the battery charge level: the more LEDs lit, the fuller the battery. Refer to the manual for the exact correspondence.

Is the battery waterproof?

No, never immerse the battery or cable in water. It must be used and stored in a dry place.

What to do in case of overheating?

Immediately disconnect all devices and move the battery away from any heat source. If it is abnormally hot, contact customer service.

USER MANUAL SS-17775 Sogo

Black electronic device with circular top and USB port, attached with a black strap (no visible text or symbols)

• CARGADOR PORTÁTIL
• POWER BANK
• CHARGEUR PORTABLE
• CARREGADOR PORTÁTIL
• TRAGBARES LADEGERÄT
• CARICATORE PORTATILE
• PRENOSNA NABÍJEČKA

• BÆRBAR OPLADER
• PRENOSNI POLNILEC
• PRIJENOSNI PUNJAČ
• PRZENOŚNA ŁADOWARKA
• INCARCATOR PORTABIL
• ПАВЕРБАНК
• CARREGADOR PORTÀTIL

Descarga tu manual
Download your manual
Téléchargez votre manuel
Baixe seu manual
Laden Sie Ihr Handbuch herunter
Scarica il tuo manuale
Stáhněte si manuál

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using.
• This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

I. Restrictions

1. Never immerse the device or the charging cable-in water or any other liquid. In the event of the power bank falling in water take it to an authorized service agent for check before reusing.
2. Do not place or operate the device on or near hot surfaces (e.g., stove plates) or open flames.
3. In case of hardware problems, do not attempt to repair the product yourself, take it to an authorized service agent for check before reusing.
4. Never use accessories that are not recommended by the manufacturer.
5. The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or irreparable damage to the product.
6. Do not use the device for any other purpose than described in this manual.
7. Do not leave the device charging longer than recommended by the manufacturer, as this may damage the battery or the device itself.
8. Do not attempt to repair, modify or disassemble the product yourself. This product does not contain any user-serviceable Components.

9. Do not clean the product with alcohol, ammonia-based cleaners and abrasive cleaners.

10. Do not attempt to replace the product battery, it is built-in and is not user changeable.

11. Keep the product away from the reach of child, do not allow them to use the product unsupervised.
12. Children should be supervised to ensure that they do not play with the appliance.
13. Cleaning and user maintenance shall not be made by children.
14. Do not use this product in wet environments such as the bathroom.
15. Keep out of reach of children.

II. Precautions while using this device

1. When charging the power bank, it will generate heat.
2. Make sure to charge the power bank in a well-ventilated area, away from any heat, direct sunlight, water, or other liquids.
3. To prevent injury, please do not use power bank if it gets wet or if there is visible structural damage to the power bank.
4. 'Do not use when hands are wet.
5. Make sure that the ports on the power bank are free from dust or dirt as it may affect the power banks ability to charge devices correctly.
6. Do not use the power bank for anything other than specified on the packaging.
7. Do not charge under pillows, blankets, or direct sunlight as it may over heat the power bank and cause it to rupture, ignite, or even explode if the temperature gets too hot.
8. Do not store the power bank in a car during warm/hot weather.
9. Never open the casing to the power bank as the contents may be dangerous if ruptured.
10. Li-ion batteries have safety features that protect this device from abuse, if they are damaged, they can

ignite or explode.

1. Make sure to charge the power bank separately from your device as it may shorten the power banks battery life.
2. Do not use products at high temperatures, where flammable gas is available, e. g. near gas stations.
3. Dispose of the product and the product's battery in accordance with local laws and regulations.

Technical Specifications:

• Capacity: 1'0000mAh
- Type-C Input: 5V==3A,9V==2A,12V==1.5A
- Type-C Output: 5V==3A,9V==2.22A,12V==1.67A SSCP 10V==2.25A
• USB Output: 5V==3A,9V==2A,12V==1.5A SSCP 10V==2.25A
• Output Max: 2 2.5W
- Wireless Output:15W
- 1*10000mAh
- Exposed Cord length:14cm

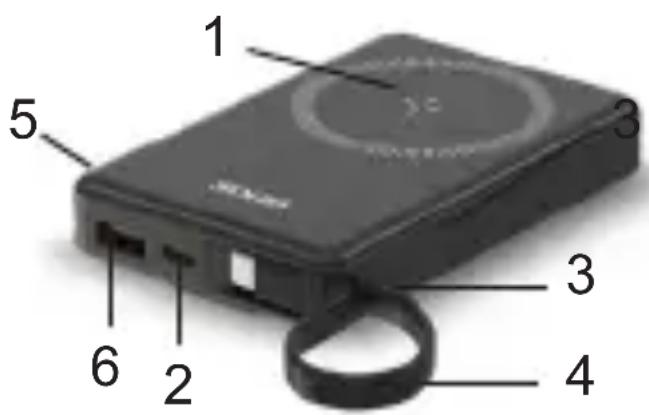

Parts / Functional Areas:

1- Output Charging Pad.

2- Type-C Input / Output.

3- Power key.

4- Built-in Câble.

5- LED indicator.

6- USB-A Output.

1- Place your phone at this pad for wireless magnetic charging. The output of this wireless magnetic charging is 15 W.
2- This port is provided for the input power or output power supply through Type-C. To charge the Power Bank, insert power supply input into this port..
3- To charge your phone from the power bank, press

this key after connecting your phone with the power bank. After few seconds, the phone will show the battery level.

4- When you want to charge the mobile phone through power bank, connect your phone through this built-in cable of Type-C.
5- LED indicators are provided to show the battery status of Power bank.
6- USB-A Output slot is provided to charge your phone through USB cable suitable to your phone.

Care and Maintenance:

1. Keep this product dry. Rain, humidity and other types of liquids or moisture which contain minerals will corrode electronic circuits. If the product does get wet. turn it off completely and dry.
2. Do not store this product in a dusty environment.
3. Do not store this product in a hot environment. Hot conditions can damage the battery, cause internal melting and warping and shorten the life of the battery.
4. Do not store this product in a cold environment. Moisture can form when the device goes from cold to warm which can cause the internal circuit board to be damaged.
5. Do not drop, shake, or use this product in a rough manner. Doing so can damage the internal components.
6. Do not use harsh chemicals to clean this product.
7. Do not paint the product. Doing so may prevent the external components from working properly.
8. If the product does not work properly, please contact the after-sales.

1. AVIS IMPORTANT :

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
