Product Type	Portable battery (power bank)
Brand	Sogo
Model	SS-17740
Battery capacity	5000 mAh
Battery type	Lithium-ion polymer
Micro USB input	DC 5V, 2.1 A
USB Type-C input	DC 5V, 2.5 A
USB-A output port	DC 5V, 2.1 A
USB Type-C output port (bidirectional)	DC 5V, 3 A
Recommended charging current	5V 2.1 A to 2.5 A
Dimensions (L×W×H)	16.5 × 51.5 × 14 mm
Weight	120 g
Housing material	Flame retardant PC + ABS
Battery level indicator	4 LEDs (25% per LED)
Charge cycles before degradation	300 cycles (capacity ≥ 60% initial)
Main functions	Charging smartphones and digital devices, multiple output, bidirectional Type-C charging
Maintenance and cleaning	Wipe with a soft, damp cloth; do not use chemical or abrasive products
Safety	Protection against overcharge, overheating and short circuits; do not expose to water, fire or impacts
Prolonged storage	Recharge at least once every 3 months
Included accessories	Charging cable (not explicitly listed)
Standards and certifications	CE, RoHS, Low Voltage Directive
After-sales service	www.sogosat.com / [e-mail] / [phone]

Frequently Asked Questions - SS-17740 Sogo

How to charge the Sogo SS-17740 portable battery?

Connect the Micro USB or USB Type-C cable provided to the corresponding input on the battery, then to a 5V 2.1A to 2.5A mains adapter or a computer USB port. The 4 LEDs flash during charging; when they stay on, charging is complete.

How long does it take to fully charge the battery?

With a 5V 2.5A adapter, the charging time is about 2 hours. With a 5V 2.1A adapter, allow about 2h30.

Can I charge my smartphone and tablet at the same time?

Yes, the battery has two output ports: USB-A and USB Type-C. You can connect two devices simultaneously, but the total current is limited to 3A (USB Type-C) + 2.1A (USB-A).

How do I know the remaining battery level?

Briefly press the power button: the 4 LEDs indicate the charge in 25% increments. For example, 2 LEDs lit = 50%.

Is the portable battery safe for daily use?

Yes, it is made of flame retardant PC+ABS material and includes protections against overcharge, overheating and short circuits. Do not expose to water, fire or extreme temperatures.

What to do if the battery heats up abnormally?

If an abnormal odor, excessive heat or swelling occurs, stop using immediately and contact after-sales service. Slight heat is normal during charging.

Can I use a fast charger to recharge the battery?

The maximum input current is 5V 2.5A. A compatible fast charger (not Quick Charge) will work but will not exceed 2.5A. A QC or USB-PD charger can be used but the battery only draws 5V.

How to maintain the portable battery?

Wipe it with a soft, damp cloth. Avoid chemical products. If not used for more than 3 months, recharge it at least once to preserve battery life.

Is the battery compatible with Apple devices?

Yes, it can charge any device using a Lightning cable (with your own cable) via the USB-A or USB-C port. The 5V 3A output is suitable for iPhones and iPads.

What is the warranty of the Sogo SS-17740 battery?

The legal 2-year warranty applies. For any claim, contact after-sales service at: [e-mail] or www.sogosat.com, phone: [phone].

USER MANUAL SS-17740 Sogo

CÓMOCARGAR ESTE PRODUCTO

• Please read the following content before use this product, using it the wrong way or in a way not compatible with the equipment may damage your product.
• Please do not use sharp objects to scratch its surface. Please do not throw, shake it or crush it, or place it under any heavy object or try to dismantle the product by force.
• Be sure to check the charged product's voltage if is compatible with the power bank when using.
• Do not put in the water, fire, or use in a too high or too low temperature environment. Don't give it to children to play, especially the accessories.
• Please do not remove, modify the product, in order to avoid damage to the product protection device, which

10 english

leads to the battery heating up and cause a fire or explosion.

• When the product is in use, charging or storage, if you notice some things such as abnormal smell, temperature is too high (normal use will generate heat, but should not be hot), color or shape changed, and other abnormal phenomenon you should immediately stop using the charger and contact your dealer or their service center.

• When you do not use the device for a long time, please make sure that within 3 months you should charge it at least once.

• Do not use chemicals or powerful cleaner to clean it. Just wipe it with a soft moist cloth.

• When your digital device charging is completed, disconnect the charging cord connection, lest the product consume electricity, because the connection line part will consume

electricity.

• Incorrect and wrongly used product will lead to shorter life span and it is out of the warranty.

PRODUCT INTRODUCTION

An ideal companion for people on the move, who travel a lot and even those who may not travel but consume a lot battery power on their smartphones and other mobile devices.

It works as a backup battery power storage device.

These batteries after using for 300 cycles this product working capacity is still higher than the 60 % initial capacity. The outer shell is made with new PC+ABS fire retardant construction material.

It is stress-resistant, wear-resistant, high temperature resistant.

Charging current is DC 5V-2.1A~2.5A Output current is: DC 5V - 2.1A / 3A. High capacity, small size, easy to carry. Charge your phone and other digital

12 english

devices, any time, solving the problem when your cell phone is out of power.

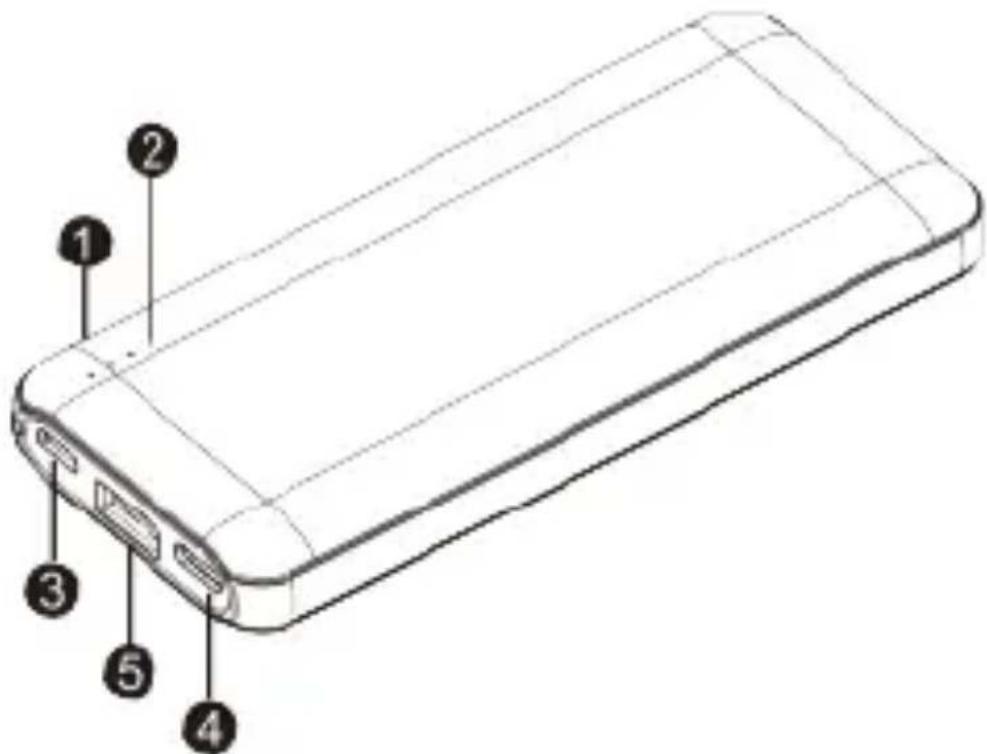

EXPLANATION OF PRODUCT PARTS

1. The Switch Button
2. The power indicator light
3. The Micro USB input port (2.1A)
4. The Type-C input (Bidirectional) port (2.5A)
5. The Type-C output (Bidirectional) port (3A)
6. The USB output port (2.1A)

english 13

HOW TO CHARGE THIS PRODUCT

Charge it with the power adapter of a computer USB interface. In order to ensure the rapid and stable charging, please choose the power adapter

output range of DC 5V - 2.1 ~ 2.5A for this product.

When charging, it will display the power, each light means 25% battery power level, when the four lights are lighted up brightly it means it is loaded with full power.

Click the switch button, the power bank will be turned on, the LED indicator will show available power in the power bank. Press the button for 30 seconds to turn off the power bank.

14 english

CHARGING YOUR DIGITAL PRODUCTS

Use the charging cable given with this product or use your own charging cable which have compatible pin and connect them to its Micro charging or USB socket, connect the USB output port of the power bank and your digital product, after the completion of the connection, power indicator light will display the available amount of power, then you can recharge your digital products.

PRODUCT SPECIFICATIONS

Model: SOGO SS-17740
Charge Capacity:	5,000 mAh
Input Micro USB:	DC 5V - 2.1A
Input Type-C:	DC 5V - 2.5A
Output USB:	DC 5V - 2.1A
Output Type-C:	DC 5V - 3A
Size: 116.5 x 51.5 x 14 mm
Weight: 120g
Battery Type:	Li-ion polymer Cell
Power status:	Displayed through four LED lights

16 english

AVERTISSEMENTS DE SECURITE POUR L'UTILISATEUR:

COMMENT CHARGER CE PRODUIT

SPÉCIFICATIONS DU PRODUIT

SO LADEN SIE DIESES PRODUKT AUF

LADEN SIE IHRE DIGITALEN PRODUKTE AUF

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2.2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
