USER MANUAL SS-25105 Sogo

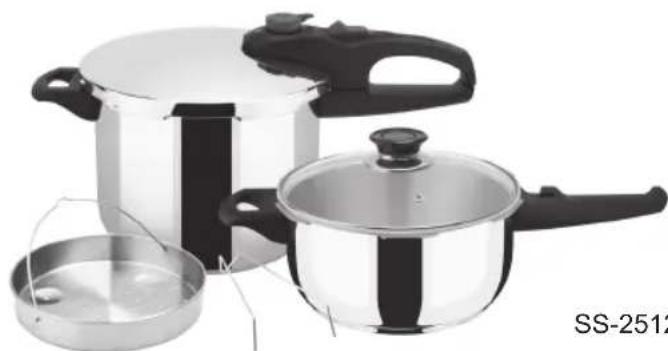

Two stainless steel cooking pot variants with black handles, labeled SS-25100 SS-25105 (no additional text or symbols on pots)

Exterior view of a set of stainless steel cooking pots with black handles and one lid, no text or symbols visible

ref. SS-25105

ref. SS-25125

Descarga tu manual
Download your manual
Téléchargez votre manuel
Baixe seu manual
Laden Sie Ihr Handbuch herunter
Scarica il tuo manuale
Stáhněte si manuál
Download din manual
Prenesite svoj priročnik
Preuzmite svoj priručnik
Pobierz swoją instrukcję
Descărcați manualul dvs
Завантажте посібник
Descàrrega el teu manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Line drawing of a cooking pot with six small fire extinguishers (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

Simple line drawing of a mechanical component with a circular body and a cylindrical shaft (no text or symbols)

Line drawing of a cooking pot with a side arm and three flame icons at the base (no text or symbols)

Line drawing of a cooking pot with a lid and side handles, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular base and lever handle (no text or symbols)

7. MANTENIMIENTO Y LIMPIEZA:

• Always read the instruction manual carefully before use.
- This manual can be downloaded from our website www.sogo.es.
- Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.

Restrictions on use to avoid personal injury

• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• All the pressure cooker parts must be this pressure cooker.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• If you find an abnormal phenomenon while using the pressure cooker or the safety device does not work normally, you should stop using it immediately and send it to our authorized service centre for inspection and repair. Do not attempt to repair it by yourself.

Restrictions for use with children and the elderly

• Children should be supervised to ensure that they do not play with the appliance.
• Children are prohibited to use the pressure cooker.
• Keep an eye on the pressure cooker when in use, especially at the place or time when children are near it.

Instructions to be followed when using the device

- Do not touch the hot surface straight away. Use the handle and the regulator.

- Do not press down the pressure-control valve or use others to take place of it. (Picture1)

Line drawing of a cooking pot with six flasks at the bottom (no text or symbols)

- Do not place the pressure cooker on the cooktop when it is empty. Do not use it for frying.

- Do not use pressure cooker for other than intended use.

• The pressure cooker should be heated on a stable fire.

- You should be very careful while moving the pressure cooker which is under pressure or full of hot liquid.

- Do not let the decompression window and the pressure control valve point towards a persons direction.

- You can open the pressure cooker only when there is no pressure inside. Do not force it to open.

• Always inspect before using if the exhaust pipe and the clog proof filter is jammed.

- This appliance cooks under pressure. Improper use may result in scalding injury. Make sure to close if properly before use. Please follow "Operating instructions"

- Do not fill the unit over 2/3 full. While cooking foods which tend to expand during cooking such as rice or dried vegetables, do not fill the unit over 1/2 full. Over filling may cause a risk of clogging the vent pipe and developing excess pressure. See “Food Preparation instructions.”

- Be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal or other cereals, split peas, noodles, macaroni, rhubarb, or spaghetti can foam, froth, and sputter, and clog the pressure release device (steam vent). These foods should not be cooked in a pressure cooker.

• Always check the pressure release devices are not clogged before use.

- Do not open the pressure cooker until the unit has cool down and all internal pressure has been released. If the handles are difficult to push apart, this indicates that the cooker is still pressurized-do not force it open. Any pressure in the cooker can be hazardous.

- When the unit arrive at normal pressure, turn the heat down, so that all the liquid, which creates the steam, does not evaporate.

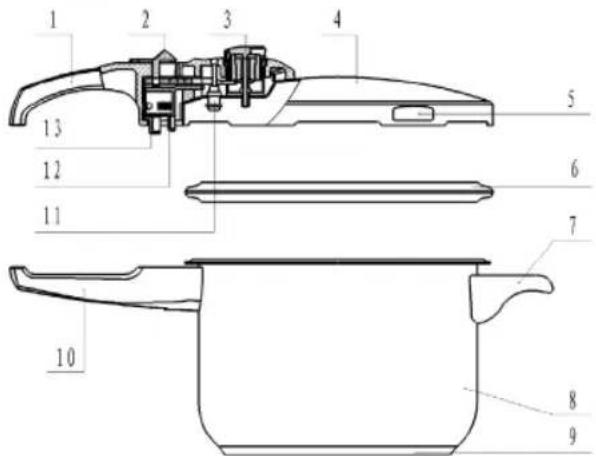

3. PARTS DESCRIPTION

1. Lid handle
2. Regulator
3. Two level pressure-control valve
4. Lid
5. Decompression window
6. Gasket
7. Pot side handle
8. Pot
9. Sandwich Base
10. Pot main handle
11. Lid lock & Overpressure plug
12. Inside slider
13. Outside slider

1 2 3 4 5 13 12 6 11 7 10 8 9

4. PRODUCT'S TECHNICAL PARAMETERS

1. The product is made of high-quality 18/10 stainless steel. The three levels sandwich base makes it more durable, with uniform heating and saves energy and time. It is suitable for induction hobs, electric surface and other gas stoves.
2. The gasket is made out of silicon rubber, and has good airtightness. It is non-toxic and tasteless, safe and durable. It helps to open easily and close the lid of the pressure cooker.

5. SAFETY DEVICES

• Two levels pressure-control valve: First, you can choose 60kpa or 90kpa to regulate pressure using the regulator. Second, the pressure could be released to "0" before opening to ensure safety. Third, the pressure-control valve can be removed easily and cleaned.
• Lid lock & Over pressure plug: If the lid is not closed completely, the pressure cooker's internal pressure will not be rises up to 5 Kpa. If pressure rises more than 5 Kpa, then lid and pot will be locked together. If the pressure is more than over pressure plug's working pressure, it will open automatically to release the pressure.
• Decompression window: If the pressure is more than the gasket's exhaust pressure, the gasket will be pushed and the pressure will drop quickly.
• Open –lid regulator: Moving with lid lock & over pressure plug, it effectively avoids accidents. When the lid is not closed completely, the regulator and the inside slider prevent the over pressure plug from rising. On the contrary, if there is pressure in pot, the over pressure plug won't drop. Stop the regulator and outside slider from moving so that the lid could not open.

6. MODE OF OPERATION

* For the first time use, please clean the pressure cooker with liquid detergent, wash thoroughly and dry it. Make sure the exhaust pipe hole is clean. If it is jammed, dredge it with 2mm diameter's needle (Picture 2).
*If the lid lock doesn't move freely, you can clean it and place around it. (Picture 3)
* No matter which pressure cooker you use, the total capacity of food should not be filled more than 3/4 of the pot (Picture 4), while cooking rice it should not be filled over 2/3 (Picture 5) and the food which supposed to extend, such as porridge should not be more

Architectural cross-section diagram showing building layout and hand holding tool (no text or labels)

Technical line drawing of a mechanical assembly with a hand operating a valve (no text or symbols present)

Than 12 full. (Picture 6)

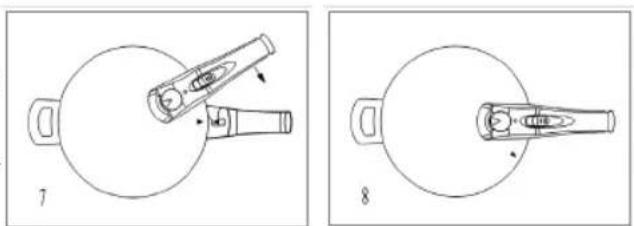

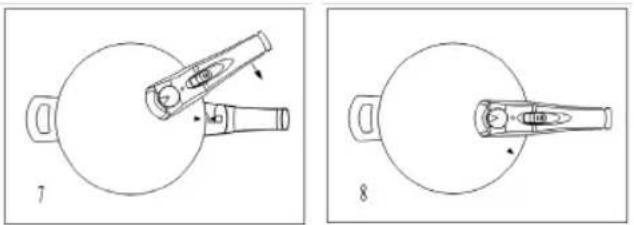

* While closing the lid, align the triangle mark of lid with the pot handle mark, hold the pot handle with your left hand and move the lid handle flatly with right hand in the clockwise direction until the lid handle is moves above the pot handle which indicates that the lid is closed completely. (Picture 7 and Picture 8)

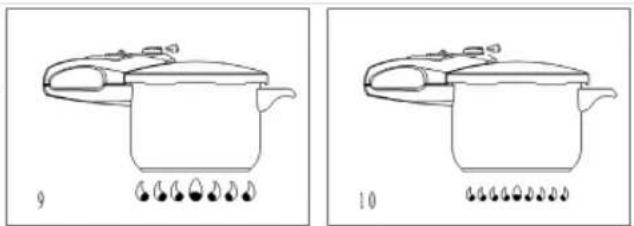

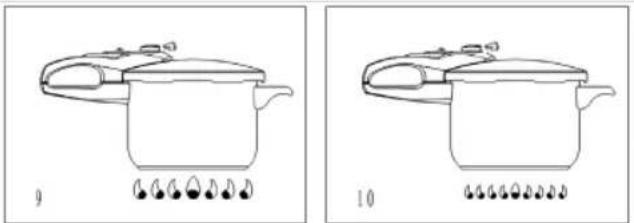

*Place the pressure cooker on the heating Source such as kitchen hob. When there is steady steam exhausted from the exhaust pipe, buckle the pressure-control valve on the exhaust pipe, then over pressure plug rises when steam exhaust escapes from pressure control valve (Picture 9). Turn down the heat energy (Picture 10) and let the little steam exhausting, with the reference of “Cooking Time”, until food cooked.
*Before opening the lid, the fire or heat source must be turned off or move the pressure cooker away from the heat source, by using following ways to cool:

1. Cool it naturally in normal temperature.

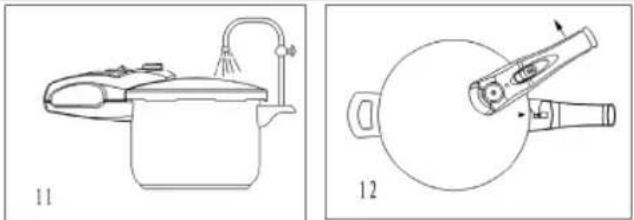

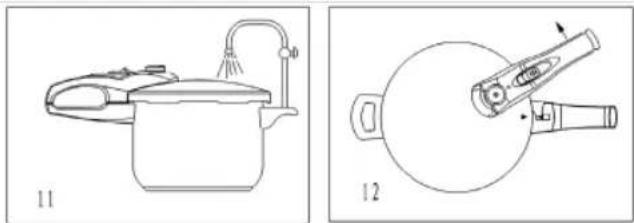

2. Cold water force it to cool (Picture 11) Take off the pressure-control before opening the lid, make sure the exhaust pipe is not

exhausting. Meanwhile, over pressure plug drop, move the regulator of lid hand to front end, move the lid hand in the counter-clockwise direction till it aligns to two triangles (Picture 12), then the lid can be opened.

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Technical line drawing of a mechanical component with circular body and cylindrical shaft (no text or symbols)

Line drawing of a cooking pot with steam rising from the chimney (no text or symbols)

Line drawing of a cooking pot with a lid and handle, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular base and lever handle (no text or symbols)

7. MAINTENANCE AND CLEANING:

1. Clean the pressure cooker with the detergent after cooking.
2. Keep it dry when not in use.
3. Do not scrap the pressure cooker with hard things such as metal scouring agent or similar.
4. Clean the gasket before and after every time using. Remove the dirt and oil and keep it dry. Put it in right position of lid.
5. Clean the pressure-control valve carefully after each use. If the exhaust pipe is jammed, dredge it thoroughly.(Picture 2)
6. Clean the over pressure plug frequently. Hold on the inside slider to stand up the head, put the lid opposite, to observe if the over pressure plug moves freely, wash the remainder when plug-hole is out. (Picture 3)

8. PROBLEMS AND SOLUTION:

1. When heating, if the over pressure plug does not rise or looks locked, please clean the plug hole.
2. If gasket is not put in right way or if it is ageing, put it right, clean it or change it.
3. If the regulator is not back to end, clean it or help it with your hand.
4. If is not hot enough when heating, turn the fire up or eliminate the scorched things inside the pot.
5. If the scorched thing inside the pot bottom is hard, fill hot water into the pressure cooker to make it soft then clean it. Do not use hard things such as metal scourers, or you will damage the pot.
6. After prolonged usage, leakage of gasket will occur. In such a case you should change it promptly. Our suggested life of a gasket is 400 hours, and it must be of the same material and parts as supplied by SOGO.

9. COOKING TIME REFERENCE FOR SAFE USE

Level Food Time (Min.)
60 Rice 5
60 Cabbage 5
60 Cauliflower 5
60 Fish 5
60 Onion soup 4~5
60 Tomato soup 4
60 Pasta 6
60 Congee 20
60 Potato 6
90	Chicken	15
90	Mutton	20
90 Soybean 20
90 Pork	20
90	Beef 20
90 Veal 15
90 Oxtail soup	20~30
90 Haricot bean	18~23
90	Red bean soup	18~23

1. The time is calculated from the beginning of pressure-control valve's normal releasing.
2. Cooking time is affected by volume of food, weather, heat energy and so on. The time is only for reference.
3. Cooking time is obtained according to cooking on gas stoves. It may vary if you use another type of heat sources.

10. PRECAUTIONS:

1. Each time, before using the pressure cooker, always check to make sure that the operating valve is clean of any built-up particles.
2. For increased safety and best results, the rubber gasket should be replaced after using it approximately for 400 hours.
3. Each time, before using the pressure cooker, always check the handles, the base handle, support grip, and the lid handle to make sure that they are securely screwed in place. If not, tighten the handle screws with a screwdriver.

11. REPLACEMENT PARTS

All parts of our pressure cooker are designed independently and specially for this product by SOGO. DO NOT change any part or assemble the parts in any other way. All parts used must be our SOGO pressure cooker parts. PIs contact your regular retail outlet to supply you parts for this pressure cooker or contact the SOGO Authorized Service Centre.

Cooking time is decided by different people's appetite, cooking style and ingredient

S IMPORTANT :

Line drawing of a cooking pot with a lid and side handles, emitting hot air flames below (no text or symbols)

Technical diagram showing two views of a mechanical or electrical assembly with labeled components and hand connections.

4 5 6

Two technical diagrams showing mechanical components with arrows indicating motion, no text or symbols present.

Two line drawings of a cooking pot with steam rising from the top, labeled 9 and 10 (no text or symbols on the pots themselves)

Technical line drawings of a cooking pot and a circular device (no text or symbols)

Line drawing of a cooking pot with a lid and three small fire extinguishers at the base (no text or symbols)

Diagram of a mechanical or industrial setup with pipes and components, no visible text or symbols

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with a circular body and a lever (no text or symbols)

Line drawing of a cooking pot with a lid and three flames at the bottom (no text or symbols)

Line drawing of a cooking pot with a lid and handle, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular base and lever handle (no text or symbols)

8. PROBLEMAS E SOLUÇÕES:

Line drawing of a cooking pot with six small fire extinguishers below (no text or symbols)

Technical diagram showing a cross-section of a mechanical or architectural structure with labeled components and a hand holding a tool.

Technical diagram of a mechanical device with labeled components and motion indicators

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Technical line drawing of a mechanical component with a circular body and a cylindrical shaft (no text or symbols)

Line drawing of a cooking pot with steam rising from the side (no text or symbols)

Line drawing of a cooking pot with a lid and side handles, no text or symbols present

Line drawing of a cooking pot with a water dispenser and a side arm (no text or symbols)

Technical line drawing of a mechanical device with a circular base and lever handle (no text or symbols)

Line drawing of a cooking pot with a lid and side handles, emitting steam from six small black objects (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and a hand holding a valve above it.

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Technical line drawing of a mechanical component with a circular body and a cylindrical shaft (no text or symbols)

Line drawing of a cooking pot with a side arm and three flame icons at the base (no text or symbols)

Line drawing of a cooking pot with a lid and handle, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Line drawing of a cooking pot with a lid and side legs, emitting steam from a flame (no text or symbols)

Technical diagram showing a cross-sectional view of a mechanical or architectural structure with labeled components and a hand gesture pointing to a feature.

Technical line drawing of a mechanical assembly with a hand holding a tool (no visible text or symbols)

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

Simple line drawing of a circular object with a handle and a pointed tip, no text or symbols present.

Line drawing of a cooking pot with a lid and three small flames at the base (no text or symbols)

Line drawing of a cooking pot with a lid and handle, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular base and lever handle (no text or symbols)

7. ÚDRŽBA A ČIŠTĚNÍ:

Line drawing of a cooking pot with six small kitchen utensils (no text or symbols)

Technical diagram showing two views of a mechanical or electrical assembly with labeled components and piping connections.

4 5 6

Two technical diagrams showing mechanical components with arrows indicating motion, no text or symbols present.

9 10

Technical line drawings of a cooking pot and a circular device (no text or symbols)

Line drawing of a cooking pot with six small fire extinguishers below (no text or symbols)

Architectural cross-section diagram of a building with visible foundation and chimney (no text or labels)

Diagram of an industrial machine with a hand operating it, showing components like a valve and spray bottle (no text or labels present)

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with a circular body and a cylindrical shaft (no text or symbols)

dokler se ročaj pokrova ne premakne nad ročaj posode, kar pomeni, da je pokrov popolnoma zaprt. (Slika 7 in Slika 8)

Line drawing of a cooking pot with a lid and side handles, placed on a stove with four small food items (no text or symbols)

Line drawing of a cooking pot with a lid and side legs, no text or symbols present

Line drawing of a cooking pot with a stand mixer and water tap (no text or symbols)

Technical line drawing of a mechanical device with a circular body and lever mechanism (no text or symbols)

Line drawing of a cooking pot with a lid and side legs, emitting steam from a flame (no text or symbols)

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Simple line drawing of a mechanical component with a circular body and a handle (no text or symbols)

Line drawing of a cooking pot with a lid and three small flames at the base (no text or symbols)

Line drawing of a cooking pot with a lid and side legs, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

1. Prirodno ga ohladite na normalnoj temperaturi.

2. Hladnom vodom prisilno ga ohladite (Slika 11) Skinite ventil za kontrolu prije otvaranja poklopca, pazite da cijev za ispuštanje ne ispušta paru. U međuvremenu, sigurnosni čep pada, pomaknite regulator ručke poklopca na prednji kraj, pomaknite ručku poklopca u smjeru suprotnom od kazaljke na satu dok se ne poravna s dva trokuta (Slika 12), tada se poklopac može otvoriti.

7. VZDRŽEVANJE IN ČIŠČENJE:

Line drawing of a cooking pot with a lid and three small droplets below (no text or symbols)

Technical diagram showing a cross-sectional view of a mechanical or architectural component with labeled parts and a hand gesture indicating force or movement.

Technical line drawing of a mechanical assembly with pipes and components (no visible text or symbols)

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Simple line drawing of a mechanical component with a circular body and a cylindrical shaft (no text or symbols)

Line drawing of a cooking pot with a lid and handles, placed on a stove with five small food items (no text or symbols)

Line drawing of a cooking pot with a lid and handle, labeled '10' at bottom (no text or symbols on the pot itself)

Line drawing of a cooking pot with a stand mixer and water tap (no text or symbols)

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

Line drawing of a cooking pot with a lid and three small droplets on the side (no text or symbols)

Cross-sectional technical diagram of a mechanical assembly (no visible text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

Simple line drawing of a circular object with a handle and a mechanical component attached (no text or symbols)

Line drawing of a cooking pot with a lid and three small pots on the side (no text or symbols)

Line drawing of a cooking pot with a lid and handle, no text or symbols present

Line drawing of a cooking pot with a side arm and water dispenser (no text or symbols)

Technical line drawing of a mechanical device with a circular body and lever handle (no text or symbols)

Line drawing of a cooking pot with a lid and three small flame icons below (no text or symbols)

Diagram of a mechanical device with a hand operating a valve, showing internal components and motion (no text or symbols)

Technical line drawing of a mechanical device with a circular body and lever mechanism (no text or symbols)

Simple line drawing of a mechanical component with a circular body and a handle (no text or symbols)

Line drawing of a cooking pot with a lid and three small kitchen utensils on the side (no text or symbols)

Line drawing of a cooking pot with a lid and handle, labeled '10' at bottom (no text or symbols on the diagram itself)

Line drawing of a cooking pot with a steam rising from it, no text or symbols present

Technical line drawing of a mechanical device with a circular body and lever mechanism (no text or symbols)

Line drawing of a cooking pot with a lid and three small droplets on the side (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and a hand operating the tool.

Diagram of a mechanical assembly with a hand operating a valve (no text or symbols visible)

Technical line drawing of a mechanical device with a circular body and lever mechanism (no text or symbols)

Simple line drawing of a mechanical component with a circular body and a handle (no text or symbols)

Line drawing of a cooking pot with a side arm and a flame placed on the side (no text or symbols)

Line drawing of a cooking pot with a lid and side legs, no text or symbols present

Line drawing of a cooking pot with a steam rising from it, no text or symbols present

Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

7. MANTENIMENT I NETEJA:

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with the pressure equipment directive 2014/68/EC, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
