SS-14305 - Hand blender Sogo - Free user manual and instructions

Brand	Sogo
Model	SS-14305
Product type	Immersion blender
Power supply	220–240 V, 50/60 Hz
Rated power	300 W
Dimensions (upper part)	163 mm
Dimensions (lower part)	210 mm
Weight	Approximately 1 kg
Normal speed	Continuous operation at moderate speed
Turbo speed	15,000 rpm
Maximum capacity (liquids)	600 ml
Maximum capacity (solid foods)	200 g (onions), 150 g (meat, nuts)
Continuous operation time	1 minute maximum
Rest time before reuse	5 minutes minimum
Blade material	Stainless steel
Main functions	Blending, making purées, soups, sauces, milkshakes, baby food
Cleaning	Upper part: damp cloth; lower part: rinse under running water; do not fully immerse
Safety	Very sharp blades, do not touch; unplug before cleaning; do not use by children
Certifications	CE compliant (2014/35, 2014/30, 2011/65, 2009/125)
After-sales service	www.sogosat.com / 0034 902 222 161

Frequently Asked Questions - SS-14305 Sogo

How to clean the Sogo SS-14305 immersion blender?

Unplug the appliance. Clean the upper part (motor) with a damp cloth only. Rinse the lower part (shaft and blades) under running water, without fully immersing the appliance. Caution: the blades are very sharp, handle them with care.

Can I blend hot liquids with this blender?

Yes, but be careful. Hot liquids can splatter suddenly. Use the blender with caution and respect maximum quantities (up to 600 ml for soups). Let cool slightly before blending.

What is the maximum continuous operation time?

The blender can run continuously for 1 minute maximum. For hard foods, do not exceed 10 seconds. After one cycle, wait at least 5 minutes before using the appliance again.

Are the blades removable?

No, the blades are not removable. The lower assembly (shaft and blades) is a single unit. For cleaning, rinse it under water without disassembly.

Can I blend very hard ingredients like ice cubes?

This blender is not designed for ice cubes or very hard foods. It is intended for soft or cooked foods. For nuts, respect the maximum quantity of 150 g and a time of 1 minute.

How to use the turbo speed?

Press the turbo speed button (TURBO Vit) for maximum power at 15,000 rpm. Use it to quickly mix or purée firmer foods. Do not exceed 1 minute.

What to do if the blades get stuck?

Immediately unplug the appliance before removing ingredients blocking the blades. Never try to unblock them while the appliance is plugged in.

Can the appliance be used by children?

No, this appliance should not be used by children. It can be used by children over 8 years old under supervision, but cleaning and maintenance should not be done by children.

What accessories are included with the blender?

The manual does not mention additional accessories. The blender comes with the motor unit and the immersion shaft. No bowl or whisk is provided.

Where can I get spare parts?

Contact Sogo after-sales service via www.sogosat.com or by email at [e-mail], or call 0034 902 222 161. They will inform you about parts availability.

USER MANUAL SS-14305 Sogo

White cylindrical device labeled 'SOGO' with a handle and spout (no additional text or symbols visible)

Batidora de mano eléctrica Electric Hand Blender Mixeur plongeant électrique Misturador da Mão poderosa Batidora de mano eléctrica Electric Hand Blender

ref. SS-14305

Line drawing of a cylindrical device with a vertical dimension line on the right side (no text or symbols)

You should respect the following safety warnings:

1. Read all instructions in this user manual carefully before you use the appliance and save it for future reference. A copy of this manual can also be found on our website: www.sogo.es.
2. Before plugging into a socket, check whether your voltage corresponds to the rating label if the appliance.
3. Blades are very sharp! Handle carefully. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
4. Do not touch the blades especially when the appliance is plugged in.
5. If the blades get stuck, unplug the appliance before you remove the ingredients that block the

blades.

1. Never let the appliance run unattended.
2. If the plug or power cable is damaged, or the appliance is faulty, do not attempt to repair, please contact our technical assistance service.
3. The use of accessory attachments not recommended or not sold by the manufacturer may result in fire, electric shock or personal injury.
4. Be careful when blending hot ingredients or hot soups as such liquids can be suddenly ejected out of the appliances due to a sudden steaming.
5. The appliance is constructed to process normal household quantities.
6. Do not exceed quantities and processing times indicated in the tables.
7. Never use a damaged appliance. If it has been damaged, please get it to approved service center, checked

or repaired.

1. Do not let the electric cord hang over the edge of the table or over the counter, or touch any hot surface including the stove.

2. Do not plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or when handling the blade.

3. Don't let the motor unit, cord, or plug get wet.

4. Short time operating. Use the appliance for no longer than 1 minute, and do not operate with hard foods for no longer than 10 seconds. Use the appliance according to the table of Processing Guide.

5. If you want to operate the unit for more than one cycle, you should wait at least 5 minutes before operating it again. Let the appliance cool down to room temperature before you continue processing.

6. The appliance is not intended for use by any person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

7. Close supervision is necessary when any appliance is used near children.

8. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

9. Do not use outdoors.

10. Always disconnect the blender from the electric outlet if it left unattended, and before assembling, disassembling and before cleaning.

11. Switch off the appliance and disconnect from power supply before changing accessories or

approaching parts that move.

1. To protect against fire, electric shock and personal injury, do not immerse blender, its cord or plug, in water or any other liquid.

2. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

1. The appliance should not be worked by external timer or individual remote control

2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. 28. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children aged less than 8 year.

DESCRIPTION OF PARTS

Figure 1

Line drawing of a cylindrical device with a vertical measurement scale on the right (no text or symbols)

Upper section 163 mm

Lower section 210 mm

Definition upper section of the appliance and lower section of the appliance

Figure 2

Normal Speed 7,500 rpm

TURBO Turbo Speed 15,000 rpm

Figure 3

Figure 4

OPERATING INSTRUCTIONS

A, PRELIMINARY CHECKS:

1. After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. In such cases contact the authorized technical assistance service.

2. Connecting the appliance Check that the mains power supply voltage corresponds to the value indicated on the rating label. If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type, or change the plug by a qualified professional.

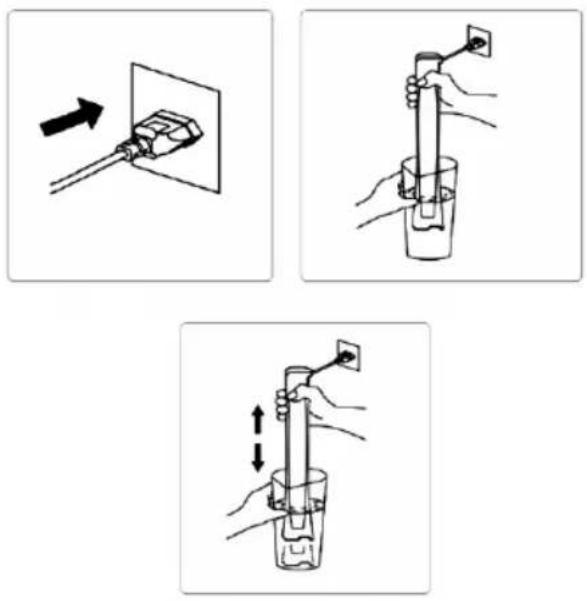

B USING THE BLENDER

The hand blender is intended for:

A. Blending liquids, e.g. dairy products, dips sauces, soup, mayonnaise, fruit juices, mixed drinks and shakes.
B. Pureeing cooked ingredients, e.g. for making baby food.

1. Put the ingredients in the blending bowl or container. (See table for recommended quantities and processing times).
2. Put the plug in the wall socket.
3. Immerse the blade guard completely in the ingredients. (Figure 3).
4. Press the normal speed button or the turbo speed button to switch on the appliance (Figure 2).
   a. When you use the normal button, the appliance operates at slower speed. b. When you use the turbo speed button, the appliance operates at

maximum speed. Note: The higher the speed, the shorter the processing time required. 5. Move the appliance slowly up and down and in circles to blend the ingredients (Fig. 3).

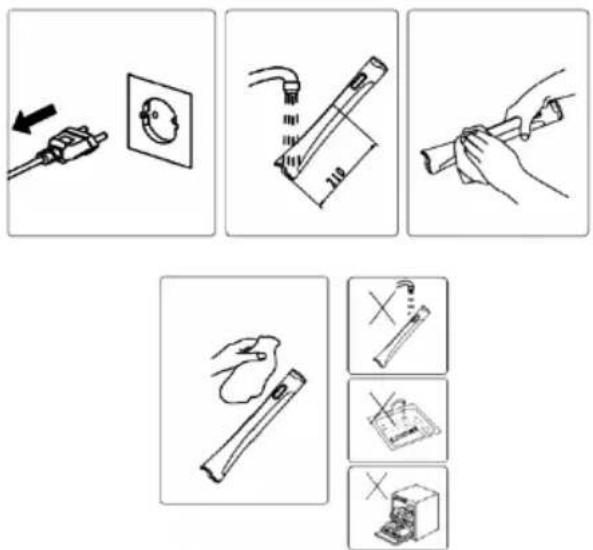

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the appliance from the electric outlet.
2. Never immerse the appliance in water or any other liquid nor rinse it under the tap. Only use a moist cloth to clean the upper section (Figure 1).
3. Clean the upper section of the appliance with a moist cloth only.
   The lower section only can be cleaned under running water (Figure 4).
   Warning: Ensure to avoid the running water into the housing from the button and the upper cape.
   Warning: 'DO NOT not immerse the blender unit directly or fully in the water or any liquid and

DO NOT not clean it in a dish washer.

1. When processing foods with a high pigment content (e.g carrots), the plastic parts of the appliance may become discolored. Wipe these positions with vegetable oil before cleaning them.

2. If food is not easily rinsed off the blade, place a drop of dishwasher detergent in the mixing container with water. Plug cord into electric outlet. Immerse the blade end portion and operate the unit for about 10 seconds. Unplug, rinse under running water, and then dry.

3. When you will not use it for a long time, keep this appliance well ventilated to prevent the motor of appliance is affected with dampness or humidity.

CAUTION: The cutting edges of the blades are very

sharp, while cleaning it extra care must be taken to avoid cutting your hand or fingers.

TECHNICAL SPECIFICATIONS Model No.: SS-14305 Rated voltage: 220\~240V, 50/60 Hz Rated power: 300W

FOOD PROCESSING GUIDE

Note: This food processing guide is for indication only. Actual processing time may vary based on hardness of each ingredient, the quantity used and the fineness of resulting foods required by the user.

FOOD	MAXIMUM (g / ml)	Operation (time)
Meat	150g	1 min
Herbs	50g	1 min
Nuts, almonds	150g	1 min
Cheese	100g	1 min
Bread	80g	1 min
Onions	200g	1 min
Biscuits	150g	1 min
Soft fruits and vegetables	100 – 200ml	1 min
Baby food and soups	100- 400ml	1 min
Batters	100- 500ml	1 min
Shakes and mixed drinks	100 – 600ml	1 min

CONSIGNES DE SECURITE POUR L'UTILISATEUR

Line drawing of a handheld device with a vertical dimension line (no text or symbols)

Line drawing of a cylindrical device with a vertical measurement scale on the right side (no text or symbols)

Secão superior 163 mm

Line drawing of a cylindrical device with a vertical measurement scale on the right (no text or symbols)

Line drawing of a cylindrical device with a vertical measurement scale on the right (no text or symbols)

Oberteil 163 mm

Unterteil 210 mm

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO

based on the European Quality Standards

Customer Service: www.sogosat.com /

[e-mail] / 0034 902 222 161
