USER MANUAL Grind & Brew 25620-56 RUSSELL HOBBS

Exterior view of a modern coffee maker with glass lid and digital display (no visible text or symbols)

25620-56

Technical diagram of a coffee maker with numbered parts and a close-up of its interior components, including a digital timer and lock icons.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children must not use or play with the appliance.

Keep the appliance and cable out of reach of children.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.

Don't immerse the body of the appliance in liquid.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

The coffee-maker shall not be placed in a cabinet during use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• farm houses.
  Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

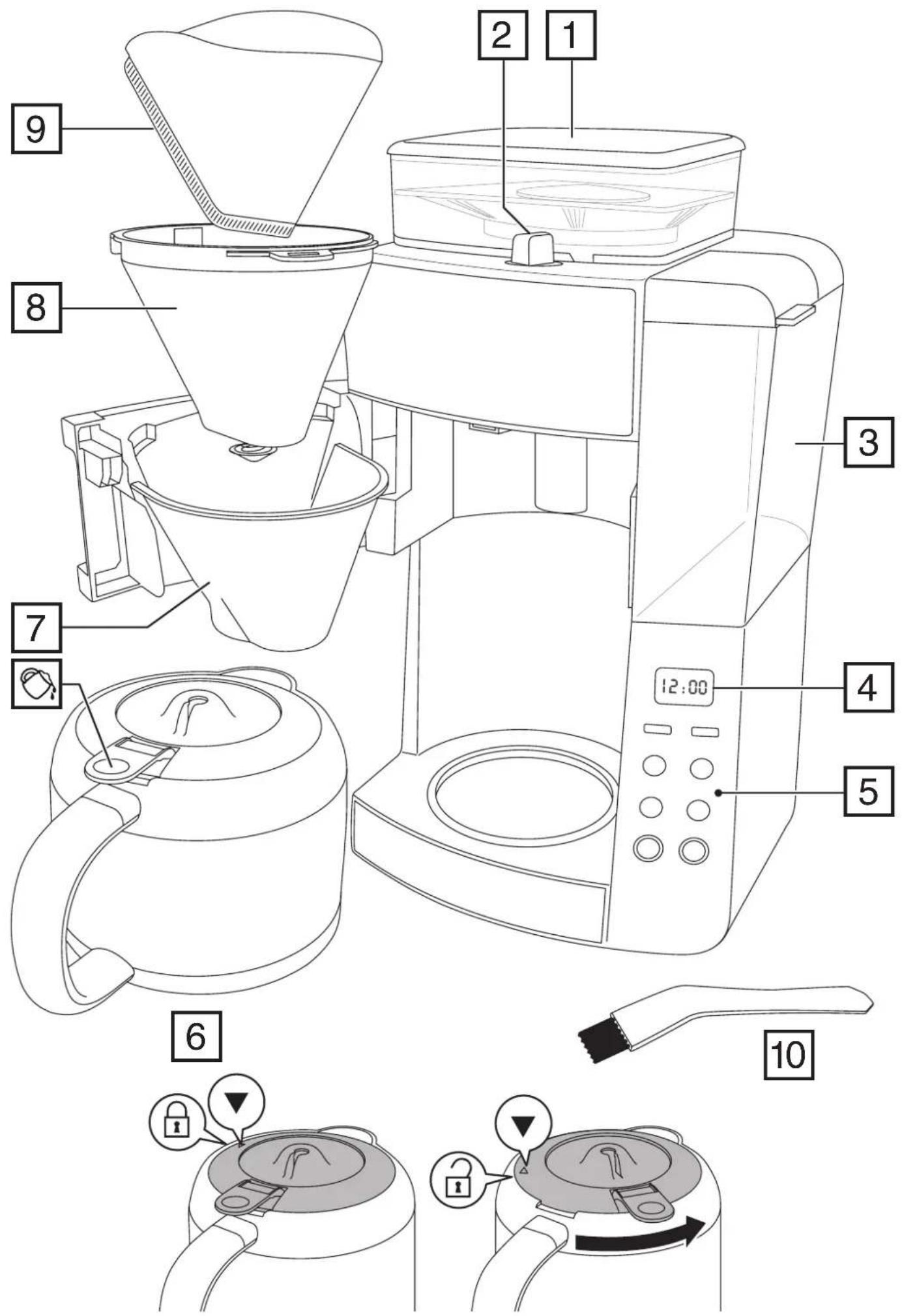

PARTS

1. Coffee bean hopper and lid
2. Grind control
3. Water reservoir

4. Display

5. Control panel

6. Carafe
7. Filter holder chamber

8. Filter holder

9. Paper filter #4 (not supplied)

10. Cleaning brush

BEFORE USING FOR THE FIRST TIME

Follow the directions under USING PRE-GROUND COFFEE MODE but WITHOUT adding a filter paper or coffee. Once the water has cycled through the machine, discard it. Wash then dry the carafe.

CORD STORAGE

Excess power cord can be pushed back into the body of the appliance for storage.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. 12:00 will flash on the display.
3. Use the hr and min buttons to set the correct time in 24 hour format.
4. The clock will retain its settings until the coffee maker is unplugged.
5. Use the hr and min buttons to set a new time. If you don't press either the hr or min buttons within 15 seconds, the coffee maker will go back to showing the previously set time.

CONTROLS AND DISPLAY

CONTROLS
hr, min	Used to set the time (hours and minutes)
	Used to select the coffee strength. For Grind & Brew mode the options are: ☐ normal ☐ medium ☐ strong. Default value is ☐. For pre-ground coffee mode the options are OFF or ON.
	Number of cups that are being brewed (Grind & Brew mode only). Selects the amount of coffee which will be ground based on the amount of water in the reservoir. Options: 2, 4, 6, 8 and 10. Default values is 8.
	Used to set up the timer.
	Mode select. This button selects Grind & Brew mode (display will show ☐), or pre-ground coffee mode (display will show ☐).
	Starts the brewing process.
	Initiates self clean mode.

DISPLAY ICONS
	Shows the currently selected coffee strength. For Grind & Brew mode the display shows: ☐ normal ☐ medium ☐ strong. For pre-ground coffee mode if the strength mode is set to OFF no ☐ icon will be shown. If the strength mode is set to ON the display will show ☐.
2, 4, 6, 8 or 10	Shows the currently selected number of cups being brewed (Grind & Brew mode only).
	Grind & Brew mode selected.
	Pre-ground coffee mode selected.
CLE +●+	The machine needs cleaning. Use the self clean function.

OPERATING MODES

Your coffee maker has two operating modes.

GRIND & BREW MODE

This mode uses fresh coffee beans to make the coffee.

PRE-GROUND COFFEE MODE

This mode uses pre-ground coffee added directly to the filter to make the coffee.

USING GRIND & BREW MODE

The quality and flavour of your coffee is determined by the type of beans, the grind size and the brewing time. We recommend experimenting with the grind size and coffee strength button until you find the settings that work best for you.

1. To select Grind & Brew mode, press the button until the icon shows on the display.
2. Fill the reservoir with the required amount of water. Note that during the brewing cycle, ALL of water you put in the reservoir will be used.
3. Open the filter compartment and place a #4 paper filter into the filter holder. Close the compartment.
4. Open the coffee bean hopper lid and fill it with fresh coffee beans. Don't overfill the hopper so that you can't refit the lid. The lid seal will help to keep the coffee beans fresh between uses.
5. Turn the grind control to the required setting (● fine, ● medium and ● coarse).
6. Press the 📄 button to select the number of cups you are brewing. The setting you choose will depend on how much water you have added to the reservoir. For example, if you have filled the reservoir to the 6 cups mark, set the number of cups to 6 as well. The default setting is 8.
7. Select the desired coffee strength using the 🔗 button. The default setting is 🔗.
8. Press the ▶ button to start brewing. After a short time, the grinder will operate and the light around the button will flash while the coffee is brewing.
9. Once the coffee is brewed, the light will stop flashing.

USING PRE-GROUND COFFEE MODE

1. To select pre-ground coffee mode, press the button until the icon shows on the display.
2. Fill the reservoir with the required amount of water. Note that during the brewing cycle, ALL of water you put in the reservoir will be used.
3. Open the filter compartment and place a #4 paper filter into the filter holder.
4. For each large cup, add 6g of ground filter coffee to the filter. The amount of ground coffee you add will depend on how much water you have added to the reservoir. For example, if you have filled the reservoir to the 6 cups mark, add 6 measures of ground coffee.
5. Close the filter compartment.
6. Select the desired coffee strength using the 🔗 button. The default setting is OFF. Setting coffee strength to ON will give a stronger brew by slowing down the rate that water passes through the pre-ground coffee.
7. Press the ▶ button to start brewing. After a short time, the light around the button will flash while the coffee is brewing.
8. Once the coffee is brewed, the light will stop flashing.

CARAFE

• The bottom of the carafe will be hot, set it down on an insulated mat.
• Rinse the carafe with hot water, to prewarm it, so it doesn't take heat from the coffee.
• To remove the lid, turn it to align the ⏻ with the ▲.
• Replace the lid in the same position, then turn it to align the ⏻ with the ▲.
• To open the spout for pouring, press the lever at the rear of the lid.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the hr and min buttons.

1. Prepare the coffee maker according to which mode you are using but do not press the ▶ button to start brewing.
2. Press the button. The button will flash and the icon will flash on the display.
3. Within 10 seconds of pressing the button, use the hr and min buttons to enter the time you want your coffee maker to start brewing.
4. If a time has previously been programmed, it will flash on the display otherwise the display will show the default setting of 8:00.
5. 10 seconds after you have finished entering the time, the button will stop flashing and remain lit. The icon on the display will also stop flashing and remain lit. Your coffee maker is now programmed to brew at the time you have entered.
6. If you want to check the program time press the button. The programmed time will show for 3 seconds and then return to the time of day.
7. If you want to cancel the timer before brewing has started, press and hold the disappears from the display.
8. button for 5 seconds until the light goes out and the icon
9. If you want to stop the coffee maker while it's brewing, press the ▶ button.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

GENERAL CLEANING

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Hand wash the carafe and filter holder. Wipe out the hopper with kitchen paper.
5. Wipe the shaded area shown in Fig H with a piece of damp kitchen paper. Use the brush if necessary to loosen any coffee debris.
   Note: If you haven't used your coffee maker for more than 4 weeks, we recommend that you follow the steps under BEFORE USING FOR THE FIRST TIME before brewing coffee again.

CLEANING THE GRINDER

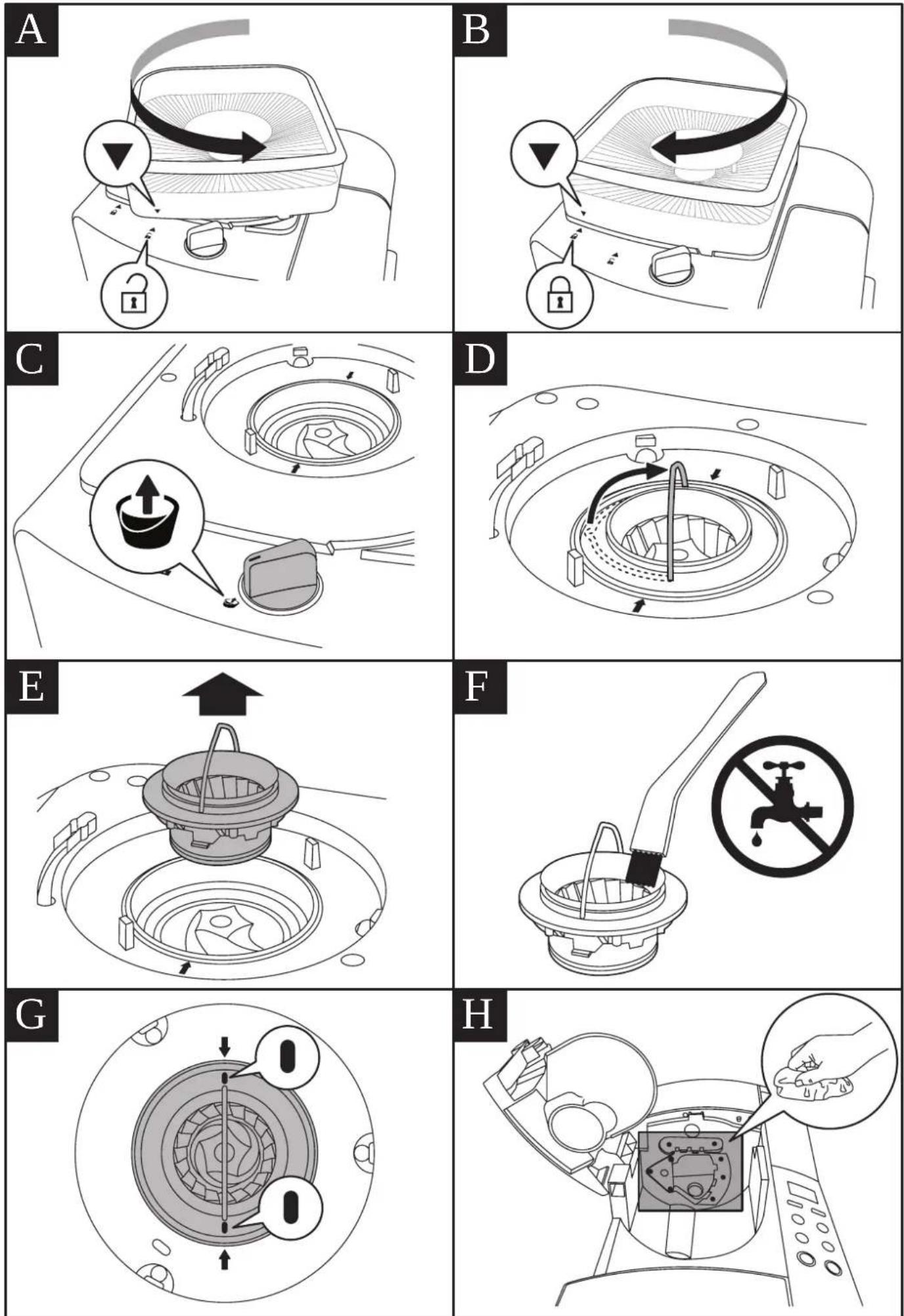

The grinder can be disassembled in order to clean it. If you try to disassemble the grinder without first removing any surplus coffee beans, it will be very difficult to reassemble correctly. Follow these steps:

1. Twist the coffee bean hopper and lid counterclockwise until the ▼ symbol aligns with the 🔒 symbol (Fig A).
2. Lift off the hopper, remove the lid and empty out any coffee beans. Wipe out the hopper with kitchen paper.

3. Replace the lid then refit the hopper onto the coffee maker aligning the ▼ symbol with the 🔒 symbol. Twist the hopper clockwise until the ▼ symbol aligns with the 🔒 symbol (Fig B).

4. Turn the grind control to the fine (●) setting.

5. Press the 🎨 button to select the 6 cup setting.

6. Press the ▶ button. After a few moments the grinder will start. Once it has stopped, press the ▶ button until the ▶ light goes out.

7. Follow step 1 again to remove the bean hopper.

8. Turn the grind control to the ⚙ setting (Fig C).

9. Lift up the handle on the grinding head (Fig D).

10. Lift the grinding head out of the body of the appliance (Fig E). If it doesn't lift out easily, make sure that the ⚪ marks on the grinding head are aligned with the ↑ markings (Fig G).

11. Use the cleaning brush to clean the grinding head and the area where it fits into the appliance. Do not use water.

12. Refit the grinding head by aligning the ⬆ marks on the grinding head with the ↑ markings and pressing it down (Fig G). Fold the handle back down.

13. Turn the grind control to any of the grind settings.

14. Refit the hopper.

SELF CLEAN

After 60 brewing cycles, the display will show CLE and the - icon to indicate that the appliance needs descaling. Descaling flushes out the deposits that naturally build up over time.

1. Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow the instructions on the package of descaler.
2. Pour the descaling solution into the water reservoir to the max mark.
3. Press the 🧑 button.
4. The automatic self clean process will start and will continue for about 45 minutes.
5. After the process has finished, your coffee maker will switch off.
6. Products returned under guarantee with faults due to scale will be subject to a repair charge.

CLEANING FREQUENCY

Daily - Remove any used coffee grounds and filter papers as required. Clean the filter holder and carafe. Wipe the shaded area shown in Fig H with a piece of damp kitchen paper. Use the brush if necessary to loosen any coffee debris.

Weekly - Clean the grinder.

ERROR CODES

To assist in troubleshooting, your coffee maker may show one of the following error codes.

CODE MEANING
E01 The coffee bean hopper is not fitted correctly. Remove then refit the bean hopper.
E02	The shutter is open (located under the grinding head). Unplug the appliance and let it cool. Wipe the shaded area shown in Fig H with a piece of damp kitchen paper. Use the brush if necessary to loosen any coffee debris.
E03	The shutter cannot close (located under the grinding head). Unplug the appliance and let it cool. Wipe the shaded area shown in Fig H with a piece of damp kitchen paper. Use the brush if necessary to loosen any coffee debris.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
