USER MANUAL 22.4 Li comfort AL-KO

Line drawing of a manual vacuum cleaner with attached sensor array (no text or symbols)

Inhaltsverzeichnis

Deutsch 8

English....23

Nederlands 36

Français....51

Español 66

Italiano 81

Slovenščina 95

Hrvatski....109

Српски....122

Polski 137

Česky 152

Slovenská 166

Magyar 180

Dansk 194

Svensk....207

Norsk 220

Suomi 233

Eesti 246

Lietuvių 259

Latviešu 273

Român 287

български 301

Русский 317

Україна....333

© 2023

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

01 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑺ ⑳* ⑰* ⑱* ⑲* ⑳: * : not included.

02 ① ② ③ ④ ⑤

03 ① ④ a ② ③ CLICK b ⑦ ⑤ c ⑥

04 a ② ① b ③

05 100° 70° ① ② 10° 0°

06 100° b b 1 a 0°

07 45° b b 45° 1 a

08 1 b a 30 40 50

09 a 1 2 b a

10 ① ②

Technical line drawing of a mechanical component with two views (labeled 1 and 2), showing internal structure without any text or symbols.

12

Technical diagram of a mechanical device with numbered parts labeled 1 and 2

22.4 Li comfort

114033 (appliance)

114032 (set)

34 × 38 × 123 ~cm

4,8 kg

22 cm

30, 40, 50 mm

6000 min ^-1

L_pA = 70 dB(A), K = 3 dB(A)

L_wA=81 dB(A), K=1,7 dB(A)

1,9m / s^2 [K = 1,5 m/s², DIN EN ISO 20643]

0^ C - + 45^ C

22.4 Li comfort

-20^ C-+50^ C

1 About these operating instructions...... 23

1.1 Symbols on the title page 24
1.2 Legends and signal words...... 24

2 Product description 24

2.1 Designated use.... 24
2.2 Possible foreseeable misuse.... 24
2.3 Residual risks 24
2.4 Safety and protective devices...... 24

2.4.1 Unlocking button.... 24
2.4.2 Automatic cut-out function...... 24

2.5 Symbols on the appliance.... 25
2.6 Product overview (01)...... 25
2.7 Scope of supply (02).... 25

3 Safety instructions.... 25

3.1 General Power Tool Safety Warnings 25

3.1.1 Work area safety 25
3.1.2 Electrical safety 26
3.1.3 Personal safety.... 26
3.1.4 Power tool use and care...... 26
3.1.5 Battery tool use and care ...... 27
3.1.6 Service 27

3.2 Lawnmower safety warnings ...... 27
3.3 Vibration load.... 28
3.4 Noise pollution 29
3.5 Safety notes for rechargeable battery and charger.... 29

4 Assembly.... 29

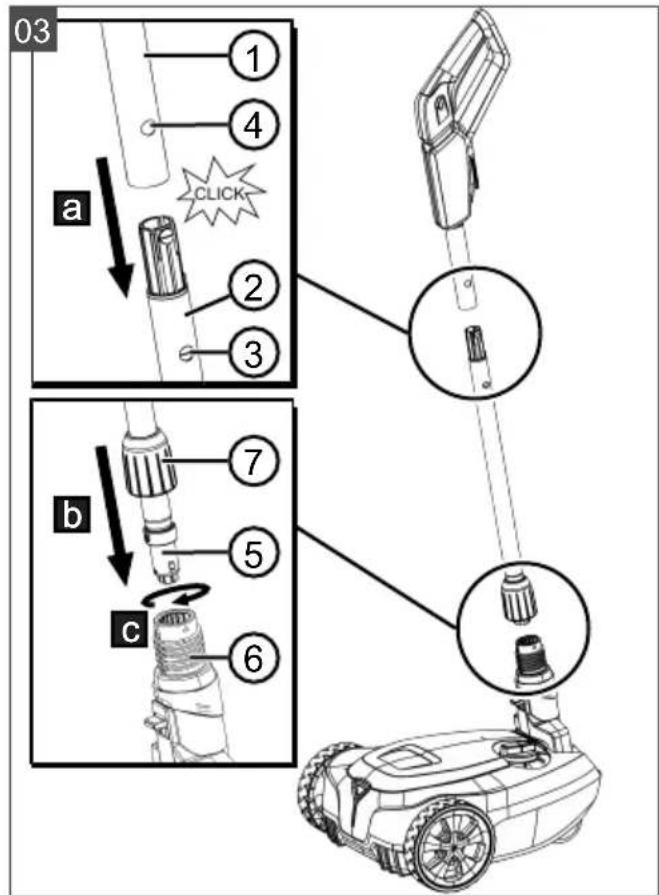

4.1 Assembling the cordless mulching mower (03).... 29

5 Start-up 29

5.1 Charging the rechargeable battery .... 29

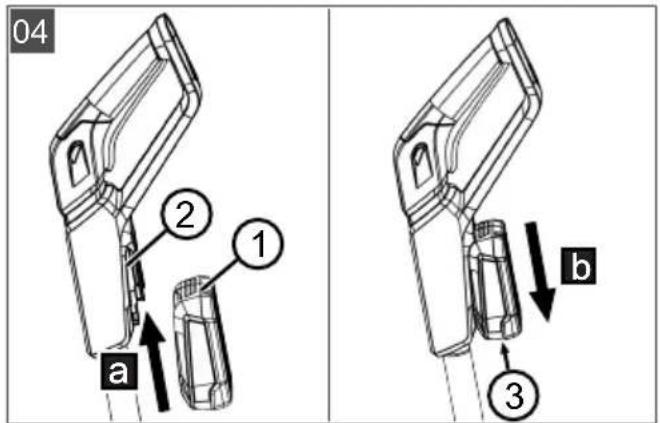

5.2 Inserting and removing the battery (04) 29

6 Operation 30

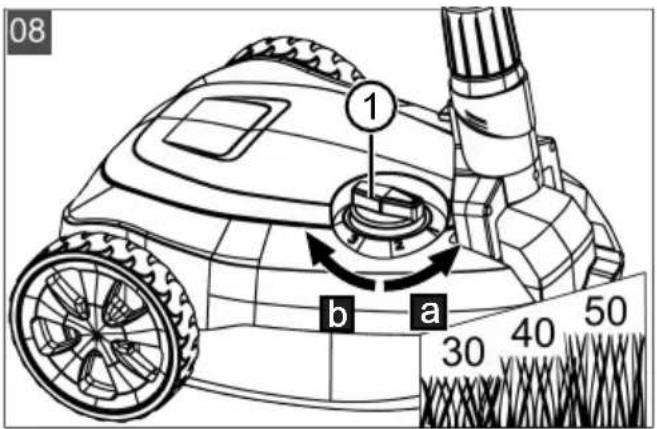

6.1 Setting the cutting height (08)...... 30

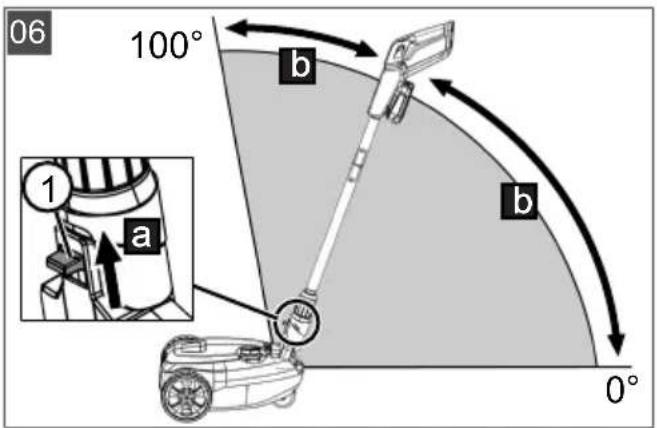

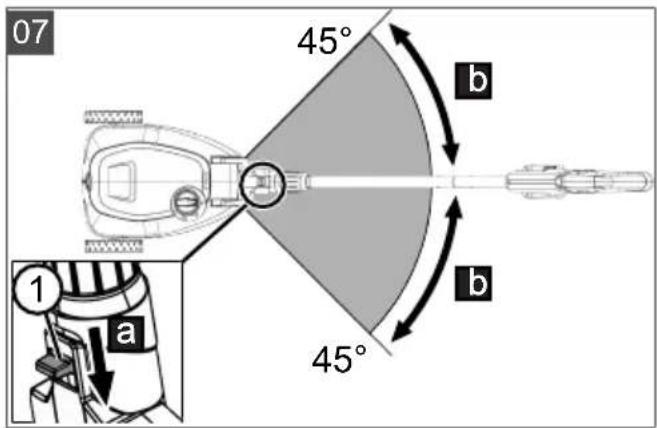

6.2 Mowing with the cordless mulching mower (06, 07).... 30

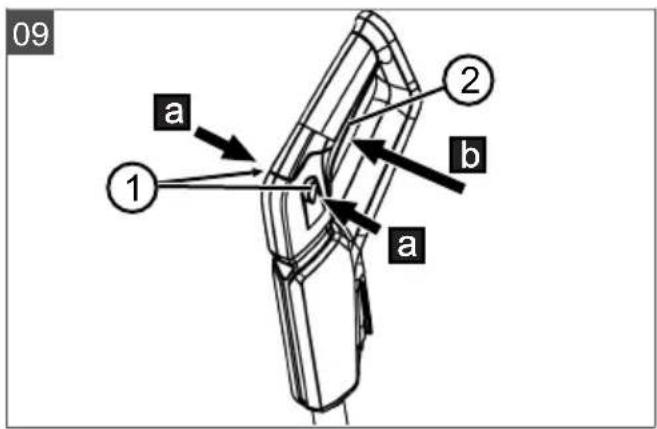

6.3 Switching the machine ON and OFF (09).... 30

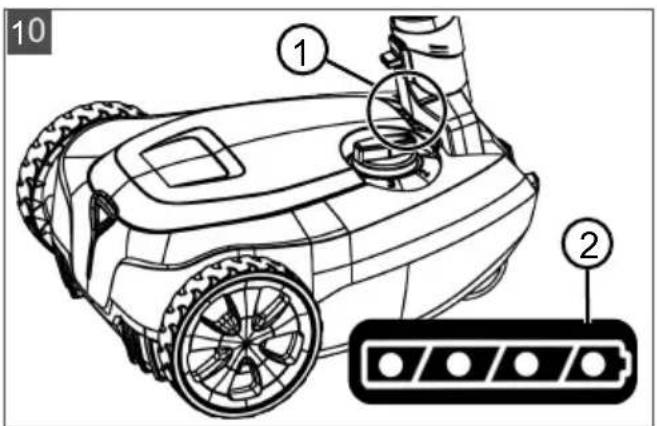

6.4 Checking the battery charge status (10).... 30

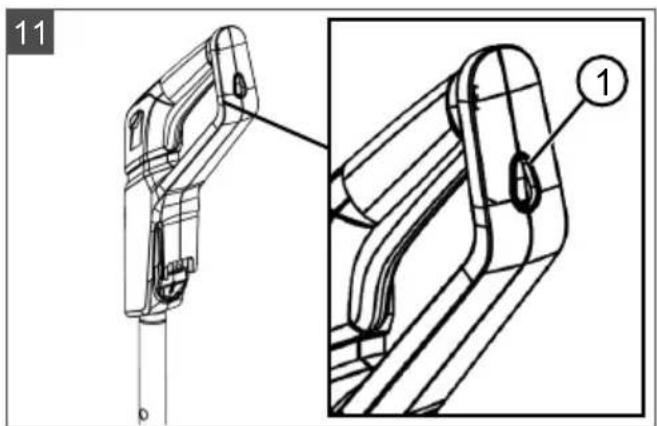

6.5 Wall bracket (11) 30

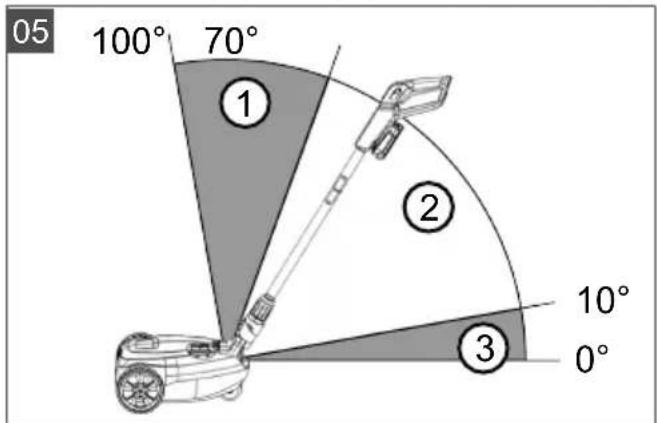

6.6 Working positions (05) 31

7 Work instructions 31
8 Maintenance and care 31

8.1 Regular maintenance work 31

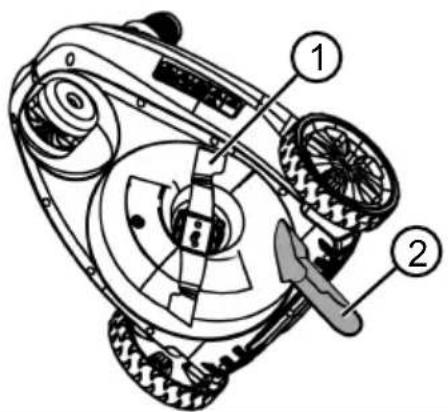

8.2 Cleaning the appliance and mower mechanism (12) 32
8.3 Checking and renewing the cutting blade 32
8.4 Repair work 32

9 Help in case of malfunction 32
10 Transporting the battery 33

11 Storage.... 34

11.1 Storing the appliance 34
11.2 Storing the rechargeable battery and charging unit.... 34

12 Disposal.... 34
13 After-Sales/Service.... 35
14 Information on the Declaration of Confor- mity 35
15 Warranty.... 35

1 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
- Keep these operating instructions in a safe place at all times so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

1.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.

Operating instructions

Handle Li-Ion rechargeable batteries with care! In particular, observe the notes on transport, storage and disposal in these operating instructions!

1.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.

WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.

CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

NOTE Special instructions for ease of understanding and handling.

2 PRODUCT DESCRIPTION

IMPORTANT! Danger of damage to the appliance and battery. If the appliance is operated with an unsuitable battery, both the device and the battery may be damaged.

■ Only operate the appliance with the specified rechargeable battery.

All batteries (Bxxx Li) and chargers (Cxxx Li) from the AL-KO 18V system can be used.

See the separate operating manuals for further information on batteries and chargers:

■ Operating instructions 443130: Batteries

■ Operating instructions 443131: Chargers

2.1 Designated use

This appliance is designed for frequent mowing of a short, dry grass on a cramped, small lawn. The cuttings remain on the lawn as fertiliser.

This appliance is intended solely for use in non-commercial applications. Any other use as well as unauthorised conversions or modifications are regarded as contrary to the intended use and will result in voiding of the warranty as well as loss of conformity; the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

2.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

• Do not use the appliance in the rain or on wet grass.
  There must be no foreign objects on the area to be mowed, e.g. stones, pieces of wood, bottles.

2.3 Residual risks

Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:

■ Throwing out of cuttings, soil and small stones.
■ Inhalation of cuttings particles if no breathing protection is worn.
■ Lacerations from reaching into the rotating cutting blade.

2.4 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

2.4.1 Unlocking button

The unlocking button releases the ON/OFF switch. This prevents inadvertent starting of the appliance by accidentally pressing just the ON/OFF switch.

2.4.2 Automatic cut-out function

The appliance switches off automatically when it is lifted to prevent contact with the rotating cutting blades.

2.5 Symbols on the appliance

Symbol Meaning

Pay special attention when handling this appliance!

Read the operating instructions before starting operation!

Risk of objects being thrown out!

Keep bystanders away!

Keep your hands and feet away from the mower mechanism!

Not relevant.

Risk of electric shock if a mains cable is run over.

Do not drive over mains cables!

Remove the battery before starting adjustment, cleaning or maintenance work.

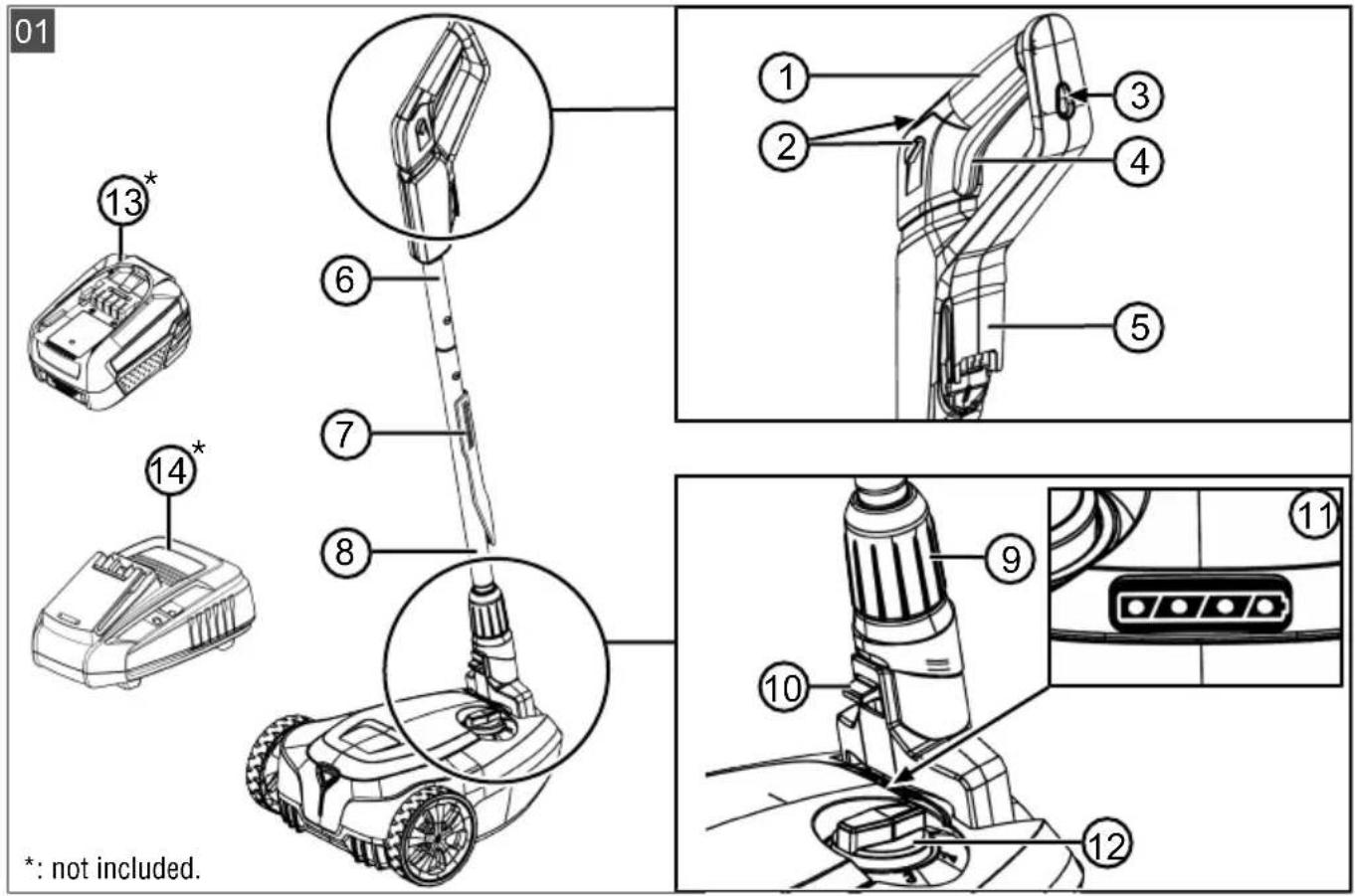

2.6 Product overview (01)

No. Component

1 Handle

2 Unlocking button on handle

3 Wall bracket

4 ON/OFF switch

5 Battery slot

No. Component

6 Upper brace

7 Scraper

8 Lower brace

9 Locking sleeve

10 Locking slider for swivel joint

11 Charge status display

12 Cutting height adjustment wheel

13 Rechargeable battery*

14 Charger*

*: Not included in the scope of supply, but can be purchased separately.

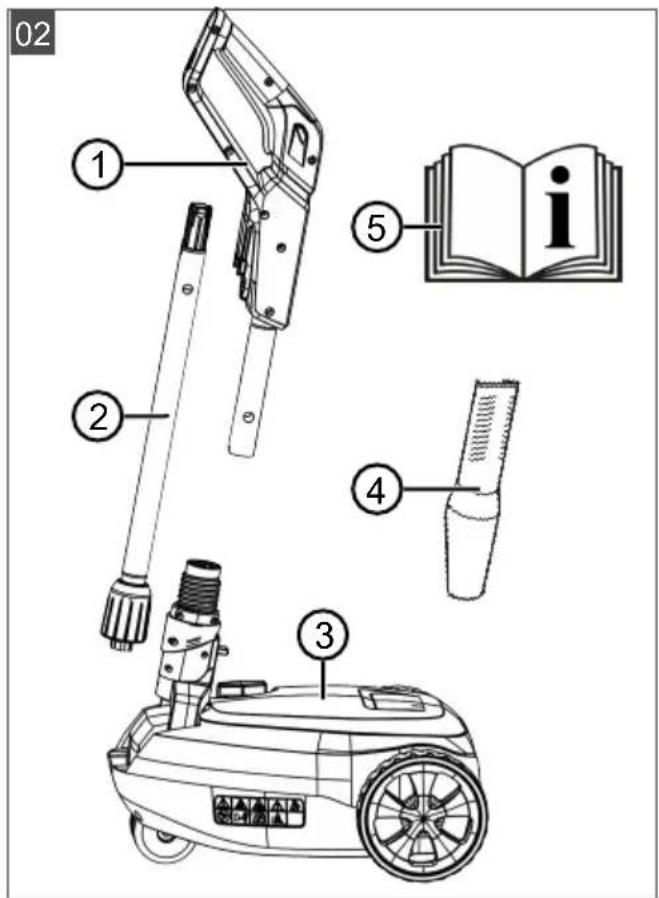

2.7 Scope of supply (02)

The items listed here are included in the standard scope of supply. Check that all items are present:

No. Component

1 Handle with upper brace

2 Lower brace

3 Cordless mulching mower

4 Scraper

5 Operating instructions

3 SAFETY INSTRUCTIONS

3.1 General Power Tool Safety Warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

3.1.1 Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power

tools create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

3.1.2 Electrical safety

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3.1.3 Personal safety

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Car-

rying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3.1.4 Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power

tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

3.1.5 Battery tool use and care

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the operating instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

3.1.6 Service

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

3.2 Lawnmower safety warnings

• Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
  ■ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
  ■ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
  Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
• Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
• Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
• Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
  ■ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.

■ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
- Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
- Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
- Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
- When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.
■ Always allow the product to cool down before storing.
■ Empty the grassbox before storing.
■ When adjusting the machine, make sure not to pinch your fingers between the moving blades and fixed parts of the machine.

3.3 Vibration load

Vibration total values and noise emission values

The declared vibration total values and noise emission values have been measured according to a standardised test method and can be used to compare one power tool with another.
The declared vibration total values and noise emission values can also be used for an initial assessment of the exposure.
■ The vibration total values and noise emission values may differ from the given value during

actual use of the power tool, depending on how the power tool is used.

Adhere the safety measures according to the safety chapter. Try to keep the vibration load as low as possible. Exemplary measures to reduce vibration are the wearing of gloves when using the tool and the limitation of working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and those in which it is switched on but runs without load).

Danger due to vibration

The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:

Is the appliance being used as intended?
Is the material being cut or processed in the proper manner?
Is the appliance in a proper condition of use?
Is the cutting tool properly sharpened or is the correct cutting tool installed?
Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?

■ Only operate the tool at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibrations.
The noise and vibrations of the tool may increase due to improper use and maintenance. This leads to health damage. In this case, immediately switch off the tool and have it repaired by an authorised service workshop.
The degree of stress due to vibration depends on the work to be performed or on the use of the tool. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.
■ Extensive use of the tool exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular strength, changes in the colour or condition

of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.

Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discoloration of the skin on your hands when using the tool, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the tool according to the instructions in the operating instructions.
If the tool is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the tool at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.

3.4 Noise pollution

A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.

3.5 Safety notes for rechargeable battery and charger

■ Remove the batteries from the appliance before charging.
- Do not use different battery types or new and used batteries together in the appliance.
■ Install the batteries in the appliance with the correct polarity.
■ Remove the batteries from the appliance before putting it into storage for an extended period.
- Do not short-circuit the terminals of the appliance or battery.

Operating instructions

Please observe the safety instructions for the battery and charger in the separate operating instructions:

■ Operating instructions 443130: Batteries
■ Operating instructions 443131: Chargers

4 ASSEMBLY

WARNING! Danger if assembly is not carried out completely! Use of an incompletely assembled appliance can result in serious injury.

• Operate the appliance only when it is fully assembled!
• Do not insert the battery into the appliance until it is fully assembled!

4.1 Assembling the cordless mulching mower (03)

Connecting the upper brace to the lower brace

1. Push (03/a) upper brace (03/1) into lower brace (03/2).
2. Align the braces with one another so that the cam (03/3) in the lower brace engages in the locking hole (03/4) in the upper brace.

Installing the lower brace on the cordless mulching mower

1. Align the coupling (03/5) of the lower brace and the coupling counterpart (03/6) so that they fit into each other.
2. Push coupling (03/5) of the lower brace and coupling counterpart (03/6) completely into one another (03/b).
3. Push locking sleeve (03/7) onto the coupling counterpart and screw finger-tight (03/c).

5 START-UP

NOTE Inspect the appliance for damage every day before starting work, if it is dropped or is subjected to other impacts. Have any damage repaired before putting the appliance into operation.

5.1 Charging the rechargeable battery

Charge the battery as described in the separate operating instructions:

■ Operating instructions 443130: Batteries
■ Operating instructions 443131: Chargers

5.2 Inserting and removing the battery (04)

IMPORTANT! Danger of damage to the rechargeable battery. If the rechargeable battery is left in the appliance after use, it may damage the rechargeable battery.

• Immediately after use, pull the rechargeable battery out of the appliance and store in a frost-protected area.
  ■ Only insert the rechargeable battery in the appliance immediately before starting work.

Inserting the battery

1. Push the battery (04/1) into the battery slot (04/2) until it engages (04/a).

Removing the battery

1. Press and hold the unlocking button (04/3) on the battery.

2. Pulling out the battery (04/b).

6 OPERATION

WARNING! Danger if assembly is not carried out completely! Use of an incompletely assembled appliance can result in serious injury.

• Operate the appliance only when it is fully assembled!
• Do not insert the battery into the appliance until it is fully assembled!

6.1 Setting the cutting height (08)

CAUTION! Danger of lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Only adjust the cutting height when the motor is switched off and the mower mechanism is stationary.

The cutting height can be adjusted in 3 steps between 30 and 50 mm. This allows the cutting height to be adjusted as required for the work.

1. Adjusting the cutting height adjustment wheel (08/1):

For short lawns, turn the cutting height adjustment wheel (08/1) to minimum level 1: approx. 30 mm (08/a).
For longer lawns, turn the cutting height adjustment wheel (08/1) to maximum level 3: approx. 50 mm (08/b).

6.2 Mowing with the cordless mulching mower (06, 07)

NOTE Align the handlebar in a straight line with the appliance so that the locking slider can be pushed into the upper position.

The locking slider (06/1, 07/1) can be used to lock and unlock the swivel joint on the cordless mulching mower.

If the locking slider is pushed up or down (06/a, 07/a), it remains in this position.

Mowing in straight lines (06)

If the locking slider (06/1) is in the upper position, the swivel joint is locked.

■ The handlebar can be moved in one direction (06/b):
■ Vertical movement: 0^ - 100^
■ The cordless mulching mower can be steered in a straight line.

Flexible mowing (06, 07)

If the locking slider (06/1) is in the lower position, the swivel joint is unlocked.
■ The handlebar can be moved flexibly in all directions (06/b, 07/b):

■ Vertical movement: 0^ - 100^

Horizontal movement: approx. 45^ to the left and right

The cordless mulching mower can be steered in curves.

6.3 Switching the machine ON and OFF (09)

Switching on the machine

NOTE The machine can only be operated in working position.

1. Move the handlebar to working position (see chapter 6.6 "Working positions (05)", page 31).
2. Press release buttons (09/1) (09/a).
3. Press ON/OFF switch (09/2) (09/b) and release the release buttons.

Switching off the machine

1. Release the ON/OFF switch.

6.4 Checking the battery charge status (10)

The battery charge status indicator (10/1) consists of 4 LEDs (10/2). The LEDs have a steady green light and go out one after the other as the battery charge level decreases.

LED Battery charge status

4 LEDs are lit. Battery fully charged.

3 LEDs are lit. Battery 75% charged.

2 LEDs are lit. Battery 50% charged.

1 LED is lit. Battery 25% charged.

6.5 Wall bracket (11)

The cordless mulching mower can be hung up on a vertical surface – e.g. wall or board – using the hanging hole (11/1) in the handle.

6.6 Working positions (05)

Park position (approx. 70° - 100°)

WARNING! Injuries caused by the handlebar falling over. In the event of a collision with the handlebar (especially with the battery inserted) in the park position, it can fall over and cause serious injuries.

• Do not leave the appliance standing unattended.
  ■ Position the appliance so that the handlebar cannot injure anyone if it falls over (e.g. against a wall).

The cordless mulching mower cannot be switched on when the handlebar is in the park position (05/1).

Working range (approx. 10° - 70°)

NOTE The appliance switches off if the handlebar is moved outside the working range.

The cordless mulching mower can only be switched on and operated when the handlebar is in the working range (05/2).

Transport position / storage position (approx. 0^ - 10^ )

NOTE If the appliance is lifted by the handle during operation, it is automatically switched off.

The cordless mulching mower can be carried or transported by the handle and stored hanging up. The appliance cannot be switched on in the transport position / storage position (05/3).

7 WORK INSTRUCTIONS

Observe the safety instructions!

i NOTE Comply with the local regulations as to when a lawnmower may be operated.

• Watch out for objects in the grass and remove them from the working area.
  ■ Only mow when visibility is good.
  ■ Only mow with a sharp cutting blade.
  ■ Only control the appliance by the handlebar.
  ■ Only move the appliance at walking speed.
  ■ Always move the appliance across the slope. Do not mow up or down the slope, or on slopes with a gradient of more than 10^ . Exercise particular care when changing direction.

Cutting performance and operating times of the batteries

The cutting performance or the area that can be mown depends on the properties of the grass. Factors such as the length of the grass, the grass density, the selected cutting height and wet grass affect the cutting performance.
■ Optimum operating time is achieved by frequent mowing and keeping the grass short.
■ Frequently switching the lawnmower on and off during the mowing process reduces the cutting performance as do non-fully charged batteries.
To optimise cutting performance, it is recommended to mow the grass often, to set a high cutting height and to move the appliance at walking speed.

NOTE Additional batteries can be purchased to prolong the operating time.

Tips for mowing

• Maintain a constant cutting height of 3–5 cm; do not mow the grass to less than half its original height.
• Do not overload the lawnmower! If the motor speed drops noticeably because of long, thick grass, increase the cutting height and mow in several passes.
  Wind and sun can dry out the lawn after mowing so it is better to mow in the late afternoon.

8 MAINTENANCE AND CARE

WARNING! Danger of cuts and lacerations. Danger of cuts and lacerations when reaching into sharp-edged, moving appliance parts and into cutting tools.

■ Before maintenance, care and cleaning work, always switch off the appliance. Remove the rechargeable battery.
■ Always wear protective gloves during maintenance, care and cleaning work.

8.1 Regular maintenance work

■ Make sure that all nuts, bolts and screws are tightened and the trailer is in a safe working condition.
- Inspect the appliance and mower mechanism at regular intervals for proper function and wear.

8.2 Cleaning the appliance and mower mechanism (12)

IMPORTANT! Danger from water. Water in the appliance causes short-circuits and destroys electrical components.

■ Do not spray the appliance with water.
■ Only use a broom or a brush for cleaning.

1. Switch off the appliance.
2. Pull out the battery.
3. Tilt the appliance to one side and clean mower mechanism (12/1) using the scraper (12/2).

8.3 Checking and renewing the cutting blade

WARNING! Severe injuries due to blade parts being flung out. A worn, cracked or damaged cutting blade can break, and its parts can become dangerous projectiles.

■ Regularly check the cutting blade for damage.
- Do not use the lawnmower if the cutting blade is worn or damaged.
- Have blunt or damaged cutting blades sharpened or replaced only by one of the manufacturer's service centres or an authorised specialist company.
■ To avoid vibrations, the cutting blade and blade bolt must always be replaced together.

■ Resharpened cutting blades must be balanced. Unbalanced cutting blades cause strong vibrations and damage the appliance.

8.4 Repair work

WARNING! Risk of injury during repair work. Improper repairs can lead to serious injuries and damage to the appliance.

■ Have repair work performed by the manufacturer's service centres and authorised specialist companies only!

In the following cases, contact one of the manufacturer's service centres:

■ Motor no longer starts.
■ Appliance has run onto an obstacle.
■ Cutting blade and/or motor shaft are bent.
■ Appliance vibrates and does not run smoothly.
■ Battery has leaked or is damaged.

9 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

■ Always wear protective gloves during maintenance, care and cleaning work!

NOTE For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service.

Malfunction Cause Remedy
Motor does not start.	Power supply is switched off. Switch on the power supply.
	Battery missing or not seated correctly.	Install the battery correctly.
	Battery is flat. Charge the battery.
	Cutting blade is blocked.	■ Free the blade of obstructions.■ Start the appliance on short grass.
	Switches are defective. Do not operate the appliance! Contact one of the manufacturer's service centres.
Engine loses power.	Battery is flat. Charge the battery.
	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
Motor stops during mowing.	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
Malfunction Cause Remedy
	Motor is overloaded. Switch off the appliance, set down on level ground or shorter grass and restart.
Battery operating time drops significantly.	Cutting height is too low. Increase the cutting height.
	Grass is too long or too wet. Improve the conditions: Let it dry, set a higher cut
	Mowing speed is too high.■ Reduce the mowing speed■ Clean the housing; the cutting blade must rotate freely.
	The service life of the battery has expired. Replace the battery. Use only genuine accessories from the manufacturer.
Battery cannot be charged.	Battery contacts are soiled. Clean the battery contacts with a non-metallic object and spray with a contact spray.Caution: Do not short-circuit the battery contacts with a metallic object!
	Battery or charger is defective. Order replacement parts from the manufacturer.
	Battery is too hot. Allow the battery to cool down.

10 TRANSPORTING THE BATTERY

Perform the following measures before transporting the appliance:

1. Switch off the appliance.
2. Remove the battery from the appliance.
3. Pack the battery properly (see below).

i NOTE The following transport instructions apply only to a battery with more than 100 Wh nominal energy.

The Li ion battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:

The battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.
■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification.

In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law! In the case of non-compli-

ance, severe penalties can be imposed on the sender and possibly the transporter.

Additional notes on transport and shipment

■ Only transport or ship the Li ion battery in an undamaged condition!
■ Use only the original cardboard box or a suitable hazardous goods cardboard box for transporting the battery (not required for batteries with a nominal energy less than 100 Wh).
■ Apply adhesive tape over exposed battery contacts to avoid the risk of a short circuit.
- Secure the battery against shifting in the packaging to avoid damage to the battery.
■ Ensure the correct marking and documentation of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).
- Check in advance that transport with the selected service provider is possible and indicate the shipment.

We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations.

11 STORAGE

Thoroughly clean the appliance after each use and – if present – attach all covers. Store the appliance in a dry, lockable place out of the reach of children.

11.1 Storing the appliance

CAUTION! Risk of injury during storage.

There is a risk of injury from sharp parts on the stored appliance.

■ Store the appliance out of the reach of children and unauthorised persons.
■ Store the appliance only when the batteries have been removed.

1. Switch off the appliance.
2. Set the cutting height to the highest level.
3. Pull out the battery.
4. Thoroughly clean the appliance.
5. Hang up the appliance (see chapter 6.5 "Wall bracket (11)", page 30).
6. Store the appliance in a dry, clean location protected from frost. Cover with a breathable tarpaulin to protect against dust. Do not use plastic film in order to avoid the accumulation of moisture.

11.2 Storing the rechargeable battery and charging unit

NOTE For detailed information, heed the separate operating instructions for the rechargeable battery and for the charging unit.

12 DISPOSAL

Information on the German Electrical and Electronic Equipment Act

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately!

■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.

The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.

Electrical and electronic appliances can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) if dealers are obliged to take them back or offer this voluntarily.

These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

Information on the German Battery Act (BattG)

■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.

For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. Return is limited to the handover of customary household quantities.

Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.

The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish.

In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:

■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead

Rechargeable batteries and batteries can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)

These statements apply only to rechargeable batteries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.

13 AFTER-SALES/SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at: www.alko-garden.com/service-contacts

Further information on spare parts can be found at:

www.alko-garden.com/spareparts

14 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

15 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box xxxxxx(x) on the spare parts card

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

2 PRODUCTOMSCHRIJVING

10 ACCU'S TRANSPORTEREN

8 VEDLIKEHOLD OG PLEIE

Introduceti accumulatorul

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone]

[e-mail] | www.alko-garden.uk
