USER MANUAL BPPAC7000FW BLUEPALM

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

HERZLICHEN GLÜCKWUNSCH! VIELEN DANK, DASS SIE SICH FÜR EIN PRODUKT VON BLUEPALM ENTSCHIEDEN HABEN.

Technical diagram of a server rack with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical device with a coiled spring and internal grid structure (no text or symbols)

BLUEPALM

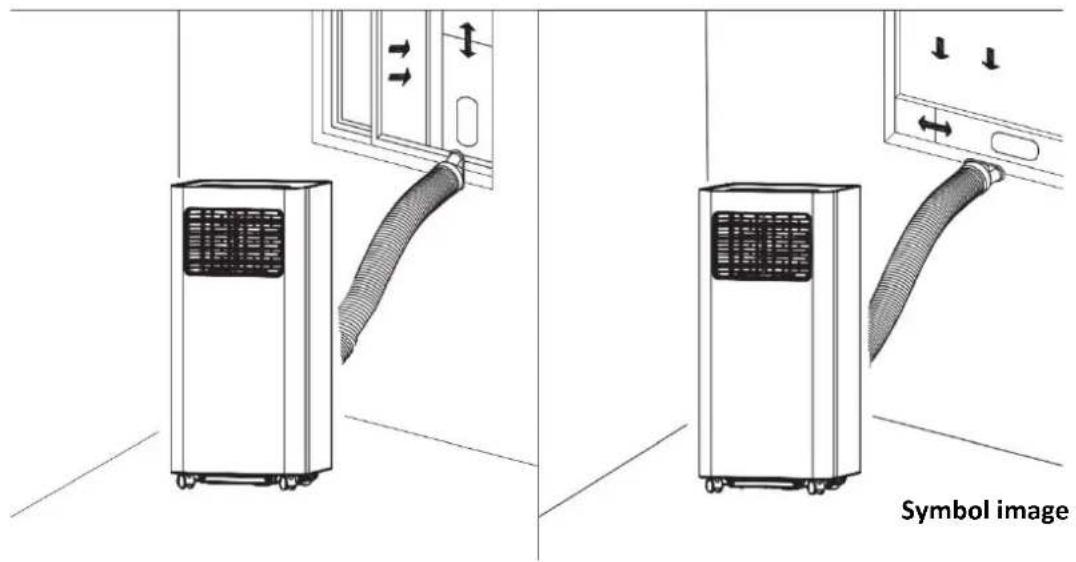

Pure diagram of a door with double-headed arrows indicating vertical motion, no text or symbols present

Abb. 3

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram of a computer interface showing a rack-mounted device with a cable inserted, labeled with number 2 (no text or symbols on the diagram itself)

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Registrierung

09:17 我的家... Learn abeu DIY homep Add Device Create Scene Add Quick Toggle Card Scan All Devices Edit Add Device Turn on Bluetooth Bluetooth enables your device more accessible Add Manually Electrical Air Conditioning Lighting Sensor Air Conditioner (BLCD+V-FT) Air Conditioner (W-*) Air Conditioner (Zyber) Large Home Appliances Next 09:17 Reset the device Press and hold the RESET button for 5 seconds until the indicator while (subject to the user manual) Select the status of the indicator light or hear the beep: Blink Slowy Blink Quickly 09:21 Connect your mobile phone to the device's hotspot Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX “添利” Wants to Join WLAN Network "SmartLife-E769"? Cancel Join Go to Connect 10:12 Add Device Emergency added successfully by PortaspIt Air Conditioner(... Add successfully) Done

BLUEPALM

my Device Cable Antifunction All Devices Shortcase center Wireless Setup Wireless Air Drive Main Data Modics Start Air Bag Firelight Bluetooth SendUp Wireless Send Data Modics AI Devices Fly NOTA Cable Antifunction All Devices Devices to be added: 1 Air Conditioner Add Enter Wi-Fi Information Choose Wi-Fi and enter password Xiaomi 12 Pro 1234567890 Next

Add Device Air Conditioner Disuggested Add Device Air Conditioner Air Conditioner Air Conditioner Done 30°C Good Good $1.6% Cash Notification All Devices Air Conditioner

works with the Google Assistant

BLUEPALM

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

FÉLICITATIONS!

MERCI D'AVOIR CHOISI UN PRODUIT BLUEPALM.

BLUEPALM

FR

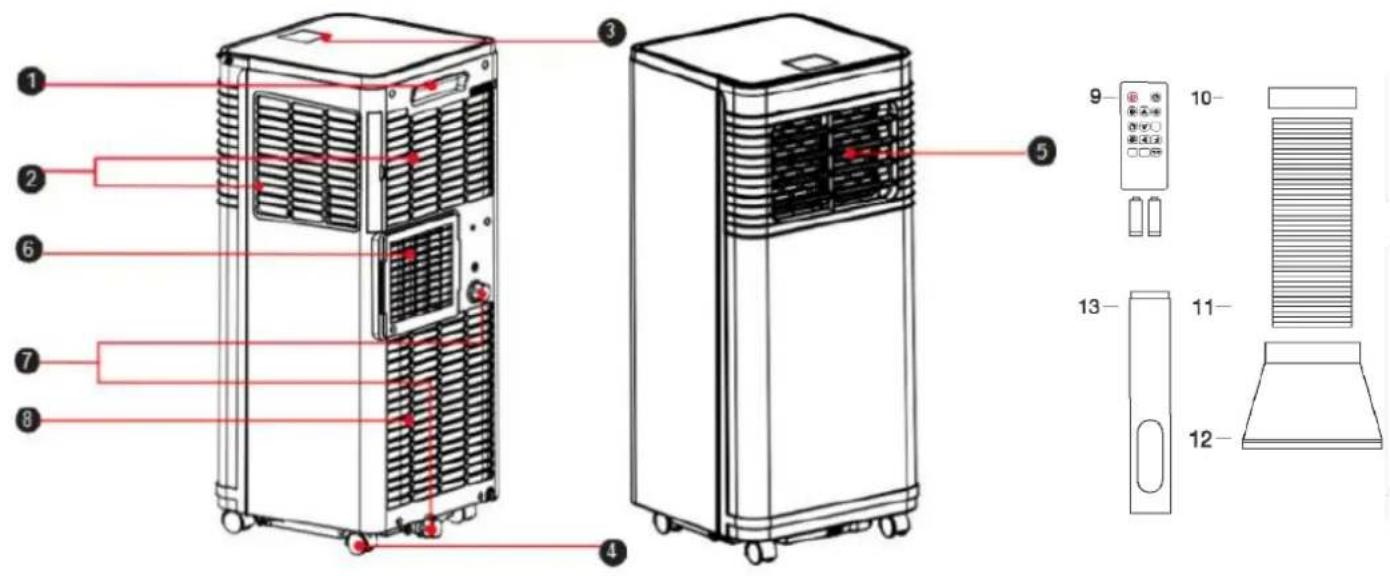

Technical diagram of a dual-chamber air conditioner unit with numbered components and labeled parts

Diagram of a device casing with battery and battery plastic components, showing internal structure and assembly (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical device with a threaded bolt attached to its side, showing internal grid structure (no text or symbols)

BLUEPALM

Pure electrical circuit lines without any symbols

Fig. 3

Diagram showing two views of a small air conditioner unit with attached hose, labeled 'Image du' (no text or symbols on the devices themselves)

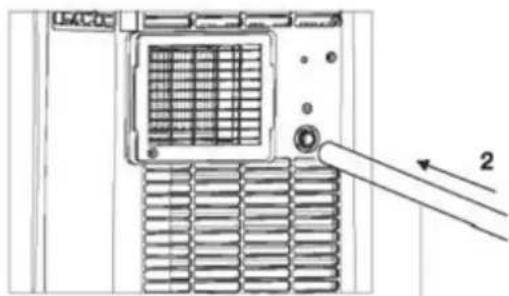

Remarque :

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a spring and grid pattern, no text or symbols present

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Inscription

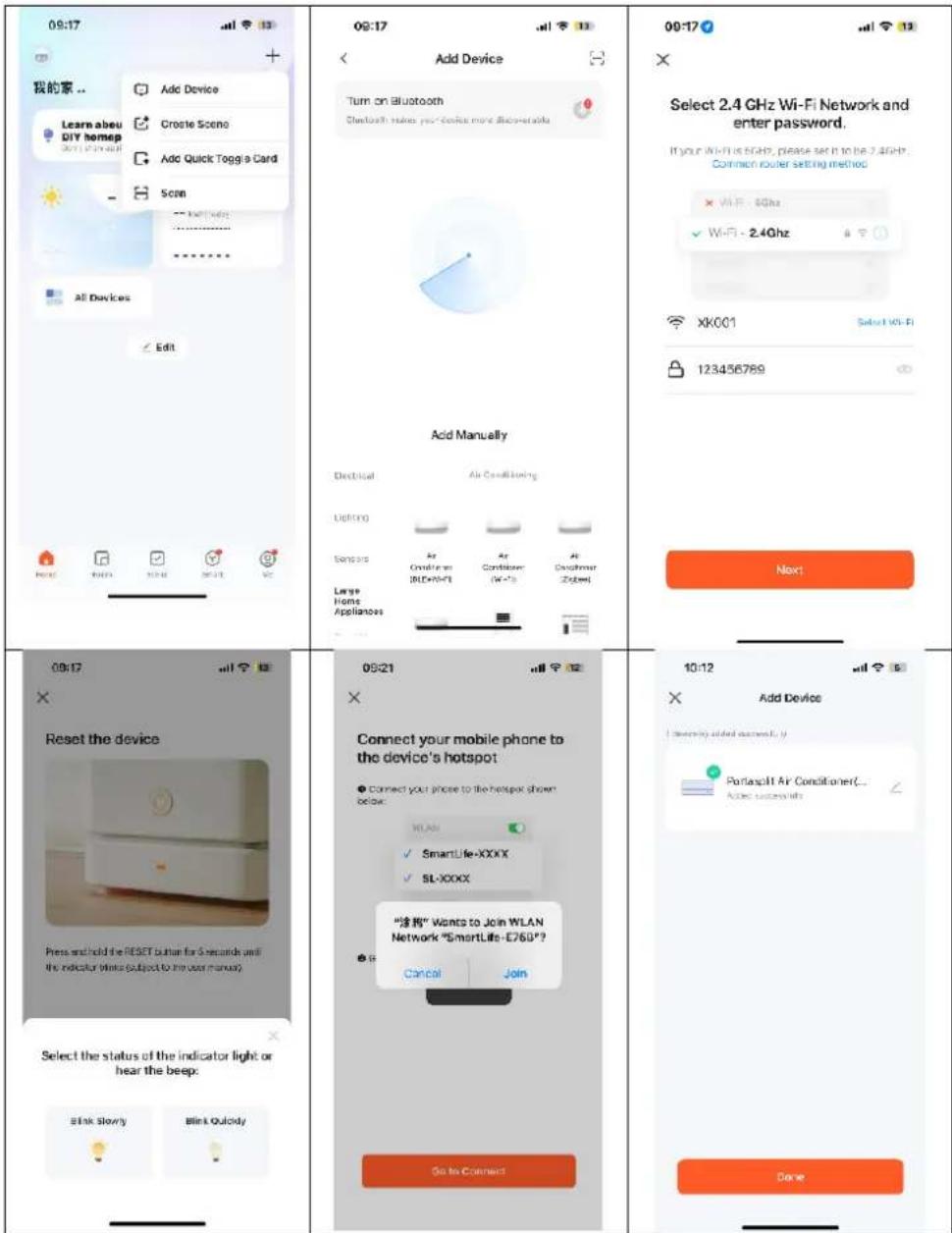

09:17 Add Device Turn on Bluetooth Bluetooth makes your device more discoverable Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method Wi-Fi - 5GHz Wi-Fi - 2.4GHz XK001 Select Wi-Fi 123456789 Add Manually Electrical Air Conditioning Lighting Sensors Air Condenser Air Condenser Large Home Appliance Next 09:17 Reset the device Connect your mobile phone to the device's hotspot Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX "涂鸦" Wants to Join WLAN Network "SmartLife-E760"? Cancel Join Go to Connect 10:12 Add Device Discovering added successful by Portaspilt Air Conditioner(... Actions successfully Done

BLUEPALM

my Device > Cable Authentication AI Devices Shortcat center 智能支持 Settings Smart My Drive Music Smart Light Blue Bluetooth Air Conditioner Add AI Devices Device to be added: 1 Air Conditioner Enter Wi-Fi Information Choose Wi-Fi and enter password Xiaomi 12 Pro 1234567890 Add Next

Add Device Air Conditioner Disaggregated Add Device Air Conditioner Air Conditioner Done 30°C Good Good 81.6% Cash Notification All Devices Air Conditioner

works with the Google Assistant

BLUEPALM

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

CONGRATULAZIONI!
GRAZIE PER AVER SCELTO UN PRODOTTO BLUEPALM.

BLUEPALM

Warning symbols and illustrations including no hand, warning triangle, flame, and open book

Technical diagram of a server rack with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical device with threaded shaft and internal grid structure (no text or symbols)

BLUEPALM

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Fig. 3

Technical line drawing of a server rack with ventilation grilles and a connector (no text or symbols)

Diagram of a device panel with a grid and coiled spring, showing a cable inserted into the panel (no text or symbols present)

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Registrazione

09:17 Add Device Turn on Bluetooth Bluetooth notes you device more accessible. Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please send it to the 2.4GHz Common router setting method X-R - 5GHz Wi-Fi - 2.4GHz XK001 Select Wi-Fi 123456789 Add Manually Electrical Air Conditioning Lighting Service Air Conditioner (BLCD+V6-V1) Air Conditioner (W-*) Air Conditioner (Zybeel) Large Home Appliances Next 09:17 all ?? Reset the device Press and hold the RESET button for 5 seconds until the indicator white subject to the user memory Select the status of the indicator light or hear the beep: Stink Slowy Stink Quicky 09:21 all ?? Connect your mobile phone to the device's hotspot Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX "添利" Wants to Join WLAN Network "SmartLife-E760"? Cancel Join Go to Connect 10:12 all ?? Add Device Community aided security by: Parlasoli Air Conditioner(... Alics successfully Done

BLUEPALM

my Device > Cable Authentication AI Devices Shortcat center 智能支持 Settings Smart My Drive Music Smart Light Blue Bluetooth Air Conditioner Add AI Devices Device to be added: 1 Air Conditioner Enter Wi-Fi Information Choose Wi-Fi and enter password Xiaomi 12 Pro 1234567890 Add Next

Add Device Air Conditioner Disaggregated Add Device Air Conditioner Air Conditioner Done 30°C Good Good 81.6% Cash Notification All Devices Air Conditioner

works with the Google Assistant

BLUEPALM

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

GEFELICITEERD! BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BLUEPALM.

BLUEPALM

Technical diagram of a server rack with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical device with coiled spring and housing (no text or symbols)

BLUEPALM

Pure electrical circuit lines without any symbols

Fig. 3

Airconditioning installeren

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram of a computer interface with a ventilation grille and cable, showing no text or symbols

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Registratie

09:17 Add Device Turn on Bluetooth Bluetooth makes your device more discoverable Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method Wi-Fi - 5GHz Wi-Fi - 2.4GHz XK001 Select Wi-Fi 123456789 Add Manually Electrical Air Conditioning Lighting Sensors Air Condenser Air Condenser Large Home Appliance Next 09:17 Reset the device Connect your mobile phone to the device's hotspot Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX "涂鸦" Wants to Join WLAN Network "SmartLife-E760"? Cancel Join Go to Connect 10:12 Add Device Discovering added successful by Portaspilt Air Conditioner(... Actions successfully Done

BLUEPALM

my Device Cable Antifunction All Devices Shortcase center Wireless Setup Wireless Air Drive Main Data Modics Start Air Bag Firelight Bluetooth SendUp Wireless Send Data Modics AI Devices Fly NOTA Cable Antifunction All Devices Devices to be added: 1 Air Conditioner Add Enter Wi-Fi Information Choose Wi-Fi and enter password Xiaomi 12 Pro 1234567890 Next

Add Device Air Conditioner Disuggested Add Device Air Conditioner Air Conditioner Air Conditioner Done 30°C Good Good $1.6% Cash Notification All Devices Air Conditioner

WORKS WITH amazon alexa works with the Google Assistant

BLUEPALM

Technische gegevens WiFi
Draadloze technologie:	Wifi (WLAN)
Radiofrequentie	2412 MHz-2472 MHz
BLE-frequentie	2402 MHz-2480 MHz
Modulatietype	802.11b: DSSS802.11g: OFDM802.11n (20 MHz): OFDM
Vaste frequentie-software	SecureCRT.exe
Antenneversterking	2,5 dBi
Antennetype	PCB
Zendvermogen	:520dBm

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

GRATULERAR! TACK FÖR ATT DU VALDE EN PRODUKT FRÅN BLUEPALM.

BLUEPALM

SE

Technical diagram of a dual-chamber air conditioner unit with numbered components and labeled parts

Technical line drawing of a mechanical device with a threaded component and internal grid structure (no text or symbols)

BLUEPALM

Pure electrical circuit lines without any symbols

Bild 3

Installera luftkonditioneringsenhet

Technical line drawing of a mechanical component with internal grid and mounting features (no text or symbols)

Diagram of a computer ventilation system with a coiled heater and ventilation unit, showing a cable inserted into the socket (no text or labels)

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Registrering

09:17 Add Device Turn on Bluetooth Bluetooth enables you device more accessible. Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to the 2.4GHz Common router setting method X All-Fi - 5GHz Wi-Fi - 2.4GHz XK001 Select Wi-Fi 123456789 Add Manually Electrical Air Conditioning Lighting Sens318 Air Condenser (BLCD+V6-7) Air Condenser (W-7) Air Condenser (Zyzed) Large Home Appliances Next 09:17 all ? Reset the device Press and hold the RESET button for 5 seconds until the indicator white (subject to ring your memory). Select the status of the indicator light or hear the beep: Blink Slowy Blink Quickly 09/21 all ? Connect your mobile phone to the device's hotspot! Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX "途狗" Wants to Join WLAN Network "SmartLife-E769"? Cancel Join Go to Connect 10:12 all ? Add Device I currently added connections by: Portless!! Air Conditioner... Adds successfully Done

BLUEPALM

My Computer Catal Automation Air Devices Vertical center Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless (1) Wireless (2) Wireless (3) Wireless (4) Wireless (5) Wireless (6) Wireless (7) Wireless (8) Wireless (9) Wireless (10) Wireless (11) Wireless (12) Wireless (13) Wireless (14) Wireless (15) Wireless (16) Wireless (17) Wireless (18) Wireless (19) Wireless (20) Wireless (21) Wireless (22) Wireless (23) Wireless (24) Wireless (25) Wireless (26) Wireless (27) Wireless (28) Wireless (29) Wireless (30) Wireless (31) Wireless (32) Wireless (33) Wireless (34) Wireless (35) Wireless (36) Wireless (37) Wireless (38) Wireless (39) Wireless (40) Wireless (41) Wireless (42) Wireless (43) Wireless (44) Wireless (45) Wireless (46) Wireless (47) Wireless (48) Wireless (49) Wireless (50) Wireless (51) Wireless (52) Wireless (53) Wireless (54) Wireless (55) Wireless (56) Wireless (57) Wireless (58) Wireless (59) Wireless (60) Wireless (61) Wireless (62) Wireless (63) Wireless (64) Wireless (65) Wireless (66) Wireless (67) Wireless (68) Wireless (69) Wireless (70) Wireless (71) Wireless (72) Wireless (73) Wireless (74) Wireless (75) Wireless (76) Wireless (77) Wireless (78) Wireless (79) Wireless (80) Wireless (81) Wireless (82) Wireless (83) Wireless (84) Wireless (85) Wireless (86) Wireless (87) Wireless (88) Wireless (89) Wireless (90) Wireless (91) Wireless (92) Wireless (93) Wireless (94) Wireless (95) Wireless (96) Wireless (97) Wireless (98) Wireless (99) Wireless (100) Device to be added: 1 Air Conditioner Add Enter Wi-Fi Information Choose Wi-Fi and enter password: Xiaomi 12 Pro 1234567890 Next

Add Device Air Conditioner Doing selected Done Add Device Air Conditioner Added successfully Done 30°C Good Gaze 8.0% Daily Notification All Devices Air Conditioner

WORKS WITH amazon alexa works with the Google Assistant

BLUEPALM

Tekniska data WiFi
Trådlös teknik:	Wifi (WLAN)
Radiofrekvens	2412 MHz–2472 MHz
BLE-driftfrekvens	2402 MHz–2480 MHz
Modulationstyp	802.11b: DSSS802.11g: OFDM802.11n (20 MHz): OFDM
Fastfrekvensprogramvara	SecureCRT.exe
Antennförstärkning	2,5 dBi
Antenn	PCB
Överföringseffekt	:520 dBm

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BLUEPALM.

BLUEPALM

CZ

Technical diagram of a refrigerant air conditioner unit with numbered components and labeled parts

Technical line drawing of a mechanical device with a coiled spring and internal grid structure (no text or symbols)

BLUEPALM

Technical line drawing of a mechanical component with grid pattern and bolted joint (no text or symbols)

Technical diagram showing a device with labeled component '2' and internal grid structure

QR code with a blue house icon in the center, likely linking to a digital service or website.

Scan QR code

Registrace

09:17 Add Device Turn on Bluetooth Bluetooth makes your device more discoverable 09:17 Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is HIGH, please set it to be 2.4GHz. Common router setting method × Wi-Fi - 5GHz ✓ Wi-Fi - 2.4GHz XK001 Select Wi-Fi 123456789 Acid Manually Electrical Air Conditioning Lighting Sensor Air Condenser BILO+W-Fi Air Condenser W-Fi Deutliner Zobert Large Home Appliances Next 09:17 Reset the device Connect your mobile phone to the device's hotspot Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX “涂鸦” Wants to Join WLAN Network "SmartLife-E750"? Cancel Join Select the status of the indicator light or hear the beep: Blink Slowy Blink Quickly Go to Connect 10:12 Add Device I device added successfully... Portless Air Conditioner... Adds successfully Done

BLUEPALM

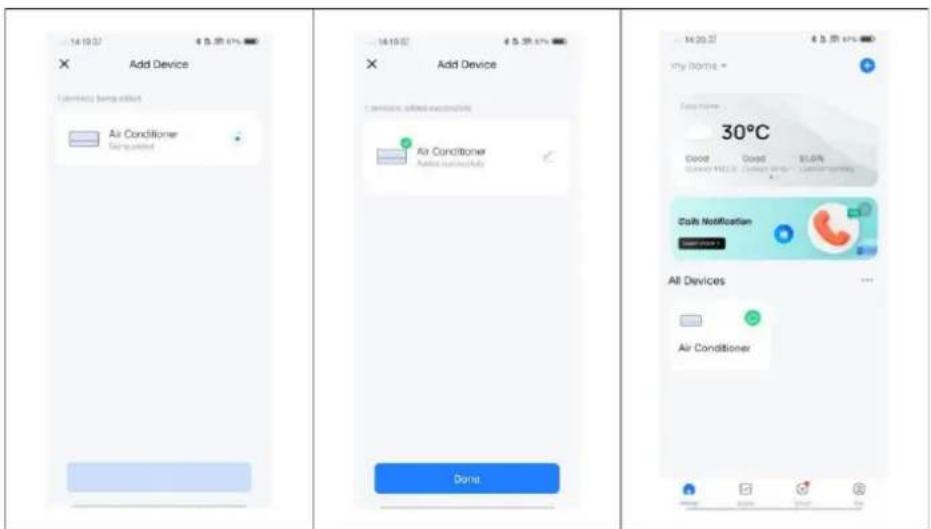

Add Device Air Conditioner Done Add Device Air Conditioner Done Done 30°C Good Good 8.0% Calls Notification All Devices Air Conditioner

Aplikace funguje také s Amazon Alexa a Google Assistant.

WORKS WITH amazon alexa works with the Google Assistant

BLUEPALM

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

GRATULUJEME!

ĐAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BLUEPALM.

BLUEPALM

SK

Technical diagram of a dual-chamber air conditioner unit with numbered components and labeled parts

Technical line drawing of a mechanical device with a coiled spring and housing (no text or symbols)

BLUEPALM

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Obr. 3

Technical line drawing of a mechanical component with internal grid and mounting features (no text or symbols)

Technical diagram showing a device with a labeled component '2' pointing to a panel or socket.

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Registrácia

09:17 Add Device Turn on Bluetooth Bluetooth makes your device more disaccurable Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method × Wi-Fi - 5GHz ✓ Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz 09:17 Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method × Wi-Fi - 5GHz ✓ Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi - 5GHz × Wi-Fi - 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi - 5GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz × Wi-Fi = 2.4GHz × Wi-Fi = 5GHz

BLUEPALM

Automatické pridanie zariadenia

My Computer Catal Automation Air Devices Vertical center Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless Wireless (1) Wireless (2) Wireless (3) Wireless (4) Wireless (5) Wireless (6) Wireless (7) Wireless (8) Wireless (9) Wireless (10) Wireless (11) Wireless (12) Wireless (13) Wireless (14) Wireless (15) Wireless (16) Wireless (17) Wireless (18) Wireless (19) Wireless (20) Wireless (21) Wireless (22) Wireless (23) Wireless (24) Wireless (25) Wireless (26) Wireless (27) Wireless (28) Wireless (29) Wireless (30) Wireless (31) Wireless (32) Wireless (33) Wireless (34) Wireless (35) Wireless (36) Wireless (37) Wireless (38) Wireless (39) Wireless (40) Wireless (41) Wireless (42) Wireless (43) Wireless (44) Wireless (45) Wireless (46) Wireless (47) Wireless (48) Wireless (49) Wireless (50) Wireless (51) Wireless (52) Wireless (53) Wireless (54) Wireless (55) Wireless (56) Wireless (57) Wireless (58) Wireless (59) Wireless (60) Wireless (61) Wireless (62) Wireless (63) Wireless (64) Wireless (65) Wireless (66) Wireless (67) Wireless (68) Wireless (69) Wireless (70) Wireless (71) Wireless (72) Wireless (73) Wireless (74) Wireless (75) Wireless (76) Wireless (77) Wireless (78) Wireless (79) Wireless (80) Wireless (81) Wireless (82) Wireless (83) Wireless (84) Wireless (85) Wireless (86) Wireless (87) Wireless (88) Wireless (89) Wireless (90) Wireless (91) Wireless (92) Wireless (93) Wireless (94) Wireless (95) Wireless (96) Wireless (97) Wireless (98) Wireless (99) Wireless (100) Device to be added: 1 Air Conditioner Add Enter Wi-Fi Information Choose Wi-Fi and enter password: Xiaomi 12 Pro 1234567890 Next

Add Device Air Conditioner Doing selected Done Add Device Air Conditioner Added successfully Done 30°C Good Gaze 8.0% Daily Notification All Devices Air Conditioner

Aplikácia funguje aj s Amazon Alexa a Google Assistant.

WORKS WITH amazon alexa works with the Google Assistant

BLUEPALM

Technické údaje WiFi
Bezdrótová technológia:	Wifi (WLAN)
Frekvencia rádiového prevádzky	2412 MHz – 2472 MHz
Pracovná frekvencia BLE	2402 MHz – 2480 MHz
Typ modulácie	802.11b: DSSS802.11g: OFDM802.11n (20 MHz): OFDM
Softvér s pevnou frekvenciou	SecureCRT.exe
Zosilnenie antény	2,5 dBi
Typ antény	PCB
Prenosový výkon	:520 dBm

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

FELICITĂRI! VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS BLUEPALM.

BLUEPALM

Warning symbols and illustrations including no hand, warning triangle, flame, and open book

Technical diagram of a dual-chamber air conditioner unit with numbered components and labeled parts

Technical line drawing of a mechanical device with coiled spring and front-mounted unit (no text or symbols)

BLUEPALM

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Fig. 3

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical diagram of a device with labeled component '2' and internal grid structure

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Înregistrare

09:17 Add Device Turn on Bluetooth Bluetooth makes your device more discoverable Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method Wi-Fi - 5GHz Wi-Fi - 2.4GHz XK001 Select Wi-Fi 123456789 Add Manually Electrical Air Conditioning Lighting Sensors Air Condenser Air Condenser Large Home Appliance Next 09:17 Reset the device Connect your mobile phone to the device's hotspot Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX "涂鸦" Wants to Join WLAN Network "SmartLife-E760"? Cancel Join Go to Connect 10:12 Add Device Discovering added successful by Portaspilt Air Conditioner(... Actions successfully Done

BLUEPALM

my Device > Cable Antifunction AI Devices Shorter center 常规主页 Settings Biomass Air Drive Music Smart Home Air Quality Lightweight Bluetooth Speed-Up Wireless Audio Data Horizon AI Devices AI NOTA > Cable Antifunction AI Devices Devices to be added: 1 Air Conditioner Add Enter Wi-Fi Information Choose Wi-Fi and enter password Xiaomi 12 Pro 1234567890 Add

Add Device Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Conditione Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Condition e Air Conditione

WORKS WITH amazon alexa works with the Google Assistant

BLUEPALM

Line drawing of a portable air conditioner unit with cooling fans and wheels (no text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BLUEPALM.

BLUEPALM

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.schuss-home.at/downloads or scan the QR code shown. Follow the instructions on the website.

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR INVALIDATE THE WARRANTY!

IMPORTANT SAFETY INFORMATION, LOCATION AND TO THE ELECTRICAL CONNECTION.

1. Please read all instructions carefully before using the appliance.
2. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
3. This appliance is intended exclusively for the air conditioning of living spaces in households and must not be used for any other purpose.
4. The appliance is not suitable for continuous and precision operation and should not be used for cooling electrical systems (e.g. in server rooms).
5. It is forbidden to adapt or modify the characteristics of this appliance in any way and only use spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).
6. For any repairs to the appliance, mains plug or cable, always and only contact customer service centres authorised by the manufacturer. You can find the customer service centres online at https://schuss-home.at/.

BLUEPALM

1. Remove the packaging and ensure that the air conditioner is not damaged. If in doubt, do not use the air conditioner and contact the service centre or your dealer.
2. Keep children away from packaging material. Choking hazard if swallowed!
3. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks.
4. The appliance must be installed in accordance with local installation and operating regulations for electrical systems.
5. The electrical socket into which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed. If in doubt, have your electrical installation checked by a qualified electrician.
6. Before connecting to the mains, you must check that the type of current and mains voltage correspond to the information on the appliance rating plate on the back.
7. Avoid using an extension cable, as this could overheat and cause a fire.

8. Do not twist or kink the mains cable.

9. This appliance may only be used by adults.

10. Children under the age of 8 and persons with reduced physical, mental, sensory or intellectual capabilities or lack of experience and knowledge may only use this appliance if they have been given supervision and instruction concerning use of the appliance in a safe way and if the hazards involved have been clearly explained.
11. Do not allow children to play with the packaging and make sure that children do not play with the appliance.
12. Do not use the air conditioner outdoors.
13. Do not use the appliance with wet hands.
14. Never operate the appliance in rooms where gas, oil or sulphur are present.
15. Do not place the appliance near heat sources (e.g. next to heating systems and gas boilers) and avoid direct sunlight.

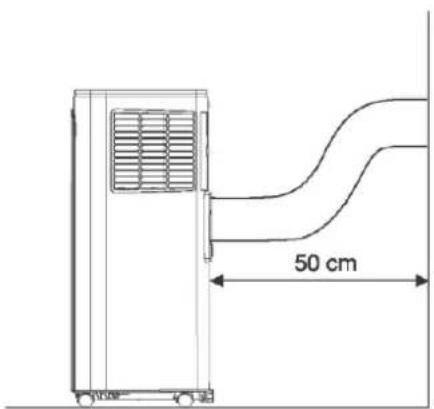

16. Maintain a minimum distance of at least 50 cm from flammable substances (e.g. alcohol, etc.) or pressurised containers (e.g. spray containers).
17. Do not use the air conditioner in the vicinity of water or high humidity, e.g. in a damp cellar, next to a swimming pool, bathtub or shower. Ensure that no water enters the appliance.
18. Do not place any heavy or hot objects on the appliance and never cover the appliance.
19. Never insert fingers, pens or other objects into the appliance and ensure that the air inlet and outlet are never blocked.
20. Always switch off the appliance before disconnecting the mains plug.
21. Do not pull on the mains cable to disconnect the appliance from the mains. Always pull on the plug to disconnect the mains cable. Do not touch the plug with wet hands to avoid electric shocks.

BLUEPALM

1. Unplug the appliance when not in use, before cleaning, maintenance or moving from one place to another.
2. If the appliance is faulty, switch it off using the on/off button on the control panel and contact the customer hotline.
3. Keep the air conditioner in good condition by maintaining and cleaning the appliance.

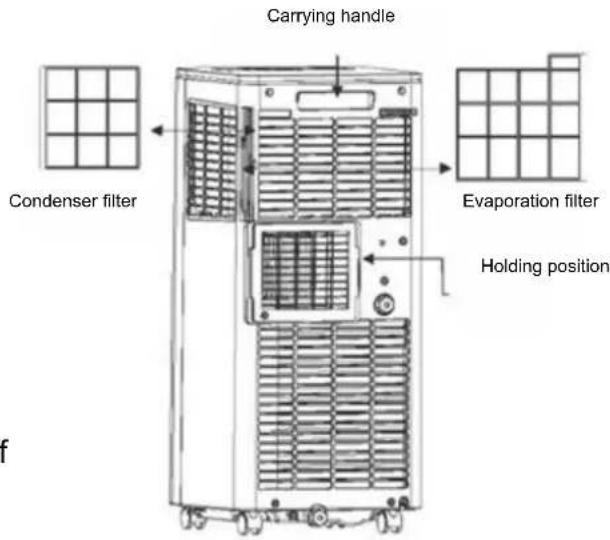

4. The air filter must be cleaned at least once a week.
5. Store the appliance upright in a safe, dry place that is inaccessible to children when it is not in use. Do not cover the appliance with plastic packaging.
6. Store the appliance in a room without any operating ignition sources (e.g. open fire, an operating gas appliance or an electric heater with an open heat source).
7. The air conditioner must be transported in an upright position or slightly on its side. Empty the internal condensation container beforehand. Wait at least one hour after transporting the appliance before switching it on.
8. For any repairs to the appliance, mains plug or cable, always and only contact customer service centres authorised by the manufacturer.
9. Do not use any means to accelerate or eliminate the defrosting process, the appliance will do this automatically.
10. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.

WARNING

The main switch and the On/Off switch should not be used as the sole means of disconnecting the power supply. Always disconnect the mains plug before starting maintenance work or moving the appliance.

To avoid the risk of electric shock, disconnect the plug from the socket when the appliance is not in use and before cleaning.

BLUEPALM

SPECIFIC INFORMATION ON THE REFRIGERANT R290

1. R290 is a refrigerant in accordance with EC environmental regulations.
2. The refrigerant is odourless.
3. The appliance must be installed in a room where there are no sources of ignition during operation (e.g.: open fire, operating gas and electrical appliances with an open heat source)
4. Do not perforate or burn the air conditioner.
5. Ensure that the cooling circuit is not drilled into.
6. Non-ventilated rooms in which the appliance is installed, operated or stored must be constructed in such a way that any refrigerant losses do not accumulate. This prevents the risk of fire or explosion caused by ignition of the refrigerant by electric ovens, cookers or other ignition sources.
7. The device must be stored in such a way that no mechanical damage can occur.
8. Persons working on or intervening in a refrigeration circuit must be in possession of a valid certificate issued by an authorised authority, which certifies their expertise in handling refrigerants by means of an assessment specification recognised by the industry associations.
9. Repairs must be carried out in accordance with the instructions of the appliance manufacturer. Repair and maintenance work that requires the intervention of other specialised personnel must be carried out under the supervision of the specialist responsible for handling flammable refrigerants.

BLUEPALM

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThe "crossed-out wheelie bin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with current legislation on batteries, accumulators and related waste, the crossed-out wheelie bin symbol on the battery indicates that it is forbidden to dispose of used batteries in household waste. Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are complied with and the environment is protected.These symbols can be found on batteries:Li = battery contains lithiumAl = battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BLUEPALM

SCHEMATIC REPRESENTATION

Technical diagram of a dual-chamber air conditioner unit with numbered components and labeled parts

1 Carrying handle
2 Air inlet grille (top)
3 Control panel
4 castors
5 Adjustable ventilation flaps
6 Exhaust air outlet
7 Water drain
8 Air inlet grille

9 2 x AAA batteries + remote control
10 Exhaust air hose adapter
11 Exhaust air hose
12 Window adapter
13 Window track

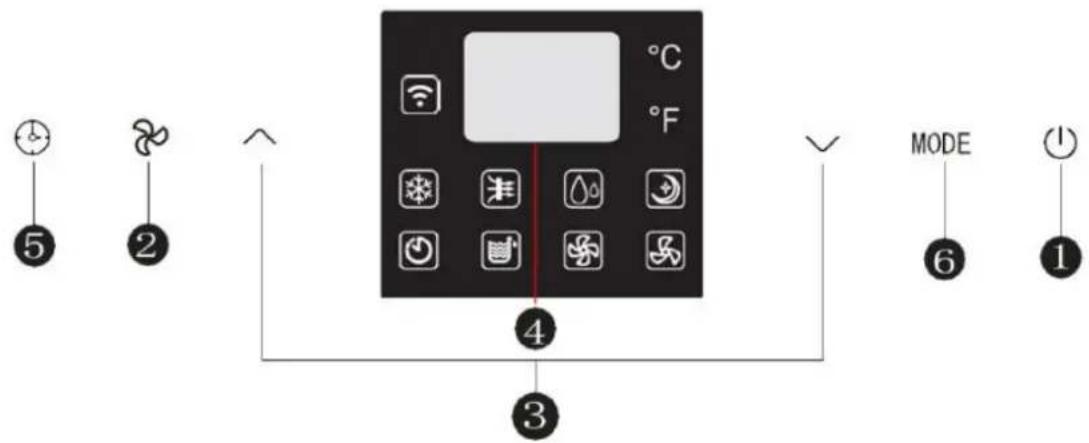

OPERATING FIELD

5 2 4 3 °C °F MODE 6 1

1 On/off button
2 Fan speed

3 Increase/decrease
4 Display

5 Timer button
6 Cooling mode

BLUEPALM

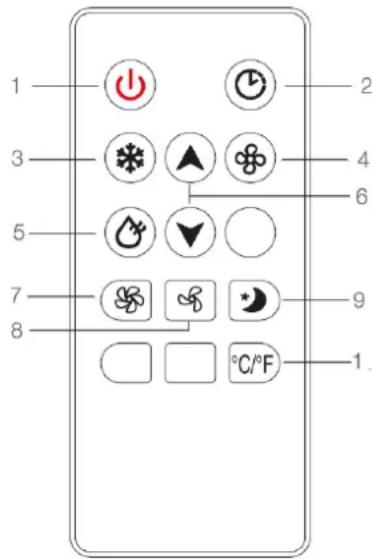

REMOTE CONTROL

1 2 3 4 5 6 7 8 9 °C/°F 1

1 On/off button
2 Timer button
3 Cooling mode
4 Fan mode
5 Dehumidification mode

6 Increase/decrease
7 Increase fan speed
8 Reduce fan speed
9 Sleep mode

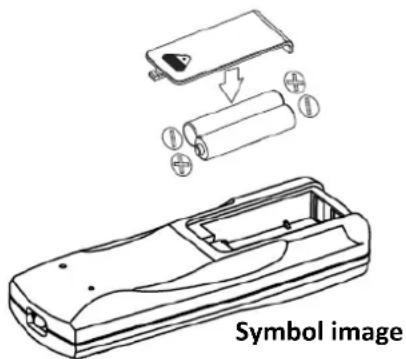

Make sure that the batteries are inserted correctly before using the remote control.

The steps for installation are as follows:

• Slide open the cover on the back of the remote control to open it.
• Insert two new AAA batteries (DC1.5V) and ensure that the poles are correctly aligned.
• Make sure that the batteries are firmly inserted.

Symbol image

INSTALLATION

Observe the following points before and after installation:

• Always keep the appliance in an upright position when transporting it to the desired location.
• Do not place or use the appliance, power cable or accessories in a bathroom or in a damp or wet place.
• Place the appliance on a flat and dry surface.
• Maintain a distance of at least 50 cm from surrounding walls and/or objects.
• Leave the appliance in an upright position for at least two hours before using it for the first time.

BLUEPALM

50 cm

CONNECTING THE EXHAUST HOSE

Your new air conditioner is similar to a refrigerator in many ways, but it distributes the cold air around the room instead of keeping it inside.

Air conditioners use refrigerant gas to cool warm air in the room and distribute the now cooled air using internal fans. They must exhaust the hot air to the outside (usually via a window, a ventilation shaft or a special outlet) using an exhaust air hose.

To connect the exhaust air hose and other accessories, follow the instructions below.

Fitting the exhaust air hose

In this step, you assemble the hose and require:

• Exhaust air hose adapter
- Exhaust air hose
- Window adapter

1. insert the round plug into the short connection of the exhaust air hose.
2. turn the round plug anti-clockwise to lock it at the end of the exhaust air hose.

Technical line drawing of a mechanical device with a threaded component and internal grid structure (no text or symbols)

BLUEPALM

Installing the exhaust air hose

In this step you need:

• Mounted exhaust air hose

• Portable air conditioner

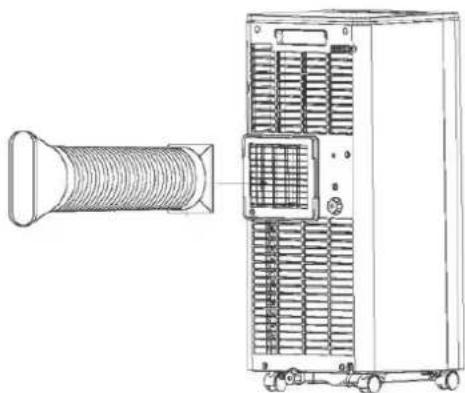

• Attach the exhaust air hose to the outlet on the back of your air conditioner. Make sure that it is firmly attached.

• If the air conditioner is operated in cooling mode, position it near a window or door so that the hose leads outside and the appliance can discharge the warm air from the room.

Fitting the window track

Open the window halfway and attach the window rail to the window frame (see Figures 2 and 3). The installation can be carried out horizontally or vertically.

- Adjust the window track to the size of the window by aligning its ends with the window frame and fixing it in place.

Fig. 2

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Fig. 3

Install air conditioning unit

Place the appliance with the exhaust air hose fitted near the window. Observe the minimum distance of 50 cm between the appliance and neighbouring walls or objects (Fig. 4).

Notes:

• The flat end of the exhaust air hose must be properly engaged.
• The air hose must not be twisted or have large bends (more than 45^ ). Do not place any obstacles near the air inlet or air outlet of the system.

BLUEPALM

- Pull the ends of the exhaust air hose apart and connect the flat end of the connected exhaust air hose to the oval opening on the window rail.

Diagram showing two types of air conditioning units connected by a coiled hose, with directional arrows indicating movement (no text or symbols present)

Remark:

• The exhaust air hose can be extended from 28 cm to 150 cm; its length is designed to fit this product. Do not extend it any further and do not replace it with another hose, as this could negatively affect the function of the air conditioner.
  • Always leave the air outlet free to protect the appliance from overheating.

OPERATION

• On/off switch: Press once to switch the appliance on or off.
• Fan speed button: Press to select between high and low speed.
• Increase and decrease button

Use the increase and decrease buttons to :

1. set the desired temperature in cooling mode.
2. set the desired number of hours for the timer to switch on or off automatically.
3. switch between ^ C and ^ F by pressing both buttons simultaneously.

Mode button:

Press this button to select one of the four modes described below. The corresponding indicator lights up when the mode has been selected.

Note: The temperature can only be set in cooling mode.

BLUEPALM

Cooling mode - Ideal for cooling a room in hot weather.

Use the increase and decrease buttons to set the desired temperature between 16 °C and 30 °C (60 °F and 80 °F). The appliance cools the room when the room temperature is above the set temperature. If the room temperature falls below the set temperature, the cooling mode pauses, but the fan remains active at the set speed.

IMPORTANT: The exhaust air hose must be connected so that the hot air is discharged to the outside. See instructions above.

Fan mode - The appliance operates at the set fan speed and blows air into the room. The room temperature is shown on the digital display.

Note: The exhaust air hose does not need to be connected in this mode.

Dehumidification mode - Ideal for reducing humidity.

The appliance dehumidifies the room when the room temperature is greater than or equal to 17°C (62 °F) and the fan runs at low speed. If the room temperature drops to 15 °C (59 °F) or below, dehumidification stops but the fan remains in operation.

Sleep mode - Activate sleep mode to reduce energy consumption in cooling mode.

To activate, press the sleep button on the remote control or simultaneously press the timer and decrease buttons on the control panel. The display flashes "SL" five times to confirm sleep mode and then shows the set temperature. In sleep mode, the set temperature automatically increases by 1 °C (1 °F) after two hours. After a further two hours, the set temperature automatically increases by a further degree and the fan speed changes to low speed if this is not already set. The appliance continues to run with these settings until it is switched off.

Setting a switch-on timer

1. make sure that the appliance is plugged into a working socket.
2. press the timer button to activate the timer function.
3. use the increase and decrease buttons to set the desired switch-on time (1-24 hours).
4. the time display flashes five times to confirm that a timer has been set and the timer display lights up continuously.
5. select the desired settings before switching on.
6. to check the time remaining before switching on, press the timer button.
7. to deactivate the switch-on timer, set the time to 0 hours or switch the appliance off and on again.

Note: If no settings are selected, the device switches on with the previously set settings.

BLUEPALM

Setting a switch-off timer

1. make sure that the appliance is plugged into a working socket.

2. press the on/off button to switch on the device.

3. press the timer button to activate the timer function.

4. use the increase and decrease buttons to set the desired switch-off time (1-24 hours).

5. the time display flashes five times to confirm that a timer has been set and the timer display lights up continuously.

6. select the desired settings before switching off.

7. to check the time remaining until switch-off, press the timer button.

8. to deactivate the switch-off timer, set the time to 0 hours or switch the appliance off and on again.

EMPTYING THE WATER TANK AND PERMANENT DRAINAGE

Our air conditioner also functions as a dehumidifier and removes moisture from the ambient air. This water is either collected in the water tank (and must be emptied) or can be drained automatically via the permanent drainage hose. For long-term use in humid or warm conditions, we recommend using the permanent drainage hose.

INSTRUCTIONS

When the water tank is full, the warning "FL" appears on the display and the appliance pauses operation to prevent the water tank from overflowing.

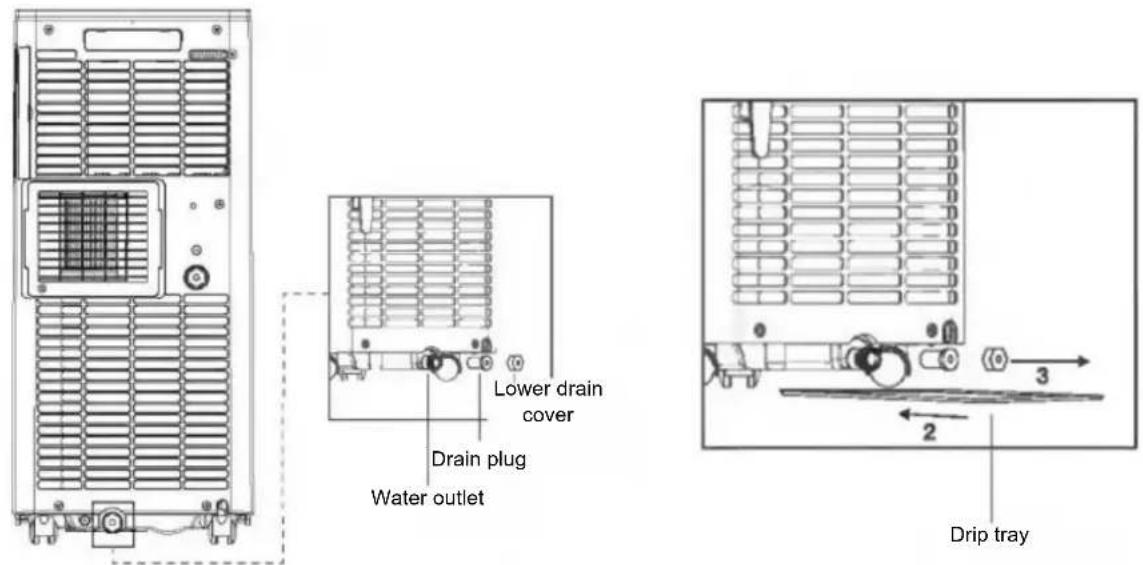

To empty the water tank:

Step 1: Switch off the appliance and disconnect the mains plug from the socket.

Step 2: Disconnect the exhaust air hose and remove it. Place a shallow drip tray under the water outlet.

Step 3: Unscrew the lower drain cover, remove the drain plug and allow the water to drain into the shallow drip tray. The water will start to flow automatically.

Step 4: To empty the water tank completely, carefully tip the appliance onto its rear castors. Do

BLUEPALM

not tilt it more than 30 degrees.

4 30°

Step 5: After emptying, return the appliance to a fully upright position and replace the drain plug and the lower drain cover.

Step 6: Empty the flat drip tray.

Connecting the water hose for permanent drainage

Technical line drawing of a mechanical or electrical component with grid pattern and mounting bracket (no text or symbols)

Diagram of a computer rack with a ventilation grille and a cable inserted, showing no text or symbols.

For long-term use, we recommend connecting a water hose for continuous drainage.

To connect the water hose:

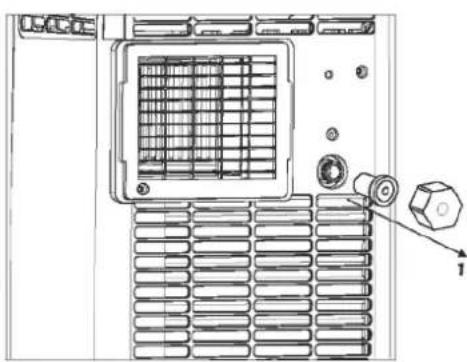

Step 1: Unscrew the permanent drainage cap, remove the drain plug and store it safely.

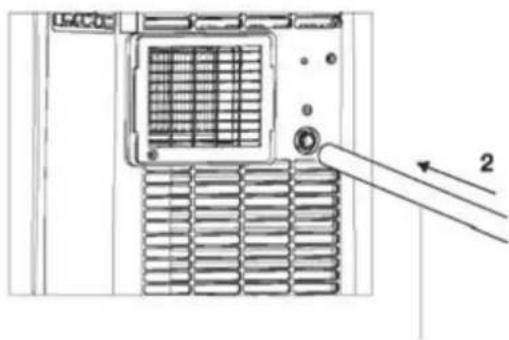

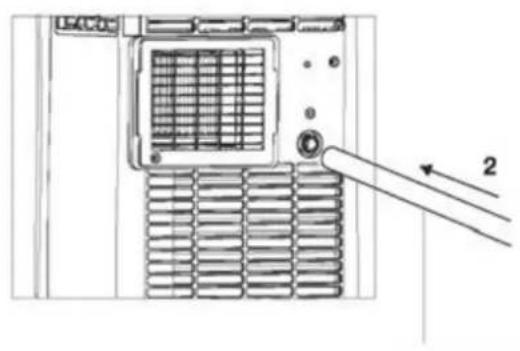

Step 2: Insert the water hose into the water outlet and secure it firmly.
Step 3: Guide the other end of the water hose to a suitable drain (e.g. a drain pipe or bucket).

Note: If the appliance is set to a warm temperature, it is recommended to connect the water hose, as the water tank fills up faster at warm temperatures than at cold temperatures.

BLUEPALM

CLEANING AND MAINTENANCE

Switch off the appliance before cleaning and maintenance work and remove the plug from the socket.

Cleaning

• Wipe the appliance with a slightly damp, soft cloth. Do not use any chemical solvents such as gas, alcohol or similar.
• If the appliance is very dirty, also use a little neutral detergent.

Cleaning the filters

CAUTION: Do not operate the appliance without a filter. Otherwise it will become clogged with fluff and dirt, which will reduce performance. Always insert the filter securely. Clean the appliance's evaporation and condenser filter every fortnight.

Carrying handle Condenser filter Evaporation filter Holding position

For removing and cleaning the evaporation filter:

1. grasp the evaporation filter at the holding position and remove it carefully.
   2 Use a stiff brush or a hoover to remove dust and particles from the filter.
   3 Replace the evaporation filter.

For removing and cleaning the condenser filter:

1. grasp the capacitor filter at the holding position and remove it carefully.
   2 Use a stiff brush or a hoover to remove dust and particles from the filter.
2. replace the capacitor filter.

Cleaning the exhaust air hose

1. remove the exhaust air hose from the rear of the appliance and from the corresponding window sealing set. Allow it to cool down.
2. use a soft, dry cloth to remove dust and dirt.
   3 Replace the exhaust air hose.

BLUEPALM

STORAGE

• Unscrew the drain cover and remove the drain plug. Drain all the residual water into a drip tray or swivel the appliance slightly backwards to direct the water into a suitable container.
• Leave the appliance running in FAN mode (ventilate) for half a day in a warm and dry room to prevent mould from forming in the appliance.
• Switch off and unplug the appliance, wrap the power cable around the cable holder and replace the drain plug and cover.
• Dismantle the exhaust air hose and store it.
• Remove the batteries from the remote control.
• Cover the appliance with a plastic film. Store the air conditioner in a clean, dry and dust-free place, out of the reach of children.

Compressor delay protection

To protect the compressor, there is a delay of three minutes between each time the appliance and compressor are switched off and switched on again - except when the appliance and compressor are switched on for the first time using the on/off switch.

SAFETY FUNCTIONS

Anti-freeze protection

If the temperature of the internal lines drops too low, the appliance pauses. The display shows "E4" and the appliance activates the anti-frost protection, which deactivates all buttons on the control panel except the on/off button. As soon as the temperature of the internal lines rises above 8°C (46.4°F) again, the anti-frost protection is deactivated and the appliance returns to the selected settings.

USEFUL INFORMATION

We do everything we can to ensure that our products are easy to install and use. However, should you encounter any problems, here are some troubleshooting tips that may help you solve the problem.

If the problem persists, please contact our customer service team at [e-mail]

BLUEPALM

Problem	Cause	Solution
The device does not work.	No electricity.	Connect the appliance to a working socket and switch it on.
	The appliance pauses when the water tank is full. FL" appears on the display.	Empty the water tank or connect the drain hose as described in the instructions.
	If the TIMER is switched off, the appliance cannot be switched on for 3 minutes.	Wait three minutes and try to switch on the appliance.
	For protection, the appliance pauses when the internal temperature falls below 8°C (46.4°F).	Wait 5 minutes. The appliance activates the safety functions and resumes operation as soon as the temperature has normalised.
	The appliance stops when the target temperature is reached.	Lower the target temperature using the up/down button to reactivate the appliance.
The appliance does not cool effectively.	Doors and windows are open or there are other sources of heat that affect the room temperature.	Close all doors and windows or use seals in accordance with the instructions. Remove all heat sources from the room.
	Warm air enters the room through the exhaust air hose.	Place the appliance near a window or door and make sure that the exhaust air hose leads to the outside and that the window is sealed.
	Filters are clogged.	Clean the filters according to the instructions.
	Air inlet or outlet is blocked.	Check for blockages and clean the inlets or outlets.
The appliance is too loud.	Noises are normal as air conditioning systems circulate refrigerant in the appliance to cool the air. If unusual noises occur, this could be due to an uneven surface.	Ensure that the appliance is placed on a level, safe surface.
Not enough water is collected.	Dehumidifiers draw in air and condense moisture on a cold surface. If the ambient air is too cold, effectiveness is reduced.	For best results, use the dehumidification mode in warm, humid temperatures.
Display shows "E1"	Error of the pipe temperature sensor.	Have a specialist check the pipe temperature sensor and the associated circuits.
Display shows "E2"	Room temperature sensor error.	Have a specialist check the room temperature sensor and the associated circuits.

BLUEPALM

Problem	Cause	Solution
Display shows "E4"	Anti-frost protection.	The appliance returns to the selected settings as soon as the internal temperature of the pipe rises above 8°C (46.4°F).

Smart Home Wi-Fi Connection Guide

IMPORTANT

Please note that only 2.4GHz networks are supported!

Transmission power: max. 100mW

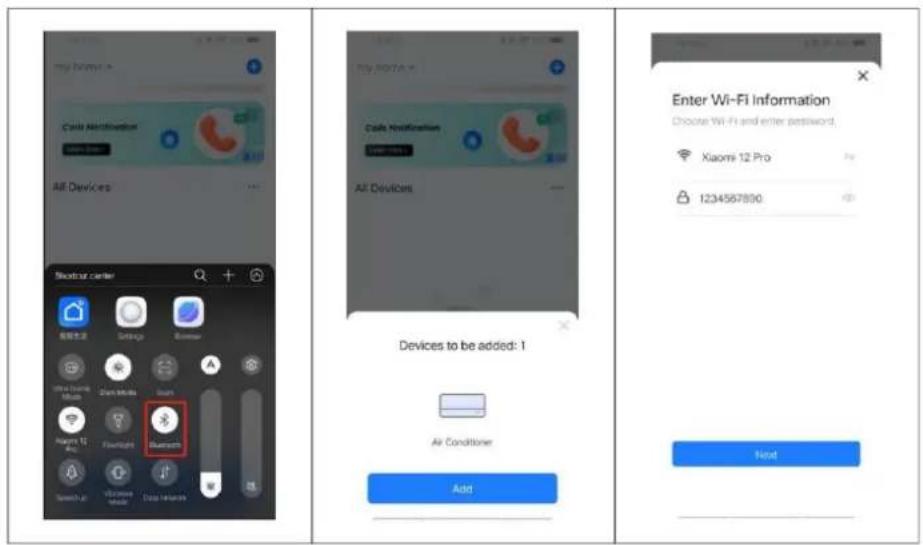

App installation

Download the "Smart life" app from the Play Store (Android) or the App Store (iOS). The following QR code will take you directly to the app download:

QR code with a blue house icon in the center, likely linking to a digital service or application.

Scan QR code

Registration

If you do not yet have a Smart Life account, you can register or log in with a verification code that will be sent to you via SMS.

To register:

• Navigate to the registration area in the app.
• The system will automatically detect your country or region. You also have the option of selecting the country code manually. Enter your mobile phone number or email address and tap "Continue."
• If you choose the mobile phone number option, enter the verification code you received via SMS. Then set a password and tap "Confirm" to complete the registration.

BLUEPALM

Adding a device manually:

• When the air conditioner is in standby mode, press and hold the FAN button on the control panel for 3 seconds to enter Wi-Fi connection mode. The Wi-Fi signal light will start flashing.
• Open the Smart Home app and tap "+" in the upper right corner to add a new device via the network.
• Make sure the operating light is flashing, tap "Confirm" that the light is flashing, and follow the instructions on the screen.
• Select the Wi-Fi network (note: the network must be in the 2.4 GHz band) and enter the password. The device will start the pairing process and connect to the app.
• Once the device has been successfully configured, the air conditioner will be displayed on the Smart Home page. Tap on it to access the device controls.

09:17 我的家... Learn abreu DIT homep Add Device Croat Scene Add Quick Toggle Card Scan All Devices Edit 09:17 Add Device Turn on Bluetooth Bluetooth takes your device more Bluetooth Add Manually Electrical Air Conditioning Defining Sensors Air Conditioner (W-3) Large Home Appliances Add Device Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz. Common router setting method × Wi-Fi - 5Ghz ✓ Wi-Fi - 2.4Ghz XK001 Select Wi-Fi 123456789 Next 09:17 Reset the device Press and hold the RESET button for 6 seconds until the indicator while subject to the user memory Select the status of the indicator light or hear the beep: Blink Slowly Blink Quicky 09:21 Connect your mobile phone to the device's hotspot ● Connect your phone to the hotspot shown below: WLAN ✓ SmartLife-XXXX ✓ SL-XXXX “添利” Wants to Join WLAN Network "SmartLife-E760"? Cancel Join Go to Connect 10:12 Add Device University added successful by: Portasuit Air Conditioner(... Add success with Done

BLUEPALM

Adding a device automatically

■ Make sure the device is in standby mode before connecting.
- Press the "FAN" button for 3 seconds to switch to Wi-Fi connection mode, and the Wi-Fi signal light will start flashing.
■ Activate Bluetooth on your phone.
- Open the app and wait a moment until the device is automatically detected and displayed.
- Click the "Add" button to connect.
- Enter the WiFi SSID (WiFi connection name), enter the WiFi password, and click "Next" to continue with the setup. (Note: The network must be in the 2.4 GHz band.)
- When the progress bar is complete, the device pairing interface will be displayed and the device will be successfully connected.
- Click the "Done" button to go to the device control interface.

my device Cable Antifunction AI/Devices Mockstar center 常规生活 Settings License Wire Band Music Smartphone Bluetooth Air 12 LED Bluetooth Audio Audio Radio Data Horizon Play NOTE Cable Antifunction AI/Devices Devices to be added: 1 Air Conditioner Add Enter Wi-Fi Information Choose Wi-Fi and enter password. Xiaomi 12 Pro 1234567890 Add Next

Add Device Air Conditioner Air Conditioner Air Conditioner Air Conditioner Add Device Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Air Conditioner Done 14:00:27 4.5.39 67% 14:10:57 4.5.39 67% 14:20:27 4.5.39 67% My Home 30°C Good Good 81.6% Cash Notification All Devices Air Conditioner

The application also works with Amazon Alexa and Google Assistant.

WORKS WITH amazon alexa works with the Google Assistant

BLUEPALM

Technical Specifications WiFi
Wireless technology:	WiFi (WLAN)
Radio operating frequency	2412MHz-2472MHz
BLE operating frequency	2402 MHz–2480 MHz
Modulation type	802.11b: DSSS802.11g: OFDM802.11n (20 MHz): OFDM
Fixed frequency software	SecureCRT.exe
Antenna gain	2.5 dBi
Antenna type	PCB
Transmission power	:520dBm

Technical information
Item number	BPPAC7000FW
Cooling capacity	7,000BTU
Max. Power consumption	785W
Input voltage	220-240V~
Frequency	50Hz
WIFI transmission frequency:	2.4 GHz
Transmission power:	max. 100 mW
Refrigerant/charge/GWP	R290/0.120kg/3
Energy efficiency EER	2.6
Energy efficiency class	A
Air circulation	320m3/h
Noise level (sound power)	65dB
Weight	18.5 kg
Dimensions	305 x 678 x 290mm
Contact addresses for further information	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna Tel: [phone] - 0 Service line: [phone] - 502 https://schuss-home.at/ FB-No.: 236974 t / FB-Court: Vienna

BLUEPALM

Information requirements for single duct and double duct air conditionier				P
Information to identify the model(s) to which the information relates to:
Description	Symbol	Value	Unit
Description	P_rated for cooling	2,071	kW
Rated capacity for cooling	P_rated for heating	-	KW
Rated capacity for heating	P_EER	0,790	kW
Rated power input for cooling	P_COP	-	kW
Rated power input for heating	EER_d	2,622	-
Rated Energy efficiency ratio	COP_d	-	-
Information identifying the model(s) to which the information relates:
Description	Symbol	Value	Unit
Power consumption in thermostat-off mode	P_TO	-	W
Power consumption in standby P mode	P_SB	0,87	W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	Q_SD	SD: 0,790 (cooling)	kWh/h
Sound power level	L_WA	65	dB(A)
Global warming potential	GWP	3	kg CO_2 eq.
Contact details for obtaining more information	Schuss Home Electronic GmbH Scheringgasse 31140 Vienna, AustriaTel.: [phone] - 0https://schuss-home.at/

BLUEPALM

WARRANTY

With this quality product from BLUEPALM, you have made a decision in favour of innovation, durability and reliability.

This BLUEPALM appliance is guaranteed for 2 years from the date of purchase in Austria!

If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labour) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In the case of air conditioners, please always contact the customer hotline as a first step (see sticker on the appliance or front page of the operating instructions); in the case of fans, please contact your specialist dealer or us directly. We would like to point out that any repair work not carried out by an authorised workshop in Austria will immediately invalidate this guarantee.

This guarantee does not cover

• Repair or replacement of parts due to normal wear and tear
• Damage due to non-compliance with the operating instructions
• Devices that are used - even partially - for commercial purposes
• Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of aesthetic wear and tear.
• Devices that have been handled improperly
• Devices that have not been opened by our authorised service workshop.
- Damage caused by improperly closed condensation drain valves on air conditioning units or incorrectly inserted water tanks.
- Unfulfilled consumer expectations.
• Damage caused by force majeure, water, lightning, overvoltage.
• Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.
- services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, as well as the associated risks.

We would like to emphasise that within the warranty period, a lump sum of € 60 (indexed based on CPI 2010, June 2015) will be charged in the event of operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or wilful intent. Liability for loss of profit, expected but unrealised savings, consequential damage and damage arising from third-party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy using your BLUEPALM appliance!

ADDRESS

Schuss Home Electronic GmbH

1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over together with the device to the authorised service workshop or the dealer from whom you purchased the device!

BLUEPALM

WICHTIG!

These instructions are only for the BLUEPALM-Service center!

A Service or repairing of the device must only be performed by a qualified technician who is allowed to handle the R290 refrigerant.

Do not attempt to repair or open the case of the air conditioner yourself, this leads to the immediate loss oft he warranty.

INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R290

1 GENERAL INSTRUCTIONS

1.1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

1.2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while the work is being performed.

1.3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

1.4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak section equipment being used is suitable for use with flammable refrigerants, i.e. non sparking, adequately sealed or intrinsically safe.

1.5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO 2 fire extinguisher adjacent to the charging area.

1.6 No ignition sources

BLUEPALM

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including ecigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

1.7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

1.8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

1.9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include: Those capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system; that there is continuity of earth bonding.

2 REPAIRS TO SEALED COMPONENTS

2.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
2.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected.

This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3 REPAIR TO INTRINSICALLY SAFE COMPONENTS

BLUEPALM

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4 CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5 DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6 LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7 REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: remove refrigerant; purge the circuit with inert gas; evacuate; purge again with inert gas; open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

8 CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
  • Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
  • Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak Tested on completion of charging but prior to commissioning. A follow up leak test shall be Carried out prior to leaving the site.

9 DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried

BLUEPALM

out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

1. Become familiar with the equipment and its operation.
2. Isolate system electrically.
3. Before attempting the procedure ensure that :mechanical handling equipment is available, if required, for handling refrigerant cylinders; all personal protective equipment is available and being used correctly; the recovery process is supervised at all times by a competent person; recovery equipment and cylinders conform to the appropriate standards.
4. Pump down refrigerant system, if possible.
5. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
6. Make sure that cylinder is situated on the scales before recovery takes place.
7. Start the recovery machine and operate in accordance with manufacturer's instructions.
8. Do not overfill cylinders. (No more than 80 % volume liquid charge).
9. Do not exceed the maximum working pressure of the cylinder, even temporarily.
10. When the cylinders have been filled correctly and the process completed, make sure 11. that the cylinders and the equipment are removed from site promptly and all isolation
11. valves on the equipment are closed off.
12. Recovered refrigerant shall not be charged into another refrigeration system
13. unless it has been cleaned and checked.

10 LABELLING

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11 RECOVERY

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Competence of service personnel

General

Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected.

In many countries, this training is carried out by national training organizations that are accredited to teach the relevant national competency standards that may be set in legislation. The achieved competence should be documented by a certificate.

BLUEPALM

Training

The training should include the substance of the following:

Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care.

Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters.

Information about the different safety concepts:

Unventilated – (see Clause GG.2) Safety of the appliance does not depend on ventilation of the housing. Switching off the appliance or opening of the housing has no significant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and flammable atmosphere will be released when the enclosure is opened.

Ventilated enclosure – (see Clause GG.4) Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure a sufficient ventilation before.

Ventilated room – (see Clause GG.5) Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety. The ventilation of the room shall not be switched off during repair procedures. Information about the concept of sealed components and sealed enclosures according to IEC 60079-15:2010.

Information about the correct working procedures:

1. Commissioning

o Ensure that the floor area is sufficient for the refrigerant charge or that the ventilation duct is assembled in a correct manner.
o Connect the pipes and carry out a leak test before charging with refrigerant.
o Check safety equipment before putting into service.

2. Maintenance

o Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

o Ensure sufficient ventilation at the repair place.

Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
Discharge capacitors in a way that won't cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks.
o Reassemble sealed enclosures accurately. If seals are worn, replace them.
o Check safety equipment before putting into service.

1. Repair o Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

o Ensure sufficient ventilation at the repair place.
o Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
o Discharge capacitors in a way that won't cause any spark.
When brazing is required, the following procedures shall be carried out in the right order:

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.

• Purge the refrigerant circuit with nitrogen for 5 min.

- Evacuate again.

- Remove parts to be replaced by cutting, not by flame.

• Purge the braze point with nitrogen during the brazing procedure.

- Carry out a leak test before charging with refrigerant.

- Reassemble sealed enclosures accurately. If seals are worn, replace them. ☐ Check safety equipment before putting into service.

1. Decommissioning o If the safety is affected when the equipment is put out of service, the refrigerant charge shall be removed before decommissioning.

o Ensure sufficient ventilation at the equipment location.

o Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

BLUEPALM

o Discharge capacitors in a way that won't cause any spark.
Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.
o Evacuate the refrigerant circuit.
o Purge the refrigerant circuit with nitrogen for 5 min.
o Evacuate again.
o Fill with nitrogen up to atmospheric pressure.
o Put a label on the equipment that the refrigerant is removed.

1. Disposal o Ensure sufficient ventilation at the working place.

Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

o Evacuate the refrigerant circuit.

o Purge the refrigerant circuit with nitrogen for 5 min.

o Evacuate again.

o Cut out the compressor and drain the oil.

Transportation, marking and storage for units that employ flammable refrigerants

Transport of equipment containing flammable refrigerants

Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The maximum number of pieces of equipment or the configuration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

Marking of equipment using signs

Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location.

All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs.

The effectiveness of signs should not be diminished by too many signs being placed together. Any pictograms used should be as simple as possible and contain only essential details.

Disposal of equipment using flammable refrigerants See national regulations.

Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

BLUEPALM

EU-DECLARATION OF CONFORMITY

SCHUSS HOME ELECTRONIC

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Wien, AUSTRIA

Declares, that the product

Manufacturer

Hersteller

is conformity with following directives, norms and/or regulations:

DIRECTIVE 2014/53/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCILof 16 April 2014

on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC EU L 153/62 22.5.2014

Article 3.1(a) Safety:

EN 60335-2-40:2003+A11:2004+A12:2005+A1:2006+A2:2009+A13:2012

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN62233: 2008

Article 3.1(a) Health:

EN 50665:2017, EN 62311:2008

Article 3.1(b) EMC:

EN 301 489-1 V2.2.3

EMC Directive (EMC): 2014/30/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility; Official Journal of the EU L96, 29/03/2014, p. 79–106

Low Voltage Directive (LVD):2014/35/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits; Official Journal of the EU L96, 29/03/2014, p. 357–374

Ökodesign-Richtlinie Energy-Related-Products-Directive (ErP)2009/125/EC;

Official Journal EU L285/10-35 (31.10.2009) and associated regulation 2015/1188

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88–110

Reach SVHC(EC)NO. 1907/2006 Schuss Home Electronic GmbH hereby confirms that in the products we supply, there are no substances of very high concern (SVHC) in the candidate list (last ECHA update from June 14, 2023, 235 substances) above 0.1% in accordance with Article 33 of the REACH Regulation (EC) No .1907/2006 are included.

Place and date of issue:

Vienna, 2025-11-19

SCHUSS HOME ELECTRONIC GMBH 1140 Wirk, Sotzingasse 3 Tel: [phone], Fax: 0222 www.chuss-home.at Bevollmachteter Vertreter des Herstellers

Bevollmächtigter Vertreter des Herstellers Authorized representative of manufacture

Scharl, Alexander

Senior product and purchasing manager i.V.

Name, Funktion / name, function

Unterschrift / signature

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA
