USER MANUAL BCAW2402 Be Cool

QR code image containing encoded data, no visible human-readable text

Current operating instructions and other languages

Download current user manuals in various languages via the link www.becool.at/downloads or scan the displayed QR code. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

BE COOL

Exploded view diagram of a mechanical device with numbered parts for identification

Diagram of a cylindrical device with internal layered structure and labeled terminals (no text or symbols present)

Diagram of a cylindrical device with internal components and a small inset showing a device (no text or symbols present)

Two identical diagrams showing a cylindrical container with a textured top and smaller side elements, no text or symbols present.

Illustration of a cylindrical mechanical component with textured surface and base, no visible text or symbols

BE COOL

Technical illustration of a mechanical roller or pulley system with rotating components (no text or symbols)

Three types of coiled wire or filament structures, shown from different angles (no text or symbols visible)

Black cylindrical device labeled 'BE COOL' with control panel and ventilation grille (no additional text or symbols visible)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL

BE COOL

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT DE COMMENCER LE MONTAGE, L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES CORPORELS ET/OU MATÉRIELS ET/OU LA PERTE DU DROIT À LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, LE POSITIONNEMENT ET LE RACCORDEMENT ÉLECTRIQUE

Exploded view diagram of a mechanical device with numbered parts for identification

Two identical diagrams showing a cylindrical container with layered material, each containing a small object inside (no text or symbols visible)

Technical line drawing of a cylindrical mechanical component with textured surface (no text or symbols)

BE COOL

Technical illustration of a mechanical roller assembly with rotating components (no text or symbols)

Three types of coiled cable or wire structures, shown from different angles (no text or symbols visible)

Instructions

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond branding)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL

BE COOL

LEGGERE ATTENTAMENTE LE ISTRUZIONI PER L'USO PRIMA DI INIZIARE IL MONTAGGIO, L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O INVALIDARE LA GARANZIA!

Exploded view diagram of a mechanical device with numbered parts for identification

Two identical line drawings of a cylindrical device with internal components, no text or symbols present.

Two identical diagrams showing a cylindrical container with a textured top and two smaller circular containers, each containing a small object inside (no text or symbols visible)

Technical line drawing of a mechanical component with textured surfaces and a cylindrical base (no text or symbols)

Technical line drawing of a mechanical roller or pulley assembly with rotating components (no text or symbols)

Three types of coiled wire spools arranged in a row, showing different material surfaces (no text or symbols visible)

Black cylindrical device labeled 'BE COOL' with control panel and ventilation grille (no additional text or symbols visible)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL

BE COOL

LEES DE BEDIENINGSINSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE MONTAGE, INSTALLATIE, BEDIENING OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF HET VERVALLEN VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, PLAATSING EN ELEKTRISCHE AANSLUITING

Exploded diagram of a mechanical device with numbered parts for identification

Two identical line drawings of a cylindrical device with internal components, shown from top and side views (no text or symbols)

Two identical diagrams showing a cylindrical container with layered material, each containing a small object inside (no text or symbols visible)

Technical line drawing of a cylindrical mechanical component with textured surface (no text or symbols)

BE COOL

Technical line drawing of a mechanical gear assembly with rotating shafts and housing (no text or symbols)

Three types of coiled wire spools arranged in a row, showing different material surfaces (no text or symbols visible)

De filterelementen reinigen:

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond branding)

¡ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE

BE COOL

BE COOL

Exploded view diagram of a mechanical device with numbered parts for identification

Two identical line drawings of a cylindrical device with internal components, shown from top and side views (no text or symbols)

Two identical diagrams showing a cylindrical container with layered material, each containing a small object inside (no text or symbols visible)

Technical line drawing of a cylindrical mechanical component with textured surface (no text or symbols)

BE COOL

Technical illustration of a mechanical roller or pulley system with rotating shafts and guide rails (no text or symbols)

Three views of a coiled cable or wire structure, showing different internal patterns and thicknesses (no text or symbols visible)

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond branding)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL

BE COOL

PŘED ZAHÁJENÍM MONTÁŽE, INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE NÁVOD K OBSLUZE. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUKY!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ

Exploded view diagram of a mechanical device with numbered parts for identification

Diagram of a cylindrical device with internal layered structure and labeled points A and B (no text or symbols beyond labels)

Technical line drawing of a cylindrical device with internal components and mounting holes (no text or symbols)

Two identical diagrams showing a textured object inside a cylindrical container, with small figures standing on top (no text or symbols)

Illustration of a cylindrical mechanical component with textured surface and base, no visible text or symbols

Technical line drawing of a mechanical roller or gear assembly with rotating components (no text or symbols)

Three views of a coiled cable or wire structure, showing different internal components (no text or symbols visible)

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond branding)

GRATULUJEME!

ĐAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL

BE COOL

PRED ZAČATÍM MONTÁŽE, INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU PLATNOSTI ZÁRUKY!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ

Exploded diagram of a mechanical device with numbered parts for identification

Diagram of a cylindrical device with internal layered structure and labeled points A and B (no text or symbols beyond labels)

Diagram of a cylindrical container with internal layered structure and three protruding components (no text or symbols)

Two identical diagrams showing a cylindrical container with a textured top and two smaller circular containers, each containing a small object on top (no text or symbols visible)

Illustration of a cylindrical object with textured surface inside a circular base (no text or symbols)

Technical line drawing of a mechanical roller or gear assembly with rotating components (no text or symbols)

Three views of a coiled cable or wire structure, showing different internal components (no text or symbols visible)

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond label)

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS BE COOL

BE COOL

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE INSTRUCTIUNILE DE UTILIZARE ÎNAINTE DE A ÎNCEPE ASAMBLAREA, INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJATI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTĂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU LA INVALIDAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, POZITIONAREA ŞI CONECTAREA ELECTRICĂ

Exploded view diagram of a mechanical device with numbered parts for identification

Diagram of a cylindrical object with layered structure and labeled points A and B (no text or symbols beyond labels)

Diagram of a cylindrical device with internal components and a labeled section (no readable text or symbols)

Two identical diagrams showing a cylindrical container with a textured top and two smaller circular containers, each containing a small object inside (no text or symbols visible)

Illustration of a cylindrical mechanical component with textured surface and base, no visible text or symbols

Technical line drawing of a mechanical gear assembly with rotating components (no text or symbols)

Three types of coiled wire spools arranged in a row, showing different material surfaces (no text or symbols visible)

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond branding)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL

BE COOL

PRZED ROZPOCZĘCIEM MONTAŻU, INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH, PRZESTRZEGAJĄC INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SPOWODOWAĆ OBRAŻENIA CIAŁA I/LUB USZKODZENIE MIENIA I/LUB UNIEWAŻNIENIE GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, POZYCJONOWANIA I POŁĄCZEŃ ELEKTRYCZNYCH

Exploded diagram of a mechanical device with numbered parts for identification

Diagram of a cylindrical object with layered structure and labeled points A and B (no text or symbols beyond labels)

Diagram of a cylindrical container with internal layered structure and small protrusions (no text or symbols)

Two identical diagrams showing a cylindrical container with a textured top and two smaller circular containers, each containing a small object on top (no text or symbols visible)

Technical line drawing of a cylindrical mechanical component with textured surface (no text or symbols)

Technical illustration of a mechanical roller or pulley system with rotating components (no text or symbols)

Three types of coiled metal wire or filament structures, shown from different angles (no text or symbols visible)

Black cylindrical air fryer device with 'BE COOL' branding and control panel (no visible text beyond branding)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL

BE COOL

PRED ZAČETKOM MONTAŽE, NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE NAVODILA ZA UPORABO. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI RAZVELJAVITEV GARANCIJE!

POMEMBNE INFORMACIJE O VARNOSTI, NAMESTITVI IN ELEKTRIČNEM PRIKLJUČKU

Exploded view diagram of a mechanical device with numbered parts for identification

Diagram of a cylindrical object with layered structure and two protruding pins, enclosed in an oval boundary (no text or symbols)

Diagram of a cylindrical device with internal components and wiring, no visible text or symbols

Two identical diagrams showing a cylindrical container with a textured top and two smaller circular containers, each containing a small object on top (no text or symbols visible)

Technical line drawing of a mechanical component with textured surface and cylindrical base (no text or symbols)

Technical illustration of a mechanical gear assembly with rotating components (no text or symbols)

Demontaža filtra: Če vaš model to omogoča, previdno ločite posamezne elemente filtra. Tako boste lažje temeljito očistili vsako plast.

Three cylindrical mechanical components with internal threading, shown from different angles (no text or symbols visible)

Black cylindrical air fryer device with 'BE COOL' branding and control panel (no visible text beyond branding)

UVJETI ČESTITAMO!

PUNO ZAHVALJUJUĆI, DA ONA SEBE ZA A PROIZVOD IZ BE COOL

BE COOL

MOLIMO VAS, PAŽLJIVO PROČITAJTE UPUTE ZA KORISNIKE PRIJE POČETKA SASTAVLJANJA, INSTALACIJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, POSTAVLJANJU I ELEKTRIČNOM POVEZIVANJU

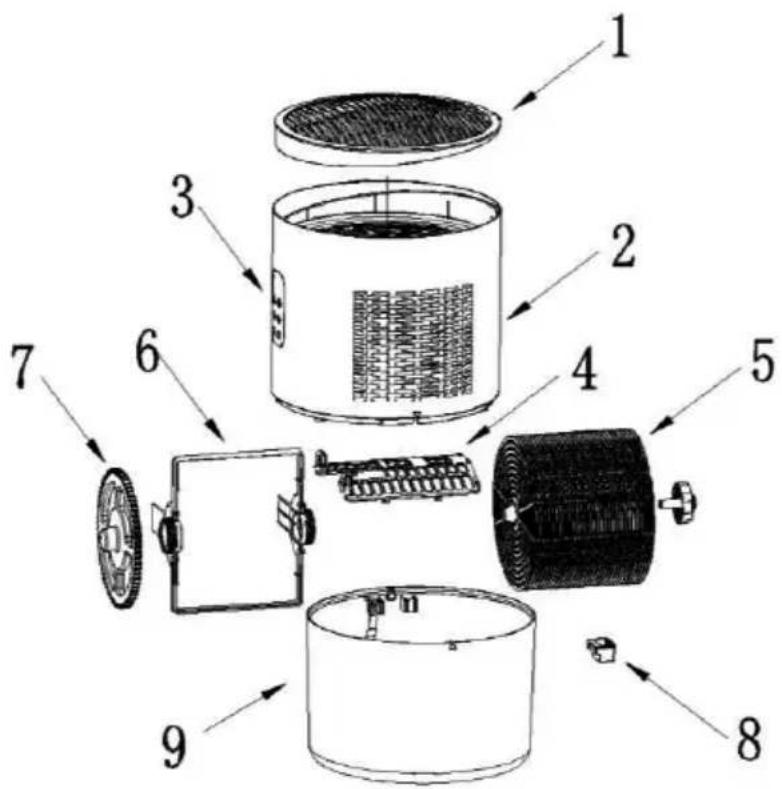

Exploded view diagram of a mechanical device with numbered parts for identification

1. Gornji poklopac
2. Poklopac kućišta
3. Upravljačka ploča
4. Pokrivač tla

5. Filtri

6. Držač filtera

7. Poklopac filtra
8. Aroma posuda
9. Spremnik za vodu

BE COOL

Montaža

Montaža i rad BE COOL perača zraka je brz i jednostavan:

1. Instalacija

• Izvadite perač zraka iz pakiranja i uklonite sav materijal pakiranja.
• Provjerite ima li na uređaju mogućih oštećenja.
• Odmotajte kabel za napajanje i provjerite je li oštećen.
• Postavite ovlaživač zraka na stabilnu, ravnu površinu otpornu na toplinu tako da se ne može prevnuti.
• Sada umetnite utikač u odgovarajuću utičnicu.

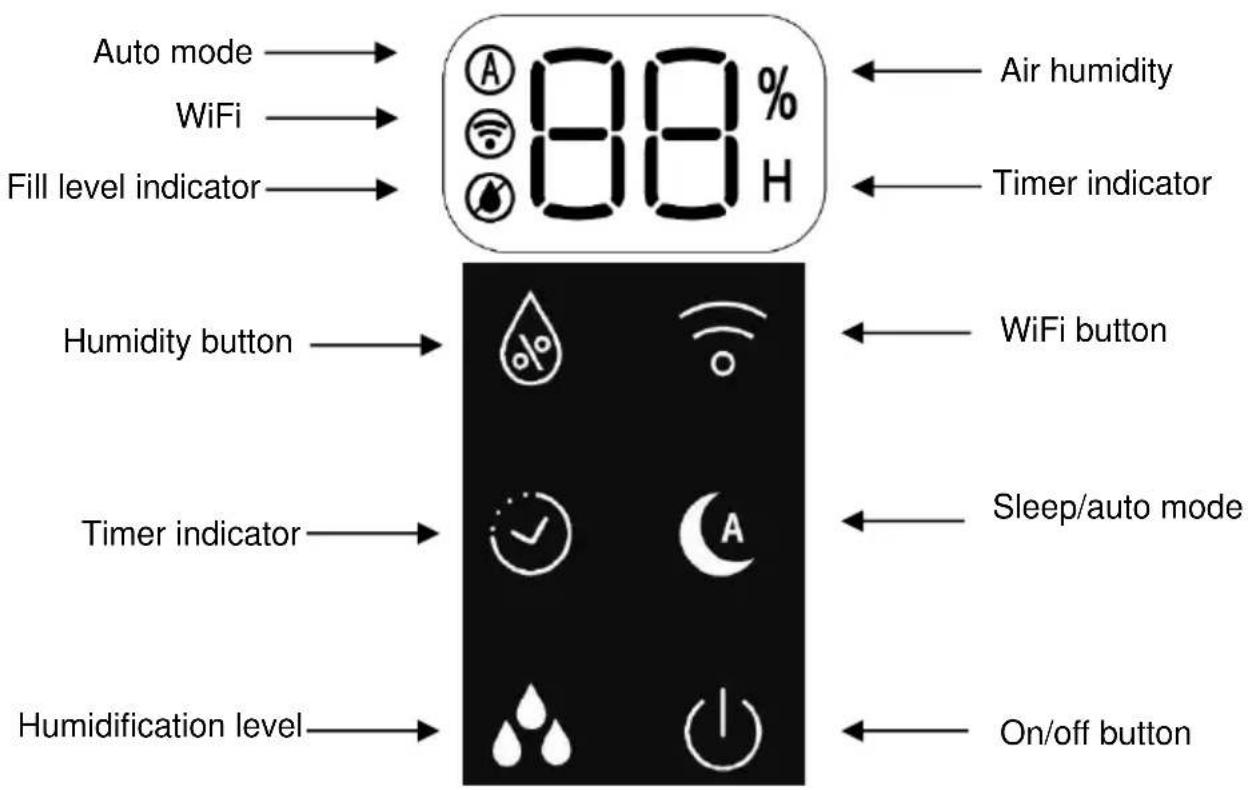

Funkcionalni opis

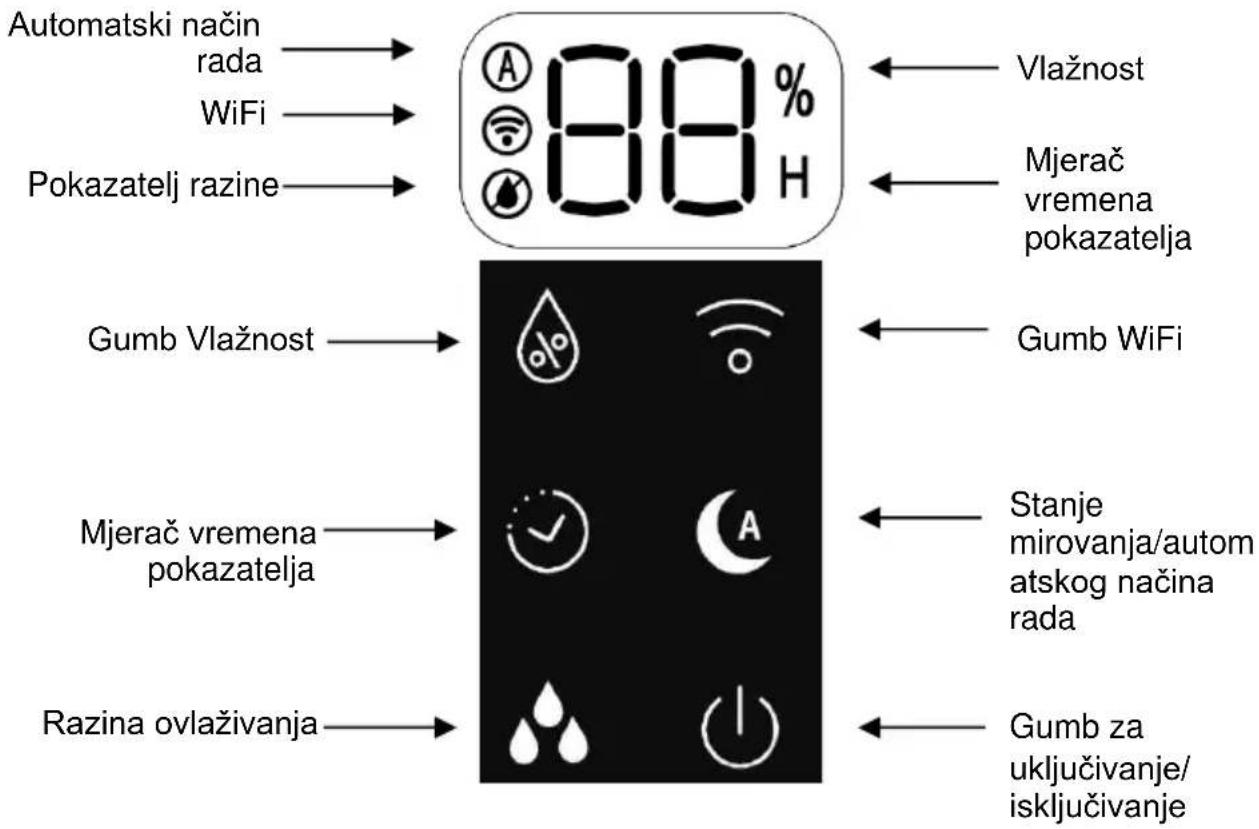

Automatski način rada WiFi Pokazatelj razine 88% Vlažnost Mjerač vremena pokazatelja Gumb Vlažnost Gumb WiFi Mjerač vremena pokazatelja Razina ovlaživanja Stanje mirovanja/autom atskog načina rada Gumb za uključivanje/ isključivanje

BE COOL

Two technical line drawings of a cylindrical device with internal components, shown from different angles (no text or symbols)

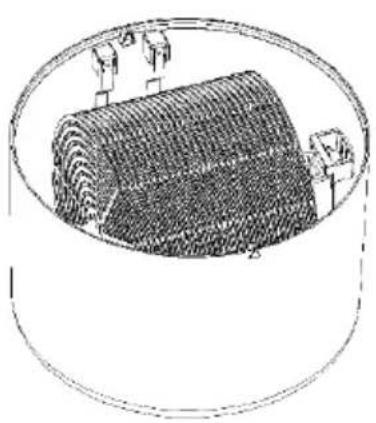

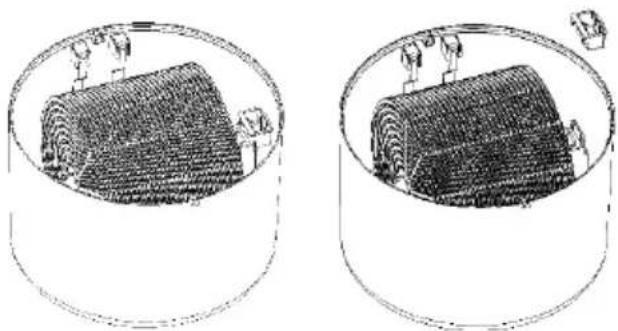

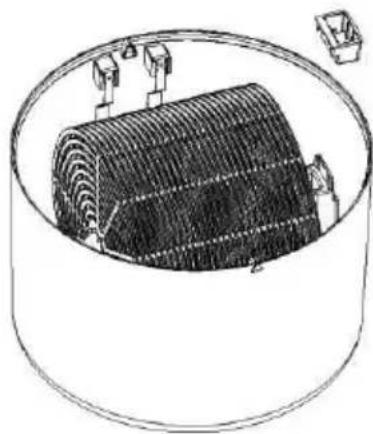

Pažljivo uklonite posudu za aromu koja se nalazi u spremniku za vodu u blizini valjkastog filtra.

BE COOL

servis

Općenito

• Perač zraka optimalno radi na temperaturi okoline od 1°C do 45°C i relativnoj vlažnosti manjoj od 80%RH.
• Ako se perač zraka koristi u zatvorenoj prostoriji ili u okruženju s relativnom vlagom iznad 70% RH, preporučujemo da snagu postavite na nisku.
• Koristite čistu vodu temperature ispod 40°C. (Preporučuje se pročišćena voda).
• Očistite spremnik za vodu prije dugotrajne uporabe.

Rad uređaja

- Podignite gornji dio perača zraka za ručke i napunite spremnik vodom. Razina vode treba biti ispod linije MAX u spremniku.

Two identical diagrams showing a cylindrical container with a textured top and smaller side elements, no text or symbols present.

Pažljivo uklonite posudu za aromu koja se nalazi u spremniku za vodu u blizini valjkastog filtra.

Illustration of a cylindrical mechanical component with textured surface and base, no visible text or symbols

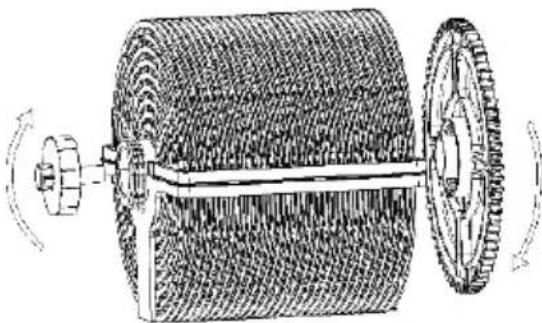

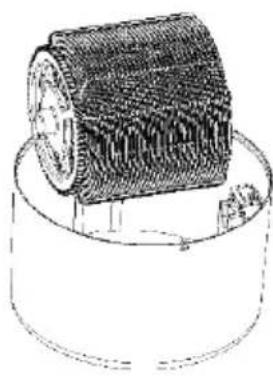

- Pristup valjkastom filtru: Otvorite uređaj uklanjanjem gornjeg poklopca i, ako je potrebno, poklopca tijela.

- Uklanjanje držača valjka: Pronadite držač valjka koji drži filtar valjka na mjestu. Pažljivo uklonite pričvrsne elemente (eventualno vijke ili kopče) kako biste oslobodili držač romobila.

- Uklanjanje filtra s valjkom: Pažljivo izvucite filtar s valjkom. Pazite da ne savijete ili oštetite filter.

BE COOL

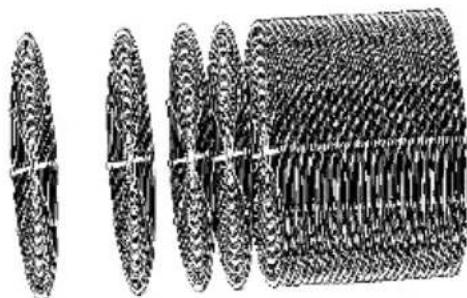

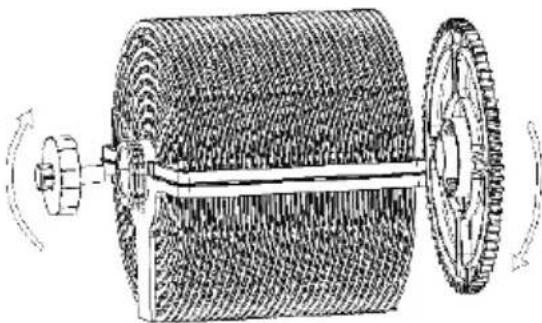

Demontaža filtera skutera:

Priprema za čišćenje: Filter s valjkom postavite na čistu, ravnu površinu.

Technical line drawing of a mechanical roller or gear assembly with rotating components (no text or symbols)

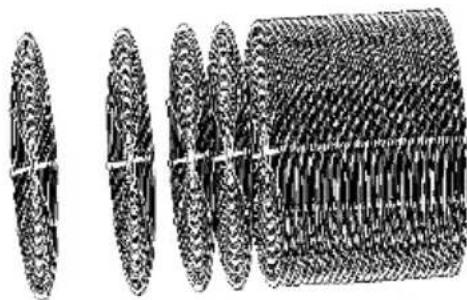

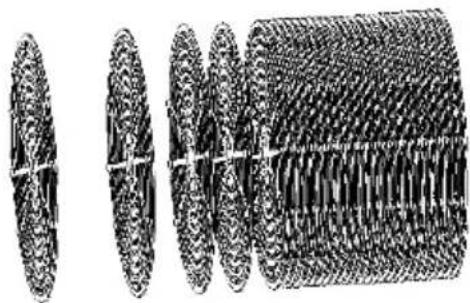

Rastavljanje filtra: Pažljivo odvojite pojedinačne elemente filtra jedan od drugog ako vaš model to dopušta. To olakšava dubinsko čišćenje svakog sloja.

Three views of a coiled cable or wire structure, showing different internal components (no text or symbols visible)

Black cylindrical air purifier device with 'BE COOL' branding and control panel (no visible text beyond branding)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL

BE COOL

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR INVALIDATE THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, POSITIONING AND ELECTRICAL CONNECTION

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
2. This appliance is intended exclusively for humidifying living spaces in households and must not be used for any other purpose.
3. Remove the packaging and ensure that the humidifier is not damaged. If in doubt, do not use the appliance and contact the service centre or your dealer.
4. Before connecting to the mains, you must check that the type of current and mains voltage match the specifications on the appliance rating plate.
5. The electrical socket into which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

BE COOL

1. Avoid using an extension cable, as this could overheat and cause a fire.
2. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks. Do not twist or kink the power cable.
3. If in doubt, have your electrical installation checked by a qualified electrician.
4. The appliance must not be operated with an external timer or a separate remote control system.
5. It is forbidden to adapt or modify the characteristics of this appliance in any way and only use spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the warranty).
6. If the device is defective, switch it off and contact the customer hotline.
7. For any repairs to the appliance, mains plug or cable, always and only contact customer service centres authorised by the manufacturer. You can find the customer service centres online at www.becool.at.
8. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Children must not play with the appliance.
9. In the event of an allergic respiratory disease, consult your doctor before using the device.
10. Consult your doctor if you experience any health problems during use. In this case, stop using the appliance immediately.
11. Do not operate the appliance unattended. If you leave the room, always switch off the appliance.

BE COOL

1. Children must not play with the appliance.
2. Keep children away from packaging material. Choking hazard if swallowed!
3. Only use the humidifier indoors and do not expose the humidifier to direct sunlight, high temperatures or weather conditions.
4. Place the appliance on an easily accessible, level, dry and heat-resistant surface.
5. Never operate it in damp rooms and do not place the appliance in the immediate vicinity of a bathtub, shower or swimming pool - please observe the minimum distance of approx. 1 metre.
6. Do not place the appliance in the immediate vicinity of a heat source, e.g. a hot hob, an open flame or an oven.
7. Avoid heat build-up by not placing the humidifier directly against a wall or under cupboards or similar.
8. The ideal working environment for the humidifier is a temperature between 15°C and 30°C and a relative humidity below 55%.
9. Excessive operation can lead to oversaturation of the room air with moisture, which can be deposited on walls, windows and objects in the room. Therefore, use a hygrometer to regularly check that the relative humidity value does not exceed 55%.
10. Please note that the escaping vapour could cause damage, so make sure that the mist does not fall on furniture, electrical appliances or other objects.
11. Do not insert any objects into the mist outlet of the humidifier.
12. Fill the water tank with WATER ONLY, do not use essential oils or other additives.
13. Only use fresh drinking water to operate the appliance. If the water is hard and calcareous, you also have the option of using demineralised water.

BE COOL

1. Clean the appliance regularly and remove limescale and other deposits to maintain its functionality.
2. Always switch off the appliance before disconnecting the mains plug.
3. Unplug the appliance when it is not in use, before cleaning or when maintenance is required.
4. Do not pull on the mains cable to disconnect the appliance from the mains. Always pull the plug to disconnect the mains cable.
5. Do not touch the plug with wet hands to avoid electric shocks.
6. Never touch the mains plug with wet hands.
7. Always allow the appliance to cool down before cleaning it.

BE COOL

ATTENTION

FIRE HAZARD & RISK OF OVERHEATING Never cover the appliance and make sure that the air inlet and mist outlet are unobstructed.

SAFETY DISTANCE

Keep a safe distance of at least 1 metre from easily flammable objects such as furniture, curtains, paper, etc.!

ATTENTION

The fog outlet can be rotated. Ensure that the escaping mist is not directed at other electrical appliances, furniture or walls.

USE SITUATION

Ensure that the humidifier is operated on a moisture-resistant surface so that it cannot tip over.

Always position the appliance so that the air can flow in and out unhindered.

Precipitation / deposits may occur, especially when operating with water / flavour essence containing minerals.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThe "crossed-out wheelie bin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment can contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU.You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical changes excepted.

BE COOL

Scope of delivery

The BE COOL cooler is supplied with:

• 1x humidifier & attachments
• 1x operating instructions
- 3x different filters

Description of the device

Exploded diagram of a mechanical device with numbered parts for identification

1. top cover
2. housing cover
3. control panel
4. floor cover

5. filter

6. filter holder

7. filter cover
8. flavour bowl
9. water tank

BE COOL

Commissioning

Installing and operating the BE COOL air washer is quick and uncomplicated:

1. installation

• Remove the air washer from the packaging and remove all packaging materials.
• Check the appliance for possible damage.
• Unwind the mains cable and also check it for damage.
• Place the humidifier on a stable, level and heat-resistant surface so that it cannot tip over.
• Now plug the mains plug into a suitable socket.

Functional description

Auto mode → WiFi → Fill level indicator → 88% H Air humidity Timer indicator Humidity button → WiFi button Timer indicator → Sleep/auto mode Humidification level → On/off button

BE COOL

On/off button

Press the On/Off button once to start the appliance. Press the button again to switch the appliance off and return to standby mode.

Humidification level

Press once: To display the current level.

Press twice: Activates the maximum fan speed level. The display shows the symbol for the third fan speed level.

Press three times: Activates the lowest fan speed level. The display shows the symbol for the first fan speed level.

Press four times: Activates the middle fan speed level. The display shows the symbol for the second fan speed level.

Sleep/auto mode

When pressed for the first time, the air washer is set to automatic control mode and the "Auto mode" indicator on the digital display lights up. If the relative humidity (RH) is below 60%, the air washer runs at maximum fan speed. If the relative humidity is between 60% and 68% RH, the air washer operates at medium fan speed. At values above 68% RH, the machine operates at minimum fan speed. Press again to deactivate automatic mode and the "Auto mode" display on the digital screen goes out.

Press and hold the "Sleep mode" button: The device switches to "Sleep mode" and all icons on the screen go out after the change. Press and hold the "Sleep mode" button again to exit sleep mode and the corresponding symbol on the digital screen will light up again.

BE COOL

Timer button

Press this button to activate the timer setting function. You can set a time period from 1 to 12 hours. The appliance will stop automatically when the set time has elapsed.

WiFi button

Switch the WiFi on or off.

Humidity button

During operation, pressing the button allows you to set the desired humidity value that you want to achieve. Once the set value has been reached, the air washer will operate in low mode. The humidity range is 40% to 80% relative humidity (RH), but when the appliance is switched on, forced humidification takes place for two minutes. During this time, the appliance will not stop humidifying even if the ambient humidity has reached the set value.

Flavour function

Diagram of a cylindrical device with internal layered structure, no visible text or symbols

Technical line drawing of a cylindrical device with internal components and mounting holes (no text or symbols)

Carefully remove the flavour bowl located in the water tank near the roller filter.

BE COOL

Operation

General information

• The air washer works optimally in an ambient temperature of 1°C to 45°C and a relative humidity of less than 80%RH.
• If the air washer is used in a closed room or in an environment with a relative humidity of over 70%RH, we recommend setting the power to low.
• Use clean water with a temperature below 40^ C. (Purified water is recommended).
• Clean the water tank before long-term use.

Operating the device

• Lift the upper part of the air washer by the handles and fill the tank with water. The water level should be below the MAX line in the tank.
• Insert the plug to switch the device to standby mode.
• Switch on the appliance using the control panel (please follow the instructions for operating the keypad).
• When the water tank is empty, the indicator LED lights up red and the appliance stops. Once water has been added, the appliance returns to operation and retains its previous status.
• To use the aroma function, lift the upper part of the appliance and remove the aroma bowl from the water tank. Add a few drops of flavoured oil, replace the upper part and switch the appliance on. You can then enjoy the fragrance emanating from the appliance. If the appliance is not to be used for a longer period of time, please remove the aroma bowl, clean it and then replace it.

BE COOL

Flavour function

Two identical diagrams showing a cylindrical container with a textured top and two smaller circular containers, each containing a small object on top (no text or symbols visible)

Carefully remove the flavour bowl located in the water tank near the roller filter.

Cleaning & maintenance

Cleaning the roller filter: a step-by-step guide

Note: Always switch off the appliance and disconnect it from the power supply before cleaning.

Removal of the roller filter:

- Access to the roller filter: Open the device by removing the top cover and, if necessary, the body cover.

- Removing the scooter holder: Locate the scooter holder that holds the scooter filter in place. Carefully remove the fastening elements (possibly screws or clips) to release the scooter holder.

- Removing the roller filter: Carefully pull out the roller filter. Take care not to bend or damage the filter.

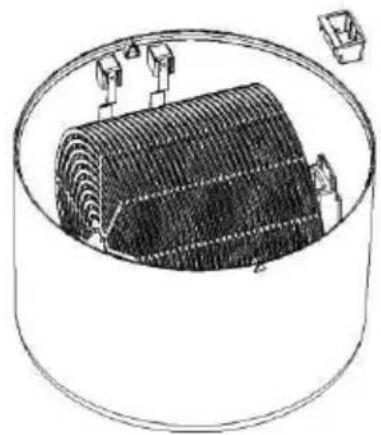

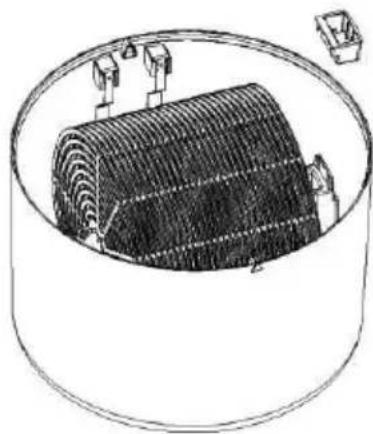

Illustration of a cylindrical object wrapped in mesh material, placed on a circular base (no text or symbols)

- Access to the roller filter: Open the device by removing the top cover and, if necessary, the body cover.

- Removing the scooter holder: Locate the scooter holder that holds the scooter filter in place. Carefully remove the fastening elements (possibly screws or clips) to release the scooter holder.

- Removing the roller filter: Carefully pull out the roller filter. Take care not to bend or damage the filter.

BE COOL

Disassembly of the roller filter:

Preparation for cleaning: Place the roller filter on a clean, flat surface.

Technical line drawing of a mechanical roller or gear assembly with rotating components (no text or symbols)

Dismantling the filter: Carefully separate the individual filter elements if your model allows this. This makes it easier to thoroughly clean each layer.

Three types of coiled metal wire or cable assemblies shown in different angles (no text or symbols visible)

Cleaning the filter elements:

Prepare the cleaning solution: Fill a large container with water and, if desired, a mild detergent.

Soaking the filter elements: Place the individual filter elements in the cleaning solution and allow them to soak according to the manufacturer's recommendation.

Dirt removal: After soaking, rinse the filter elements carefully but thoroughly to remove all dirt particles. If necessary, use a soft brush to loosen dried dirt.

Drying and reassembly of the roller filter:

Drying the filter elements: Remove the cleaned filter elements from the water and lay them out to dry. The elements should be completely dry before you replace them.

BE COOL

Reassembling the roller filter: Reassemble the dry filter elements and ensure that they are correctly aligned.

Inserting the roller filter: Carefully place the assembled roller filter back into the appliance. Ensure that it is firmly and securely in place.

Fastening the scooter holder: Reattach the scooter holder and fasten it with the previously removed elements.

Note: Always consult the user manual for your device for model-specific instructions and safety information.

Integrating the device into the network

To successfully integrate your device into the network, you will need the detailed instructions in our guide. You can obtain these in two simple ways:

1. Download the app: Scan the QR code below or simply search for the "Smart Life" or "Tuya" app in the Apple App Store or Google Play Store. Download the official app to help you integrate your device into the network.

2. Download instructions: The detailed instructions for integrating your device into the network are available as a PDF. Visit Link to instructions to download the instructions. www.becool.at/downloads

APP

Instructions

Follow the steps in the instructions and in the app to easily connect your device to your network.

BE COOL

Troubleshooting

Problem	Root cause analysis	Remediation methods
No or insufficient function	Power cable not plugged in correctly	Check the plug and insert it correctly into the socket
	Mains switch not switched on	Switch on the mains switch
	Upper body not positioned correctly	Lift the upper part, turn it 180°, position it correctly and try again.
	Device without water	Fill the water tank.
	Water level too low	Add water.
	Water level too high	Drain the water to below the MAX mark.
Unpleasant odour	New device	Open the cover and allow the appliance to air in the shade for 12 hours.
	Dirty water or water stored for too long	Clean the water tank and roller filter with clean water and replace.
Abnormal noise development	The cover is not installed correctly	Check cover for correct fit
	Nose and water tank not correctly aligned.	Correct alignment
	Roller filter not well placed	Replace the roller filter.

BE COOL

Technical data

Technical information
Nominal voltage 220-240V ~ 50Hz
Nominal input power 32W
Humidification level 300mL/h
Water tank capacity 4.5L
Dimensions
Product dimensions 250×396×250 mm
Weight 4 kg
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] - 0www.becool.atFB-No.: 23697 4 t / FB-Court: Vienna

BE COOL

WARRANTY

With this quality product from BE COOL, you have made a decision in favour of innovation, durability and reliability.

For this BECOOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria! If, contrary to expectations, service work is required on your appliance during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at Schuss's discretion) to replace the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a current value credit note.

In the case of air conditioners, please always contact the customer hotline as a first step (see sticker on the appliance or front page of the operating instructions); in the case of fans, please contact your specialist dealer or us directly. We would like to point out that any repair work not carried out by an authorised workshop in Austria will immediately invalidate this guarantee.

This guarantee does not cover

• We do not accept any liability for consequential damage in the event of improper use
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-compliance with the operating instructions
• Devices that are used - even partially - for commercial purposes
• Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of aesthetic wear and tear.
• Devices that have been handled improperly
• Devices that have not been opened by our authorised service workshop.
• Damage caused by improperly closed condensation drain valves or incorrectly inserted water tanks.
• Unfulfilled consumer expectations.
• Damage caused by force majeure, water, lightning, overvoltage.
• Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.
• services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, as well as the associated risks.

We would like to emphasise that within the warranty period, a lump sum of € 60 (indexed based on CPI 2010, June 2015) will be charged in the event of operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected. Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or wilful intent. Liability for loss of profit, expected but unrealised savings, consequential damage and damage arising from third-party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy using your BE COOL appliance!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

This warranty certificate must be handed over to the authorised service workshop together with the appliance in the event of a warranty claim.

BE COOL

EU-KONFORMITÄTSERKLÄRUNG EU-DECLARATION OF CONFORMITY

SCHUSS

HOME ELECTRONIC

Article 3.1(a) Health:

EN IEC 62311:2020

EN 50665:2017

Article 3.1(b) EMC:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 60335-2-98:2003+A1:2005+A2:2008+A11:2019

EN 62233:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

Article 3.2 Radio:

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain

hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88–110

IEC62321-3-1:2013, IEC 62321-4:2017, IEC62321-5:2013, IEC62321-7-1:2015,

IEC62321-7-2:2017, IEC62321-6:2015, IEC62321-8:2017

Reach SVHC(EC)NO. 1907/2006 Schuss Home Electronic GmbH hereby confirms that in the products we supply, there are no substances of very high concern (SVHC) in the candidate list (last ECHA update from June 14, 2023, 235 substances) above 0.1% in accordance with Article 33 of the REACH Regulation (EC) No .1907/2006 are included.

Place and date of issue:

Vienna, 2024-04-10

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA

Senior product and purchasing mana

Name, Funktion / name, function

Unterschrift / signature

BE COOL

English [En]	EU DECLARATION OF CONFORMITYManufacturer [I] declares under its sole responsibility that the products [II] are in conformity with the requirements of the EU Directives, Regulations and Harmonised standards [III].
German [De]	EU-KONFORMITÄTSERKLÄRUNGDer Hersteller [I] erklärt in alleiniger Verantwortung, dass die Produkte [II] allen Anforderungen der EU-Richtlinien, Verordnungen und harmonisierten Normen [III] entsprechen.
French [Fr]	DÉCLARATION UE DE CONFORMITÉLe fabricant [I] déclare sous sa seule responsabilité que les produits [II] sont conformes aux exigences des directives, règlements et normes harmonisées [III] de l’UE.
Spanish [Es]	DECLARACIÓN DE CONFORMIDAD UEEl fabricante [I] declara bajo su exclusiva responsabilidad que los productos [II] están en conformidad con los requisitos de las directivas, regulaciones y normas armonizadas de la UE [III].
Italian [It]	DICHIARAZIONE DI CONFORMITÀ UEl produttore [I] dichiara sotto la sua unica responsabilità che i prodotti [II] sono conformi ai requisiti delle direttive, dei regolamenti e degli standard armonizzati della UE [III].
Greek [EI]	ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ EEΟ κατασκευαστής [I] δηλώνει αποκλειστικά με δική του ευθύνη ότι τα προϊόντα [II] συμμορφώνονται με τις απαιτήσεις των Οδηγιών, των Κανονισμών και των Εναρμονισμένων προτύπων της EE [III].
Portuguese [Pt]	DECLARAÇÃO DE CONFORMIDADE UEO fabricante [I] declara sob sua inteira responsabilidade que os produtos [II] estão em conformidade com os requisitos das diretivas, regulamentos e normas harmonizadas da UE [III].
Croatian [Hr]	EU IZJAVA O USKLAĐENOSTIProizvođač [I] izjavljuje pod punom materijalnom odgovornošću da su proizvodi [II] u skladu sa zahtjevima EU direktiva, propisa i harmoniziranih standarda [III].
Czech [Cs]	EU PROHLÁŠENÍ O SHODĚVýrobce [I] prohlašuje na vlastní výlučnou odpovědnost, že výrobky [II] jsou ve shodě s požadavky směrnic, předpisů a harmonizovaných norem EU [III].
Danish [Da]	EU OVERENSSTEMMELSESERKLÆRINGProducenten [I] erklærer under eget ansvar, at produkterne [II] er i overensstemmelse med kravene i direktiverne, forordningerne og de harmoniserede standarder fra EU [III].
Dutch [NI]	EU-CONFIRMITEITSVERKLARINGFabrikant [I] verklaart op eigen verantwoordelijkheid dat de producten [II] in overeenstemming zijn met de eisen van de EG-richtlijnen, voorschriften en geharmoniseerde normen [III].
Estonian [Et]	EL-i VASTAVUSDEKLARATSIOONTootja [I] kinnitab ja kannab ainuisikuliselt vastutust selle eest, et tooted [II] on toodetud kooskõlas Euroopa Liidu direktiivide, standardite ja muude normatiivdokumentidega [III].
Finnish [Fi]	EU-VAATIMUSTENMUKAISUUSVAKUUTUSValmistaja [I] vakuuttaa omalla vastuullaan, että tuotteet [II] ovat EU:n direktiivien, asetusten ja yhdenmukaistettujen standardien [III] vaatimusten mukaisia.
Hungarian [Hu]	EU MEGFELELŐSÉGI NYILATKOZATA Gyártó [I] nyilatkozza, hogy kizárólagos felelősséget vállal a termékek [II] EU

BE COOL

	irányelveknek, szabályozásoknak és harmonizált szabványoknak való megfeleléséről [III].
Latvian [Lv]	ES ATBILSTÍBAS DEKLARÁCIJARažotājs [I] deklarē uz savu atbildību, ka produkti [II] atbilst ES direktīvu, regulu unsaskaņoto standartu [III] prasībām.
Lithuanian[Lt]	ES ATITIKTIES DEKLARACIJAGamintojas [I] savo išskirtine atsakomybe pareiškia, kad gaminiai [II] atitinka ESdirektyvų, reglamentų ir darniųjų standartų reikalavimus [III].
Norwegian[No]	EU-SAMSVARSERKLÆRINGProdusent [I] erklærte under sitt eget ansvar at sine produkter [II] er i samsvar medkravene i EU- direktivene, forskrifter og harmoniserte standarder [III].
Polish [PI]	DEKLARACJA ZGODNOŚCI UEProducent [I] deklaruje z pełną odpowiedzialnością, że produkty [II] są zgodne zpostanowieniami dyrektyw, regulacji oraz norm zharmonizowanych UE [III].
Romanian[Ro]	DECLARAȚIA DE CONFORMITATE UEProducătorul [I] declară pe propria răspundere că produsele [II] sunt în conformitate cucerințele Directivelor, Normelor și Standardelor armonizate UE [III].
Slovak [Sk]	VYHLÁSENIE O ZHODE EUVýrobca [I] vyhlasuje na svoju vlastnú zodpovednosť, že výrobky [II] sú v súlade spožiadavkami smerníc, nariadení a harmonizovaných noriem EÚ [III].
Slovenian [SI]	IZJAVA EU O SKLADNOSTIProizvajalec [I] s polno odgovornostjo izjavlja, da so izdelki [II] v skladu z zahtevamidirektiv, uredb in usklajenih standardov EU [III].
Swedish [Sv]	EU FÖRKLARING OM ÖVERENSSTÄMMELSETillverkaren [I] deklarerar å eget ansvar att produkterna [II] efterlever kraven enligt EU-direktiven, förordningarna och harmoniserade normer [III].
