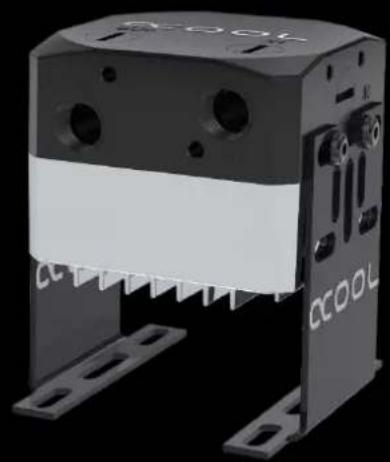

USER MANUAL Eisdecke D5 Dual Alphacool

Exterior view of two industrial sensors or modules with metallic casing and mounting brackets (no visible text or symbols)

3D rendering of a black industrial electrical component with mounting brackets and a white base (no visible text or symbols)

EISDECKE

V. 2.003 - 12.18

DEUTSCH 4

DIMENSIONEN: EISDECKE DC-LT PMMA 9

PUMPENMONTAGE....10

D5 / VPP....10

DDC....10

DC-LT....II

SAFETY INSTRUCTIONS....20

MOUNTING MATERIAL 21

TECHNICAL DETAILS 22

DIMENSIONS: STAND 22

DIMENSIONS: EISDECKE DUAL D5 / VPP PMMA 22

DIMENSIONS: EISDECKE DUAL D5 / VPP BRASS 23

DIMENSIONS: EISDECKE D5 / VPP PMMA 23

DIMENSIONS: EISDECKE DUAL DDC PMMA 24

DIMENSIONS: EISDECKE DUAL DDC BRASS....24

DIMENSIONS: EISDECKE DDC PMMA 25

DIMENSIONS: EISDECKE DC-LT PMMA 25

PUMP INSTALLATION 26

D5 / VPP....26

DDC 26

DC-LT 27

SEALING THREADS....28

INSTALLATION 29

STAND SUPPORT INSTALLATION....29

INSTALLATION: HANGING....31

CONNECTING PUMPS....32

D5 / VPP....32

DDC....33

DC-LT 34

CONNECTING LEDS....35

FRANÇAIS......36

INSTRUCTIONS DE SECURITE 36

MATÉRIEL D'INSTALLATION 37

DIMENSIONS: PIED DE SUPPORT 38

DIMENSIONS: EISDECKE DUAL D5 / VPP PMMA 38

DIMENSIONS: EISDECKE DUAL D5 / VPP LAITON 39

DIMENSIONS: EISDECKE D5 / VPP PMMA 39

DIMENSIONS: EISDECKE DUAL DDC PMMA 40

DIMENSIONS: EISDECKE DUAL DDC LAITON 40

DIMENSIONS: EISDECKE DDC PMMA 41

DIMENSIONS: EISDECKE DC-LT PMMA 41

INSTALLATION DE LA POMPE....42

D5 / VPP 42

DDC....42

DC-LT 43

FERMER LES RACCORDS 44

INSTALLATION 45

INSTALLATION DES SUPPORTS....45

164.00 86.00 OUT IN

33.00 20.00 33.00 5.00 OUT 16.00 19.00

33.50 20.00 57.00 20.00 33.50 OUT IN 40.00

DIMENSIONEN: EISDECKE DUAL D5 / VPP MESSING

DIMENSIONEN: EISDECKE D5 / VPP PMMA

72.00 63.50 42.50 R2.25 6.50 73.00 6.50 11.25 10.50 12.50 17.50 12.50 10.50 11.25

86.00 86.00 OUT 42.75 IN

16.00 37.00 17.00 16.00 16.00 17.00 37.00 16.00

86.00 16.00 19.50 20.00 OUT 17.00 23.00

33.00 20.00 33.00 6.00 OUT N 40.00 42.75

DIMENSIONEN: EISDECKE DUAL DDC PMMA

[in mm]

DIMENSIONEN: EISDECKE DUAL DDC MESSING

72.00 63.50 42.50 8.00 116.00 8.00 4.25 10.50 2.50 17.50 12.50 0.50 4.25

129.00 62.00 OUT EN

21.00 20.00 21.00 4.50 out 16.00 4.50

5.50 23.09 20.00 42.83 20.00 23.09 14.00 OUT IN 5.50 25.00

DIMENSIONEN: EISDECKE DDC PMMA

DIMENSIONEN: EISDECKE DC-LT PMMA

72.00 63.50 42.50 R2.25 8.00 87.00 8.00 4.25 10.50 12.50 17.50 12.50 10.50 4.25

100.00 55.00 OUT IN

17.50 20.00 17.50 OUT 25.50

40.00 20.00 40.00 OUT IN 8.50 17.00

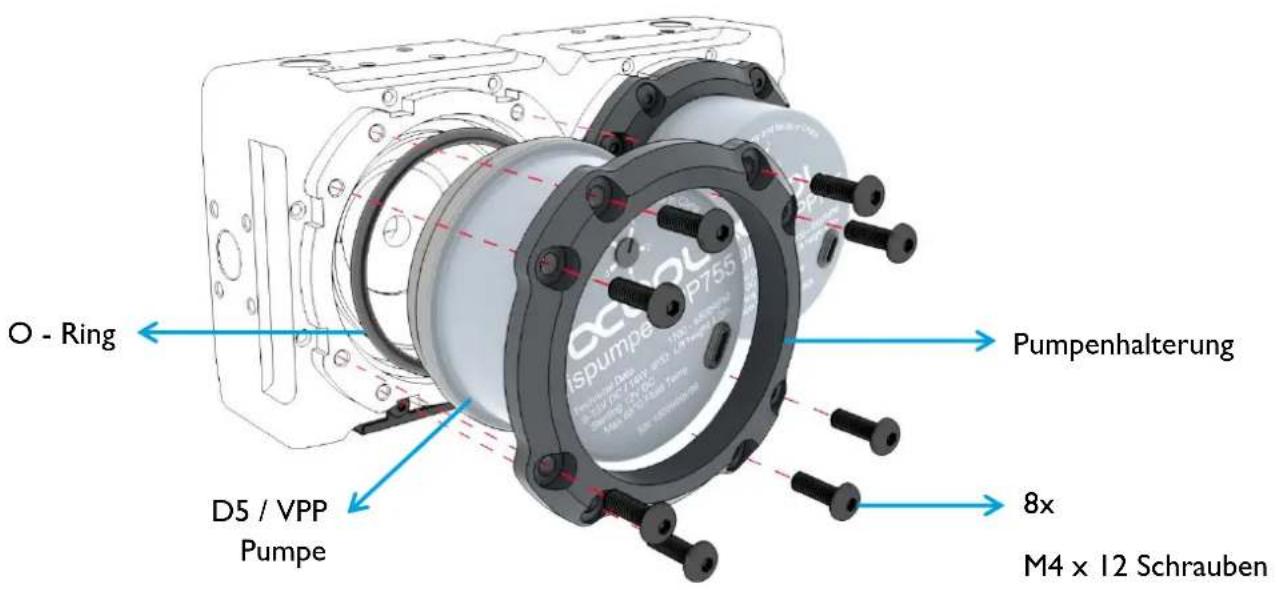

PUMPENMONTAGE

D5 / VPP

3D mechanical assembly diagram showing blue components with directional arrows, no visible text or symbols

3D diagram of a mechanical device with labeled ports and a 4x scale indicator (no readable text or symbols beyond labels)

Verschlussschrauben

MONTAGE IM GEHÄUSE

Diagram of a device with labeled ports (OUT, IN) and red dots indicating features, no readable text or symbols present.

Technical line drawing of an electrical connector assembly with a black component and blue arrow indicating a downward motion (no text or symbols present)

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a downward force (no text or symbols present)

- Not suitable for children under 6 years. (contains small parts which could be swallowed).

• Do not run any cooling components without ensuring that cooling liquid is flowing through the cooling system. Coolers operated without coolant can become very hot. Caution: Burn Hazard!
• Coolers that have no coolant flowing through them can destroy the computer hardware. When switching on the hardware, always make sure that the pump is working.
• Please note when tightening the connectors or fittings, no tools such as screwdrivers, pliers, or wrenches should be used. All plastic products or metal threaded connections, which are linked with plastic parts, are easily over-loaded with tools. Cracking or other damages incurred in this way, as well as damage from leaking coolant, are not covered under the warranty!
• Use only connectors with a sealing o-ring. When using a sealing ring a firm tightening with the hand is enough. Your instruction manual will clearly refer to the use of tools in exceptional cases.
• If you have not done so yet, please check your hardware and cooling system (tightness, pump function and fans). This will minimize time spent searching for possible problems. ALPHACOOL INTERNATIONAL GMBH accepts no liability on the warranty of the manufacturer of the electronic components. The assembly of the cooling system takes place at your own risk.
• The screws should not be tightened too firmly. If you tighten the screws excessively, the knurled nuts can loosen and the cooler's uniform pressure is no longer guaranteed.
• Fasten the connections of your choice to the cooler. Do not use tools such as wrenches for fastening the connections. Connectors with 8mm long threads may stop the flow.
• We recommend a tightness test before assembling/installing the cooler. The water pressure in the water cooling loop can be at a maximum of 0.8 bar. DO NOT use tools on the connectors.
• Ensure that the cooler is touching all components to be cooled through thermal grease and thermal pads.
• Only use distilled water or ALPHACOOL CAPE KELVIN CATCHER in your cooling circuit. Damage caused by unsuitable coolant is not covered by the warranty!

Specified normal operation

All ALPHACOOL INTERNATIONAL GMBH cooling components are constructed and licensed for ALPHACOOL INTERNATIONAL GMBH computer construction parts. The warranty expires in case of misuse.

Warranty

1. Data, designs, illustrations, technical data, weight, measurement and specifications, contained in folders, catalogues, circulars, announcements or price lists, have a purely informative character. We do not undertake warranty for the correctness of these data. As to the kind and the range of delivery, the data contained in the order and confirmation of order alone are decisive.
2. If there is a lack of warrantor, you are entitled, on the basis of the legal regulations to require subsequent delivery, to withdraw from the contract or reduce the purchase price. If you are a consumer, the limitation period of warranty claims for the supplied commodity amounts to two years starting from receipt of goods ( § 13 BGB ). If you are an entrepreneur, in accordance with legal conditions the limitation period amounts to only one year ( § 14 BGB ).

3. The warranty claim is valid only in combination with the original invoice, the sales slip or an ALPHACOOL confirmation on warranty claim.

4. It is ALPHACOOL INTERNATIONAL GMBHs own discretionary authority to replace or repair the defective product or defective component. The replaced product or component changes into property of ALPHACOOL INTERNATIONAL GMBH.

5. All warranty claims are accomplished by ALPHACOOL INTERNATIONAL GMBH or its authorized dealers. If the repair is carried out by a non-authorized or assigned person, ALPHACOOL INTERNATIONAL GMBH does not take over either costs or liability, unless the repair has been previously agreed upon with ALPHACOOL INTERNATIONAL GMBH.

6. All costs resulting from refitting of the products are not taken over by ALPHACOOL INTERNATIONAL GMBH.

7. ALPHACOOL INTERNATIONAL GMBHs warranty excludes the following points:

7.1. Regular controls maintenance and repair or the replacement of parts subject to regular wear and tear.
7.2. Improper manipulation or defects caused by incorrect installation.
7.3. Damages caused by storm, water, fire, overvoltage, acts of God, war, incorrect connection to the net, insufficient or incorrect ventilation or other reasons over which ALPHACOOL INTERNATIONAL GMBH has no influence.
7.4. Damages resulting from transportation or improper packaging.

1. Consumer's rights are valid in the respective country; demands made to the salesman, as explained and laid down in the sales contract, will not be covered by this warranty. ALPHACOOL INTERNATIONAL GMBH, its Branch Office and Distributors, are not responsible for direct or indirect damage or losses, as far as the compelling legal regulations do not oppose it.

2. ALPHACOOL INTERNATIONAL GMBH does not take over the warranty of the manufacturer of the electronic construction units and components. The assembly of the cooler takes place at your own risk.

Contact an authorized waste management company in your country. A waste removal with the municipal waste (unsorted garbage) or similar mechanisms for the collection of local wastes is not permissible!

MOUNTING MATERIAL

all pump tops
4x G1/4“ plugs	2x stand supports	8x M4 x 6 screws	4x M4 nut	4x M4 decouplers

DC-LT - Version	DDC – Version	VPP - Version
single: 2xdual: 4x	single: 4xdual: 8x	single: 8xdual: 16x	single: 1xdual: 2x
M3 x 8screws	M4 x 25screws	M4 x 12screws	pump supports

DIMENSIONS: STAND

[in mm]

72.00 44.00 4.50 7.50 20.00 7.50 4.50 11.00 7.50 6.00 40.50 20.50 4.50 40.00 14.00 14.00 8.008.00 14.00 14.00

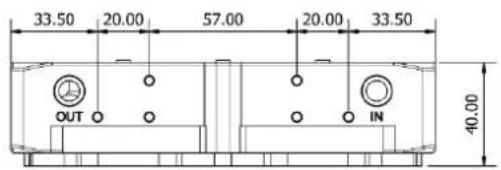

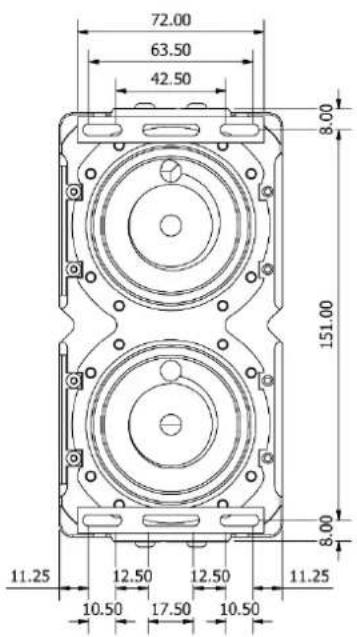

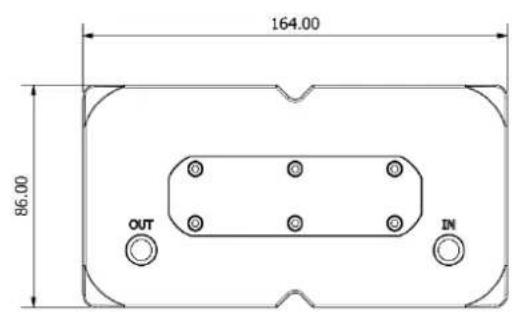

DIMENSIONS: EISDECKE DUAL D5 / VPP PMMA

72.00 63.50 42.50 8.00 151.00 8.00 11.25 12.50 12.50 11.25 10.50 17.50 10.50

164.00 86.00 OUT IN

33.00 20.00 33.00 5.00 OUT 16.00 19.00

33.50 20.00 57.00 20.00 33.50 OUT IN 40.00

DIMENSIONS: EISDECKE DUAL D5 / VPP BRASS

[in mm]

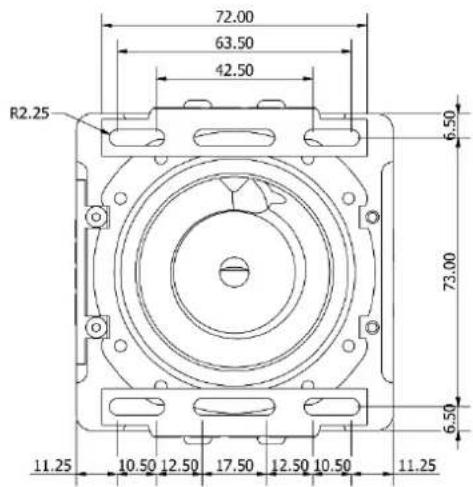

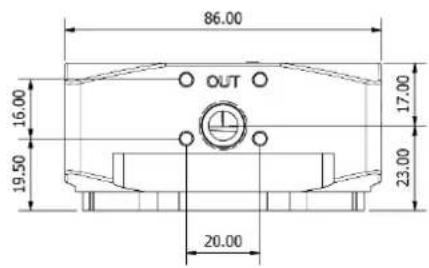

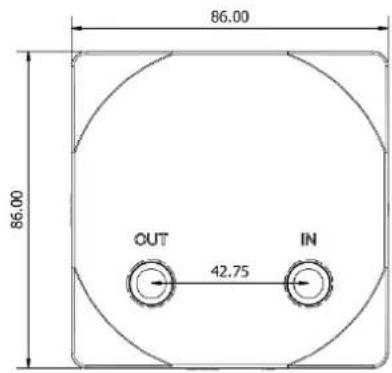

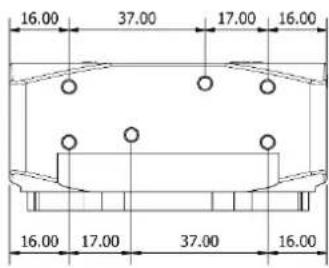

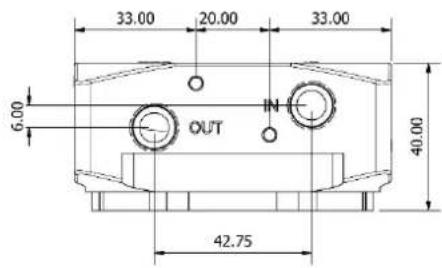

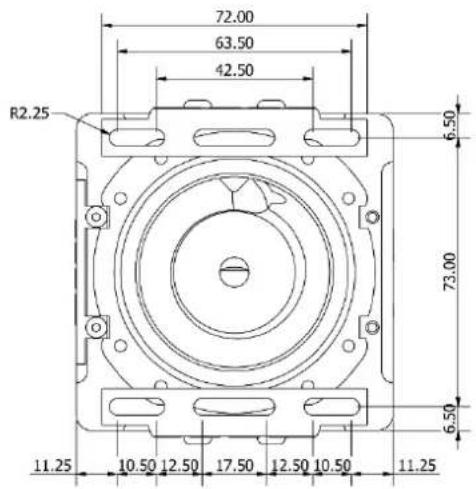

DIMENSIONS: EISDECKE D5 / VPP PMMA

72.00 63.50 42.50 R2.25 6.50 73.00 6.50 11.25 10.50 12.50 17.50 12.50 10.50 11.25

86.00 86.00 OUT 42.75 IN

16.00 37.00 17.00 16.00 16.00 17.00 37.00 16.00

86.00 16.00 19.50 20.00 OUT 17.00 23.00

33.00 20.00 33.00 6.00 OUT N 40.00 42.75

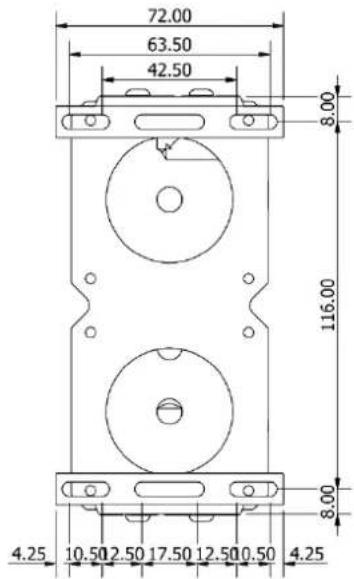

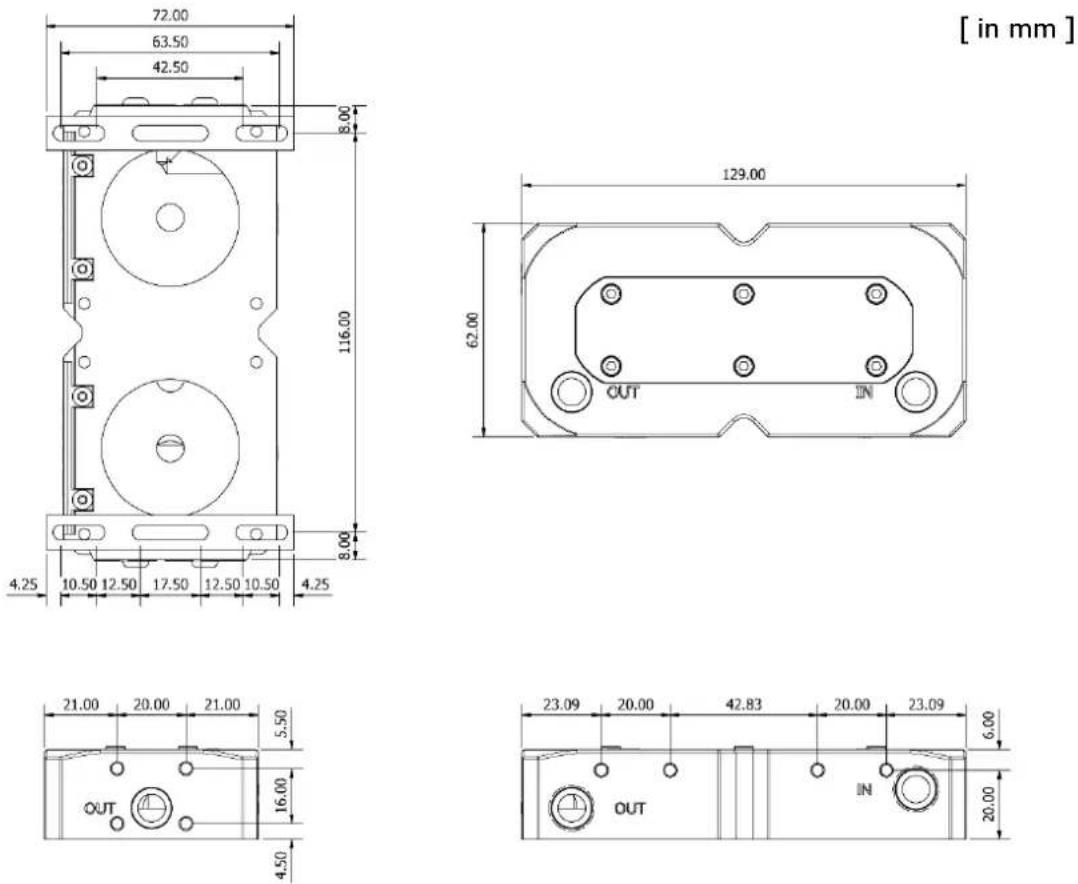

DIMENSIONS: EISDECKE DUAL DDC PMMA

[in mm]

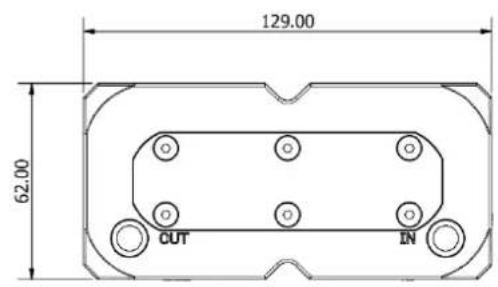

DIMENSIONS: EISDECKE DUAL DDC BRASS

72.00 63.50 42.50 8.00 116.00 8.00 4.25 10.50 2.50 17.50 12.50 0.50 4.25

129.00 62.00 OUT EN

21.00 20.00 21.00 4.50 out 16.00 4.50

5.50 23.09 20.00 42.83 20.00 23.09 14.00 OUT IN 5.50 25.00

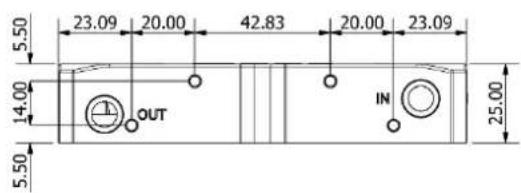

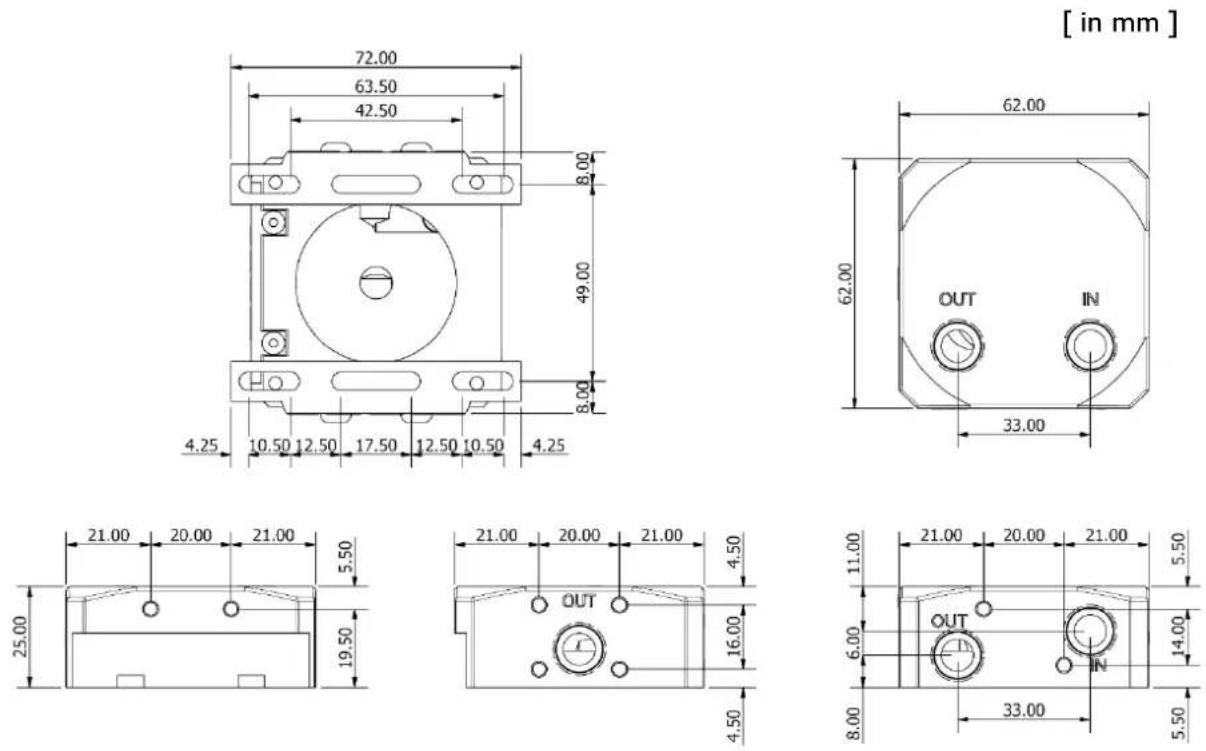

DIMENSIONS: EISDECKE DDC PMMA

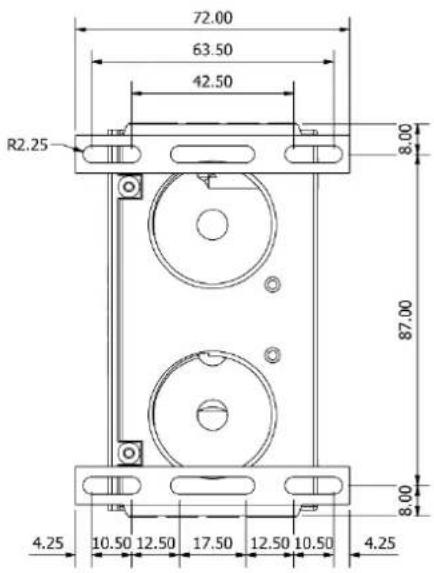

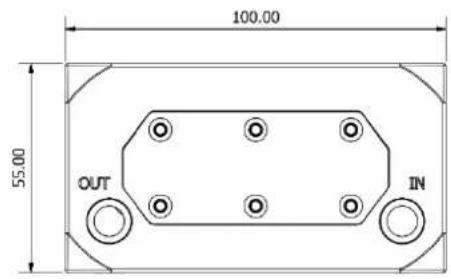

DIMENSIONS: EISDECKE DC-LT PMMA

72.00 63.50 42.50 R2.25 8.00 87.00 8.00 4.25 10.50 12.50 17.50 12.50 10.50 4.25

100.00 55.00 OUT IN

17.50 20.00 17.50 OUT 25.50

40.00 20.00 40.00 OUT IN 8.50 17.00

PUMP INSTALLATION

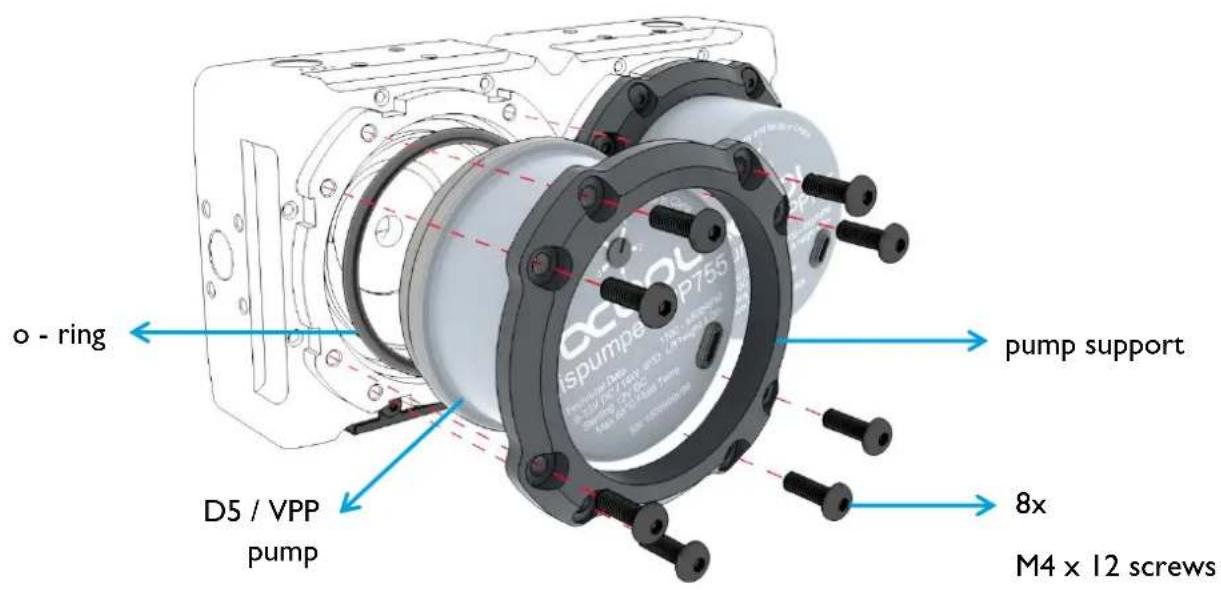

D5 / VPP

o - ring D5 / VPP pump pump support 8x M4 x 12 screws

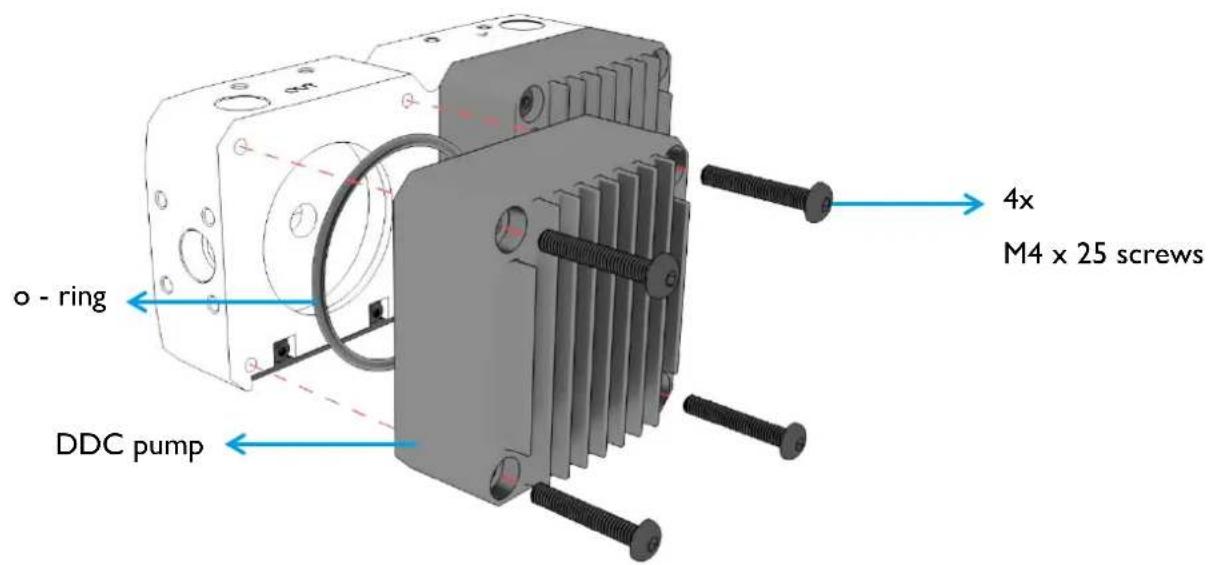

DDC

o - ring DDC pump 4x M4 x 25 screws

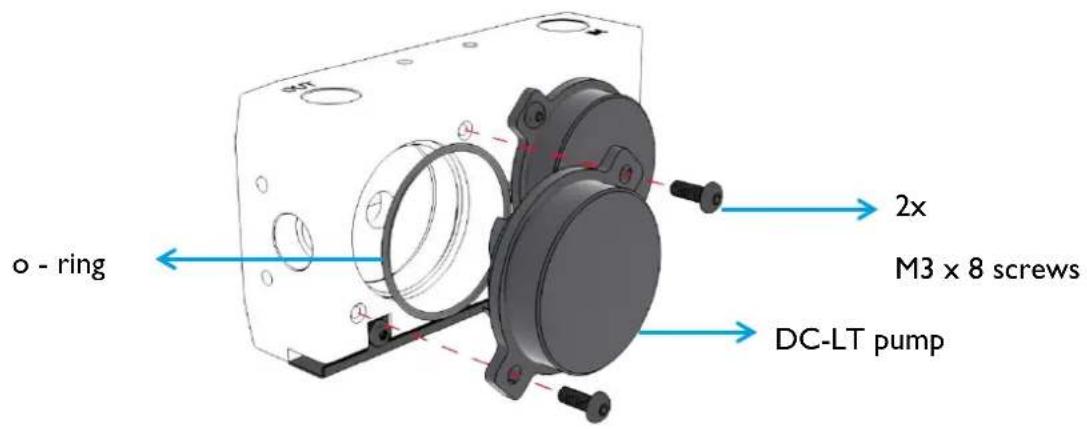

DC-LT

o - ring 2x M3 x 8 screws DC-LT pump

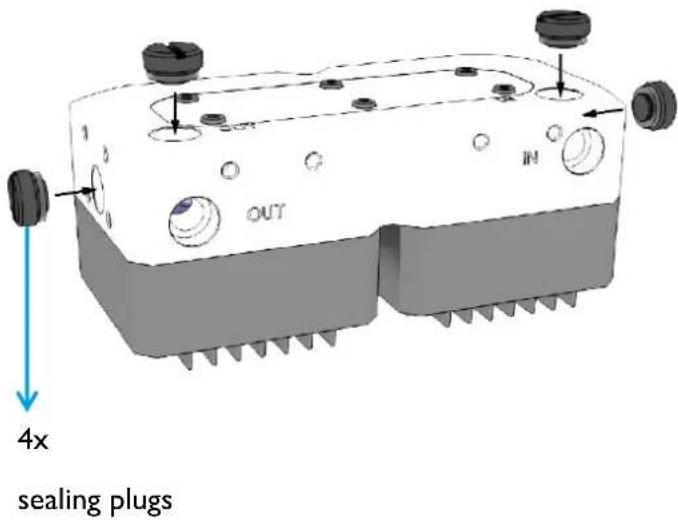

SEALING THREADS

3D mechanical assembly diagram showing blue components with arrows indicating flow or movement (no text or symbols)

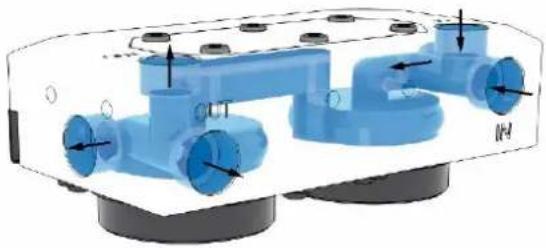

The coolant inside the cap flows from right to left. Decide which inlet and outlet you want to use and seal the remaining screw threads.

OUT IN 4x sealing plugs

INSTALLATION

3D rendering of a white electronic device with red and black components, no visible text or symbols

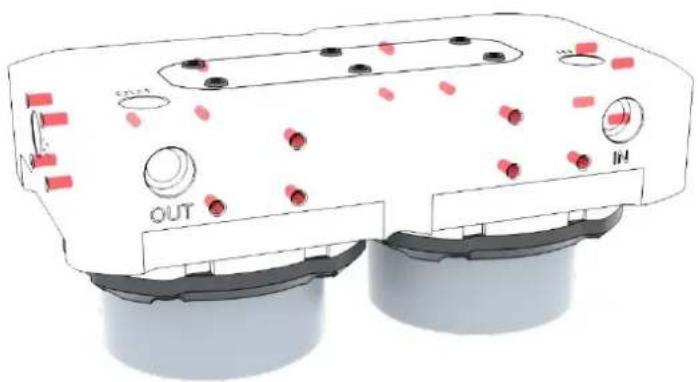

All Eisdecke versions have several mounting options. Pictured here are all the mounting holes. You can choose between stand supports or a decoupled hanging installation.

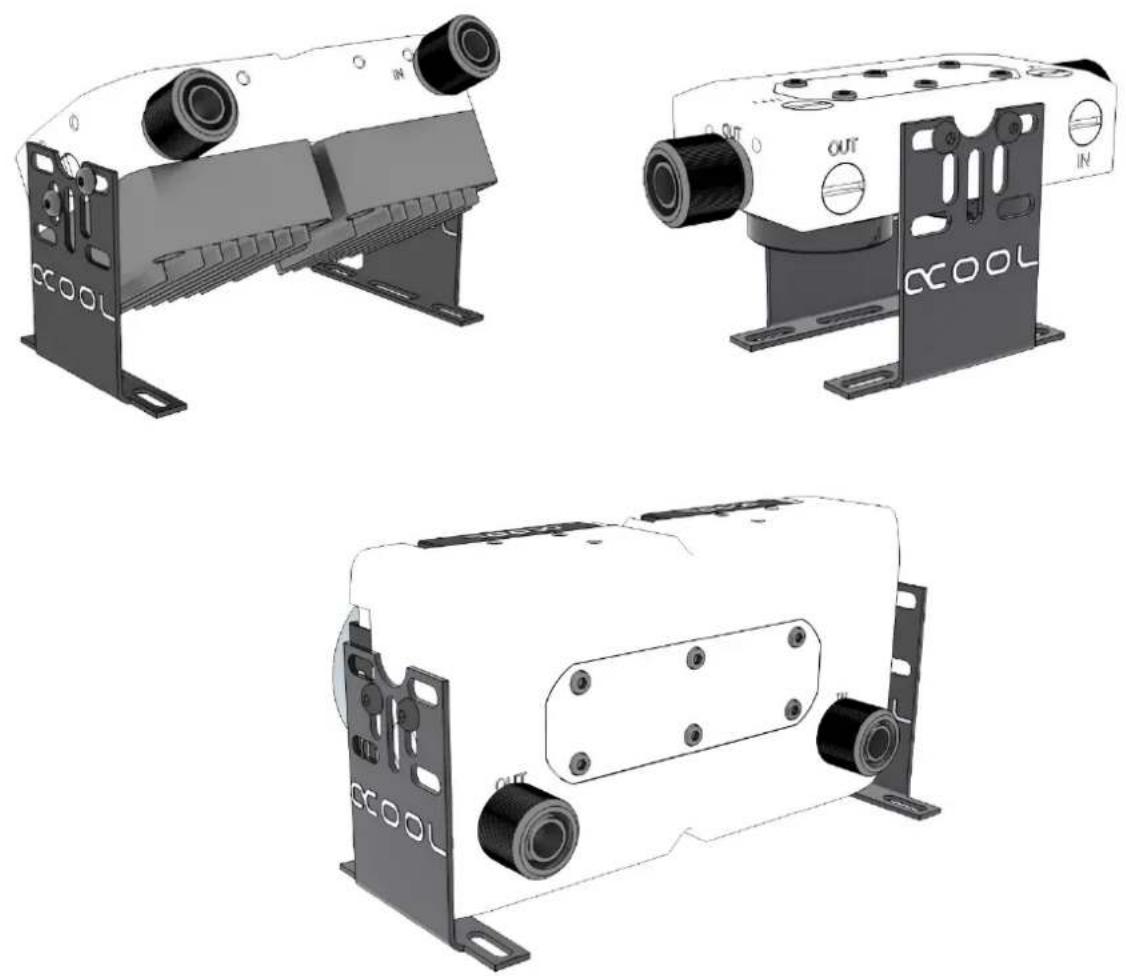

STAND SUPPORT INSTALLATION

4x M4 x 6 screws 2x stand supports OUT OUT OUT OUT 4x M4 nuts 4x M4 decouplers 4x M4 x 6 screws

We recommend always using the vibration dampers for mounting in the case.

MOUNTING EXAMPLES:

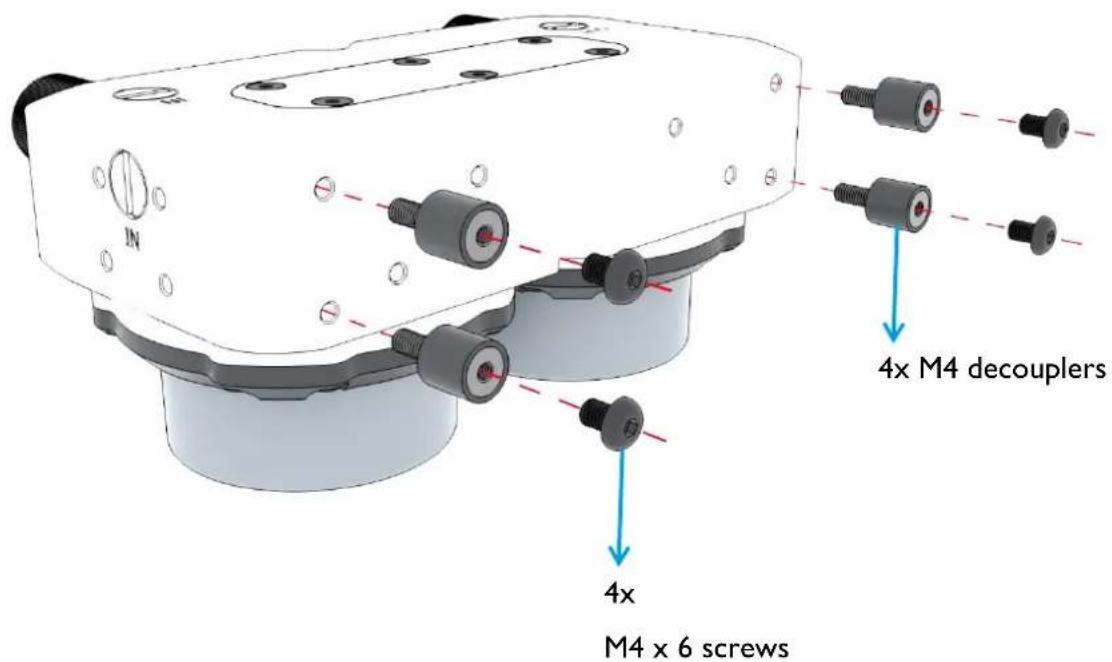

INSTALLATION: HANGING

IN 4x M4 decouplers 4x M4 x 6 screws

D5 / VPP

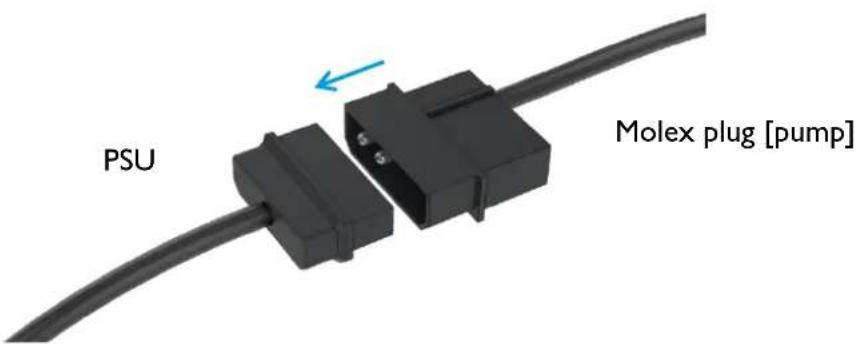

The Eispumpe VPP755 is connected to the power supply unit via a Molex plug:

PSU Molex plug [pump]

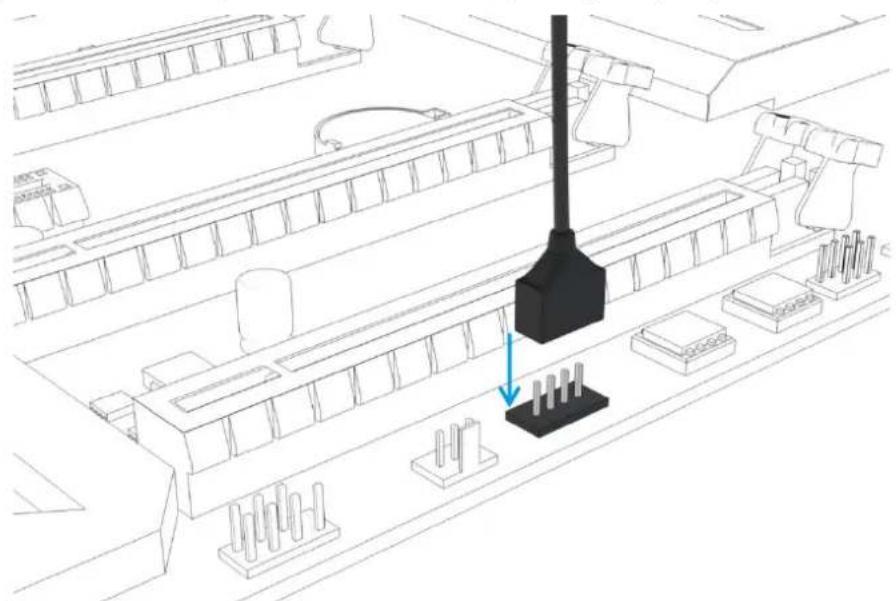

Plug the 4-pin connector to your mainboard for regulating the pump:

Technical line drawing of a mechanical assembly with a black component and a blue arrow indicating a process (no text or symbols present)

Some mainboards have special 4-pin sockets for pumps. If your motherboard only offers sockets for fans, please make sure you do not exceed the maximum total power of 10 W.

DDC

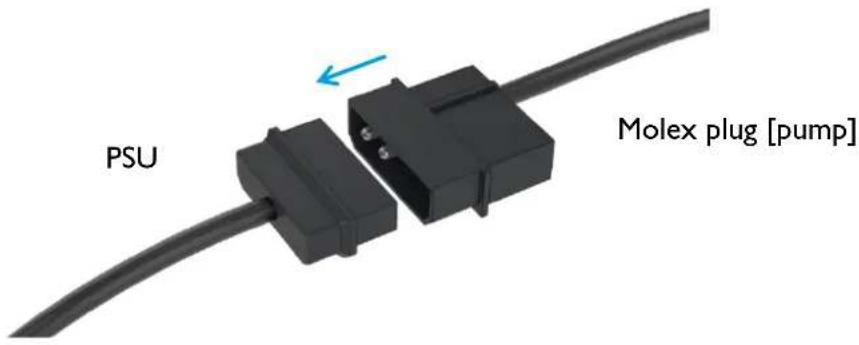

The DDC pump is connected to the power supply unit via a Molex plug:

PSU Molex plug [pump]

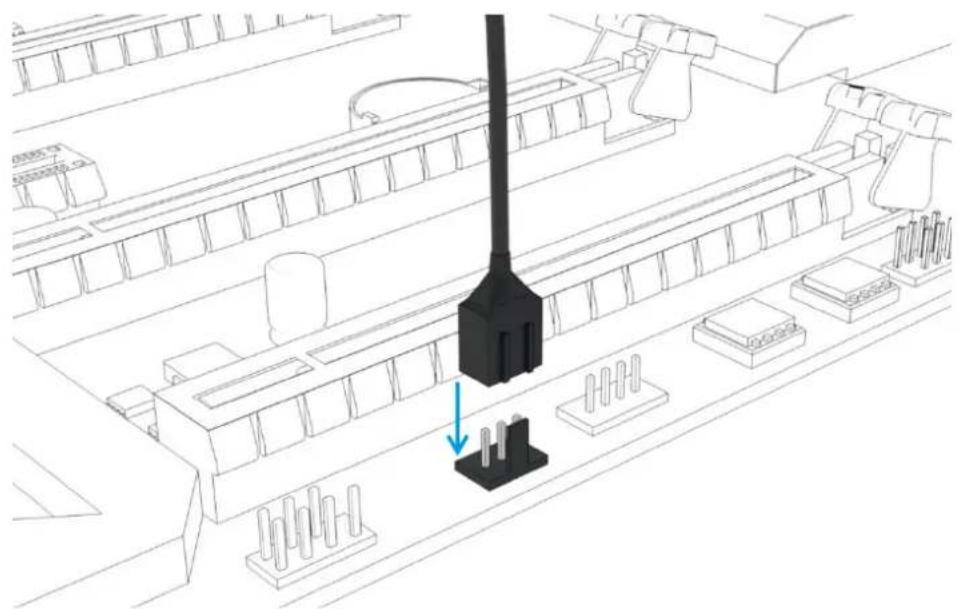

The 3-pin connector needs to be plugged onto your mainboard:

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a downward force (no text or symbols present)

Some mainboards have special 4-pin sockets for pumps. If your motherboard only offers sockets for fans, please make sure you do not exceed the maximum total power of 10 W.

DC-LT

The DC-LT pump is supplied with power via a 3-pin connector. Plug the connector onto your mainboard:

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a downward force (no text or symbols present)

Some mainboards have special 4-pin sockets for pumps. If your motherboard only offers sockets for fans, please make sure you do not exceed the maximum total power of 10 W.

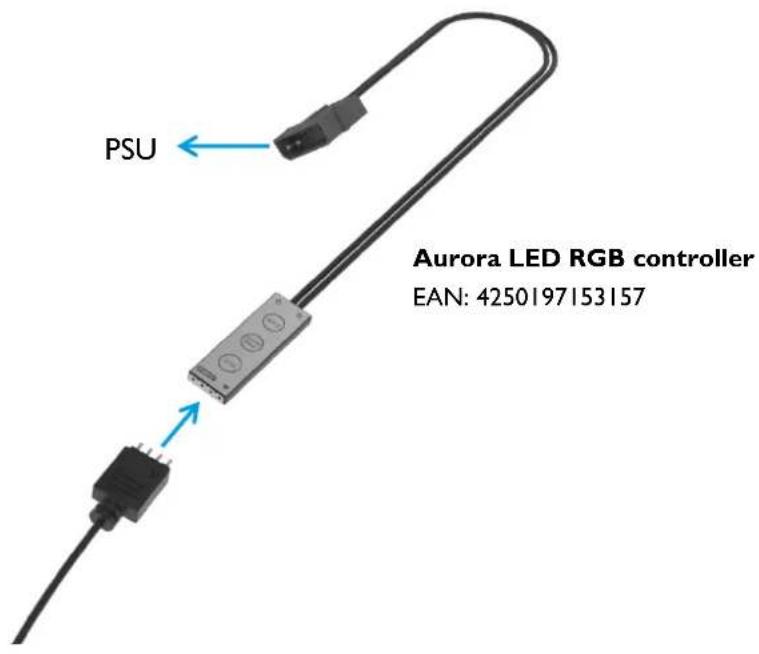

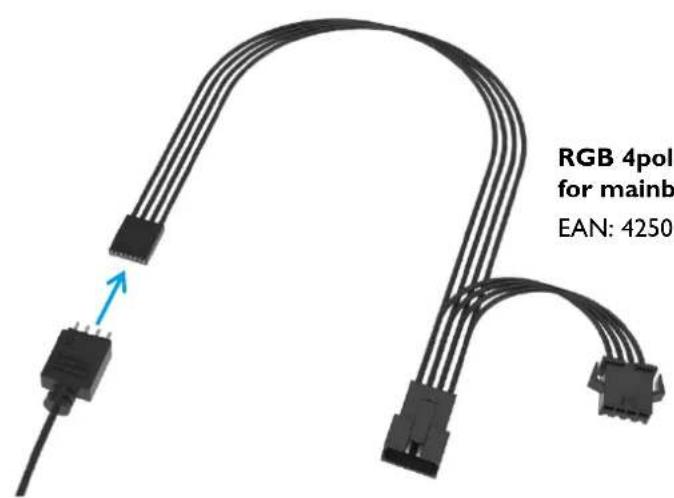

CONNECTING LEDS

To operate the LEDs connect the RGB plug with an RGB controller (sold separately) or with a mainboard adaptor (sold separately).

PSU Aurora LED RGB controller EAN: 4250197153157

RGB 4pol for mainb EAN: 4250

RGB 4pol LED adaptor cable for mainboards
EAN: 4250197185400

FRANÇAIS

INSTRUCTIONS DE SECURITE

LISEZ LES INSTRUCTIONS DE SECURITE AVANT DE COMMENCER L'INSTALLATION.

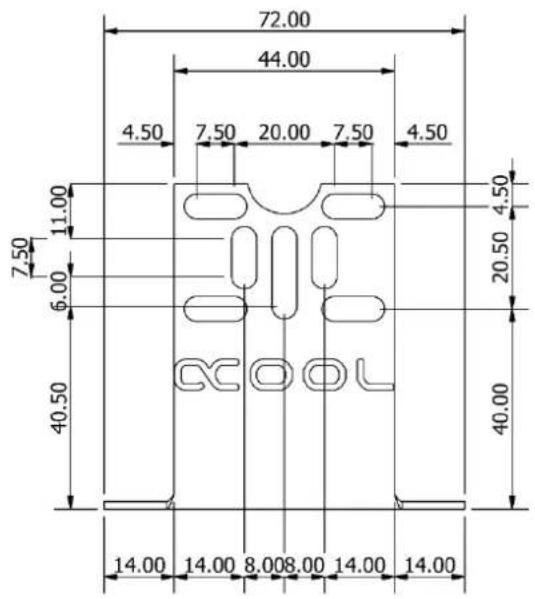

DIMENSIONS: PIED DE SUPPORT

[ en mm ]

72.00 44.00 4.50 7.50 20.00 7.50 4.50 11.00 7.50 6.00 40.50 20.50 4.50 40.00 14.00 14.00 8.008.00 14.00 14.00

DIMENSIONS: EISDECKE DUAL D5 / VPP PMMA

72.00 63.50 42.50 8.00 151.00 8.00 11.25 12.50 12.50 11.25 10.50 17.50 10.50

164.00 86.00 OUT IN

33.00 20.00 33.00 5.00 OUT 16.00 19.00

33.50 20.00 57.00 20.00 33.50 OUT IN 40.00

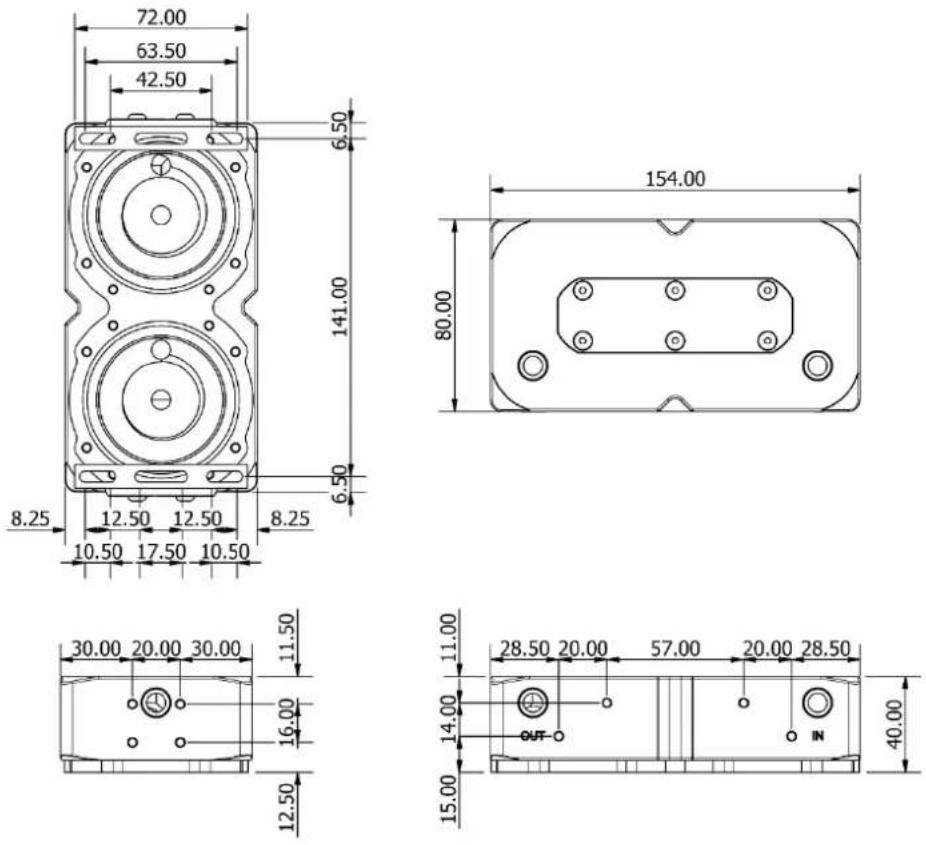

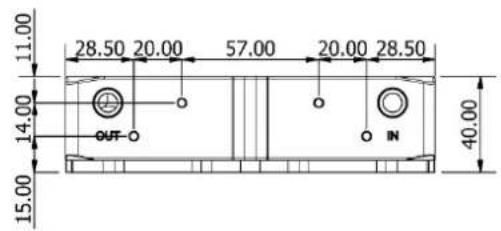

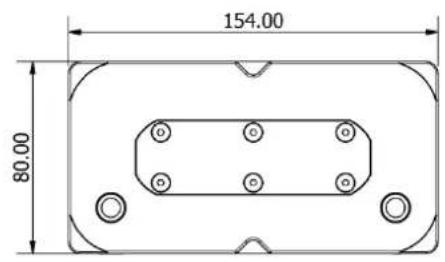

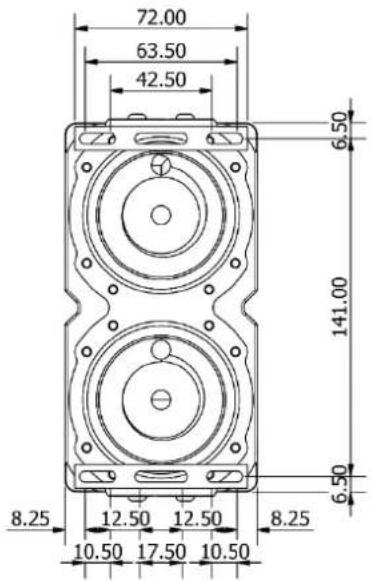

DIMENSIONS: EISDECKE DUAL D5 / VPP LAITON

72.00 63.50 42.50 6.50 141.00 8.25 12.50 12.50 8.25 10.50 17.50 10.50

[ en mm ]

154.00 80.00

30.00 20.00 30.00 11.50 16.00 12.50

11.00 28.50 20.00 57.00 20.00 28.50 14.00 OUT O O N 15.00 40.00

DIMENSIONS: EISDECKE D5 / VPP PMMA

72.00 63.50 42.50 R2.25 6.50 73.00 6.50 11.25 10.50 12.50 17.50 12.50 10.50 11.25

86.00 86.00 OUT 42.75 IN

16.00 37.00 17.00 16.00 16.00 17.00 37.00 16.00

86.00 16.00 19.50 20.00 OUT 17.00 23.00

33.00 20.00 33.00 6.00 OUT N 40.00 42.75

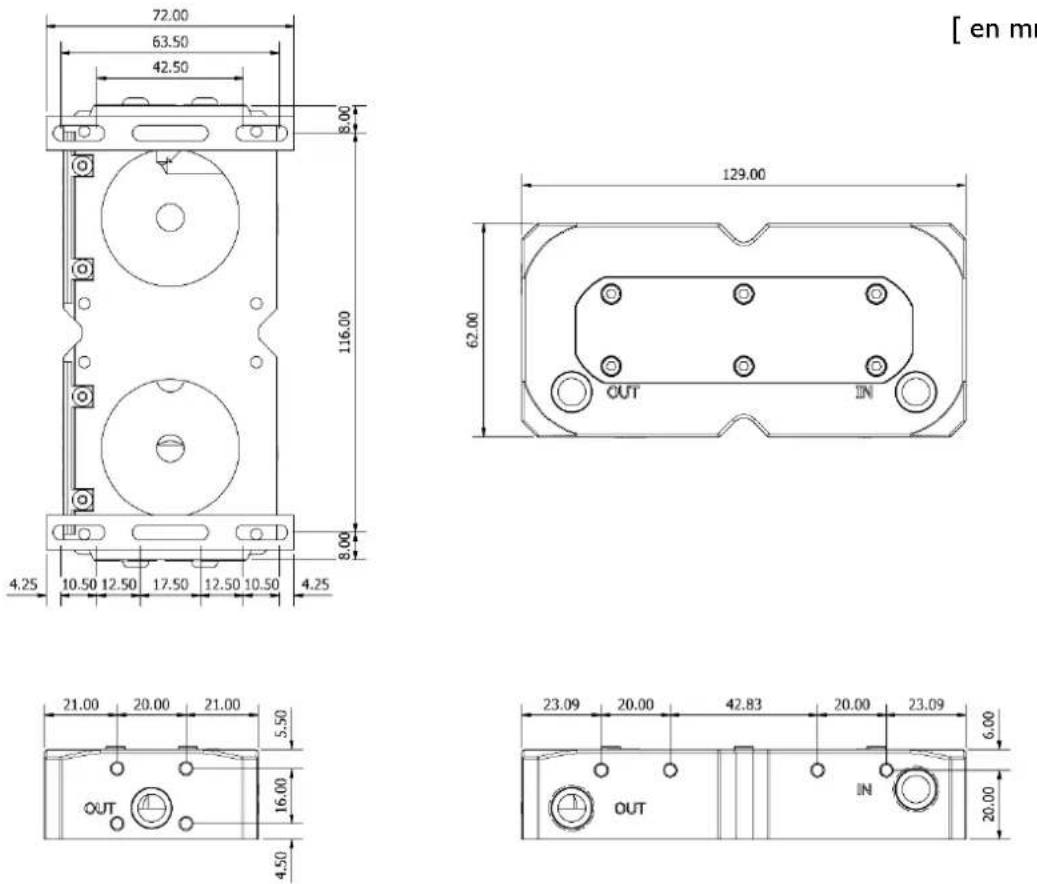

DIMENSIONS: EISDECKE DUAL DDC PMMA

[ en mm ]

DIMENSIONS: EISDECKE DUAL DDC LAITON

72.00 63.50 42.50 8.00 116.00 8.00 4.25 10.50 2.50 17.50 12.50 0.50 4.25

129.00 62.00 OUT EN

21.00 20.00 21.00 4.50 out 16.00 4.50

5.50 23.09 20.00 42.83 20.00 23.09 14.00 OUT IN 5.50 25.00

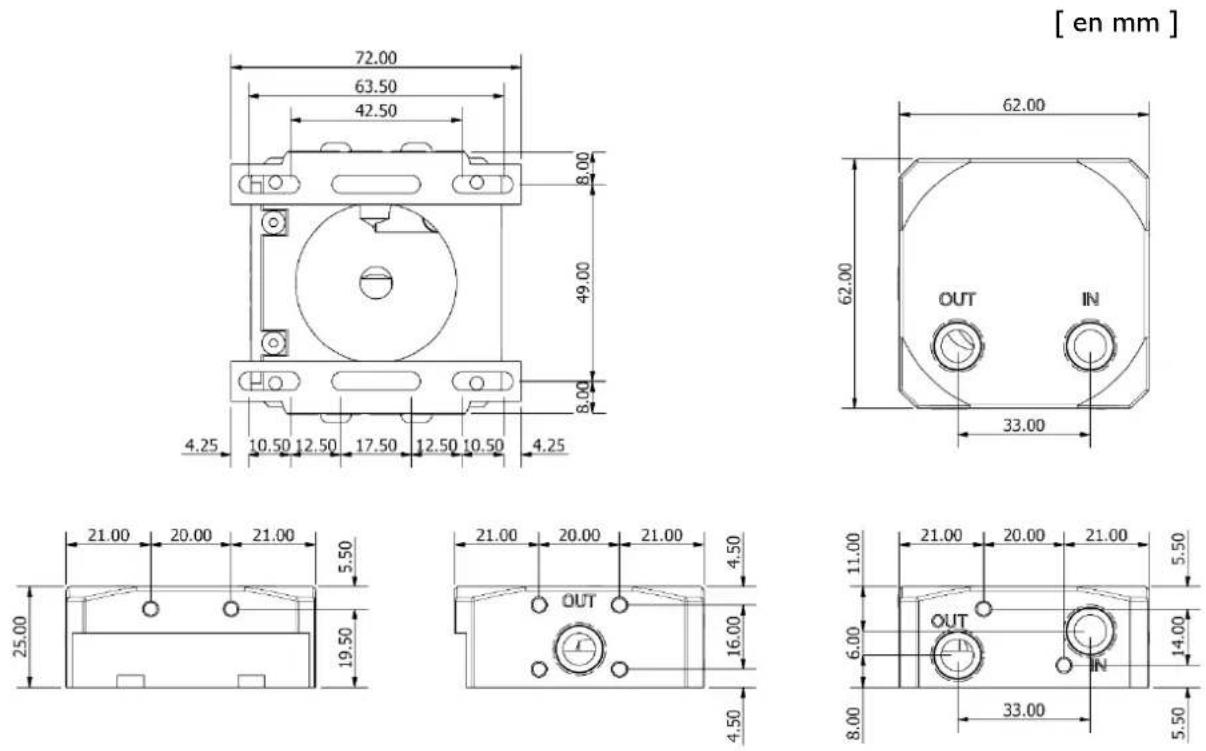

DIMENSIONS: EISDECKE DDC PMMA

DIMENSIONS: EISDECKE DC-LT PMMA

72.00 63.50 42.50 R2.25 8.00 87.00 8.00 4.25 10.50 12.50 17.50 12.50 10.50 4.25

100.00 55.00 OUT IN

17.50 20.00 17.50 OUT 25.50

40.00 20.00 40.00 OUT IN 8.50 17.00

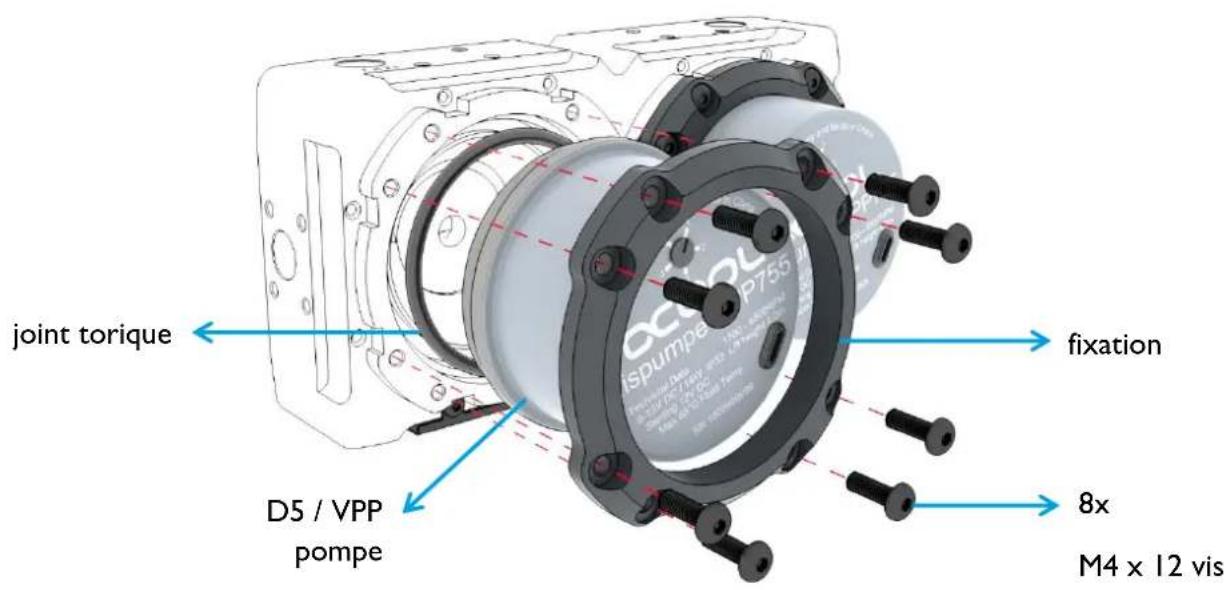

D5 / VPP

joint torque D5 / VPP pompe fixation 8x M4 x 12 vis

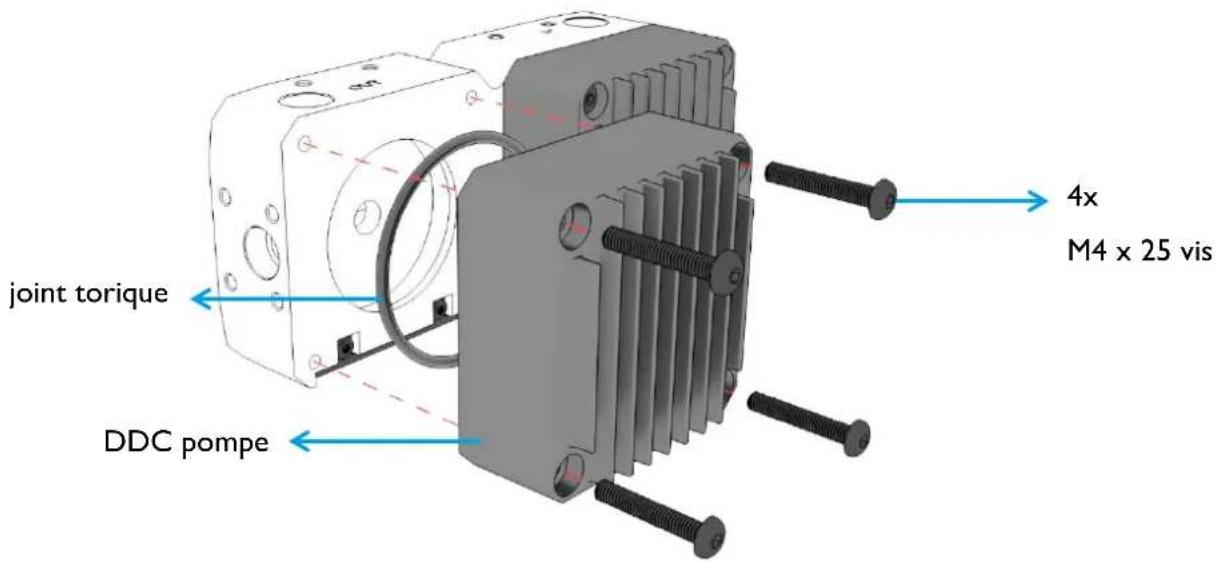

DDC

joint torque DDC pompe 4x M4 x 25 vis

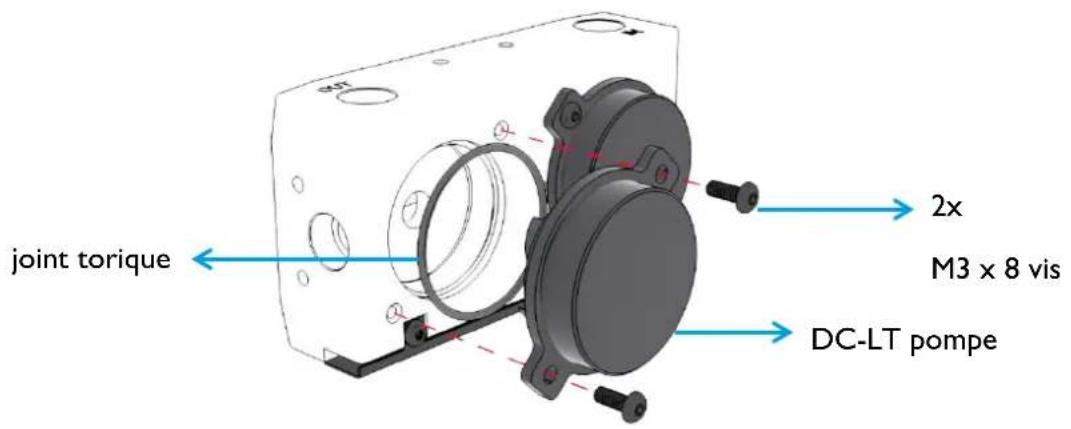

DC-LT

joint torque 2x M3 x 8 vis DC-LT pompe

FERMER LES RACCORDS

3D mechanical assembly diagram showing blue components with directional arrows, no visible text or symbols

3D diagram of a mechanical device with labeled ports and directional indicators (no readable text or symbols)

3D rendering of a white electronic device with red and black components, no visible text or symbols

Technical line drawing of an electronic component assembly with a black connector and blue arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a downward force (no text or symbols)

Technical line drawing of a mechanical assembly with a black component and blue arrow indicating a downward force (no text or symbols present)
