Not suitable for children under 6 years. (contains small parts which could be swallowed).
- Do not run any cooling components without ensuring that cooling liquid is flowing through the cooling system. Coolers operated without coolant can become very hot. Caution: Burn Hazard!
- Coolers that have no coolant flowing through them can destroy the computer hardware. When switching on the hardware, always make sure that the pump is working.
Please note when tightening the connectors or fittings, no tools such as screwdrivers, pliers, or wrenches should be used. All plastic products or metal threaded connections, which are linked with plastic parts, are easily over-loaded with tools. Cracking or other damages incurred in this way, as well as damage from leaking coolant, are not covered under the warranty!
- Use only connectors with a sealing o-ring. When using a sealing ring a firm tightening with the hand is enough. Your instruction manual will clearly refer to the use of tools in exceptional cases.
- If you have not done so yet, please check your hardware and cooling system (tightness, pump function and fans). This will minimize time spent searching for possible problems. ALPHACOOL INTERNATIONAL GMBH accepts no liability on the warranty of the manufacturer of the electronic components. The assembly of the cooling system takes place at your own risk.
The screws should not be tightened too firmly. If you tighten the screws excessively, the knurled nuts can loosen and the cooler's uniform pressure is no longer guaranteed.
- Fasten the connections of your choice to the cooler. Do not use tools such as wrenches for fastening the connections. Connectors with 8mm long threads may stop the flow.
- We recommend a tightness test before assembling/installing the cooler. The water pressure in the water cooling loop can be at a maximum of 0.8 bar. DO NOT use tools on the connectors.
- Ensure that the cooler is touching all components to be cooled through thermal grease and thermal pads.
- Only use distilled water or ALPHACOOL CAPE KELVIN CATCHER in your cooling circuit. Damage caused by unsuitable coolant is not covered by the warranty!

Specified normal operation

All ALPHACOOL INTERNATIONAL GMBH cooling components are constructed and licensed for ALPHACOOL INTERNATIONAL GMBH computer construction parts. The warranty expires in case of misuse.

Warranty

1. Data, designs, illustrations, technical data, weight, measurement and specifications, contained in folders, catalogues, circulars, announcements or price lists, have a purely informative character. We do not undertake warranty for the correctness of these data. As to the kind and the range of delivery, the data contained in the order and confirmation of order alone are decisive.
2. If there is a lack of warrantor, you are entitled, on the basis of the legal regulations to require subsequent delivery, to withdraw from the contract or reduce the purchase price. If you are a consumer, the limitation period of warranty claims for the supplied commodity amounts to two years starting from receipt of goods (\13 BGB). If you are an entrepreneur, in accordance with legal conditions the limitation period amounts to only one year (\ 14 BGB).
3. The warranty claim is valid only in combination with the original invoice, the sales slip or an ALPHACOOL confirmation on warranty claim.
4. It is ALPHACOOL INTERNATIONAL GMBHs own discretionary authority to replace or repair the defective product or defective component. The replaced product or component changes into property of ALPHACOOL INTERNATIONAL GMBH.
5. All warranty claims are accomplished by ALPHACOOL INTERNATIONAL GMBH or its authorized dealers. If the repair is carried out by a non-authorized or assigned person, ALPHACOOL INTERNATIONAL GMBH does not take over either costs or liability, unless the repair has been previously agreed upon with ALPHACOOL INTERNATIONAL GMBH.

6. All costs resulting from refitting of the products are not taken over by ALPHACOOL INTERNATIONAL GMBH.

7. ALPHACOOL INTERNATIONAL GMBHs warranty excludes the following points:

7.1. Regular controls maintenance and repair or the replacement of parts subject to regular wear and tear.
7.2. Improper manipulation or defects caused by Incorrect Installation.
7.3. Damages caused by storm, water, fire, overvoltage, acts of God, war, incorrect connection to the net, insufficient or incorrect ventilation or other reasons over which ALPHACOOL INTERNATIONAL GMBH has no influence.
7.4. Damages resulting from transportation or improper packaging.

1. Consumer's rights are valid in the respective country; demands made to the salesman, as explained and laid down in the sales contract, will not be covered by this warranty. ALPHACool INTERNATIONAL GMBH, Its Branch Office and Distributors, are not responsible for direct or Indirect damage or losses, as far as the

compelling legal regulations do not oppose it.

1. ALPHACOOL INTERNATIONAL GMBH does not take over the warranty of the manufacturer of the electronic construction units and components. The assembly of the cooler takes place at your own risk.

Contact an authorized waste management company in your country. A waste removal with the municipal waste (unsorted garbage) or similar mechanisms for the collection of local wastes is not permissible!

MOUNTING MATERIAL

XPX PRO CPU COOLER
	1x thermal paste	4x springs	4x M4 nuts	6x sealing plugs	1x plug key
INTEL LGA 2066
	1x kit 2066 / 2011 brackets		4x 2066 / 2011 bolts
INTEL LGA 3647 Narrow
	1x set 3647 Narrow brackets		4x 3647 screws
INTEL LGA 3647 Square
	1x Set 3647 Square brackets		4x 3647 screws
AMD TR4
	1x set TR 4 / SP 3 brackets		4x TR 4 / SP 3 bolts

TECHNICAL DETAILS

COMPATIBILITY INTEL LGA 2066/2011/3647

AMD TR 4/SP3

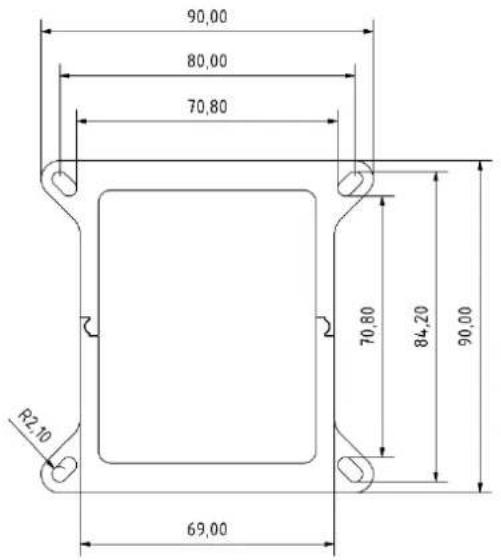

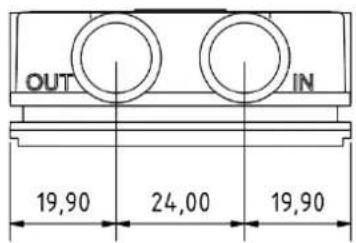

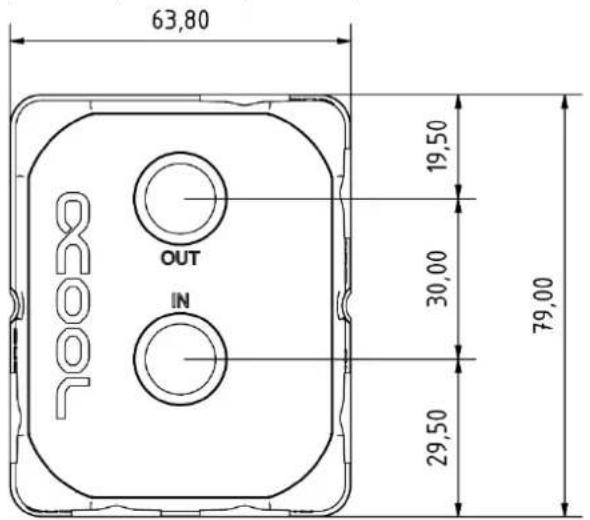

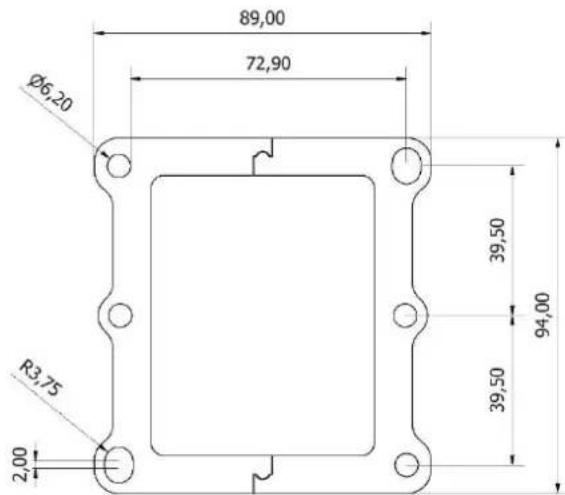

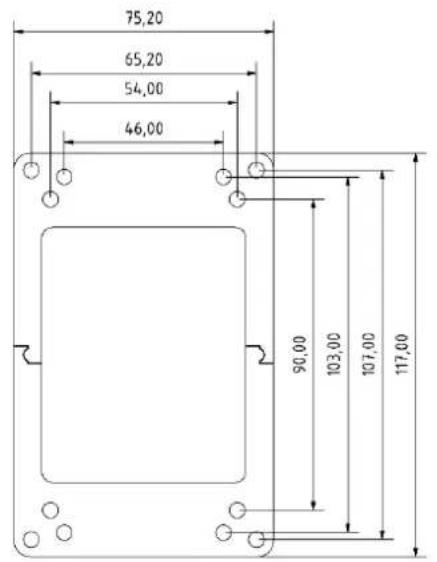

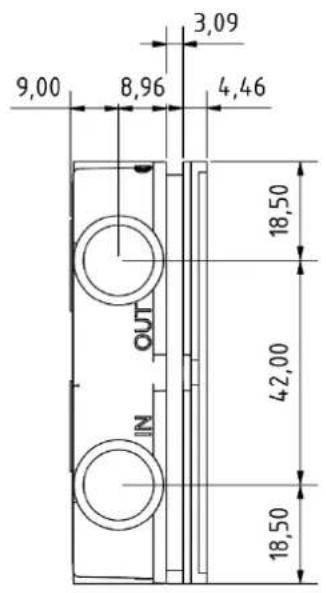

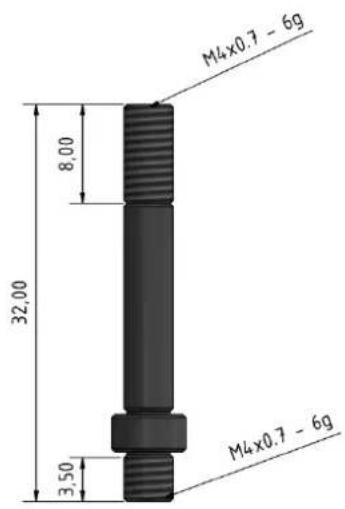

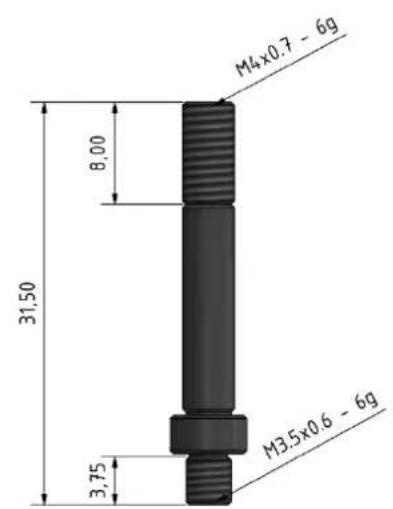

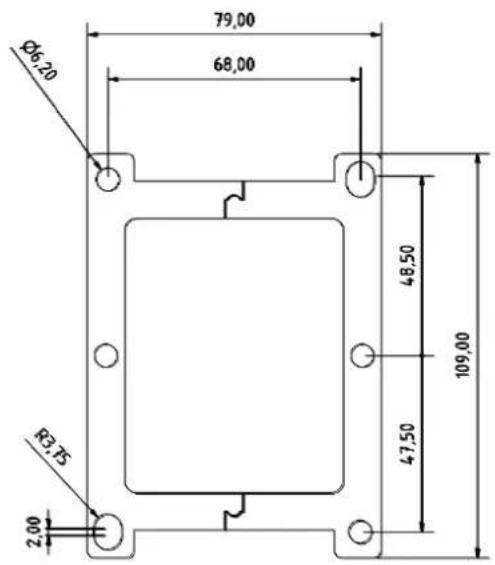

DIMENSIONS

[dimensions in mm]

Eisblock XPX Pro I U

INTEL LGA 2066
LGA 2011

INTEL LGA 3647
Norrow

INTEL LGA 3647 Square

AMD TR 4/SP3

EISBLOCK XPX PRO IU MOUNTING

PREPARING THE CPU COOLER

• Remove the protective film from the bottom plate:

• Close all inlets and outlets you don't want to use with the 6 enclosed screw plugs. You can use all inlets with any outlet as you wish.

Use the plug key

PREPARING THE CPU

After you have dismantled your old cooler clean the hardware first:

• Remove any remaining thermal paste from the CPU.
• Use a lint free cloth or other material to help. Dried on, stubborn paste can be removed with alcohol.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatula, or similar to an even, thin layer ( < 0.5mm layer thickness).

INTEL LGA 2066 / LGA 2011

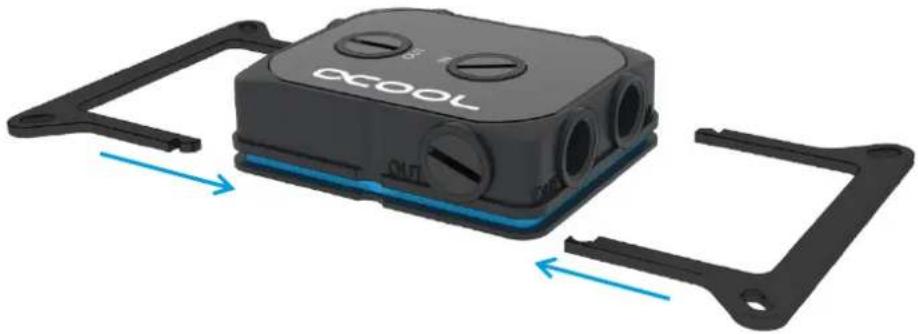

• Select corresponding brackets and plug them together:

Do not use tools. Tighten only by hand!

SOCKET MOUNTING

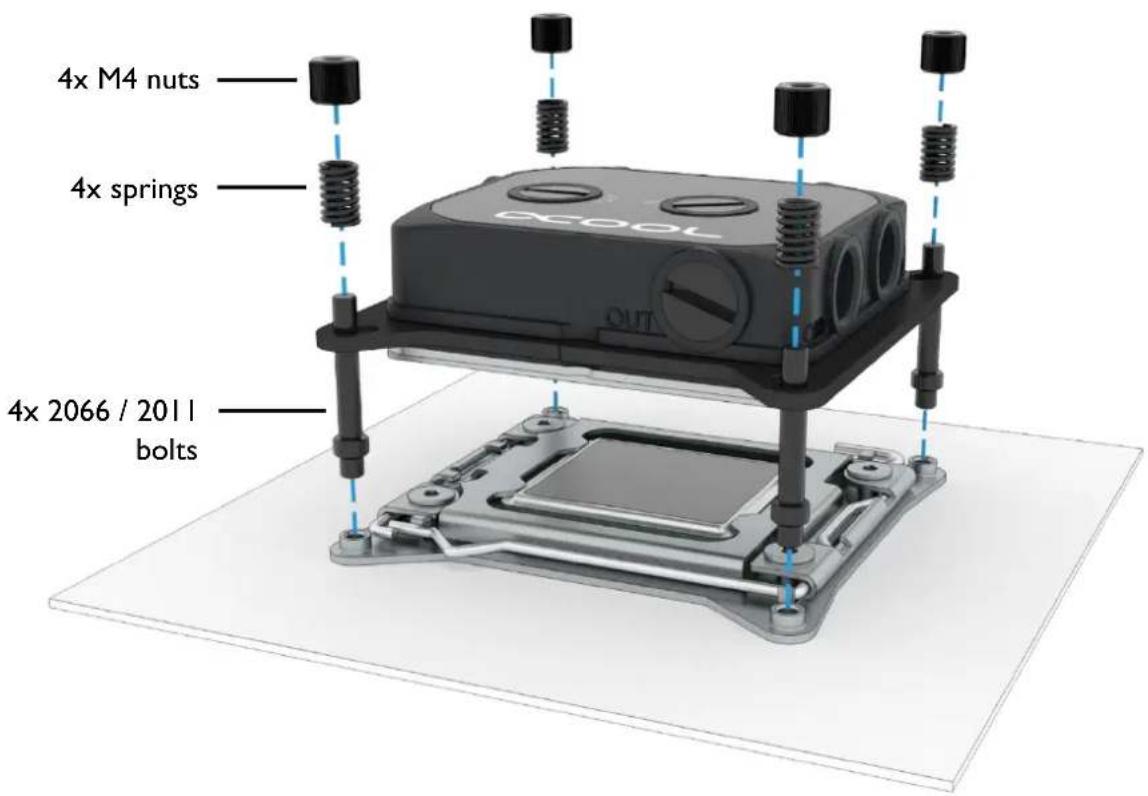

• Screw the 2066 / 2011 bolts into the socket
• Place the cooler with bracket on the socket
  Fix with compression springs and nuts

INTEL LGA 3647 NARROW / SQUARE

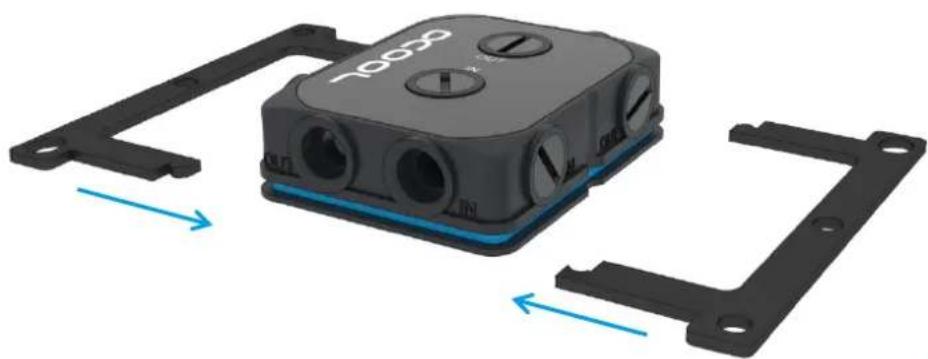

• Select corresponding brackets and plug them together:

Do not use tools. Tighten only by hand!

SOCKET MOUNTING

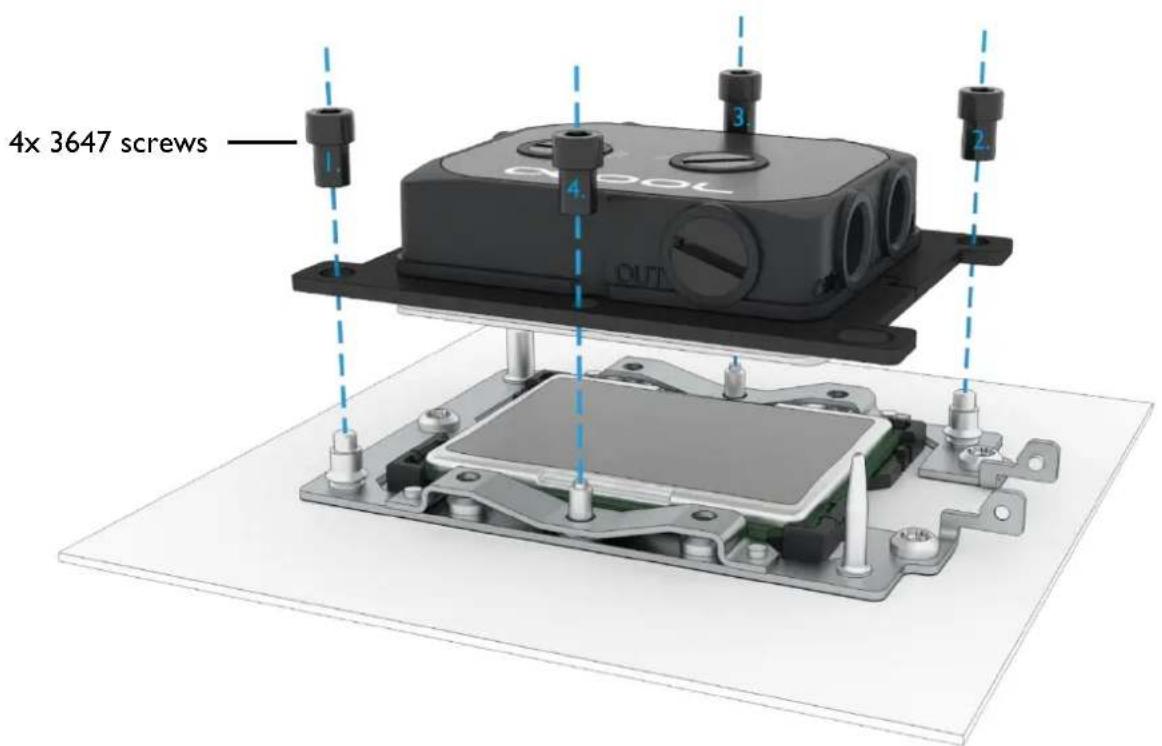

• Place the cooler with bracket on the socket
  Fix with 3647 screws - First tighten the screws in the outer corners, then the lateral screws.

AMD TR 4/SP3

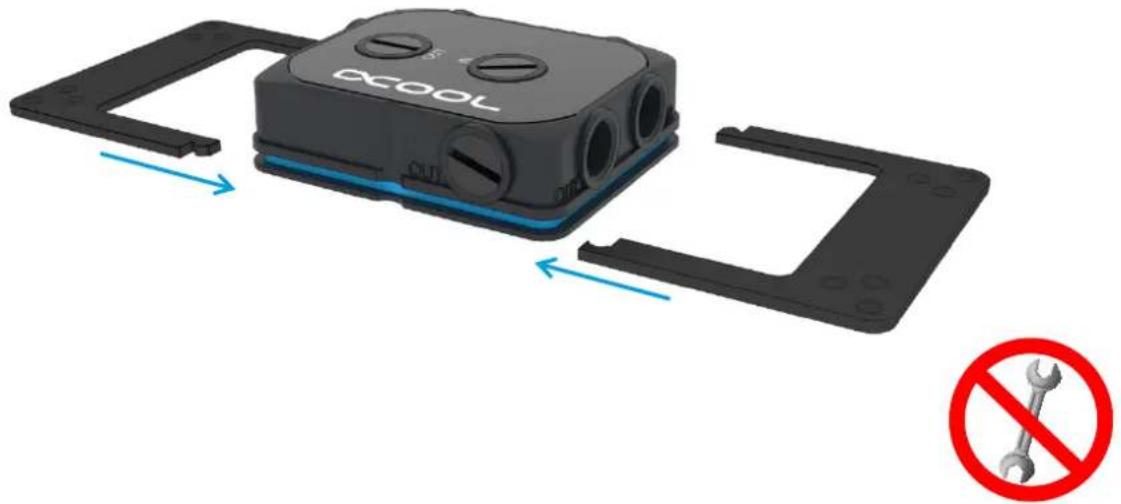

• Select corresponding brackets and plug them together:

Do not use tools. Tighten only by hand!

SOCKET MOUNTING

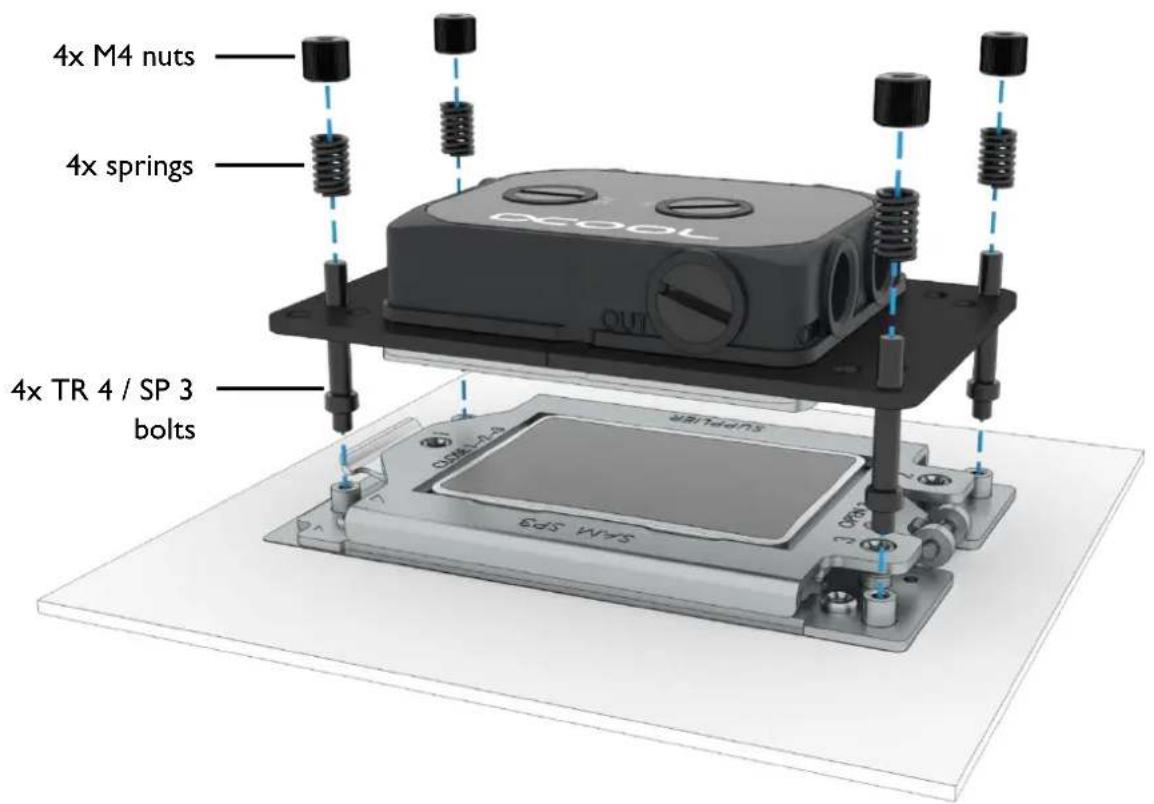

• Screw the TR 4/SP 3 bolts into the socket
• Place the cooler with bracket on the socket
  Fix with compression springs and nuts
