USER MANUAL SS-16140 Sogo

This instruction manual can also be downloaded from our web page www.sogo.es

WARNING AND SAFETY PRECAUTION

1. Read the instruction manual carefully before use!

2. Keep this instruction manual for future use.

3. Children should be supervised to ensure that they do not play with the appliance.

4. This appliance is designed for domestic use only.

5. Do not pull on the connection cord, but rather on the plug, to separate the appliance adaptor from the mains.

6. Do not use outdoor.

7. Do not leave the appliance unattended when it is switched on, as this may be a source of danger.

8. Stand the appliance on a table or flat surface.

9. If the supply adaptor is damaged, it must be replaced by a qualified person in order to avoid a hazard.

10. Following objects are strictly banned, otherwise the vacuum cleaner will be damaged or fire calamity will be caused, which bring such accidents as human body injuries: Don't pick up large or sharp broken such as glasses, Don't pick up inflammable or explosive substance such as gasoline or alcohol.

11. Check the device and connections regularly for visible damage.

12. The device must not be used if the housing is damaged or other damage is present.

13. Never attempt to open the device or the mains adapter yourself or to replace the connecting cable. Always have repairs to the device carried out by a specialist workshop.
14. There is considerable danger to the user if repairs are faulty.
15. Do not trap the mains power adapter cable and when using the adapter, pay attention to where the cable is to prevent any danger of tripping over it.
16. Keep the cable away from heated surfaces (e.g. cooker and other hot surfaces).
17. Do not touch the mains adapter and cable with wet hands.
18. Do not point the vacuum cleaner at persons or animals when in operation.
19. Only use the mains adapter in a clean and dry environment.
20. Only use the device with the accessories supplied.
21. Please keep these instructions in a safe place.
22. Use only with the provided adaptor.
23. This appliance is not intended for use by children or the infirm, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

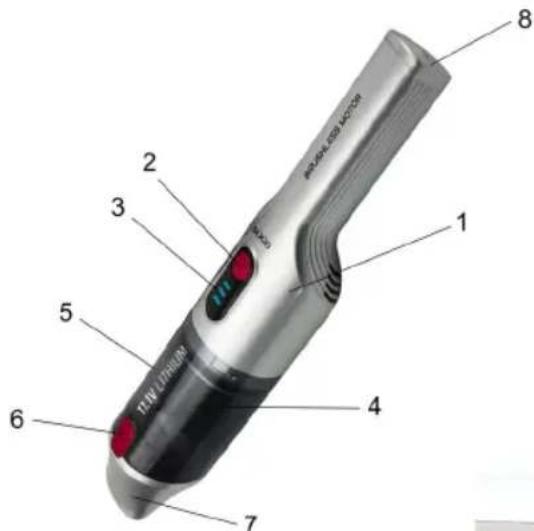

DESCRIPTION

1. Body
2. On/off and speed switch
3. LED light
   4.Filter
4. Dust tank
5. Dust release button
6. Suction ring
7. Charging port

CHARGING

Fix the charging base by screw.

Insert the adaptor into the mains socket always make sure that the vacuum is turned off before connecting to the power adaptor.

The indicator light in blue color will come on and keep flashing once the device has made contact with the adaptor.

In order to ensure that it is always ready for use, the device should be left on charge with adaptor when not being used.

The adaptor may become warm during charging this is normal.

INDICATION LIGHT

1. When charging the appliance, the indication in blue color will come on and keep flashing.
2. When fully charged, the indication light will keep on in blue color
3. When using the appliance, the indication light will be in blue color.
4. When the battery is weak, the last indication light in blue color will keep flashing.

USE AND FUCTION

Do not connect the adaptor when using the appliance. You should regularly check that the nozzle is clean as any foreign object may scratching sensitive floors.

1. Insert the nozzle/sofa brush into main unit when cleaning table, car, corner sofa, carpet etc...
2. Start the device by pushing the on/off button upward.
3. Pushing the on/off switch button downward to turn off the device.

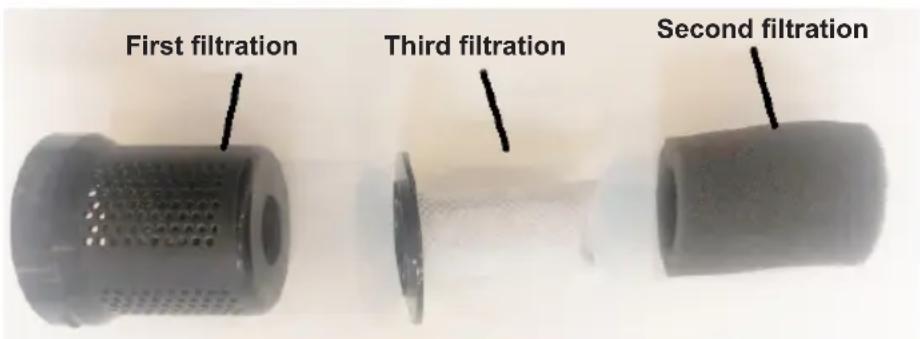

EMPTYING/CLEANING

Careful cleaning of the dust container and filters

1. Remove the whole dust bin by rotate the dust tank and take the dust container off.
2. Rotate the filters and emptying the contents of the dust container into a suitable vessel or HEPA. (The filter can be shaken clean or cleaned and rinsed using warm water. Make sure that the parts are dry before they are re-installed.)
3. Empty the dust tank.
4. Washing the filters under water.
5. Re-install the components

Important: Make sure that the parts are dry before they are re-installed.

Put the filter into dust container. Assemble the dust bin to the motor unit following up the opposite procedures for detaching the dust bin.

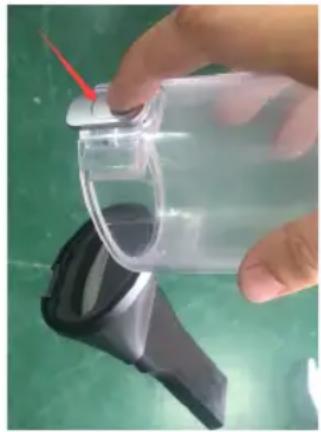

Dust release

When release the dust, just press the button, after finish, turn on it.

DISPOSAL

If the device is to be disposed, the battery should ideally be removed.

Used battery should be never disposed with household wastes; it should always be taken to a local authority recycling centre.

If you cannot disassemble the product yourself the local authority recycling centre will dispose of the product for you in an environmentally friendly manner

SERVICING OR REPAIRS

Where the product malfunctions or is damaged all inspections and repairs must be carried out by a qualified electrician or technician.

SPECIFICATIONS:

11.1V 2600mAh Li-ion Battery 90W

Charger

100 - 240V~ 50/60Hz - 0.25A - IP20

Output: 14V = 500mA

Charging time: 4.5H

Operating time: 18 mins in High speed and 30 mins in low speed

Suction: 13kpa under high speed and 7kpa under low speed

MANUTENÇA OU REPAROS

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
