1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Max temperature 45^

Wear eye protection.

Wear hearing protection.

Risk of electric shock.

Rotation, left/right.

Do not use in rain.

Do not throw the battery into fire.

Do not throw the battery into water.

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

Do not dispose of the product in unsuitable containers.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion. NOTE The temperature, 130^ can be replaced by the temperature,. 265^^*

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

7) Safety instructions for all operations Safety warnings that are accepted for weed brushes:

a) This power tool is used as a weed brush. Read all of the instructions, illustrations, safety warnings and specifications provided with this power tool. Failure to follow all of the instructions listed below might result in an electric shock, fire and/or serious injuries.
b) This power tool must not be used for work such as cutting, grinding, hole cutting or polishing. Using the power tool for operations that it has not been designed for might cause a hazard as well as personal injuries.
c) Do not convert this power tool in a way that it has not been specifically designed for and specified by the tool manufacturer. Such a conversion might result in loss of control and cause serious personal injuries.
d) Never use an accessory that has not been specifically designed for use with it and specified by the tool manufacturer. Just because an accessory can be attached to your power tool does not guarantee safe operation.
e) The nominal speed of the accessory must be at least equal to the maximum speed listed on the power tool. An accessory that runs faster than the nominal speed might break and fly apart.
f) The outer diameter and thickness of your accessory must be within your power tool's power class. Incorrectly dimensioned accessories cannot be sufficiently controlled or protected.
g) The accessory holder's dimensions must match the dimensions of the power tool's mounting materials. An accessory that does not match

the power tool's mounting material will become unbalanced, vibrate excessively and this can lead to a loss of control.

h) Never use a damaged accessory. Before each use, always check accessories such as sanding discs for chips and cracks, support pads for cracks, tears or excessive wear and the wire brush for loose or cracked wires. If the power tool or an accessory is dropped, check it for damage or fit an undamaged accessory. After inspecting and fitting an accessory, position yourself and bystanders well away from the plane of the rotating accessory and then run the power tool at maximum idle speed for one minute. A damaged accessory will normally break apart during this test period.
i) Always wear personal protective equipment. Use a face shield or wear safety glasses or goggles, depending on the application. If needed, you should also wear a dust mask, hearing protection, gloves and a workshop apron, which can stop small abrasive or workpiece fragments from hitting you. The protective eyewear must be able to stop flying impurities generated by the different applications. The dust mask or respirator must be able to filter out particles generated by the application. Prolonged exposure to high-intensity noise can result in hearing losses.
j) Keep bystanders a safe distance away from the working area. Anyone entering the working area must also be wearing personal protective equipment. Fragments of a workpiece or a broken accessory can fly off and cause injuries outside the immediate operating area.
k) Position the power cord so that it is well away from a spinning accessory. If you lose control, the power cord might be cut or snagged and your hand or arm might be pulled into the spinning accessory.
I) Never put the power tool down until the accessory has completely stopped. The rotating accessory might catch the surface and pull the power tool out of your control.
m) Never run the power tool when holding it at your side. Accidental contact with the spinning accessory could catch your clothing and pull the accessory into your body.
n) Clean the power tool's ventilation openings regularly. The motor's fan draws dust into the housing and an excessive accumulation of pulverised metal can cause electrical hazards.

o) Never use the power tool near flammable materials. Sparks might ignite these materials.
p) Never use an accessory that needs a liquid coolant. Using water or other liquid coolants can result in electric shock or jolts.

8) Other safety instructions for all operations Kickback and associated warnings:

Kickback is a sudden reaction to a jammed or stuck rotating wire brush. Jamming or becoming wedged in will cause the rotating accessory to stop rapidly, which will then cause the uncontrolled power tool to reverse the accessory's rotational direction at the binding point. Kickbacks are the result of power tools being misused and/or incorrect operating procedures or conditions and they can be avoided by taking appropriate precautions as indicated below.

a) Hold the power tool firmly using both hands and position your body and arms to resist kickback. Always use an extra handle, if available, to gain maximum control over kickback or torque reaction during startup. The operator can always control torque reactions or kickback forces if appropriate precautions are taken.
b) Never place your hand near a rotating accessory. An accessory can kickback over your hand.
c) Never stand in the area where the power tool will move in the event of a kickback. A kickback will drive the tool in the opposite direction to the movement of the wheel at the point of the fastening.
d) Take special care when working on corners, sharp edges, etc. Avoid skipping or snagging the accessories. Corners, sharp edges or rebounds tend to catch the rotating accessory and this will result in a loss of control or kickback.
e) Do not attach a saw chain wood chip blade, a segmented diamond wheel with a circumferential gap greater than 10mm or a toothed saw blade. These blades cause frequent kickbacks and loss of control.

ADDITIONAL SAFETY WARNINGS FOR WEED BRUSH

• Do not reach into the rotation brush with your hands. They could be injured by rotating parts.
  Only use the weed brush as intended. It is not designed for any other use case then removing weeds.

BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

FOR THE CHARGER

Intended use

This weed brush has an integrated lithium-ion battery, which you can charge with the included USB charging cable (USB-mains adapter not included).

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharge non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!
e) Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can destroy the power tool. To remove the battery from the power tool, press the On/Off switch until the battery is fully discharged. Unscrew the screws on the housing and remove the housing shell in order to remove the battery. To prevent a short circuit, disconnect the connectors on the battery one at a time and then isolate the poles. Even when fully discharged, the ns a residual capacity, which can be released in case of a short circuit.

RESIDUAL RISKS

Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool's construction and design:

a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
b) Injuries and damage to property to due to broken accessories that are suddenly dashed.

Warning! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool.

2. TECHNICAL INFORMATION

Intended use

The weed brush is intended for removing weed in slots of the wall or ground.

TECHNICAL SPECIFICATIONS

Model No. WB506DC
Rechargeable Battery pack 4V Li-ion 1.5Ah
IP class IPX0
Chuck capacity	¼" (6.35mm) hex (quick-release)
No load speed 300/min
Grinding disk 50mm (max)
Sound pressure level LpA	64 dB(A) K=3 dB(A)
Sound power leven LwA	72dB(A) K=3 dB(A)
Hand-arm vibration ah <2.5m/s	2 K=1.5 m/s²

To charge the battery only use the following recommended charger:

Charger model XZ0500-1700WU
Charger power supply
Input 100-240 V~;50/60 Hz;	0.3 A
Output 5 V d.c.; 1.7 A

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. Need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-3.

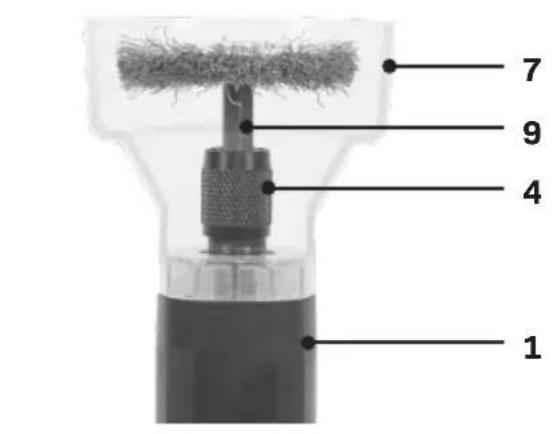

1. Machine housing
2. Charger cable
3. Battery indicator
4. Bit holder
5. Forward/reverse button
6. Unlock button
7. Safety guard
8. Charging socket
9. Weed brush

3. OPERATING

The battery must be charged before first use.

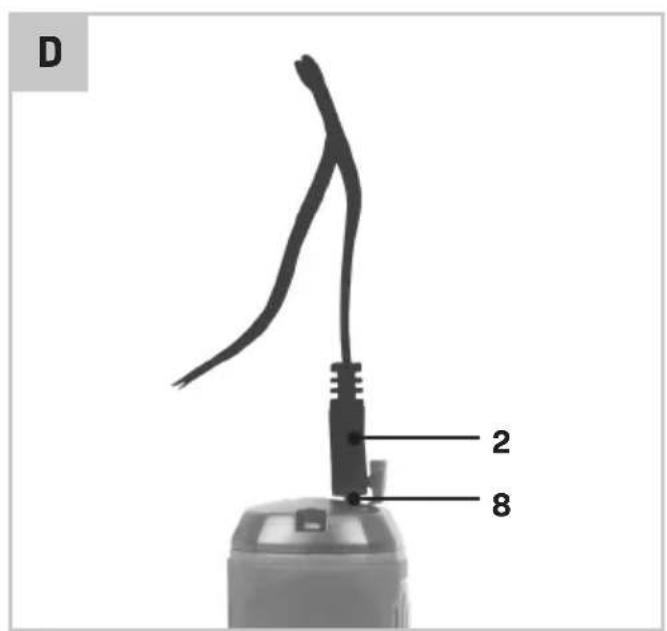

Charging the machine (Fig. D)

• Plug the charger cable (included) into an adapter (not included).

• Plug the charger cable (2) into the machine.

• Plug the charger plug into an electrical outlet and wait for a while. The battery indicator (3) will lighten up and show the charging status.

Fully charging the battery may take up to 2 - 3 hours.

Checking the battery charge status (Fig. D)

The battery indicator (3) shows the remaining battery charge when the machine is connected to the charger.

The battery indicator (3) has three lights indicating the remaining charge level. The more lights that burn, the more charge the battery has left.

Machine is fully charged when none of the light are blinking.

Fitting and removing the grinding disc (Fig. C1-C2)

The machine bit holder (4) is suitable for brush grinding disc with a standard 1/4 inch hexagonal shaft. The diameter of the grinding disk may not exceed 50mm to guarantee save use.

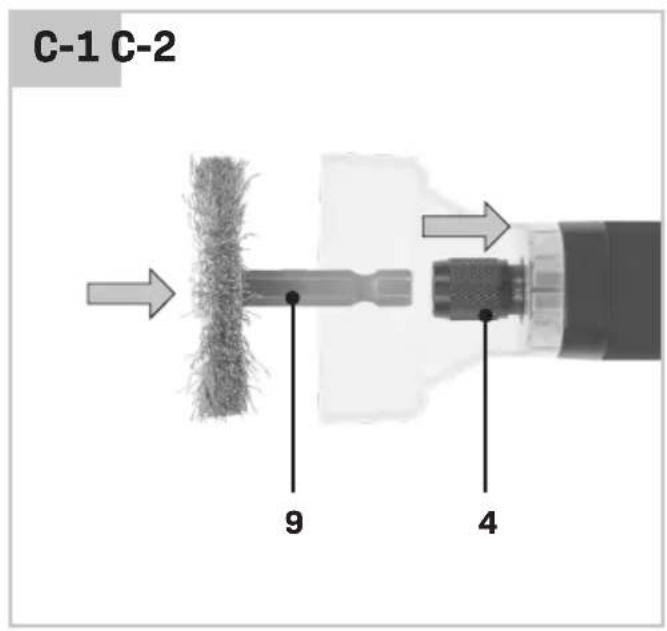

To fit the weed brush (Fig. C1)

• Rotate the weed brush with the with the shaft toward the bit holder (4).
• Push the bit holder (4) toward the machine and insert the weed brush shaft until locked. Make sure the bit holder (4) is in closed position.
• Before use, ensure that the wire brush is correctly installed and secured in the chuck. Run the machine without load in a secure location for 30 seconds. Immediately stop the tool if significant vibrations occur or defects are detected.

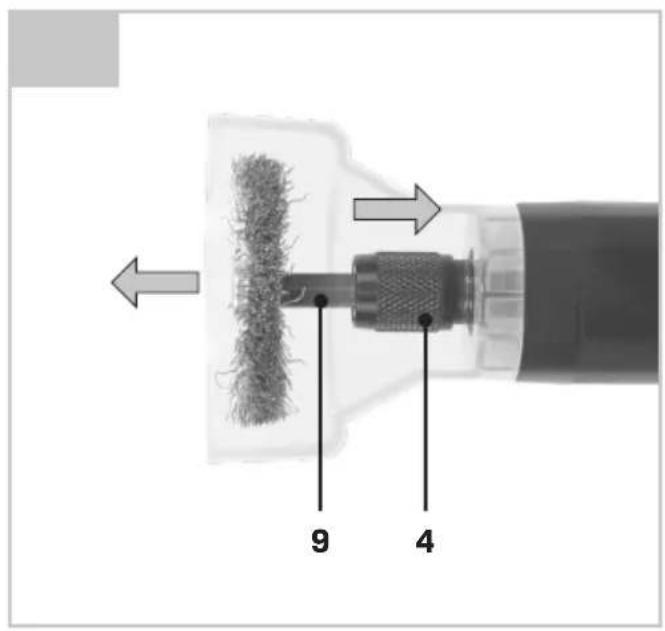

To remove the weed brush (Fig C2)

• Push the bit holder (4) towards the machine to unlock the quick-release.
  Pull back the weed brush out of the chuck.

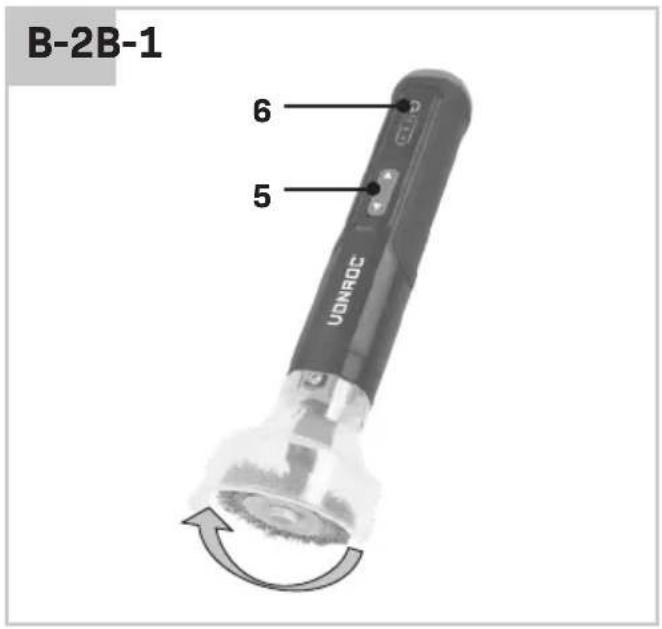

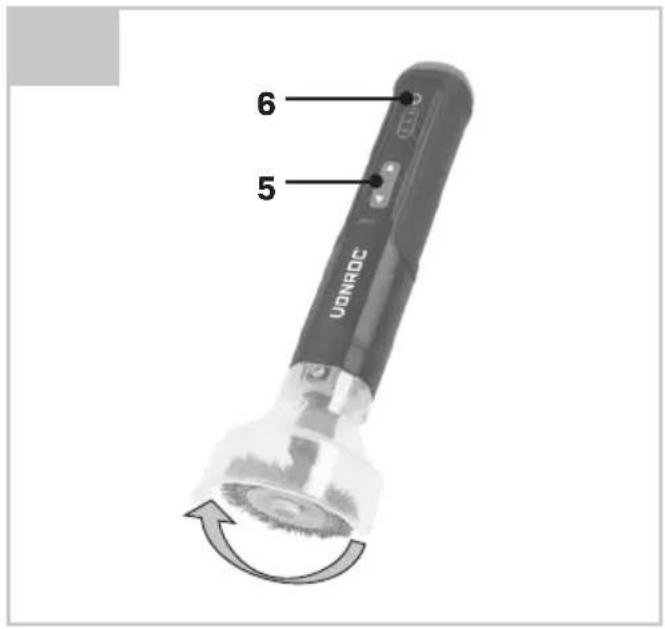

Turn on the machine and adjusting the direction of rotation (Fig. (B1/B2)

When holding the machine with brush pointing downwards.

• To start the machine (Fig B1), press the unlock button (6) to unlock. Press within 3 seconds the "↑" in order to turn the brush anti-clockwise.
• To start the machine (Fig B2), press the unlock button (6) to unlock. Press within 3 seconds the "↓" in order to turn the brush clockwise.
• To stop the machine press any of the buttons; forward/reverse button (5) or unlock button (6).

The machine is equipped with electronic overload protection function. When the machine gets overloaded it will shut down automatically. When this happens, please wait for at least 5 seconds to let the overload protection reset itself.

Spindle lock function

The machine is fitted with an automatic spindle lock feature. When no button is pressed, the bit holder (4) rotation is locked. Now it is possible to manually use the tools if necessary.

4. MAINTENANCE

Always disconnect the machine from the main power supply before carrying out any maintenance work.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
  Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face thereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

(EN) This product is labelled with this crossed out wheel bin symbol in accordance with European Directive 2012/19/EU to indicate that it must not be disposed of with your other household waste. Due to the presence of hazardous substances, mixtures or components, electrical and electronic devices that are not subject to selective sorting are potentially dangerous to the environment and human health. Please check your local city office or waste disposal service for the return and recycling of this product.
