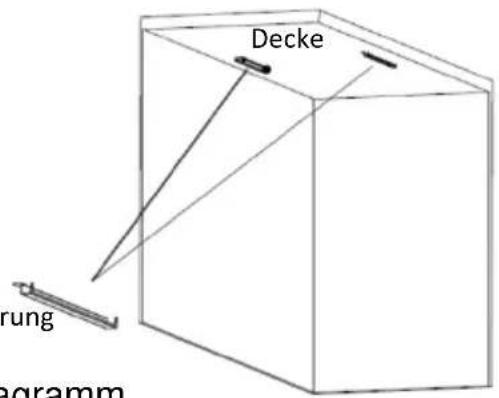

Decke

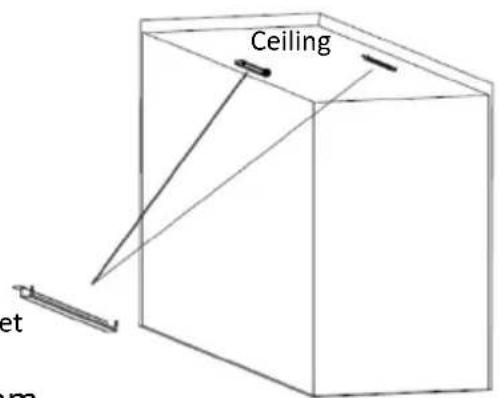

200mm

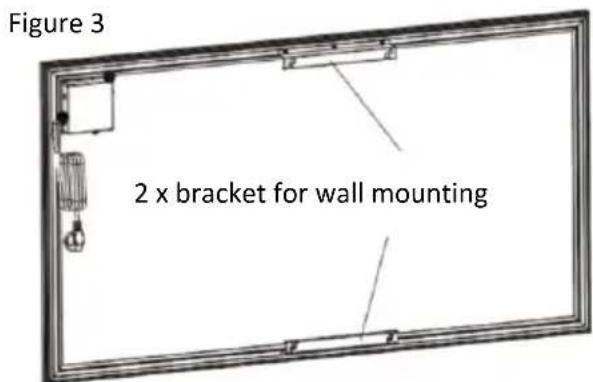

2 x Deckenhalterung

Decke rung agramm

QR code with a blue home icon in the center, likely linking to a smart home or app interface.

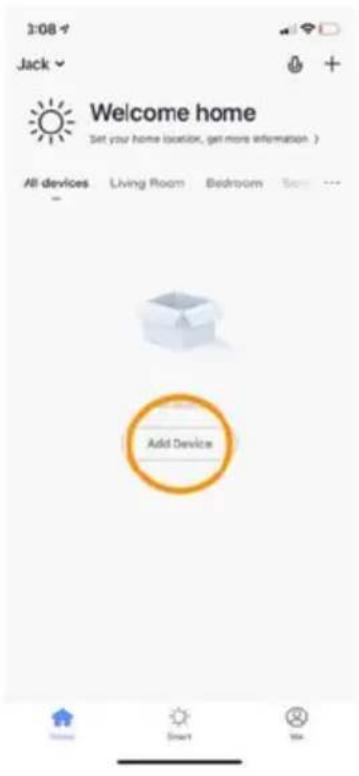

3:08 Jack Welcome home Set your home location, get more information.) All devices Living Room Bedroom Show... Add Device 3:08 Cancel Add Device Add Manually Beattled Smart Lighting Home Appliances I Home Appliance... Kitchen Security & Sensor Sport & Health Others Sleep Lamp Heather Heather (Heather) Air Heater Thermoselt Device Lighting

Schritt 1:

EU-DECLARATION OF CONFORMITY

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Wien, AUSTRIA

Declares, that the product

Manufacturer

Hersteller

Infrared Panel Heater

Model No.:

Modelnummer

SHXPIRP500, SHXPIRP850, SHXPIRP1200

is conformity with following directives, norms and/or regulations:

of 16 April 2014 amending Directives 2003/71/EC and 2009/138/EC and Regulations (EC) No 1060/2009, (EU) No 1094/2010

and (EU) No 1095/2010 in respect of the powers of the European Supervisory Authority (European Insurance and

Occupational Pensions Authority) and the European Supervisory Authority (European Securities and Markets Authority)

Article 3.1(a) Safety:

EN IEC 62368-1:2020+A11:2020

Article 3.1(a) Health:

EN IEC 62311: 2020

Article 3.1(b) EMC:

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.6 (2023-06)

EN IEC 55014-1:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 55014-2:2021

Article 3.2 Radio:

EMC Directive (EMC): 2014/30/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility; Official Journal of the EU L96, 29/03/2014, p. 79–106

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021

Low Voltage Directive (LVD):2014/35/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits; Official Journal of the EU L96, 29/03/2014, p. 357–374

EN 60335-1: 2012+A11: 2014+A13: 2017+A1: 2019+A14: 2019+A2: 2019+A15: 2021;

EN 60335-2-30:2009+A11:2012+

A1:2020+A12:2020+A2:2022+A13:2022;

EN 62233: 2008

Ökodesign-Richtlinie Energy-Related-Products-Directive (ErP)2009/125/EC:

Official Journal EU L285/10-35 (31.10.2009) and associated regulation 2015/1188

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88–110

Reach SVHC(EC)NO. 1907/2006 Schuss Home Electronic GmbH hereby confirms that in the products we supply, there are no substances of very high concern (SVHC) in the candidate list (last ECHA update from June 14, 2023, 235 substances) above 0.1% in accordance with Article 33 of the REACH Regulation (EC) No .1907/2006 are included.

Place and date of issue:

Vienna, 2023-07-19

Scharl, Alexander

Senior product and purchasing manager i.V...

Name, Funktion / name, function

Authorized representative of manufacture

...

-

e

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA

Blank white rectangular panel with no visible text, symbols, or markings

FÉLICITATIONS !

MERCI D'AVOIR CHOISI CE PRODUIT DE SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT DE COMMENCER L'ASSEMBLAGE, L'INSTALLATION, LE FONCTIONNEMENT OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES ET/OU DES DOMMAGES MATÉRIELS ET/OU ANNULER LA GARANTIE!

Utilisation prévue

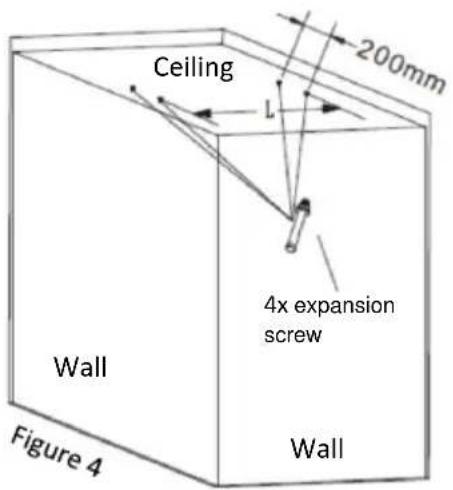

Plafon L 200mm Expansion 4x vis Mur Mur Figure 4

Support Mur

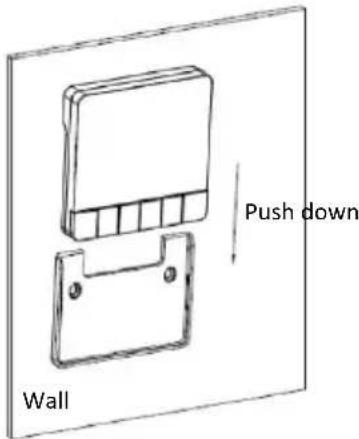

2. fixation par vis

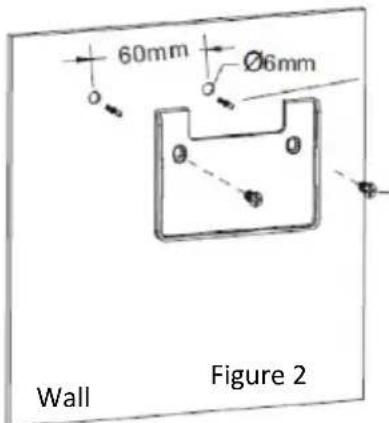

60mm Ø6mm MUR Figure 2

QR code with a blue home icon in the center, likely linking to a digital service or application.

3:08 Jack Welcome home Set your home location, get more information. 3 All devices Living Room Bedroom See ... Add Device Smart

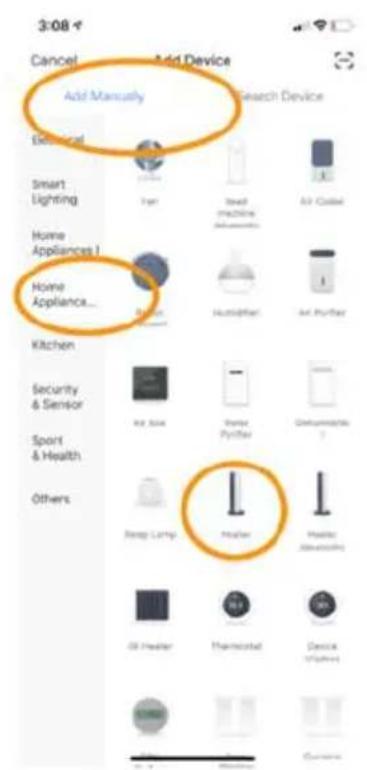

3:08 Cancel Add Device Add Manually Search Device Mechanical Smart Lighting Air Cable Home Appliances I Home Appliance... Air Filter Air Pusher Kitchen Security & Sensor Air Loss Water Putter Consumables Sport & Health Others Deep Lamp Heater Power Consumers

Étape 1 :

EN IEC 62368-1:2020+A11:2020

Plain white rectangular panel with no text, numbers, or symbols visible

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO QUESTO PRODOTTO DI SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE LE ISTRUZIONI PER L'USO PRIMA DI INIZIARE IL MONTAGGIO, L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O INVALIDARE LA GARANZIA!

Uso previsto

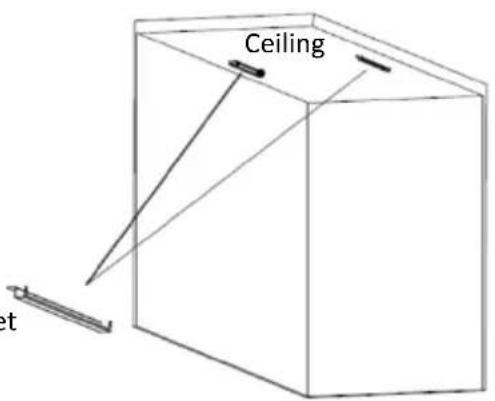

Soffitt 200mm

Soffitt to o schema

60mm Ø6mm Muro Figura 2

QR code with a blue home icon in the center, likely linking to a smart home or app interface.

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom Show... Add Device 3:08 Cancel Add Device Add Manually Beefrical Smart Lighting Yan Smart Machine Air Cache Home Appliances I Home Appliance... Batter Habitifier Air Poultry Kitchen Security & Sensor Sport & Health Others Sleep Lamp Heather Heather Heather (hydro)... Air Heater Thermoselt Device ( Lighting ) Cancel

Fase 1:

EN IEC 62368-1:2020+A11:2020

Articolo 3.1(a) Salute:

EN IEC 62311: 2020

Articolo 3.1(b) CEM:

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.6 (2023-06)

EN IEC 55014-1:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 55014-2:2021

Articolo 3.2 Radio:

Plain white rectangular panel with no text, numbers, or symbols visible

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN DIT PRODUCT VAN SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

LEES DE BEDIENINGSINSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE MONTAGE, INSTALLATIE, BEDIENING OF HET ONDERHOUD.

BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF HET VERVALLEN VAN DE GARANTIE!

Beoogd gebruik

https://www.schuss-home.at/downloads

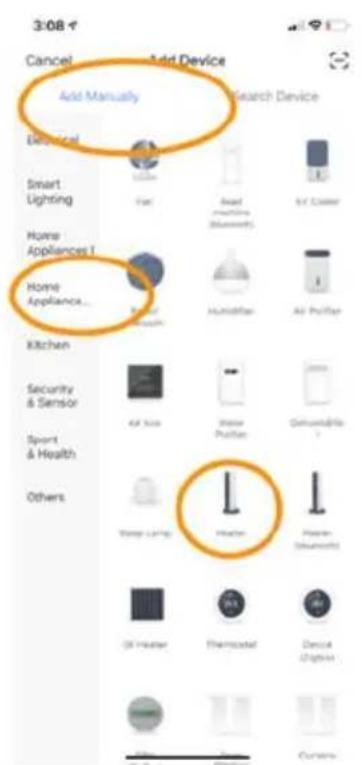

Smartlife APP downloaden

QR code with a blue home icon in the center, likely linking to a smart home or app interface.

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom See ... Add Device

3:08 Cancel Add Device Add Manually Search Device Medical Smart Lighting Home Appliances 1 Home Appliance... Kitchen Security & Sensor Sport & Health Others Water Lamp Heater Heater Oil Heater Thermostat Dental Digital Cursors

Stap 1:

EN IEC 62368-1:2020+A11:2020

Plain white rectangular panel with no text, numbers, or symbols visible

¡ENHORABUENA!

GRACIAS POR ELEGIR ESTE PRODUCTO DE SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

o Techo 200mm

Techo Panel calefactor

Figura 1 Soporte Pared

60mm Ø6mm Pared Figura 2

QR code with a blue home icon in the center, likely linking to a digital service or application.

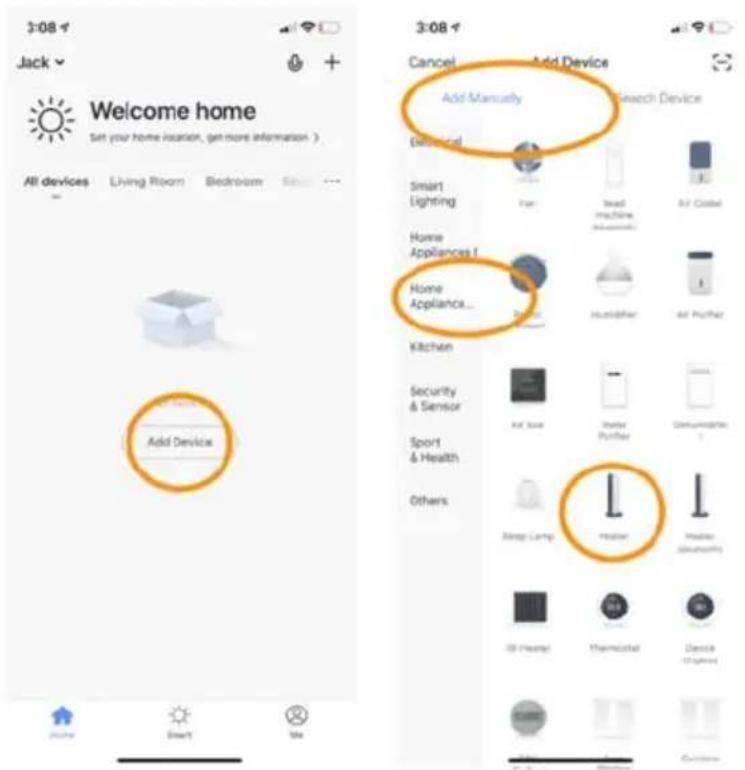

Conexión con WLAN:

3:08 Jack Welcome home Set your home location, get more information > All devices Living Room Bedroom See ... Add Device

3:08 Cancel Add Device Add Manually Search Device Medical Smart Lighting Fan Sead machine Air Cleaner Home Appliances I Home Appliance... Air Filter Humidifier Air Pusher Kitchen Security & Sensor Air Box Rental Pitcher Delhumidifier Sport & Health Others Sleep Lamp Heather Heather Dehumidifier Oil Heater Pharmacist Dental Lighted Others

Primer paso:

EN IEC 62368-1:2020+A11:2020

Blank white rectangular panel with no visible text, symbols, or markings

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI TENTO PRODUKT OD SPOLEČNOSTI SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM MONTÁŽE, INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE NÁVOD K OBSLUZE. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUKY!

Zamýšlené použití

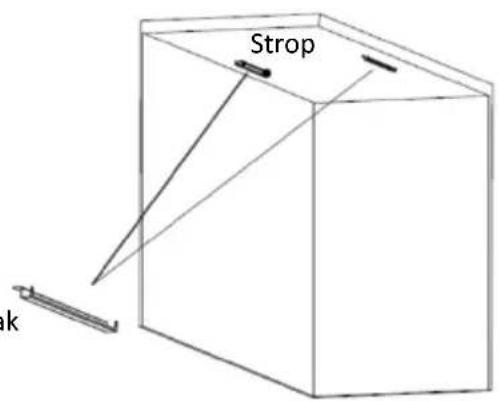

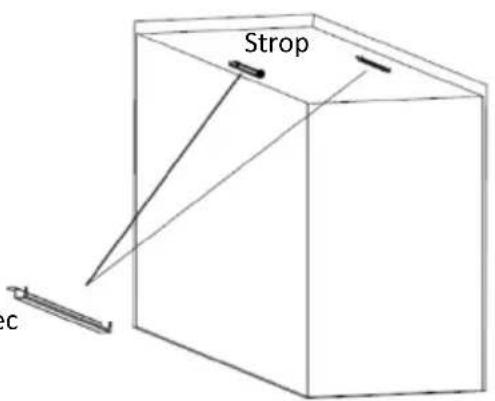

Strop 200mm

2 x stropní držák

Strop

QR code with a blue house icon in the center, likely linking to a smart home or app interface.

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom Show... Add Device Cancel Add Device Add Manually Sketch Device Electrical Smart Lighting Yan Seed Machine Air Cache Home Appliances I Home Appliance... Rearer Husashiari Air Puyhar Kitchen Security & Sensor Air Skin Water Puyhar Cathamgarle Sport & Health Others Sleep Lamp Heather Heather Heather (doughing) Air Heater Thermoselt Device Lighting

Krok 1:

EN IEC 62368-1:2020+A11:2020

Blank white rectangular panel with a thin wire frame at the top (no text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI TENTO PRODUKT OD SPOLOČNOSTI SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM MONTÁŽE, INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU ZÁRUKY!

Zamýšl'ané použitie

Three black-and-white warning symbols: a hand crossed out, a triangular warning sign with an exclamation mark, and a triangular hazard symbol.

Strop 200mm

2 x stropný držiak

k Strop

QR code with a blue house icon in the center, likely linking to a digital service or application.

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom See ... Add Devices Smart

3:08 Cancel Add Device Add Manually Search Device Personal Smart Lighting Fan Dead machine Bluetooths Air Cooler Home Appliances I Home Appliance... Battery Electricity Humidifier Air Purifier Kitchen Security & Sensor Air Bath Water Purifier Consumables Sport & Health Others Hang Lamp Heater Heater Disinfection Oil Heater Thermal Device (Suppler) Other

Krok 1:

Aktivujte prepínač zapnutia/vypnutia, stlačte tlačidlo zapnutia/vypnutia. Symbol WLAN začne rýchlo blikat'. Otvorte aplikáciu v smartfóne a pridajte zariadenie. Vyberte "Add device" (Pridat' zariadenie), potom "Add manually" (Pridat' ručne), "Household appliances (small)" (Domáce spotrebiče (malé)) a potom "Heating" (Vykurovanie), aby ste pridali zariadenie.

Krok 2:

EN IEC 62368-1:2020+A11:2020

Blank white rectangular panel with no visible text, symbols, or markings

FELICITĂRI!

VĂ MULȚUMIM PENTRU ALEGEREA ACESTUI PRODUS DE LA SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE INSTRUCTIUNILE DE UTILIZARE ÎNAINTE DE A ÎNCEPE ASAMBLAREA, INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJAȚI-VĂ ȘI PROTEJAȚI-I PE CEILALTÎ RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR POATE DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU ANULAREA GARANTIEI!

Utilizare prevăzută

QR code with a blue home icon in the center, likely linking to a smart home or app interface.

Conexiune cu WLAN:

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom Sim ... Add Device

3:08 Cancel Add Device Add Manually Search Device Electrical Smart Lighting Top Small Machine Air Cooler Home Appliances 1 Home Appliance... Balance Nutrition Air Purifier Kitchen Security & Sensor Air Size Water Purifier Osmosis Sport & Health Others Snap Lamp Heather Heather Heather All Heater Handscastal Device of Wearers Other

Pasul 1:

EN IEC 62368-1:2020+A11:2020

Plain white rectangular panel with no text, numbers, or symbols visible

CONGRATULATIONS!

THANK YOU FOR CHOOSING THIS PRODUCT FROM SHX.

This product is only suitable for well-insulated rooms or for occasional use.

EN

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR VOID THE WARRANTY!

Intended use

This appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARD AND ELECTRICAL CONNECTION

1. safety instructions

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1.1 Product safety

- SHX infrared heaters reach approximately 95^ C during operation when mounted on the wall. Do NOT touch the heater during operation.

- Prolonged contact could lead to burns or injuries.

- DO NOT cover the heater as this could cause overheating and fire.

- The heater is not suitable for drying textiles. Avoid direct contact with other objects.

- Place the heater at a minimum distance of 40 ~cm from the front and 20 ~cm from the sides of other objects and walls. Failure to maintain the minimum distance can result in heat building up behind the infrared panel and could invalidate the warranty.

- This heater can easily be operated with your smartphone, via the same WLAN, via another WLAN or via a mobile network. This makes it possible to control your heater remotely without your direct supervision. However, please ensure that all safety precautions listed in this manual must also be taken with remote control.

1.2 Hazard warnings for children and people with disabilities

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

- Children from 3 to 8 years: This age group may only switch the appliance on and off under supervision if it has been set

up or installed correctly and they have been informed about its safe use. Children must not connect, adjust, clean or maintain the appliance.

- WARNING - Some parts of this appliance can become very hot and cause burns. Special care must be taken when children or vulnerable persons are present.

- If the mains cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to avoid danger.

- DO NOT operate the heater in small rooms where there are people who may not be able to leave the room independently. The surface of the heater can reach temperatures of up to 95 °C. Keep the appliance out of the reach of children and disabled persons.

- Keep babies and children away from packaging material such as plastic bags to avoid the risk of suffocation.

1.3 Electrical safety

- Disconnect the heater from the power supply before carrying out any installation or cleaning work on the appliance or in its immediate vicinity. The appliance should be checked for any damage before commissioning.

- DO NOT use the appliance or the power cable if it is damaged. Contact an authorized SHX dealer immediately for repair or replacement. Repairs, maintenance or modifications to the device may only be carried out by authorized SHX dealers in order to maintain the warranty.

- DO NOT carry out repairs yourself, failure to do so may invalidate the warranty.

- If the device has been dropped, do not use it and contact a SHX dealer to ensure that it is free of damage.

- SHX infrared heaters are designed for 220-240V, 50Hz AC. Do not use the appliance with a different power supply.

- The heater must not be installed directly under a socket outlet.

- WARNING: Do not use the heater in small rooms where there are people who may not be able to leave the room on their own, unless they are constantly supervised.

2. maintenance of your SHX heater

2.1 Cleaning

Always disconnect the appliance from the power supply and allow it to cool down before cleaning. Never immerse the appliance in water or other liquids or pour them over it. Only clean the appliance with a soft, damp cloth. Make sure that the appliance is completely dry before using it and wipe it with a dry cloth after cleaning. Avoid using abrasive materials, solutions or hard sponges to prevent scratches or damage to the surface.

2.2 Operation

Please note that the surface of the device may become slightly discolored over time due to air pollution. This does not constitute a defect. If you are interested in a printed version, please contact your local dealer. Never cover the

appliance with adhesive foil or paint/label it yourself. This could damage the heating element and invalidate the warranty. If you notice any unusual noises, odors or visible changes to the appliance, please disconnect it from the power supply immediately and contact your SHX dealer.

2.3 Repair

Repairs may only be carried out by SHX or a certified dealer. Any infringement will result in immediate loss of the warranty.

ATTENTION	RISK OF INJURYThe appliance becomes hot during operation!Never touch the appliance during operation→ this could lead to serious BURNS.
WARNING	FIRE HAZARDWARNING: To prevent the heater from overheating, the heater must not be covered.
ATTENTION	SAFETY DISTANCEKeep a safe distance of at least 1 meter from easily flammable objects such as furniture, curtains, paper, etc.!LOCATIONAlways position the appliance so that the air can flow in and out unhindered.RISK OF BURNSThe appliance becomes very hot during use and can cause burns. Special care must be taken when children and vulnerable persons are present.

RISK OF OVERHEATING

Do not heat rooms with a volume of less than 4m^3

Symbols on the device

Symbol:

Significance:

Caution! Do not cover!

The symbol on the appliance indicates that it is not permitted to hang objects (e.g. towels, clothing, etc.) above the appliance or directly in front of it. The heater must not be covered in order to

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThe "crossed-out dustbin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with Legislative Decree 188 of November 20, 2008 on the implementation of Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled garbage can symbol on the battery indicates that it is forbidden to dispose of used batteries in household waste.batteries and accumulators contain highly polluting substances. The user isobliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are complied with and the environment is protected.These symbols can be found on batteries:Li = battery contains lithiumAl = battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
CE	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical changes excepted.

Scope of delivery

• Heating panel
• 2x feet
• Thermostat
• Operating instructions
• Screws for the feet
• Screws for Thermostat
• Mounting material (for wall and ceiling)

Product overview

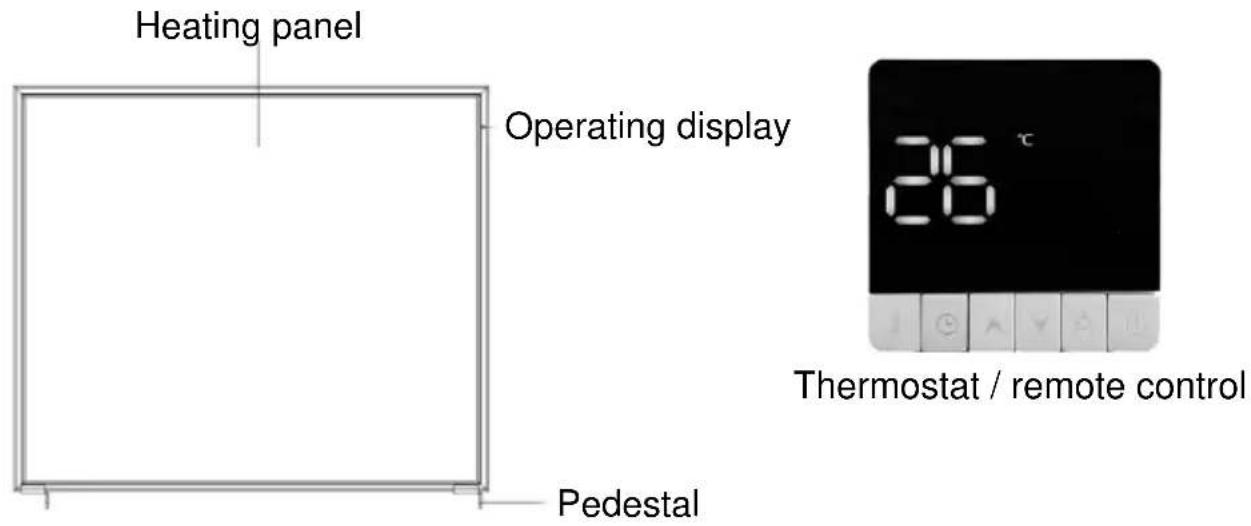

Heating panel Operating display Pedestal Thermostat / remote control

Preparation

• Open the box and remove the appliance.
• Remove the packaging completely from the device.
• Then check the appliance for damage.
• Carefully unwind the mains cable and check it for any damage.

If the power cable is damaged, please contact a qualified electrician or service technician.

Installation and assembly

Installation note:

Attach the heating panel securely to the wall or ceiling or place it in the correct position.

The heating panel must be installed so that the controls cannot be touched by people who are bathing or showering.

Make sure that the heating panel is not installed under a power socket.

NOTE

To prevent damage to the heating panel, we recommend that two people carry out the installation.

Installing the feet

Align one side of the feet with three screws and tighten them in the holes while repeating the same procedure on the other side, as shown in the following illustrations:

3x screws Feet

Technical line drawing of a rectangular frame with a hanging hook and label 'Installation diagram' (no other text or symbols)

Wall mounting

a. Align the brackets with the screw holes and tighten the screws.
b. Drill two holes 200 mm apart in the wall. Use a spirit level to ensure that they are straight and insert the plastic plugs.
c. Screw in the screws, leaving a gap of 5 mm between the screw head and the wall.
d. Align the screw heads and hang up the heating panel.

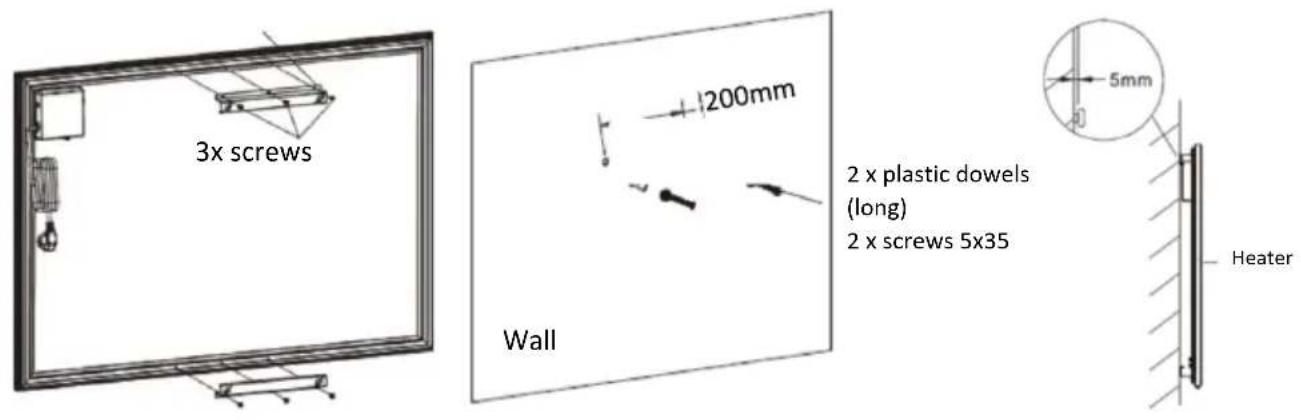

3x screws 1200mm Wall 2 x plastic dowels (long) 2 x screws 5x35 5mm Heater

Ceiling mounting

When installing the ceiling mount, please note that you either need a suitable socket on the ceiling of the room or, if there is no socket, a certified specialist to install the product for you. Do not carry out any electrical work yourself and do not modify the product without authorisation!

a. Mount the brackets as described in the chapter "Wall mounting" (Figure 3).

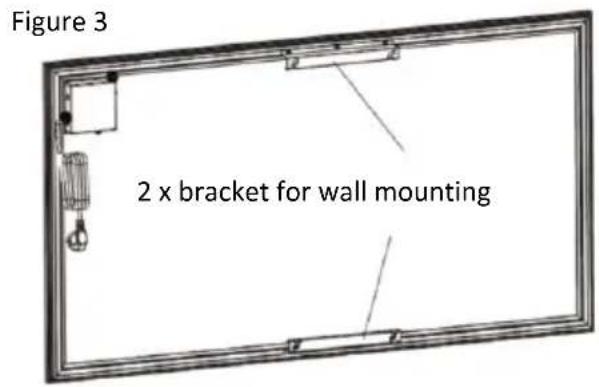

Figure 3 2 x bracket for wall mounting

b. Drill four holes in the ceiling and then insert the expansion screws (see Figure 4).

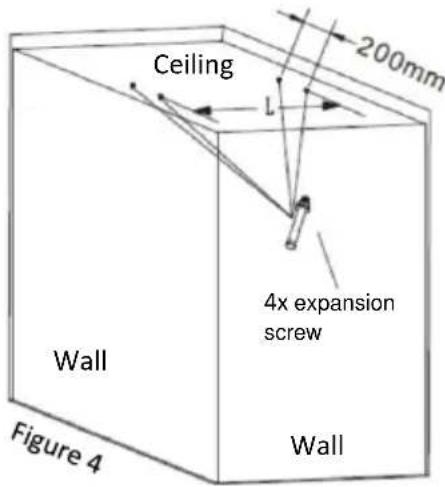

Ceiling 200mm L 4x expansion screw Wall Figure 4 Wall

Model	Performance	Four holes at a distance of Lx200 mm
SHXPRIP500	500 W	460 mm x 200 mm
SHXPRIP850	850 W	460 mm x 200 mm
SHXPRIP1200	1200 W	700 mm x 200 mm

c. Install the bracket on the ceiling with nuts. Ensure that the brackets are aligned and symmetrical.

Ceiling 2 x ceiling bracket L

Ceiling 200mm

2 x ceiling bracket

Ceiling et m

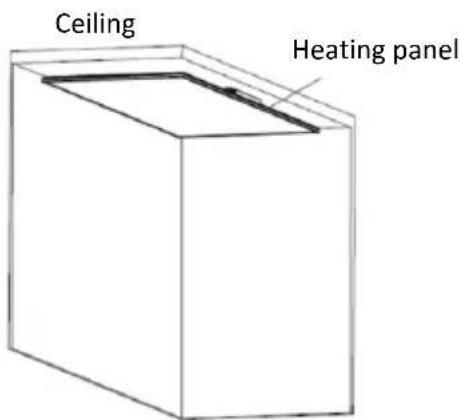

d. Install the heating panel according to the diagram.

Ceiling Heating

Mounting the thermostat

There are two ways to install the thermostat:

1. Self-adhesive tape

Stick the self-adhesive pad to the back of the thermostat and then to the wall (see figure 1).

Self-adhesive pad

Front of the bracket

Back of the bracket

Figure 1

Figure 2 Bracket Wall

2. fastening with screws

Insert a plastic plug into the wall, align the screw holes and tighten the screws (see figure 2).

60mm Ø6mm Wall Figure 2

2 x plastic dowels (short)

2 x countersunk screw

The thermostat holder is installed as shown in the following illustration:

Push down Wall

Note:

1. The thermostat is used to remotely detect and control the temperature of the heating panel.

2. Before use after installation, make sure that the distance between the thermostat and the appliance is less than 3 m from the heating panel.

3. The thermostat can be operated by moving it or by mounting it permanently on the wall to control the appliance.

Preparing the remote control

Please note the following instructions:

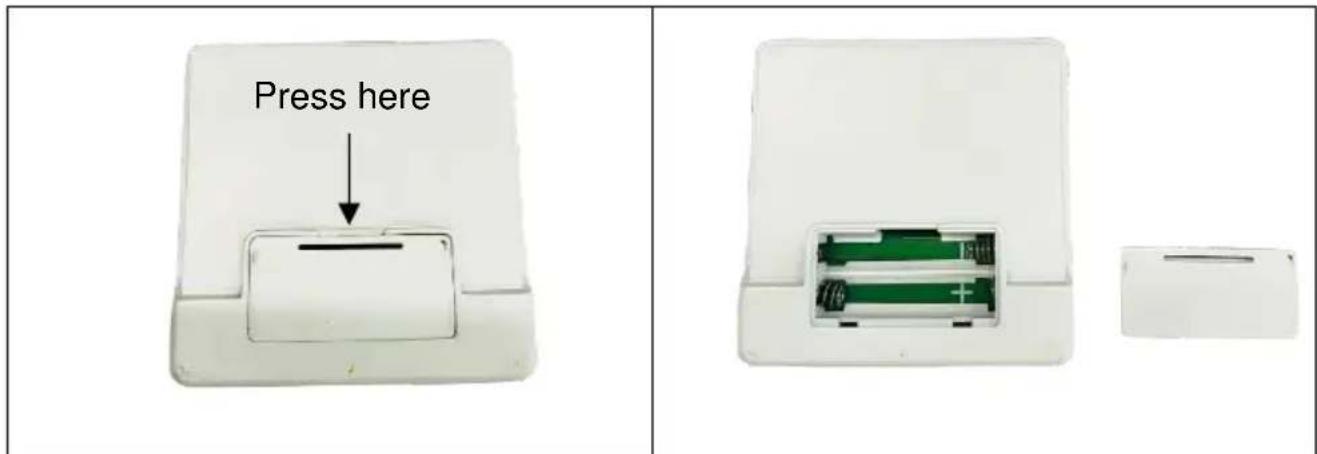

1. To operate the remote control, open the battery compartment on the back as shown in the picture and insert 2xAAA batteries.

2. To change the battery, proceed as follows: Open the battery holder on the back of the remote control, remove the old battery and then insert a new one:

3. Please always pay attention to the polarity markings (+/-) on the battery and the battery holder:

4. Then close the battery holder again completely into the remote control.

Press here

Matching for remote control and the heating

In the startup state, press and hold the temperature setting button (1) and the switch button (6) simultaneously, plug the heater into the socket and power it on within 5 seconds. Release the buttons when the heating device buzzer rings for a long time. The matching is successful.

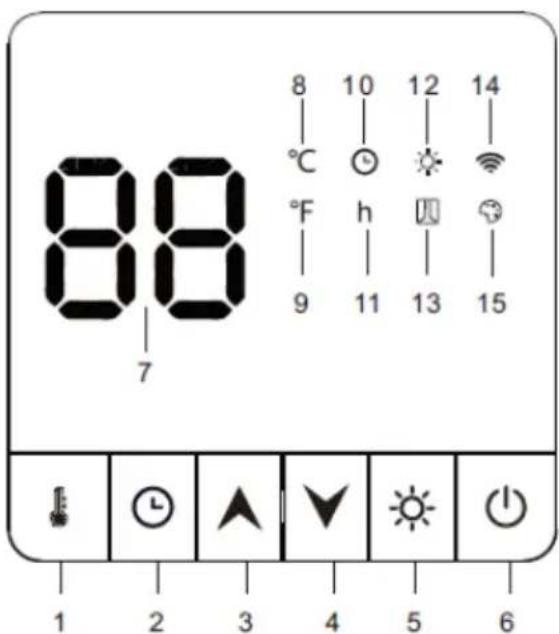

Description of the remote control:

88 7 8 10 12 14 °C °F h 13 15 9 11 13 15 1 2 3 4 5 6

1. temperature button	2. timer button
3. up button	4. down button
5. LED button	6. on/off button
7. display for temperature, timer,...	8. unit °C display
9. unit °F display	10. timer setting display
11. timer display	12. display for brightness setting of the ambient lighting
13. window-open display	14. wifi display
15. display for color setting of the ambient lighting

Commissioning

Switch on/off:

Press the button (6) to switch the heating panel on or off.

Set the temperature:

In the start state, press the temperature setting button (1) to activate the temperature setting mode. Use the up button (3) and the down button (4) to set the target temperature. Press and hold one of the buttons to increase or decrease the value more quickly. The temperature range is 5-45°C (41-113°F) with a default starting temperature of 35°C.

Timer

In the start state, press the timer setting button (2) to access the timer settings menu. Use the up button (3) and the down button (4) to set the desired time. Press and hold one of the buttons to increase or decrease the value more quickly. The setting range is 0 to 24 hours (0H-24H).

Switch the display between Celsius and Fahrenheit

Press and hold temperature button (1) for 10 seconds to switch the display between Celsius and Fahrenheit. The factory default temperature is Celsius.

Window opening detection function

In the heating state, when the device detects that the ambient temperature has decreased by 5 degrees or more within 2 minutes (after reaching 2 minutes), it is deemed that the user has opened the window. The device has turned off the heating function, and E4 is displayed with a buzzer alarm sound for 1 minute. Factory default sets window opening detection to off state. Long press the up

button (3) on the panel for 5 seconds to turn on and off the window opening detection function. When the window opening test is closed, the display CL flashes for 2 seconds and then returns to normal display. When the window opening test is opened, the display 0P flashes for 2 seconds and then returns to normal display.

Brightness setting for ambient lighting

Switch on the light with standard white light (brightness 100%). Press the LED button (5) to enter the ambient light brightness setting mode. Use the up button (3) and the down button (4) to set the desired brightness: 100%, 75%, 50%, 25% or to switch off the ambient light.

- Briefly pressing the up button increases the brightness by 25% up to a maximum of 100%.

- Briefly pressing the down button reduces the brightness by 25% until the ambient light is switched off.

Setting the ambient light color:

The ambient light is set to white by default when turned on (brightness 100%). Press the LED setting button (5) twice to enter the light color mode. Briefly press the up button (3) to set the target light color to white light, neutral light, or yellow light.

Pairing the remote control with the panel

Press and hold the temperature setting button (1) and the on/off button (6) at the same time when starting up. Release them when the heater beeps for a long time. The pairing is complete.

WiFi

a. Scan the QR code below to download it easily with your smart device. Alternatively, search for 'Smart Life' in your device's app store to download the app.

b. Make sure you are using the same network and turn on Bluetooth and location functions on your phone at the same time.

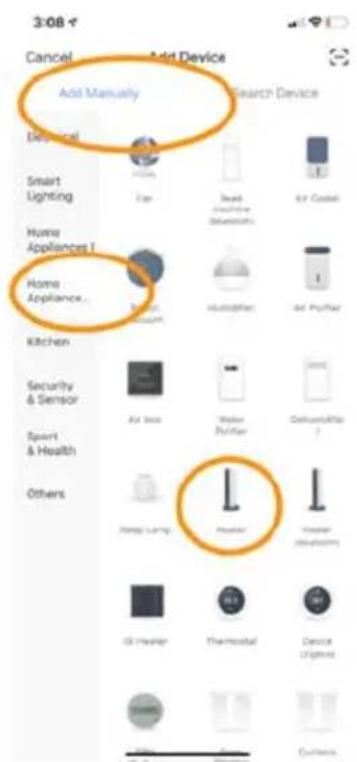

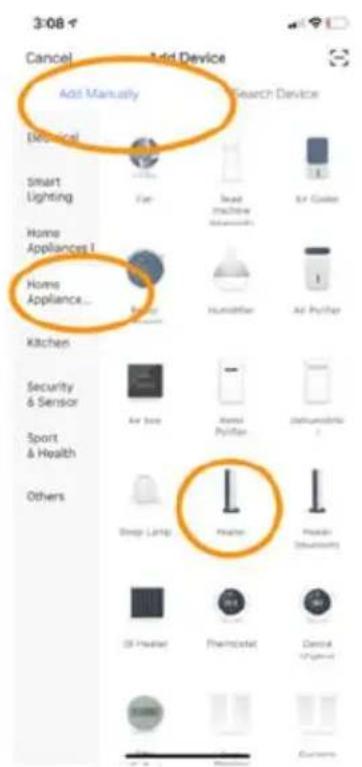

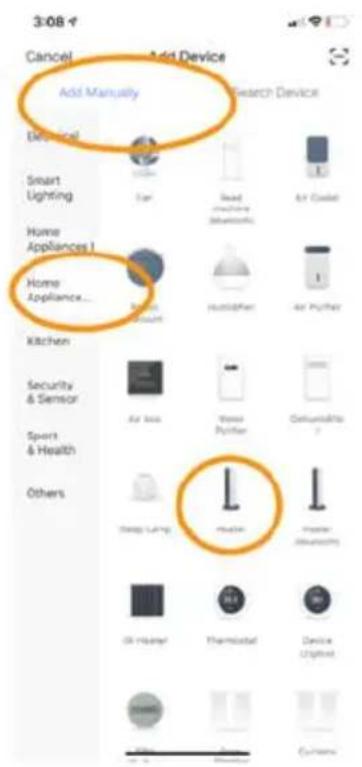

c. Open the 'Tuya Smart' app on your phone and turn on Bluetooth on your phone. After entering the app, click on the '+' icon in the upper right corner to search for the device.

Resetting WiFi

In the start state, press and hold the temperature button (1) and the timer button (2) for 5 seconds and release them until the WiFi icon on the display flashes. When the heater receives the reset command, the buzzer will sound for a long time. After a while, the buzzer will sound three times, indicating that the WiFi reset is complete and the network can be distributed.

IMPORTANT

Please note that only 2.4 GHz networks are supported! Transmitting power: max. 100mW

WLAN and APP operation:

Download Smartlife APP

Scan the following QR code to download the "Smartlife" app or search for the "Smartlife" app in the App Store or Google Play Store to start the app download process. Open the app and register with your phone number or email address.

QR code with a blue house icon in the center, likely linking to a digital service or application.

Connection with WLAN:

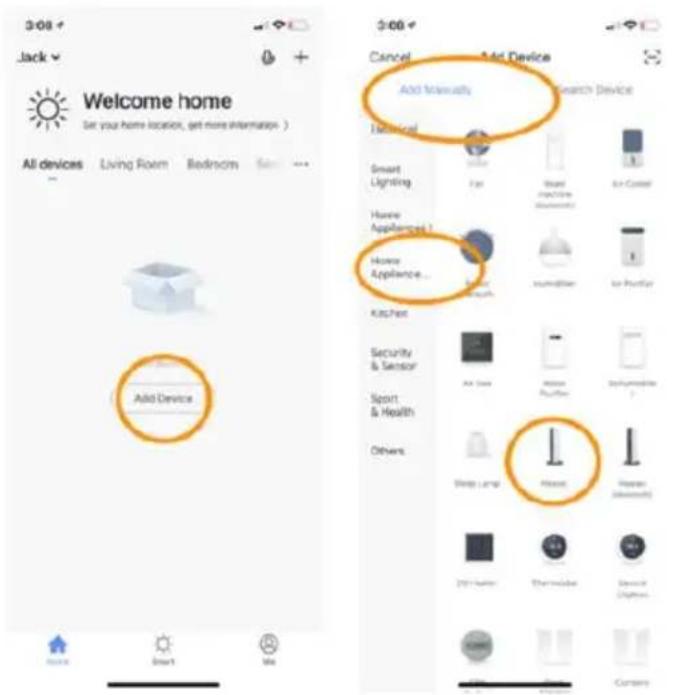

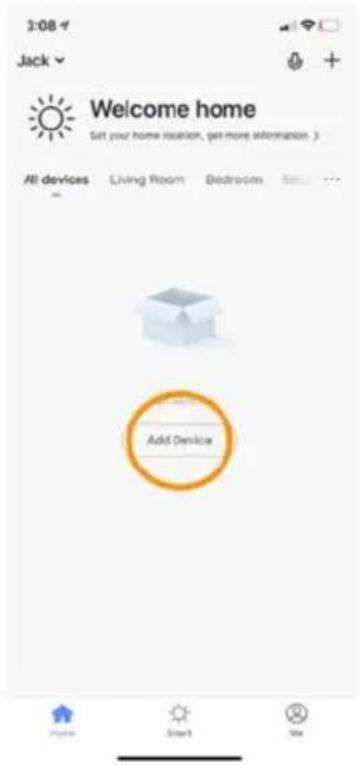

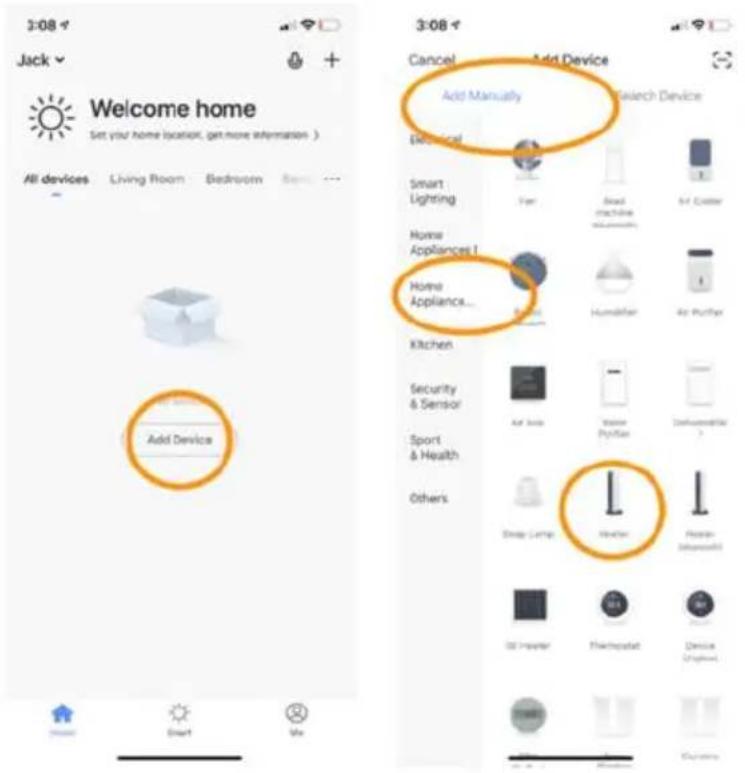

3:08 Jack Welcome home Set your home location, get more information.) All devices Living Room Bedroom Show... Add Device 3:08 Cancel Add Device Add Manually Beattled Smart Lighting Home Appliances I Home Appliance... Kitchen Security & Sensor Sport & Health Others Sleep Lamp Heather Heather (Heather) Air Heater Thermoselt Device Lighting

Step 1:

Activate the On / Off switch, press the On / Off button. The WLAN symbol starts to flash quickly. Open the app on your smartphone and add your device. Select "Add device", then "Add manually", "Household appliances (small)" and then "Heating" to add the device

Step 2:

Enter the Wi-Fi password for your home network. Please make sure that your home Wi-Fi is working and bring the heater and the smartphone as close as possible to the Wi-Fi router. Please note that this heater only works with 2.4 GHz Wi-Fi networks. 5 GHz networks are currently not supported. Also make sure that your internet router has enough capacity to add a new device.

Step 3:

Wait until the connection status shows 100% to complete the settings and the WLAN signal on the control unit stops flashing. If you were unable to establish a connection, switch the heating off and then on again after a few seconds. Press and hold the Wi-Fi button on the control box until the Wi-Fi symbol on the screen flashes slowly and repeat the connection process.

Note:

The app developers are constantly striving to improve the app, which is why there may be changes to its operation. You can download the latest version of the WIFI app operating instructions using the QR code below.

SCAN ME

Function overview app

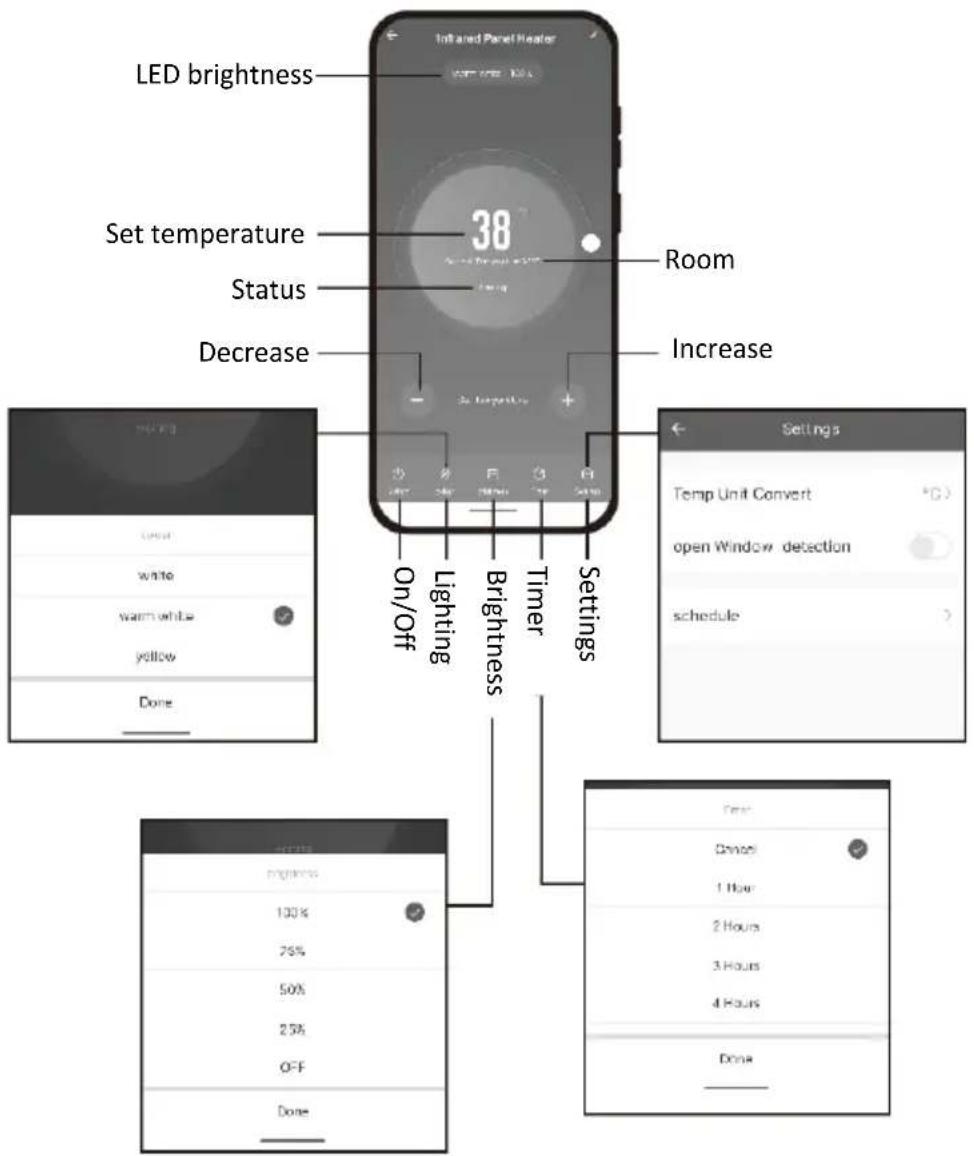

LED brightness Set temperature Status Decrease Room Increase 38° On/Off Lighting Brightness Timer Settings Settings Temp Unit Convert open Window detection schedule Device 1 Hour 2 Hours 3 Hours 4 Hours Done

Technical specifications

The panels covered by these instructions are listed in the following table

Model	Weight	Temperature setting:	Performance	Size H x W x D	Assembly
SHXPRIP500	4.6 kg	5-45 °C	500W	60 x 70 x 45 cm	Wall, ceiling or stand
SHXPRIP850	6.8 kg	5-45 °C	850W	60 x 120 x 45 cm	Wall, ceiling or stand
SHXPIRP1200	9 kg	5-45 °C	1200W	84 x 120 x 45 cm	Wall, ceiling or stand

Item number:	SHXPRIP500SHXPRIP850SHXPRIP1200
Input voltage:	220-240V
Frequency:	50/60Hz
Remote control:	2x AAA battery 1.5V (not included)
WIFI transmission frequency:	2.4GHz
Transmitting power:	max. 100mW
Protection class:	I
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaService line: [phone]www.schuss-home.atFB-No.: 236974 t / FB-Court: Vienna

Required information on electric single-room heaters

Item number SHXPRIP500
Specification	Icon	Value	Unit		Specification	Unit
Heat output					Only for electric storage single-room heaters:Type of heat supply control
Nominal heat output	Pnom	0.5	kW		Manual control of the heat supply with integrated thermostat	No
Minimum heat output (guide value)	Pmin	N/A	kW		Manual control of the heat supply with feedback of the room and/or outside temperature	No
Auxiliary power consumption					Heat output with fan support	No
With Nominal heat output	elmax	N/A	kW		Type of heat output/room temperature control
With Minimum heat output	elmin	N/A	kW		Single-stage heat output, no room temperature control	No
In the Ready state	elSB	0.00091	kW		Two or more manually adjustable levels, no room temperature control	No
					Room temperature control with mechanical thermostat	No
					With electronic room temperature control	No
					Electronic room temperature control and time-of-day control	No
					Electronic room temperature control and weekday control	Yes
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with open window detection	Yes
					With remote control option (WiFi)	Yes
					With adaptive control of the heating start	No
					With operating time limit	No
					With black ball sensor	No
Contact details:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Vienna - AustriaTel.: +43 (0)1/ 970 21www.shx.at

Required information on electric individual room heaters

Item number SHXPRIP850
Specification	Icon	Value	Unit		Specification	Unit
Heat output					Only for electric storage single-room heaters:Type of heat supply control
Nominal heat output	Pnom	0.85	No		Manual control of the heat supply with integrated thermostat	No
Minimum heat output (guide value)	Pmin	N/A	No		Manual control of the heat supply with feedback of the room and/or outside temperature	No
Auxiliary power consumption					Heat output with fan support	No
With Nominal heat output	elmax	N/A	kW		Type of heat output/room temperature control
With Minimum heat output	elmin	N/A	kW		Single-stage heat output, no room temperature control	No
In the Ready state	elSB	0.00091	kW		Two or more manually adjustable levels, no room temperature control	No
					Room temperature control with mechanical thermostat	No
					With electronic room temperature control	No
					Electronic room temperature control and time-of-day control	No
					Electronic room temperature control and weekday control	Yes
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with open window detection	Yes
					With remote control option (WiFi)	Yes
					With adaptive control of the heating start	No
					With operating time limit	No
					With black ball sensor	No
Contact details:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Vienna - AustriaTel.: +43 (0)1/ 970 21www.shx.at

Required information on electric individual room heaters

Item number SHXPRIP1200
Specification	Icon	Value	Unit		Specification	Unit
Heat output					Only for electric storage single-room heaters:Type of heat supply control
Nominal heat output	Pnom	1.2	kW		Manual control of the heat supply with integrated thermostat	No
Minimum heat output (guide value)	Pmin	N/A	kW		Manual control of the heat supply with feedback of the room and/or outside temperature	No
Auxiliary power consumption					Heat output with fan support	No
With Nominal heat output	elmax	N/A	kW		Type of heat output/room temperature control
With Minimum heat output	elmin	N/A	kW		Single-stage heat output, no room temperature control	No
In the Ready state	elSB	0.00091	kW		Two or more manually adjustable levels, no room temperature control	No
					Room temperature control with mechanical thermostat	No
					With electronic room temperature control	No
					Electronic room temperature control and time-of-day control	No
					Electronic room temperature control and weekday control	Yes
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with open window detection	Yes
					With remote control option (WiFi)	Yes
					With adaptive control of the heating start	No
					With operating time limit	No
					With black ball sensor	No
Contact details:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Vienna - AustriaTel.: +43 (0)1/ 970 21www.shx.at

WARRANTY

With this quality product from SHX, you have made a decision for innovation, durability and reliability.

For this SHX device we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany! If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labor) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In any case, please contact the customer hotline as a first step (see instructions for use - "Contact addresses for further information and service line").

We would like to point out that repair work that has not been carried out by authorized workshops immediately terminates the validity of this guarantee.

This guarantee does not cover

• Damage due to non-compliance with the operating instructions
  • Repair or replacement of parts due to normal wear and tear
  • Devices that are used - even partially - for commercial purposes
  • Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) and signs of aesthetic wear and tear
  • Devices that have been handled improperly
  • Devices that have not been opened by our authorized service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning, overvoltage
  • Devices for which the type designation and/or serial number on the device has been changed, deleted, made illegible or removed
  • Defects due to extraordinary soiling
• services outside our authorized workshops, the transport costs to an authorized workshop or to us and back and the associated risks

We would like to emphasize that within the warranty period, a lump sum of € 60 (indexed based on CPI 2015, June 2020) will be charged in the event of operating errors or if no error is detected.

By providing a warranty service (repair or replacement of the device), the absolute<

Warranty period of 2 years from date of purchase not extended.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer and the full name of the appliance) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without presentation of the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but unrealized savings, consequential damages and damages arising from third-party claims is excluded.

The contact address of the respective service workshop can be found on our homepage www.schuss-home.at.

Congratulations on your choice. We hope you enjoy using your SHX device!

ADDRESS

SHX Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:......

EU DECLARATION OF CONFORMITY

EU DECLARATION OF CONFORMITY

The manufacturer bears sole responsibility for issuing this declaration of conformity.

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Vienna, AUSTRIA

Declares that the product

Manufacturer

Manufacturer

Infrared Panel Heater

Model No.:

Model number

SHXPIRP500, SHXPIRP850, SHXPIRP1200

is compliant with the following directives, standards and/or regulations:

is conformity with following directives, norms and/or regulations:

DIRECTIVE 2014/51/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL

of 16 April 2014 amending Directives 2003/71/EC and 2009/138/EC and Regulations (EC) No 1060/2009, (EU) No 1094/2010 and (EU) No 1095/2010 in respect of the powers of the European Supervisory Authority (European Insurance and Occupational Pensions Authority) and the European Supervisory Authority (European Securities and Markets Authority)

Article 3.1(a) Safety:

EN IEC 62368-1:2020+A11:2020

Article 3.1(a) Health:

EN IEC 62311: 2020

Article 3.1(b) EMC:

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.6 (2023-06)

EN IEC 55014-1:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 55014-2:2021

Article 3.2 Radio:

EMC Directive (EMC): 2014/30/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonization of the laws of the Member States relating to electromagnetic compatibility; Official Journal of the EU L96, 29/03/2014, p. 79-106

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021

Low Voltage Directive (LVD):2014/35/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits; Official Journal of the EU L96, 29/03/2014, p. 357-374

EN 60335-1: 2012+A11: 2014+A13: 2017+A1: 2019+A14: 2019+A2: 2019+A15: 2021;

EN 60335-2-30:2009+A11:2012+

A1:2020+A12:2020+A2:2022+A13:2022;

EN 62233: 2008

Energy-Related Products Directive (ErP)2009/125/EC;

Official Journal EU L285/10-35 (31.10.2009) and associated regulation 2015/1188

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88-110

Reach SVHC(EC)NO. 1907/2006 Schuss Home Electronic GmbH hereby confirms that in the products we supply, there are no substances of very high concern (SVHC) in the candidate list (last ECHA update from June 14, 2023, 235 substances) above 0.1% in accordance with Article 33 of the REACH Regulation (EC) No .1907/2006 are included.

Signed for and on behalf of:/ Signed for and on behalf of: SCHUSS HOME ELECTRONIS GMBH

Place and date of the exhibition:

Place and date of issue:

Vienna, 2023-07-19

SCHUSS HOME ELECTRONIC GMBH 1140 W. 2, Scheringssse 3 Tel. [phone], Fax 10-222 www.chuss-home.at Eevollmächteter Vertreter des Herstellers Authorized representative of manufacture

Scharl, Alexander

Senior product and purchasing manager

i.V.

Name, Funktion / name, function Unterschrift / signature

Declaration reference:

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Vienna, AUSTRIA

Subject to changes and printing errors, the current version is available for download:

Plain white rectangular panel with no text, numbers, or symbols visible

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE TEGO PRODUKTU FIRMY SHX.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZĘCIEM MONTAŻU, INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH, POSTĘPUJĄC ZGODNIE Z INSTRUKCJAMI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SPOWODOWAĆ OBRAŻENIA CIAŁA I/LUB USZKODZENIE MIENIA I/LUB UNIEWAŻNIENIE GWARANCJI!

Przeznaczenie

Simple line drawing of a rectangular frame with a hanging hook and label 'Schemat instalacji' below (no other text or symbols)

Montaż na ścianie

QR code with a blue home icon in the center, likely linking to a digital service or application.

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom Sim ... Add Device

3:08 Cancel Add Device Add Manually Search Device Electrical Smart Lighting Top Small Machine Air Cooler Home Appliances 1 Home Appliance... Balance Nutrition Air Purifier Kitchen Security & Sensor Air Size Water Purifier Osmosisable Sport & Health Others Snap Lamp Heather Heather Heather All Heater Handscastal Device of Wearers Other

Krok 1:

EN IEC 62368-1:2020+A11:2020

Plain white rectangular panel with no text, numbers, or symbols visible

ČESTITAMO!

HVALA, KER STE IZBRALI TA IZDELEK IZ SHX.

QR code image containing encoded data, no visible human-readable text

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM MONTAŽE, NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE NAVODILA ZA UPORABO. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJE!

Predvidena uporaba

5mm Grelnik

Montaža na strop

Strop 200mm

2 x stropni nosilec

C Stop

QR code with a blue house icon in the center, likely linking to a digital service or application.

Povezava z WLAN:

3:08 Jack Welcome home Set your home location, get more information. ) All devices Living Room Bedroom Sa Add Device Cancel Add Device Add Manually Home/Indoor Smart Lighting Fan Smart Lighting (Standard) Air Control Home Appliances Home Appliance... Instrumentation Air Purifier Kitchen Security & Sensor Air Drop Home Refrigerator Discharge Meter Sport & Health Others Sleep Lamp House Honey (Standard) 20+ meters Thermostat Street Lighting Current

Korak 1:

Aktivirajte stikalo za vklop/izklop, pritisnite gumb za vklop/izklop. Simbol WLAN začne hitro utripati. Odprite aplikacijo v pametnem telefonu in dodajte svojo napravo. Izberite "Dodaj napravo", nato "Dodaj ročno", "Gospodinjski aparati (majhni)" in nato "Ogrevanje", da dodate napravo.

Korak 2:

EN IEC 62368-1:2020+A11:2020

Člen 3.1(a) Zdravje:

EN IEC 62311: 2020

Člen 3.1(b) EMC:

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.6 (2023-06)

EN IEC 55014-1:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 55014-2:2021

Člen 3.2 Radio:

Plain white rectangular panel with no text, numbers, or symbols visible

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI OVAJ PROIZVOD IZ SHX-a.

Current operating instructions and other languages

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

Current operating instructions and other languages

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS, PAŽLJIVO PROČITAJTE UPUTE ZA UPOTREBU PRIJE POČETKA SASTAVLJANJA, INSTALACIJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE DOVESTI DO OSOBNIH OZLJEDA I/ILI ŠTETE IMOVINE I/ILI PONIŠTENJE JAMSTVA!

Namjena

Heating panel Operating display 36 °C 28 Thermostat / remote control Pedestal

Priprema

• Otvorite kutiju i izvadite uređaj.
• Potpuno uklonite ambalažu s uređaja.
• Zatim provjerite je li uređaj oštećen.

- Pažljivo odmotajte mrežni kabel i provjerite ima li oštećenja.

Ako je kabel za napajanje oštećen, obratite se kvalificiranom električaru ili serviseru.

Montaža i montaža

Napomena za instalaciju:

Čvrsto pričvrstite grijaću ploču na zid ili strop ili je postavite u pravilan položaj.

Grijaća ploča mora biti postavljena tako da osobe koje se kupaju ili tuširaju ne mogu dodirnuti komande.

Pazite da ploča za grijanje nije postavljena ispod utičnice.

BILJEŠKA

3x screws

200mm Wall

2 x plastic dowels (long) 2 x screws 5x35

5mm Heater

Montaža na strop

Molimo obratite pažnju da za montažu na strop trebate odgovarajuću utičnicu na stropu prostorije ili, ako utičnica nije dostupna, certificiranog stručnjaka koji će pravilno instalirati proizvod. Ne provodite sami električne radove i ne mijenjajte proizvod na svoju ruku!

a. Montirajte nosače kao što je opisano u poglavlju "Zidna montaža" (Slika 3).

Figure 3 2 x bracket for wall mounting

b. Izbušite četiri rupe u stropu i zatim umetnite ekspanzijske vijke (vidi sliku 4).

Ceiling L 200mm 4x expansion screw Wall Figure 4 Wall

Model	Izvođenje	Četiri rupe na udaljenosti Lx200 mm
SHXPRIP500	500 W	460 mm x 200 mm
SHXPRIP850	850 W	460 mm x 200 mm
SHXPRIP1200	1200 W	700 mm x 200 mm

Ceiling 2 x ceiling bracket L

Ceiling 200mm

2 x ceiling bracket

Ceiling et

d. Montirajte grijaću ploču prema dijagramu.

Ceiling Heating panel

Montaža termostata

Postoje dva načina za ugradnju termostata:

Front of the bracket

Back of the bracket

Figure 1

Figure 2 Bracket Wall

60mm Ø6mm Wall Figure 2

2 x plastic dowels (short)

2 x countersunk screw

Press here

QR code with a blue house icon in the center, likely linking to a smart home or app interface.

Veza s WLAN-om:

3:08 Jack Welcome home Set your home location, get more information > All devices Living Room Bedroom Save ... Add Device 3:08 Cancel Add Device Add Manually Search Device Electrical Smart Lighting Food Bread machine Air Cleaner Home Appliances I Home Appliance... Kitchen Security & Sensor Sport & Health Others Sleep Lamp Heater Recover Inflammation Oil Paper Fluepsatet Device (Upfront) Customs

Korak 1:

LED brightness Set temperature Status Decrease Room Increase 38 On/Off Lighting Brightness Timer Settings Settings Temp Unit Convert open Window detection schedule Device 1 Hour 2 Hours 3 Hours 4 Hours Done

Tehničke specifikacije

Ploče obuhvaćene ovim uputama navedene su u sljedećoj tablici

Model	Težina	Postavka temperature:	Izvođenje	Veličina V x Š x D	Skupština
SHXPRIP500	4,6 kg	5-45 °C	500 W	60 x 70 x 45 cm	Zid, strop ili postolje
SHXPRIP850	6,8 kg	5-45 °C	850 W	60 x 120 x 45 cm	Zid, strop ili postolje
SHXPIRP1200	9 kg	5-45 °C	1200 W	84 x 120 x 45 cm	Zid, strop ili postolje

Broj predmeta:	SHXPRIP500SHXPRIP850SHXPRIP1200
Ulazni napon:	220-240V
Frekvencija:	50/60Hz
Daljinski upravljač:	2x AAA baterija 1.5V (nije uključena)
Frekvencija WIFI prijenosa:	2,4 GHz
Snaga prijenosa:	max. 100 mW
Klasa zaštite:	ja
Kontakt adresa za dodatne informacije:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 BečServisna linija: [phone]www.schuss-home.atFB-br.: 236974 t / FB-Sud: Beč

Potrebni podaci o električnim jednosobnim grijačima

Broj artikla SHXPRIP500
Specifikacija	Ikona	Vrijednost	Jedinica		Specifikacija Jedinica
Izlaz topline					Samo za električne akumulacijske jednosobne grijalice: Vrsta upravljanja opskrbom toplinom
Nazivni toplinski učinak	P_nom	0,5	kW		Ručno upravljanje opskrbom toplinom s integriranim termostatom
Minimalna toplinska snaga (orijentirana vrijednost)	P_min	N/A	kW		Ručno upravljanje opskrbom toplinom s povratnom informacijom o sobnoj i/ili vanjskoj temperaturi
Potrošnja pomoćne energije					Izlaz topline s potporom ventilatora
SNazivni toplinski učinak	el_maks	N/A	kW		Vrsta toplinske snage/regulacija sobne temperature
SMinimalni toplinski učinak	el_min	N/A	kW		Jednostupanjski toplinski učinak, bez regulacije sobne temperature
uSpremno stanje	el_sB	0,00091	kW		Dvije ili više ručno podesivih razina, bez kontrole sobne temperature
					Regulacija sobne temperature mehaničkim termostatom
					S elektroničkom regulacijom sobne temperature
					Elektronička regulacija sobne temperature i regulacija vremena
					Elektronička regulacija sobne temperature i regulacija radnim danima
					Ostale mogućnosti kontrole
					Kontrola sobne temperature s detekcijom prisutnosti
					Kontrola sobne temperature s detekcijom otvorenog prozora
					S mogućnošću daljinskog upravljanja (WiFi)
					S adaptivnom kontrolom početka grijanja
					S ograničenjem radnog vremena
					Sa senzorom crne kuglice
Kontakt podaci:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Beč - AustrijaTel.: +43 (0)1/ 970 21www.shx.at

Potrebni podaci o električnim individualnim sobnim grijačima

Broj artikla SHXPRIP850
Specifikacija	Ikona	Vrijednost	Jedinica		Specifikacija	Jedinica
Izlaz topline					Samo za električne akumulacijske jednosobne grijalice: Vrsta upravljanja opskrbom toplinom
Nazivni toplinski učinak	P_nom	0,85	Ne		Ručno upravljanje opskrbom toplinom s integriranim termostatom	Ne
Minimalna toplinska snaga (orijentirana vrijednost)	P_min	N/A	Ne		Ručno upravljanje opskrbom toplinom s povratnom informacijom o sobnoj i/ili vanjskoj temperaturi	Ne
Potrošnja pomoćne energije					Izlaz topline s potporom ventilatora	Ne
SNazivni toplinski učinak	el_maks	N/A	kW		Vrsta toplinske snage/regulacija sobne temperature
SMinimalni toplinski učinak	el_min	N/A	kW		Jednostupanjski toplinski učinak, bez regulacije sobne temperature	Ne
uSpremno stanje	el_sB	0,00091	kW		Dvije ili više ručno podesivih razina, bez kontrole sobne temperature	Ne
					Regulacija sobne temperature mehaničkim termostatom	Ne
					S elektroničkom regulacijom sobne temperature	Ne
					Elektronička regulacija sobne temperature i regulacija vremena	Ne
					Elektronička regulacija sobne temperature i regulacija radnim danima	Da
					Ostale mogućnosti kontrole
					Kontrola sobne temperature s detekcijom prisutnosti	Ne
					Kontrola sobne temperature s detekcijom otvorenog prozora	Da
					S mogućnošću daljinskog upravljanja (WiFi)	Da
					S adaptivnom kontrolom početka grijanja	Ne
					S ograničenjem radnog vremena	Ne
					Sa senzorom crne kuglice	Ne
Kontakt podaci:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Beč - AustrijaTel.: +43 (0)1/ 970 21www.shx.at

Potrebni podaci o električnim individualnim sobnim grijačima

Broj artikla SHXPRIP1200
Specifikacija	Ikona	Vrijednost	Jedinica		Specifikacija	Jedinica
Izlaz topline					Samo za električne akumulacijske jednosobne grijalice: Vrsta upravljanja opskrbom toplinom
Nazivni toplinski učinak	Pnom	1. 2	kW		Ručno upravljanje opskrbom toplinom s integriranim termostatom	Ne
Minimalna toplinska snaga (orijentirana vrijednost)	Pmin	N/A	kW		Ručno upravljanje opskrbom toplinom s povratnom informacijom o sobnoj i/ili vanjskoj temperaturi	Ne
Potrošnja pomoćne energije					Izlaz topline s potporom ventilatora	Ne
SNazivni toplinski učinak	elmaks	N/A	kW		Vrsta toplinske snage/regulacija sobne temperature
SMinimalni toplinski učinak	elmin	N/A	kW		Jednostupanjski toplinski učinak, bez regulacije sobne temperature	Ne
uSpremno stanje	elSB	0,00091	kW		Dvije ili više ručno podesivih razina, bez kontrole sobne temperature	Ne
					Regulacija sobne temperature mehaničkim termostatom	Ne
					S elektroničkom regulacijom sobne temperature	Ne
					Elektronička regulacija sobne temperature i regulacija vremena	Ne
					Elektronička regulacija sobne temperature i regulacija radnim danima	Da
					Ostale mogućnosti kontrole
					Kontrola sobne temperature s detekcijom prisutnosti	Ne
					Kontrola sobne temperature s detekcijom otvorenog prozora	Da
					S mogućnošću daljinskog upravljanja (WiFi)	Da
					S adaptivnom kontrolom početka grijanja	Ne
					S ograničenjem radnog vremena	Ne
					Sa senzorom crne kuglice	Ne
Kontakt podaci:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Beč - AustrijaTel.: +43 (0)1/ 970 21www.shx.at

JAMSTVO

EN IEC 62368-1:2020+A11:2020

Članak 3.1(a) Zdravlje:

EN IEC 62311: 2020

Članak 3.1(b) EMC:

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.6 (2023-06)

EN IEC 55014-1:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 55014-2:2021

Članak 3.2 Radio:

Senior product and purchasing manager

i.V.

Name, Funktion / name, function Unterschrift / signature
