USER MANUAL 540 XP Mark III HUSQVARNA

Technical diagram of a chain-link robotic device with numbered parts for identification and assembly reference.

Safety warning symbol showing a crossed-out cigarette with smoke and a cigarette in the background

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with diagonal lines.

Illustration of a worker cutting wood with a hammer and saw, showing a curved arrow indicating motion (no text or symbols)

Illustration of two hands operating a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person cutting tree with 'No' symbol and leaf symbols, indicating no litter or litter.

Safety warning symbol showing a person falling off a tree with a diagonal no-smoking sign

Safety warning symbol showing a crossed-out device with smoke and a tool, indicating no hazard or absence of any other chemical hazard.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with no text.

Illustration of a person using a saw to cut wood or metal, with a curved arrow indicating motion (no text or symbols)

Illustration of a hand gripping a mechanical device with a handle (no text or symbols)

Prohibition sign showing a person walking under a tree with a crossed-out trunk, indicating no intervention or absence of intervention.

Simple line drawing of a person climbing a tree with a diagonal no-smoking symbol (no text or labels)

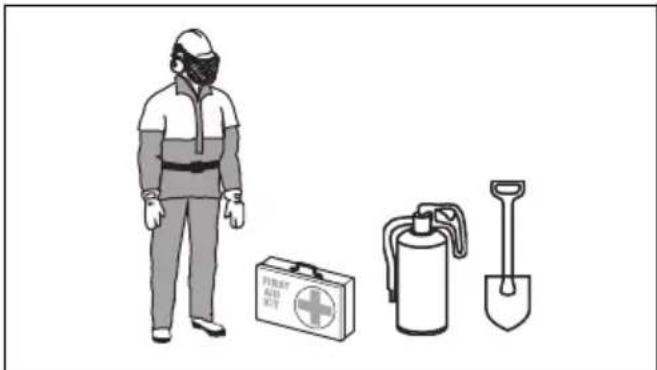

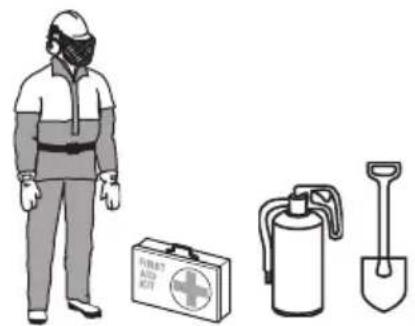

Illustration showing a person in full gear with first aid kit, fire extinguisher, and shovel, all labeled in Chinese.

Line drawing of a manual chain saw with motion arrow indicating clockwise motion (no text or symbols)

Technical line drawing of a chain saw tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

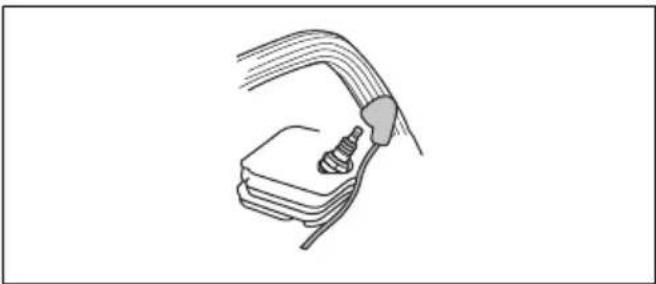

Антивибрационна система

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ:

Illustration of a medical or laboratory device with layered tissue and a curved cable (no text or symbols)

Ауспух

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

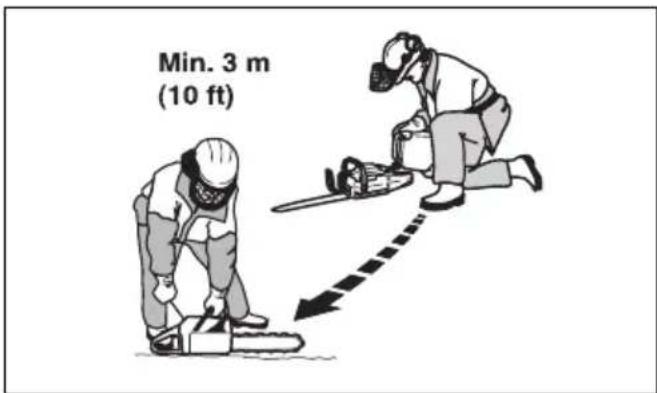

Min. 3 m (10 ft)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Simple line drawing of a mechanical component with a droplet above it (no text or symbols)

Монтаж

Въведение

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a car interior showing a hand operating the engine compartment with a tool, alongside a close-up of the dashboard (no text or symbols visible)

Line drawing of a car engine compartment showing the handle, vent, and sensor (no text or symbols)

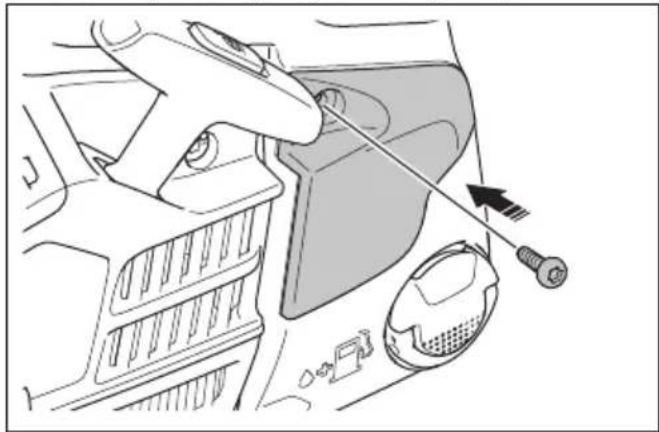

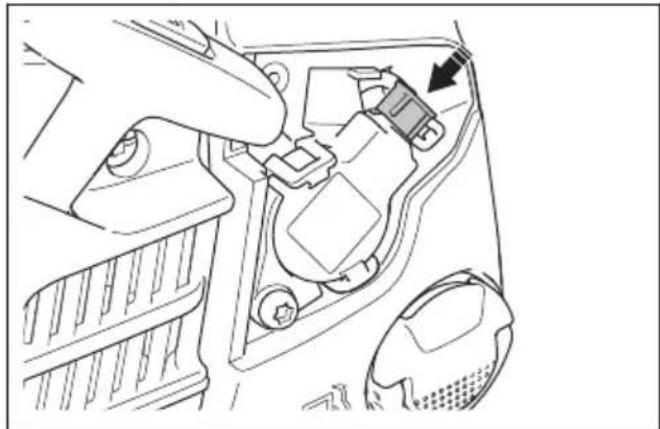

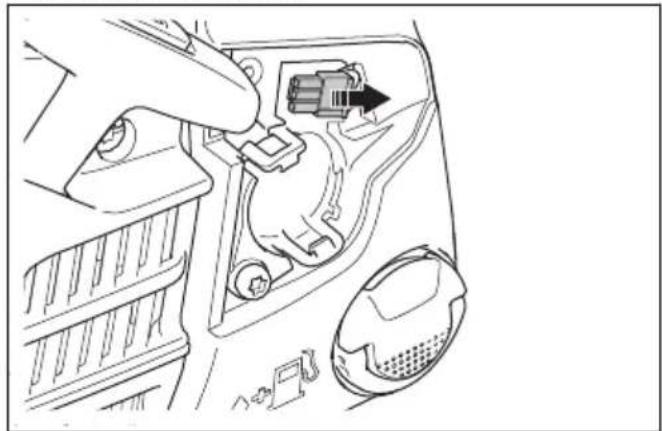

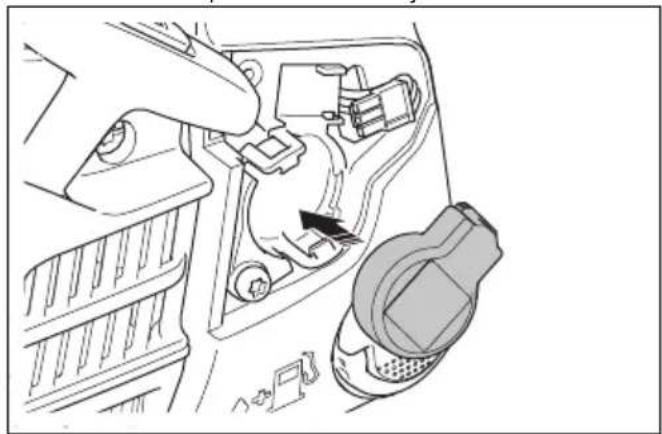

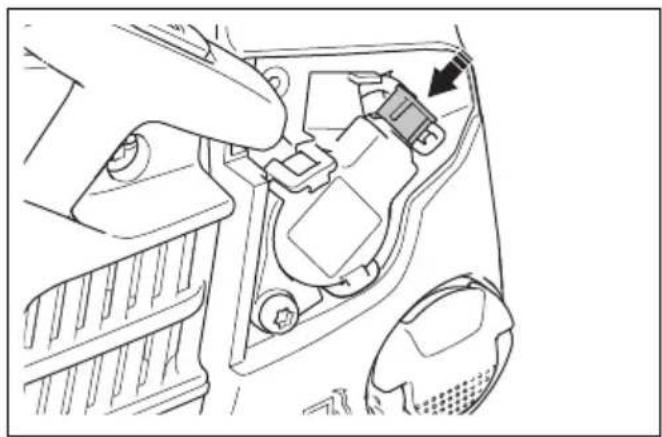

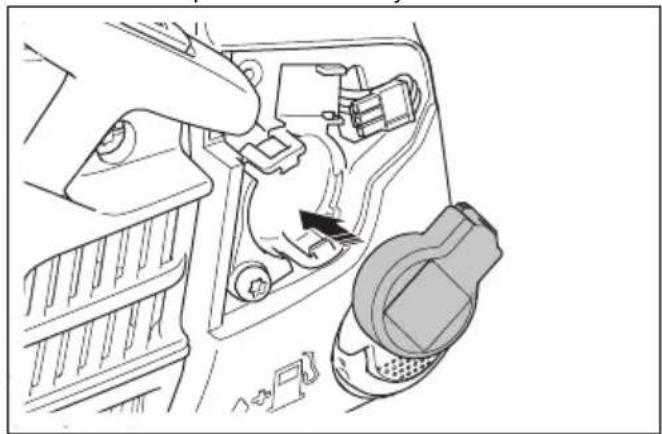

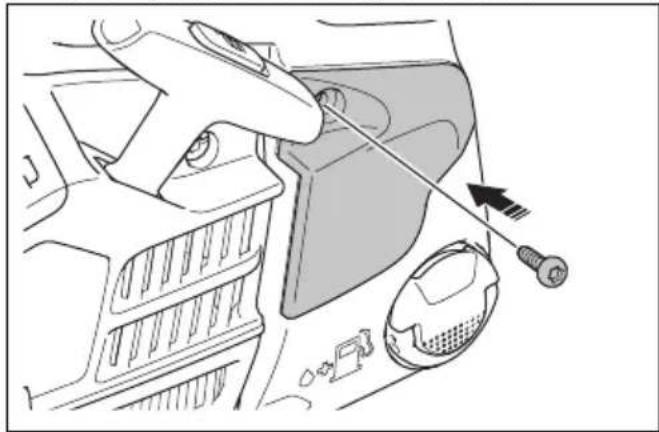

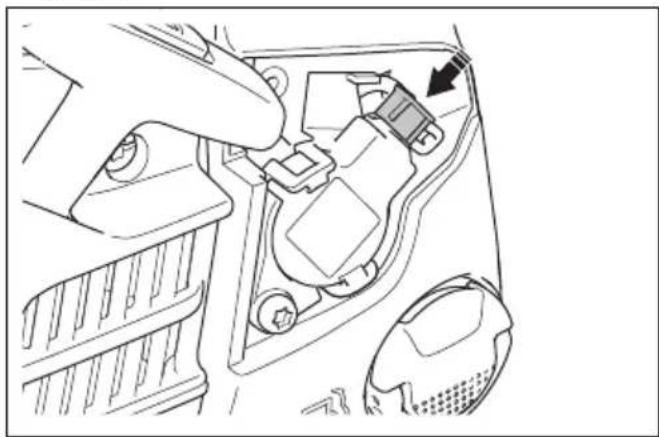

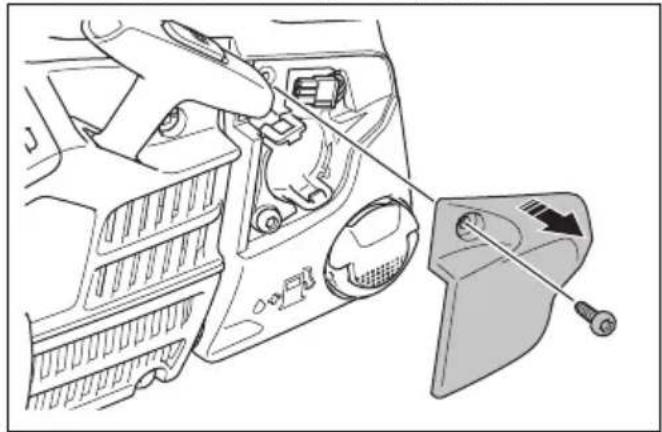

1. Монтирайте Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the intake manifold (no text or labels)

Technical line drawing of a car engine compartment showing internal components and a hand operating the valve (no text or symbols present)

Diagram of a car interior showing a hand pointing to the dashboard and a tool inserted into a gear (no text or symbols present)

Husqvarna Fleet Services™

Safety warning illustration showing a worker disinfecting fuel containers with hazardous items, accompanied by a safety symbol.

Simple black-and-white icon showing a fuel pump with a droplet and plus sign, no text or symbols present.

Abstract black-and-white graphic of a droplet above a stylized mask (no text or symbols)

Diagram showing a warning sign with arrows and a gear mechanism, likely related to safety or hazard prevention.

Illustration of a person in protective gear using a tool to lift a rolled-up cable (no text or symbols)

Diagram of a manual tool emitting a curved arrow, no text or symbols present

Technical diagram showing car interior components with labeled parts A and B, likely illustrating a vehicle safety or safety mechanism.

Illustration of a person using a chainsaw to cut the saw (no text or symbols present)

Diagram of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a car hood with airflow direction arrow (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Line drawing of a person using a chain mill to cut a circular saw (no text or symbols)

Line drawing of a person using a chain-linking tool to cut a circular saw (no text or symbols)

Diagram illustrating a chain-linking mechanism with warning sign and chain-linking tool, showing safety hazard and chain extension.

Illustration of two workers handling large logs, one standing and one leaning over stacked logs (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ: Не

Simple line drawing of a tool cutting through a circular hole, with no text or symbols present.

Diagram illustrating a manual hammering process with warning symbol and labeled components

ПРЕДУПРЕЖДЕНИЕ:

Diagram illustrating a chain saw tool and its circular components, labeled with steps 1 and 2.

Illustration of a landslide with a lightning bolt, warning sign, and starburst symbol (no text or labels)

Diagram illustrating three steps of a chain saw tool: cutting, forming a circular cross-section, and tree ring opening.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and cutting through a circular opening.

ПРЕДУПРЕЖДЕНИЕ: Спрете

Illustration of a car seatbelt being lifted by a hand, showing the angle and motion direction (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ: Ако

Illustration of a person using a chain-linking tool to cut tree bark, with an arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

ПРЕДУПРЕЖДЕНИЕ: Ако

Illustration of a person spraying tree branches with logs, no text or symbols present

Illustration of a magnifying glass over flames with a diagonal line, no text or symbols present

ПРЕДУПРЕЖДЕНИЕ: По

Diagram illustrating a person using a tool to lift a vertical pole, with directional arrows indicating force or movement.

Diagram of concentric circular layers with a vertical gap and directional arrows, no text or symbols present.

Diagram illustrating tree root damage with arrows indicating erosion and damage direction

ПРЕДУПРЕЖДЕНИЕ:

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical device with a curved arrow indicating motion or force (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and no visible text or symbols

Mechanical diagram showing a rotating shaft and wheel assembly with a directional arrow (no text or labels)

Diagram showing a circular structure with concentric rings and an arrow indicating direction, alongside a triangular diagram of a tree trunk with a curved line and directional arrows (no text or symbols)

Diagram illustrating two methods for tree protection: one using a no-smoking sign, the other with a walking stick and a circular prohibition symbol.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Преносима

Simple line drawing of a mechanical clamp or lever assembly (no text or symbols)

Simple line drawing of a curved path with a ball and scattered debris (no text or symbols)

Diagram of a mechanical or structural system with arrows indicating direction, no text or symbols present

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram showing airflow or particle movement between two curved surfaces with directional arrows (no text or symbols)

Simple line drawing of a rope or rope loop with directional arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion arrows (no text or symbols)

Illustration of a person using a power manual to cut tree bark (no text or symbols)

Illustration of a person using a power tool to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a chain-linking device with a black arrow indicating motion direction (no text or symbols)

Technical line drawing of a chain saw tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

За проверка на антивибрационната система

Line drawing of a chainsaw with an inset showing a small object labeled 'P' and a box labeled 'N' (no text or symbols on the diagram itself)

Line drawing of a car's front bumper with two buttons and arrows indicating adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screw and adjustment knob (no text or symbols)

1. Сменяйте повредена искрогасителна мрежа.

Technical line drawing of a mechanical device with internal components and a close-up view (no text or symbols)

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

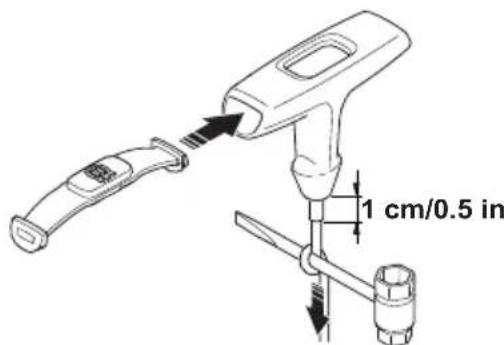

1 cm/0.5 in

Diagram of a mechanical tool with a lever and shaft, showing motion direction (no text or symbols)

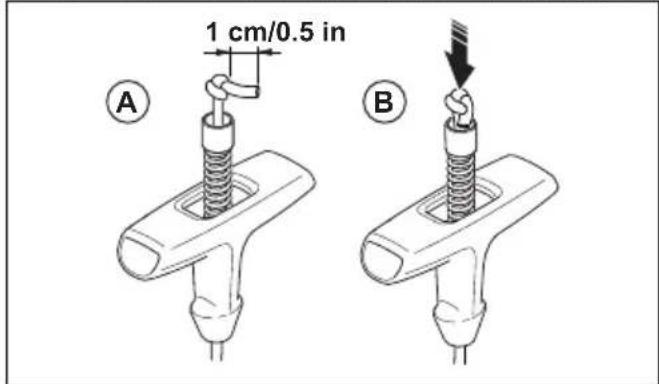

1 cm/0.5 in

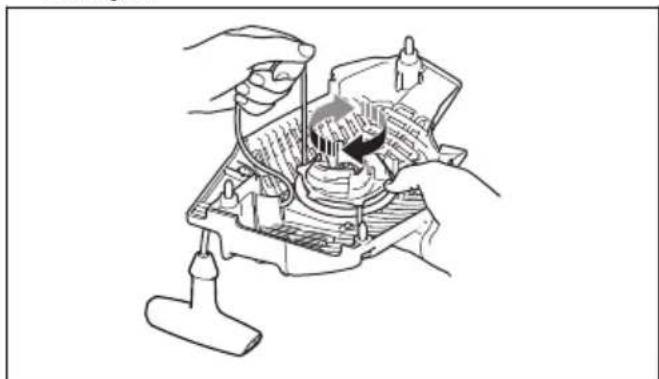

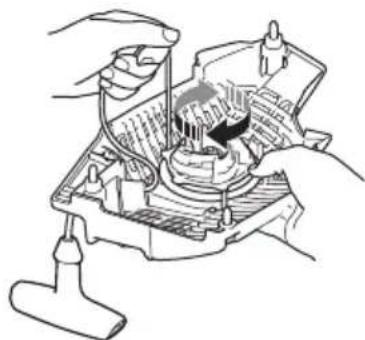

За затягане на откатната пружина

Line drawing of hands assembling electronic components in a circuit board (no text or symbols)

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a mechanical device showing internal components and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded base and mounting holes (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and two small circular holes, no text or symbols present.

Simple line drawing of a chain with a star-like symbol inside, no text or labels present.

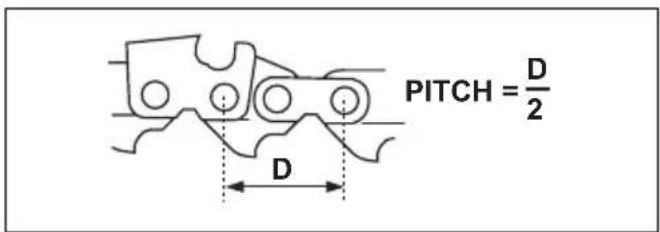

PITCH = D/2 D

Diagram showing a mechanical component with arrows indicating direction, alongside a separate view of a device with labeled parts (no text or symbols present)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

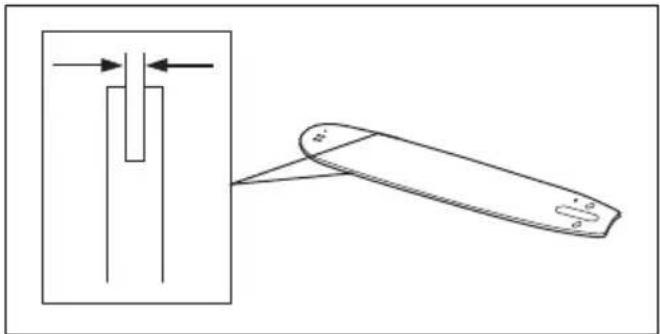

- Ширина на кулисна предавка mm/in.

Technical diagram showing a mechanical component and a vertical rod with directional arrows (no text or labels)

Technical line drawing of a mechanical tool with two views: one showing a curved cut and arrow, the other showing a straight handle (no text or symbols)

• Ђпъл на рязане.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

Line drawing of a screwdriver holding a tool, no text or symbols present

Simple line drawing of a dropper with a small symbol (no text or labels)

Three technical line drawings of mechanical components: a dropper, a bracket, and a clamp-like device (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a bracket and shaft (no text or symbols)

Two types of hair tools: a fine brush and a handheld device (no text or symbols visible)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a chain saw with a hammer and gear (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating motion (no text or symbols)

Illustration of a person using a power saw to cut tree bark with a downward arrow (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

Pure geometric diagram showing a rectangular shape with a curved cutout and a dashed line indicating a dimension (no text or symbols)

Simple line drawing of a switch mechanism with a black arrow indicating downward motion (no text or symbols)

Diagram showing a tool interacting with a cylindrical object, with no visible text or symbols

Line drawing of a hand holding a tool, no text or symbols present

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a circular arrow indicating rotation (no text or symbols)

Diagram of a tool with an arrow indicating direction, showing a curved blade with a rectangular slot (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Technical line drawing of a chain-linking device with internal components and external gear (no text or symbols)

Technical diagram of a car body with labeled parts A, B, C, D, and E, showing internal mechanical components.

Technical diagram of a chain-linking device with numbered parts for identification and assembly reference.

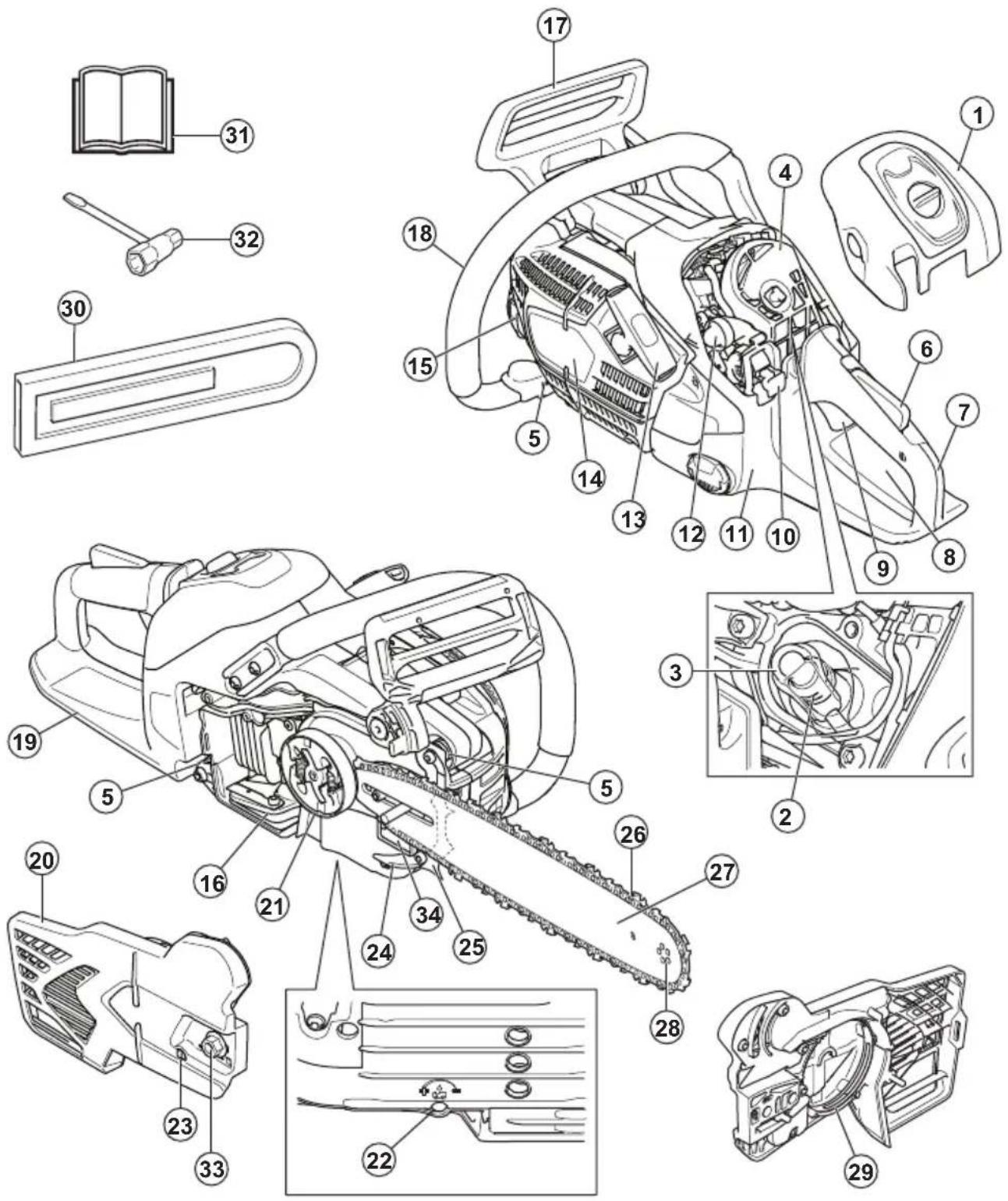

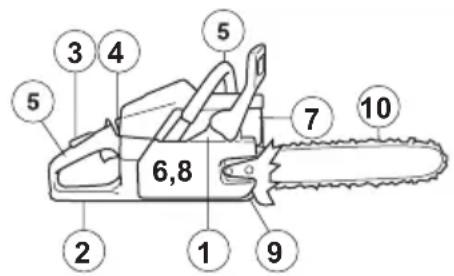

1. Poklopac filtra zraka
2. Svjećica
3. Lulica svjećice
4. Filtar zraka
5. Vibracijski element

6. Blokada regulatora gasa

7. Stražnja ručka

8. Naljepnica upozorenja
9. Regulator gasa

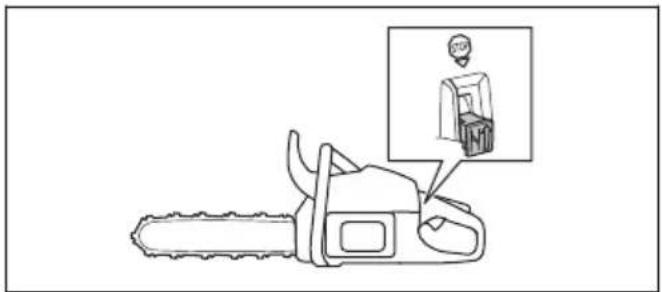

10. Prekidač za pokretanje/zaustavljanje
11. Spremnik za gorivo

12. Čašica pumpice za gorivo

13. Ručica užeta pokretača

14. Kućište pokretača
15. Spremnik ulja za lanac

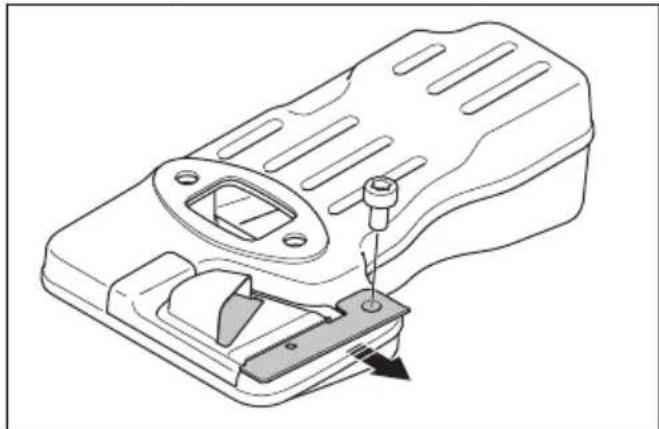

16. Prigušivač i mrežica za hvatanje iskri

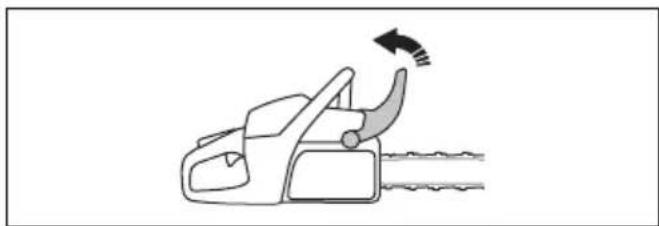

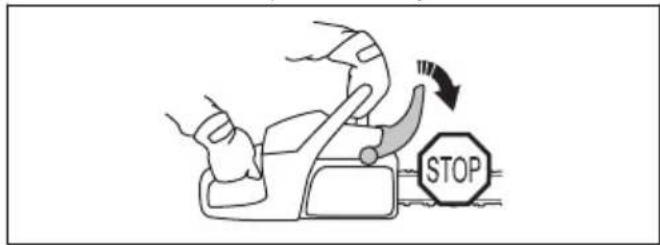

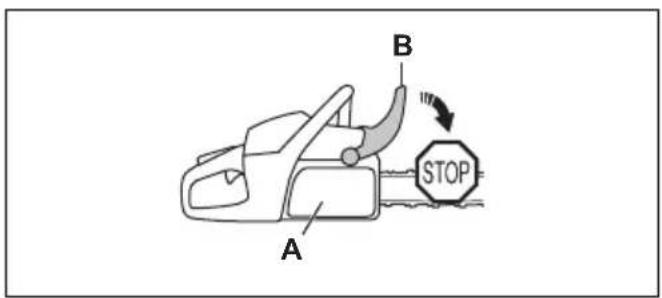

17. Kočnica lanca i prednji štitnik za ruku
18. Prednja ručka
19. Štitnik desne ruke
20. Pokrov spojke
21. Bubanj spojke
22. Vijak za podešavanje pumpe za ulje
23. Vijak za zatezanje lanca

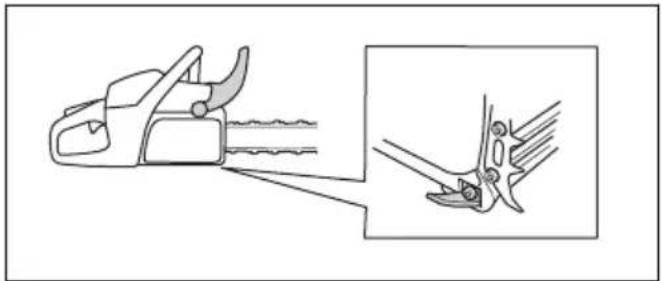

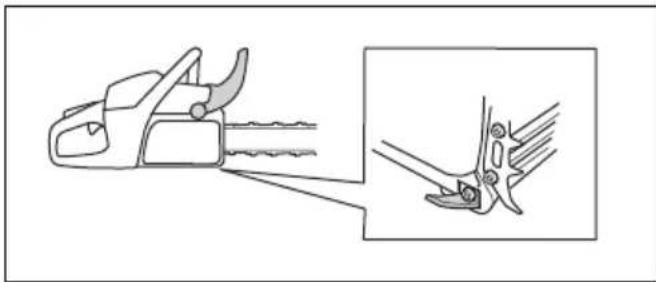

24. Hvatač lanca
25. Nazubljeni odbojnik
26. Lanac pile
27. Vodilica
28. Lančanik na vrhu vodilice
29. Pojas kočnice
30. Poklopac vodilice
31. Korisnički priručnik
32. Kombinirani ključ
33. Matica vodilice
34. Pločica s brojem proizvoda i serijskim brojem

Simboli na proizvodu

Stop.

Budite oprezni i pravilno upotrebljavajte ovaj proizvod. Ovaj proizvod može izazvati teške ozljede ili smrt rukovatelja ili drugih osoba.

Simple line drawing of a crossed-out cigarette with smoke and a diagonal line (no text or symbols)

• Nikada ne pokrećite motor u zatvorenom prostoru. Ispušni plinovi motora mogu biti opasni.
• Ispušne pare motora vruće su i mogu sadržavati iskre koje mogu uzrokovati požar. Proizvod nikada nemojte pokretati u blizini zapaljivog materijala!

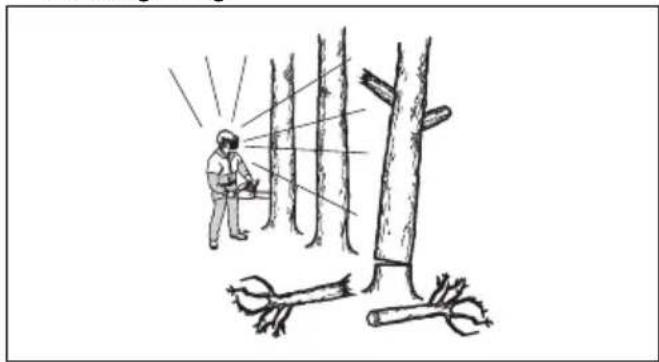

• Pregledajte okolinu i pobrinite se da nema opasnosti da ljudi ili životinje dođu u doticaj s ovim proizvodom ili da utječu na vaše upravljanje njime.
• Djeci nije dopušteno upotrebljavati proizvod ili se zadržavati u njegovoj blizini. Budući da je proizvod opremljen opružnom sklopkom za pokretanje/zaustavljanje i da ga je moguće pokrenuti malom brzinom i silom na ručici pokretača, u određenim okolnostima čak i mala djeca mogu proizvesti silu dovoljnu za pokretanje proizvoda. To može rezultirati ozbiljnim tjelesnim ozljedama. Zato uklonite lulicu svjećice kada proizvod nije pod strogim nadzorom.
• Za potpunu kontrolu nad strojem morate zauzeti stabilan stav. Nikad nemojte stajati na ljestvama, na stablu ili na nestabilnoj podlozi.

Prohibition sign showing a worker climbing a rope against a circular background (no text or symbols)

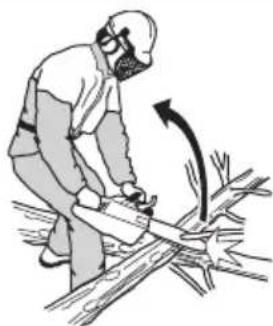

• Za vrijeme rada na drveću potrebno se pridržavati posebnih tehnika rezanja i radnih postupaka kako bi se izbjegla povećana opasnost od tjelesnih ozljeda. Ni u kojem slučaju nemojte raditi na drveću ako niste prošli posebnu, profesionalnu obuku za taj posao, uključujući obuku o uporabi zaštitne i druge penjačke opreme, kao što su remenje, užad, pojasevi, dereze, kuke, karabineri itd.
• Ne pokušavajte uhvatiti ogranke koji padaju. Ne režite drvo kada ste osigurani samo jednim užetom. Uvijek upotrebljavajte dva pričvršćena užeta.

- Slaba koncentracija može dovesti do trzaja ako trzajna zona slučajno dotakne granu, susjedno drvo ili neki drugi predmet.

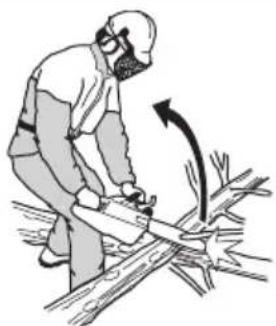

Illustration of a worker in protective gear using a tool on a wooden structure, with an arrow indicating motion (no text or symbols)

• Proizvod nikada nemojte primjenjivati s jednom rukom. Jednom rukom nije moguće sigurno upravljati proizvodom.
• Uvijek držite ovaj proizvod objema rukama. Desnu ruku držite na stražnjoj, a lijevu ruku na prednjoj drški. Svi korisnici, ljevoruki ili desnoruki, trebaju koristiti ovaj zahvat. Palcem i prstima čvrsto prihvatite ručke. Ovaj način držanja smanjuje opasnost od povratnog trzaja i pruža kontrolu nad proizvodom. Nemojte ispustiti drške!

Illustration of a mechanical device with hands operating it, no text or symbols present

Prohibition sign showing a person walking under a tree with a diagonal line (no text or symbols)

• Ovaj proizvod nemojte upotrebljavati ako niste u mogućnosti pozvati pomoć u slučaju nezgode.
• Prije prenošenja proizvoda isključite motora i blokirajte lanac pile kočnicom lanca. Proizvod nosite s vodilicom i lancem pile usmjerenima prema naprijed. Prije transporta ili prijenosa proizvoda na veće udaljenosti na vodilicu postavite transportni štitnik.
• Pri spuštanju proizvoda na tlo blokirajte lanac pile pomoću kočnice lanca i nemojte ga ispuštati iz vida. Prije ostavljanja proizvoda isključite motor.

• Ponekad se može dogoditi da u poklopcu zvona spojke zapnu otpaci, što uzrokuje zaglavljivanje lanca motorne pile. Prije čišćenja obavezno zaustavite motor.

• Pokretanje motora u zatvorenom ili loše prozračenom prostoru može prouzročiti smrt zbog trovanja ugljikovim monoksidom.

• Ispušne pare iz motora su vruće i mogu sadržavati iskre koje mogu izazvati požar. Proizvod nemojte pokretati u zatvorenom prostoru ili u blizini zapaljivog materijala.
• Kočnicu lanca upotrebljavajte kao parkirnu kočnicu pri pokretanju proizvoda i pri prevaljivanju kraćih udaljenosti. Uvijek nosite ovaj proizvod držeći ga za prednju ručku. Tako smanjujete opasnost od udarca lancem motorne pile.
• Preveliko izlaganje vibracijama može uzrokovati poremećaj cirkulacije ili oštećenje živčanog sustava kod ljudi sa slabom cirkulacijom. Ako imate simptome uzrokovane prevelikim izlaganjem vibracijama, obratite se liječniku. Simptomi uključuju obamrlost, nedostatak osjećaja, škakljanje, trnce, bol, gubitak snage, promjene boje ili stanja kože. Simptomi se uglavnom pojavljuju na prstima, šakama ili zglobovima. Niske temperature mogu pojačati simptome.
• Nije moguće obuhvatiti sve zamislive situacije s kojima se možete suočiti pri radu s ovim proizvodom. Uvijek postupajte oprezno i slijedite zdrav razum. Izbjegavajte sve situacije koje bi mogle nadilaziti vaše sposobnosti. Ako i nakon čitanja ovih uputa niste sigurni u radne postupke, prije nastavka obratite se stručnjaku. Za sva pitanja o uporabi proizvoda bez zadrške se obratite zastupniku ili Husqvarna. Rado ćemo vam pomoći i posavjetovati vas kako biste proizvod upotrebljavali na učinkovit i siguran način. Ako je moguće, pohađajte tečaj o uporabi motornih pila. Vaš zastupnik, šumarska škola ili knjižnica mogu vam ponuditi obavijesti o raspoloživim materijalima i tečajevima za obuku.

Diagram showing a person falling off a tree with a diagonal line indicating no movement or restriction.

Sigurnosne upute za rad

UPOZORENJE: Prije upotrebe proizvoda pročitajte upute upozorenja u nastavku.

Safety warning symbol showing a crossed-out cigarette with smoke and a cigarette flame, commonly used in smoking or cleaning procedures.

• Nikada ne pokrećite motor u zatvorenom prostoru. Ispušni plinovi motora mogu biti opasni.
• Ispušne pare motora vruće su i mogu sadržavati iskre koje mogu uzrokovati požar. Proizvod nikada nemojte pokretati u blizini zapaljivog materijala!
• Pregledajte okolinu i pobrinite se da nema opasnosti da ljudi ili životinje dođu u doticaj s ovim proizvodom ili da utječu na vaše upravljanje njime.
• Djeci nije dopušteno upotrebljavati proizvod ili se zadržavati u njegovoj blizini. Budući da je proizvod opremljen opružnom sklopkom za pokretanje/zaustavljanje i da ga je moguće pokrenuti malom brzinom i silom na ručici pokretača, u određenim okolnostima čak i mala djeca mogu proizvesti silu dovoljnu za pokretanje proizvoda. To može rezultirati ozbiljnim tjelesnim ozljedama. Zato uklonite lulicu svjećice kada proizvod nije pod strogim nadzorom.
• Za potpunu kontrolu nad strojem morate zauzeti stabilan stav. Nikad nemojte stajati na ljestvama, na stablu ili na nestabilnoj podlozi.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with no text.

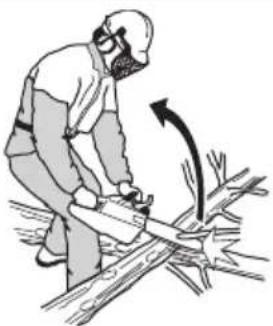

Illustration of a worker using a saw to cut wood or metal, wearing safety gear and holding a tool (no text or symbols present)

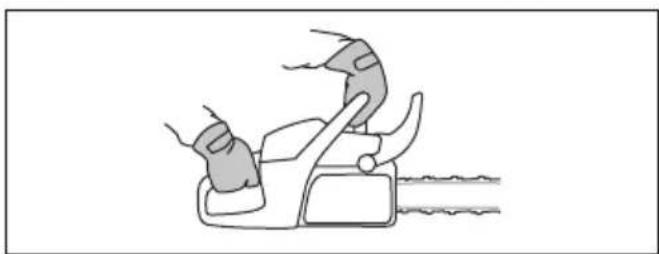

- Proizvod nikada nemojte primjenjivati s jednom rukom. Jednom rukom nije moguće sigurno upravljati proizvodom. - Uvijek držite ovaj proizvod objema rukama. Desnu ruku držite na stražnjoj, a lijevu ruku na prednjoj drški. Svi korisnici, ljevoruki ili desnoruki, trebaju koristiti ovaj zahvat. Palcem i prstima čvrsto prihvatite ručke. Ovaj način držanja smanjuje opasnost od povratnog trzaja i pruža kontrolu nad proizvodom. Nemojte ispustiti drške!

Illustration of a mechanical device with two hands operating it, no text or symbols present

Prohibition sign showing a person walking away from a tree with bare branches, enclosed in a circle.

• Ovaj proizvod nemojte upotrebljavati ako niste u mogućnosti pozvati pomoć u slučaju nezgode.

• Prije prenošenja proizvoda isključite motora i blokirajte lanac pile kočnicom lanca. Proizvod nosite s vodilicom i lancem pile usmjerenima prema naprijed. Prije transporta ili prijenosa proizvoda na veće udaljenosti na vodilicu postavite transportni štitnik.

• Pri spuštanju proizvoda na tlo blokirajte lanac pile pomoću kočnice lanca i nemojte ga ispuštati iz vida. Prije ostavljanja proizvoda isključite motor.

• Ponekad se može dogoditi da u poklopcu zvona spojke zapnu otpaci, što uzrokuje zaglavljivanje lanca motorne pile. Prije čišćenja obavezno zaustavite motor.
• Pokretanje motora u zatvorenom ili loše prozračenom prostoru može prouzročiti smrt zbog trovanja ugljikovim monoksidom.
• Kočnicu lanca upotrebljavajte kao parkirnu kočnicu pri pokretanju proizvoda i pri prevaljivanju kraćih udaljenosti. Uvijek nosite ovaj proizvod držeći ga za prednju ručku. Tako smanjujete opasnost od udarca lancem motorne pile.
• Nije moguće obuhvatiti sve zamislive situacije s kojima se možete suočiti pri radu s ovim proizvodom. Uvijek postupajte oprezno i slijedite zdrav razum. Izbjegavajte sve situacije izvan vaših sposobnosti. Ako i nakon čitanja ovih uputa niste sigurni u radne postupke, prije nastavka obratite se stručnjaku. Za sva pitanja o uporabi proizvoda bez zadrške se obratite zastupniku ili Husqvarna. Rado ćemo vam pomoći i posavjetovati vas kako biste proizvod upotrebljavali na učinkovit i siguran način. Ako je moguće, pohađajte tečaj o uporabi motornih pila. Vaš zastupnik, šumarska škola ili knjižnica mogu vam ponuditi obavijesti o raspoloživim materijalima i tečajevima za obuku.

Diagram showing a person falling off a tree with a prohibition symbol, indicating no movement or restriction.

• Pri uporabi ovog proizvoda treba biti dostupan aparat za gašenje požara.
• Ručke moraju biti suhe, čiste i bez ulja.
• Čuvajte se trovanja ugljikovim monoksidom. Proizvod upotrebljavajte u dobro prozračenim područjima.
• Ne pokušavajte obrezati ili potkresati stojeće drvo, osim ako niste posebno obučeni za to.

Oprema za osobnu zaštitu

UPOZORENJE: Prije uporabe proizvoda pročitajte upozoravajuće upute u nastavku.

Illustration of a person wearing a full-body mask, first aid kit, fire extinguisher, and shovel (no text or symbols)

Simple line drawing of a mechanical device with a curved handle and motion arrow (no text or symbols)

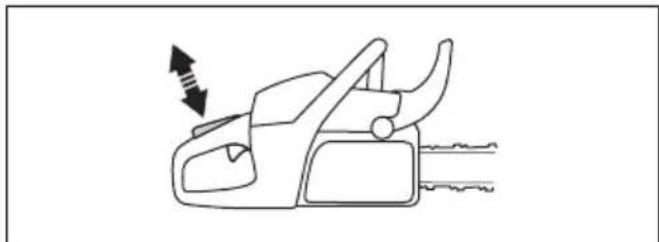

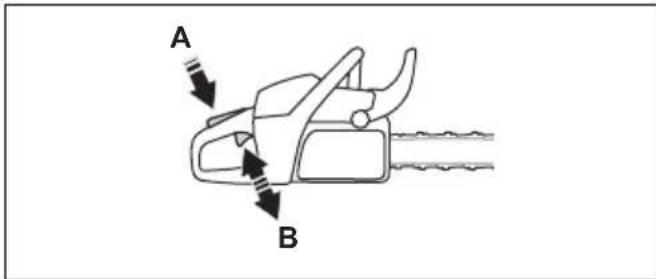

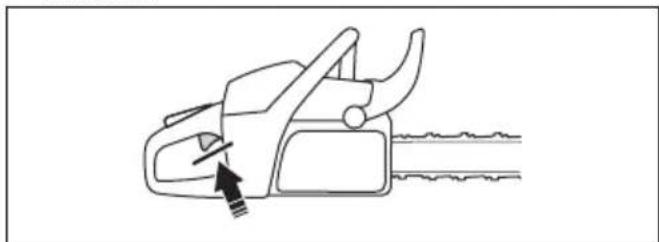

Blokada regulatora gasa

Blokada regulatora gasa sprječava slučajno pokretanje regulatora gasa. Ako rukom obuhvatite ručku i pritisnete blokadu regulatora gasa (A), ona otpušta regulator gasa (B). Kada otpustite ručku, regulator gasa i blokada regulatora gasa vratit će se na svoje prijašnje položaje. Ovom se funkcijom blokira regulator gasa u praznom hodu.

Line drawing of a chainociper with labeled parts A and B (no text or symbols beyond labels)

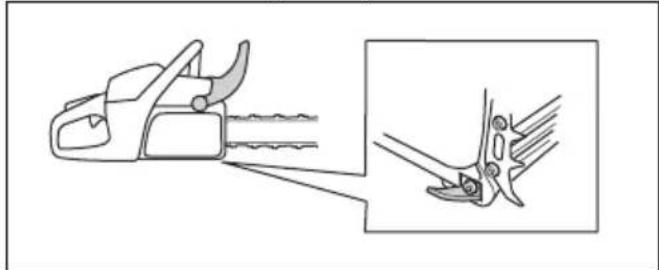

Hvatač lanca

Hvatač lanca hvata lanac motorne pile ako se slomi ili iskoči. Ispravna zategnutost lanca motorne pile i

ispravno provedeno održavanje lanca motorne pile i vodilice smanjuju opasnost od nezgoda.

Technical line drawing of a hairpin tool with magnified detail view (no text or symbols)

Štitnik desne ruke

Technical line drawing of a mechanical component or bracket (no text or symbols)

Sustav za smanjivanje vibracija

Sustav za smanjivanje vibracija smanjuje vibracije u ručki. Jedinice za smanjivanje vibracija funkcioniraju kao razdvajanje između tijela proizvoda i jedince ručke.

Za informacije o tomu gdje se nalazi sustav za smanjivanje vibracija na vašem proizvodu pročitajte Pregled proizvoda na stranici 46.

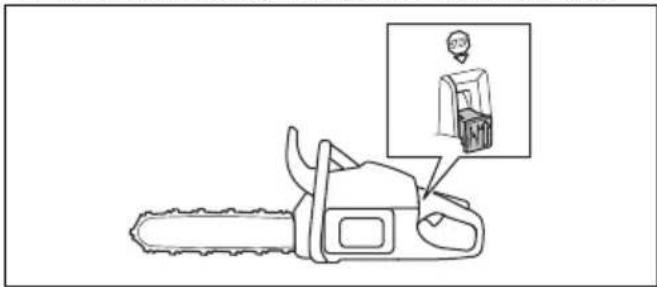

Prekidač za pokretanje/zaustavljanje

Upotrebljavajte prekidač za pokretanje/zaustavljanje kako biste zaustavili motor.

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Line drawing of a cable with a plug inserted into a stack of wires (no text or symbols)

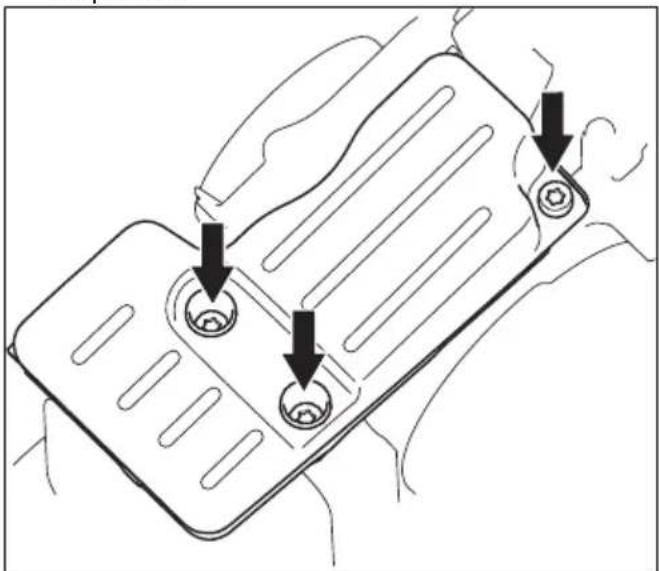

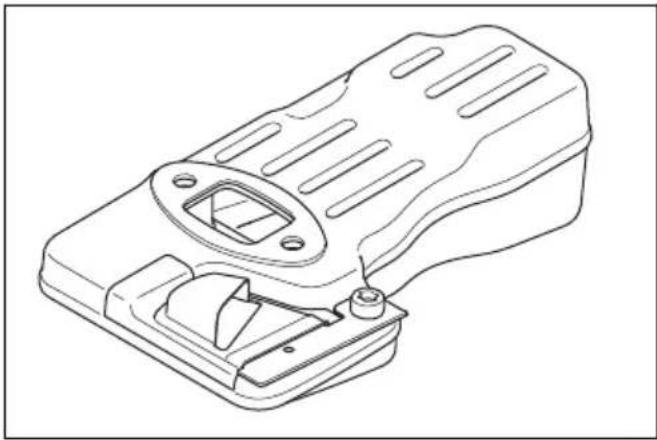

Prigušivač

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a device with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

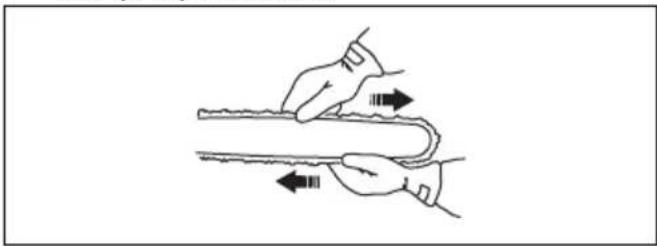

- Provjerite je li lanac motorne pile pravilno zategnut. Ako lanac motorne pile ne naliježe zategnuto na vodilicu, lanac može iskočiti. Neispravna zategnutost lanca motorne pile smanjuje habanje vodilice, lanca motorne pile i pogonskog zupčanika lanca. Pogledajte Prilagodba zategnutosti lanca pile na stranici 75.

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 0 0 0 0 0 0 0 0 0 0 0 0 0 5 0 0 0 0 0 0 0 0 0 0 0 0 6 0 0 0 0 0 0 0 0 0 0 7 0 0 0 0 0 0 0 0 8 0 0 0 9 0 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Simple line drawing of a droplet falling into a container with a handle (no text or symbols)

Sastavljanje

Uvod

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

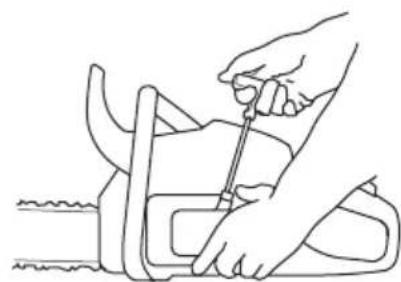

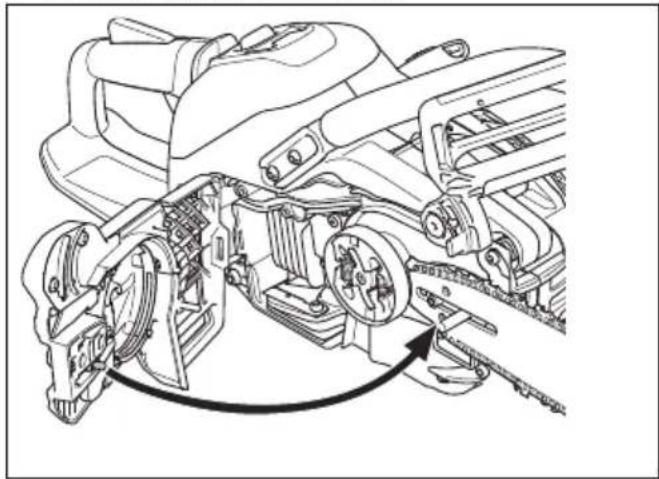

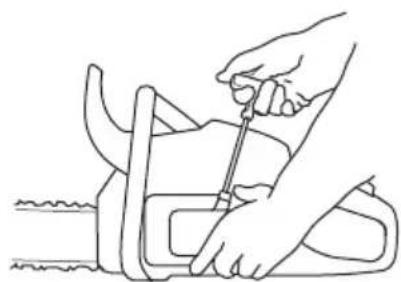

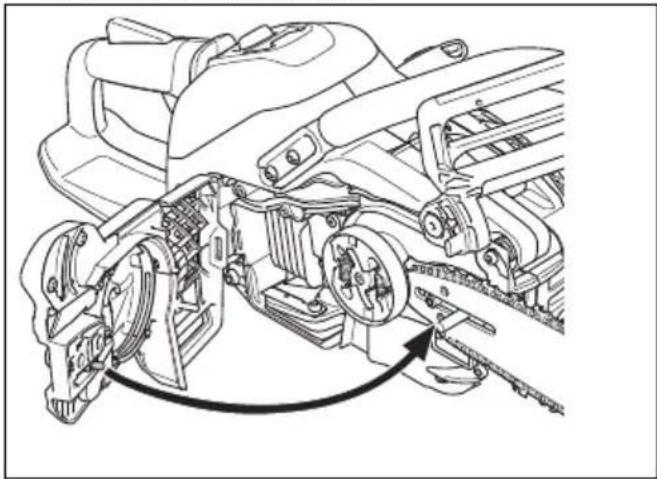

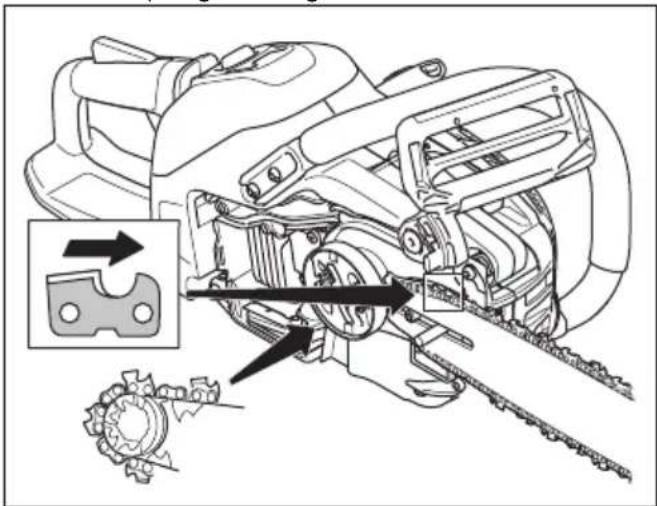

1. Poravnajte provrt u vodilici vijkom za podešavanje lanca pa instalirajte poklopac spojke.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

1. Dobro pritegnite maticu vodilice prstima.

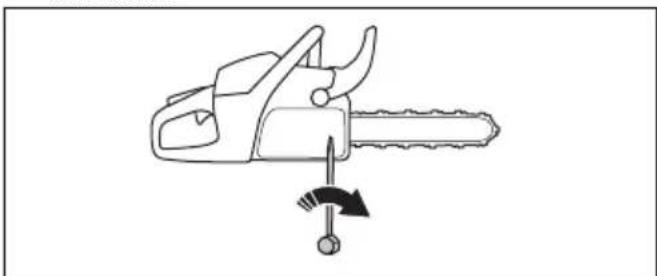

2. Pritegnite lanac motorne pile. Pogledajte Prilagodba zategnutosti lanca pile na stranici 75 upute.
3. Pritegnite matice vodilice.

Napomena: Neki modeli imaju samo jednu maticu vodilice.

Husqvarna uređaj za povezivanje

Povezivost

Ovaj je proizvod spreman za povezivanje i ima lokaciju za instalaciju uređaja za povezivanje Husqvarna. Kad je instaliran uređaj za povezivanje Husqvarna, proizvod je opremljen Bluetooth® bežičnom tehnologijom i može se koristiti s uslugama Husqvarna Fleet Services™ za povezivanje s mobilnim uređajima. Ovime su omogućene i druge funkcije.

Instaliranje Husqvarna connectivity device

Za instaliranje Husqvarna connectivity device provedite sljedeće korake: Više informacija o Husqvarna connectivity device potražite pod www.husqvarna.com.

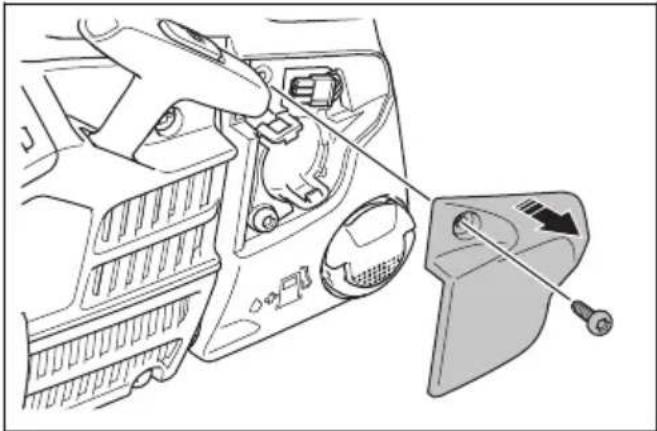

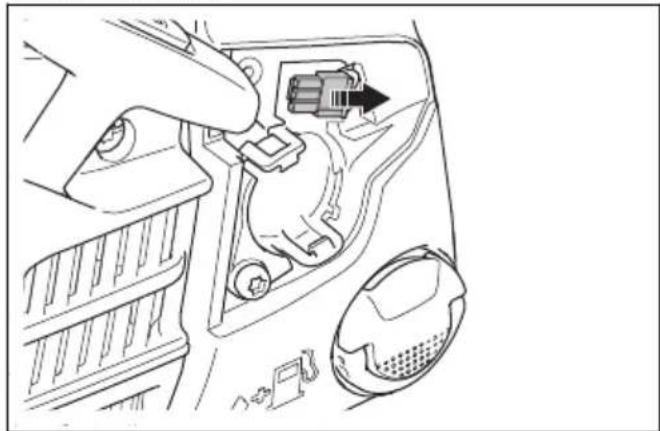

1. Uklonite vijak i otvorite plastični poklopac.

Diagram of a car interior showing a hand operating the engine compartment with a tool, alongside a close-up of the engine compartment with a directional arrow (no text or symbols present)

Diagram of a car engine compartment showing the handle, connector, and outlet (no text or symbols)

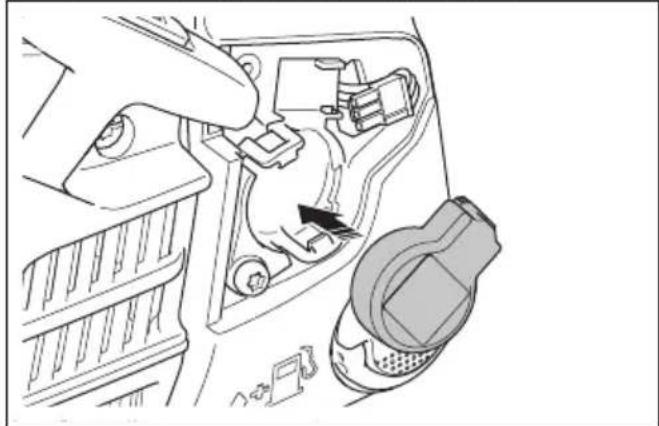

1. Instalirajte Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine compartment (no text or labels)

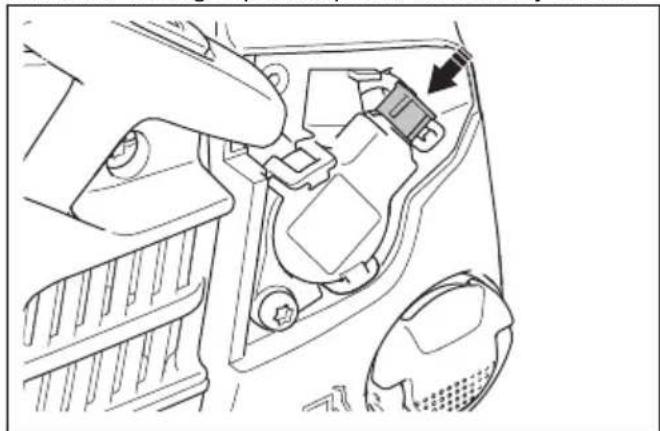

1. Postavite priključak na Husqvarna connectivity device.

Diagram of a car engine compartment showing hand operating valve and internal components (no text or labels)

1. Postavite plastični poklopac i zategnite vijak.

Diagram of a car interior showing a hand adjusting the dashboard with a screwdriver and a small inset device (no text or symbols)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and hazard symbols for a person using a medical device.

Symbol of fuel pump with droplet and plus sign (no text or numbers)

1. Protresite spremnik i provjerite je li gorivo u potpunosti izmiješano.
2. Čep spremnika za gorivo uklonite polako kako biste otpustili tlak.
3. Napunite spremnik za gorivo.

OPREZ: U spremniku za gorivo ne smije biti previše goriva. Gorivo se širi kada je vruće.

Diagram showing a warning sign with arrows and a chain, depicting safety or hazard.

Illustration of a person in protective gear using a tool to lift a rolled roller, with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)

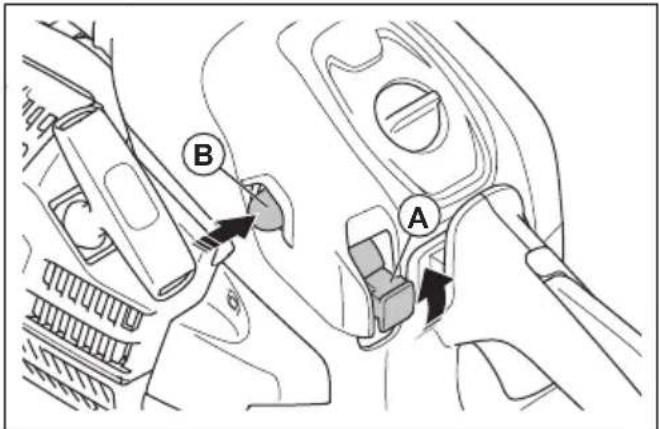

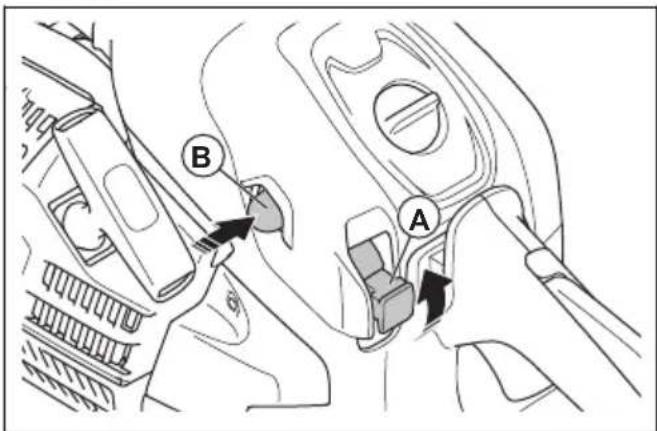

1. Izvucite sklopku za pokretanje/zaustavljanje (A) i postavite je u položaj za pokretanje.
2. Pritisnite čašicu pumpice za gorivo (B) otprilike šest puta ili dok se ne počne puniti gorivom. Nije neophodno do kraja napuniti čašicu pumpice za gorivo.

Diagram showing car seatbelting mechanism with labeled parts A and B, likely illustrating vehicle safety or steering system.

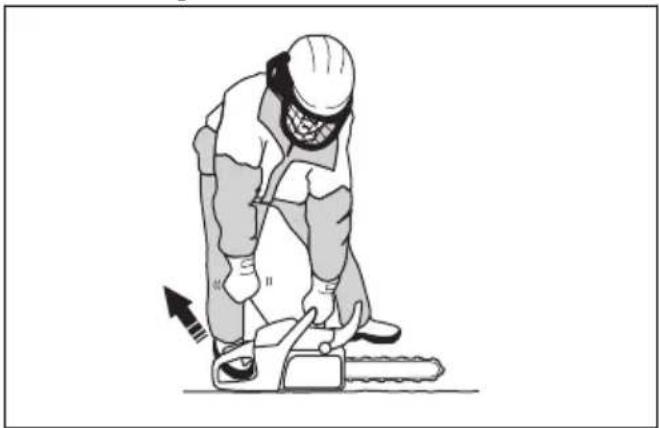

Illustration of a worker using a chainsaw to cut the blade (no text or symbols)

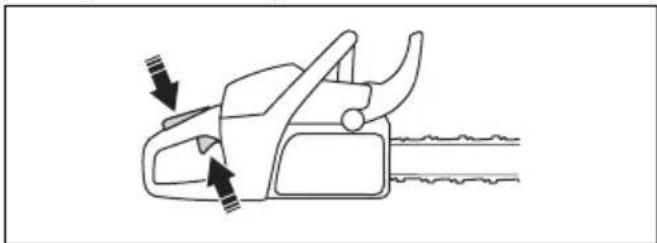

Line drawing of a mechanical tool or bracket with arrows indicating motion direction (no text or symbols)

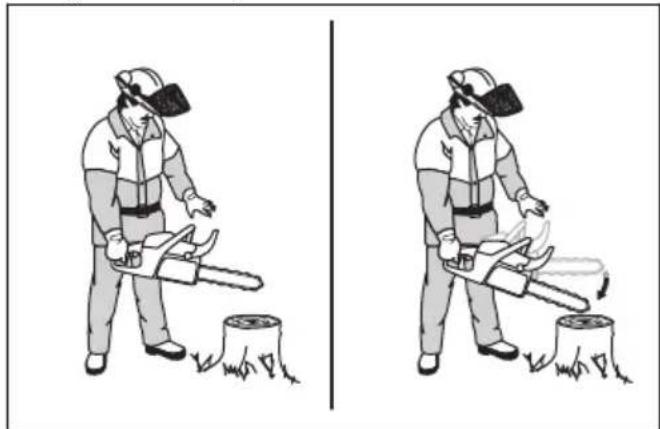

1. Štitnik prednje ruke pomaknite natrag kako biste deaktivirali kočnicu lanca.

Line drawing of a manual chain saw with a curved blade and arrow indicating motion (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Illustration of a person using a chain mill to cut a circular saw (no text or symbols present)

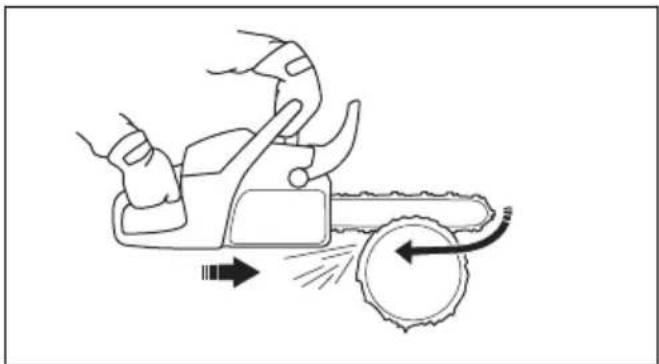

Line drawing of a manual power saw cutting a blade, showing motion direction (no text or symbols)

UPOZORENJE: Ako se lanac motorne pile zaglavi u deblu, proizvod se može odgurnuti na vas. Čvrsto držite proizvod i pobrinite se da područje povratnog trzaja i vodilica ne dodiruju drvo i ne izazivaju povratni trzaj.

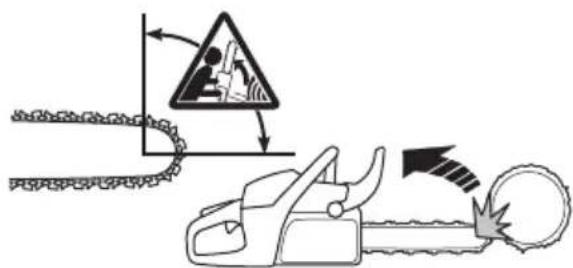

Diagram illustrating a chain-linking process with warning sign and chain-linking mechanism

Illustration of two workers handling stacked logs, one holding a log and the other with a ladder (no text or symbols)

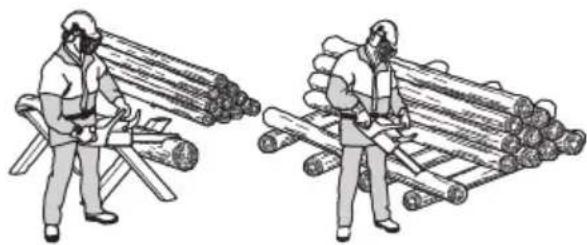

UPOZORENJE: Debla nemojte rezati naslagana. To povećava opasnost od povratnog trzaja i može uzrokovati ozbiljne ozljede ili smrt.

Diagram of a manual tool cutting through a circular pipe with a curved arrow indicating rotation (no text or symbols)

Warning symbol showing a chain saw crushing a car, with warning sign and downward arrow indicating hazard.

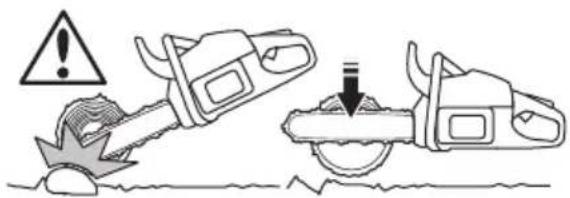

UPOZORENJE: Lanac motorne pile pri završetku zasjeka ne smije dodirnuti tlo.

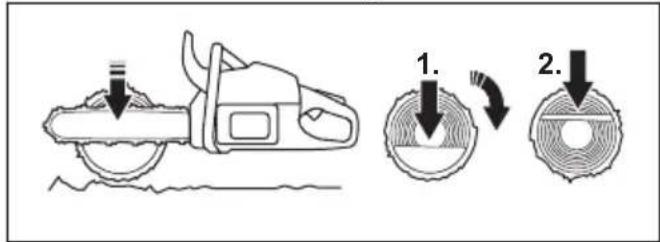

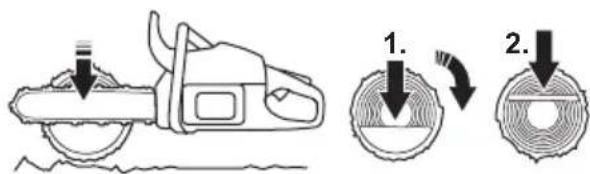

1. Prorežite približno 23 debla i potom se zaustavite. Okrenite deblo i režite s druge strane.

Diagram illustrating a chain saw tool and its two circular components with labeled steps 1 and 2.

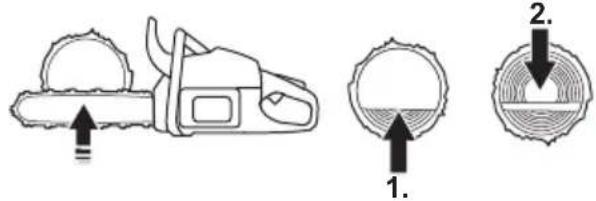

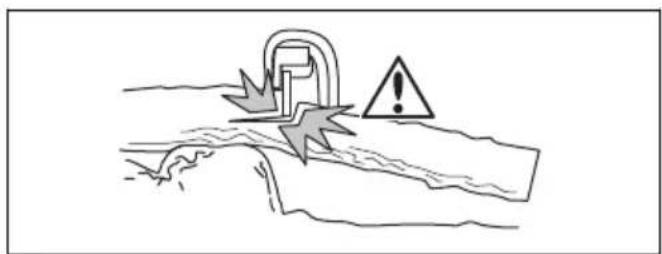

Rezanje debla poduprtog s jedne strane

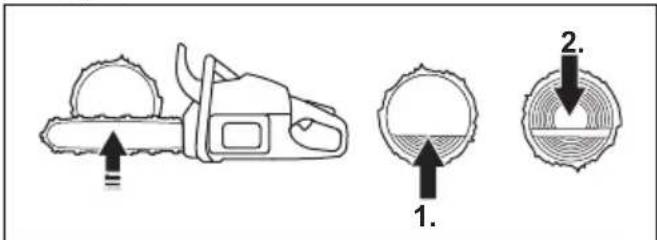

UPOZORENJE: Pazite da se deblo ne prelomi tijekom rezanja. Pratite upute u nastavku.

Illustration of a landslide with a lightning bolt and warning symbol (no text or labels)

1. Pritiskanjem režite kroz približno 13 debla.

2. Režite deblo povratnim pokretom dok ne spojite dva zasjeka.

Diagram showing a chain mill with labeled parts and directional arrows indicating process steps.

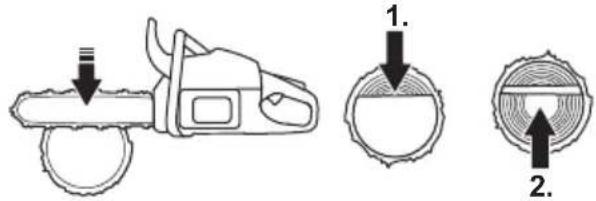

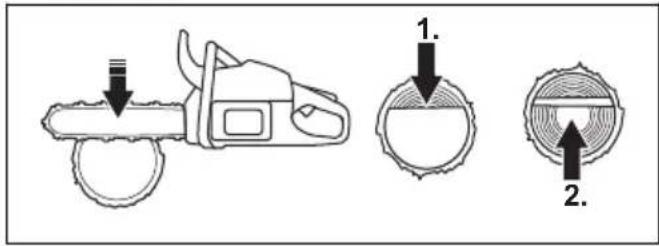

Rezanje debla poduprtog s obje strane

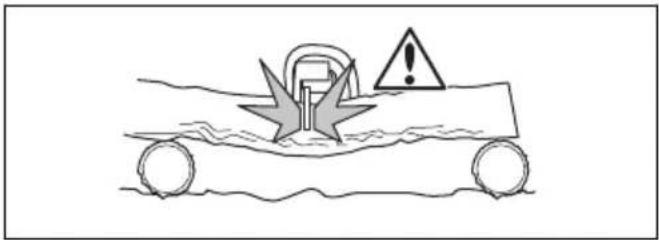

UPOZORENJE: Pazite da se lanac pile tijekom rezanja ne zaglavi u deblu. Pratite upute u nastavku.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

1. Povlačenjem režite kroz približno 13 debla.
2. Preostali dio debla prorežite pritiskanjem kako biste dovršili rez.

Diagram showing three steps of a chain saw tool: cutting, opening, and opening with labeled arrows.

UPOZORENJE: Ako se lanac pile zaglavi u deblu, zaustavite motor. Polugom otvorite zasjek i izvadite proizvod. Nemojte ručno pokušati izvući proizvod. To pri iznenadnom otpuštanju proizvoda može uzrokovati ozljedu.

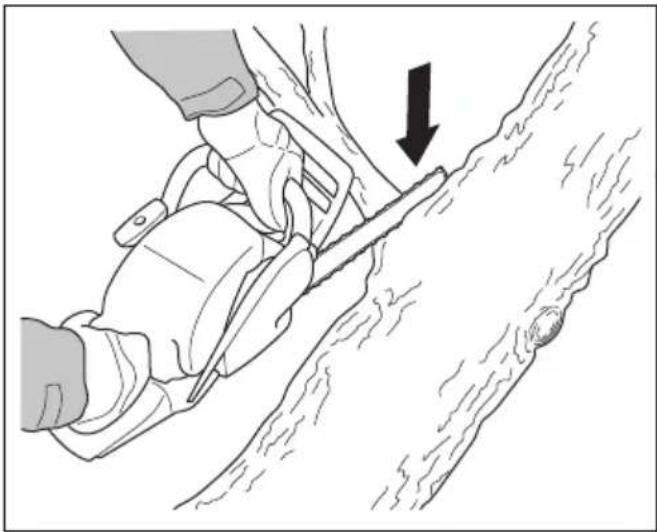

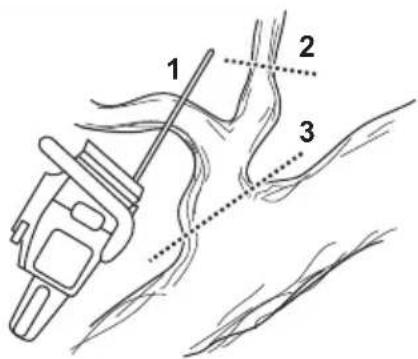

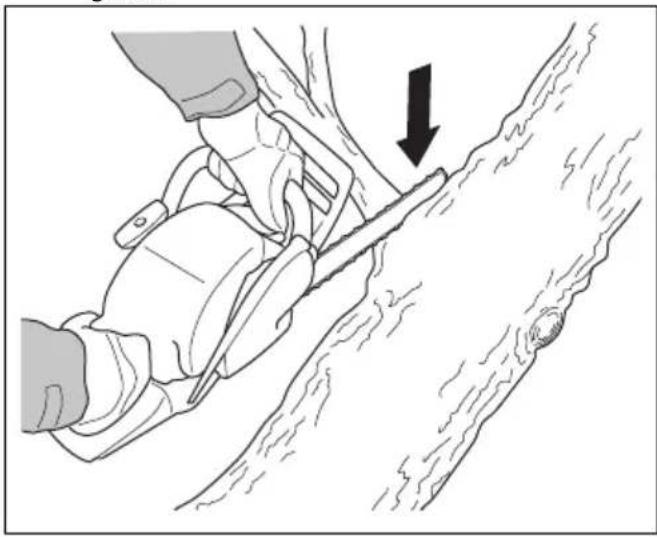

Primjena tehnike potkresivanja

Napomena: Za debele grane primjenjujte tehniku potkresivanja. Pogledajte Primjena tehnike rezanja na stranici 61.

Illustration of a hand using a cable to lift a car, showing the angle and motion direction (no text or symbols)

UPOZORENJE: Ako niste sigurni u način rezanja grane, prije nastavka obratite se profesionalnom rukovatelju motorne pile.

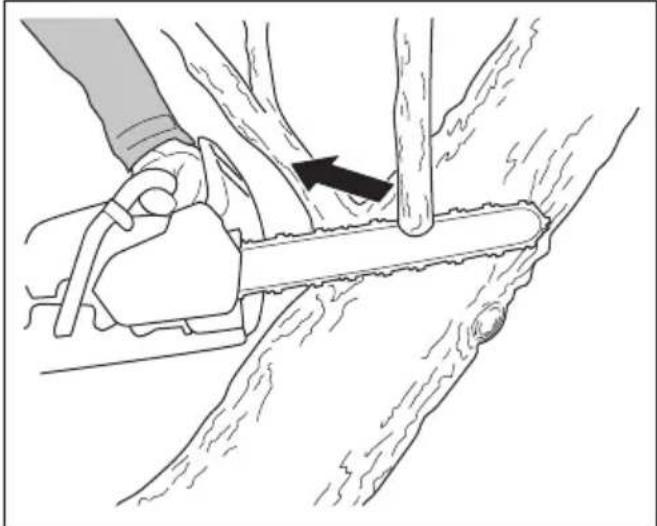

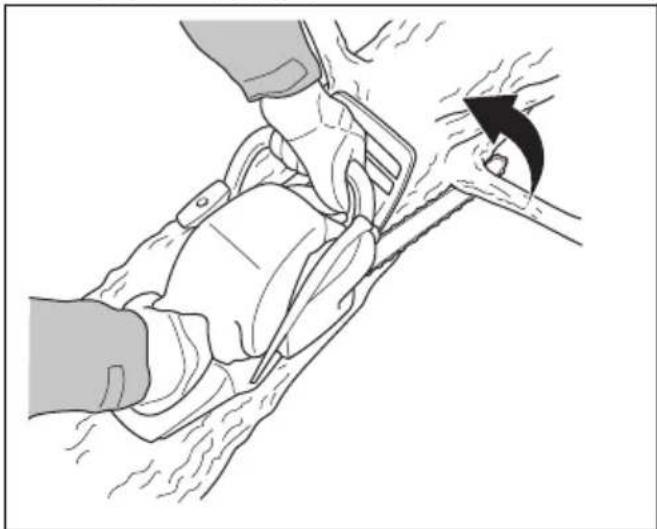

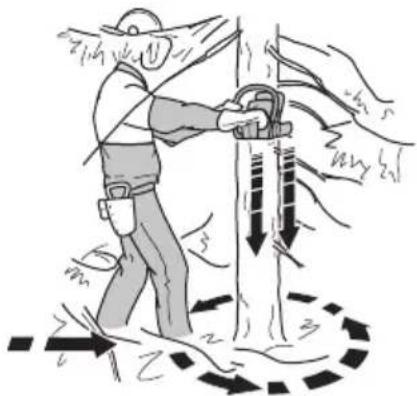

1. Uklonite grane s gornje strane debla.

a) Održavajte proizvod na deblu i pomičite vodilicu duž debla.

Illustration of a person using a chain-linking tool to cut tree bark, with an arrow indicating the process (no text or symbols present)

1. Uklonite grane s lijeve strane debla.

a) Odaberite tehniku rezanja prikladnu za napetost grane.

Illustration of a hand using a tool to cut tree bark with a black arrow indicating the direction (no text or symbols present)

UPOZORENJE: Ako niste sigurni u način rezanja grane, prije nastavka obratite se profesionalnom rukovatelju motorne pile.

Upute za rezanje napetih grana potražite pod Rezanje napetih stabala i grana na stranici 67.

Illustration of a person spraying tree roots with a light source, no text or symbols present

Diagram showing a magnifying glass with a diagonal line and a crossed-out circle, indicating no movement or force.

Diagram illustrating a person using a tool to lift a vertical pole, with directional arrows indicating motion or force.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing blade turning and tree rotation.

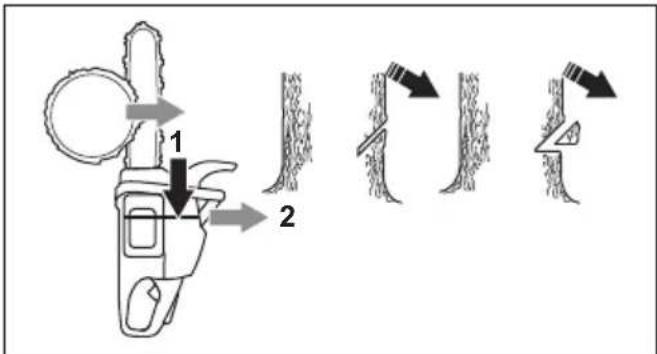

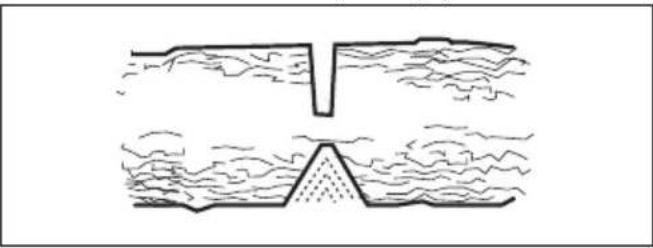

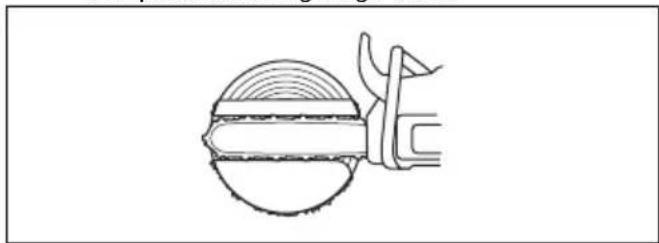

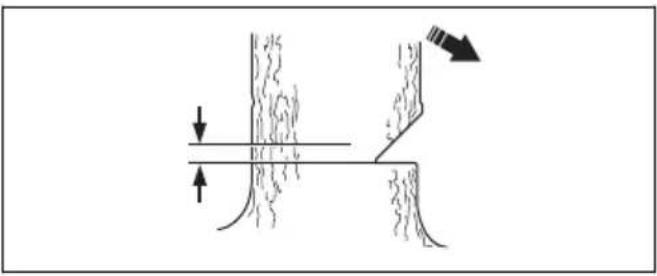

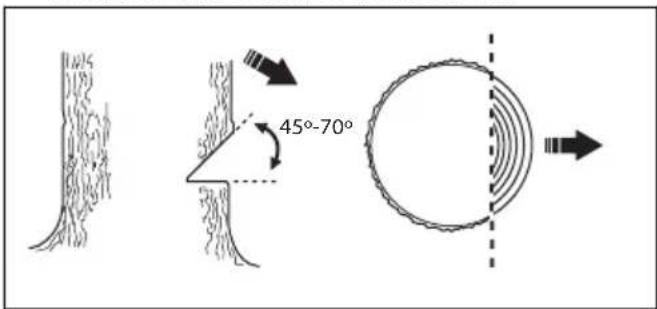

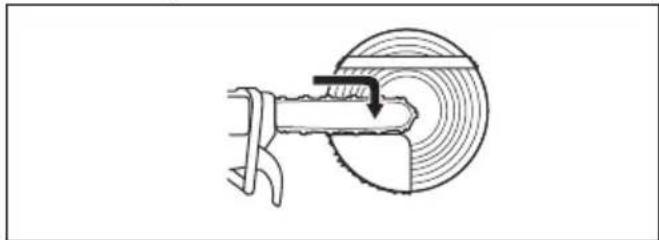

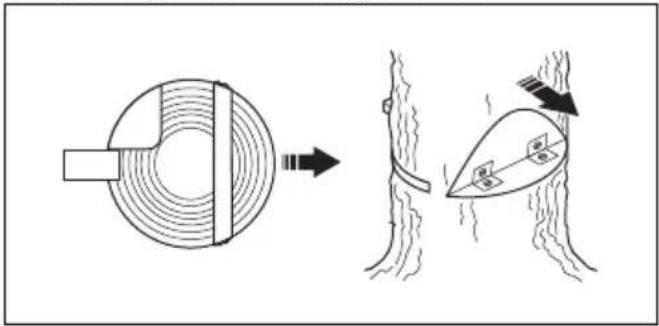

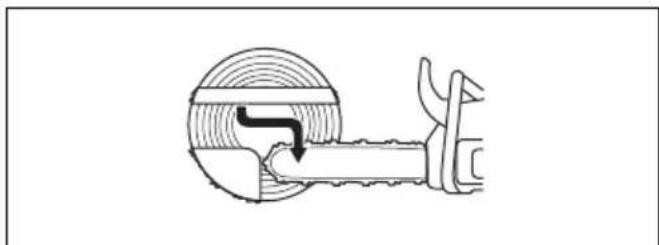

1. Donji rez za usmjerenje mora biti vodoravan i pod 90° u odnosu na smjer obaranja.

Primjena metode sigurnog kuta

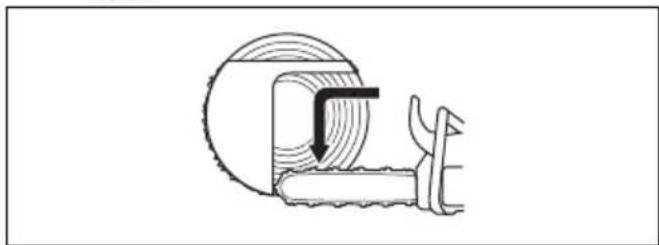

Obarajući rez izvodi se malo iznad reza za usmjerenje.

Diagram showing two vertical structures with arrows indicating direction, no text or symbols present

Simple line drawing of a mechanical component or tool with no visible text or symbols

b) Povlačenjem režite dok ne preostane približno 13 debla.

c) Povucite vodilicu 5 - 10 cm / 2" - 4" unatrag.

Diagram of a mechanical tool or tool with a curved arrow indicating motion (no text or symbols present)

Cross-sectional diagram of a mechanical component with layered structure (no text or labels)

Mechanical diagram showing a rotating shaft with a curved arrow indicating motion (no text or symbols)

Diagram showing a circular structure transforming into a tree with a curved arrow indicating process (no text or symbols)

1. Prerežite kut kako biste oborili stablo.

Napomena: Ako se stablo ne obori, udarajte klin dok se ne obori.

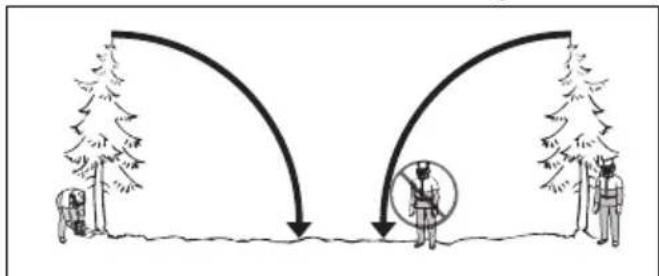

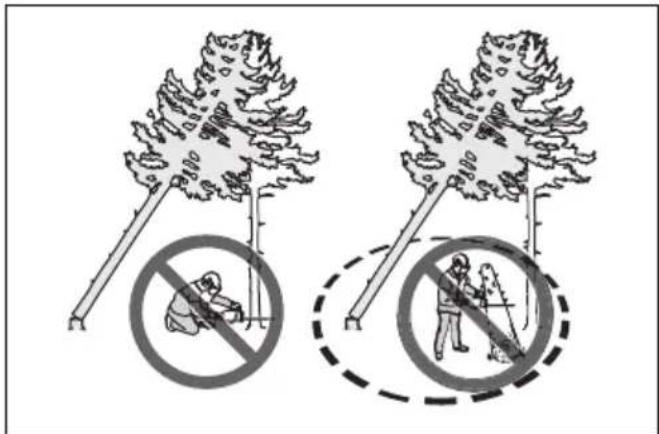

1. Kada stablo počne padati putem povlačenja udaljite se od stabla. Od stabla se udaljite najmanje 5 m / 15'.

Safety illustration showing two methods for reducing tree branches, with one using a no-smoking sign and the other using a walking stick.

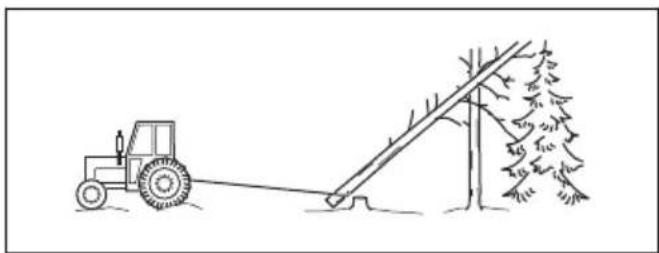

Line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Prijenosno

Simple line drawing of a mechanical clamp or lever assembly (no text or symbols)

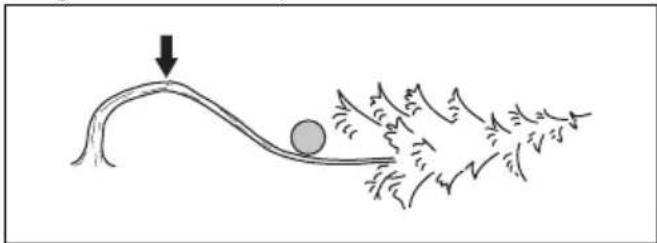

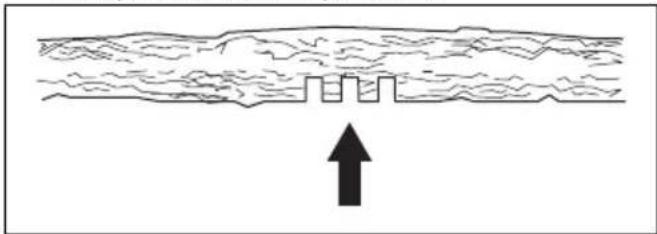

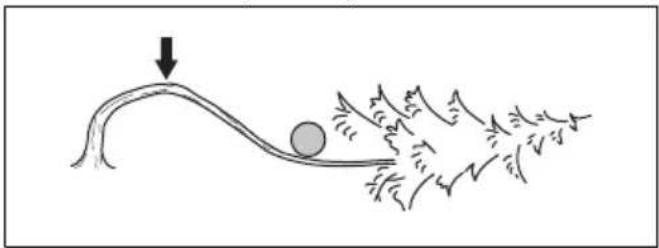

Rezanje napetih stabala i grana

1. Otkrijte koja je strana stabla ili grane napeta.
2. Pronadite točku najveće napetosti.

Diagram showing a curved path with a ball and scattered debris, no text or symbols present

Diagram of a curved road with directional arrows and circular markers, no text or symbols present

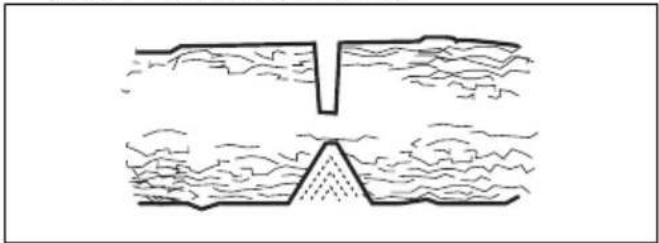

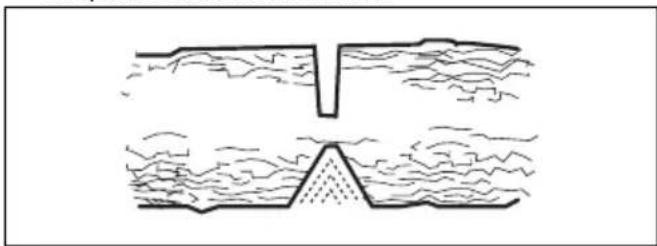

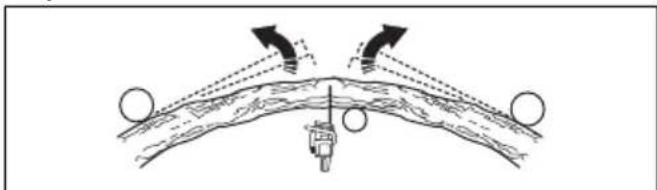

1. Provedite jedan ili više rezova dovoljno dubokih za otpuštanje napetosti. Režite u točki najveće napetosti ili u njenoj blizini. Ostvarite lom stabla ili grane u točki najviše napetosti.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

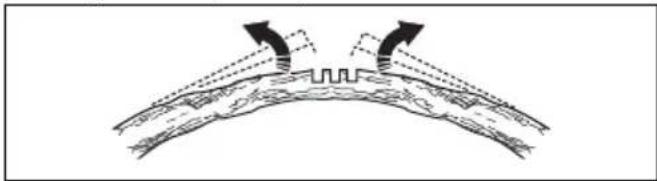

UPOZORENJE: Nikada nemojte prepiliti napeto stablo ili granu.

Diagram showing a cross-section of a layered structure with an upward arrow indicating direction (no text or symbols present)

1. Nastavite rezati stablo sve dok se stablo/grana je savije i time otpusti napetost.

Diagram showing airflow or particle movement between two curved surfaces with arrows indicating direction (no text or symbols)

1. Nakon popuštanja napetosti stablo/granu režite sa nasuprotne strane pregiba.

Održavanje

Uvod

UPOZORENJE: Prije održavanja proizvoda pročitajte i usvojite sigurnosno poglavlje.

Raspored održavanja

Simple line drawing of a rope tied with a loop, showing rope routing and directional arrows (no text or symbols)

1. Provjerite pojas kočnice. Pojas kočnice mora biti debeo najmanje 0,6 mm / 0,024 inči na svom najtanjem dijelu.

Pregledajte štitnik prednje ruke i pokretanje kočnice lanca

1. Provjerite da prednji štitnik za ruku nije oštećen i da na njemu nema vidljivih oštećenja, kao što su pukotine.

2. Pobrinite se da se prednji štitnik za ruku slobodno kreće te da je sigurno pričvršćen na poklopac spojke.

Illustration of a hand using a car seatbelt to lift a seatbelt, with no text or symbols present.

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

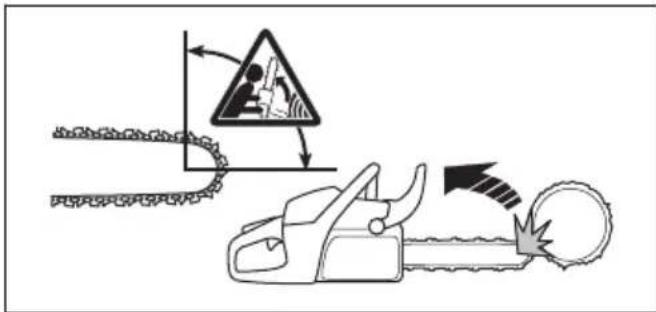

1. Provjerite uključuje li se kočnica lanca kada vrh vodilice udari u panj.

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical clamp or clip with an arrow indicating motion direction (no text or symbols)

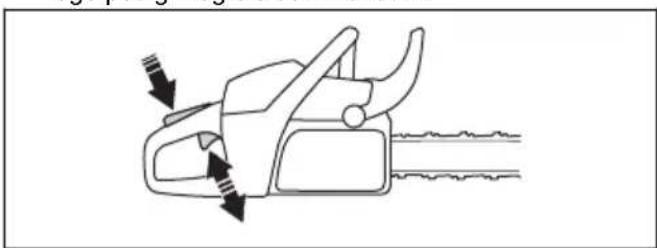

1. Provjerite je li regulator gasa blokiran u praznom hodu pri otpuštanju blokade regulatora gasa.

Line drawing of a mechanical tool or bracket with an arrow indicating direction (no text or symbols)

1. Pokrenite proizvod i primijenite puni gas.

2. Pustite regulator gasa i provjerite zaustavlja li se lanac motorne pile i ostaje li mirovati.

UPOZORENJE: Ako se lanac motorne pile okreće kada je regulator gasa u položaju praznog hoda, razgovarajte sa svojim servisnim zastupnikom.

Technical line drawing of a chain tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Line drawing of a device with three circular buttons and two arrows indicating adjustment or operation (no text or symbols present)

Technical line drawing of a mechanical component with a screw and adjustment knob (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

1. Izvucite uže pokretača otprilike 30 cm / 12 inči i stavite ga u urez na remenici.

Illustration of hands assembling or adjusting a mechanical component with no visible text or symbols

Mechanical assembly diagram showing a hand operating a component with tool holders (no text or labels)

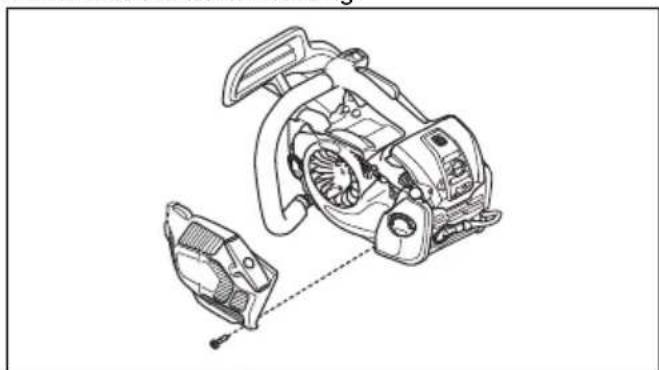

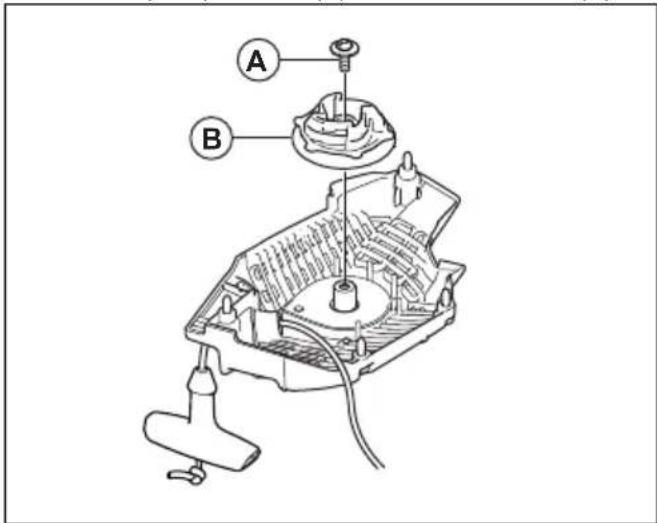

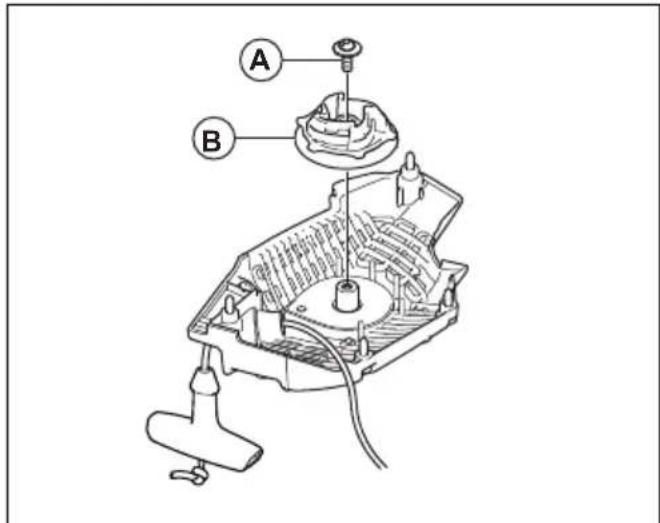

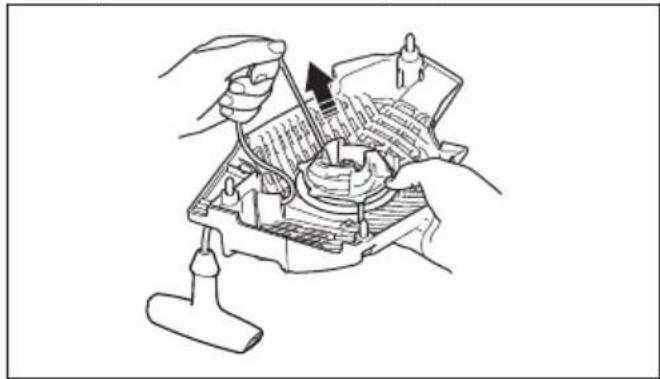

1. Izvadite vijak i podlošku (A) i uklonite remenicu (B).

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and wiring.

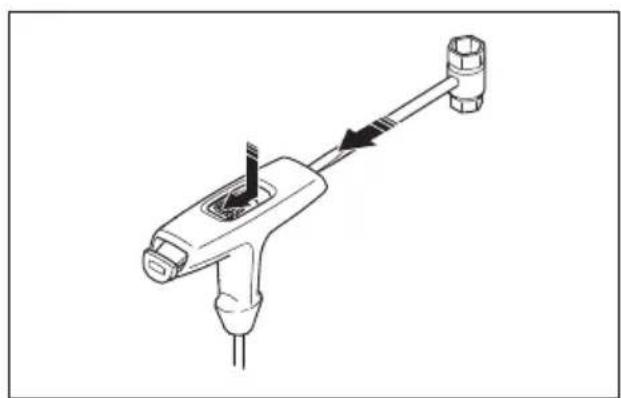

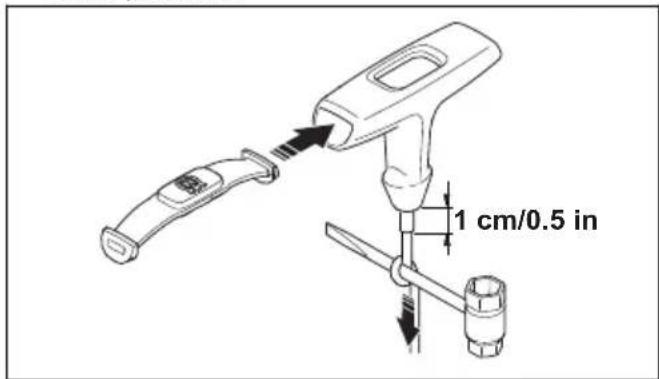

1. Držite ručicu užeta pokretača.

2. Povlačite uže pokretača dok ne izviri 1 cm opružne vodilice. Istodobno pritisnite poklopac ručice pokretača pa ga skinite s ručice užeta pokretača.

1 cm/0.5 in

Napomena: Ako je uže pokretača prekinuto u ručici užeta pokretača, gurnite poklopac ručice pokretača prema dolje. Upotrijebite kombinirani ključ za uklanjanje poklopca ručice pokretača.

Diagram of a handheld device with a lever and connector, showing internal components and directional arrows (no text or symbols)

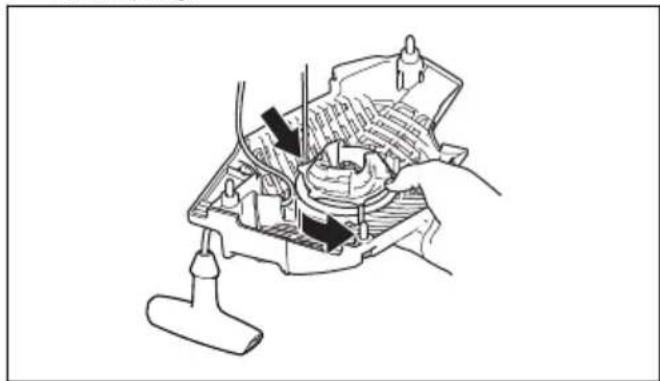

1. Na remenicu pričvrstite novo uže pokretača. Omotajte uže pokretača otprilike 3 okretaja oko remenice.

2. Spojite remenicu s povratnom oprugom. Jedan kraj povratne opruge mora uskočiti u remenicu.

3. Pričvrstite vijak u središte kolotura.

4. Provucite uže pokretača kroz provrt u kućištu pokretača, ručici užeta pokretača i opružnoj vodilici.

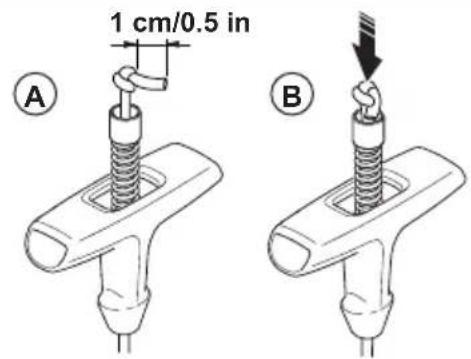

5. Napravite čvor udaljen 1 cm / 0,5 inči (A) od kraja užeta pokretača.

6. Kraj užeta ili uže pokretača postavite paralelno s tim čvorom.

7. Gurnite čvor dolje na mjesto u opružnoj vodilici (B).

1 cm/0.5 in A B

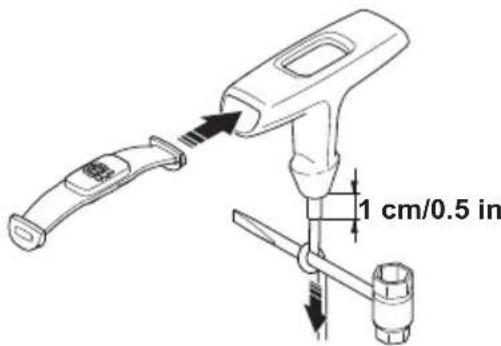

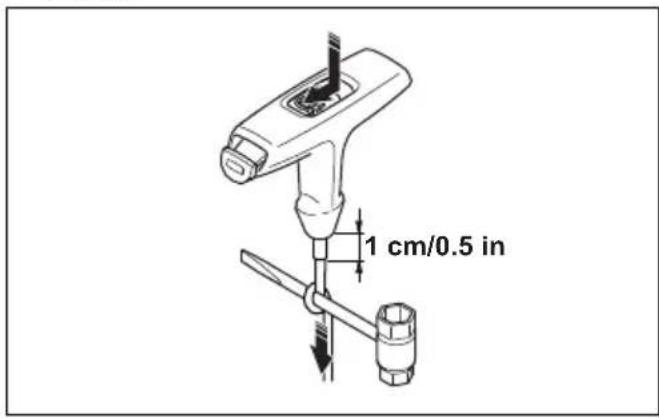

1. Povlačite uže pokretača dok ne izviri 1 cm opružne vodilice. Istodobno sastavite poklopac ručice pokretača.

1 cm/0.5 in

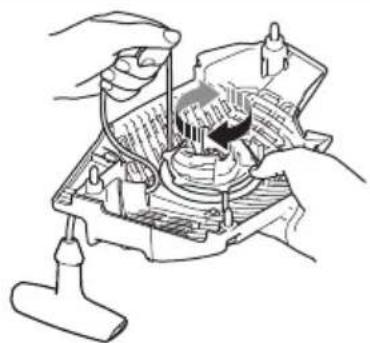

Napinjanje povratne opruge

1. Stavite uže pokretača u urez u remenicu.
2. Okrenite remenicu pokretača otprilike 2 okretaja u smjeru kretanja kazaljke na satu.
3. Postavite palac na remenicu.
4. Povucite ručicu užeta pokretača i potpuno izvucite uže pokretača.
5. Pomaknite palac i otpustite uže pokretača.
6. Pobrinite se da možete okrenuti remenicu za ½ okretaja nakon što se uže pokretača do kraja rastegne.

Line drawing of hands operating a mechanical device with no visible text or symbols

Sastavljanje kućišta pokretača na proizvodu

1. Izvucite uže pokretača pa pokretač stavite u položaj nasuprot kućišta radilice.

2. Zatim polako otpustite uže pokretača sve dok se remenica ne zakači startnim kopčama.

3. Pritegnite vijke koji pridržavaju pokretač.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

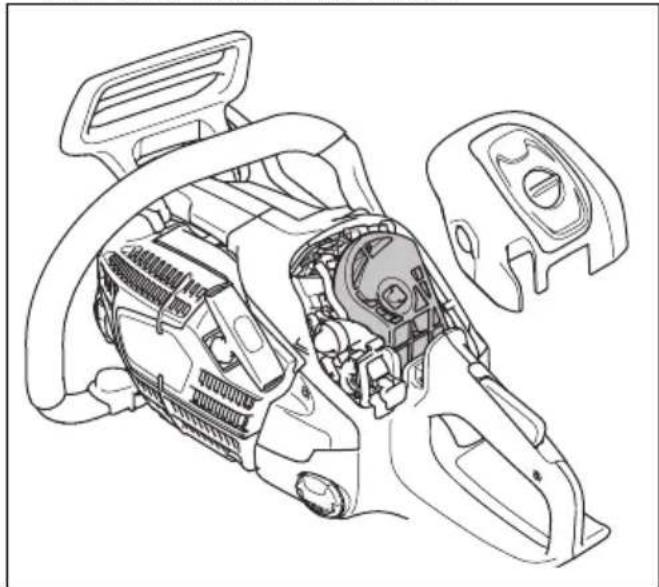

Čišćenje filtra zraka

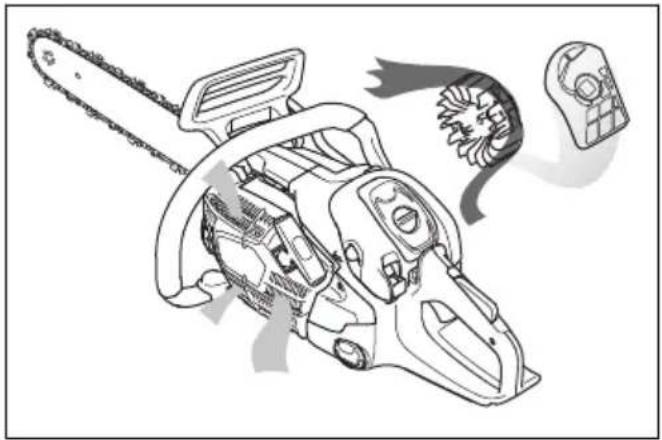

Redovito čistite filtar zraka od prljavštine i prašine. Time sprječavate kvarove rasplinjača, probleme pri pokretanju, gubitak snage motora, trošenje dijelova motora i povećanu potrošnju goriva od uobičajene.

1. Skinite poklopac filtra zraka i izvadite ga.
2. Za čišćenje upotrijebite četku ili protresite filtar zraka. Za potpuno čišćenje upotrijebite deterdžent i vodu.

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and internal oval shape, no text or symbols present.

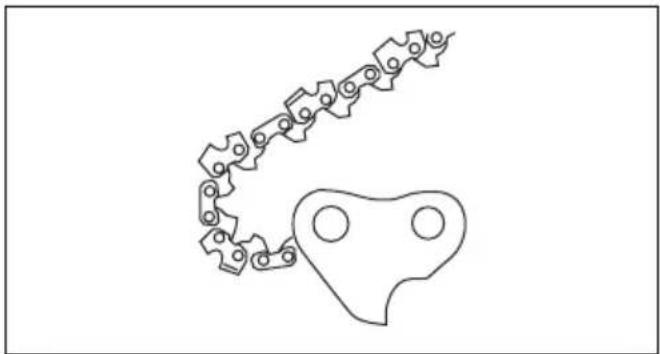

• Broj zubaca na vršnom zupčaniku vodilice (T).

Simple line drawing of a chain with a star-like symbol inside, no text or labels present.

- Razmaci u lancu, inči. Razmak između pogonskih karika lanca motorne pile mora odgovarati razmaku između zubaca na vršnom zupčaniku vodilice i pogonskih zupčanika.

PITCH = D/2 D

- Broj pogonskih članaka. Broj pogonskih članaka određuje vrsta vodilice.

Pure mechanical linkage diagram without any text, numbers, or symbols

- Širina utora u vodilici, inči/mm. Širina utora u vodilici mora biti ista kao i širina pogonskih članaka lanca.

Diagram showing a mechanical component with an arrow indicating direction, alongside a separate view of a curved object with labeled points (no text or symbols present)

- Provrt za ulje za lanac i provrt za napravu za zatezanje lanca. Vodilica se mora poklapati s proizvodom.

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical part with a vertical rod and directional arrows (no text or labels)

Technical line drawing of a mechanical component with two views: one showing a curved cut and arrow, the other showing a straight handle (no text or symbols)

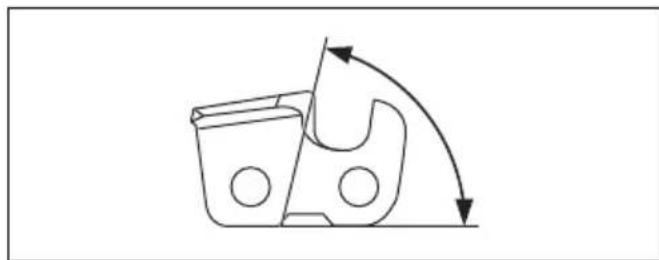

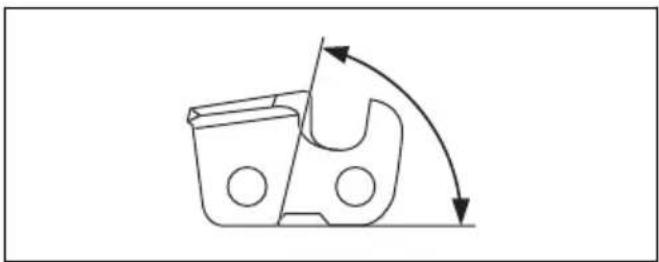

- Kut rezanja.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- Položaj turpije.

Line drawing of a screwdriver holding a lever and pin (no text or symbols)

Simple line drawing of a dropper with a small circular symbol (no text or labels)

Three line drawings of mechanical components: a pipette, a plastic clamp, and a digital device (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

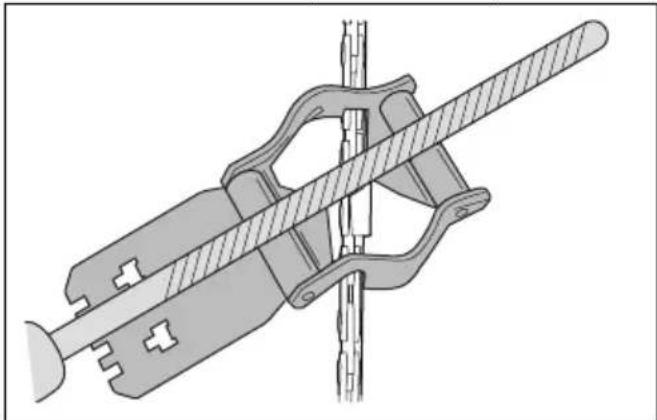

1. Uklonite materijal s jedne strane svih reznih zubaca.
2. Okrenite proizvod pa uklonite materijal i s druge strane.
3. Pobrinite se da su svi rezni zupci iste duljine.

Opće informacije o načinu podešavanja postavke mjerača dubine

Postavka mjerača dubine (C) smanjuje se kad oštrite rezni zubac (A). Radi očuvanja maksimalnih reznih učinaka morate ukloniti isturpijani materijal iz mjerača dubine (B) da biste dobili preporučenu postavku mjerača dubine. Za upute o načinu dobivanja ispravne postavke

Two mechanical tools: a flat tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Prilagodba zategnutosti lanca pile

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

Napomena: Neki modeli imaju samo jednu maticu vodilice.

1. Rukom pritegnite matice vodilice što je jače moguće.
2. Podignite prednji dio vodilice pa okrenite vijak za zatezanje lanca. Upotrijebite ključ.
3. Pritegnite lanac motorne pile dok ne bude čvrsto nalijegao na vodilicu, ali se još uvijek bude mogao lako kretati.

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

1. Pritežite matice vodilice ključem i istovremeno podižite prednji dio vodilice.
2. Lanac morate moći rukom lako povlačiti u krug i on ne smije visjeti s vodilice.

Illustration of two hands holding a cylindrical object with directional arrows indicating motion or force (no text or symbols)

Napomena: Za položaj vijka za zatezanje lanca na svom proizvodu pogledajte Pregled proizvoda na stranici 46

Illustration of a person using a power saw to cut tree bark with a downward arrow (no text or symbols)

Isometric line drawing of a mechanical gear or wheel component (no text or symbols)

- Redovito provodite vizualni pregled stupnja istrošenosti tog grebenastog zupčanika. Ako je previše istrošen, zajedno s grebenastim zupčanikom zamijenite i bubanj spojke.

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

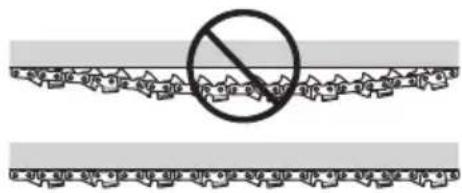

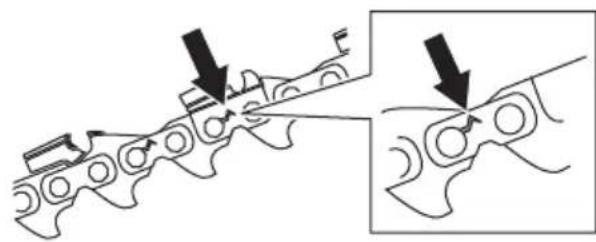

1. Pobrinite se da se lanac motorne pile može lako savijati. Zamijenite lanac motorne pile ako je krut.
2. Usporedite lanac motorne pile s novim lancem motorne pile da biste provjerili jesu li nitne i spone istrošene.
3. Zamijenite lanac motorne pile kada je najdulji dio reznih zubaca manji od 4 mm / 0,16 inči. Također zamijenite lanac motorne pile ako na kružnoj pili postoje pukotine.

Pure geometric diagram showing a 3D shape with a curved cutout and a rectangular base, no text or symbols present.

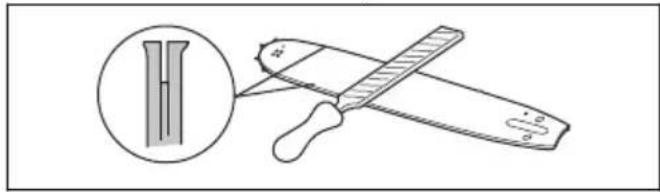

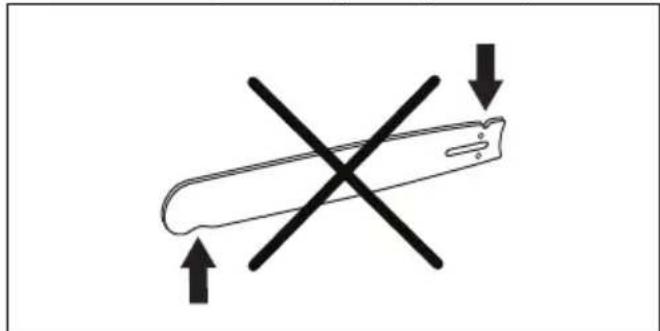

Provjera vodilice

1. Pobrinite se za prohodnost kanala za ulje. Ako je to potrebno, očistite ga.

Simple line drawing of a switch mechanism with a black arrow indicating the direction (no text or symbols)

Illustration of a knife cutting a blade with a magnified inset showing the blade's tip (no text or symbols)

1. Očistite utor u vodilici.

Line drawing of a hand holding a tool, no text or symbols present

1. Pregledajte je li istrošen utor u vodilici. Ako je potrebno, zamijenite vodilicu.

M×

Simple line drawing of a crossed tool with two arrows indicating direction (no text or symbols)

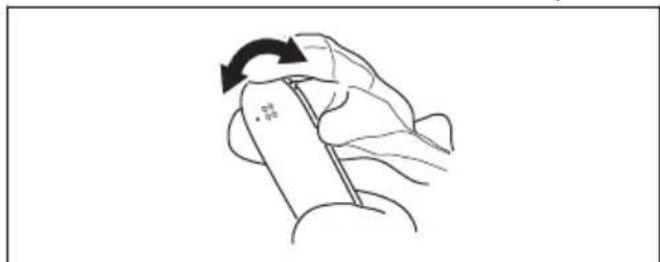

1. Pobrinite se da se vršni zupčanik vodilice može slobodno okretati i da nije začepljen provrt za podmazivanje u vršnom zupčaniku vodilice. Očistite i podmažite ako je to potrebno.

Illustration of a hand holding a pen with a circular arrow indicating rotation (no text or symbols)

Simple line drawing of a curved object with an arrow indicating direction (no text or symbols)

Održavanje spremnika za gorivo i spremnika za ulje za lanac

• Redovito ispuštajte tekućinu iz spremnika za gorivo i spremnika za ulje za lanac i čistite ih.
• Jedanput godišnje ili po potrebi i češće zamijenite filtar za gorivo.

OPREZ: Nečistoće u spremniku za gorivo uzrokuju kvarove.

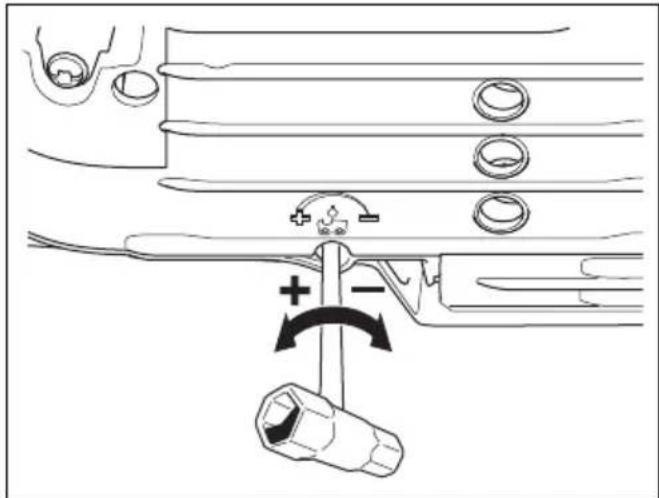

Prilagodba protoka ulja za lanac

UPOZORENJE: Prije podešavanja pumpe za ulje zaustavite motor.

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

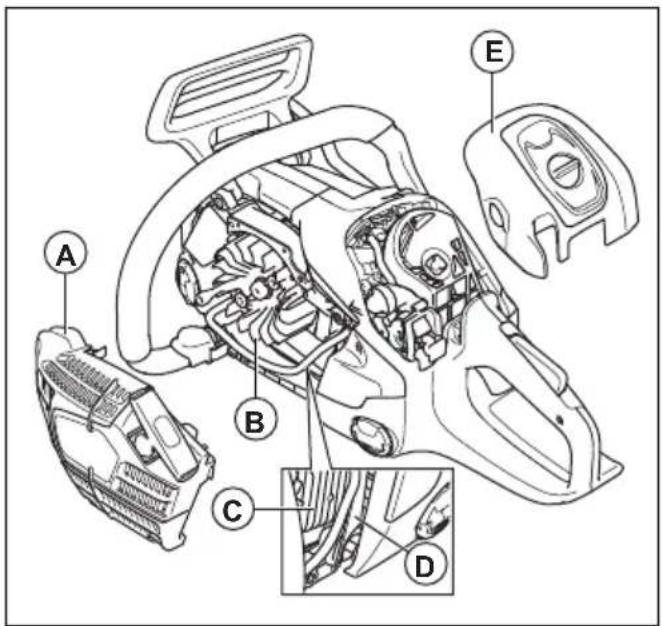

Technical diagram of a car interior with labeled parts A, B, C, D, and E, showing internal mechanical components.

Shut = John's

Stefan Holmberg, Direktor odjela za istraživanje i razvoj, Upravljanje tehnologijom, Husqvarna AB

Technical diagram of a chain-link robotic device with numbered parts for identification and assembly reference.

Simple line drawing of a crossed-out cigarette with smoke and a hand (no text or symbols)

Prohibition sign showing a worker climbing a pole with a diagonal line, symbolizing labor protection or prohibition.

Illustration of a person using a saw to cut wood or wood fragments, with a curved arrow indicating motion (no text or symbols present)

Illustration of a hand operating a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person walking under a tree with a crossed-out trunk (no text or symbols)

Safety warning symbol showing a person falling off a tree with a diagonal line indicating no obstruction

Simple line drawing of a crossed-out manual gun with smoke and a diagonal slash (no text or symbols)

Prohibition sign showing a worker climbing a pole with a diagonal line, no text or symbols present.

Illustration of a worker in protective gear using a tool on a wooden structure, with an arrow indicating motion (no text or symbols present)

Illustration of a hand operating a mechanical device with a tool, no text or symbols present

Prohibition sign showing a person crossed out of a tree with 'No' symbol, indicating no prohibition or disapproval.

Safety warning symbol showing a person falling off a tree with a diagonal line indicating no protection

Safety warning illustration showing a person wearing full gear, first aid kit, fire extinguisher, and shovetted tool

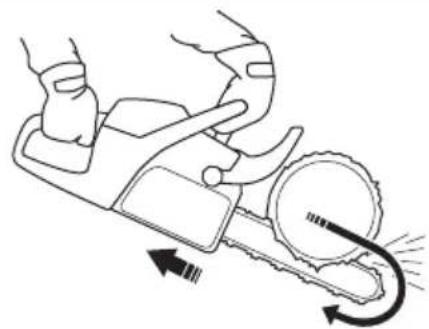

Line drawing of a manual chain saw with motion arrow indicating clockwise motion (no text or symbols)

Technical line drawing of a hairpin tool with an inset showing the same blade assembly (no text or symbols)

Chránič pravé ruky

Technical line drawing of a mechanical component or bracket (no text or symbols)

Antivibrační systém

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Illustration of a medical device with tubing and a bulb (no text or symbols)

Tlumič výfuku

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a 3D object with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a prohibition symbol over a chain with labeled points and numerical values below, likely indicating a restriction or prohibition process.

Simple line drawing of a droplet above a U-shaped object (no text or symbols)

Montáž

Úvod

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical line drawing of a car engine compartment showing tool, valve, and handle (no text or symbols)

1. Vytáhněte konektor.

Line drawing of a car engine compartment showing the handle, vent, and sensor (no text or symbols)

1. Vložte Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the intake manifold (no text or labels)

1. Zapojte konektor do Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a hand interacting with the valve (no text or labels)

Diagram of a car interior showing a hand operating the wheel and a tool inserted into the dashboard (no text or symbols present)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and discharge symbols with a person holding a bottle

Simple black-and-white icon showing a droplet and a fuel pump with a plus sign (no text or symbols)

Diagram illustrating a hazard warning mechanism with a person inside a triangle and a gear mesh below, showing directional arrows.

Illustration of a person in protective gear using a tool to lift a rolled paper or cable (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating motion or force (no text or symbols)

Technical diagram showing car seatbelt components with labeled parts A and B, likely illustrating vehicle safety or safety instructions.

Illustration of a person using a chain-linking power tool (no text or symbols)

Diagram of a mechanical tool with arrows indicating motion direction (no text or symbols)

Line drawing of a car hood with airflow direction arrow (no text or symbols)

1. Použijte výrobek.

Zastavení výrobku

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Illustration of a hand using a chainsaw to cut a circular cutterhead (no text or symbols present)

Line drawing of a manual saw cutting process with motion arrows indicating direction (no text or symbols)

Diagram illustrating a hazard warning mechanism with a chainsaw and chains, showing hazard symbol and safety instructions.

Technika řezání

Illustration of two workers handling stacked logs, one holding a bundle and the other with a shoulder (no text or symbols)

Diagram of a manual tool interacting with a circular object, showing motion and rotation (no text or symbols)

Warning sign showing a chainsaw crushing a gear with warning symbol and downward arrow

Diagram illustrating a chain saw tool and its two circular cutouts with labeled steps 1 and 2.

Illustration of a landslide with a lightning bolt and warning symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and tree opening with labeled arrows.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and opening with labeled arrows.

Illustration of a hand using a cable to lift a car, showing the angle and motion direction (no text or symbols)

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark, with a black arrow indicating the direction (no text or symbols present)

Illustration of a person spraying wood at a tree with logs, no text or symbols present

Určení směru kácení

Illustration of a magnifying glass over fire with smoke, no text or symbols present

Illustration of a worker using a tool to lift a vertical pole, with arrows indicating force direction (no text or symbols)

Diagram of concentric circular layers with a vertical gap and directional arrows, no text or symbols present.

Směrové zářezy

Simple diagram showing a circular object with concentric rings and a dashed vertical line, with an arrow pointing right (no text or symbols)

Diagram showing two tree branches with arrows indicating direction of movement, no text or symbols present

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical tool or tool with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Mechanical diagram showing a rotating shaft and wheel assembly with a directional arrow (no text or labels)

Diagram showing a circular structure transforming into a tree with a curved arrow indicating process (no text or symbols)

Diagram illustrating two methods for tree protection, showing no protection and no intervention with a person using a tree.

Simple line drawing of a tractor pulling a tree with a long pole (no text or symbols)

- Přenosný

Simple line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Simple line drawing of a ball rolling down an uneven stream with a downward arrow (no text or symbols)

Diagram showing a mechanical or structural system with arrows indicating direction, no text or symbols present

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram of a curved structure with two arrows indicating direction, no text or symbols present

Simple line drawing of a circular object with an arrow indicating upward motion (no text or symbols)

Line drawing of a car interior showing hand positioning and seat movement (no text or symbols)

Illustration of a person using a power manual to cut tree bark (no text or symbols)

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical tool or bracket with an arrow indicating motion direction (no text or symbols)

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Line drawing of a car interior with two buttons and arrows indicating movement or adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device showing internal components and a separate housing (no text or symbols)

Illustration of hands assembling or repairing a mechanical component with tools and components (no text or symbols visible)

Line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Diagram of a medical or laboratory device with a central shaft and two connectors, showing directional arrows (no text or symbols)

1 cm/0.5 in

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a mechanical device showing internal components and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded body and mounting holes (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and internal features (no text or symbols)

Simple line drawing of a chain with a starburst pattern inside, no text or symbols present.

PITCH = \u00b7\u221a/2 D

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical part with a vertical scale and dimension arrows (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a cutaway view and the other showing a detailed blade (no text or symbols)

- Úhel břitu.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- Poloha pilníku.

Line drawing of a screwdriver holding a lever with a central pivot (no text or symbols)

- Průměr pilníku.

Simple line drawing of a dropper with a small circular symbol (no text or labels)

Three technical illustrations of mechanical components: a dropper, a gear-like component, and a spring-loaded device (no text or symbols)

Mechanical assembly diagram showing a clamp or bracket with hatched pattern, no text or symbols present

Two mechanical tools: a cylindrical tool and a rectangular device with a handle (no text or symbols visible)

Technical line drawing of a mechanical tool or connector with a threaded shaft and threaded end (no text or symbols)

Line drawing of a chain saw with a lever and directional arrow (no text or symbols)

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating motion (no text or symbols)

Illustration of a person using a power tool to cut tree bark with a saw (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

Pure technical line drawing of a mechanical part with no text or symbols

Simple line drawing of a switch handle with a black arrow pointing to the button (no text or symbols)

Illustration of a pair of scissors cutting a piece, with a magnified inset showing the blade (no text or symbols)

Line drawing of a hand holding a long object, possibly a tool or device, with no visible text or symbols.

Simple line drawing of a tool with two crossed X marks and downward arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a circular arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or device with an arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or force.

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Technical diagram of a chain-linking device with numbered parts and exploded view, including open book, screwdriver, and gear assembly.

Safety warning symbol showing a crossed-out device with smoke and a hand holding a cigarette

Prohibition sign showing a worker on a ladder against a circular background with 'NO' symbol

Illustration of a person using a tool to cut wood or wood fragments with a curved arrow indicating motion (no text or symbols)

Illustration of a hand operating a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person walking away from a tree with branches (no text or symbols)

Simple line drawing of a person climbing a tree with a diagonal line (no text or symbols)

Safety warning symbol showing a crossed-out device with smoke and a broken handle, indicating no hazard or absence of any other chemical hazard.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle (no text or symbols)

Illustration of a person using a saw to cut wood or wood fragments with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a hand operating a mechanical device (no text or symbols)

Prohibition sign showing a person pruning trees with a diagonal line (no text or symbols)

Simple line drawing of a person climbing a tree with a diagonal line (no text or symbols)

Illustration showing a person in full gear with first aid kit, fire extinguisher, and shovel, all labeled in Chinese.

Line drawing of a car hood with airflow direction arrow (no text or symbols)

Gasreguleringslås

Diagram of a chainocenter with labeled parts A and B, showing blade and handle (no text or symbols beyond labels)

Kædefanger

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Pure technical line drawing of a mechanical part or bracket (no text or symbols)

Vibrationsdæmpningssystem

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a medical device with tubing and a bulbous structure (no text or symbols)

Illustration of a medical device with attached cable and connector (no text or symbols)

Lyddæmper

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Brændstofsikkerhed

Min. 3 m (10 ft)

Simple line drawing of a 3D object with circular holes and a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a prohibition symbol crossed over a chain of chains with numerical labels, likely indicating a restriction or prohibition in a technical or mathematical context.

Simple line drawing of a droplet above a U-shaped object (no text or symbols)

Montering

Indledning

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram showing a hand inserting a component into a car's air vent, with a close-up of the internal structure (no text or symbols present)

1. Fjern stikket.

Line drawing of a car engine compartment showing internal components and a close-up of the intake manifold (no text or symbols)

1. Installer Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the intake manifold (no text or labels)

Diagram of a car engine compartment showing internal components and a hand interacting with the valve (no text or labels present)

1. Installer plastikdækslet, og stram skruen.

Diagram of a car interior showing a hand operating the intake manifold, with a tool and screwdriver inserted (no text or symbols present)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and discharge symbols with a worker holding a bottle

Symbol of fuel pump with droplet and plus sign (no text or numbers)

Diagram showing a person falling off a slope with an arrow indicating direction, likely illustrating a safety or hazard scenario.

Illustration of a person in protective gear using a tool to lift a rolled roller, with an arrow indicating motion (no text or symbols)

Diagram of a manual chain car with motion arrow indicating clockwise motion (no text or symbols)

Diagram showing car seatbelt components with labeled parts A and B, likely illustrating vehicle safety or safety instructions.

Illustration of a worker using a chainsaw to cut the blade (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual chain saw with motion arrow indicating clockwise motion (no text or symbols)

1. Brug produktet.

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Illustration of a hand using a chain mill to cut a circular saw (no text or symbols present)

Line drawing of a manual power saw cutting a blade, showing motion direction (no text or symbols)

Diagram illustrating a chain-linking process with warning sign and chain-linking mechanism

Illustration of two workers handling stacked logs, no text or symbols present

Diagram of a mechanical device with a rotating arrow and circular base (no text or symbols)

Diagram illustrating a mechanical collision with warning symbol and labeled components

Diagram illustrating a chain repair process with labeled steps 1 and 2 showing the process.

Illustration of a landslide with a lightning bolt, warning sign, and triangular warning symbol (no text or labels)

Diagram showing three steps of a chain repair process: cutting, rolling, and tree ringing.

Simple line drawing of a car with a warning symbol and explosion effect (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and cutting through a circular component.

Illustration of a hand using a cable to lift a car, showing the angle and motion direction (no text or symbols)

Illustration of a person using a chain-linking tool to cut tree bark, with an arrow indicating the process (no text or symbols present)

1. Fjern grenene på venstre side af stammen.

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person spraying tree roots with a light source, no text or symbols present

Sådan beregnes faldretningen

Diagram showing a magnifying glass with a diagonal line and a crossed-out circle, indicating no change or restriction.

Diagram illustrating a person using a sawtooth to lift a vertical pole, with directional arrows indicating motion or force.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Sådan foretages retningssnittene

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing blade turning and tree rotation.

1. Sørg for, at underretningssnittet er vandret, og ved en vinkel på 90° ift. faldretningen.

Diagram showing a tree trunk with a horizontal line and an arrow indicating direction, no text or symbols present.

Simple line drawing of a mechanical component or tool with no text or symbols

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Mechanical diagram showing a rotating shaft with a circular component and an arrow indicating motion (no text or symbols)

Diagram showing a circular structure with concentric rings and an arrow pointing to a tree branch, alongside a triangular diagram of a leaf being attached (no text or symbols)

Safety illustration showing two methods for tree pruning: one without restrictions, the other with restrictions.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Transportabel

Simple line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Simple line drawing of a curved path with a ball and scattered debris, no text or symbols present

Diagram of a mechanical or fluid system with two curved surfaces, directional arrows indicating flow or movement, and circular objects at the base (no text or symbols)

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Diagram showing a cross-section of a layered structure with an upward arrow, no text or symbols present

Diagram showing airflow or particle movement between two curved surfaces with directional arrows (no text or symbols)

Simple line drawing of a rope tied with a loop, showing rope routing and directional arrows (no text or symbols)

Illustration of a person using a car seatbelt device, showing hand positioning and motion arrows (no text or symbols)

Illustration of a person using a power saw to cut tree bark (no text or symbols)

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

1. Tryk låsen på gasreguleringslåsen ned, og sørg for, at den går tilbage til sin oprindelige position, når du slipper den.

Line drawing of a mechanical clamp or clip device with directional arrows indicating movement (no text or symbols)

Line drawing of a manual chain saw with a black arrow indicating motion direction (no text or symbols)

Technical line drawing of a hairpin tool and its magnified view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Sådan kontrolleres vibrationsdæmpningssystemet

Line drawing of a chainsaw with an inset showing a small object labeled 'N' (no text or symbols on the diagram itself)

Sådan kontrolleres lyddæmperen

Line drawing of a car interior with two buttons and arrows indicating movement or adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screw and adjustment knob (no text or symbols)

Technical line drawing of a mechanical device with internal components and a dashed line indicating alignment (no text or symbols)

Illustration of hands assembling or repairing a mechanical component with tools and components (no text or symbols visible)

1. Lad remskiven rotere langsomt bagud for at frigøre returfjederen.

Line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Diagram of a handheld device with a lever and connector, showing internal components and directional arrows (no text or symbols)

1 cm/0.5 in A

Diagram of a mechanical component with a threaded rod inserted into a base, labeled with circled number B (no text or symbols on the object itself)

1 cm/0.5 in

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a mechanical device showing internal components and housing (no text or symbols)

Simple diagram of a cylindrical object with a downward arrow and a small oval shape inside, no text or symbols present.

PITCH = D/2 D

Technical line drawing showing a mechanical component with an arrow indicating direction, alongside a simplified view of a device (no text or symbols present)

Pure diagram of a mechanical component with arrows indicating direction (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and two small circular features inside (no text or symbols)

• Drivledsbredde, mm/tommer

Technical line drawing of a mechanical part with a side view showing a cylindrical feature and dimension arrows (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a curved arrow and the other showing a diagonal bar (no text or symbols)

- Skærevinkel.

Pure mechanical diagram showing a gear and cam mechanism without any text or symbols

- Filestilling.

Line drawing of a hand holding a screwdriver with a central knob (no text or symbols)

- Rundfilsdiameter.

Simple line drawing of a dropper with a handle and a small symbol (no text or labels)

Three line drawings of mechanical parts: a pipette, a plastic bag, and a segmented component (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

Two mechanical tools: a radial tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical tool or device with an arrow indicating direction (no text or symbols present)

Line drawing of a chain saw with a hammer and gear (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating motion (no text or symbols)

Illustration of a worker using a power tool to cut tree bark with a downward arrow (no text or symbols)

Technical line drawing of a mechanical gear or wheel component (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two views of a chain with arrows indicating motion (no text or symbols)

Pure geometric diagram showing a rectangular shape with a curved cutout and a vertical dimension line (no text or symbols)

Simple line drawing of a switch component with a black arrow pointing downward (no text or symbols)

Diagram showing a tool interacting with a mechanical component, with no visible text or symbols.

Line drawing of hands using a tool to cut a cylindrical object (no text or symbols)

Two abstract geometric symbols: a vertical line with 'M' and a crossed-out X symbol.

Simple line drawing of a tool with two crossed X marks and downward arrows indicating direction (no text or symbols)

Illustration of a hand holding a rectangular object with an arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or blade with an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Luftrensningssystem

Technical line drawing of a chain-linking device with internal components and external gear (no text or symbols)

Technical diagram of a car airfoil with labeled parts A, B, C, D, and E

Shut = John's

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Technical diagram of a chain-link robotic device with numbered parts for identification and assembly reference.

Safety warning symbol showing a crossed-out device with smoke and a diagonal line indicating no hazard

Prohibition sign showing a worker climbing a ladder against a pole, enclosed in a circle (no text or symbols)

Illustration of a person using a saw to cut wood or wood fragments with a curved arrow indicating motion (no text or symbols)

Illustration of a mechanical device with two hands operating it, no text or symbols present

Prohibition sign showing a person cutting tree with a crossed-out tree, enclosed in a circle

Diagram showing a person falling off a tree with a diagonal line indicating prohibition or restriction.

Safety warning symbol showing a crossed-out device with smoke and a tool, indicating no hazard or absence of any other chemical hazard.

Prohibition sign with silhouette of worker on ladder holding tools, enclosed in circle

Illustration of a person using a saw to cut wood or metal, with a curved arrow indicating the process (no text or symbols present)

Illustration of a hand operating a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person walking under a tree with bare branches, enclosed in a circle.

Diagram showing a person falling off a tree with a diagonal line indicating no movement or restriction.

Illustration showing a person wearing a full-body mask, first aid kit, fire extinguisher, and shovel.

Diagram of a mechanical device with motion arrows indicating rotation (no text or symbols)

Gashendelvergrendeling

Line drawing of a chainociper with labeled parts A and B (no text or symbols beyond labels)

Kettingvanger

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Pure technical line drawing of a mechanical component (no text or symbols)

Trillingdempingssysteem

Start/stop-schakelaar

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Illustration of a medical device with a bulb inserted into a stack of tissue (no text or symbols)

Geluidemper

Technical line drawing of a mechanical component with mounting holes and internal features (no text or symbols)

Brandstofveiligheid

Min. 3 m (10 ft)

Simple line drawing of a device with a starburst effect (no text or symbols)

Technical line drawing of a mechanical part with a U-shaped groove and circular holes, no text or symbols present.

Diagram showing a prohibition symbol over a chain of chains with labeled data points and numbers below

Simple line drawing of a droplet falling into a container with two circular ports (no text or symbols)

Montage

Inleiding

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Husqvarna connectivity device

Connectiviteit

Diagram of a car interior showing hand tool, fan, and dashboard with no visible text or symbols

Technical line drawing of a car engine compartment showing internal components and a door handle (no text or symbols)

1. Installeer de Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine's internal structure (no text or labels)

1. Installeer de connector op de Husqvarna connectivity device.

Diagram of a car engine compartment showing hand operating valve and internal components (no text or labels)

Diagram of a car interior showing hand tool interacting with engine compartment and screwdriver (no text or symbols)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and discharge with crossed symbols indicating no waste or hazard

Symbol of fuel pump with droplet and plus sign (no text or numbers)

Diagram showing a person in a triangular hazard symbol with an attached chain, indicating safety or hazard risk.

Illustration of a person in protective gear using a tool to lift a rolled paper or metal sheet (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols)

Technical diagram showing car interior components with labeled parts A and B, likely illustrating a vehicle safety or safety system.

Illustration of a person using a chainsaw to cut the wood (no text or symbols present)

Line drawing of a chain-linking device with arrows indicating motion (no text or symbols)

Simple line drawing of a manual tool with a handle and blade, no text or symbols present

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Trekslag en duwslag

Line drawing of a person using a chain mill to cut a circular saw (no text or symbols)

Line drawing of a manual cutting tool with arrows indicating motion (no text or symbols)

Diagram illustrating a chain-linking process with warning sign and cable cutting tool, showing safety hazard and motion arrows.

Illustration of two workers handling stacked logs, one standing and one standing with arms crossed (no text or symbols)

Simple line drawing of a tool cutting through a circular hole, with no text or symbols present.

Illustration of a chain saw cutting down a blade with a warning symbol (no text or labels)

Line drawing of a chain saw cutting into a circular cutter (no text or symbols)

Illustration of a landslide with a warning triangle and lightning bolt, no text or symbols present

Line drawing of a chain saw cutting a blade with a gear (no text or symbols)

Illustration of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and cutting through a circular opening.

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a person using a saw to cut a tree trunk, with an arrow indicating the process (no text or symbols present)

Illustration of a hand using a tool to cut tree bark with a black arrow indicating the direction (no text or symbols present)

Illustration of a person spraying wood at a tree with a light source, surrounded by logs (no text or symbols)

Simple line drawing of a magnifying glass over a tree with a diagonal line (no text or symbols)

WAARSCHUWING: Bij

Diagram showing a person using a tool to lift a vertical pole, with arrows indicating downward motion and numbered steps.

Diagram of concentric circular magnetic field lines with a central vertical bar and directional arrows (no text or labels)

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing tool path and leaf structure changes.

Diagram showing a geological or structural interaction with arrows indicating direction of movement (no text or symbols present)

WAARSCHUWING: Wees

Simple line drawing of a mechanical tool or bracket (no text or symbols)

Simple line drawing of a mechanical component or tool with layered structure (no text or symbols)

Technical diagram of a mechanical component with a curved arrow indicating motion or force (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and directional arrow (no text or labels)

Technical diagram of a mechanical component with concentric grooves and a central shaft (no text or labels)

Diagram showing a circular structure being lateralized into a tree, with a boat navigating through it (no text or symbols present)

Diagram illustrating two scenarios of a person using a tree, with one scenario showing no restrictions and the other showing a plan to take a tree.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Draagbaar

Simple line drawing of a mechanical or electrical device with a lever and connecting rod (no text or symbols)

Bomen en takken zagen die onder spanning staan

Simple line drawing of a curved path with a ball and directional arrow, no text or symbols present

1. Bepaal de veiligste methode om de spanning af te laten.

Diagram of a mechanical or fluid system with arrows indicating flow direction and circular components (no text or labels)

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a circular object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand using a car seatbelt to lift a person's seatbelt, showing motion arrows (no text or symbols)

Two illustrations of a person in protective gear using a saw and tree stump, no text or symbols present.

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical clamp or clip with an arrow indicating direction (no text or symbols)

1. Controleer of de gashendel vergrendeld is in de stationaire stand wanneer de gashendelvergrendeling wordt losgelaten.

Line drawing of a chain-linking device with a black arrow indicating motion direction (no text or symbols)

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Controleer de rechterhandbescherming

Technical line drawing of a mechanical component or bracket (no text or symbols)

Trillingsdempingssysteem controleren

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Geluidemper controleren

Line drawing of a car's seatbelt with two buttons and arrows indicating fastening or adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of hands assembling electronic components with tools and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and wiring.

1 cm/0.5 in

Diagram of a handheld device with a lever and connector, showing internal components and directional arrow (no text or symbols)

1 cm/0.5 in

Illustration of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to lift a curved object (no text or symbols)

Technical line drawing of a mechanical device interior showing internal components (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and internal oval feature (no text or symbols)

PITCH = D/2 D

Technical line drawing showing a mechanical component with an arrow indicating direction and a separate schematic view (no text or symbols)

Pure diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a side view showing a shaft and circular features (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a curved arrow indicating rotation, the other showing a textured handle (no text or symbols)

- Snijhoek.

Pure mechanical diagram showing a gear or cam mechanism with no text, numbers, or symbols

Simple line drawing of a chain with a starburst pattern inside, no text or symbols present.

Pure diagram of a mechanical component with two arrows indicating direction (no text or symbols)

• Vijlpositie.

Line drawing of a screwdriver holding a lever with a central pivot (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Three technical illustrations of mechanical components: a dropper, a bracket, and a tool (no text or symbols)

Mechanical assembly diagram showing a clamp or bracket with hatched material, no text or symbols present

Two types of tools: a flat tool and a mechanical device (no text or symbols visible)

Technical line drawing of a mechanical tool or connector with an arrow indicating direction (no text or symbols present)

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating movement (no text or symbols)

Illustration of a person using a power tool to cut tree bark with a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Snijuitrusting controleren

Diagram showing mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Pure geometric diagram of a 3D shape with no text, numbers, or symbols

Simple line drawing of a switch handle with a black arrow pointing downward (no text or symbols)

Illustration of a knife and a cutting tool with a magnified inset showing a blade (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Two abstract geometric symbols: a stylized 'M' and a crossed-out X, likely representing a symbolic or logical puzzle.

Simple line drawing of a tool with two crossed X marks and downward arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a curved object with an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Koelsysteem reinigen

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Troubleshooting.... 235
Transportation and storage....236
Technical data.... 237
Accessories.... 238
Declaration of Conformity.... 240

Introduction

Intended use

This chainsaw for forest service is designed for forest work such as felling, limbing and cutting.

Note: National regulations can set limit to the operation of the product.

Product description

The Husqvarna 540XP Mark III are chainsaw models with a combustion engine.

Work is constantly in progress to increase your safety and efficiency during operation. Speak to your servicing dealer for more information.

Technical diagram of a chain-link robotic device with numbered parts and exploded view, including open book, screwdriver, and gear assembly.

1. Air filter cover
2. Spark plug
3. Spark plug cap
4. Air filter
5. Vibration element

6. Throttle trigger lockout

7. Rear handle

8. Warning decal
9. Throttle trigger
10. Start/stop switch
11. Fuel tank

12. Air purge bulb

13. Starter rope handle

14. Starter housing
15. Chain oil tank
16. Muffler and sprark arrester screen
17. Chain brake and front hand guard
18. Front handle
19. Right hand guard
20. Clutch cover
21. Clutch drum
22. Oil pump adjustment screw
23. Chain tensioning screw
24. Chain catcher
25. Spiked bumper
26. Saw chain
27. Guide bar
28. Bar tip sprocket
29. Brake band
30. Guide bar cover
31. Operator's manual
32. Combination wrench
33. Bar nut
34. Product and serial number plate

Symbols on the product

Stop.

Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before you use this product.

Always wear approved protective helmet, approved hearing protection and eye protection.

Use 2 hands to operate the product.

Do not let the guide bar tip touch an object.

Do not operate the product with one hand only.

Warning! Kickback can occur when the guide bar tip touches an object. A kickback causes a lightning fast reverse reaction that throws the guide bar up and in the direction of the operator. Can cause serious injury.

This product complies with applicable EC Directives.

This product conforms to applicable UK regulations.

Noise emission to the environment label as per European Directive 2000/14/EC, UK directives and regulations and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified in Technical data on page 237 and on the label.

Chain brake, engaged (right). Chain brake, disengaged (left).

Air purge bulb.

Adjustment of the oil pump.

Fuel.

Chain oil.

yyyyMMddxxxx The rating plate shows se-

rial number. yyyy is the production year and ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for some markets.

WARNING: Tampering with the engine voids the EU type-approval of this product.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• A chainsaw is a dangerous tool if used carelessly or incorrectly and can cause serious injury or death. It is very important that you read and understand the contents of this operator's manual.
• Under no circumstances may the design of the product be modified without the permission of the manufacturer. Do not use a product that appears to have been modified by others and only use accessories recommended for this product. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.
• A used muffler/spark arrester and spark arrester mounting face may contain deposits of combustion particles that may be carcinogenic. Avoid being exposed to these compounds when handling the muffler and/or spark arrester. Prior to any handling of the muffler and/or the spark arrester, refer to Muffler on page 210
• Long term inhalation of the engine's exhaust fumes, chain oil mist and sawdust can represent a health risk.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive

medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• The information in this operator's manual is never a substitute for professional skills and experience. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your servicing dealer or an experienced chainsaw user. Do not attempt any task that you feel unsure of!

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

• Before using the product you must understand the effects of kickback and how to avoid them. Refer to Kickback information on page 216 for instructions.
• Never use a product that is faulty.
• Never use a product with visible damage to the spark plug cap and ignition cable. A risk of sparking arises, which can cause a fire.
• Never use the product if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.
• Do not use the product in bad weather such as dense fog, heavy rain, strong wind, intense cold, etcetera. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etcetera.
• Never start a product unless the guide bar, saw chain and all covers are fitted correctly. Refer to Assembly on page 212 for instructions. Without a bar and saw chain attached to the product the clutch can come loose and cause serious injury.

Simple line drawing of a diagonal slash over a trash can and a smoke, no text or symbols present

- Never start the product indoors. Exhaust fumes can be dangerous if inhaled.

• The exhaust fumes from the engine are hot and can contain sparks, which can start a fire. Never start the product near flammable material!
- Observe your surroundings and make sure that there is no risk of people or animals coming in contact with or affect your control of the product.
- Never allow children to use or be in the vicinity of the product. As the product is equipped with a spring-loaded start/stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the product. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the product is not under close supervision.
- You must have a steady stance in order to have full control of the product. Never work standing on a ladder, in a tree or where you do not have a firm ground to stand on.

Prohibition sign showing a worker climbing a rope with a diagonal line, enclosed in a circle (no text or symbols)

• Working in a tree requires the use of special cutting and working techniques which must be observed in order to reduce the increased risk of personal injury. Never work in a tree unless you have received specific, professional training for such work, including training in the use of safety and other climbing equipment, such as harnesses, ropes, belts, climbing irons, snap hooks, carabiners, etcetera.
• Never attempt to catch falling sections. Never cut in the tree when you are only secured with one rope. Always use two secured ropes.
• Lack of concentration can lead to kickback if the kickback zone of the bar accidentally touches a branch, nearby tree or some other object.

Illustration of a worker cutting wood with a saw, showing motion direction (no text or symbols)

• Never use the product by holding it with one hand. This product is not safely controlled with one hand.
  • Always hold the product with both hands. The right hand should be on the rear handle, and the left hand

on the front handle. All people, whether right or left handed, should use this grip. Use a firm grip with thumbs and fingers encircling the handles. This grip minimizes the risk of kickback and lets you keep the product under control. Do not let go of the handles!

Simple line drawing of a mechanical device with two hands operating it (no text or symbols)

- Never use the product above shoulder height.

Prohibition sign showing a person walking under a tree with crossed-out branches, enclosed in a circle.

• Do not use the product in a situation where you cannot call for help in case of an accident.
• Before moving your product, switch off the engine and lock the saw chain using the chain brake. Carry the product with the guide bar and saw chain pointing backwards. Fit a transportation guard to the guide bar before transporting the product or carrying it for any distance.
• When you put the product on the ground, lock the saw chain using the chain brake and ensure you have a constant view of the product. Switch the engine off before leaving your product for any length of time.
  • Sometimes chips get stuck in the clutch cover causing the saw chain to jam. Always stop the engine before cleaning.
• Running an engine in a confined or badly ventilated area can result in death due to carbon monoxide poisoning.
• The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Do not start the product indoors or near flammable material.
• Use the chain brake as a parking brake when you start the product and when you move short distances. Always carry the product in the front handle. This decreases the risk that you or a person near you get hit by the saw chain.
  • Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally

appear in the fingers, hands or wrists. These symptoms may be increased in cold temperatures.

- It is not possible to cover every conceivable situation you can face when using this product. Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Do not hesitate to contact your dealer or Husqvarna if you have any questions about the use of the product. We will willingly be of service and provide you with advice as well as help you to use your product both efficiently and safely. Attend a training course in chainsaw usage if possible. Your dealer, forestry school or your library can provide information about which training materials and courses are available.

Simple line drawing of a person climbing a tree with a diagonal no-discrimination circle (no text or symbols)

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

• Before using the chainsaw you must understand the effects of kickback and how to avoid them. Refer to Kickback information on page 216 for instructions.
• Never use a product that is faulty.
• Never use a product with visible damage to the spark plug cap and ignition cable. A risk of sparking arises, which can cause a fire.
• Never use the product if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgment.
• Do not use the product in bad weather such as dense fog, heavy rain, strong wind, intense cold, etcetera. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etcetera.
• Never start a product unless the guide bar, saw chain and all covers are fitted correctly. Refer to Assembly on page 212 for instructions. Without a bar

and saw chain attached to the product the clutch can come loose and cause serious injury.

Simple line drawing of a diagonal slash over a trash can and smoke, no text or symbols present

• Never start the product indoors. Exhaust fumes can be dangerous if inhaled.
• The exhaust fumes from the engine are hot and can contain sparks, which can start a fire. Never start the product near flammable material!
• Observe your surroundings and make sure that there is no risk of people or animals coming in contact with or affect your control of the product.
• Never allow children to use or be in the vicinity of the product. As the product is equipped with a spring-loaded start/stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the product. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the product is not under close supervision.
• You must have a steady stance in order to have full control of the product. Never work standing on a ladder, in a tree or where you do not have a firm ground to stand on.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle (no text or symbols)

• Working in a tree requires the use of special cutting and working techniques which must be observed in order to reduce the increased risk of personal injury. Never work in a tree unless you have received specific, professional training for such work, including training in the use of safety and other climbing equipment, such as harnesses, ropes, belts, climbing irons, snap hooks, carabiners, etcetera.
• Never attempt to catch falling sections. Never cut in the tree when you are only secured with one rope. Always use two secured ropes.

- Lack of concentration can lead to kickback if the kickback zone of the bar accidentally touches a branch, nearby tree or some other object.

Illustration of a worker in protective gear cutting wood with a tool, showing a curved arrow indicating motion (no text or symbols)

• Never use the product by holding it with one hand. This product is not safely controlled with one hand.
  • Always hold the product with both hands. The right hand should be on the rear handle, and the left hand on the front handle. All people, whether right or left handed, should use this grip. Use a firm grip with thumbs and fingers encircling the handles. This grip minimizes the risk of kickback and lets you keep the product under control. Do not let go of the handles!

Illustration of a mechanical device with hands operating it, no text or symbols present

- Never use the product above shoulder height.

Prohibition sign showing a person pruning trees with a crossed-out tree, indicating no intervention or absence of intervention.

• Do not use the product in a situation where you cannot call for help in case of an accident.
• Before moving your product, switch off the engine and lock the saw chain using the chain brake. Carry the product with the guide bar and saw chain pointing backwards. Fit a transportation guard to the guide bar before transporting the product or carrying it for any distance.

• When you put the product on the ground, lock the saw chain using the chain brake and ensure you have a constant view of the product. Switch the engine off before leaving your product for any length of time.
  • Sometimes chips get stuck in the clutch cover causing the saw chain to jam. Always stop the engine before cleaning.

• Running an engine in a confined or badly ventilated area can result in death due to carbon monoxide poisoning.

• Use the chain brake as a parking brake when you start the product and when you move short distances. Always carry the product in the front handle. This decreases the risk that you or a person near you get hit by the saw chain.
• It is not possible to cover every conceivable situation you can face when using this product. Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Do not hesitate to contact your dealer or Husqvarna if you have any questions about the use of the product. We will willingly be of service and provide you with advice as well as help you to use your product both efficiently and safely. Attend a training course in chainsaw usage if possible. Your dealer, forestry school or your library can provide information about which training materials and courses are available.

Simple line drawing of a person climbing a tree with a diagonal no-discrimination circle (no text or symbols)

• When using this product, a fire extinguisher should be available.
• Keep handles dry, clean and free from oil.
• Beware of carbon monoxide poisoning. Operate the product in a well ventilated area only.
• Do not attempt a pruning or limbing operation in a standing tree unless specifically trained to do so.

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

FIRST AID HOT

- Most chainsaw accidents occur when the saw chain touches the operator. You must use approved

personal protective equipment during operation. Personal protective equipment does not give you full protection from injuries but it decreases the degree of injury if an accident occurs. Speak to your servicing dealer for recommendations about which equipment to use.

• Your clothing must be close-fitting but not limit your movements. Regularly do a check of the condition of the personal protective equipment.
• Use an approved protective helmet.
• Use approved hearing protection. Long-term exposure to noise can result in permanent damage to the hearing.
• Use protective glasses or a face visor to decrease the risk of injury from thrown objects. The product can throw objects, such as wood chips, small pieces of wood and more, at large force. This can result in serious injury, especially to the eyes.
• Use gloves with saw protection.
• Use pants with saw protection.
• Use boots with saw protection, steel toe-cap and non-slip sole.
  • Always have a first-aid kit with you.
• Risk of sparks. Keep fire extinguishing tools and a shovel near to prevent forest fires.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. Refer to Maintenance and checks of the safety devices on the product on page 225
• If the safety devices are defective, speak to your Husqvarna servicing dealer.

Chain brake and front hand guard

Your product has a chain brake that stops the saw chain if you get a kickback. The chain brake decreases the risk of accidents, but only you can prevent them.

The chain brake engages (A) manually by your left hand or automatically by the inertia release mechanism. Push the front hand guard (B) forward to engage the chain brake manually.

A B STOP

Pull the front hand guard rearward to disengage the chain brake.

Line drawing of a manual chain attachment device with motion arrow indicating rotation (no text or symbols)

Throttle trigger lockout

The throttle trigger lockout prevents accidental operation of the throttle trigger. If you put your hand around the handle and press the throttle trigger lockout (A), it releases the throttle trigger (B). If you release the handle, the throttle trigger and the throttle trigger lockout move back to their initial positions. This function locks the throttle trigger at idle speed.

A B

Chain catcher

The chain catcher catches the saw chain if it breaks or derails. Correct saw chain tension and correctly applied maintenance on the saw chain and guide bar, decrease the risk of accidents.

Technical line drawing of a tool with a close-up inset showing the same tool (no text or symbols present)

Right hand guard

The right hand guard is a protection for your hand on the rear handle. The right hand guard gives you protection if the saw chain breaks or derails. The right hand guard also gives you protection from branches or twigs.

Technical line drawing of a mechanical bracket component (no text or symbols)

Vibration damping system

The vibration damping system decreases vibration in the handles. Vibration damping units operate as a separation between the product body and the handle unit.

Refer to Product overview on page 203 for information about where the vibration damping system is on your product.

Start/stop switch

Use the start/stop switch to stop the engine.

Line drawing of a chainsaw with an inset showing a gear and a box (no text or symbols)

WARNING: The start/stop switch automatically goes back to start position. To prevent accidental start, remove the spark plug cap from the spark plug when you assemble or do maintenance on the product.

Illustration of a medical device with tubing and a bulbous component (no text or symbols)

Muffler

WARNING: The muffler becomes very hot during/after operation and at idle speed. There is a risk of fire, especially when you operate the product near flammable materials and/or fumes.

WARNING: Do not operate a product without a muffler or with a defective muffler. A defective muffler can increase the noise level and the risk of fire. Keep fire extinguishing tools near. Do not use a product without, or with a broken, spark arrestor mesh if you must have a spark arrestor mesh in your area.

The muffler keeps the noise levels to a minimum and points the exhaust fumes away from the operator. In

areas with a hot, dry weather there is a high risk of fire. Obey local regulations and maintenance instructions.

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

• Make sure there is plenty of ventilation when refuelling or mixing fuel (petrol and two-stroke oil).
- Fuel and fuel vapour are highly flammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.
• Take care when handling fuel and chain oil. Be aware of the risks of fire, explosion and those associated with inhalation.
- Do not smoke and do not place any hot objects in the vicinity of fuel.
• Always stop the engine and let it cool for a few minutes before refuelling.
- When refuelling, open the fuel cap slowly so that any excess pressure is released gently.
- Tighten the fuel cap carefully after refuelling.
- Never refuel the machine while the engine is running.
• Always move the product at least 3 m (10 ft) away from the refuelling area and fuel source before starting.

Min. 3 m (10 ft)

After refuelling, there are some situations where you must never start the product:

• If you have spilled fuel or chain oil on the product. Wipe off the spillage and allow remaining fuel to evaporate.
• If you have spilled fuel on yourself or on your clothes. Change your clothes and wash any part of your body that has come in contact with fuel. Use soap and water.
• If the product leaks fuel. Regularly do a check for leaks from the fuel tank, fuel cap and fuel lines.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance on the product.

• Do only the maintenance and servicing given in this operator's manual. Let professional servicing personnel do all other servicing and repairs.
• Regularly do the safety checks, maintenance and service instructions given in this manual. Regular maintenance increases the life of the product and decreases the risk of accidents. Refer to Maintenance on page 224 for instructions.
• If the safety checks in this operator's manual is not approved after you do maintenance, speak to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.

Safety instructions for the cutting equipment

WARNING: Read the warning instructions that follow before you use the product.

• Only use approved guide bar/saw chain combinations and filing equipment. Refer to Filing equipment and filing angles on page 239 for instructions.
• Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.
• Keep the cutting teeth correctly sharpened. Obey the instructions and use the recommended file gauge. A saw chain that is damaged or incorrectly sharpened increases the risk of accidents.

Simple line drawing of a device with a starburst effect (no text or symbols)

- Keep the correct depth gauge setting. Obey the instructions and use the recommended depth gauge setting. Too large depth gauge setting increases the risk of kickback.

Pure technical line drawing of a mechanical part with no text or symbols

• Make sure that the saw chain has the correct tension. If the saw chain is not tight against the guide bar, the saw chain can derail. An incorrect saw chain tension increases wear on the guide bar, saw chain and chain drive sprocket. Refer to To adjust the tension of the saw chain on page 232.

200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500

- Do maintenance on the cutting equipment regularly and keep it correctly lubricated. If the saw chain is not correctly lubricated, the risk of wear on the guide bar, saw chain and chain drive sprocket increases.

Simple line drawing of a droplet falling into a container with two circular ports (no text or symbols)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Assembly

Introduction

WARNING: Read and understand the safety chapter before you assemble the product.

To assemble the guide bar and saw chain

1. Move the front hand guard rearward to disengage the chain brake.
2. Remove the bar nuts and the clutch cover.

Note: If the clutch cover is not easy to remove, tighten the bar nut, engage the chain brake and release. A click is heard if it is released correctly.

1. Assemble the guide bar onto the bar bolts. Move the guide bar to its most rear position.
2. Install the saw chain correctly around the drive sprocket and put it in the groove on the guide bar.

WARNING: Always use protective gloves when you assemble the saw chain.

1. Make sure that the edges of the cutters point forward on the top edge of the guide bar.

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

1. Align the hole in the guide bar with the chain adjuster pin and install the clutch cover.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

1. Tighten the bar nuts finger tight.
2. Tighten the saw chain. Refer to To adjust the tension of the saw chain on page 232 for instructions.
3. Tighten the bar nuts.

Note: Some models have only one bar nut.

Husqvarna connectivity device

Connectivity

This product is prepared for connectivity and has a location for installation of a Husqvarna Connectivity Device. When the Husqvarna connectivity device is installed, the product has Bluetooth® wireless technology and can use Husqvarna Fleet Services™ to connect to mobile devices. This enables more functions.

To install the Husqvarna connectivity device

Do the steps that follow to install the Husqvarna connectivity device. For more information about the Husqvarna connectivity device, refer to www.husqvarna.com.

1. Remove the screw and open the plastic cover.

Diagram of a car interior showing a hand using a tool to adjust the dashboard panel, with no visible text or symbols.

1. Remove the connector.

Technical line drawing of a car engine compartment showing internal components and a highlighted connector (no text or symbols)

1. Install the Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine's cable (no text or labels)

1. Install the connector to the Husqvarna connectivity device.

Technical line drawing of a car engine compartment showing handle, valve, and gear (no text or symbols)

1. Install the plastic cover and tighten the screw.

Diagram of a car interior showing hand positioning, screwdriver insertion, and dashboard placement (no text or symbols)

Husqvarna Fleet Services™

Husqvarna Fleet Services™ is a cloud solution that gives the commercial fleet manager an overview of all products. It is also possible for the fleet managers to get remote access to information about the product. For more information about Husqvarna Fleet Services™, refer to www.husqvarna.com.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product.

• Extended product information.
• Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Follow the instruction steps in the Husqvarna Connect app to connect and register the product.

Note: Husqvarna Connect app is not available for download in all markets. Speak to your servicing dealer for more information.

Operation

Introduction

WARNING: Read and understand the safety chapter before you use the product.

To do a function check before you use the product

1. Make sure that the chain brake operates correctly and that it is not damaged.
2. Make sure that the right hand guard is not damaged.
3. Make sure that the throttle lockout operates correctly and that it is not damaged.
4. Make sure that the start/stop switch operates correctly and that it is not damaged.
5. Make sure that there is no oil on the handles.
6. Make sure that the vibration damping system operates correctly and that it is not damaged.
7. Make sure that the muffler is correctly attached and that it is not damaged.
8. Make sure that all parts of the product are correctly attached and not damaged or missing.
9. Make sure that the chain catcher is correctly attached.
10. Do a check of the saw chain tension.

3 4 5 6,8 7 10 2 1 9

Fuel

This product has a two-stroke engine.

CAUTION: Incorrect type of fuel can result in engine damage. Use a mixture of gasoline and two-stroke oil.

Premixed fuel

- Use Husqvarna premixed alkylate fuel for best performance and extension of the engine life. This fuel contains less harmful chemicals compared to regular fuel, which decreases harmful exhaust fumes. The quantity of remains after combustion is lower with this fuel, which keeps the components of the engine more clean.

To mix fuel

Gasoline

- Use good quality unleaded gasoline with a maximum of 10% ethanol contents.

CAUTION: Do not use gasoline with an octane grade less than 90 RON/87 AKI. Use of a lower octane grade can cause engine knocking, which causes engine damages.

Two-stroke oil

• For best results and performance use Husqvarna two-stroke oil.
• If Husqvarna two-stroke oil is not available, use a two-stroke oil of good quality for air-cooled engines. Speak to your servicing dealer to select the correct oil.

CAUTION: Do not use two-stroke oil for water-cooled outboard engines, also referred to as outboard oil. Do not use oil for four-stroke engines.

To mix gasoline and two-stroke oil

Gasoline, liter Two-stroke oil,	liter
	2% (50:1)
5 0.10
10 0.20
15 0.30
20 0.40

CAUTION: Small errors can influence the ratio of the mixture drastically when you mix small quantities of fuel. Measure the quantity of oil carefully and make sure that you get the correct mixture.

Diagram illustrating fuel injection and prohibition symbols for gas collection

Illustration of a person in uniform holding an object, no text or symbols present

1. Fill half the quantity of gasoline in a clean container for fuel.
2. Add the full quantity of oil.
3. Shake the fuel mixture.
4. Add the remaining quantity of gasoline to the container.
5. Carefully shake the fuel mixture.

CAUTION: Do not mix fuel for more than 1 month at a time.

To fill the fuel tank

WARNING: Obey the procedure that follows for your safety.

1. Stop the engine and let the engine become cool.
2. Clean the area around the fuel tank cap.

Simple black icon of a fuel pump with a droplet and plus sign, no text or symbols present.

1. Shake the container and make sure that the fuel is fully mixed.
2. Remove the fuel tank cap slowly to release the pressure.
3. Fill the fuel tank.

CAUTION: Make sure that there is not too much fuel in the fuel tank. The fuel expands when it becomes hot.

1. Tighten the fuel tank cap carefully.
2. Clean fuel spillage on and around the product.
3. Move the product 3 m/10 ft or more away from the refueling area and fuel source before you start the engine.

Note: To see where the fuel tank is on your product, refer to Product overview on page 203.

To do a run-in

- During the first 10 hours of operation, do not apply full throttle without load for extended periods.

To use the correct chain oil

WARNING: Do not use waste oil, which can cause injury to you and the environment. Waste oil also causes damage to the oil pump, the guide bar and the saw chain.

WARNING: The saw chain can break if the lubrication of the cutting equipment is not sufficient. Risk of serious injury or death to the operator.

WARNING: This product has a function that lets the fuel run out before the chain oil. Use the correct chain oil for this function to operate correctly. Speak to your servicing dealer when you select your chain oil.

• Use Husqvarna chain oil for maximum saw chain life and to prevent negative effects on the environment. If Husqvarna chain oil is not available, we recommend you to use a standard chain oil.
• Use a chain oil with good adherence to the saw chain.
• Use a chain oil with correct viscosity range that agrees with the air temperature.

CAUTION: If the oil is too thin, it runs out before the fuel. In temperatures below 0°C/32°F some chain oils become too thick, which can cause damage to the oil pump components.

• Use the recommended cutting equipment. Refer to Accessories on page 238.
• Remove the cap to the chain oil tank.
• Fill the chain oil tank with chain oil.
• Attach the cap carefully.

Abstract black silhouette of a droplet above a stylized mask (no text or symbols)

Note: To see where the chain oil tank is on your product, refer to Product overview on page 203.

Kickback information

WARNING: A kickback can cause serious injury or death to the operator or others. To decrease the risk you must know the causes of kickback and how to prevent them.

A kickback occurs when the kickback zone of the guide bar touches an object. A kickback can occur suddenly and with large force, which throws the product in the direction of the operator.

Diagram showing a person in a warning triangle with an arrow indicating direction, next to a chain and gear symbol.

Kickback always occurs in the cutting plane of the guide bar. Usually, the product is thrown against the operator but can also move in a different direction. It is how you use the product when the kickback occurs that causes the direction of the movement.

Illustration of a person in protective gear using a tool to lift a cylindrical object, with an arrow indicating motion (no text or symbols)

A smaller bar tip radius decreases the force of the kickback.

Use a low kickback saw chain to decrease the effects of kickback. Do not let the kickback zone touch an object.

WARNING: No saw chain fully prevents kickback. Always obey the instructions.

Common questions about kickback

- Will the hand always engage the chain brake during a kickback?

No. It is necessary to use some force to push the front hand guard forward. If you do not use the force necessary, the chain brake will not be engaged. You must also hold the handles of the product stable with two hands during work. If a kickback occurs, it is possible that the chain brake does not stop the saw

chain before it touches you. There are also some positions in which your hand can not touch the front hand guard to engage the chain brake.

- Will the inertia release mechanism always engage the chain brake during kickback?

No. First, the chain brake must operate correctly. Refer to Maintenance and checks of the safety devices on the product on page 225 for instructions about how to do a check of the chain brake. We recommend you to do this each time before you use the product. Second, the force of the kickback must be large to engage the chain brake. If the chain brake is too sensitive, it can engage during rough operation.

- Will the chain brake always protect me from injury during a kickback?

No. The chain brake must operate correctly to give protection. The chain brake must also be engaged during a kickback to stop the saw chain. If you are near the guide bar, it is possible that the chain brake does not have time to stop the saw chain before it hits you.

WARNING: Only you and the correct working technique can prevent kickbacks.

To do before you start the product

WARNING: The chain brake must be engaged when the product is started to decrease the risk of injury.

1. Move the front hand guard forward to engage the chain brake.

Diagram of a car hood with a curved arrow indicating motion or force (no text or symbols)

1. Pull the start/stop switch (A) out and up to set it in start position.

2. Press the air purge bulb (B) about 6 times or until fuel starts to fill the bulb. It is not necessary to fill the air purge bulb fully.

Technical diagram showing car seatbelt components labeled A and B with directional arrows indicating movement or connection.

1. Continue to To start the product on page 217 for more instructions.

To start the product

WARNING: You must keep your feet in a stable position when you start the product.

WARNING: If the saw chain rotates at idle speed, speak to your servicing dealer and do not use the product.

1. Put the product on the ground.
2. Put your left hand on the front handle.
3. Put your right foot into the footgrip on the rear handle.
4. Pull the starter rope handle slowly with your right hand until you feel resistance.

WARNING: Do not twist the starter rope around your hand.

1. Pull the starter rope handle quickly and with force until the engine starts.

Illustration of a worker using a chainsaw to cut the blade (no text or symbols)

CAUTION: Do not pull the starter rope to full extension and do not let go of the starter rope handle. This can cause damage to the product.

1. Quickly disengage the throttle trigger lockout to set the product to idle speed.

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

1. Move the front hand guard rearward to disengage the chain brake.

Line drawing of a manual car hood with a curved blade and arrow indicating motion (no text or symbols)

1. Use the product.

To stop the product

1. Push the start/stop switch down to stop the engine.

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Pull stroke and push stroke

You can cut through wood with the product in 2 different positions.

• To cut on the pull stroke is when you cut with the bottom of the guide bar. The saw chain pulls through the tree when you cut. In this position you have better control of the product and the position of the kickback zone.

Illustration of a chain saw cutting a circular cutter with motion arrows indicating tool path (no text or symbols)

• To cut on the push stroke is when you cut with the top of the guide bar. The saw chain pushes the product in the direction of the operator.

Illustration of a hand using a chain-linking tool to cut a circular saw (no text or symbols present)

WARNING: If the saw chain is caught in the trunk, the product can be pushed at you. Hold the product tightly and make sure that the kickback zone of the guide bar does not touch the tree and causes a kickback.

Diagram illustrating a chain-linking process with warning sign and chainsaw mechanism

To use the cutting technique

WARNING: Use full throttle when you cut and decrease to idle speed after each cut.

CAUTION: Engine damage can occur if the engine runs for too long at full throttle without load.

1. Put the trunk on a saw horse or runners.

Illustration of two workers handling stacked logs, one standing and one holding a log (no text or symbols present)

WARNING: Do not cut trunks in a pile. That increases the risk of kickback and can result in serious injury or death.

1. Remove the cut pieces from the cutting area.

WARNING: Cut pieces in the cutting area increase the risk of kickback and that you can not keep your balance.

To use the spiked bumper

1. Push the spiked bumper into the trunk of the tree.
2. Apply full throttle and rotate the product. Keep the spiked bumper against the trunk. This procedure makes it easier to apply the force necessary to cut through the trunk.

Simple line drawing of a tool interacting with a circular object, no text or symbols present

To cut a trunk on the ground

1. Cut through the trunk on the pull stroke. Keep full throttle but be prepared for sudden accidents.

Illustration of a chain saw cutting down a blade with warning symbol (no text or labels)

WARNING: Make sure that the saw chain does not touch the ground when you complete the kerf.

1. Cut approximately 23 through the trunk and then stop. Turn the trunk and cut from the opposite side.

Diagram illustrating a chain saw tool and its corresponding mechanical component with labeled steps 1 and 2.

To cut a trunk that has support on one end

WARNING: Make sure that the trunk does not break during cutting. Obey the instructions below.

Illustration of a landslide with a lightning bolt and warning triangle (no text or symbols)

1. Cut on the push stroke approximately 13 through the trunk.
2. Cut through the trunk on the pull stroke until the two kerfs touch.

Diagram showing a chain saw tool and its three circular cross-sections with numbered annotations.

To cut a trunk that has support on two ends

WARNING: Make sure that the saw chain does not get caught in the trunk during cutting. Obey the instructions below.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

1. Cut on the pull stroke approximately 13 through the trunk.
2. Cut through the remaining part of the trunk on the push stroke to complete the cut.

Diagram showing three steps of a chain saw tool: cutting, opening, and opening with labeled arrows.

WARNING: Stop the engine if the saw chain gets caught in the trunk. Use a lever to open up the kerf and remove the product. Do not try to pull the product out by hand. This can result in injury when the product suddenly breaks free.

To use the limbing technique

Note: For thick branches, use the cutting technique. Refer to To use the cutting technique on page 218.

WARNING: There is a high accident risk when you use the limbing technique. Refer to Kickback information on page 216 for instructions how to prevent kickback.

WARNING: Cut limbs one by one. Be careful when you remove small limbs and do not cut bushes or many small limbs at the same time. Small limbs can get caught in the saw chain and prevent safe operation of the product.

Note: Cut the limbs piece by piece if it is necessary.

1 2 3

1. Remove the limbs on the right side of the trunk.

a) Keep the guide bar on the right side of the trunk and keep the body of the product against the trunk.
b) Select the applicable cutting technique for the tension in the branch.

Illustration of a hand securing a car seatbelt with a tool, showing no text or symbols

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

1. Remove the limbs on the top of the trunk.

a) Keep the product on the trunk and let the guide bar move along the trunk.
b) Cut on the push stroke.

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

1. Remove the limbs on the left side of the trunk.

a) Select the applicable cutting technique for the tension in the branch.

Illustration of a person using a tool to cut or wear a tree trunk, with a black arrow indicating the direction (no text or symbols present)

WARNING: If you are not sure about how to cut the branch, speak to a professional chainsaw operator before you continue.

Refer to To cut trees and branches that are in tension on page 223 for instructions on how to cut branches that are in tension.

To use the tree felling technique

WARNING: You must have experience to fell a tree. If possible, engage in a training course in chainsaw operation. Speak to an operator with experience for more knowledge.

To keep a safe distance

1. Make sure that persons around you keep a safe distance at a minimum of 2 1/2 tree lengths.

1. Make sure that no person is in the risk zone before or during felling.

Illustration of a person using a tree to spray or spray over a fallen log, with no text or symbols present.

To calculate the felling direction

1. Examine in which direction it is necessary for the tree to fall. The goal is to fell it in a position where you can limb and cut the trunk easily. It is also important that you are stable on your feet and can move about safely.

WARNING: If it is dangerous or not possible to fell the tree in its natural direction, fell the tree in a different direction.

1. Examine the natural fall direction of the tree. For example the tilt and bend of the tree, wind direction, the location of the branches and weight of snow.
2. Examine if there are obstacles, for example other trees, power lines, roads and/or buildings around.
3. Look for signs of damage and rot in the stem.

WARNING: Rot in the stem can mean a risk that the tree falls before you complete the cutting.

1. Make sure the tree has no damaged or dead branches that can break off and hit you during felling.

2. Do not let the tree fall onto a different standing tree. It is dangerous to remove a caught tree and there is a high accident risk. Refer to To free a trapped tree on page 223.

Illustration of a person holding a magnifying glass over a flame, with no text or symbols present.

WARNING: During critical felling operations, lift your hearing protection immediately when the sawing is complete. It is important that you hear sounds and warning signals.

To clear the trunk and prepare your path of retreat

Cut off all branches from your shoulder height and down.

1. Cut on the pull stroke from the top down. Make sure that the tree is between you and the product.

Illustration showing a person using a tool to lock or press a wall, with directional arrows indicating movement or pressure.

1. Remove undergrowth from the work area around the tree. Remove all cut off material from the work area.
2. Do a check of the area for obstacles such as stones, branches and holes. You must have a clear path of retreat when the tree starts to fall. Your path of retreat must be approximately 135 degrees away from the felling direction.
3. The danger zone
4. The path of retreat
5. The felling direction

To fell a tree

Husqvarna recommends you to make the directional cuts and then use the safe corner method when you fell a tree. The safe corner method helps you to make a correct felling hinge and control the felling direction.

WARNING: Do not fell trees with a diameter that is more than two times larger than the guide bar length. For this, you must have special training.

The felling hinge

The most important procedure during tree felling is to make the correct felling hinge. With a correct felling hinge, you control the felling direction and make sure that the felling procedure is safe.

The thickness of the felling hinge must be equal and a minimum of 10% of the tree diameter.

WARNING: If the felling hinge is incorrect or too thin, you have no control of the felling direction.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

To make the directional cuts

1. Make the directional cuts 14 of the diameter of the tree. Make a 45^-70^ angle between the top directional cut and bottom directional cut.

45°-70°

a) Make the top directional cut. Align the felling direction mark (1) of the product with the felling direction of the tree (2). Stay behind the product and keep the tree on your left side. Cut with a pull stroke.
b) Make the bottom directional cut. Make sure that the end of the bottom directional cut is at the same point as the end of the top directional cut.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing blade turning and cutting direction.

1. Make sure that the bottom directional cut is horizontal and at a 90^ angle to the felling direction.

To use the safe corner method

The felling cut must be made slightly above the directional cut.

Diagram showing a tree trunk with a horizontal line and a broken branch, indicating tree damage or erosion (no text or symbols present)

WARNING: Be careful when you cut with the guide bar tip. Start to cut with the lower section of the guide bar tip as you make a bore cut into the trunk.

Simple line drawing of a mechanical tool or bracket (no text or symbols)

1. If the usable cutting length is longer than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk to complete the felling hinge width.

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

b) Cut on the pull stroke until 13 of the trunk is left.
c) Pull the guide bar 5-10 cm/2-4 in rearward.
d) Cut through the remaining of the trunk to complete a safe corner that is 5-10 cm/2-4 in wide.

Technical diagram of a mechanical component with internal structure and directional arrow (no text or labels)

1. If the usable cutting length is shorter than the tree diameter, do these steps (a-d).

a) Make a bore cut straight into the trunk. The bore cut must extend 3/5 of the tree diameter.
b) Cut on the pull stroke through the remaining trunk.

Cross-sectional diagram of a mechanical or electrical component with layered structure and internal channels (no text or symbols)

c) Cut straight into the trunk from the other side of the tree to complete the felling hinge.
d) Cut on the push stroke, until 13 of the trunk is left, to complete the safe corner.

Technical line drawing of a mechanical component with a circular shaft and curved shaft (no text or symbols)

1. Put a wedge in the kerf straight from behind.

Diagram illustrating a mechanical or structural change with labeled components and directional arrows, likely illustrating a process or assembly.

1. Cut off the corner to make the tree fall.

Note: If the tree does not fall, hit the wedge until it does.

1. When the tree starts to fall, use the path of retreat to move away from the tree. Move a minimum of 5 m/15 ft away from the tree.

To free a trapped tree

WARNING: It is very dangerous to remove a trapped tree and there is a high accident risk. Keep out of the risk zone and do not try to fell a trapped tree.

Diagram illustrating two scenarios of a person using a tree, with one scenario showing no restrictions and the other showing no restrictions.

The safest procedure is to use one of the following winches:

- Tractor-mounted

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Portable

Simple line drawing of a mechanical lever system with no text or symbols

To cut trees and branches that are in tension

1. Figure out which side of the tree or branch that is in tension.
2. Figure out where the point of maximum tension is.

Diagram showing a curved path with a ball and directional arrow, no text or symbols present

1. Examine which is the safest procedure to release the tension.

Note: In some situations the only safe procedure is to use a winch and not your product.

1. Keep a position where the tree or branch can not hit you when the tension is released.

Diagram of a mechanical or structural system with arrows indicating motion, no text or symbols present

1. Make one or more cuts of sufficient depth necessary to decrease the tension. Cut at or near the point of maximum tension. Make the tree or branch break at the point of maximum tension.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

WARNING: Do not cut straight through a tree or branch that is in tension.

WARNING: Be very careful when you cut a tree that is in tension. There is a risk that the tree moves quickly before or after you cut it. Serious injury can occur if you are in an incorrect position or if you cut incorrectly.

1. If you must cut across tree/branch, make 2 to 3 cuts, 1 in. apart and with a depth of 2 in.

Diagram showing a cross-section of a layered structure with an upward arrow indicating a specific section (no text or labels present)

1. Continue to cut more into the tree until the tree/branch bends and the tension is released.

2. Cut the tree/branch from the opposite side of the bend, after the tension is released.

Diagram of a curved structure with arrows indicating direction, no text or symbols present

Maintenance

Introduction

WARNING: Read and understand the safety chapter before you do maintenance on the product.

Maintenance schedule

Daily maintenance Weekly maintenance	Monthly maintenance
Clean the external parts of the product and make sure that there is no oil on the handles.	Clean the cooling system. Refer to To clean the cooling system on page 235	Do a check of the brake band. Refer to To do a check of the brake band on page 225.
Do a check of the throttle trigger and throttle trigger lockout. Refer to To do a check of the throttle trigger and throttle trigger lockout on page 226.	Do a check of the starter, starter rope and return spring.	Do a check of the clutch centre, clutch drum and clutch spring.
Make sure that there is no damage on the vibration damping units.	Lubricate the needle bearing. Refer to To lubricate the needle bearing on page 233.	Clean the spark plug. Refer to To do a check of the spark plug on page 230.
Clean and do a check of the chain brake. Refer to To do a check of the front hand guard and the chain brake activation on page 225.	Remove burrs from the edges of the guide bar. Refer to To do a check of the guide bar on page 233.	Clean the external parts of the carburetor.
Do a check of the chain catcher. Refer to To do a check of the chain catcher on page 226.	Clean or replace the spark arrester screen on the muffler. Refer to To do a check of the muffler on page 227.	Do a check of the fuel filter and the fuel hose. Replace if necessary.
Turn the guide bar, do a check of the lubrication hole and clean the groove in the guide bar. Refer to To do a check of the guide bar on page 233.	Clean the carburetor area. Do a check	of all cables and connections.
Make sure that the guide bar and saw chain are getting sufficient oil.	Clean or replace the air filter. Refer to To clean the air filter on page 229.	Empty the fuel tank.
Do a check of the saw chain. Refer to To sharpen the saw chain on page 230.	Clean between the cylinder fins. Empty the oil tank.
Sharpen the saw chain and do a check of its tension. Refer to To adjust the tension of the saw chain on page 232.
Do a check of the chain drive sprocket. Refer to To do a check of the spur sprocket on page 233.
Clean the air intake on the starter.
Make sure that nuts and screws are tightened.
Do a check of the stop switch. Refer to To do a check of the start/stop switch on page 227.
Make sure that these are no fuel leaks from the engine, tank or fuel lines.
Make sure that the saw chain does not rotate when the engine is at idle speed.
Make sure that there is no damage on the right hand guard.
Make sure that the muffler is correctly attached, has no damages and that no parts of the muffler are missing.

Maintenance and checks of the safety devices on the product

To do a check of the brake band

1. Use a brush to remove wood dust, resin and dirt from the chain brake and clutch drum. Dirt and wear can decrease the function of the brake.

Simple line drawing of a rope knot with an arrow indicating direction (no text or symbols)

1. Do a check of the brake band. The brake band must be at a minimum of 0.6 mm/0.024 in thick at its thinnest point.

To do a check of the front hand guard and the chain brake activation

1. Make sure that the front hand guard is not damaged and that there are no defects, such as cracks.

2. Make sure that the front hand guard moves freely and that it is attached safely to the clutch cover.

Line drawing of a hand using a device to interact with a device, showing motion arrows (no text or symbols)

1. Hold the product with 2 hands above a stump or other stable surface.

WARNING: The engine must be off.

1. Let go of the front handle and let the guide bar tip fall against the stump.

Illustration of two workers in protective gear using a saw and tree stump (no text or symbols)

1. Make sure that the chain brake engages as the guide bar tip hits the stump.

To do a check of the chain brake

1. Start the product. Refer to To start the product on page 217 for instructions.

WARNING: Make sure that the saw chain does not touch the ground or other objects.

1. Hold the product tightly.
2. Apply full throttle and tilt your left wrist against the front hand guard to engage the chain brake. The saw chain must stop immediately.

STOP

STOP

WARNING: Do not let go of the front handle.

To do a check of the throttle trigger and throttle trigger lockout

1. Make sure that the throttle trigger and throttle trigger lockout move freely and that the return spring works correctly.

Line drawing of a chainsaw with directional arrows indicating motion (no text or symbols)

1. Press down the throttle trigger lockout and make sure that it goes back to its initial position when you release it.

Line drawing of a mechanical clamp or bracket with an arrow indicating direction (no text or symbols)

1. Make sure that the throttle trigger is locked at the idle position when the throttle trigger lockout is released.

Line drawing of a chain-linking device with a black arrow indicating the handle (no text or symbols)

1. Start the product and apply full throttle.
2. Release the throttle trigger and make sure that the saw chain stops and stays stationary.

WARNING: If the saw chain rotates when the throttle trigger is in the idle position, speak to your servicing dealer.

To do a check of the chain catcher

1. Make sure that there is no damage on the chain catcher.
2. Make sure that the chain catcher is stable and attached to the body of the product.

Technical line drawing of a chain saw tool with an inset showing the same mechanical component detail (no text or symbols)

To do a check of the right hand guard

• Make sure that the right hand guard is not damaged and that there are no defects, such as cracks.

Technical line drawing of a mechanical bracket component (no text or symbols)

To do a check of the vibration damping system

1. Make sure that there are no cracks or deformation on the vibration damping units.
2. Make sure that the vibration damping units are correctly attached to the engine unit and handle unit.

Refer to Product overview on page 203 for information about where the vibration damping system is on your product.

To do a check of the start/stop switch

1. Start the engine.
2. Press the start/stop switch down to the STOP position. The engine must stop.

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

To do a check of the muffler

WARNING: Do not use a product that has a defective muffler or a muffler that is in bad condition.

WARNING: Do not use a product if the spark arrester screen on the muffler is missing or defective.

1. Examine the muffler for damages and defects.
2. Make sure that the muffler is correctly attached to the product.

Line drawing of a car's front bumper with two circular buttons and three arrows indicating adjustment (no text or symbols)

1. If your product has a special spark arrester screen, clean the spark arrester screen weekly.

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

1. Replace a damaged spark arrester screen.

CAUTION: If the spark arrester screen is blocked the product becomes too hot and this causes damage to the cylinder and piston.

AutoTune™

Your product has the AutoTune ^™ function that adjusts the carburetor automatically, which gives the best possible adjustment. AutoTune ^™ lets the engine adapt to weather conditions, altitude, gasoline and the type of two-stroke oil.

CAUTION: If AutoTune™ does not work correctly, speak to your servicing dealer. The product adjusts correctly after some fuelings.

To replace a broken or worn starter rope

1. Loosen the screws to the starter housing.
2. Remove the starter housing.

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

1. Pull out the starter rope approximately 30 cm/12 in and put it in the notch on the pulley.

Illustration of hands assembling or repairing a mechanical component with tools and components (no text or symbols visible)

1. Let the pulley rotate slowly rearward to release the recoil spring.

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

1. Remove the screw and washer (A) and remove the pulley (B).

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1. Hold the starter rope handle.

2. Pull the starter rope until 1 cm of the spring guide is shown. At the same time, press down the starter handle cover and remove it from the starter rope handle.

1 cm/0.5 in

Note: If the starter rope is broken in the starter rope handle, push the starter handle cover down. Use the combination wrench to remove the starter handle cover.

Technical line drawing of a handheld device with a lever and connector (no text or symbols)

1. Attach a new starter rope to the pulley. Wind the starter rope approximately 3 turns around the pulley.

2. Connect the pulley to the recoil spring. The end of the recoil spring must engage in the pulley.

3. Attach the screw to the center of the pulley.

4. Pull the starter rope through the hole in the starter housing, the starter rope handle and the spring guide.

5. Make a knot 1 cm/0.5 in (A) from the end of the starter rope.

6. Put the rope end or the starter rope parallel to the knot.

7. Push down the knot into position in the spring guide (B).

1 cm/0.5 in A B

1. Pull the starter rope until 1 cm of the spring guide is shown. At the same time, assemble the starter handle cover.

1 cm/0.5 in

To tighten the recoil spring

1. Put the starter rope into the notch in the pulley.
2. Turn the starter pulley approximately 2 turns clockwise.
3. Put your thumb on the pulley.
4. Pull the starter rope handle and pull out the starter rope fully.
5. Move your thumb and release the starter rope.
6. Make sure that you can turn the pulley 12 turn after the starter rope is fully extended.

Illustration of hands operating a mechanical device with no visible text or symbols

To assemble the starter housing on the product

1. Pull out the starter rope and put the starter in position against the crankcase.

2. Slowly release the starter rope until the pulley engages with the pawls.

3. Tighten the screws that hold the starter.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

To clean the air filter

Clean the air filter regularly from dirt and dust. This prevents carburetor malfunctions, starting problems, loss of engine power, wear to engine parts and more fuel consumption than usual.

1. Remove the air filter cover and the air filter.
2. Use a brush or shake the air filter clean. Use detergent and water to clean it fully.

Note: An air filter that is used for a long time can not be fully cleaned. Replace the air filter regularly and always replace a defective air filter.

1. Attach the air filter and make sure that the air filter seals tightly against the filter holder.

Technical line drawing of a mechanical device showing internal components and housing (no text or symbols)

Note: Because of different work conditions, weather or season, your product can be used with different types of air filter. Speak to your servicing dealer for more information.

To do a check of the spark plug

CAUTION: Use the recommended spark plug. Refer to Technical data on page 237. An incorrect spark plug can cause damage to the product.

1. If the product is not easy to start or to operate or if the product operates incorrectly at idle speed, examine the spark plug for unwanted materials. To decrease the risk of unwanted material on the spark plug electrodes, do these steps:
   a) make sure that the fuel mixture is correct. b) make sure that the air filter is clean.
2. Clean the spark plug if it is dirty.
3. Make sure that the electrode gap is 0.65 mm/0.026 in.

1. Replace the spark plug monthly or more frequently if necessary.

To sharpen the saw chain

Information about the guide bar and saw chain

WARNING: Use protective gloves when you use or do maintenance on the saw chain. A saw chain that does not move can also cause injuries.

Replace a worn or damaged guide bar or saw chain with the guide bar and saw chain combination recommended by Husqvarna. This is necessary to keep the safety functions of the product. Refer to Accessories on page 238, for a list of replacement bar and chain combinations that we recommend.

- Guide bar length, in/cm. Information about the guide bar length can usually be found on the rear end of the guide bar.

Simple line drawing of a cylindrical object with a downward arrow and internal structure (no text or symbols)

• Number of teeth on bar tip sprocket (T).

- Chain pitch, in. The distance between the drive links of the saw chain must align with the distance of the teeth on the bar tip sprocket and drive sprocket.

PITCH = D/2 D

• Number of drive links. The number of drive links is decided by the type of guide bar.

Pure mechanical linkage diagram without any text, numbers, or symbols

- Bar groove width, in/mm. The groove width in guide bar must be the same as the chain drive links width.

Diagram showing a vertical tube with directional arrows and a curved object with labeled points (no text or symbols present)

- Chain oil hole and hole for chain tensioner. The guide bar must align with product.

Pure diagram of a mechanical component with arrows indicating direction (no text or symbols)

- Drive link width, mm/in.

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

General information about how to sharpen the cutters

Do not use a blunt saw chain. If the saw chain is blunt, you must apply more pressure to push the guide bar through the wood. If the saw chain is very blunt, there will be no wood chips but sawdust.

A sharp saw chain eats through the wood and the wood chips becomes long and thick.

The cutting tooth (A) and the depth gauge (B) together makes the cutting part of the saw chain, the cutter. The difference in height between the two gives the cutting depth (depth gauge setting).

A B

When you sharpen the cutter, think about the following:

- Filing angle.

Technical line drawing of a mechanical tool with two views: one showing a curved arrow and the other showing a diagonal bar (no text or symbols)

- Cutting angle.

Pure mechanical diagram showing a gear or cam mechanism with no text, numbers, or symbols

- File position.

Line drawing of a tool with a handle and screwdriver (no text or symbols)

- Round file diameter.

Simple line drawing of a dropper with a handle and a small symbol (no text or labels)

It is not easy to sharpen a saw chain correctly without the correct equipment. Use Husqvarna file gauge. This will help you to keep maximum cutting performance and the kickback risk at a minimum.

WARNING: The force of the kickback increases a lot if you do not follow the sharpening instructions.

Note: Refer to To sharpen the cutters on page 231 for information about sharpening of the saw chain.

To sharpen the cutters

1. Use a round file and a file gauge to sharpen the cutting teeth.

Three line drawings of mechanical components: a pipette, a plastic bag, and a textured device (no text or symbols)

Note: Refer to Filing equipment and filing angles on page 239 for information about which file and gauge that Husqvarna recommends for your saw chain.

1. Apply the file gauge correctly on to the cutter. Refer to the instruction supplied with the file gauge.
2. Move the file from the inner side of the cutting teeth and out. Decrease the pressure on the pull stroke.

Mechanical assembly diagram showing a clamp or bracket with diagonal hatching and mounting holes (no text or symbols)

1. Remove material from one side of all the cutting teeth.

2. Turn the product around and remove material on the other side.

3. Make sure that all cutting teeth are the same length.

General information about how to adjust the depth gauge setting

The depth gauge setting (C) decreases when you sharpen the cutting tooth (A). To keep maximum cutting performance you must remove filing material from the depth gauge (B) to receive the recommended depth gauge setting. See Filing equipment and filing angles on page 239 for instructions about how to receive the correct depth gauge setting for your saw chain.

A B C

WARNING: The risk of kickback increases if the depth gauge setting is too large!

To adjust the depth gauge setting

Before you adjust the depth gauge setting or sharpen the cutters, refer to To sharpen the cutters on page 231, for instructions. We recommend you to adjust the depth gauge setting after each third operation that you sharpen the cutting teeth.

We recommend that you use our depth gauge tool to receive the correct depth gauge setting and bevel for the depth gauge.

Two mechanical tools: a flat tool and a clamped tool (no text or symbols visible)

1. Use a flat file and a depth gauge tool to adjust the depth gauge setting. Only use Husqvarna depth gauge tool to get the correct depth gauge setting and bevel for the depth gauge.

2. Put the depth gauge tool on the saw chain.

Note: See the package of the depth gauge tool for more information about how to use the tool.

1. Use the flat file to remove the part of the depth gauge that extends through the depth gauge tool.

Pure mechanical diagram showing a tool interacting with a gear (no text or symbols)

To adjust the tension of the saw chain

WARNING: A saw chain with an incorrect tension can come loose from the guide bar and cause serious injury or death.

A saw chain becomes longer when you use it. Adjust the saw chain regularly.

1. Loosen the bar nuts that hold the clutch cover/chain brake. Use a wrench.

Line drawing of a chain saw with a lever and blade (no text or symbols)

Note: Some models have only one bar nut.

1. Tighten the bar nuts by hand as tightly as you can.
2. Lift the front of the guide bar and turn the chain tensioning screw. Use a wrench.
3. Tighten the saw chain until it is tight against the guide bar but still can move easily.

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

1. Tighten the bar nuts using the wrench and lift the front of the guide bar at the same time.
2. Make sure you can pull the saw chain around freely by hand and that it does not hang from the guide bar.

Illustration of two hands holding a curved object with directional arrows indicating motion (no text or symbols)

Note: Refer to Product overview on page 203 for the position of the chain tensioning screw on your product.

To do a check of the saw chain lubrication

1. Start the product and let it operate at 34 throttle. Hold the bar approximately 20 cm/8 in above a surface of light color.
2. If the saw chain lubrication is correct, you see a clear line of oil on the surface after 1 minute.

Illustration of a worker using a power saw to cut tree bark with a downward arrow (no text or symbols)

1. If the saw chain lubrication does not operate correctly, do a check of the guide bar. Refer to To do a check of the guide bar on page 233 for instructions. Speak to your servicing dealer if the maintenance steps does not help.

To do a check of the spur sprocket

The clutch drum has a spur sprocket that is welded on the clutch drum.

- Regularly do a visual check of the degree of wear on the spur sprocket. Replace the clutch drum with the spur sprocket if there is too much wear.

To lubricate the needle bearing

1. Pull the front hand guard rearward to disengage the chain brake.
2. Loosen the bar nuts and remove the clutch cover.

Note: Some models have only one bar nut.

1. Put the product on a stable surface with the clutch drum up.

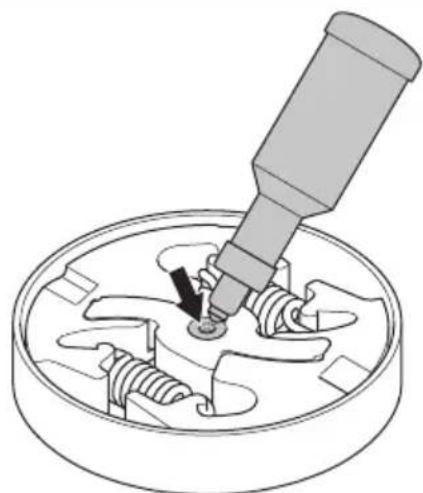

2. Lubricate the needle bearing with a grease gun. Use engine oil or a bearing grease of high quality.

Mechanical assembly diagram showing a tool inserted into a circular component with internal gears and a central hub (no text or symbols)

To examine the cutting equipment

1. Make sure that there are no cracks in rivets and links and that no rivets are loose. Replace if it is necessary.

Mechanical assembly diagram showing two stages of a chain connection (no text or labels)

1. Make sure that the saw chain is easy to bend. Replace the saw chain if it is rigid.

2. Compare the saw chain with a new saw chain to examine if the rivets and links are worn.

3. Replace the saw chain when the longest part of the cutting tooth is less than 4 mm/0.16 in. Also replace the saw chain if there are cracks on the cutters.

Pure geometric diagram showing a rectangle and a curved shape with a double-headed arrow indicating width (no text or symbols)

To do a check of the guide bar

1. Make sure that the oil channel is not blocked. Clean if it is necessary.

1. Examine if there are burrs on the edges of the guide bar. Remove the burrs using a file.

Illustration of a pair of crossed tools with a magnified inset showing a cylindrical object (no text or symbols)

1. Clean the groove in the guide bar.

Line drawing of a hand holding a ruler or measuring tool (no text or symbols present)

1. Examine the groove in the guide bar for wear. Replace the guide bar if it is necessary.

M ×

1. Examine if the guide bar tip is rough or very worn.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

1. Make sure that the bar tip sprocket turns freely and that the lubricating hole in the bar tip sprocket is not blocked. Clean and lubricate if it is necessary.

Line drawing of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

1. Turn the guide bar daily to extend its life cycle.

Simple line drawing of a tool handle with an arrow indicating direction (no text or symbols)

To do maintenance on the fuel tank and the chain oil tank

• Drain and clean the fuel tank and the chain oil tank regularly.
• Replace the fuel filter yearly or more frequently if necessary.

CAUTION: Contamination in the tanks causes malfunction.

To adjust the chain oil flow

WARNING: Stop the engine before you make adjustments to the oil pump.

1. Turn the adjustment screw for the oil pump. Use a screwdriver or combination wrench.

a) Turn the adjustment screw clockwise to decrease the chain oil flow.
b) Turn the adjustment screw counterclockwise to increase the chain oil flow.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Air cleaning system

AirInjection™ is a centrifugal air cleaning system that removes dust and dirt before the particles are caught by

the air filter. AirInjection ^™ extends the life of the air filter and the engine.

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

To clean the cooling system

The cooling system keeps the engine temperature down. The cooling system includes the air intake on the starter (A), the pawls on the flywheel (B), the cooling fins on the cylinder (C), the cooling channel (D) and the cylinder cover (E).

Technical diagram of a car body with labeled parts A, B, C, D, and E, showing internal components and structural details.

1. Clean the cooling system with a brush weekly or more frequently if it is necessary.

2. Make sure that the cooling system is not dirty or blocked.

CAUTION: A dirty or blocked cooling system can make the product too hot, which can cause damage to the product.

Troubleshooting

The engine does not start

Product part to examine Possible cause Action
Starter pawls The starter pawls are blocked. Adjust or replace the starter pawls.
	Clean around the pawls.
	Speak to an approved service work-shop.

Product part to examine Possible cause	Action
Fuel tank Incorrect fuel type. Drain the	fuel tank and fill with cor-	rect fuel.
	The fuel tank is filled with chain oil. If you have tried to start the product, speak to your servicing dealer. If you have not tried to start the product, drain the fuel tank.
Ignition, no spark The spark plug is dirty or wet. Make sure that the spark plug is dry and clean.
Spark plug and cylinder The spark plug is loose. Tighten the spark plug.
		Engine is flooded because of repeated starts with start position after ignition.
		Remove and clean the spark plug. Put the product on its side with the spark plug hole away from you. Pull the starter rope handle 6-8 times. Assemble the spark plug and start the product. Refer to To start the product on page 217.

The engine starts but stops again

Product part to examine	Possible cause Action
Fuel tank Incorrect fuel type. Drain the	fuel tank and fill with cor-	rect fuel.
Carburetor The idle speed is not correct.	Speak to your servicing dealer.
Air filter Clogged air filter. Clean or replace the air filter.
Fuel filter Clogged fuel filter. Replace the fuel filter.

Transportation and storage

Transportation and storage

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.
  • Always use approved containers for storage and transportation of fuel.
• Empty the fuel and chain oil tanks before transportation or before long-term storage. Discard

the fuel and chain oil at an applicable disposal location.

• Use the transportation guard on the product to prevent injuries or damage to the product. A saw chain that does not move can also cause serious injuries.
• Remove the spark plug cap from the spark plug and engage the chain brake.
• Attach the product safely during transportation.

To prepare your product for long-term storage

1. Stop the product and let it become cool before you disassemble it.
2. Disassemble and clean the saw chain and the groove in the guide bar.

CAUTION: If the saw chain and guide bar are not cleaned, they can become rigid or blocked.

1. Attach the transportation guard.
2. Clean the product. Refer to Maintenance schedule on page 224 for instructions.
3. Do a complete servicing of the product.

Technical data
Technical data

	540XP Mark III
Engine
Cylinder displacement, cm^3	39.1
Cylinder bore, ∅ mm 40
Stroke length, mm 31.1
Idle speed, rpm 3000
Maximum engine power acc. to ISO 7293, kW/hp @ rpm 1	.9/2.6 @ 10500
Ignition system ^21
Spark plug NGK CMR7H
Electrode gap, mm 0.65
Fuel and lubrication system
Fuel tank capacity, liter/ cm^3	0.37/370
Oil tank capacity, liter/ cm^3	0.23/230
Type of oil pump Adjustable
Weight
Weight, kg 4.1
Noise emissions ^22
Sound power level, measured dB(A) 111
Sound power level, guaranteed LWA dB(A) 112
Sound levels ^23
Equivalent sound pressure level at the operator's ear, dB(A)	103
Equivalent vibration levels, a_hveq^24
Front handle, m/s ^2	3.7
Rear handle, m/s ^2	5.1
Saw chain/guide bar
Type of drive sprocket/number of teeth 3/8" Spur/6, 0.325"	Spur7
Saw chain speed at 133% of maximum engine power speed, m/s.	26.6, 26.9

Accessories

Recommended cutting equipment

Chainsaw models Husqvarna 540XP Mark III have been evaluated for safety according to EN ISO 11681-1:2011 (Machinery for forestry - Portable chainsaw safety requirements and testing) and fulfill the safety requirements when equipped with the below listed guide bar and saw chain combinations.

Low kickback saw chain

A saw chain that is designated as Low kickback saw chain, meets the low kickback requirement specified in ANSI B175.1-2012.

Kickback and guide bar nose radius

For sprocket nose bars the nose radius is specified by the number of teeth, such as 10T. For solid guide bars the nose radius is specified by the dimension of the nose radius. For a given guide bar length, you can use a guide bar with smaller nose radius than given.

Note: The usable cutting length is usually 1 in less than the nominal guide bar length.

Approved cutting equipment - 540XP Mark III
Guide bar Saw chain
Length, in/cm	Pitch, in Gauge, in	/mm Max. nose	radius	Type Length, drive links (no.)		Low kickback
12/30 3/8 0.050	/1.3 9T Husqvarna			S93G	45 Yes
14/35 52
16/40 56
12/30 0.325 mini	0.043/1.1 8T Husqvarna			SP21G	51 Yes
14/35 59
16/40 64

Pixel

Pixel is a guide bar and saw chain combination that is more light weight and designated to offer more energy

efficient use by cutting narrow cuts. Both guide bar and saw chain need to be Pixel to get these benefits. Pixel cutting equipment is marked with this symbol.

Filing equipment and filing angles

Use a Husqvarna file gauge to sharpen the saw chain. A Husqvarna file gauge makes sure that you get the correct filing angles. The part numbers are given in the table below.

If you are not sure how to identify the type of saw chain on your product, refer to www.husqvarna.com for more information.

	[###]
S93G	5/32 in / 4.0 mm	587 80 90-01	0.025 in / 0.65 mm	30° 60°	21 0°			587 80 67-01
SP21G	5/32 in / 4.0 mm	595 00 47-01	0.025 in / 0.65 mm	30° 60°	21 0°			595 00 46-01

Declaration of Conformity

EU Declaration of conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Chainsaw	for forest service
Brand Husqvarna
Type / Model 540XP Mark III
Identification Serial numbers dating from 2022 and onwards

complies fully with the following EU directives and regulations:

Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU "relating to electromagnetic compatibility"
2000/14/EC "relating to the noise emissions in the environment"
2011/65/EU "on the restriction of the use of certain hazardous substances in electrical and electronic equipment"

and that the following standards and/or technical specifications are applied: EN ISO 12100:2010, EN ISO 14982:2009, EN ISO 11681-1:2011, EN-IEC 63000:2018..

Certificate Number: 0404/22/2570.

Notified Body: 0404, RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden has carried out EC type examination in accordance with the machinery directive's (2006/42/EC) article 12, point 3b, annex IX on behalf of Husqvarna AB.

For information relating to noise emissions, refer to Technical data on page 237.

Huskvarna, 2022-09-17

Shut = John's

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Responsible for technical documentation

UK Declaration of conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:

[phone], declare on our sole responsibility that

the product:

Description Chainsaw for forest service
Brand Husqvarna
Type / Model 540XP Mark III
Identification Serial numbers dating from 2022 and onwards

complies fully with the following UK regulations:

Description

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 8

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

and that the following standards and/or technical specifications are applied: EN ISO 12100:2010, EN ISO 14982:2009, EN ISO 11681-1:2011, EN-IEC 63000:2018..

For information relating to noise emissions, refer to Technical data on page 237.

Huskvarna, 2022-09-17

Shut = John's

Stefan Holmberg, R&D Director, Technology

Management, Husqvarna AB

Responsible for technical documentation

UK Importer:

Husqvarna UK Ltd

Preston Road, Co. Durham

DL5 6UP

Innehåll

Introduktion.... 242
Säkerhet.... 245
Montering....252
Husqvarna-uppkopplingsenhet.... 252
Drift.... 254
Underhåll.... 264

Technical diagram of a chain-link robotic device with numbered parts for identification and assembly reference.

Simple line drawing of a crossed-out saw with a diagonal line through it, no text or symbols present.

Prohibition sign showing a worker on a ladder against a pole, indicating no labor or safety restrictions.

Illustration of a person using a power tool to cut wood or wood fragments with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with two hands operating it (no text or symbols)

Prohibition sign showing a person walking under a tree with no text or symbols

Diagram showing a person falling off a tree with a diagonal line, indicating no movement or restriction.

Safety warning symbol showing a device crossed out with a crossed-out smoke, indicating no hazard or absence of smoking.

Prohibition sign showing a worker climbing a rope using a ladder, enclosed in a circle (no text or symbols)

Illustration of a worker cutting wood with a saw, showing motion direction (no text or symbols)

Illustration of a hand operating a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person walking away from a tree with leaves, enclosed in a circle

Diagram showing a person climbing a tree with a diagonal line indicating no movement, enclosed in a circle.

Illustration of a person wearing full-body mask and safety harness standing next to first aid kit, fire extinguisher, and shovel (no text or symbols)

Line drawing of a manual chain saw with motion arrow indicating clockwise motion (no text or symbols)

Dödmansgrepp

Line drawing of a chain saw tool and its magnified view showing the blade assembly (no text or symbols)

Högerhandsskydd

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Avvibreringssystem

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a medical device with a bulb inserted into a stack of layers (no text or symbols)

Ljuddämpare

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Bränslesäkerhet

Min. 3 m (10 ft)

Simple line drawing of a U-shaped object with circular holes and a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a prohibition symbol over a grid of labeled points, likely indicating a restriction or prohibition in a technical or mathematical context.

Simple line drawing of a droplet falling from a container (no text or symbols)

Montering

Introduktion

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Installera Husqvarna connectivity device

Diagram of a car interior showing a hand using a tool to adjust the dashboard panel, with no visible text or symbols.

Technical line drawing of a car engine compartment showing internal components and a highlighted connector (no text or symbols)

1. Montera Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine's cable (no text or labels)

1. Montera anslutningen på Husqvarna connectivity device.

Technical line drawing of a car engine compartment showing handle, valve, and gear (no text or symbols)

Diagram of a car interior showing hand positioning, screwdriver insertion, and dashboard placement (no text or symbols)

Husqvarna Fleet Services™

Diagram illustrating fuel injection and prohibition symbols for gas collection

Illustration of a uniformed officer holding an object, no text or symbols present

Simple black-and-white icon showing a droplet and a fuel pump with a plus sign (no text or symbols)

Abstract black-and-white graphic of a droplet above a stylized mask (no text or symbols)

Diagram illustrating a hazard warning with a person falling off a slope, showing hazard symbol and directional arrows.

Illustration of a person in protective gear using a tool to lift a cylindrical object, with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating motion or force (no text or symbols)

Technical diagram showing car seatbelt components labeled A and B with directional arrows indicating movement or force.

Illustration of a person using a chainsaw to cut the chain, showing motion direction (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual car hood with a curved blade and arrow indicating motion (no text or symbols)

1. Använd produkten.

Stänga av produkten

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Line drawing of a chain mill with a gear and blade, showing motion direction (no text or symbols)

Line drawing of a manual saw cutting process with motion arrows indicating cycle (no text or symbols)

Diagram illustrating a chain-linking process with warning sign and chainsaw mechanism

Använda sågteknik

Illustration of two workers handling stacked logs, one holding a tool and the other standing with a log (no text or symbols)

Diagram of a manual tool interacting with a circular object, showing motion direction (no text or symbols)

Safety warning illustration showing a chain saw cutting down a gear with warning symbol and downward arrow

Diagram illustrating the step-by-step installation of a chain saw, showing cutting process with labeled steps 1 and 2.

Illustration of a landslide with a lightning bolt, warning sign, and water surface (no text or symbols)

Diagram showing three steps of a chain saw tool: cutting, rolling, and tree ringing with labeled arrows.

Simple line drawing of a car with warning symbols indicating hazard (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and opening with arrows indicating process.

Illustration of a hand using a belt buckle to lift a car, showing the angle of motion (no text or symbols present)

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a tree to spray or spray over a fallen log, with no text or symbols present.

Illustration of a person holding a magnifying glass with a crossed-out circle, no text or symbols present

Illustration showing a worker using a pulley to lift a tree, with directional arrows indicating force or movement.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Göra riktskären

Diagram illustrating a tree clearing operation with labeled steps 1 and 2, showing tool path and tree structure changes.

Diagram showing a tree with two branches and directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a chain with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

Technical line drawing of a mechanical component with a circular head and internal structure (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and a base, showing internal layered structure (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Diagram showing a circular structure transforming into a triangular structure with a hanging object (no text or symbols)

Diagram illustrating two scenarios of a person using a tree, with one scenario showing no restrictions and the other showing no restrictions.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Portabel

Simple line drawing of a mechanical lever system with no text or symbols

Diagram showing a curved path with a ball and directional arrow, no text or symbols present

Diagram of a mechanical or structural system with arrows indicating direction, no text or symbols present

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Diagram showing a cross-section of layered geological strata with an upward arrow indicating a specific feature (no text or labels present)

Diagram of a curved structure with arrows indicating direction, no text or symbols present

Underhåll

Introduktion

Simple line drawing of a rope or rope loop with an arrow indicating direction (no text or symbols)

Illustration of a person using a car seatbelt device (no text or symbols visible)

Illustration of a person using a power saw to cut tree bark (no text or symbols)

Illustration of a person using a saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical tool or bracket with an arrow indicating motion direction (no text or symbols)

Technical line drawing of a chain saw tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Kontrollera avvibreringssystemet

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Kontrollera Ijuddämparen

Line drawing of a car's seatbelt mechanism with three circular buttons and arrows indicating fastening or adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a detached housing (no text or symbols)

Illustration of hands assembling electronic components with a tool and battery (no text or symbols)

Diagram of a mechanical device with a hand operating it, showing internal components and wiring (no text or symbols)

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and wiring.

1 cm/0.5 in

Diagram of a medical or laboratory device with a central connector and two connectors, showing directional arrows (no text or symbols)

1 cm/0.5 in

Spänna returfjädern

Line drawing of hands operating a mechanical device with no visible text or symbols

Montera startapparathuset på produkten

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Rengöra luftfiltret

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded shaft and mounting holes (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and internal oval feature (no text or symbols)

- Antal tänder i noshjulet (T).

Simple line drawing of a chain with a star-like pattern inside, no text or symbols present.

PITCH = \u00b7\u221a/2 D

Diagram showing a mechanical component with a shaft and a curved blade, no text or symbols present

Pure diagram of a mechanical component with two arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical part with a vertical dimension line and directional arrow (no text or symbols)

Technical line drawing of a mechanical tool with a curved component and a diagonal tool (no text or symbols)

- stötvinkeln

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- filläget

Line drawing of a screwdriver holding a lever with a central pivot (no text or symbols)

- rundfilens diameter.

Simple line drawing of a dropper with a small symbol (no text or labels)

Three line drawings of mechanical components: a pointer tool, a plastic component, and a connector (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

Two mechanical tools: a flat tool and a clamped device (no text or symbols visible)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a chainsaw with a lever and gear mechanism (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating movement (no text or symbols)

Illustration of a person using a power tool to clean tree stumps (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Kontrollera skärutrustningen

Mechanical assembly diagram showing two stages of a chain with arrows indicating motion (no text or labels)

Pure geometric diagram showing a rectangle and a curved shape with an arrow indicating direction (no text or symbols)

Kontrollera svärdet

Illustration of a pair of sawes with a magnified inset showing a cylindrical object (no text or symbols)

Line drawing of hands holding a tool, no text or symbols present

Two abstract geometric symbols: a V-line and a X symbol, likely representing stylized letters or shapes.

Simple line drawing of a tool with two crossed X marks and downward arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with a circular arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or blade with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Luftreningssystem

Technical line drawing of a chain-linking device with gear and housing (no text or symbols)

Så rengör du kylsystemet

Technical diagram of a car body with labeled parts A, B, C, D, and E, showing internal components and structural details.

Shut = Hulam

Stefan Holmberg, R&D Director, Technology

Management, Husqvarna AB

Technical diagram of a chain-link robotic device with numbered parts and exploded view, including open book, screwdriver, and gear assembly.

Safety warning symbol showing a crossed-out device with smoke and a hand holding a cigarette

Prohibition sign showing a worker climbing a rope using a ladder, enclosed in a circle (no text or symbols)

Illustration of a person using a tool to cut wood or wood fragments with a curved arrow indicating motion (no text or symbols)

Illustration of a hand operating a mechanical device with no visible text or symbols

Prohibition sign showing a person cutting tree with a crossed-out circle

Safety warning symbol showing a person falling off a tree with a diagonal line indicating no obstruction

Simple line drawing of a crossed-out saw with a diagonal line and smoke, no text or symbols present.

Prohibition sign showing a worker on a ladder against a pole, enclosed in a circle (no text or symbols)

Illustration of a person using a saw to cut metal beams, with an arrow indicating the motion (no text or symbols present)

Illustration of a mechanical device with two hands operating it (no text or symbols visible)

Prohibition sign showing a person walking under a tree with crossed-out branches, indicating no intervention or absence of intervention.

Diagram showing a person falling off a tree with a diagonal line indicating prohibition or restriction.

Illustration showing a person wearing a full-body mask, first aid kit, fire extinguisher, and shovel.

Simple line drawing of a manual tool with a curved handle and motion arrow (no text or symbols)

Turvaliipaisimen varmistin

Diagram of a chain-linking device with labeled parts A and B (no text or symbols beyond labels)

Ketjusieppo

Technical line drawing of a hairpin tool with an inset showing the same blade assembly (no text or symbols)

Rystyssuojus

Technical line drawing of a mechanical component or bracket (no text or symbols)

Tärinänvaimennus

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a medical device with tubing and a bulb (no text or symbols)

Äänenvaimennin

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Technical line drawing of a mechanical component with a dimension arrow (no text or symbols)

Diagram showing a prohibition symbol over layered structures with numerical labels and shaded bands

Simple line drawing of a droplet falling from a container with two circular holes (no text or symbols)

Asentaminen

Johdanto

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Technical illustration of a car engine compartment showing tool, valve, and adjustment knob (no text or symbols)

1. Irrota liitin.

Technical line drawing of a car engine compartment showing internal components and a highlighted connector (no text or symbols)

1. Asenna Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine's internal structure (no text or symbols)

1. Asenna liitin osaan Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a hand interacting with the valve (no text or labels)

Diagram of a car interior showing hand positioning, valve, and screwdriver (no text or symbols)

Husqvarna Fleet Services™

Diagram illustrating fuel injection and prohibition symbols for gas collection

Illustration of a uniformed officer holding an object, no text or symbols present

Simple black-and-white icon showing a droplet and a fuel pump with a plus sign (no text or symbols)

Abstract black silhouette of a mask with a droplet above it (no text or symbols)

Diagram illustrating a hazard warning mechanism with a person inside a triangle and a gear mesh below, showing directional arrows.

Illustration of a person in protective gear using a tool to lift a hose (no text or symbols)

Diagram of a manual tool emitting a curved arrow, no text or symbols present

Technical diagram showing car seatbelt connection with labeled parts A and B

Illustration of a worker using a chain-linking power tool (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual car hood with a curved blade and arrow indicating motion (no text or symbols)

1. Käytä tuotetta.

Line drawing of a chainsaw with an inset showing a person in a box (no text or symbols)

Illustration of a hand using a chain mill to cut a circular saw (no text or symbols present)

Line drawing of a manual saw cutting a block with motion arrows indicating direction (no text or symbols)

Diagram illustrating a hazard warning mechanism with chains, chains, and a chain cutter tool.

Illustration of two workers handling large logs, one holding a tool and the other carrying stacked logs (no text or symbols)

Diagram of a mechanical tool interacting with a circular component, showing motion direction (no text or symbols)

Warning symbol and diagram showing a chainsaw crushing a fallen object with warning triangle

Diagram illustrating a chain saw tool and its circular components, labeled with step numbers 1 and 2.

Illustration of a landslide with a lightning bolt and warning triangle (no text or symbols)

Diagram showing a chain saw with labeled parts and arrows indicating motion or assembly steps

Illustration of a vehicle with a lock and warning symbol, no text or labels present

Diagram showing a chain saw tool with three labeled steps: cutting, cross-section, and tree ring opening.

Illustration of a hand gripping a car seatbelt with a tool, showing no text or symbols

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a hand using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a tree to spray or spray over a fallen log, with no text or symbols present.

Illustration of a magnifying glass over fire with smoke, no text or symbols present

Illustration showing a worker using a pulley system to lift a pole, with directional arrows indicating force or movement.

Diagram of concentric circular layers with a vertical axis and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing tool path and cutting direction.

Diagram showing a geological or structural interaction with arrows indicating direction of movement (no text or symbols present)

Simple line drawing of a chain with a handle and blade (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating motion or force direction (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with layered structure and internal components (no text or symbols)

Technical diagram of a mechanical component with a circular cross-section and internal layered structure (no text or symbols)

Diagram showing a circular structure transforming into a tree with a leaf and hanging leaves (no text or symbols)

Safety illustration showing two scenarios of tree pruning with no restrictions, one using a tool and the other without it.

Line drawing of a tractor pulling a tree with a lever (no text or symbols)

• Siirrettävä

Simple line drawing of a mechanical clamp or lever assembly (no text or symbols)

Simple line drawing of a curved path with a ball and a downward arrow, no text or symbols present

Diagram of a mechanical or fluid system with arrows indicating direction and circular components (no text or labels)

Diagram showing two layered geological or structural sections with wavy patterns and triangular features (no text or symbols)

Diagram showing a cross-section of a layered material with an upward arrow indicating direction (no text or symbols present)

Diagram of a curved structure with arrows indicating direction, no text or symbols present

Huolto

Johdanto

Simple line drawing of a loop with a curved handle and an arrow indicating direction (no text or symbols)

Illustration of a person using a car seatbelt device (no text or symbols visible)

Illustration of a person using a power manual to cut tree bark (no text or symbols)

Illustration of a person using a power manual to cut tree bark with a chainsaw (no text or symbols)

Line drawing of a chain-linking device with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical clamp or clip with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with a handle and arrow indicating motion (no text or symbols)

Line drawing of a chain-linking tool with a magnified inset showing the detail (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Line drawing of a car's front bumper with three circular buttons and arrows indicating adjustment points (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of hands assembling electronic components with tools and a mechanical component (no text or symbols)

Diagram of a hand operating a mechanical device with visible wiring and components (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Diagram of a medical or laboratory device with a central shaft and two connectors, showing directional arrows (no text or symbols)

1 cm/0.5 in

Palautusjousen kiristäminen

Illustration of hands assembling electronic components with no visible text or symbols

Line drawing of a hand using a tool to cut a saw (no text or symbols)

Technical line drawing of a mechanical device showing internal components and housing (no text or symbols)

Simple line drawing of a test tube with a downward arrow indicating compression or dislocation (no text or symbols)

Simple line drawing of a chain with a starburst symbol inside, no text or labels present.

PITCH = \frac{D}{2}

Technical line drawing showing a mechanical component with arrows indicating motion, alongside a simplified view of a handle (no text or symbols)

Pure diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical part with a vertical shaft and dimension arrows (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a curved arrow indicating rotation, the other showing a diagonal striped handle (no text or symbols)

• Leikkuukulma.

Simple line drawing of a mechanical component with curved arrows indicating motion (no text or symbols)

• Viilan asento.

Line drawing of a pair of scissors with a handle and base, no text or symbols present

Simple line drawing of a dropper with a handle and a small symbol (no text or labels)

Three line drawings of different household appliances: a pipette, a plastic bag, and a textured device (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a bracket and shaft (no text or symbols)

Two mechanical tools: a flat tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a chain saw with a lever and blade (no text or symbols)

Line drawing of a chainsaw with a hammer and screwdriver (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating movement (no text or symbols)

Illustration of a person in protective gear using a power tool to cut tree bark (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of a turning process with arrows indicating motion (no text or labels)

Pure geometric diagram showing a rectangle and a curved shape with dashed measurement lines (no text or symbols)

Diagram showing a tool interacting with a rectangular object, with no visible text or symbols.

Line drawing of a hand holding a tool, no text or symbols present

Two abstract geometric symbols: a V-line and a X-shape, likely representing stylized letters or shapes.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or plunger with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a chain-linking device with internal components and a separate close-up view (no text or symbols)

Technical diagram of a car airfoil with labeled parts A, B, C, D, and E

Shut = John's

Technical diagram of a chain-linking device with numbered parts for identification and assembly reference.

Safety warning symbol showing a diagonal line crossing a diagonal line with a smoke and tool, indicating no hazard or caution.

- Start aldri produktet innendørs. Vær bevisst på faren ved innånding av motorens avgasser.

Prohibition sign with silhouette of worker on ladder holding tools, enclosed in circle

Illustration of a worker using a tool to cut wood or debris with a curved arrow indicating motion (no text or symbols)

Illustration of a hand gripping a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person cutting tree with 'A' and 'B' labels, indicating no intervention or absence of any measures.

Diagram showing a person climbing a tree with a diagonal line indicating no movement, enclosed in a circle.

Safety warning symbol showing a device with smoke and a crossed-out bag, indicating no hazard or absence of any other safety feature.

- Start aldri produktet innendørs. Vær bevisst på faren ved innånding av motorens avgasser.

Prohibition sign with a worker climbing a ladder, crossed out by a diagonal line and no text present.

Illustration of a person cutting wood with a tool, showing a curved arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with two hands operating it (no text or symbols)

Prohibition sign showing a person crossed out of a tree with bare branches, indicating no protection or disinfection.

Simple line drawing of a person climbing a tree with a diagonal line (no text or symbols)

FIRST AID EHT

Line drawing of a manual chain saw cutting through a blade (no text or symbols)

Gassregulatorsperre

Technical line drawing of a chain-linking tool with an inset showing the same tool (no text or symbols present)

Høyrehåndsvern

Technical line drawing of a mechanical component (no text or symbols)

Avvibreringssystem

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Illustration of a medical device with tubing and a bulb (no text or symbols)

Lyddemper

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Drivstoffsikkerhet

Min. 3 m (10 ft)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Simple line drawing of a droplet falling from a container with two circular ports (no text or symbols)

Montering

Innledning

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

1. Jevnstill hullet i sverdet med kjedejusteringsbolten, og monter koplingsdekselet.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram of car air intake system showing valve, fan, and handle components (no text or labels)

1. Ta av koblingen.

Technical line drawing of a car engine compartment showing internal components and a highlighted connector (no text or symbols)

1. Monter Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine socket (no text or labels)

1. Monter koblingen på Husqvarna connectivity device.

Diagram of a car engine compartment showing hand operating valve and internal components (no text or labels)

Diagram of a car interior showing a hand operating the steering wheel and a valve, with no visible text or symbols.

Husqvarna Fleet Services™

Diagram illustrating fuel efficiency with a container pouring liquid into a fuel can, and prohibition symbols for no fuel.

Illustration of a person in historical attire holding an object, no text or symbols present

1. Fyll halve drivstoffmengden i en ren beholder for drivstoff.
2. Tilsett all oljen.
3. Rist drivstoffblandingen.
4. Fyll resten av bensinen på beholderen.
5. Rist drivstoffblandingen forsiktig.

OBS: Ikke bland drivstoff for mer enn én måned om gangen.

Slik fyller du drivstofftanken

Simple black-and-white icon showing a droplet and a fuel pump with a plus sign (no text or symbols)

Abstract black-and-white graphic with a droplet above a stylized mask-like shape (no text or symbols)

Diagram showing a warning sign with a person falling off a slope, indicating hazard or safety risk.

Illustration of a person in protective gear using a tool to lift a cylindrical object with an arrow indicating motion (no text or symbols)

Diagram of a manual tool emitting a curved blade or blade, with no text or symbols present.

Technical diagram showing car seatbelt components labeled A and B with directional arrows indicating movement or assembly.

Illustration of a worker using a chain-linking power tool (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual car hood with a curved blade and arrow indicating motion (no text or symbols)

1. Bruk produktet.

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Trekk- og skyvetak

Illustration of a hand using a chainsaw to cut a circular saw (no text or symbols present)

Line drawing of a manual chain saw cutting a tool with motion arrows indicating cutting speed (no text or symbols)

Diagram illustrating a hazard warning mechanism involving chains and a chain saw, with labeled warning symbols.

Illustration of two workers handling stacked logs, one holding a tool and the other holding a log stack (no text or symbols)

ADVARSEL: Ikke kapp stammer i en stabel. Det øker risikoen for kast og kan føre til alvorlig personskade eller død.

Diagram of a manual tool interacting with a circular object, showing motion direction (no text or symbols)

Diagram illustrating a chain saw cutting process with warning symbol and downward arrow indicating damage or failure

Diagram illustrating a chain repair process with labeled steps and arrows indicating material movement.

Kappe en stamme med støtte i den ene enden

Illustration of a landslide with a lightning bolt, a padlock, and an exclamation mark (no text or symbols)

Diagram showing a chain mill with labeled parts: top view, side view, and cross-section with numbered annotations.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing a chain saw tool with three labeled steps: cutting, rolling, and cutting through a circular cutter.

Illustration of a hand using a cable to lift a car, showing the angle of motion (no text or symbols present)

Illustration of a hand using a chainsaw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark, with a black arrow indicating the direction (no text or symbols present)

Illustration of a person spraying trees with a light source, surrounded by logs and branches (no text or symbols)

Slik beregner du fallretningen

Illustration of a magnifying glass over fire with smoke, no text or symbols present

Diagram illustrating a person using a lock mechanism to lift a vertical pole, with directional arrows indicating force or movement.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing tool path and cutting direction.

Diagram showing a tree trunk with a horizontal line and an arrow indicating direction, no text or symbols present.

Simple line drawing of a mechanical tool or bracket (no text or symbols)

Line drawing of a mechanical component with a circular base and curved handle (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and motion arrow (no text or labels)

Cross-sectional diagram of a mechanical or electrical component with layered structure and internal channels (no text or symbols)

Technical diagram of a mechanical component with internal channels and a directional arrow (no text or labels)

Diagram illustrating a mechanical or structural change with labeled components and directional arrows indicating movement.

Diagram illustrating two scenarios of a person using a tree, with one scenario showing no restrictions and the other showing no restrictions.

Line drawing of a tractor pulling a tree with a lever, no text or symbols present

• Bærbar

Simple line drawing of a mechanical clamp or lever system with no text or symbols

Simple line drawing of a curved path with a ball and scattered debris, no text or symbols present

Diagram of a mechanical or fluidic system with two curved surfaces, directional arrows indicating flow or movement, and circular elements at the base (no text or symbols present)

1. Lag ett eller flere kutt av den nødvendige dybden for å fjerne spenningen. Kutt i eller nær det maksimale spenningspunktet. Sørg for at treet eller greinen brekker i det maksimale spenningspunktet.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram showing airflow or particle movement between two curved surfaces with arrows indicating direction (no text or symbols)

Simple line drawing of a rope tied with a loop, showing rope routing and directional arrows (no text or symbols)

Illustration of a person using a car seatbelt device (no text or symbols visible)

1. Hold produktet med begge hender over en stubbe eller en annen stabil overflate.

Illustration of a person using a power saw to cut tree bark (no text or symbols)

Illustration of a person using a saw to cut tree bark (no text or symbols)

1. Kontroller at kjedebremsen kobles inn idet sverdspissen treffer stubben.

Kontrollere kjedebremsen

1. Start produktet. Se Slik starter du produktet på side 334 for instruksjoner.

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical clamp or clip with an arrow indicating motion direction (no text or symbols)

1. Kontroller at gassregulatoren er låst i tomgangsstillingen när gassregulatorsperren slippes.

Line drawing of a manual chain saw with a black arrow indicating motion direction (no text or symbols)

Technical line drawing of a chain saw tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Slik kontrollerer du avvibreringssystemet

Line drawing of a chainsaw with a magnified inset showing a small object (no text or symbols)

Slik kontrollerer du lyddemperen

Line drawing of a car's front bumper with two buttons and arrows indicating adjustment (no text or symbols)

1. Hvis produktet ditt har et spesielt gnistfangernett, må du rengjøre gnistfangernettet ukentlig.

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of hands operating a mechanical device with tools and components (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and wiring.

1. Hold håndtaket på startsnoren.

2. Trekk i startsnoren til 1 cm av fjærskinnen vises. Samtidig trykker du ned på starchåndtaksdekselet og fjerner det fra startsnorhåndtaket.

1 cm/0.5 in

Merk: Hvis startsnoren er ødelagt i startsnorhändtaket, skyver du starchändtaksdekselet ned. Bruk kombinasjonsnøkkelen til å fjerne starchändtaksdekselet.

Technical line drawing of a handheld device with a lever and connector (no text or symbols)

1. Fest en ny startsnor til snorhjulet. Surr startsnoren ca. tre omdreininger rundt snorhjulet.

2. Koble snorhjulet til returfjæren. Enden av returfjæren må kobles til snorhjulet.

3. Fest skruen til midten av snorhjulet.

4. Trekk i startsnoren gjennom hullet i startmotorhuset, startsnorhåndtaket og fjærskinnen.

5. Lag en knute 1 cm / 0,5 tommer (A) fra enden av startsnoren.
6. Plasser enden av snoren eller startsnoren parallelt med knuten.
7. Skyv knuten nedover og på plass i fjærskinnen (B).

1 cm/0.5 in A

Diagram of a mechanical component with a spring and threaded shaft, labeled B (no text or symbols on the diagram itself)

1. Trekk i startsnoren til 1 cm av fjærskinnen vises. Samtidig monterer du starthåndtaksdekselet.

1 cm/0.5 in

Stramme returfjæren

1. Fest startsnoren i hakket i snorhjulet.
2. Vri snorhjulet ca. to omdreininger med klokken.
3. Plasser tommelen på snorhjulet.

4. Trekk i startsnorhåndtaket, og dra startsnoren helt ut.

5. Flytt tommelen, og slipp startsnoren.

6. Sørg for at du kan dreie snorhjulet ½ omdreining när startsnoren er trukket helt ut.

Illustration of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a car interior showing internal components and structural details (no text or symbols)

Technical line drawing of a spark plug with threaded shaft and mounting base (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and internal oval shape (no text or symbols)

- Antall tenner i nesehjulet (T).

Simple line drawing of a chain with a star-shaped gear-like shape inside (no text or symbols)

- Kjededeling, tommer. Avstanden mellom drivlenkene til sagkjedet må stemme med avstanden til tennene på sverdets nesehjul og drivhjulet.

PITCH = D/2 D

Diagram showing a mechanical component with an arrow indicating direction, alongside a separate view of a slide-like object (no text or symbols present)

Simple line drawing of a tool or component with two arrows indicating direction (no text or symbols)

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a curved cut and rotation arrow, the other showing a diagonal grooved handle (no text or symbols)

- støtvinkel

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- filstilling

Line drawing of a screwdriver holding a lever and connecting pin (no text or symbols)

- rundfildiameter

Simple line drawing of a dropper with a small symbol (no text or labels)

Three line drawings of mechanical parts: a pipette, a plastic bag, and a segmented device (no text or symbols)

Mechanical assembly diagram showing a clamp or bracket with hatched pattern, no text or symbols present

Two mechanical tools: a radial tool and a clamped device (no text or symbols visible)

Technical line drawing of a mechanical tool or connector assembly (no text or symbols)

Line drawing of a chain saw with a lever and gear (no text or symbols)

Line drawing of a chainsaw with a hammer and gear, showing blade and handle (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating motion (no text or symbols)

Illustration of a person in protective gear using a saw to cut tree bark with a downward arrow (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of tooling or machining process (no text or symbols)

Pure geometric diagram showing a rectangular shape with a curved cutout and a dashed line indicating a dimension (no text or symbols)

Slik kontrollerer du sverdet

Simple line drawing of a switch handle with a black arrow pointing downward (no text or symbols)

Diagram showing a tool interacting with a vertical object, with no visible text or symbols

Line drawing of a hand holding a tool, no text or symbols present

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a tool handle with an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Luftrensesystem

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Technical diagram of a car dashboard with labeled parts A, B, C, D, and E

Shut = John's

Technical diagram of a chain-linking device with numbered parts for identification and assembly reference.

Safety warning symbol showing a crossed-out device with smoke and a plug, indicating no hazard or absence of any text.

Prohibition sign showing a worker climbing a ladder against a circular background (no text or symbols)

Illustration of a person using a saw to cut wood or metal, with an arrow indicating the process (no text or symbols present)

Simple line drawing of a mechanical device with no text or symbols

Prohibition sign showing a person cutting tree with a crossed-out circle and leafy branches

Diagram showing a person falling off a tree with a prohibition symbol, indicating no movement or restriction.

Safety warning symbol showing a crossed-out manual with smoke and a tool, indicating no hazard or caution.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with no text.

Illustration of a person using a saw to cut metal beams, with an arrow indicating the motion (no text or symbols present)

Illustration of a mechanical device with two hands operating it, no text or symbols present

Prohibition sign showing a person walking under a tree with 'No' symbol and leafy branches

Simple line drawing of a person climbing a tree with a diagonal line (no text or symbols)

Illustration showing a person in full safety gear with first aid kit, fire extinguisher, and shovel, all labeled in Chinese.

Line drawing of a manual car hood with a curved blade and arrow indicating motion (no text or symbols)

Diagram of a chain-linking device with labeled parts A and B (no text or symbols beyond labels)

Attrape-chaîne

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a medical device with tubing and a bulb (no text or symbols)

Silencieux

Technical line drawing of a mechanical component with mounting holes and internal features (no text or symbols)

Sécurité carburant

Min. 3 m (10 ft)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Technical line drawing of a mechanical component with a U-shaped groove and circular holes, no text or symbols present.

Diagram showing a prohibition symbol over layered structures with numerical labels and shaded bands

Simple line drawing of a droplet falling from a container with two circular holes (no text or symbols)

Montage

Introduction

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram of a car interior showing engine compartment, fan, and tool (no text or symbols)

Diagram of a car engine compartment showing internal components and a highlighted connector (no text or symbols)

1. Installez le Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a close-up of the engine's internal structure (no text or labels)

Diagram of a car engine compartment showing hand operating valve and connector (no text or symbols)

Diagram of a car interior showing a hand adjusting the dashboard and screwdriver (no text or symbols present)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and discharge with crossed-out containers, accompanied by a worker in protective gear.

Simple black icon showing a droplet and a fuel pump with a plus sign, representing fuel or gas (no text or symbols)

Diagram showing a person falling off a slope with a warning triangle and directional arrows indicating safety or hazard.

Illustration of a person in protective gear using a tool to lift a cylindrical object with an arrow indicating motion (no text or symbols)

Diagram of a manual tool emitting a curved arrow, no text or symbols present

Diagram showing car interior components with labeled parts A and B, likely illustrating a vehicle safety or safety mechanism.

Illustration of a worker using a chainsaw to cut the chain (no text or symbols present)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual chain saw with a curved blade and directional arrow (no text or symbols)

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Illustration of a hand using a chainsaw to cut a circular saw (no text or symbols present)

Line drawing of a manual chain saw cutting a circular cutter (no text or symbols)

Diagram illustrating a chain-linking process with warning sign and chains, showing safety hazard and mechanical cutting tool.

Illustration of two workers carrying stacks of logs, one holding a tool and the other handling a ladder (no text or symbols)

Diagram of a mechanical tool interacting with a circular component, showing motion direction (no text or symbols)

Warning symbol showing a chainsaw crushing a gear with an exclamation mark, indicating safety hazard.

Diagram illustrating a chain saw tool and its two circular cutouts with labeled steps 1 and 2.

Illustration of a landslide with a lightning bolt and warning symbol (no text or labels)

Diagram illustrating three steps of a chain saw tool: cutting, forming a circular cross-section, and tree stumping.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram illustrating a process of hairpin tool application, showing steps 1 and 2 with arrows indicating action.

Illustration of a hand gripping a car seatbelt with a hand operating the seatbelt (no text or symbols present)

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a tree spray gun to spray wood at a post (no text or symbols)

Illustration of a magnifying glass over fire with smoke, no text or symbols present

Illustration showing a worker using a pulley system to lift a vertical pole, with directional arrows indicating force or movement.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a tree grafting process with labeled steps 1 and 2, showing structural changes.

Diagram showing a tree with roots and a broken trunk, indicating erosion or damage (no text or symbols present)

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Diagram of a mechanical tool with a circular component and a curved arrow indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and no visible text or symbols

Pure mechanical diagram showing a rotating shaft and circular component with a downward arrow (no text or symbols)

Diagram showing a circular structure transforming into a tree with a birdhouse on its trunk (no text or symbols)

Safety illustration showing two scenarios of tree damage: one with a person using a tool, the other with a worker sweeping the ground.

Line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Mobile

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Simple line drawing of a curved path with a ball and directional arrow, no text or symbols present

Diagram of a mechanical or structural system with arrows indicating motion, no text or symbols present

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific feature (no text or symbols present)

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rope tied with a loop, showing rope routing and directional arrows (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, showing the seatbelt being adjusted (no text or symbols present)

Illustration of a person using a power saw to cut tree bark (no text or symbols)

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical clamp or clip with an arrow indicating motion direction (no text or symbols)

Line drawing of a chain-linking device with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a chain saw tool and its close-up view (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Line drawing of a handheld device with two circular buttons and three arrows indicating adjustment points (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a close-up view (no text or symbols)

Illustration of hands assembling or repairing electronic components with tools and wiring (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and wiring.

1 cm/0.5 in

Technical line drawing of a handheld device with a central shaft and connector (no text or symbols)

1 cm/0.5 in A

Diagram of a mechanical component with a spring and threaded shaft, labeled with circled B (no text or symbols on the diagram itself)

1 cm/0.5 in

Illustration of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut a saw blade (no text or symbols)

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded end and mounting holes (no text or symbols)

Simple line drawing of a test tube with a downward arrow indicating compression or dislocation (no text or symbols)

Simple line drawing of a mechanical chain with a central gear-like component (no text or symbols)

PITCH = D/2 D

Technical line drawing showing a mechanical component with arrows indicating motion, alongside a separate schematic view of a device with labeled parts (no text or symbols present)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a curved arrow indicating rotation, the other showing a diagonal bar with textured handle (no text or symbols)

• L'angle d'impact.

Pure mechanical diagram showing a gear or cam mechanism with no text, numbers, or symbols

• La position de la lime.

Line drawing of a hand tool with a handle and lever, no text or symbols present

Simple line drawing of a dropper with a handle and a small symbol (no text or labels)

Three line drawings of mechanical parts: a pipette, a plastic bag, and a segmented device (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a bracket and shaft (no text or symbols)

Two mechanical tools: a flat tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical tool or device with an arrow indicating direction (no text or symbols present)

Line drawing of a chain saw with a lever and blade (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating motion (no text or symbols)

Illustration of a worker using a saw to cut tree bark with a downward arrow (no text or symbols)

Isometric line drawing of a mechanical gear or wheel component (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

Pure technical line drawing of a mechanical part with no text or symbols

Illustration of a pair of sawes with a magnified inset showing a blade and handle (no text or symbols)

Illustration of hands using a tool to cut a cylindrical object (no text or symbols visible)

Two abstract geometric symbols: a vertical line with 'M' and a crossed-out X, likely representing a symbolic or logical pattern.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or plunger with an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Technical line drawing of a chain-linking device with gear and blade assembly (no text or symbols)

Technical diagram of a car dashboard with labeled parts A, B, C, D, and E

Technical diagram of a chain-linking device with numbered parts and exploded view, including open book, screwdriver, and internal components.

Safety warning symbol showing a crossed-out device with smoke and a battery, indicating no hazard or absence of any chemical hazard.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with 'No' text.

Illustration of a worker in safety gear using a tool to cut wood or wood fragments with an arrow indicating motion (no text or symbols)

Illustration of a mechanical device with two hands operating it (no text or symbols visible)

Prohibition sign showing a person cutting tree with a crossed-out circle and leafy branches

Safety warning symbol showing a person falling off a tree with a no-smoking circle

Simple line drawing of a crossed-out saw with a diagonal no-smoking symbol (no text or labels)

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with no text.

Illustration of a person using a saw to cut wood or metal, with an arrow indicating the process (no text or symbols present)

Illustration of a hand operating a mechanical device with a tool (no text or symbols)

Prohibition sign showing a person cutting tree with a diagonal line, indicating no pruning or anti-poverty.

Diagram showing a person falling off a tree with a diagonal no-smoking symbol

Safety warning illustration showing a worker wearing a full gear, first aid kit, fire extinguisher, and shovel.

Line drawing of a manual chain saw cutting through a pipe (no text or symbols)

Gashebelsperre

Technical line drawing of a hairpin tool with an inset close-up showing the same blade assembly (no text or symbols)

Rechtshandschutz

Technical line drawing of a mechanical bracket component (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Diagram of a medical device with attached cable and connector (no text or symbols)

Schalldämpfer

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a VR headset with a starburst effect (no text or symbols)

Technical line drawing of a mechanical component with a U-shaped groove and circular holes, no text or symbols present.

Simple line drawing of a water droplet falling into a container (no text or symbols)

Montage

Einleitung

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram showing car interior components with a hand adjusting the dashboard and a tool inserted into a device (no text or symbols present)

Line drawing of a car engine compartment showing internal components and a traffic cone (no text or symbols)

Diagram of a car engine compartment showing internal components and a close-up of the engine plug (no text or labels)

Diagram of a car engine compartment showing hand operating keyway and internal components (no text or labels)

Interior view of a car showing a hand adjusting the dashboard and screwdriver (no text or symbols visible)

Husqvarna Fleet Services™

Safety warning illustration showing a worker spraying fuel containers with a sprayer, accompanied by crossed-out safety symbols.

Simple black-and-white icon showing a droplet and a fuel pump with a plus sign (no text or symbols)

Abstract black-and-white graphic of a droplet above a stylized mask (no text or symbols)

Diagram illustrating a hazard warning with a person falling into a gear, surrounded by a wall and chain.

Illustration of a person in protective gear using a tool to lift a rolled hose (no text or symbols)

Diagram of a manual tool with a curved blade and chain, showing motion direction (no text or symbols)

Diagram showing car seatbelt insertion mechanism with labeled parts A and B

Illustration of a person using a chainsaw to cut the chain (no text or symbols present)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual chain saw cutting through a blade (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Illustration of a hand using a chainsaw to cut a circular saw (no text or symbols present)

Line drawing of a manual saw cutting process with motion arrows indicating direction (no text or symbols)

Diagram illustrating a hazard warning mechanism with chains, chains, and chains on a tool

Illustration of two workers handling stacked logs, one carrying a log and the other holding a log (no text or symbols present)

Diagram of a manual tool interacting with a circular object, showing motion direction (no text or symbols)

Safety warning illustration showing chainsaw crushing a gear with warning symbol and downward arrow

Diagram illustrating a chain saw tool and its two circular cutouts, labeled with step numbers 1 and 2.

Illustration of a landslide with a lightning bolt and warning symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, rolling, and treeling with labeled arrows.

Simple line drawing of a car with a warning sign and explosion effect (no text or symbols)

Diagram showing a chain saw tool with three labeled steps: cutting, holding, and holding the ring.

Illustration of a hand using a tool to lift a car seatbelt, showing the angle of motion (no text or symbols present)

Illustration of a person using a chain-linking tool to cut tree bark, with an arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a tree to cut through a forest, with sunlight radiating from the trees (no text or symbols)

Simple line drawing of a crossed-out circle with smoke, no text or symbols present

Illustration showing a worker using a power switch to lift a vertical pole, with directional arrows indicating motion or force.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing tool path and leaf structure changes.

Diagram showing a tree with roots and a horizontal line, accompanied by an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text or symbols

Diagram of a mechanical or electrical component with a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Diagram showing a circular structure being lateralized into a tree with a curved blade and hanging objects (no text or symbols)

Diagram illustrating two methods for reducing tree canopy, showing no protection and no intervention.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Tragbar

Simple line drawing of a mechanical clamp or lever system with no text or symbols

Simple line drawing of a curved path with an arrow pointing downward and scattered particles or lines emerging from the right (no text or symbols)

Diagram of a mechanical or fluid system with two curved surfaces, directional arrows indicating motion, and a central device (no text or symbols present)

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Diagram showing a cross-section of a layered structure with an upward arrow indicating a specific feature (no text or symbols present)

Diagram showing airflow or particle movement between two curved surfaces with arrows indicating direction (no text or symbols)

Simple line drawing of a rope tied with a loop, showing rope movement and directional arrows (no text or symbols)

Illustration of a person using a car seatbelt device (no text or symbols visible)

Illustration of a person using a power saw to cut tree bark (no text or symbols)

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical clamp or clip with directional arrows indicating motion (no text or symbols)

Line drawing of a chain-linking device with a black arrow indicating motion direction (no text or symbols)

Technical line drawing of a manual tool with blade and handle, shown in two views (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a chainsaw with an inset showing a small object labeled 'F' and 'N' (no text or symbols on the diagram itself)

Line drawing of a car's front bumper with two buttons and arrows indicating adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of hands assembling or repairing electronic components in a circuit board (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Diagram of a medical or laboratory device with a central shaft and two connectors, no text or symbols present.

1 cm/0.5 in

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Line drawing of a hand using a tool to cut a saw (no text or symbols)

Reinigen des Luftfilters

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Simple line drawing of a test tube with a downward arrow indicating force or movement (no text or symbols)

Simple line drawing of a chain with a central star-like shape (no text or symbols)

PITCH = D/2 D

Diagram showing a mechanical component with a vertical shaft and a curved blade, both without any text or symbols.

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical part with a vertical scale and directional arrows (no text or labels)

Technical line drawing of a mechanical tool with two views: one showing a cutaway view and the other showing a grooved handle (no text or symbols)

- Schnittwinkel.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- Schärfposition.

Line drawing of a screwdriver holding a lever and pin (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Three technical line drawings of mechanical components: a dropper, a bracket, and a clamp (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols visible)

Two line drawings of tools: a radial tool and a mechanical device (no text or symbols)

Technical line drawing of a mechanical component with a threaded fastener inserted (no text or symbols)

Line drawing of a chain saw with a lever and directional arrow (no text or symbols)

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating motion (no text or symbols)

Illustration of a person in protective gear using a saw to cut tree bark with a downward arrow (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

Pure technical line drawing of a mechanical part with no text or symbols

Simple line drawing of a switch or lever mechanism with a black arrow pointing downward (no text or symbols)

Illustration of a pair of scissors cutting a blade, with a magnified inset showing the blade's tip (no text or symbols)

Line drawing of a hand using a tool to cut a cylindrical object (no text or symbols)

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a pen-like object with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Luftfiltersystem

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Technical diagram of a car airbag assembly with labeled parts A, B, C, D, and E

Shut = Huluk

Stefan Holmberg, R&D Director, Technology Management, Husqvarna AB

Technical diagram of a chain-linking device with numbered parts and exploded view, including open book, screwdriver, and internal components.

Safety warning symbol showing a crossed-out device with smoke and a tool, indicating no hazard or absence of any chemical hazard.

Prohibition sign showing a worker climbing a rope with a ladder, enclosed in a circle (no text or symbols)

Illustration of a person using a saw to cut wood or wood fragments with a curved arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with hands operating it (no text or symbols)

Prohibition sign showing a person walking under a tree with 'No' and 'Yes' signs, indicating no movement or restriction.

Safety warning symbol showing a person climbing a tree with a diagonal line indicating no protection

Simple line drawing of a crossed-out cigarette with a diagonal no-smoking symbol (no text or labels)

Prohibition sign showing a worker on a ladder against a circular background (no text or symbols)

Illustration of a person using a saw to cut wood or metal, with a curved arrow indicating motion (no text or symbols)

Illustration of a hand operating a mechanical device with a tool (no text or symbols visible)

Prohibition sign showing a person walking under a tree with a diagonal line (no text or symbols)

Simple line drawing of a person climbing a tree with a diagonal line (no text or symbols)

Illustration of a person wearing a full-body mask, first aid kit, fire extinguisher, and shovel (no text or symbols)

Line drawing of a manual tool emitting a fan or blade (no text or symbols)

Diagram of a chainocenter with labeled parts A and B, showing blade and handle (no text or symbols beyond labels)

Technical line drawing of a hairpin tool and its magnified view showing the blade structure (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a medical device with a bulb inserted into a stack of tissue (no text or symbols)

Εξάτμιση

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Ασφάλεια καυσίμου

Min. 3 m (10 ft)

Simple line drawing of a mechanical component with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a crossed-out circle with a diagonal line and horizontal bands, indicating a restriction or barrier in a material cross-section.

Simple line drawing of a device with a droplet above it and a container (no text or symbols)

Συναρμολόγηση

Εισαγωγή

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram of a car interior showing hand tool, valve, and directional arrow (no text or symbols)

Technical line drawing of a car engine compartment showing internal components and a hand operating the valve (no text or symbols present)

Diagram of a car engine compartment showing internal components and a close-up of the engine's internal structure (no text or labels)

Technical line drawing of a car engine compartment showing valve and gear assembly (no text or symbols)

Diagram of a car interior showing hand positioning and tool insertion (no text or symbols)

Safety warning illustration showing fuel injection, storage, and hazard symbols with a uniformed officer holding a bottle

Simple black icon showing a fuel pump with a droplet and plus sign, symbolizing fuel or energy addition (no text or symbols)

Diagram illustrating a hazard warning with a person falling off a slope, showing traffic flow and safety symbols.

Illustration of a person in protective gear using a tool to lift a large cylindrical object with an arrow indicating upward motion (no text or symbols)

Line drawing of a manual chain attachment mechanism with motion arrow (no text or symbols)

Technical diagram showing car seatbelt components with labeled parts A and B, likely for vehicle safety or repair instructions.

Illustration of a person using a chainsaw to cut the chain (no text or symbols present)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a car handle with a curved arrow indicating motion (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Line drawing of a person using a chain mill to cut a circular saw (no text or symbols)

Line drawing of a manual saw cutting process with motion arrows indicating direction (no text or symbols)

Diagram illustrating a chain-linking process with warning sign and chainsaw mechanism

Illustration of two workers handling stacked logs, one holding a tool and the other standing with a ladder (no text or symbols)

Diagram of a manual tool interacting with a circular object, showing motion direction (no text or symbols)

Warning symbol and diagram showing a chain saw crushing a gear with a warning triangle and downward arrow

Diagram illustrating a chain saw tool and its three-step assembly with labeled steps 1 and 2.

Illustration of a landslide with a lightning bolt and warning symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and treeling with labeled arrows.

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing three steps of a hairpin tool: cutting, opening, and opening with labeled arrows.

Illustration of a hand using a cable to lift a car, showing the angle and motion direction (no text or symbols)

Illustration of a person using a chain-linking tool to cut tree bark, with an arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a tree to spray or spray over a log stack, with no visible text or symbols.

Illustration of a crossed-out magnifying glass over fire, no text or symbols present

Illustration showing a person using a tool to lift a vertical pole, with directional arrows indicating motion or force.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing blade turning and tree structure changes.

Diagram showing a tree trunk with a horizontal line and a right-pointing arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text or symbols

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and internal channels (no text or labels)

Mechanical diagram showing a rotating shaft and wheel assembly with a directional arrow (no text or labels)

Diagram showing a circular structure transforming into a tree with an arrow indicating direction (no text or symbols)

Diagram illustrating two methods for reducing tree height, showing no intervention and no intervention with a person using a tree.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

• Φορητό

Simple line drawing of a mechanical clamp or lever system with no text or symbols

Simple line drawing of a curved path with a ball and scattered debris, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and circular components, no text or symbols present.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Diagram showing a layered structure with an upward arrow, no text or symbols present

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rope or rope loop with an arrow indicating upward motion (no text or symbols)

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

Two identical illustrations of a worker using a saw to cut tree stumps, showing mechanical components (no text or symbols)

Line drawing of a chain-linking tool with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical tool with an arrow indicating motion direction (no text or symbols)

Line drawing of a chain-linking device with a black arrow indicating motion direction (no text or symbols)

Line drawing of a manual tool cutting into a close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object labeled 'F' and 'N' (no text or symbols on the diagram itself)

Line drawing of a car interior seatbelt with two buttons and arrows indicating fastening or adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screw and adjustment knob (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate view showing a component (no text or symbols)

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Diagram of a handheld device with a lever and connector, showing internal components and directional arrows (no text or symbols)

1 cm/0.5 in

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut a saw (no text or symbols)

Technical line drawing of a car interior showing internal components and structural details (no text or symbols)

Technical line drawing of a mechanical component with threaded shaft and mounting base (no text or symbols)

Simple line drawing of a cylindrical object with a downward arrow and internal oval feature (no text or symbols)

Simple line drawing of a chain with a starburst symbol inside, no text or labels present.

PITCH = D/2 D

Diagram showing a mechanical component with an arrow indicating direction, alongside a separate view of a curved object with labeled points (no text or symbols present)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical part with a vertical rod and directional arrows (no text or labels)

Technical line drawing of a mechanical tool with two views: one showing a cutaway view and the other showing a detailed fillet (no text or symbols)

• Γωνία κοπής.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

• Θέση λίμας.

Line drawing of a screwdriver holding a lever with a central pivot (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Three technical illustrations of mechanical components: a dropper, a connector, and a clamp device (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Two mechanical tools: a radial tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a chain saw with a hammer and gear (no text or symbols)

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating movement (no text or symbols)

Line drawing of a chain saw with a directional arrow indicating motion (no text or symbols)

Illustration of a worker using a power tool to cut tree bark with a downward arrow (no text or symbols)

Technical illustration of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a saw cutting through a slot with a magnified inset (no text or symbols)

Illustration of hands holding a long, thin object resembling a tool or tool (no text or symbols visible)

Two abstract geometric symbols: a V-shaped line and a cross with a black X, likely representing stylized letters or symbols.

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or blade with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Technical diagram of a car dashboard with labeled components A through E

Technical diagram of a chain-linking device with numbered parts for identification and assembly reference.

Safety warning symbol showing a crossed-out device with smoke and a hand holding a cigarette

Prohibition sign showing a worker climbing a ladder with tools, enclosed in a circle (no text or symbols)

Illustration of a worker cutting wood with a tool, showing a curved arrow indicating motion (no text or symbols)

Illustration of a hand operating a mechanical device with a curved handle (no text or symbols)

Prohibition sign showing a person walking under a tree with a crossed-out trunk (no text or symbols)

Diagram showing a person falling off a tree with a diagonal line indicating no movement or restriction.

Safety warning symbol showing a chain silhouette crossed out by a diagonal line, indicating no hazard or caution.

Prohibition sign showing a worker on a ladder holding tools, enclosed in a circle with no text.

Illustration of a worker cutting wood with a tool, showing a curved arrow indicating motion (no text or symbols)

Illustration of a mechanical device with two hands operating it, no text or symbols present

Prohibition sign with pictogram of a person walking under a tree, indicating no movement or restriction

Simple line drawing of a person climbing a tree with a diagonal no-discrimination circle (no text or symbols)

Illustration showing a person in full safety gear with first aid kit, fire extinguisher, and shovel, all labeled in Chinese.

Simple line drawing of a car with exhaust pipe and airflow arrow (no text or symbols)

Gázadagoló retesze

Diagram of a chain-linking device with labeled parts A and B (no text or symbols beyond labels)

Láncfogó

Technical line drawing of a chain-linking tool and its magnified view (no text or symbols)

Jobb oldali kézvédő

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a chainsaw with a magnified inset showing a person holding a box (no text or symbols)

FIGYELMEZTETÉS: A be/ki

Illustration of a medical device with tubing and a bulb (no text or symbols)

Kipufogódob

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a device with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Simple line drawing of a droplet falling into a container with two circular ports (no text or symbols)

Összeszerelés

Bevezető

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a car's air vent and fan (no text or symbols visible)

Diagram of a car engine compartment showing internal components and a highlighted connector (no text or labels)

Diagram of a car interior showing engine compartment and sensor device (no text or symbols)

Technical line drawing of a car engine compartment showing valve and gear assembly (no text or symbols)

Diagram of a car interior showing hand positioning and tool insertion (no text or symbols)

Husqvarna Fleet Services™

Illustration showing a fuel pump with chemical inputs and a worker carrying a bag, accompanied by crossed-out symbols.

Symbol of fuel pump with droplet and plus sign, representing energy or fuel efficiency (no text or numbers present)

Abstract black silhouette of a mask with a droplet above it (no text or symbols)

Diagram showing a warning sign with arrows indicating direction and a chain of chains below, likely illustrating safety or hazard.

Illustration of a worker in protective gear using a tool to lift a rolled paper or cable (no text or symbols)

Diagram of a manual chain attachment mechanism with motion arrow (no text or symbols)

Technical diagram showing car seatbelt components with labeled parts A and B, likely illustrating vehicle safety or mechanical assembly.

Illustration of a person using a chainsaw to cut the chain (no text or symbols present)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a car hood with airflow direction arrow (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols present)

Illustration of a hand using a chain mill to cut a circular saw (no text or symbols present)

Line drawing of a manual power saw cutting a blade, showing tool path and motion arrows (no text or symbols)

Diagram illustrating a chain-linking process with warning sign and chain attachment mechanism

Illustration of two workers handling stacked logs, one holding a log and the other assembling a wooden structure (no text or symbols)

Diagram of a manual tool interacting with a circular object, showing motion and rotation (no text or symbols)

Warning symbol and diagram showing a chain saw crushing a gear with warning sign

Diagram illustrating a chain saw tool and its two circular cutouts, labeled with step numbers 1 and 2.

Illustration of a landslide with a lightning bolt, warning sign, and hazard symbol (no text or labels)

Diagram showing a chain saw with three labeled parts: cutting edge, cross-section, and tree cut.

Simple line drawing of a car with a warning sign and explosion effect (no text or symbols)

Diagram illustrating a chain saw tool with three steps: cutting, opening, and cutting through a circular opening.

FIGYELMEZTETÉS: Ha

Illustration of a hand gripping a car seatbelt with a directional arrow indicating motion (no text or symbols)

FIGYELMEZTETÉS: Ha

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark, with a black arrow indicating the direction (no text or symbols present)

Illustration of a person spraying trees with a light source, surrounded by fallen logs (no text or symbols)

Illustration of a magnifying glass over flames with a diagonal line, no text or symbols present

Illustration of a person using a tool to lift a vertical pole, with arrows indicating motion (no text or symbols)

Diagram of concentric circular lines with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing blade turning and cutting direction.

Diagram showing a tree trunk with a horizontal line and a broken branch, no text or symbols present

Simple line drawing of a mechanical tool or bracket (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Technical diagram of a mechanical component with internal structure and directional arrow (no text or labels)

Cross-sectional diagram of a mechanical or structural component with layered structure and a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and internal grooves (no text or symbols)

Diagram illustrating a mechanical or structural change with labeled components and directional arrows indicating movement.

Diagram illustrating two scenarios of a person walking on a tree, with one scenario marked by a prohibition symbol.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

• Hordozható

Simple line drawing of a mechanical clamp or lever mechanism with no text or symbols

Simple line drawing of a ball rolling down an uneven stream with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows and circular components, no text or symbols present.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rope tied with a loop, showing rope movement and directional arrows (no text or symbols)

Illustration of a car seatbelt mechanism with arrows indicating motion (no text or symbols)

Illustration of two workers in protective gear using a saw and tree stump (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a chain-linking device with a black arrow indicating the handle (no text or symbols)

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object labeled 'N' (no text or symbols on the diagram itself)

Line drawing of a car's seatbelt with two arrows indicating adjustment points (no text or symbols present)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of hands assembling or repairing a mechanical component with tools and components (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Technical line drawing of a handheld device with a lever and connector (no text or symbols)

1 cm/0.5 in

Illustration of hands assembling or adjusting a mechanical component with no visible text or symbols

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded body and two downward arrows indicating force or movement (no text or symbols)

Simple line drawing of a test tube with a downward arrow indicating compression or dislocation (no text or symbols)

Simple line drawing of a chain with a central star-like shape (no text or symbols)

PITCH = D/2 D

Diagram showing a mechanical component with an arrow indicating direction, alongside a separate view of a curved object with a labeled angle (no text or symbols present)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Pure technical diagram showing a mechanical part and a vertical rod with directional arrows (no text or symbols)

Technical line drawing of a mechanical tool with a curved arrow indicating rotation (no text or symbols)

• Vágási szög.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

- Reszelőpozíció.

Line drawing of a screwdriver holding a lever and pin (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Line drawings of three mechanical components: a dropper, a plastic clamp, and a tool holder (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Two types of hair tools: a radial tool and a rectangular tool (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a chain saw with a hammer and gear (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating motion (no text or symbols)

Illustration of a person using a power manual to cut tree bark with a saw (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted into a circular component (no text or symbols)

Diagram showing mechanical assembly with arrows indicating process direction (no text or symbols)

Pure geometric diagram showing a rectangular shape with a curved cutout and a dashed line indicating a dimension (no text or symbols)

Simple line drawing of a switch component with a black arrow pointing to the button (no text or symbols)

Illustration of a knife and a tool with a magnified inset showing a cylindrical object (no text or symbols)

Line drawing of a hand holding a cylindrical object, no text or symbols present

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a device with a black arrow indicating rotation (no text or symbols)

Simple line drawing of a tool with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a chain-linking device with gear and blade assembly (no text or symbols)

Technical diagram of a car dashboard with labeled components A, B, C, D, and E

Technical diagram of a chain-linking device with numbered parts for identification and assembly reference.

Safety warning symbol showing a crossed-out device with smoke and a hand holding a cigarette

Prohibition sign showing a worker climbing a tree with a diagonal line, no text or symbols present.

Illustration of a person using a saw to cut wood or metal, with a curved arrow indicating the process (no text or symbols present)

Illustration of a mechanical device with two hands operating it, no text or symbols present

Prohibition sign showing a person walking under a tree with a diagonal line (no text or symbols)

Diagram showing a person falling off a tree with a diagonal line indicating prohibition or restriction.

Safety warning symbol showing a crossed-out device with smoke and a tool, indicating no hazard or absence of any other chemical hazard.

Prohibition sign showing a worker climbing a ladder with no text or symbols

Illustration of a worker in protective gear using a tool to cut metal beams with an arrow indicating motion (no text or symbols)

Illustration of a hand gripping a mechanical device (no text or symbols)

Illustration of a person walking under a tree with a diagonal line (no text or symbols)

Prohibition sign with silhouette of worker on a ladder crossed out, indicating no labor or safety restrictions

Illustration of two people pulling a car with motion lines indicating speed (no text or symbols)

Diagram showing a person falling off a tree with a diagonal line indicating prohibition or restriction.

Illustration of a person wearing a full-body mask, first aid kit, fire extinguisher, and shovel (no text or symbols)

Simple line drawing of a mechanical device with motion arrows indicating motion (no text or symbols)

Diagram of a chain-linking device with labeled parts A and B, showing mechanical components without any text or symbols.

Fermo della catena

Technical line drawing of a manual power tool with a close-up view of its edge detail (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a chainsaw with an inset showing a small object (no text or symbols present)

Illustration of a medical device with a bulb inserted into a stack of layers (no text or symbols)

Marmitta

Technical line drawing of a mechanical component with mounting holes and internal features (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a device with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Simple line drawing of a droplet falling into a container with two circular ports (no text or symbols)

Montaggio

Introduzione

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a car interior showing hand tool interacting with engine compartment, plus a close-up of the engine compartment with a wrench (no text or symbols present)

Line drawing of a car engine compartment showing the handle, vent, and sensor (no text or symbols)

1. Installare Husqvarna connectivity device.

Diagram of a car engine compartment showing internal components and a sensor device (no text or labels)

Technical diagram of a car engine compartment showing internal components and a hand operating the valve (no text or labels)

Diagram of a car interior showing hand positioning, screwdriver insertion, and dashboard placement (no text or symbols)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and discharge with crossed symbols indicating no hazard, accompanied by a uniformed officer.

Simple black-and-white icon of a fuel pump with a droplet and plus sign, no text or symbols present.

Abstract black-and-white graphic with a droplet above a stylized mask (no text or symbols)

Diagram illustrating a hazard warning with a person falling into a wall, surrounded by chains and a traffic sign.

Illustration of a person in protective gear using a tool to cut a rolled paper or cable with an upward arrow (no text or symbols)

Diagram of a car hood with airflow direction arrow (no text or symbols)

Diagram showing car seatbelt components with labeled parts A and B, likely illustrating vehicle safety or safety instructions.

Illustration of a person using a chain-linking tool (no text or symbols present)

Diagram of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical device with motion arrows indicating motion (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a person using a chain mill to cut a circular saw (no text or symbols present)

Line drawing of a manual power saw cutting a blade with motion arrows indicating direction (no text or symbols)

AVVERTENZA: Se la catena

Diagram illustrating a chain-linking process with warning sign and chain-linking tool, showing safety hazard and motion arrows.

Illustration of two workers handling large logs, one holding a wooden log and the other carrying a wooden log (no text or symbols present)

Simple line drawing of a tool cutting through a circular hole, with an arrow indicating rotation (no text or symbols)

Safety warning illustration showing a chainsaw crushing a tool with a warning symbol and a downward arrow indicating hazard.

Diagram illustrating a chain saw tool with two steps: cutting and tree ringing, labeled in English.

Illustration of a landslide with a falling object and warning symbol (no text or labels)

Diagram showing a chain saw with labeled parts and arrows indicating process steps

Simple line drawing of a car with a warning sign and explosion symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and opening with labeled arrows.

Illustration of a hand using a tool to lift a car, showing motion direction (no text or symbols)

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a person using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person spraying tree roots with a light source, no text or symbols present

Illustration of a magnifying glass over a flame with smoke, no text or symbols present

Illustration showing a person using a tool to lift a vertical pole, with arrows indicating motion and numbered steps.

Diagram of concentric circular layers with a vertical bar and directional arrows, no text or symbols present.

Diagram illustrating a manual tree cutting process with labeled steps 1 and 2, showing tool path and leaf removal instructions.

Diagram showing a tree trunk with a horizontal line and a broken branch, indicating tree damage or erosion (no text or symbols present)

Simple line drawing of a mechanical tool or bracket (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Technical line drawing of a mechanical component with a curved arrow indicating motion or force (no text or symbols)

Cross-sectional diagram of a mechanical component with layered structure and directional arrow (no text or labels)

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Diagram showing a circular structure transforming into a tree with a triangular structure (no text or symbols)

Safety illustration showing two scenarios of tree pruning with no signage, indicating no protection or no intervention.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Manuale

Simple line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Simple line drawing of a curved path with a ball and a downward arrow, no text or symbols present

Diagram of a mechanical or fluid system with arrows indicating direction and circular components (no text or labels)

Diagram showing layered geological strata with no text or symbols

Diagram showing a cross-section of a layered structure with an upward arrow indicating direction (no text or symbols present)

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a circular object with a curved handle and an arrow indicating upward motion (no text or symbols)

Line drawing of a hand using a lever mechanism to lift a car (no text or symbols)

Illustration of a person using a saw to cut tree bark (no text or symbols)

Illustration of a person using a power saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical clamp or bracket with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical tool or bracket with an arrow indicating motion direction (no text or symbols)

Technical line drawing of a manual power tool with blade and handle, shown in two views (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a chainsaw with an inset showing a person holding a box (no text or symbols)

Line drawing of a car's seatbelt with two arrows indicating fastening or adjustment (no text or symbols present)

Technical line drawing of a mechanical component with a screw and adjustment knob (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of hands assembling or repairing a mechanical component with tools and components (no text or symbols visible)

Diagram of a mechanical assembly with tool and component, no visible text or symbols

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and wiring.

1 cm/0.5 in

Technical line drawing of a handheld device with a lever and connector (no text or symbols)

1 cm/0.5 in

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Simple line drawing of a test tube with a downward arrow pointing to a small internal component (no text or symbols)

Diagram of a mechanical linkage or chain with a central gear-like component (no text or symbols)

PITCH = D/2 D

Diagram showing a mechanical component with an arrow indicating direction, alongside a separate view of a curved object with internal features (no text or symbols)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a shaft and housing, showing alignment arrows (no text or symbols)

Technical line drawing of a mechanical tool with an arrow indicating rotation and a cross-sectional view (no text or symbols)

- Angolo di taglio.

Simple line drawing of a mechanical component with curved arrows indicating motion or force (no text or symbols)

Line drawing of a screwdriver holding a tool, no text or symbols present

Simple line drawing of a dropper with a small symbol (no text or labels)

Three line drawings of mechanical parts: a pipette, a plastic clamp, and a tool holder (no text or symbols)

Mechanical assembly diagram showing a clamp or bracket with diagonal bracing and mounting holes (no text or symbols)

Two mechanical tools: a flat tool and a clamped tool (no text or symbols visible)

Technical line drawing of a mechanical tool with a spring and base, showing no text or symbols

Line drawing of a chainsaw with a lever and directional arrow (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating motion (no text or symbols)

Illustration of a person using a power tool to cut tree bark with a downward arrow (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal gears and a central hub (no text or symbols)

Diagram showing mechanical assembly with arrows indicating force direction (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Simple line drawing of a switch mechanism with a black arrow pointing to the button (no text or symbols)

Illustration of a knife and a tool with a magnified inset showing a vertical blade (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Two abstract geometric symbols: a vertical line with 'M' and a crossed-out X, likely representing stylized letters or symbols.

Simple line drawing of a tool with two crossed X marks and downward arrows indicating direction (no text or symbols)

Illustration of a hand holding a rectangular object with an arrow indicating rotation (no text or symbols)

Simple line drawing of a curved object with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Shut = John's

Stefan Holmberg, Responsabile R&S, Technology Management, Husqvarna AB

Technical diagram of a chain-linking device with numbered parts and exploded view, including open book, screwdriver, and internal components.

Simple line drawing of a crossed-out cigarette with smoke and a hand (no text or symbols)

Prohibition sign showing a worker on a pole with a diagonal line, no text or symbols present

Illustration of a person using a saw to cut wood or metal, with a curved arrow indicating the process (no text or symbols present)

Illustration of a hand using a tool to lift a curved object (no text or symbols present)

Prohibition sign showing a person pruning trees with a diagonal line (no text or symbols)

Diagram showing a person falling off a tree with a prohibition symbol, indicating no movement or restriction.

Simple line drawing of a crossed-out cigarette with smoke and a diagonal slash (no text or symbols)

Prohibition sign showing a worker on a utility pole crossed out by a diagonal line, indicating no labor or equipment violation.

Illustration of a worker using a saw to cut wood or metal, with an arrow indicating the process (no text or symbols present)

Illustration of a hand gripping a mechanical component (no text or symbols)

Prohibition sign with a person walking under a tree, indicating no movement or restriction

Cartoon illustration of a person climbing a tree with a diagonal line (no text or symbols)

Illustration showing a person in full gear with first aid kit, fire extinguisher, and shovel, all labeled in Chinese.

Simple line drawing of a car with exhaust airflow and motion arrows (no text or symbols)

Line drawing of a chainociper with labeled parts A and B (no text or symbols beyond labels)

Captor de cadena

Technical line drawing of a hairpin tool and its close-up view (no text or symbols)

Pure technical line drawing of a mechanical component (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object (no text or symbols)

Illustration of a medical device with tubing and a screw-like connector (no text or symbols)

Silenciador

Technical line drawing of a mechanical component with slots and mounting base (no text or symbols)

Min. 3 m (10 ft)

Simple line drawing of a device with a starburst effect (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Diagram showing a prohibition symbol over a grid of labeled blocks, likely indicating a restriction or prohibition in a technical or educational context.

Simple line drawing of a water droplet falling from a container (no text or symbols)

Montaje

Introducción

Technical line drawing of a mechanical assembly with gear and chain components (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Diagram of a car interior showing hand operating controls and a close-up of the dashboard (no text or symbols)

Diagram of a car engine compartment showing the handle, vent, and outlet (no text or labels)

1. Instale el Husqvarna connectivity device.

Diagram of a car interior showing a hand operating the engine compartment with a device attached (no text or symbols visible)

Diagram of a car engine compartment showing valve and gear assembly (no text or labels)

Diagram of a car interior showing hand operating controls and a screwdriver inserted into the dashboard (no text or symbols)

Husqvarna Fleet Services™

Safety warning illustration showing fuel injection and hazard symbols for a worker in uniform

Simple black-and-white icon of a fuel pump with a droplet and plus sign (no text or symbols)

Diagram illustrating a hazard warning with a person falling off a slope, showing a warning triangle and directional arrows.

Illustration of a person in protective gear using a tool to lift a cylindrical object with an arrow indicating motion (no text or symbols)

Diagram of a manual chain attachment mechanism with a curved arrow indicating rotation (no text or symbols)

Diagram showing car seatbelt adjustment mechanism with labeled parts A and B

Illustration of a worker using a chainsaw to cut a saw (no text or symbols present)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a manual chain saw with a curved blade and arrow indicating motion (no text or symbols)

1. Use el producto.

Line drawing of a chainsaw with an inset showing a person inside a box (no text or symbols)

Illustration of a hand using a chain mill to cut a circular saw (no text or symbols present)

Line drawing of a person using a chain-linking tool to cut a circular saw (no text or symbols present)

Diagram illustrating a chain-linking tool with warning symbol and impact effect, showing gear meshing and chain extension.

Illustration of two workers handling stacked logs, one holding a log and the other leaning on a log stack (no text or symbols)

Diagram of a hand tool cutting through a circular hole with a curved arrow indicating rotation (no text or symbols)

Safety warning illustration showing a chainsaw cutting a tool with a warning symbol and a downward arrow indicating damage or hazard.

Line drawing of a chain saw with a downward arrow indicating motion (no text or symbols)

Illustration of a water barrier with warning symbols (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and tree ring opening with labeled arrows.

Simple line drawing of a vehicle with a warning sign and explosion symbol (no text or labels)

Diagram showing three steps of a chain saw tool: cutting, opening, and opening with labeled arrows.

Illustration of a hand using a tool to lift a car seatbelt, showing the angle of motion (no text or symbols present)

Illustration of a hand using a saw to cut tree bark with a black arrow indicating the process (no text or symbols present)

Illustration of a hand using a tool to cut tree bark with a downward arrow indicating the process (no text or symbols present)

Illustration of a person using a tree to spray or spray over a fallen log, with no text or symbols present.

Illustration of a hand holding a magnifying glass over a flame, with no text or symbols present.

Diagram illustrating a manual labor process with labeled arrows and motion indicators, showing a worker using a tool to lift or push a machine.

Diagram of concentric circular layers with a vertical gap and directional arrows, no text or symbols present

Diagram illustrating a tree pruning process with labeled steps 1 and 2, showing tool path and tree structure changes.

Diagram showing a geological or structural interaction with arrows indicating direction of movement (no text or symbols present)

Simple line drawing of a mechanical tool or bracket (no text or symbols)

Line drawing of a mechanical component with a circular base and curved handle (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and directional arrow (no text or labels)

Cross-sectional diagram of a mechanical or fluidic component with layered structure and internal flow (no text or symbols)

Technical diagram of a mechanical component with internal channels and a directional arrow (no text or labels)

Diagram illustrating a mechanical or structural change between two tree branches, showing a circular component before and after installation (no text or symbols present)

Diagram illustrating two scenarios of a person using a tree, with one scenario showing no restrictions and the other showing no restrictions.

Simple line drawing of a tractor pulling a tree with a lever (no text or symbols)

- Portátil

Simple line drawing of a mechanical clamp or lever system with no text or symbols

Simple line drawing of a ball rolling down an uneven stream with a downward arrow (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows and circular components, no text or symbols present.

Cross-sectional diagram of a geological or structural cross-section showing layered rock formations and terrain (no text or labels)

Cross-sectional diagram of a layered geological or structural structure with an upward arrow indicating a specific layer (no text or symbols present)

Diagram of a curved structure with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rope or rope loop with an arrow indicating direction (no text or symbols)

Line drawing of a hand pressing down on a car seatbelt, showing motion arrows (no text or symbols)

Illustration of a person using a saw to cut tree bark (no text or symbols)

Illustration of a person using a manual saw to cut tree bark (no text or symbols)

Line drawing of a chain-linking device with arrows indicating motion direction (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical tool with an arrow indicating motion or force (no text or symbols)

Technical line drawing of a chain saw tool and its magnified view (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

Line drawing of a chainsaw with an inset showing a small object labeled 'STOP' (no text or symbols on the diagram itself)

Line drawing of a car's seatbelt with two buttons and arrows indicating adjustment (no text or symbols)

Technical line drawing of a mechanical component with a screwdriver inserted (no text or symbols)

Technical line drawing of a lawn mower assembly with fan blades and housing (no text or labels)

Illustration of hands assembling or repairing a mechanical component with a tool (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a component with arrows indicating motion (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and connections.

1 cm/0.5 in

Diagram of a handheld device with a lever and connector (no text or symbols)

1 cm/0.5 in

Line drawing of hands operating a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to cut a saw (no text or symbols present)

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Technical line drawing of a mechanical component with threaded base and shaft (no text or symbols)

Simple diagram of a cylindrical object with a downward arrow and two small circular elements inside, no text or symbols present.

PITCH = D/2 D

Diagram showing a mechanical component being inserted into a housing, with no visible text or symbols.

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical part with a vertical scale and dimension arrows (no text or symbols)

Technical line drawing of a mechanical tool with two views: one showing a curved component and the other showing a grooved handle (no text or symbols)

- Ángulo de corte.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Line drawing of a screwdriver holding a lever and connecting pin (no text or symbols)

Simple line drawing of a dropper with a small symbol (no text or labels)

Three line drawings of mechanical parts: a pipette, a plastic component, and a textured container (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly (no text or symbols)

Two mechanical tools: a textured tool and a clamped device (no text or symbols visible)

Technical line drawing of a mechanical tool or component with no visible text or symbols

Line drawing of a chain saw with a lever and blade (no text or symbols)

Line drawing of a chainsaw with a directional arrow indicating motion (no text or symbols)

Illustration of two hands holding a cylindrical object with directional arrows indicating movement (no text or symbols)

Illustration of a person using a power tool to cut tree bark with a saw (no text or symbols)

Mechanical assembly diagram showing a tool inserted into a circular component with internal springs (no text or symbols)

Mechanical assembly diagram showing two stages of toolpathing (no text or labels)

Pure geometric diagram showing a rectangular shape with a curved cutout and a dashed line indicating a dimension (no text or symbols)

Simple line drawing of a switch mechanism with a black arrow indicating downward motion (no text or symbols)

Illustration of a knife and a cutting tool with a magnified inset showing a blade detail (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Simple line drawing of a test tube with two crossed arrows indicating direction (no text or symbols)

Illustration of a hand holding a pen with a circular arrow indicating rotation (no text or symbols)

Simple line drawing of a tool or plunger with an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Purificador de aire

Technical line drawing of a chain-linking device with visible blades and components (no text or symbols)

Technical diagram of a car body with labeled parts A, B, C, D, and E, showing internal mechanical components.

Shut = Huluk

Original instructions

Bruksanvisning i original

Alkuperäiset ohjeet
